Porter-Cable PCL180CD User manual

18v 1/2 inch (13mm)
Cordless Drill/Driver
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.portercable.com
INSTRUCTIVO DE OPERACIÓN,
CENTROS DE SERVICIO Y PÓLIZA DE
ARANTÍA.
ADVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL
PRODUCTO.
Perceuse-visseuse sans fil
de 18v 1/2 po (13 mm)
Taladro/destornillador inalámbricos
de 18v y 13 mm (1/2 pulg.)
CATALOG NUMBER
PCL180CD

2
General Power Tool Safety Warnings
WARNING: Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1) Work area safety
a) eep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust.Power tools create sparks which
may ignite the dust or fumes.
c) eep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. eep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a ground
fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the
risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. eep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. eep your hair,
clothing and gloves away from moving parts. oose clothes, jewelry or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.

3
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power toolʼs
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) eep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like
paper clips, coins, keys, nails, screws, or other small metal objects that can
make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery, avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. iquid ejected from the battery may cause
irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool is
maintained.
Specific Safety Rules
• Use auxiliary handle(s) if supplied with the tool. oss of control can cause personal
injury.
•Hold power tool by i sulated grippi g surfaces whe performi g a operatio
where the cutti g accessory may co tact hidde wiri g or its ow cord. Cutting
accessory contacting a "live" wire may ma e exposed metal parts of the power tool
"live" and could give the operator an electric shoc .•Use clamps or another
practical way to secure and support the work piece to a stable platform. Holding
the work by hand or against your body leaves it unstable and may lead to loss of
control.
•When not in use, place tool on its side on a stable surface where it will not cause
a tripping or falling hazard. Some tools with large battery packs will stand upright but
may be easily knocked over.
•eep your hair, clothing, and gloves away from air vents. Air vents often cover
moving parts in which these items can be caught.
•Hold tool firmly with two hands, one hand on the handle, and the other gripping the
bottom around the battery area. Use auxiliary handle if provided. Loss of control can
cause personal injury.

4
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety
glasses. Also use face or dust mask if drilling operation is dusty. A WAYS WEAR
CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CPA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NOSH/OSHA respiratory protection.
WARNING: Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to the state of
California to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,
and other construction activities. Wear protective clothing and wash exposed
areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the
skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disperse dust, which may
cause serious and permanent respiratory or other injury. Always use NOSH/OSHA
approved respiratory protection appropriate for the dust exposure. Direct particles away
from face and body.
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual. The information it contains
relates to protecting YOUR SAFETY and PREVENTIN PROBLEMS. The symbols
below are used to help you recognize this information.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
NOTICE: Used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
Symbols
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V..................volts A ..................amperes
Hz................hertz W..................watts
min ..............minutes ................alternating current
............direct current no ................no load speed
................Class I Construction ..................earthing terminal
(grounded) ................safety alert symbol
................Class II Construction .../min or rpm..revolutions or reciprocation
(double insulated) per minute

5
•When using an extension cord, be sure to use one heavy enough to carry the
current your product will draw. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. The following table shows the correct size
to use depending on cord length and nameplate ampere rating. If in doubt, use the
next heavier gage. The smaller the gage number, the heavier the cord.
Recommended Minimum Wire Size for Extension Cords
Total Length of Cord
25 ft. 50 ft. 75 ft. 100 ft. 125 ft. 150 ft. 175 ft.
7.6 m 15.2 m 22.9 m 30.5 m 38.1 m 45.7 m 53.3 m
Wire Size AWG
18 18 16 16 14 14 12

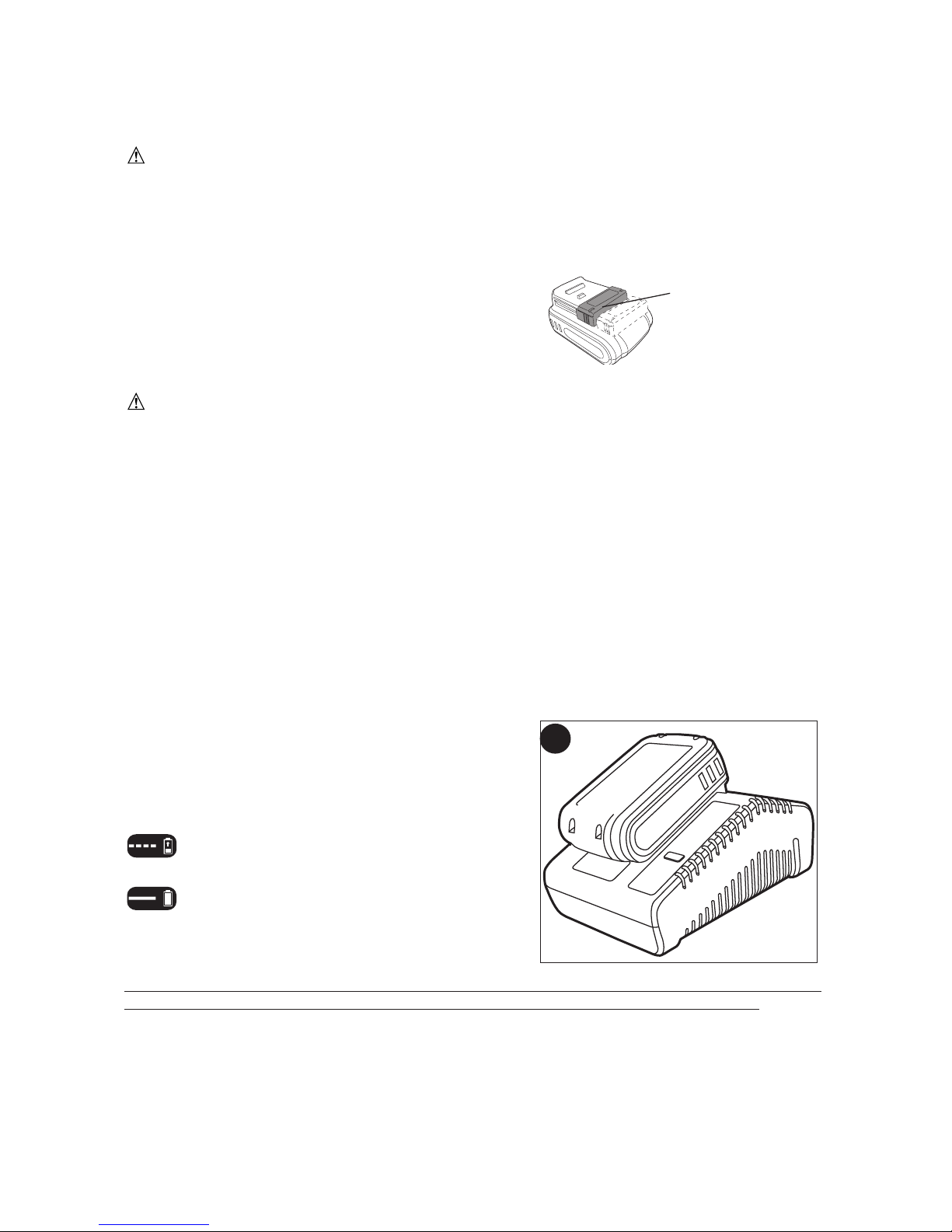

Important Safety Instructions for Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for
battery chargers.
• Before using charger, read all instructions and cautionary markings on charger, battery
pack, and product using battery pack.
WARNING: Shock hazard. Do not allow any liquid to get inside charger.
CAUTION: Burn hazard. To reduce the risk of injury, charge only designated
PORTER-CABLE batteries. Other types of batteries may burst causing personal injury
and damage.
CAUTION: Under certain conditions, with the charger plugged in to the power
supply, the charger can be shorted by foreign material. Foreign materials of a
conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup
of metallic particles should be kept away from charger cavities. Always unplug the
charger from the power supply when there is no battery pack in the cavity. Unplug
charger before attempting to clean.
FUNCTIONAL DESCRIPTION
Figure A
1. Trigger Switch
2. Forward/Reverse Button
3. Torque Adjust Collar
4. Dual Range earing Selector
5. Keyless Chuck
6. Bit Holder
7. Battery
8. Battery Release Button
9. LED Work Light
3
2
4
5
A
6
87
9
Li-Ion Battery Packs and Chargers
Battery: Li-Ion 18V
Charger: Li-Ion
PC18BL
PC18BLX
PC18BLEX
PCLMVC
PCXMVC
Description Cat. #
NI-CD Battery Packs and Chargers
This product can accept any of the batteries and chargers listed in the chart below.
Battery: NI-CD 18V
Charger: NI-CD
PC18B
PCMVC
PCXMVC
Description Cat. #
1

6
•DO NOT attempt to charge the battery pack with any chargers other than the ones
in this manual. The charger and battery pack are specifically designed to work together.
•These chargers are not intended for any uses other than charging designated
PORTER-CABLE rechargeable batteries. Any other uses may result in risk of fire,
electric shock or electrocution.
•Do not expose charger to rain or snow.
•Pull by plug rather than cord when disconnecting charger. This will reduce risk of
damage to electric plug and cord.
•Make sure that cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
•Do not use an extension cord unless it is absolutely necessary. Use of improper
extension cord could result in risk of fire, electric shock, or electrocution.
•An extension cord must have adequate wire size (AWG or American Wire Gauge)
for safety. The smaller the gauge number of the wire, the greater the capacity of the
cable, that is 16 gauge has more capacity than 18 gauge. When using more than one
extension to make up the total length, be sure each individual extension contains at
least the minimum wire size.
•Do not place any object on top of charger or place the charger on a soft surface
that might block the ventilation slots and result in excessive internal heat. Place
the charger in a position away from any heat source. The charger is ventilated
through slots in the top and the bottom of the housing.
•Do not mount charger on wall or permanently affix charger to any surface. The
charger is intended to use on a flat, stable surface (i.e., table top, bench top).
•Do not operate charger with damaged cord or plug — have them replaced immediately.
•Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way. Take it to an authorized service center.
•Do not disassemble charger; take it to an authorized service center when service or
repair is required. Incorrect reassembly may result in a risk of electric shock,
electrocution or fire.
•Disconnect the charger from the outlet before attempting any cleaning. This will
reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
•NEVER attempt to connect 2 chargers together.
•The charger is designed to operate on standard household electrical power (120
Volts). Do not attempt to use it on any other voltage.
SAVE THESE INSTRUCTIONS
Important Safety Instruction for Battery Packs
WARNING: For safe operation, read this manual and manuals originally supplied
with tool before using the charger.
The battery pack is not fully charged out of the carton. Before using the battery pack
and charger, read the safety instructions below. Then follow charging procedures outlined.
READ ALL INSTRUCTIONS
•Do not incinerate the battery pack even if it is severely damaged or is completely
worn out. The battery pack can explode in a fire. Toxic fumes and materials are
created when i-Ion battery packs are burned.
•Do not charge or use battery in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Inserting or removing the battery from the charger
may ignite the dust or fumes.
•If battery contents come into contact with the skin, immediately wash area with
mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for
15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte
for i-Ion batteries is composed of a mixture of liquid organic carbonates and lithium
salts.
•Contents of opened battery cells may cause respiratory irritation. Provide fresh air.
If symptoms persists, seek medical attention.
WARNING: B rn hazard. Battery liquid may be flammable if exposed to spark or flame.

•Charge the battery packs only in PORTER-CABLE chargers.
•DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
•Do not store or use the tool and battery pack in locations where the temperature
may reach or exceed 105°F (40˚C) (such as outside sheds or metal buildings in
summer).
WARNING: Never attempt to open the battery pack for any reason. If battery pack
case is cracked or damaged, do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that has received a sharp blow,
been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a
hammer, stepped on). Damaged battery packs should be returned to service center for
recycling.
Battery Cap Information
Battery storage and carrying caps are provided for
use whenever the battery is out of the tool or
charger. Remove cap before placing battery in
charger or tool.
WARNING: Fire hazard. Do not store or carry battery so that metal objects can
contact exposed battery terminals. For example, do not place battery in aprons,
pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.
Transporting batteries can possibly cause fires if the battery terminals
inadvertently come in contact with conductive materials such as keys, coins, hand
tools and the like. The US Department of Transportation Hazardous Material
Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes
(i.e., packed in suitcases and carry-on luggage) UN ESS they are properly protected
from short circuits. So when transporting individual batteries, make sure that the battery
terminals are protected and well insulated from materials that could contact them and
cause a short circuit. NOTE: Li-Ion batteries sho ld not be p t in checked baggage.
Storage Recommendations
1. The best storage place is one that is cool and dry away from direct sunlight and
excess heat or cold.
2. Long storage will not harm the battery pack or charger.
Charging Procedure
PORTER-CABLE chargers are designed to charge
PORTER-CABLE battery packs in 30-60 minutes
depending on the pack being charged.
1. Plug the charger into an appropriate outlet
before inserting the battery pack.
2. Insert the battery pack into the charger. (Fig. B)
3. The LED will flash indicating that the
battery is being charged.
4. The completion of charge is indicated by
the LED remaining on continuously. The
pack is fully charged and may be used at
this time or left on the charger.
Recharge discharged batteries as soon as possible after use or battery life may be
greatly diminished. For longest battery life, do not discharge batteries fully. It is
recommended that the batteries be recharged after each use.
Charger Diagnostics
This charger is designed to detect certain problems that can arise with the battery
packs or the power source. Problems are indicated by one LED flashing in different
patterns.
Battery Cap
B
7

8
Bad Battery
The charger can detect a weak or damaged battery. The LED flashes in the
pattern indicated on the label. If you see this bad battery blink pattern, do not
continue to charge the battery. Return it to a service center or a collection site for
recycling.
Hot/Cold Pack Delay
When the charger detects a battery that is excessively hot or excessively cold, it
automatically starts a Hot/Cold Pack Delay, suspending charging until the battery
has normalized. After this happens, the charger automatically switches to the
Pack Charging mode. This feature ensures maximum battery life. The light
flashes in the pattern indicated on the label.
Problem Power Line
When the charger is used with some portable power sources such as generators
or sources that convert DC to AC, the charger may temporarily suspend
operation. The LED flashes in the pattern indicated on the label. This indicates
that the power source is out of limits.
Leaving the Battery in the Charger
The charger and battery pack can be left connected with the LED glowing indefinitely.
The charger will keep the battery pack fresh and fully charged. This charger features
an automatic tune-up mode which equals or balances the individual cells in the battery
pack to allow it to function at peak capacity. Battery packs should be tuned up weekly
or whenever the battery no longer delivers the same amount of work. To use the
automatic tune-up mode, place the battery pack in the charger and leave it for at least 8 hours.
Important Charging Notes
1. Longest life and best performance can be obtained if the battery pack is charged
when the air temperature is between 65°F and 75°F (18°- 24°C). DO NOT charge the
battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C).
This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to touch while charging. This is a
normal condition, and does not indicate a problem. To facilitate the cooling of the
battery pack after use, avoid placing the charger or battery pack in a warm
environment such as in a metal shed, or an uninsulated trailer.
3. If the battery pack does not charge properly:
a. Check current at receptacle by plugging in a lamp or other appliance
b. Check to see if receptacle is connected to a light switch which turns power off
when you turn out the lights.
c. Move charger and battery pack to a location where the surrounding air
temperature is approximately 65°F - 75°F (18°- 24°C).
d. If charging problems persist, take the tool, battery pack and charger to your
local service center.
4. The battery pack should be recharged when it fails to produce sufficient power on
jobs which were easily done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may also charge a partially used pack
whenever you desire with no adverse affect on the battery pack.
5. Foreign materials of a conductive nature such as, but not limited to, steel wool,
aluminum foil, or any buildup of metallic particles should be kept away from charger
cavities. Always unplug the charger from the power supply when there is no battery
pack in the cavity. Unplug charger before attempting to clean.
6. Do not freeze or immerse charger in water or any other liquid.
WARNING: Shock hazard. Do not allow any liquid to get inside charger. Never
attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks or cracks, return to a service center for recycling.

9
WARNING: Safety Warnings and Instructions: Drills
1. Hold the drill firmly with two hands, one hand on the handle, and the other
gripping the bottom around the battery area.
2. When attaching accessories in the drill chuck, hand tighten the keyless chuck
firmly.
WARNING: Drill may stall (if overloaded or improperly used) causing a twist.
Always expect the stall. rip the drill firmly with tw hands to control the twisting action
and prevent loss of control which could cause personal injury. If a stall does occur,
release the trigger immediately and determine the reason for the stall before re-starting.
Installing and Removing the Battery Pack From the Tool
CAUTION: Make certain the lock-off button is engaged to prevent switch actuation
before removing or installing battery.
TO INSTALL BATTERY PAC : Insert battery pack
into tool until an audible click is heard as shown in
figure C.
TO REMOVE BATTERY PAC : Depress the
battery release button as shown in figure D and
pull battery pack out of tool.
Operating Instructions
Trigger Switch & Forward/Reverse
Button - Figure E
• The drill is turned ON and OFF by pulling and
releasing the trigger switch (1) shown in
figure E. The farther the trigger is depressed,
the higher the speed of the drill.
• A forward/reverse control button (2) determines
the direction of the tool and also serves as a
lock off button.
• To select forward rotation, release the trigger switch and depress the
forward/reverse control button on the right side of the tool.
• To select reverse, depress the forward/reverse
control button on the left side of the tool.
• The center position of the control button locks
the tool in the off position. When changing the
position of the control button, be sure the
trigger is released.
LED Work Light
When drill is activated by pulling the trigger switch
(1), the integrated LED work light (9) will
automatically illuminate the work area. NOTE: The
work light is for lighting the immediate work
surface and is not intended to be used as a
flashlight.
C
D
E
2
1

10
Adjusting Torque Control - Figure F
This tool is fitted with a torque adjustment collar (3)
to select the operating mode and to set the torque for
tightening screws. Large screws and hard workpiece
materials require a higher torque setting than small
screws and soft workpiece materials.
• For drilling in wood, metal and plastics, set the
collar to the drilling position symbol
• For screwdriving, set the collar to the desired
setting. If you do not yet know the
appropriate setting, proceed as follows:
• Set the collar to the lowest torque setting.
• Tighten the first screw.
• If the clutch ratchets before the desired result is achieved, increase the collar setting
and continue tightening the screw. Repeat until you reach the correct setting. Use
this setting for the remaining screws.
Dual Range Gearing - Figure G
The dual range feature of your drill allows you to
shift gears for greater versatility.
• To select low speed, high torque setting (position
1), turn tool off and permit to stop.
• Slide gear shifter button (4) away from the
chuck.
• To select the high speed, low torque setting
(position 2), turn tool off and permit to stop.
• Slide gear shifter button back (towards the
chuck).
NOTE: Do not change gears when tool is running. If
you are having trouble changing gears, make sure
that the dual range gear button is either completely
pushed forward or completely pushed back.
eyless Chuck - Figure H
WARNING: Make certain the lock-off button is engaged to prevent switch actuation
before installing or removing accessories.
To insert a drill bit or other accessory:
1. rasp the chuck (5) and rotate it in the
counterclockwise direction, as viewed from the
chuck end.
2. Insert the bit or other accessory fully into the
chuck, and tighten securely by rotating the
chuck in the clockwise direction as viewed from
the chuck end.
WARNING: Do not attempt to tighten drill bits (or any other accessory) by gripping
the front part of the chuck and turning the tool on. Damage to the chuck and personal
injury may occur when changing accessories.
Screw Driving
For driving fasteners, the reversing button should be pushed to the left. Use reverse
(button pushed to the right) for removing fasteners. When moving from forward to
reverse, or vice versa, always release the trigger switch first.
G
H
F
3
4
5

11
On Board Bit Storage
Bit storage slots are built-in to the area just above the battery.
Drilling
• Use sharp drill bits only.
• Support and secure work properly, as instructed in the Safety Instructions.
• Use appropriate and required safety equipment, as instructed in the Safety Instructions.
• Secure and maintain work area, as instructed in the Safety Instructions.
• Run the drill very slowly, using light pressure, until the hole is started enough to keep
the drill bit from slipping out of it.
• Apply pressure in a straight line with the bit. Use enough pressure to keep the bit biting
but not so much as to stall the motor or deflect the bit.
•Hold the drill firmly with two hands, one hand on the handle, and the other gripping
the bottom around the battery area.
• DO NOT CLICK THE TRI ER OF A STALLED DRILL OFF AND ON IN AN
ATTEMPT TO START IT. DAMA E TO THE DRILL CAN RESULT.
• Minimize stalling on breakthrough by reducing pressure and slowly drilling through the
last part of the hole.
• Keep the motor running while pulling the bit out of a drilled hole. This will help reduce
jamming.
•Make sure switch turns drill on and off.
Drilling in Wood
Holes in wood can be made with the same twist drill bits used for metal or with spade
bits. These bits should be sharp and should be pulled out frequently when drilling to
clear chips from the flutes.
Drilling in Metal
Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass
which should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil
or lard oil.
Drilling in Masonry
Use carbide tipped masonry bits. Refer to Drilling section. Keep even force on the drill
but not so much that you crack the brittle material. A smooth, even flow of dust indicates
the proper drilling rate.
The RBRC™ Seal
The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the
Li-Ion battery (or battery pack) indicates that the costs to recycle the battery
(or battery pack) at the end of its useful life have already been paid by
PORTER-CABLE.
RBRC™ in cooperation with PORTER-CABLE and other battery users, has established
programs in the United States to facilitate the collection of spent Li-Ion batteries. Help
protect our environment and conserve natural resources by returning the spent Li-Ion
battery to an authorized PORTER-CABLE service center or to your local retailer for
recycling. You may also contact your local recycling center for information on where to
drop off the spent battery.
RBRC™ is a registered trademark of the Rechargeable Battery Recycling Corporation.
Maintenance
Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the
tool; never immerse any part of the tool into a liquid.
Replacement Parts
Use only identical replacement parts. For a parts list or to order parts, visit our service website at
www.portercable.com. You can also order parts from your nearest PORTER-CABLE Factory
Service Center or PORTER-CABLEAuthorized Warranty Service Center. Or, you can call our
Customer Care Center at [phone].

12
Service and Repairs
All quality tools will eventually require servicing and/or replacement of parts. For information about
PORTER-CABLE, its factory service centers or authorized warranty service centers, visit our
website at www.portercable.com or call our Customer Care Center at [phone].All repairs
made by our service centers are fully guaranteed against defective material and workmanship. We
cannot guarantee repairs made or attempted by others.
You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North, Jackson,
Tennessee 38305, [phone] - Attention: Product Service. Be sure to include all of the
information shown on the nameplate of your tool (model number, type, serial number, etc.).
Accessories
WARNING: Since accessories, other than those offered by PORTER-CABLE, have
not been tested with this product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only PORTER-CABLE recommended
accessories should be used with this product.
A complete line of accessories is available from your PORTER-CABLE Factory Service
Center or a PORTER-CABLE Authorized Warranty Service Center. Please visit our
Web Site www.portercable.com for a catalog or for the name of your nearest supplier.
Troubleshooting
Problem Possible Cause Possible Solution
•Unitwillnotstart. •Batterypacknotinstalled properly. • Check battery pack
installation.
•Batterypacknotcharged. • Check battery pack
chargingrequirements.
•Batterypackwillnotcharge. • Battery pack not insertedintocharger. • Insert batterypackinto
chargeruntilLED
appears.
•Chargernotpluggedin. •Plug charger into a
workingoutlet. Referto
“ImportantChargingNotes”
formoredetails.
•Surroundingairtemperature • Move charger and battery
toohotortoocold. packtoasurrounding air
temperatureofabove40
degreesF(4,5°C)orbelow
105degreesF(+40,5°C).
SPECIALNOTESFOR USE WITH LITHIUM BATTERIES
•Unitshuts offabruptly. • Battery pack has reachedits •Allow battery packtocool
maximumthermal limit. down.
•Outof charge. ( To • Place on charger and
maximizethe life of the allow tocharge.
batterypackitisdesigned
toshutoff abruptly when
thecharge is depleted.)
For assistance with your product, visit our website at www.portercable.com for a list of
service centers, or call the PORTER-CABLE Customer Care Center at [phone].

13
THREE YEAR LIMITED WARRANTY
PORTER-CABLE will repair or replace, without charge, any defects due to faulty
materials or workmanship for three years from the date of purchase for tools (two years
for batteries). This warranty does not cover part failure due to normal wear or tool
abuse. For further detail of warranty coverage and warranty repair information, visit
www.portercable.com or call [phone]. This warranty does not apply to
accessories or damage caused where repairs have been made or attempted by others.
This warranty gives you specific legal rights and you may have other rights which vary
in certain states or provinces.
In addition to the warranty, PORTER-CABLE tools are covered by our:
1 YEAR FREE SERVICE: PORTER-CABLE will maintain the tool and replace worn
parts caused by normal use, for free, any time during the first year after purchase.
90 DAY MONEY BAC GUARANTEE: If you are not completely satisfied with the
performance of your PORTER-CABLE Power Tool for any reason, you can return it
within 90 days from the date of purchase with a receipt for a full refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For
products sold in Latin America, see country specific warranty information contained in
the packaging, call the local company or see website for warranty information.
To register your tool for warranty service visit our website at www.portercable.com.
WARNING LABEL REPLACEMENT
If your warning labels become illegible or are missing, call [phone] for a free
replacement.
The following are PORTER-CABLE trademarks for one or more power tools and accessories: a
gray and black color scheme; a “four point star” design; and three contrasting/outlined longitudinal
stripes. The following are also trademarks for one or more PORTER-CABLE and Delta products: 2
BY 4®, 890™, Air America®,AIRBOSS™, Auto-Set®, B.O.S.S.®, Bammer®, Biesemeyer®,
Builders Saw®, ChargeAir®, ChargeAir Pro®, CONTRACTOR SUPERDUTY®, Contractor's
Saw®, Delta®, DELTA®, Delta Industrial®, DELTAMACHINERY & DESI N™, Delta Shopmaster
and Design®, Delta X5®, Deltacraft®, DELTA RAM®, Do It. Feel It.®, DUAL LASERLOCAND
DESI N®, EASYAIR®, EASYAIR TO O™, ENDURADIAMOND®, Ex-Cell®, Front Bevel
Lock®, et Yours While the Sun Shines®, rip to Fit®, RIPVAC™, TF®, HICKORY
WOODWORKIN ®, Homecraft®, HP FRAMER HI H PRESSURE®, IMPACT SERIES™,
Innovation That Works®, Jet-Lock®, Job Boss®, Kickstand®, LASERLOC®, LON -LASTIN
WORK LIFE®, MAX FORCE™, MAX LIFE®, Micro-Set®, Midi-Lathe®, Monsoon®, MONSTER-
CARBIDE™, Network®, OLDHAM®, Omnijig®, PC ED E®, Performance Crew™, Performance
ear®, Pocket Cutter®, Porta-Band®, Porta-Plane®, PORTER-CABLE®, PORTER-CABLE
Professional Power Tools®, Powerback®, POZI-STOP™, Pressure Wave®, PRO 4000®, Proair®,
Quicksand and Design®, Quickset II®, QUIET DRIVE TECHNOLO Y™, QUIET DRIVE
TECHNOLO YAND DESI N™, Quik-Change®, QUIK-TILT®, RAPID-RELEASE™, RAZOR®,
Redefining Performance®, Riptide®, Safe uard II®, Sand Trap and Design®, Sanding Center®,
Saw Boss®, Shop Boss®, Sidekick®, Site Boss®, Speed-Bloc®, Speedmatic®, Stair Ease®, Steel
Driver Series®, SUPERDUTY®, T4 & DESI N®, THEAMERICAN WOODSHOP®, THE
PROFESSIONAL ED E®, Thin-Line®, Tiger Saw®, TI ERCLAW®, TI ERCLAW AND
DESI N®, Torq-Buster®, TRU-MATCH®, T-Square®, Twinlaser®, Unifence®, Uniguard®,
UNIRIP®, UNISAW®, UNITED STATES SAW®, Veri-Set®, Versa-Feeder®, VIPER®, VT™, VT
RAZOR™, Water Driver®, WATER VROOM®, Waveform®, Whisper Series®, X5®, YOUR
ACHIEVEMENT. OUR TOOLS.®
Trademarks noted with ® are registered in the United States Patent and Trademark Office and may
also be registered in other countries. Other trademarks may apply.
4825 Highway 45 North
Jackson, Tennessee 38305
[phone]
www.portercable.com

14
Manuel d'instructions
N° DE CATALOGUE
PCL180CD
Perceuse-visseuse sans fil
de 18 V 1/2 po (13 mm)

15
Avertissements de sécurité généraux pour les outils
électriques
AVERTISSEMENT : Lire tous les avertissements de sécurité et toutes
les directives. Le non-respect des avertissements et des directives pourrait
se solder par un choc électrique, un incendie et/ou une blessure grave.
Conserver tous les avertissements et toutes les directives pour un usage
ultérieur.
Le terme «outil électrique» cité dans les avertissements se rapporte à votre
outil électrique à alimentation sur secteur (avec fil) ou par piles (sans fil).
1) Sécurité du lieu de travail
a) Tenir la zone de travail propre et bien éclairée. es endroits sombres sont
souvent des causes d'accidents.
b) Ne pas faire fonctionner dʼoutils électriques dans un milieu déflagrant, soit
en présence de liquides inflammables, de gaz ou de poussière. es outils
électriques produisent des étincelles qui peuvent enflammer la poussière ou les
vapeurs.
c) Éloigner les enfants et les curieux au moment dʼutiliser un outil électrique.
Une distraction pourrait vous en faire perdre la maîtrise.
2) Sécurité en matière dʼélectricité
a) Les fiches des outils électriques doivent correspondre à la prise. Ne jamais
modifier la fiche en aucune façon. Ne jamais utiliser de fiche dʼadaptation avec
un outil électrique mis à la terre. e risque de choc électrique sera réduit par
lʼutilisation de fiches non modifiées correspondant à la prise.
b) Éviter tout contact physique avec des surfaces mises à la terre comme des
tuyaux, des radiateurs, des cuisinières et des réfrigérateurs. e risque de
choc électrique est plus élevé si votre corps est mis à la terre.
c) Ne pas exposer les outils électriques à la pluie ou à d'autres conditions où il
pourrait être mouillé. a pénétration de lʼeau dans un outil électrique augmente
le risque de choc électrique.
d) Ne pas utiliser abusivement le cordon dʼalimentation. Ne jamais utiliser le
cordon pour transporter, tirer ou débrancher un outil électrique. Tenir le
cordon éloigné de la chaleur, de lʼhuile, des bords tranchants ou des pièces
mobiles. es cordons endommagés ou emmêlés augmentent les risques de choc
électrique.
e) Pour lʼutilisation dʼun outil électrique à lʼextérieur, se servir dʼune rallonge
convenant à une telle utilisation. ʼutilisation dʼune rallonge conçue pour
lʼextérieur réduit les risques de choc électrique.
f) Sʼil est impossible dʼéviter lʼutilisation dʼun outil électrique dans un endroit
humide, brancher lʼoutil dans une prise ou sur un circuit dʼalimentation
dotés dʼun disjoncteur de fuite à la terre (GFCI). ʼutilisation de ce type de
disjoncteur réduit les risques de choc électrique.
3) Sécurité personnelle
a) Être vigilant, surveiller le travail effectué et faire preuve de jugement
lorsquʼun outil électrique est utilisé. Ne pas utiliser dʼoutil électrique en cas
de fatigue ou sous lʼinfluence de drogues, dʼalcool ou de médicaments. Un
simple moment dʼinattention en utilisant un outil électrique peut entraîner des
blessures corporelles graves.
b) Utiliser des équipements de protection individuelle. Toujours porter une
protection oculaire. ʼutilisation dʼéquipements de protection comme un masque
antipoussière, des chaussures antidérapantes, un casque de sécurité ou des
protecteurs auditifs lorsque la situation le requiert réduira les risques de blessures
corporelles.
c) Empêcher les démarrages intempestifs. Sʼassurer que lʼinterrupteur se
trouve à la position dʼarrêt avant de relier lʼoutil à une source dʼalimentation
et/ou dʼinsérer un bloc-piles, de ramasser ou de transporter lʼoutil.

16
Transporter un outil électrique alors que le doigt repose sur lʼinterrupteur ou
brancher un outil électrique dont lʼinterrupteur est à la position de marche risque de
provoquer un accident.
d) Retirer toute clé de réglage ou clé standard avant de démarrer lʼoutil. Une clé
standard ou une clé de réglage attachée à une partie pivotante peut causer des
blessures.
e) Ne pas trop tendre les bras. Conserver son équilibre en tout temps. Cela
permet de mieux maîtriser lʼoutil électrique dans les situations imprévues.
f) Sʼhabiller de manière appropriée. Ne pas porter de vêtements amples ni de
bijoux. Garder les cheveux, les vêtements et les gants à lʼécart des pièces
mobiles. es vêtements amples, les bijoux ou les cheveux longs risquent de rester
coincés dans les pièces mobiles.
g) Si des composants sont fournis pour le raccordement de dispositifs de
dépoussiérage et de ramassage, sʼassurer que ceux-ci sont bien raccordés et
utilisés. ʼutilisation dʼun dispositif de dépoussiérage peut réduire les dangers
engendrés par les poussières.
4) Utilisation et entretien dʼun outil électrique
a) Ne pas forcer un outil électrique. Utiliser lʼoutil électrique approprié à
lʼapplication. ʼoutil électrique approprié effectuera un meilleur travail, de façon
plus sûre et à la vitesse pour laquelle il a été conçu.
b) Ne pas utiliser un outil électrique dont lʼinterrupteur est défectueux. Tout outil
électrique dont lʼinterrupteur est défectueux est dangereux et doit être réparé.
c) Débrancher la fiche du secteur ou le bloc-piles de lʼoutil électrique avant de
faire tout réglage ou changement dʼaccessoire, ou avant de ranger lʼoutil
électrique. Ces mesures préventives réduisent les risques de démarrage
accidentel de lʼoutil électrique.
d) Ranger les outils électriques hors de la portée des enfants, et ne permettre à
aucune personne nʼétant pas familière avec un outil électrique (ou son
manuel dʼinstruction) dʼutiliser ce dernier. es outils électriques deviennent
dangereux entre les mains dʼutilisateurs inexpérimentés.
e) Entretenir les outils électriques. Vérifier les pièces mobiles pour sʼassurer
quʼelles sont bien alignées et tournent librement, quʼelles sont en bon état et
ne sont affectées par aucun trouble susceptible de nuire au bon
fonctionnement de lʼoutil électrique.En cas de dommage, faire réparer lʼoutil
électrique avant toute nouvelle utilisation. Beaucoup dʼaccidents sont causés
par des outils électriques mal entretenus.
f) Sʼassurer que les outils de coupe sont aiguisés et propres. es outils de coupe
bien entretenus et affûtés sont moins susceptibles de se coincer et sont plus faciles
à contrôler.
g) Utiliser lʼoutil électrique, les accessoires, les forets, etc. conformément aux
présentes directives en tenant compte des conditions de travail et du travail à
effectuer. ʼutilisation dʼun outil électrique pour toute opération autre que celle pour
laquelle il a été conçu est dangereuse.
5) Utilisation et entretien du bloc-piles
a) Ne recharger lʼoutil quʼau moyen du chargeur précisé par le fabricant.
ʼutilisation dʼun chargeur qui convient à un type de bloc-piles risque de provoquer
un incendie sʼil est utilisé avec un autre type de bloc-piles.
b) Utiliser les outils électriques uniquement avec les blocs-piles conçus à cet
effet. ʼutilisation de tout autre bloc-piles risque de causer des blessures ou un
incendie.
c) Lorsque le bloc-piles nʼest pas utilisé, le tenir éloigné des objets métalliques,
notamment des trombones, de la monnaie, des clés, des clous, des vis, etc.,
qui peuvent établir une connexion entre les deux bornes. e court-circuit des
bornes du bloc-piles risque de provoquer des étincelles, des brûlures ou un
incendie.
d) En cas dʼutilisation abusive, le liquide peut gicler hors du bloc-piles, éviter
tout contact. Si un contact accidentel se produit, laver à grande eau. Si le
liquide entre en contact avec les yeux, obtenir des soins médicaux. e liquide
qui gicle hors du bloc-piles peut provoquer des irritations ou des brûlures.

17
6) Réparation
a) Faire réparer lʼoutil électrique par un réparateur professionnel en nʼutilisant
que des pièces de rechange identiques. Cela permettra de maintenir une
utilisation sécuritaire de lʼoutil électrique.
Consignes de sécurité particulières
•Porter des protecteurs auditifs si une perceuse à percussion est utilisée. Une
exposition au bruit peut entraîner une perte auditive.
•Utiliser les poignées auxiliaires fournies avec l’outil. Une perte de maîtrise de lʼoutil
peut entraîner des blessures corporelles.
•Saisir l’outil électrique par ses surfaces de prises isolées lorsque l’outil peut
entrer en contact avec des fils cachés ou son cordon. En cas de contact avec un fil
sous tension, les pièces métalliques de lʼoutil seront sous tension et lʼutilisateur subira des
secousses électriques.
•Utiliser des brides de fixation ou un autre dispositif de fixation permettant de fixer
solidement et de soutenir la pièce sur une plateforme stable. Tenir la pièce avec la
main ou contre son corps la rend instable et risque de provoquer une perte de maîtrise
de lʼoutil.
•Lorsque l’outil n’est pas utilisé, le placer sur le côté, sur une surface stable, de
manière à ne faire trébucher ou tomber personne. Certains outils ont un gros bloc
dʼalimentation. En le plaçant à la verticale, vous risquez de le renverser.
•Tenir les cheveux, les vêtements et les gants loin des évents. En effet, les évents
cachent souvent des pièces mobiles qui risquent de happer ces articles.
•Tenir fermement l’outil à deux mains, soit une main sur la poignée et lʼautre sur le
dessous de lʼoutil, près du bloc-piles. Utiliser la poignée auxiliaire si lʼoutil en est muni.
Une perte de maîtrise de lʼoutil peut entraîner des blessures.
AVERTISSEMENT : TOUJOURS porter des lunettes de sécurité. es lunettes de
vue ne constituent PAS des lunettes de sécurité. Utiliser également un masque facial
ou anti-poussière si lʼopération de découpe génère de la poussière. TOUJOURS
PORTER UN ÉQUIPEMENT DE PROTECTION HOMO OGUÉ :
• protection oculaire conforme à la norme ANSI Z87.1 (CAN/CSA Z94.3);
• protection auditive ANSI S12.6 (S3.19);
• protection des voies respiratoires conformes aux normes NIOSH/OSHA/MSHA.
AVERTISSEMENT : certains outils électriques, tels que les sableuses, les
scies, les meules, les perceuses ou certains autres outils de construction,
peuvent produire de la poussière contenant des produits chimiques reconnus par
l’État de la Californie comme étant susceptibles d’entraîner le cancer, des
malformations congénitales ou pouvant être nocifs pour le système reproductif.
Parmi ces produits chimiques, on retrouve :
· le plomb dans les peintures à base de plomb,
· la silice cristalline dans les briques et le ciment et autres produits de maçonnerie,
· lʼarsenic et le chrome dans le bois de sciage ayant subi un traitement chimique.
e risque associé à de telles expositions varie selon la fréquence avec laquelle on
effectue ces travaux. Pour réduire lʼexposition à de tels produits, il faut travailler dans un
endroit bien aéré et utiliser le matériel de sécurité approprié, tel un masque
anti-poussières spécialement conçu pour filtrer les particules microscopiques.
• Éviter tout contact prolongé avec la poussière soulevée par cet outil ou autres
outils électriques. Porter des vêtements de protection et nettoyer les parties
exposées du corps à lʼeau savonneuse. Sʼassurer de bien se protéger afin dʼéviter
dʼabsorber par la bouche, les yeux ou la peau des produits chimiques nocifs.
AVERTISSEMENT : Cet outil peut produire et répandre de la poussière
susceptible de causer des dommages sérieux et permanents au système
respiratoire.Toujours utiliser un appareil respiratoire anti-poussières approprié
approuvé par le NIOSH ou lʼOSHA. Diriger les particules dans le sens opposé du visage
et du corps.

18
LIGNES DIRECTRICES EN MATIÈRE DE SÉCURITÉ - DÉFINITIONS
Il est important que vous lisiez et compreniez ce mode dʼemploi. Les informations quʼil
contient concernent VOTRE SÉCURITÉ et visent à ÉVITER TOUT PROBLÈME. Les
symboles ci-dessous servent à vous aider à reconnaître cette information.
DANGER : Indique une situation dangereuse imminente qui, si elle nʼest pas évitée,
causera la mort ou des graves blessures.
AVERTISSEMENT : Indique une situation potentiellement
dangereuse qui, si elle nʼest pas évitée, pourrait causer la mort ou de graves blessures.
MISE EN GARDE : Indique une situation potentiellement dangereuse qui, si elle
nʼest pas évitée, pourrait causer des blessures mineures ou modérées.
AVIS : Utilisé sans le symbole dʼalerte à la sécurité, indique une situation potentiellement
dangereuse qui, si elle nʼest pas évitée, peut résulter en des dommages à la propriété.
Symboles
• Lʼétiquette apposée sur votre outil pourrait comprendre les symboles suivants. Les
symboles et leurs définitions sont indiqués ci-après :
V ..............volts A................ampères
Hz ............hertz W ..............watts
min............minutes ............courant alternatif
..........courant continue non............régime à vide
............Construction de classe I
(mis à la terre)
............Construction classe II ............borne de terre
............symbole dʼalerte à la .../min ..........révolutions ou alternance par minute
sécurité ourpm
• En cas dʼutilisation dʼune rallonge, sʼassurer que les valeurs nominales de la rallonge
utilisée correspondent bien à celles de lʼoutil alimenté. Lʼusage dʼune rallonge de calibre
insuffisant causera une chute de tension entraînant perte de puissance et surchauffe. Le
tableau ci-dessous illustre les calibres à utiliser selon la longueur de rallonge et lʼintensité
nominale indiquée sur la plaque signalétique. En cas de doutes, utiliser le calibre
suivant. Plus le calibre est petit, plus la rallonge peut supporter de courant.
Calibre de fil minimum recommandé pour les rallonges
Longueur totale de la rallonge
25 pi 50 pi 75 pi 100 pi 125 pi 150 pi 175 pi
7,6 m 15,2 m 22,9 m 30,5 m 38,1 m 45,7 m 53,3 m
Calibre AWG
18 18 16 16 14 14 12

19
Directives de sécurité importantes pour les chargeurs de piles
CONSERVER CES DIRECTIVES : ce mode dʼemploi comprend dʼimportantes directives
de sécurité pour les chargeurs de piles.
• Avant dʼutiliser le chargeur, lire toutes les directives et tous les avertissements figurant
sur le chargeur, le bloc-piles et le produit utilisé avec le bloc-piles.
AVERTISSEMENT : risque de choc électrique. Éviter la pénétration de tout liquide
dans le chargeur.
MISE EN GARDE :risque de brûlure. Pour réduire le risque de blessures,
charger uniquement des piles PORTER-CABLE conseillées. Dʼautres types de piles
peuvent exploser et provoquer des blessures corporelles et des dommages.
MISE EN GARDE :dans certaines circonstances, lorsque le chargeur est
branché au bloc dʼalimentation, le chargeur peut être court-circuité par des corps
étrangers conducteurs tels que, mais sans sʼy limiter, la laine dʼacier, le papier
dʼaluminium ou toute accumulation de particules métalliques. Ils doivent être maintenus
à distance des ouvertures du chargeur. Débrancher systématiquement celui-ci si aucun
bloc-piles nʼy est inséré. Débrancher le chargeur avant tout nettoyage.
•NE PAS tenter de charger le bloc-piles avec autre chose qu’un chargeur de marque.
es chargeurs et blocs-piles sont conçus spécialement pour fonctionner ensemble.
•Ces chargeurs ne sont pas destinés à être utilisés à dʼautres fins que celles de
charger les piles rechargeables conseillées PORTER-CABLE. Toute autre utilisation
risque de provoquer un incendie, un choc électrique ou une électrocution.
•Protéger le chargeur de la pluie et de la neige.
•Tirer la fiche plutôt que le cordon pour débrancher le chargeur ou pour débrancher
les cordons à l’aide de la fonction de guirlande. Cela permet de réduire le risque
dʼendommager la fiche ou le cordon dʼalimentation.
DESCRIPTION
FONCTIONNELLE
Figure A
1. Détente
2. Bouton de marche
avant/marche arrière
3. Bague de réglage de couple
4. Sélecteur dʼembrayage à deux
vitesses
5. Mandrin auto-serrant
6. Porte-embout
7. Pile
8. Bouton de dégagement du
bloc-piles
9. Lampe de travail à DEL
Blocs-piles au Li-Ion et chargeurs
correspondants
Bloc-piles : Li-Ion 18V
Chargeur : pour piles au
Li-Ion
PC18BL
PC18BLX
PC18BLEX
PCLMVC
PCXMVC
Description N° de cat.
Blocs-piles au NI-CD et chargeurs
correspondants
Ce produit est compatible avec tous les modèles de piles et de chargeurs
énumérés dans le tableau ci-dessous.
Bloc-piles : NI-CD 18V
Chargeur : pour piles au
NI-CD
PC18B
PCMVC
PCXMVC
Description N° de cat.
3
2
4
5
A
6
87
9
1

20
•S’assurer que le cordon est situé en lieu sûr de manière à ce que personne ne
marche ni ne trébuche dessus ou à ce qu’il ne soit pas endommagé ni soumis à
une tension.
•Ne pas utiliser de rallonge à moins que cela ne soit absolument nécessaire.
ʼutilisation dʼune rallonge inadéquate risque dʼentraîner un incendie, un choc électrique
ou une électrocution.
•Pour la sécurité de l’utilisateur, utiliser une rallonge de calibre adéquat (AWG,
American Wire Gauge [calibrage américain normalisé des fils]). Plus le numéro de
calibre de fil est petit et plus sa capacité est grande, par exemple un calibre 16 a plus de
capacité quʼun calibre 18. Si plus dʼune rallonge est utilisée pour obtenir la longueur
totale, sʼassurer que chaque rallonge présente au moins le calibre de fil minimum.
•Ne pas mettre d’objet sur le chargeur ni mettre ce dernier sur une surface
souple, ce qui pourrait causer l’obstruction des fentes de ventilation et, du fait,
provoquer une chaleur interne excessive. Éloigner le chargeur de toute source
de chaleur. a ventilation du chargeur se fait par les fentes pratiquées dans les parties
supérieures et inférieures du boîtier.
•Ne pas installer le chargeur sur un mur ni le fixer de manière permanente sur
toute surface. e chargeur est destiné à une utilisation sur une surface plane et
stable (c.-à-d. un dessus de table ou dʼétabli).
•Ne pas faire fonctionner le chargeur si la fiche ou le cordon est endommagé; les
remplacer immédiatement.
•Ne jamais se servir d’un chargeur qui a subi un choc violent, qui est tombé par
terre ou qui est endommagé de quelque manière que ce soit. e faire vérifier dans
un centre de réparation autorisé.
•Ne pas démonter le chargeur; confier lʼentretien ou la réparation de lʼappareil à un
centre de réparation autorisé. e remontage non conforme du chargeur comporte des
risques de choc électrique, dʼélectrocution ou dʼincendie.
•Débrancher le chargeur avant de le nettoyer. Cela réduira le risque de choc
électrique. e risque ne sera pas éliminé en enlevant simplement le bloc-piles.
•NE JAMAIS relier deux chargeurs ensemble.
•Le chargeur est conçu pour être alimenté en courant domestique standard
(120 V). Ne pas utiliser une tension supérieure pour le chargeur.
CONSERVER CES DIRECTIVES
Directives de sécurité importantes pour les blocs-piles
AVERTISSEMENT : pour un fonctionnement sûr, lire le présent mode dʼemploi et
les manuels fournis avec lʼoutil avant dʼutiliser le chargeur.
Le bloc-piles nʼest pas complètement chargé à la sortie de lʼemballage. Avant dʼutiliser le
bloc-piles et le chargeur, lire les directives de sécurité ci-après. Respecter ensuite les
consignes de chargement décrites.
LIRE TOUTES LES DIRECTIVES.
•Ne pas incinérer le bloc-piles, même s’il est très endommagé ou complètement
usé, car il peut exploser au contact de flammes. Des vapeurs et des matières
toxiques sont dégagées lorsque les blocs-piles au i-Ion sont incinérés.
•Ne pas charger ou utiliser un bloc-piles dans un milieu déflagrant, en présence de
liquides, de gaz ou de poussière inflammables. Insérer ou retirer un bloc-piles du
chargeur peut enflammer de la poussière ou des émanations.
•Si le contenu de la pile entre en contact avec la peau, laver immédiatement la zone
touchée au savon doux et à l’eau. Si le liquide de la pile entre en contact avec les
yeux, rincer lʼoeil ouvert à lʼeau pendant 15 minutes ou jusquʼà ce que lʼirritation cesse. Si
des soins médicaux sont nécessaires, lʼélectrolyte des piles au Li-Ion est composé dʼun
mélange de carbonates organiques liquides et de sels de lithium. Quant aux piles au NI-
CD, il est question dʼune solution de 25 % à 35 % dʼhydroxyde de potassium.
•Le contenu des cellules de pile ouvertes peut provoquer une irritation respiratoire.
Exposer la personne à de lʼair frais. Si les symptômes persistent, obtenir des soins
médicaux.
AVERTISSEMENT : risque de brûlure. e liquide du bloc-piles peut sʼenflammer
sʼil est exposé à des étincelles ou à une flamme.
