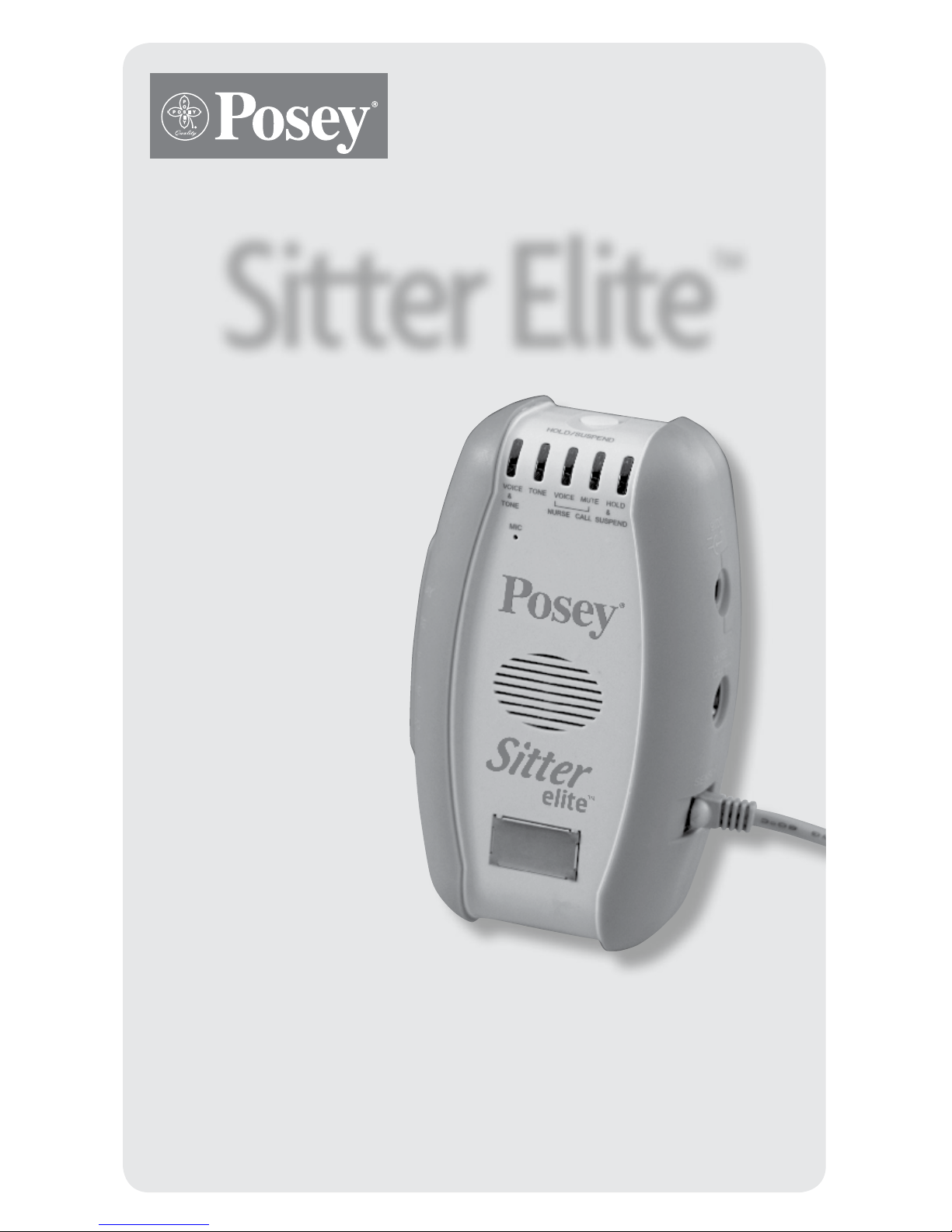

Posey Sitter Elite 8345 User manual

Sitter Elite™
8345,
8345NC
Instruction Manual
Before using the Posey Sitter Elite, read this
entire manual and save for future reference.
The Posey Sitter Elite is an
important part of your fall
management protocols.
Ensure all parts of this
system are operational
before leaving a patient
unattended.


2 Sitter Elite
Table Of Contents
BeforeYouBegin...................................... 3
Features of the Sitter Elite and the Sitter Elite Nurse Call
System (Sitter Elite NC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Each Sitter Elite is shipped to you with. . . . . . . . . . . . . . . . . . .6
Preparing the Sitter Elite for Use . . . . . . . . . . . . . . . . . . . . . . .7-8
Storing the Sitter Elite, Battery Instructions and Care. . . . . .8
SettingAlarmMode................................ 9-10
SettingAlarmTone.................................... 11
AdjustingAlarmVolume .............................. 12
TimeDelay........................................... 13
ToRecordaMessage ..................................14
TheHOLDButton.................................... 15
TheSUSPENDButton................................. 16
Connecting to AC Power (Optional). . . . . . . . . . . . . . . . . . . . . 17
Nurse Call Interface with Optional Cord . . . . . . . . . . . . . . . . 18
MountingtheSitterElite...............................19
BedMount............................................19
WallMount.......................................... 20
ChairMount ......................................... 21
Choosing the Right Method for Patient Monitoring . . . . . 22
Monitoring with a Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . .22-24
Steps to Apply Under Mattress Sensor . . . . . . . . . . . . . . . . . .25
Steps to Apply Over Mattress Sensor . . . . . . . . . . . . . . . . . . .26
Steps to Apply Chair Sensor Pad . . . . . . . . . . . . . . . . . . . . . . .27
Monitoring in Optional Cord and Magnet Mode . . . . . . . . .28
Connecting Optional Magnet Cord to Patient. . . . . . . . . . . .29
The Sitter Elite and Use of Physical Restraints . . . . . . . . . . .30
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-33
SensorNotFunctioning................................33
Adaptor Cable Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Alarm Cleaning, Storage and Battery Maintenance . . . . . . 34
TroubleshootingGuide..............................35-37
System Components and Options . . . . . . . . . . . . . . . . . . .38-39
ProductSpecifications................................ 40
Warranty and Repair Information . . . . . . . . . . . . . . . . . . . . . . 40


Sitter Elite 3
Before You Begin
The Posey Sitter Elite is an easy to use, restraint free addition to your fall management program.
The Sitter Elite provides an early warning when a patient attempts to rise from a bed, chair or
toilet. This system does not prevent falls or injury from falls and is not a substitute for patient
care, rounding and a comprehensive fall management protocol in your facility.
The Sitter Elite activates as the patient attempts to rise and removes pressure from the sensor
or disconnects the optional magnet. The Sitter Elite may be used with an optional cable to
connect to the nurse call system.
Indications for Use:
Persons who may benefit from the use of the Posey Sitter Elite include:
• Patients with diminished cognitive or mobility skills. For example, the frail, disabled, senile,
or those with neurologic deficits.
• Patients receiving medications that may cause disorientation, drowsiness, dizziness, or
frequent urination.
• Patients (new or existing) with a history of falls, or who are assessed to be at risk of falling
based on your selected fall-risk assessment.
• Patients who are restless or prone to get up in the middle of the night, e.g., due to
incontinence, or with nighttime voiding habits.
• Patients who require mandatory bed rest.
Contraindications:
NOTE: The Sitter Elite may not be suitable for all high fall-risk patients. See Posey catalog
for other options for such patients.
The Sitter Elite should NEVER be used as the only means of surveillance for:
• Agitated, combative or suicidal patients.
• Patients at extreme risk of a life-threatening fall (ex. patients with bone injuries or previous
hip fractures).
For these patients, Posey recommends use of the Sitter Elite along with a more intensive
fall management measure. See Posey catalog for options such as floor mats, and/or hip
protectors among other fall management products.
Response Policy:
Make sure your facility has a clearly defined policy for response to fall management and fall
alarms. This may include contacting the patient over the nurse call intercom system and telling
them to return to their bed or chair and waiting for assistance, and/or sending staff immediately
to the patient’s location for assistance. Be sure to place a flag or notification device on the
patient’s door, in their room, and next to the respective patient’s room light at the nurse’s station
to identify high fall risk patients and alert staff to respond quickly to fall alarm situations.
Facility fall management policy should address the frequency of visits by nursing staff to:
• Confirm patient is safe.
• Attend to patient needs for nutrition, toileting, exercise, and therapy.
• Check alarm function every time before leaving patient unattended (see pages 22-24).
If the alarm and/or sensor do not function properly, remove the alarm and sensor from service and
replace them with a properly functioning alarm and/or sensor. DO NOT use the alarm, sensor or
magnet if it does not activate each time weight is removed from the sensor, the chair belt sensor is
unfastened, the PIR sensor is activated, or magnet is removed from face plate (see pages 22-24).


4 Sitter Elite
Features of the Sitter Elite and the Sitter Elite Nurse
Call System (Sitter Elite NC)
HOLD/SUSPEND
®
Sitter
™
NURSE
CALL
SENSOR
9V
TONE
0
1
2
OFF
ON
DELAY
MODE
TONE
VOLUME
RECORD
AC POWER
ADAPTER
OUTLET
NURSE
CALL
OUTLET
SENSOR
OUTLET
MODE
LED
HOLD/SUSPEND ON/OFF
SWITCH
BATTERY
COMPARTMENT
MICROPHONE
MIC
MAGNET
PLATE
FRONT VIEW
RIGHT SIDE VIEW LEFT SIDE VIEW
Rear View (Open Battery Door)


Sitter Elite 5
Features of the Sitter Elite and the Sitter Elite Nurse
Call System (Sitter Elite NC) (Continued)
• Five alarm tones. There are five different alarm tone options which can be used in different
patient rooms, or to discern between different caregivers or levels of fall risk for easy
patient identification.
• Four alarm modes. Four alarm modes allow for facility or alarm choices regarding caregiver
notification in the event the alarm is triggered. The alarm modes are “Voice and Tone”, “Tone
Only”, “Voice Only” and “Mute”.
• Three alarm volumes. Three alarm volume settings allow for facility or alarm choices
regarding caregiver notification in the event the alarm is triggered. The volume options are
low, medium and high.
• Voice feature. Allows a family member, friend or caregiver to record a personal message
that will sound if pressure is removed from the sensor pad, chair belt sensor is unfastened,
PIR sensor is activated or the magnet is removed and the alarm mode is set to “Voice” or
“Voice and Tone”. This feature can provide patient communication in their language, or by a
caregiver or family member for familiarity.
• HOLD/SUSPEND Button. Allows you to remove a patient from a bed or chair without
the need to turn off the alarm (e.g., for therapy, toileting or socializing). Alarm will resume
monitoring when patient returns to the bed or chair.
• Optional alarm delay of 0, 1, or 2 seconds. Allows you to adjust alarm timing for each
patient. The delay allows you to determine, by alarm, the number of seconds between the
time pressure is removed from the sensor, chair belt sensor is unfastened, or PIR sensor is
activated and the time the alarm activates.
•Sensor monitoring. This alarm connects to any Posey sensor pad, including chair, toilet,
above and below bed mattress and chair belt sensor and PIR sensors. Bed sensors work with
most institutional mattress styles and mattress overlays. Alarm activates when weight is
removed from sensor pad, chair belt sensor is unfastened, or PIR sensor detects activity.
•Optional Cord & Magnet monitoring. Alarm activates when magnet is removed. Magnet
pull cord adjusts to range of mobility and “safety zone” best suited for each patient.
• Nurse Call Interface. Provides dual alarm notice at patient’s room and nursing station.
Provides the ability to mute the alarming function at the patient’s bedside and just alarm at
any nurse call system notification points.
Note: Cat. 8345NC comes with the Nurse Call Cable component as part of the alarm system.
•Failsafe sensor alarm. The Posey Sitter Elite activates if the alarm is on and a sensor cord
is removed from the alarm. The failsafe will not function if the magnet is attached to the
magnet plate.
• Battery operated. The alarm utilizes four (4) “AA” alkaline batteries. There are no
complicated cords or risk of power shortages or shock.
•Audible low battery warning. Alarm “chirps” about every 15 seconds when batteries need
changing. This sound is different than any of the alarm tones and easily alerts caregivers of
the need to change batteries.
• DC Jack. For optional AC power connection; adapter sold separately.
• Impact resistant cover. Helps minimize damage if dropped.
NEVER connect other manufacturers’ sensors to a Posey alarm. Use of
another manufacturers’ sensors may damage the Posey alarm, cause the fall monitoring
system not to function as intended, and will void the factory warranty.


6 Sitter Elite
Each Sitter Elite is shipped to you with:
• Alarm (1)
• Magnet with adjustable length cord and locking clip (1)
• “AA” Alkaline Batteries (4)
• Standard Bed Bracket (Cat. 8276) (1)
• Wall/Chair Bracket without wire clip (Cat. 8276) (1)
• “Hook” and “Loop” Adhesive Strip (Attach bracket to wheelchair)
• Also available: AC power adapter (Cat. 8383) to power Sitter Elite without batteries
• Sitter Elite Nurse Call System (Cat. 8345NC) includes Nurse Call Cable component
* with 8345NC SyStem


Sitter Elite 7
Preparing the Sitter Elite for Use
Battery Installation:
The battery-operated Sitter Elite is portable and long lasting. Fresh
alkaline batteries have an estimated life of 30 days of daily use.
Actual life depends on alarm mode, tone and volume you select.
Alarm will “chirp” about every 15 seconds when new batteries are
needed. Change batteries at once.
1. Slide the power switch to the OFF position before inserting/
changing batteries (fig. 1).
2. Press down on the arrow and
slide the battery compartment
door completely off (fig. 2). Set
battery door aside.
3. Insert four (4) new “AA” alkaline
batteries as pictured inside the
battery compartment (fig. 3).
Take care not to damage battery
contacts.
4. Reattach the battery compartment door. Slide it shut, locking it into place.
• Takecarewheninstallingnewbatteries.Thealarmwillnotworkifbatteriesare
installed improperly.
• ALWAYSinstallacompletelynewsetofbatterieswhenthechirpingduetolowbattery
power sound begins. DO NOT replace a single cell, but all cells in the alarm. DO NOT
mix old and new batteries, or battery brands within a battery pack (4 batteries). Use of
mixed batteries or batteries installed incorrectly may cause battery damage, and may
damage the alarm. Remove any alarm from use and send to the appropriate facility
authority if batteries are damaged or corroded or the battery compartment has signs of
previous battery corrosion such as white powder residue.
• Batteriescanexplodeorleakandcausedamagetoalarmifinstalledincorrectly,fully
discharged, or exposed to liquid, fire or high temperatures. If battery damage has
occurred, or you see any corrosion, remove the alarm from use IMMEDIATELY. DO NOT
use the alarm if battery damage has been detected.
• Afterchangingbatteries,testthealarmandsensorforproperoperationpriortoputting
in service with a patient, and each time before leaving the patient unattended. If the
alarm and/or sensor do not function properly, remove the alarm and sensor from service
and replace them with a properly functioning alarm and/or sensor (see pages 22-24).
NOTE: If alarm loses power for more than four (4) minutes, all settings, including custom-
recorded voice message, will revert to factory default. If power is lost for less than four (4)
minutes, custom settings are preserved.
ON
OFF
Fig. 2
AA SIZE
AA SIZE
AA SIZE
AA SIZE
Qty 4AA Alkaline
ANSI-15AIEC-LRO
OFF
PRESS
Fig. 1
AA SIZE AA SIZE
OFF
ON
ANSI-15A IEC-LR6
Qty 4AA Alkaline
DELAY
MODE
TONE
VOLUM
RECOR
Fig. 3


8 Sitter Elite
Preparing the Sitter Elite for Use (Continued)
Storing Your Sitter Elite:
If you are storing the Sitter Elite for an extended period of time, you should turn the alarm off
and remove the batteries (see page 7). Batteries start to corrode after an extended period of
time (just like a flashlight). Corroded batteries will damage the alarm and may cause it not to
function, or to function intermittently (see page 34).
ALWAYS close the battery door during storage to prevent damage.
NOTE: After four (4) minutes without battery power, all settings will revert to factory
default.
Store the alarm in a secure place so it will not be dropped or damaged. DO NOT use if;
battery door is missing; battery door is damaged; alarm case is damaged; or alarm case is
cracked.
Battery Leakage. If there is ANY evidence of battery leakage, remove
the alarm from use and notify the appropriate facility authority. The alarm should be
disposed of according to your facility disposal requirements. DO NOT use the alarm and
DO NOT attempt to clean it if there are any signs of battery leakage such as corrosion,
rust or white powder residue.
DO NOT allow batteries to deplete while in the alarm. Change batteries
immediately when hearing the low battery “chirp.” Depleted batteries may leak and
corrode, causing damage to the electronics and reliability. When storing the alarm for a
short period with power “on” to maintain custom voice messages and settings, check the
alarm every week to make sure the batteries are still operable and the alarm is still on. If
the alarm low battery alert is chirping, or the alarm does not power up, the batteries are
depleted and must be removed. DO NOT leave depleted (“dead”) batteries in the alarm to
avoid corrosion.
Remove batteries when storing the alarm for an extended period to prevent depleting the
batteries and potential corrosion.
The Posey Sitter Elite is an electronic device. It may fail to work if subjected to
severe shock, such as being dropped, or immersed in liquid. To reduce the risk of serious injury
or death, test the alarm and sensor for proper operation prior to putting in service with a
patient, and each time before leaving the patient unattended. If the alarm and/or sensor
do not function properly, remove the alarm and sensor from service and replace them
with a properly functioning alarm and/or sensor. DO NOT use the alarm, sensor or magnet
if it does not activate each time weight is removed from the sensor, the chair belt sensor is
unfastened, the PIR sensor is activated, or magnet is removed from face plate (see pages 22-24).


Sitter Elite 9
Setting Alarm Mode
The Sitter Elite has four (4) alarm modes. These allow you to select an alarm signal best suited
to patient and facility needs. The LED blinks green above the mode that the alarm is set to
when the alarm is on (fig. 6, page 10). The LED above the MUTE indicator blinks yellow when
the alarm is on and in “Mute” mode (fig. 6, page 10).
Mode Features:
When using a nurse call cable, ensure the nurse call cable is plugged in to
both the alarm and the wall jack before leaving the patient unattended. Verify that an
alert is received at the nursing station if the cable is unplugged from the wall jack.
NOTE: There will be no alert at the nursing station or at the bedside if the nurse call cable
is unplugged from the alarm.
To Change/Select Mode:
NOTE: “Voice Only” and “Mute” can be set only
when the nurse call cable is plugged into your alarm.
With this feature, all mode options are available.
Be sure to plug the nurse call cable into wall and
test. You MUST plug the nurse call cable into the
alarm AND the wall jack in order to activate nursing
station alerts.
Follow these steps to change or select alarm mode:
1. Lift the programming control protective cover
(fig. 4).
2. Ensure alarm is on and either sensor pad, chair
belt sensor, PIR sensor or magnet is attached to
alarm. Ensure pressure is on sensor pad, chair belt
sensor is connected, PIR sensor is connected, or
magnet is on face plate.
3. Press MODE button on left side of alarm to scroll through the mode selections (fig. 5).
TONE
Fig. 4
TONE
0
1
2
Fig. 5
VOICE & TONE: Depending on whether a custom voice recording is made, either the factory
default voice or a custom voice recorded message plays once, followed by
the selected alarm tone. The tone continues to play until alarm is placed on
hold or patient is repositioned with the magnet or sensor.
TONE: This is the factory default mode. Selected alarm tone plays until alarm is
placed on hold or patient is repositioned with the magnet or sensor.
VOICE ONLY: (This mode requires the nurse call cable to be plugged into your alarm and
the appropriate wall jack from your nurse call system). Custom voice or
factory default voice message plays repeatedly until alarm is placed on
hold or patient is repositioned with the magnet or sensor. This mode also
activates the facility nurse call system. Automatically switches to VOICE &
TONE if a nurse call cable is removed from the alarm (see page 18).
MUTE: (This mode requires the nurse call cable to be plugged into your alarm
and the appropriate wall jack from your nurse call system). There is no
audible voice message or alarm tone at the patient’s bedside. This mode
activates the facility nurse call system. Automatically switches to VOICE &
TONE if the nurse call cable is removed from the alarm (see page 18).


10 Sitter Elite
Setting Alarm Mode (Continued)
4. LED light blinks green to indicate selected mode is in
use (fig. 6). LED blinks yellow if the alarm mode is set to
“Mute” (fig. 6).
5. If alarm is set to “Voice Only” or “Voice and Tone” mode
and custom recorded message does not play, re-record
message. If this does not work, remove batteries for at
least 1 hour to reset alarm to factory default. You can
then re-record the message.
The last option selected is the mode utilized when the
sensor is activated or magnet is removed from the face
plate, depending on which monitoring mode is selected.
6. If you are using the nurse call cable, check to make sure
it is plugged into the correct wall jack and the alarm.
Make sure the mode you select alerts at the nurse’s
station when the alarm is activated.
7. When “Voice Only” or “Mute” are selected, you must have the nurse call cable plugged
into your alarm and the appropriate wall jack for your nurse call system. Ensure that the
nurse call system indicators (nursing station and wall light) are activated when the cable is
unplugged from the wall jack.
8. Replace the programming control protective cover, securing it into place.
To test the modes requiring nurse call interface, remove pressure from the sensor, unfasten the
chair belt sensor, activate the PIR sensor, or remove the magnet from the face plate. Check at
the nurse’s station to ensure that the indicator for the appropriate patient alarms on the nurse
call system and the wall light, indicating there is no pressure on the sensor, chair belt sensor is
unfastened, PIR sensor has detected activity or the magnet has been removed from the face plate.
HOLD/SUSPEND
®
Sitter
™
MODE
LED
Fig. 6


Sitter Elite 11
Setting Alarm Tone
The Sitter Elite has five (5) available tones. This allows you to differentiate between patients
and other equipment alarms.
To Select Tone:
1. Lift the programming control
protective cover (fig. 7).
2. Ensure alarm is on and either sensor
pad, chair belt sensor, PIR sensor or
magnet is attached to alarm. Ensure
pressure is on sensor pad, chair belt
sensor is connected, PIR sensor is
connected, or magnet is on face
plate (green LED flashes above mode
selection, yellow LED flashes if mode
is set to “Mute” (fig. 9).
3. Alarm mode must be set to either
“Voice and Tone” or “Tone” (see pages
9-10) in order to hear the selection.
4. Press TONE button on left side of
alarm to scroll through the tone
selections (fig. 8).
5. Each time you press the button, tone
will change and a two (2) second
sample plays. The last sample heard is
the tone utilized for the alarm when the sensor is
activated or the magnet is removed from the face
plate, depending on which monitoring mode is
selected.
6. Replace the programming control protective cover,
securing it into place.
HOLD/SUSPEND
®
Sitter
™
MODE
LED
Fig. 9
TONE
Fig. 7
TONE
0
1
2
Fig. 8


12 Sitter Elite
Adjusting Alarm Volume
There are three (3) alarm volume settings: low, medium and high. These allow you to select the
right volume for facility and/or patient needs.
All volume settings are within OSHA standards. For maximum staff alert in noisy areas, use
HIGHEST (loudest) volume setting.
ALWAYS check to ensure staff can hear alarm at the furthest possible
distance before leaving patient unattended.
NEVER place alarm closer than two feet from patient’s ear. Doing so may
cause hearing loss or other injury. For more information, see: OSHA OCCUPATIONAL
NOISE EXPOSURE STANDARDS 1910.95.
To Change Volume:
1. Lift the programming control protective cover (fig. 10).
2. Ensure alarm is on and either sensor pad, chair belt sensor, PIR sensor or magnet is attached
to alarm. Ensure pressure is on sensor pad, chair belt sensor is connected, PIR sensor is
connected, or magnet is on face plate.
3. Alarm mode must be set to either “Voice and Tone” or “Tone” (see pages 9-10) in order to
hear the selection.
4. Press VOLUME button on left side of alarm to scroll through the volume selections (fig. 11).
5. Each time you press the button, the volume changes and a two (2) second sample plays.
6. Continue to press the VOLUME button until you hear the desired volume. The last sample
heard is the volume in use.
7. Replace the programming control protective cover, securing it into place.
TONE
Fig. 10
TONE
0
1
2
Fig. 11


Sitter Elite 13
Time Delay
There is no time delay option when the magnet is used. This option is
available ONLY in Sensor Mode, while a sensor is in use.
The delay is the time that will elapse AFTER weight is removed from sensor pad, chair belt
sensor is unfastened, or PIR sensor detects activity and BEFORE alarm activates. Set a delay, if
any, to meet the needs of each patient.
The Sitter Elite gives you the option of a 0, 1, or 2 second alarm delay.
NOTE: With a time delay set, the alarm will not activate if weight is removed from the sensor
pad, chair belt sensor is unfastened, or PIR sensor detects activity before the time delay that
you set expires.
For example, if you set a 2 second time delay, the alarm will not activate until after 2 seconds
have expired.
The delay should be long enough to allow some patient movement without setting off alarm,
but still give sufficient warning when patient attempts to exit a bed or chair.
Assess patient frequently to ensure that a time delay is appropriate. Set the
delay at zero (0) with patients at EXTREME risk of injury from a fall associated with an
unassisted bed, chair or toilet exit.
To Set Time Delay
1. Lift the programming control protective cover (fig. 12).
2. Slide the toggle switch to the desired delay setting, 0-1-2 (fig. 13).
3. Replace the programming control protective cover, securing it into place.
TONE
Fig. 12
TONE
0
1
2
Fig. 13


14 Sitter Elite
To Record a Message
The Posey Sitter Elite has a feature that allows a caregiver or family member to communicate a
verbal “warning” message about unassisted bed, chair or toilet exit to a patient without having
to be physically in the room with the patient.
1. Lift the programming control
protective cover (fig. 14).
2. Ensure alarm is on and either
sensor pad, chair belt sensor, PIR
sensor or magnet is attached
to alarm. Ensure pressure is on
sensor pad, chair belt sensor
is connected, PIR sensor is
connected, or magnet is on face
plate.
3. Ensure alarm mode is set to
“Voice and Tone” or “Voice”
(nurse call option only) to hear
recording.
4. Press and hold the RECORD
button on left side of alarm
(fig. 15).
5. Wait for the “beep” before
speaking. Continue to hold
RECORD button down until you are done speaking.
6. In a normal voice, speak into microphone aperture
labeled MIC on front, top left corner of alarm (fig. 16).
NOTE: Changing alarm volume will not change message
recording volume. Your distance from the MIC and how
loud you speak controls message volume. To increase
volume, re-record message in a louder voice, with your
mouth closer to MIC.
7. Recording will stop when you release the RECORD
button or time (10 seconds) expires. If you exceed the
time allowed, recording will stop and the alarm will
“beep”.
8. Replace the programming control protective cover,
securing it into place.
9. After recording message, either disengage magnet,
remove weight from sensor, unfasten chair belt sensor or
activate PIR sensor to play message back. Ensure alarm
mode is set to “Voice and Tone” or “Voice” (nurse call option only) to hear recording.
10. Check that the message is clear and volume is right for your patient. Re-record if necessary.
11. If message does not record, or if both the batteries and the AC power adapter are removed
for more than four (4) minutes, factory default message will play.
TONE
Fig. 14
TONE
0
1
2
Fig. 15
HOLD/SUSPEND
®
Sitter
™
Fig. 16
Microphone MIC


Sitter Elite 15
The HOLD Button (Sensor Use ONLY)
NOTE: HOLD feature will not work unless sensor is plugged into the alarm.
To Place the Alarm on HOLD:
1. Press HOLD/SUSPEND button on the top of alarm (fig. 17) for
1 second. The HOLD/SUSPEND LED will begin flashing RED
at 3-second intervals if the alarm is in HOLD mode (fig. 17a).
The green LED indicating mode will continue to flash, but the
alarm is not monitoring.
2. You have 30 seconds to assist patient into or out of bed
or chair before alarm returns to monitoring mode. When
assisting patient out of bed, move patient towards the
edge of the bed with his or her legs over the side of the
bed before pressing the HOLD button. This will allow you
more time to reposition the patient on the sensor without
activating the alarm after the 30 second HOLD period expires.
3. After 30 seconds:
• If weight is present on the sensor, chair belt sensor is
connected or the PIR sensor is connected, you will
hear a single “beep” and monitoring will begin. ALWAYS
verify the green light is flashing, and the alarm and
sensors are monitoring before leaving patient unattended.
• If there is no weight on sensor, chair belt sensor is not
connected, or PIR sensor is not connected, alarm will
remain on HOLD.
4. The HOLD feature:
• Allows patient to be away from bed or chair for extended
periods without alarm activating (e.g., for meals, therapy,
toileting etc.). When patient returns and weight is applied to sensor, chair belt sensor is
connected, or PIR sensor is connected, alarm will “beep” once to indicate monitoring has
resumed. The red LED below HOLD/SUSPEND will no longer be flashing.
• Helps ensure continuity of care when there are several caregivers.
5. To take alarm out of HOLD:
•Applyweighttosensor,connectchairbeltsensor,activatePIRsensor;or
•PressHOLDbuttononce.
Alarm will “beep” once to indicate monitoring has resumed.
Flashing red HOLD/SUSPEND LED will no longer be flashing. The green light indicating
mode will blink, indicating the alarm is in monitoring mode.
Test the alarm and sensor for proper operation prior to putting in service with
a patient, and each time before leaving the patient unattended. If the alarm and/or sensor
do not function properly, remove the alarm and sensor from service and replace them with a
properly functioning alarm and/or sensor (see pages 22-24). Ensure the green LED, indicating
MODE, is blinking and the red HOLD/SUSPEND LED is no longer flashing red.
VOICE
&
TONE
TONE
MUTE
VOICE
NURSE CALL
MIC
HOLD
&
SUSPEND
HOLD/SUSPEND
HOLD/SUSPEND Button
Fig. 17
HOLD/SUSPEND
®
Sitter
™
HOLD/SUSPEND
Indicator LED
Fig. 17a


16 Sitter Elite
The SUSPEND Button (Sensor Use ONLY)
NOTE: SUSPEND feature will not work unless sensor is plugged into the alarm.
The SUSPEND feature is indicated when extended patient care is required. This feature allows
you additional time to perform that care without activating the alarm.
To Place the Alarm on SUSPEND:
1. Press HOLD/SUSPEND button on the top of alarm (fig. 18) for
3 seconds. The HOLD/SUSPEND LED will begin flashing RED
at ½-second intervals if the alarm is in SUSPEND mode (fig.
18a). The green LED indicating mode will continue to flash,
but the alarm is not monitoring.
2. You have 5 minutes to assist patient into or out of bed or
chair before alarm returns to monitoring mode.
3. After 5 minutes:
• If weight is present on the sensor, chair belt sensor is
connected or the PIR sensor is connected, you will
hear a single “beep” and monitoring will begin. ALWAYS
verify the green light is flashing, and the alarm and
sensors are monitoring before leaving patient unattended.
• If there is no weight on sensor, chair belt sensor is not
connected, or PIR sensor is not connected, alarm will
remain on SUSPEND.
4. The SUSPEND feature:
• Allows patient to be away from bed or chair for extended
periods without alarm activating (e.g., for meals, therapy,
toileting etc.). When patient returns and weight is applied to
sensor, chair belt sensor is connected, or PIR sensor is
connected, alarm will “beep” once to indicate monitoring has
resumed. The red LED below HOLD/SUSPEND will no longer
be flashing.
• Helps ensure continuity of care when there are several caregivers.
5. To take alarm out of SUSPEND:
•Applyweighttosensor,connectchairbeltsensor,activatePIRsensor;or
•PressSUSPEND button once.
Alarm will “beep” once to indicate monitoring has resumed.
Flashing red HOLD/SUSPEND LED will no longer be flashing. The green light indicating
mode will blink, indicating the alarm is in monitoring mode.
Test the alarm and sensor for proper operation prior to putting in service with
a patient, and each time before leaving the patient unattended. If the alarm and/or sensor
do not function properly, remove the alarm and sensor from service and replace them with a
properly functioning alarm and/or sensor (see pages 22-24). Ensure the green LED, indicating
MODE, is blinking and the red HOLD/SUSPEND LED is no longer flashing red.
VOICE
&
TONE
TONE
MUTE
VOICE
NURSE CALL
MIC
HOLD
&
SUSPEND
HOLD/SUSPEND
HOLD/SUSPEND Button
Fig. 18
HOLD/SUSPEND
®
Sitter
™
HOLD/SUSPEND
Indicator LED
Fig. 18a


Sitter Elite 17
Connecting to AC Power (Optional)
The Posey Sitter Elite is equipped with a DC jack to allow you to use AC power to power the
alarm. An optional AC power adapter (Cat. 8383) is required. To ensure proper alarm function
and to prevent damage to the alarm, only use the AC power adapter supplied by Posey.
To Connect to AC Power:
1. Connect the AC power adapter to the Sitter Elite (fig. 19).
2. Plug the other end into the wall.
3. Connect a sensor to the alarm.
NOTE: The Posey Sitter Elite will accept both alkaline or rechargeable batteries. However,
connecting the alarm to AC power does not charge the rechargeable batteries. This is a safety
feature to prevent potential battery damage if the wrong type of batteries are inserted while
the alarm is connected to AC power.
Only use the Posey AC power adapter (Cat. 8383) to power your alarm.
Using an adapter other than the Posey adapter may damage the alarm and void the
warranty.
If power is interrupted, the alarm will not function. There is no alarm at bedside or nurse
call station.
If AC power is off for more than four (4) minutes, the alarm settings will revert to factory
default.
NURSE
CALL
SENSOR
9V
AC POWER
ADAPTER
RECEPTACLE
Fig. 19


18 Sitter Elite
Nurse Call Interface (available with 8345NC System)
You can connect the Sitter Elite to your facility nurse call system. This allows you to add the
options and notification associated with your specific nurse call system such as nursing station
notification and patient room lights and sounds. With this feature, the alarm can be:
• Silenced in patient’s room to reduce roommate disturbance (“Mute”); or
• Set for “Voice Only”, instead of alarm tone.
NOTE: Alarm automatically switches to “Voice and Tone” if nurse call cable is removed from
the alarm. This ensures in-room voice and tone notice to staff if patient attempts to rise when
nurse call cable is no longer connected to the alarm.
To Connect the Nurse Call Cable:
1. Insert one end of cable into “Nurse Call” jack on right side of alarm (fig. 20).
2. Insert the other end of cable into wall jack of nurse call panel. Depending on your system,
you may need a “Y” adapter to use the Posey Sitter Elite and the patient nurse call device at
the same time.
When using a nurse call cable, ensure the nurse call
cable is plugged in to both the alarm and the wall jack before
leaving the patient unattended. Verify that an alert is received at
the nursing station if the cable is unplugged from the wall jack.
NOTE: There will be no alert at the nursing station or at the
bedside if the nurse call cable is unplugged from the alarm.
If the nurse call cable is unplugged from the alarm when it is in
“Voice Only” or “Mute” mode, the alarm will default to “Voice and
Tone” as a failsafe.
FOR SAFE USE WITH NURSE CALL CABLE:
• DONOTstretchorstraincabletoavoidpossibledamageand
possible malfunction.
• DONOTattachcabletomovingpartsofthebedorchairthatwillcausestrainor
damage if the bed or chair is repositioned.
• ALWAYSpositionthecablesothatmovingparts(siderails,wheels,etc.)willnotcause
strain or damage the cable.
• DONOTrunoverthecablewithcartsorequipment.
• DONOTwrapthecabletightlyduringstorage.
• ALWAYSremovethecablebypullingonthejack.DONOTpullonthecable.
• ALWAYS secure the cable out of the way so it will not be a tripping hazard.
• ALWAYStestalarmandnursecallfunctionpriortoleavingthepatientunattended.
Activate the alarm (remove pressure from sensor, unfasten chair belt sensor, activate
PIR sensor or remove magnet from face plate) and make sure the nurse call light for the
proper bed and room activate in the hall and at the nurse’s station.
• DONOTusethealarm,sensorormagnetifitdoesnotactivateeachtimeweight
is removed from the sensor, the chair belt sensor is unfastened, the PIR sensor is
activated, or magnet is removed from face plate. Replace alarm and sensor with
working units and retest before leaving the patient unattended (see pages 22-24).
NURSE
CALL
SENSOR
9V
Fig. 20


Sitter Elite 19
Mounting the Sitter Elite
The Sitter Elite comes with two mounting brackets:
• One (1) for wall or chair mount. (Cat. 8276 (without wire clip)
• One (1) for bed mount (Cat. 8276).
For additional brackets, call Posey Customer Service at 1.800.447.6739 or 1.626.443.3143.
Before each use, check that:
• Alarmissecurelymountedoutofthepatient’sreachandfunctionsproperlyby
activating alarm (see pages 22-24).
• Indicatorlightsareinclearviewofstaff.
Bed Mount
NOTE: The Sitter Elite comes with a standard bed bracket that fits head
and footboards ½” – 2” (1 cm - 5 cm) thick.
1. Use wire bracket (Cat. 8276) for head or footboard mounting
(fig. 21).
2. Slide alarm onto bracket from top down until it is firmly in place
(fig. 22).
3. Choose location on head or footboard where patient cannot
reach or tamper with the alarm or connections.
4. Pull bracket wire away from alarm to create an opening wide enough to fit the head or
footboard. Slide bracket onto bed and push down to ensure a snug fit. Make sure indicator
lights are in clear view of staff.
5. To remove alarm, gently push release lever IN while sliding alarm up and out (fig. 23).
6. Make sure sensor and/or nurse call cables can be secured out of the way and do not present
a tripping hazard.
Bed Attachment
DELAY
MODE
TONE
VOLUME
RECORD
VOICE
&
TONE
TONE
MIC
VOICE
MUTE
HOLD
&
SUSPEND
HOLD/SUSPEND
NURSE CALL
Fig. 21 - Wire Bracket
PULLLEVER
SLIDE OUT
RELEASE
LEVER
Fig. 22
PRESS
ON
OFF
SLIDE ALARM
DOWN
Fig. 23
OFF
ON
PULLLEVER
SLIDE OUT
SLIDE ALARM
OUT
PRESS
RELEASE
LEVER


20 Sitter Elite
Wall Mount
1. Choose a location out of the patient’s reach, but with indicator lights in clear view of staff.
2. Use wall/chair bracket (Cat. 8276 (without wire clip), (fig. 24).
3. Screw Attachment:
• Position wall bracket with back (flat side) against wall (fig. 24).
• Using bracket as a guide, mark spots to insert anchors into wall.
Make sure it is safe to drill and there are no pipes or electrical wires that
could be damaged.
• Drill holes where marked and insert anchors.
• Position bracket over holes. Insert and tighten screws.
4. Slide alarm onto bracket from top down until it is firmly in place.
5. To remove alarm, gently push release lever IN while sliding alarm up and out (fig. 25).
6. Make sure sensor and/or nurse call cables can be secured out of the way and do not present
a tripping hazard.
Fig. 24 - Chair/Wall Bracket
(Front View)
PRESS LEVER
SLIDE OUT
RELEASE
LEVER
SCREW
HOLES
Fig. 25 - Alarm/Bracket
(Front View)
PRESS LEVER
SLIDE OUT
HOLD/SUSPEND
®
Sitter
™
SLIDE
ALARM
UP
RELEASE
LEVER
