Potterton Performa 24 Eco HE Instruction Manual

Reset Burner On
Flame Failure
Power On
bar
0
1
2
3
4
© Baxi Heating UK Ltd 2011
Performa
24 Eco HE
Condensing
Combination Boiler
You can rely on
User Guide and
Important Warranty Information
Please keep these instructions in a safe place.
If you move house, please hand them over to
the next occupier.

2© Baxi Heating UK Ltd 2011
Natural Gas
Potterton Performa 24 Eco HE
G.C.No47 393 11
1.0 Quick Reference Guide 3
2.0 Troubleshooting 4
3.0 Repressurising the System 6
4.0 Fault Indication 7
5.0 Clearances & Cleaning 8
6.0 Legislation 9
7.0 Notes 10
8.0 Emergency 11
9.0 Warranty & Service 12
Section Page
Contents
Boiler Controls - see opposite page
for Operating Quick Reference Guide
Where fitted, user label for optional
timer to be applied here.
© Baxi Heating UK Ltd 2011 All rights reserved. No part of this publication may
be reproduced or transmitted in any form or by any means, or stored in any
retrieval system of any nature (including in any database), in each case whether
electronic, mechanical, recording or otherwise, without the prior written
permission of the copyright owner, except for permitted fair dealing under
Copyrights, Designs and Patents Act 1988.
Applications for the copyright owner’s permission to reproduce or make other
use of any part of this publication should be made, giving details of the proposed
use, to the following address:
The Company Secretary, Baxi Heating UK Ltd,
Brooks House, Coventry Road, Warwick. CV34 4 LL
Full acknowledgement of author and source must be given.
WARNING: Any person who does any unauthorised act in relation to a
copyright work may be liable to criminal prosecution and civil claims for damages.
0086
ISO 9001
FM 00866
The Benchmark Scheme
Baxi Heating UK Ltd is a licensed member of the Benchmark Scheme which aims
to improve the standards of installation and commissioning of domestic heating
and hot water systems in the UK and to encourage regular servicing to optimise
safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry
Council. For more information visit www.centralheating.co.uk

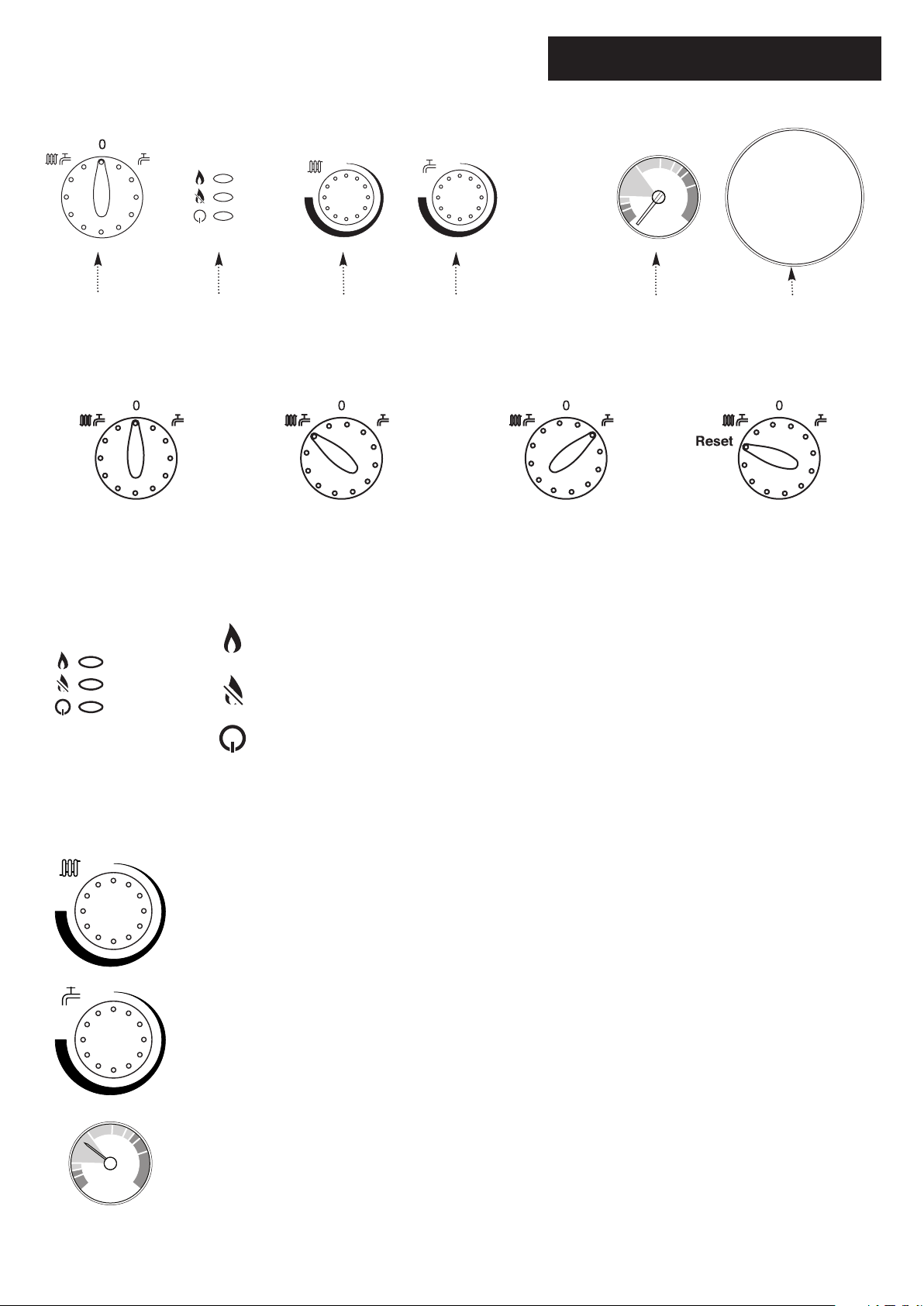

1.0 Quick Reference Guide
3
© Baxi Heating UK Ltd 2011
Reset Burner On
Flame Failure
Power On
bar
0
1
2
3
4
Reset
Burner On
Flame Failure
Power On
bar
0
1
2
3
4
ON/OFF/Reset
Selector Switch
Indicator Neons Central Heating
Temperature Control
Domestic Hot Water
Temperature Control
System Pressure Gauge
OFF Position
The boiler will not operate.
Central Heating Temperature Control
Turn the knob clockwise to increase or anticlockwise to decrease the temperature.
Range 35 - 85° C.
Domestic Hot Water Temperature Control
Turn the knob clockwise to increase or anticlockwise to decrease the temperature.
Range 35 - 65° C.
Power On Indicator - The indicator will illuminate when there is power to the boiler.
Flame Failure Indicator - The indicator will illuminate when the burner has not fired.
Burner On Indicator - The indicator will illuminate when the burner has fired and is heating
your central heating or domestic hot water.
Central Heating System Pressure - The normal operating water pressure is shown when the
needle is between 1 and 2.5 bar. If the pressure exceeds 3 bar the safety pressure valve will
operate and a fault is indicated. Contact your Installer.
Reset
Central Heating & Hot Water
Both Heating & Hot Water will operate.
Reset
Hold for approx 5 seconds and release.
Indicator Neons
Position of
Optional Timer
Reset
Domestic Hot Water
Hot Water will operate.

2.0 Troubleshooting
4© Baxi Heating UK Ltd 2011
START
Make sure the gas supply is
turned ON and check if other
gas appliances are operating
(e.g. fire, cooker).
If no gas, consult your
supplier.
Is the ON/OFF/Reset
Select Switch in the
( ) position and
the Power ON
Indicator lit ?
Is the ( ) and the ( )
indicator neon on ?
Burner On
Flame Failure
Power On
Check electricity to the
boiler is switched on.
Reset
Power On
Indicator
Burner On
Flame Failure
Power On
Burner On
Indicator
Boiler operating satisfactorily.
bar
0
1
2
3
4
Is the Central Heating System
Pressure needle in the GREEN
section, between 1 and 2.5 bar ?
If the reading falls below 1 bar
repressurise the system as
described in section 3.1.
Is the ( ) indicator neon on?
Boiler not working
NO
NO
YES YES
YES
NO
Turn the ON/OFF/Reset
Selector Switch to Reset.
NO
YES
YES
NO
If boiler does not
Reset
Power On
Indicator
Burner On
Flame Failure
Power On
Flame Failure
Indicator

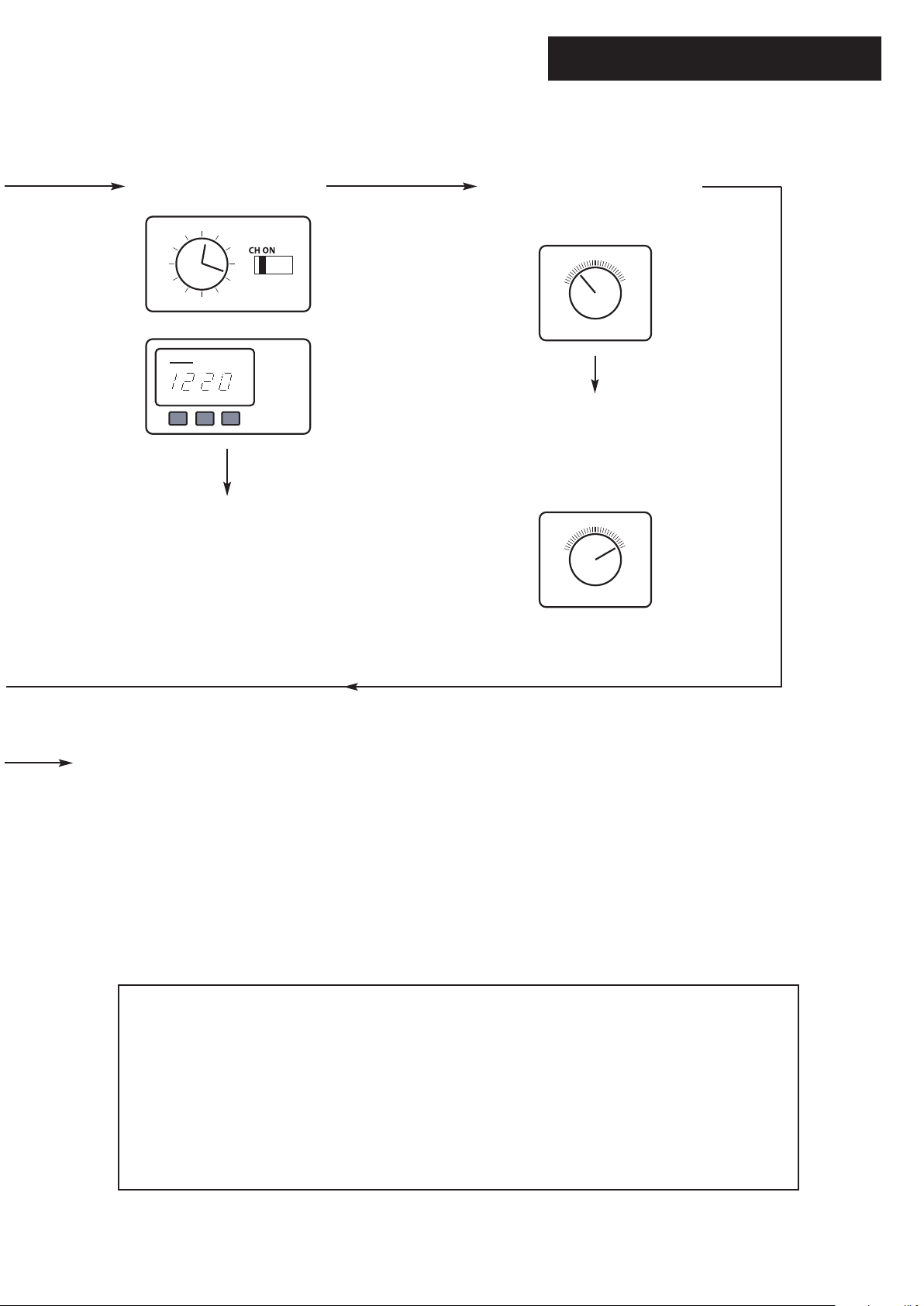

2.0 Troubleshooting
5
© Baxi Heating UK Ltd 2011
Is the Timer ON and calling for
heat ?
Ensure timer is set for Central
Heating ON (see any
instructions supplied with
timer).
Is the Room Thermostat (if
fitted) set high enough ?
15
10
5
20
25
15
10
5
20
25
Turn Room Thermostat to
maximum setting (typical
example shown).
If you don’t know what you need to do to
get the boiler to light, or need help with
the system and controls, contact your
installer as soon as possible.
YES
NO
CONTACT YOUR
INSTALLER OR
SERVICE ENGINEER.
YES
12
1
2
3
4
5
6
7
8
9
10
11
CH ON CH OFF
Typical
examples of
external timer
NO

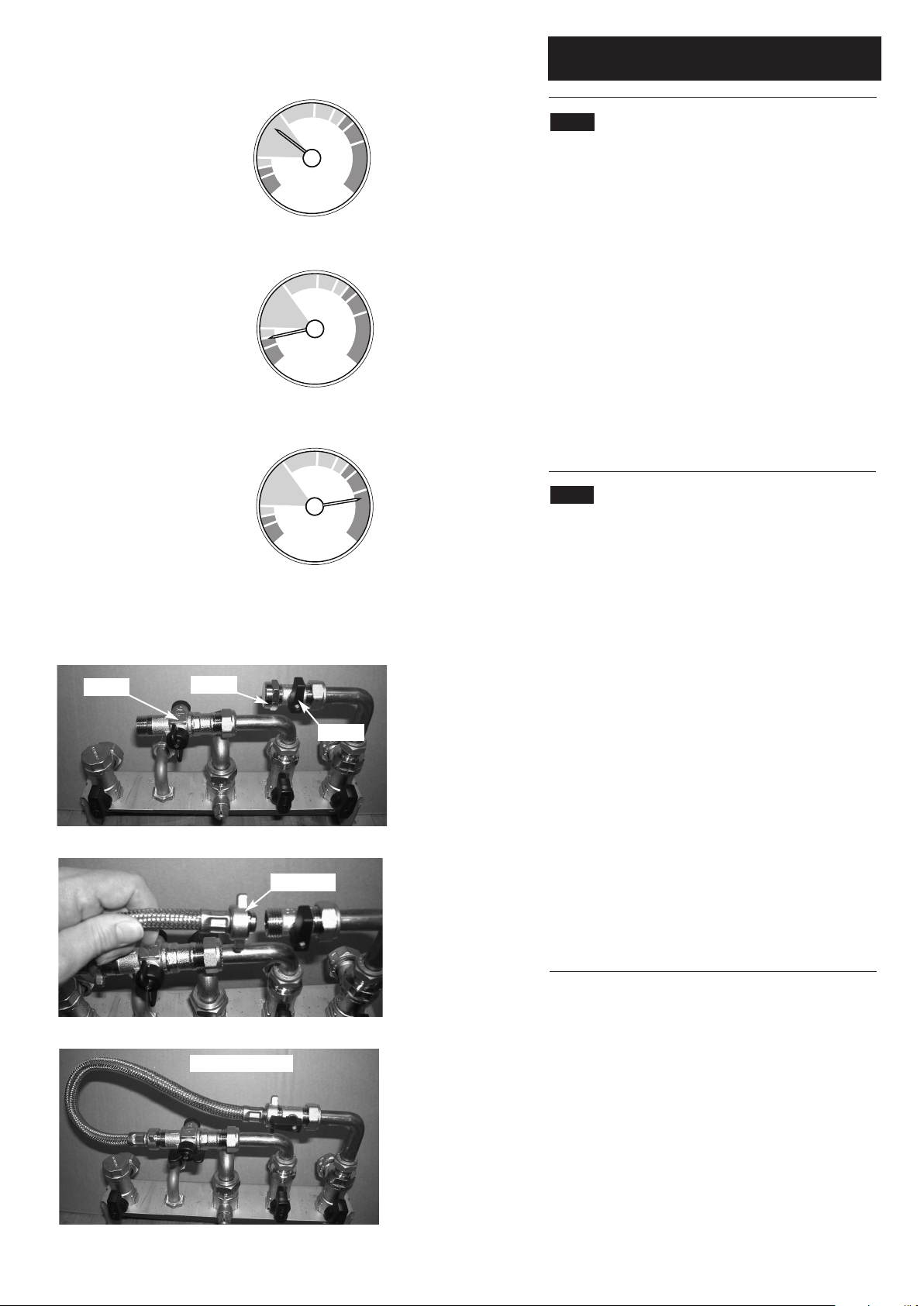

3.0 Repressurising the System
6© Baxi Heating UK Ltd 2011
bar
0
1
2
3
4
bar
0
1
2
3
4
Fig. 1
Fig. 2
Normal Pressure
Requires
Repressurising
Tap
Tap
Cap
Wing Nut
Loop Connected
Boiler Taps &
Connections, as
viewed from
underneath
3.1 Central Heating System Pressure
1. The water pressure in the central heating system is
indicated by the pressure gauge.
2. With the system cold and the boiler not operating the
pressure should be at least 0.5 bar. During operation the
pressure should not exceed 2.5 bar, and will normally be
between 1.0 and 2.0 (Fig. 1).
3. A pressure of 3 or greater indicates a fault. The safety
pressure relief valve will operate at a pressure of 3 (Fig. 3). It
is important that your Installer or Service Engineer is
contacted as soon as possible.
4. The minimum pressure for correct operation is 0.5. If the
pressure falls below 0.5, this may indicate a leak on the
central heating system (Fig. 2).
3.2 To Repressurise the System
1. The procedure is for the optional filling loop kit when
fitted. However, even if your boiler has an external loop, the
principle is similar.
2. Look at the boiler from underneath. There will be two taps
at the end of copper pipes, one with a blanking cap on the
end. Do not operate these taps yet.
3. Your installer will have left a metal braided hose (the ‘filling
loop’) with you for safe keeping.
4. This loop MUST be connected to the taps. Remove the
blanking cap and set aside.
5. Connect the loop to the taps with the wing nuts. These
should be hand tightened.
6. Carefully open the handles on both taps and check the
boiler pressure gauge. Once the needle on the gauge is
above the 0.5 mark both taps can be closed.
7. Undo the two wing nuts, remove the loop and refit the
blanking cap. Put the loop in a safe place for future use.
bar
0
1
2
3
4
Fault
Fig. 3

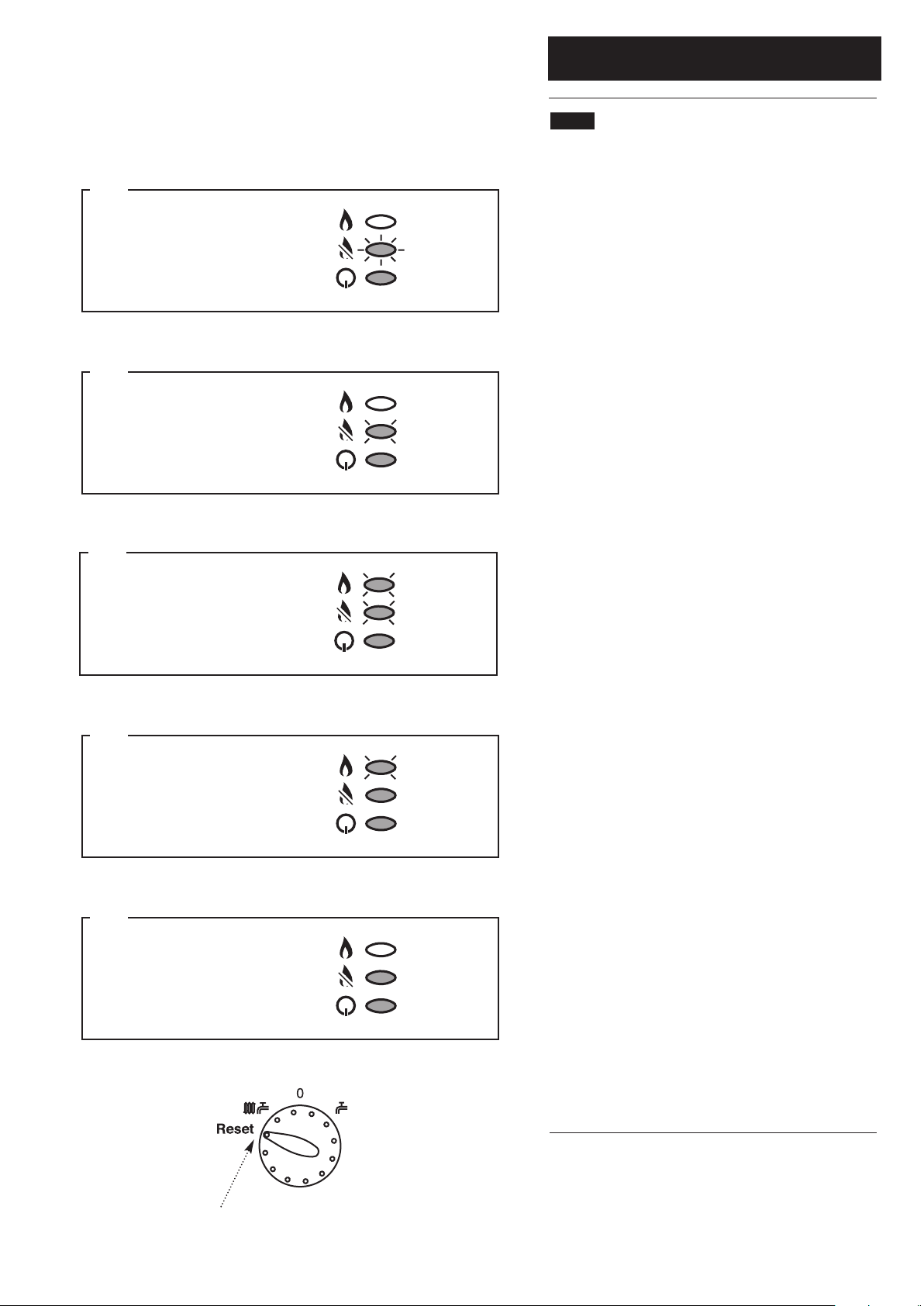

4.0 Fault Indication
7
© Baxi Heating UK Ltd 2011
4.1 Fault Indication
1. Your Potterton Performa 24 Eco HE has three neon
indicators. The upper two function as boiler on and fault
indicators.
2. Depending on the nature of the fault the upper two neons
will illuminate, go off or flash.
3. There are five possible combinations, each indicating one
or more fault conditions. These are described below.
A
The flue or flue terminal is blocked or obstructed in some
way, or there is an internal fault.
If there is no external blockage of the flue that can be easily
removed contact your Installer or Service Engineer.
B
The circulating pump is faulty or the system pressure has
dropped. Check the system pressure (see page 7). If the
pressure is in the normal range a pump fault is indicated.
Contact your Installer or Service Engineer.
C
A fault on the boiler temperature sensor is indicated. Contact
your Installer or Service Engineer.
D
The primary system or the boiler has overheated. Allow the
boiler to cool. Turn the selector switch fully anti-clockwise
against the spring pressure to the ‘Reset’ position and hold for
at least 2 seconds.
If this occurs repeatedly contact your Installer or Service
Engineer.
If the boiler does not relight after resetting it is possible that
the flue has overheated. Contact your Installer or Service
Engineer.
E
The burner has failed to light, or incomplete lighting of the
burner has occurred. Turn the selector switch fully anti-
clockwise against the spring pressure to the ‘Reset’ position
and hold for at least 2 seconds.
If this occurs repeatedly contact your Installer or Service
Engineer.
If the boiler does not relight after resetting blockage of the
condensate drain or trap has occurred. Contact your Installer
or Service Engineer.
Burner On
Flame Failure
Power On
Off
Fast Flashing (2 every second)
On
A
Burner On
Flame Failure
Power On
Off
Slow Flashing (1 every 2 seconds)
On
B
Burner On
Flame Failure
Power On
Slow Flashing (1 every 2 seconds)
Slow Flashing (1 every 2 seconds)
On
C
Burner On
Flame Failure
Power On
Slow Flashing (1 every 2 seconds)
On
On
D
Burner On
Flame Failure
Power On
Off
On
On
E
Reset Position

5.0 Clearances & Cleaning
8© Baxi Heating UK Ltd 2011
Fig. 4
200mm Min
780mm
450mm
200mm Min
5mm Min
5mm Min
450mm Min
For Servicing
Purposes
In Operation
20mm/5mm Min
see *NOTE: 5.1 For your Safety
1. This appliance must have been installed in accordance
with the manufacturer’s instructions and the regulations
in force.
2. Any modification that may interfere with the normal
operation of the appliance without express written
permission from the manufacturer or his agent could
invalidate the appliance warranty. In GB this could also
infringe the Gas Safety (Installation and Use) Regulations.
3. Your boiler must not be operated without the casing
correctly fitted.
4. Do not interfere with any sealed components on this
boiler.
5. Take note of any warning labels on your boiler.
6. Your boiler should have the following minimum
clearances for Safety and Maintenance
(Fig. 34):-
Top - 200mm
Bottom - 200mm
Left side - 5mm
Right Side - 5mm
Front - 5mm (In Operation)
- 450mm (For Servicing)
* NOTE: The boiler can be operated with a
clearance of 5mm at the right. This is also sufficient
for routine maintenance. However a clearance of
20mm is required if it is necessary to remove the
secondary heat exchanger. This should be considered
when siting the appliance and in the event of any
subsequent alteration in the area of installation.
7. If your boiler is installed in a compartment, do not use
it for storage purposes. Do not obstruct any purpose
provided ventilation openings.
8. Flammable materials must not be stored in close
proximity to your boiler.
9. Avoid skin contact when your boiler is in operation, as
some surfaces may get hot e.g. pipework.
10. Ensure that the flue terminal, outside the house,
does not become damaged or obstructed, particularly
by foliage.
11. It is important that the condensate drain system is
not blocked, modified or damaged in any way as this
would affect the operation of your boiler. Your installer
should have insulated any exposed pipework.
5.2 Cleaning the Outer case
The painted panels should be wiped with a damp cloth
and then dried completely. DO NOT USE ABRASIVE
CLEANING AGENTS.
GB - Heating Industry definition meaning England, Scotland,
Wales, Northern Ireland, Isle of Man and the Channel Isles
Reset
Burner On
Flame Failure
Power On
bar
0
1
2
3
4

6.0 Legislation
9
© Baxi Heating UK Ltd 2011
6.1 Installation, Commissioning, Service & Repair
1. This appliance must be installed in accordance with the
manufacturer’s instructions and the regulations in force. Read
the instructions fully before installing or using the appliance.
2. In GB, this must be carried out by a competent person as
stated in the Gas Safety (Installation & Use) Regulations.
3. Definition of competence: A person who works for a Gas
Safe registered company and holding current certificates in the
relevant ACS modules, is deemed competent.
4. In IE (Eire), this must be carried out by a competent person
as stated in I.S. 813 “Domestic Gas Installations”.
All Gas Safe registered engineers carry an ID card with their
licence number and a photograph. You can check your
engineer is registered by telephoning 0800 408 5500 or online
at www.GasSafeRegistered.co.uk
The boiler meets the requirements of Statutory Instrument
“The Boiler (Efficiency) Regulations 1993 No 3083” and is
deemed to meet the requirements of Directive 92/42/EEC on
the energy efficiency requirements for new hot water boilers
fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0085.
Product/Production certified by:
Notified Bodies 0086.
For GB/IE only.
6.2 Benchmark Commissioning Checklist
Please ensure that the installer has fully completed the
Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed
it to say that you have received a full and clear explanation of
its operation. The installer is legally required to complete a
commissioning checklist as a means of complying with the
appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control
either directly or through a Competent Persons Scheme. A
Building Regulations Compliance Certificate will then be issued
to the customer who should, on receipt, write the Notification
Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety,
efficiency and performance. The service engineer should
complete the relevant Service Record on the Benchmark
Checklist after each service.
The Benchmark Checklist may be required in the event of any
warranty work and as supporting documentation relating to
home improvements in the optional documents section of the
Home Information Pack.

7.0 Notes
10 © Baxi Heating UK Ltd 2011

8.0 Emergency
11
© Baxi Heating UK Ltd 2011
Gas Tap
Heating Flow, Heating
Return and Mains Water
Inlet Isolating Valves
Fig. 6
Fig. 7
In an Emergency
If a water or gas leak occurs or is suspected, the boiler can
be isolated at the inlet valves as follows;
1. Using a suitable open ended spanner, turn the square
nut on the gas tap through 90° (1/4turn) to isolate the gas
supply at the boiler (Fig. 6).
2. The water isolating valves are positioned under the
boiler and can be closed by turning their taps to the right
towards the wall (Fig. 7).
3. Call your Installer or Service Engineer as soon as
possible.
If you smell gas
Do not operate light switches
Do not operate any electrical equipment
Do not use a telephone in the hazardous area
Extinguish any naked flame and do not smoke
Open windows and doors in the hazardous area
Turn off the gas supply at the meter
Warn any other occupants and vacate the premises
Telephone the National Gas Emergency Service on:-
0800 111 999
Faulty boiler
If it is known or suspected that a fault exists
on the boiler, it must not be used until the fault
has been corrected by a competent person.
Warning !

9.0 Warranty & Service
© Baxi Heating UK Ltd 2011 710274601
Information Label
All descriptions and illustrations provided in this leaflet have been carefully
prepared but we reserve the right to make changes and improvements in
our products which may affect the accuracy of the information contained in
this leaflet. All goods are sold subject to our standard Conditions of Sale
which are available on request.
Serial Number
Date of Installation
Installer Details (name, address and contact number(s))
Please complete the boxes below
DDMYY
M
POTTERTON
A Trading Division of Baxi Heating UK Ltd (3879156)
Brooks House, Coventry Road, Warwick. CV34 4LL
After Sales Service 0844 871 1560 Technical Enquiries 0844 871 1555
Website www.potterton.co.uk
e&oe
Standard Warranty Term & Conditions
12 Months Free Warranty - register today
To receive your 12 months free warranty please complete the form supplied
with the boiler or simply call heateam, the service of Baxi Heating UK Ltd on
0800 731 1644.
Our promise to you
If you experience a fault with your new boiler, we aim to provide a safe and
high quality repair service supported by our dedicated national network of
highly skilled engineers. If your installer can’t resolve the problem for you, we
will do everything we can to get an engineer out to you as quickly as possible.
Nothing in this warranty will affect your statutory consumer rights.
What you need to do if you experience a problem with your heating system
or the operation of the boiler
You should always contact your installer first, because the fault may not be
related to the boiler. If your installer confirms that the fault is within the boiler
it self and he/she can’t repair it, our friendly customer service team is on hand
to help. Simply call our service division heateam on 0844 871 1560 to book an
engineer visit or for any general advice that you may need. Our contact centre
is open Monday to Friday 8am - 6pm, weekends and Bank Holidays 8.30am -
2pm, excluding Christmas Day and New Years Day.
When calling heateam it would be helpful if you could have the following
information to hand:-
1 boiler serial number (see opposite).
2 boiler make and model number.
3 Your installer name and address details.
4 Proof of purchase (if you do not have the boiler serial number).
What this warranty covers
Free of charge repair or replacement of components found to be faulty from
manufacture.
Free of charge replacement of the complete unit provided always that the
failure is related to a manufacturing fault that cannot be repaired or is
uneconomic to repair.
The warranty runs for 12 months from the date your product is installed.
What this warranty does not cover
Repairs to boilers which haven’t been installed and commissioned properly,
and as set out in the installation instructions (this includes the need to flush the
system effectively and add a suitable corrosion inhibitor).
Any damage caused by hard water scale deposits and/or aggressive water
resulting from corrosion.
Any other defects or failures, either in the connected heating system or
outside of the boiler itself.
Faults caused by inadequate supply of electricity, gas or water to the property.
Installations within commercial settings for which this boiler was not designed.
Reimbursement of any third party repair or replacement costs that we haven’t
been told about or agreed with you in advance.
Compensation for consequential losses (e.g. loss of earnings, business losses,
stress and inconvenience) arising from a production breakdown, including
repair delays caused by factors outside our reasonable control.
Annual Service
To ensure you receive the maximum efficiency from your boiler we
recommend your boiler has an annual service so you and your family can
continue to enjoy heating and hot water comfort. To arrange an annual service
from one of our Baxi Heating UK Ltd heating experts, please call
Tel: [phone]
UK Comp No5111812 - Iss 8 - 2/11
