Power Craft PGG-800 Installation guide
800W GENERATOR
(2 STROKE)
Original instructions & Warranty
AFTER SALES SUPPORT
UK HELPLINE NO 0905-1460005 (£ 0,06 /min.)
IRELAND HELPLINE NO 1520-932626 (E 0,15 /min.)
WEB SUPPORT www.servotool.eu
Model number: PGG-800
ART.NO: PGM6002
After Sales Support
Now you have purchased a Power Craft
product you can rest assured in the
knowledge that as well as your 3 year
parts and labour warranty you have
the added peace of mind of dedicated
helplines and web support.
PGM6002 Ma GB-IRE-1101-17.indd 1 1/18/11 3:35:35 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
2 Model Number: PGG-800
Contents
2 Contents
3 Introduction
5 Machine data
8 Safety instructions
10 Assembling and operations
12 Periodic maintenance
14 Troubleshooting
15 Maintenance
16 Parts list
17 Technical drawing
18 Warranty
PGM6002 Ma GB-IRE-1101-17.indd 2 1/18/11 3:35:35 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 3
Introduction
Congratulations on choosing to buy a
Powercraft Product
You have made an excellent choice with the purchase of this quality
Powercraft product.
You have purchased a product that has been manufactured to the highest
standards of performance and safety, supported by the high quality
standards of Aldi.
We want you to be completely satisfied with your purchase so this
Powercraft product is backed by a comprehensive 3 year manufacturer’s
warranty and an outstanding after sales service through our dedicated on
the number below helpline.
We hope you will enjoy using your purchase for many years to come.
If you require technical support or in the unlikely event that your purchase
is faulty please telephone on the number below our Helpline for immediate
assistance. Faulty product claims made within the 3 year warranty period
will be repaired or replaced free of charge provided that you have
satisfactory proof of purchase (keep your till receipt safe!). This does not
affect your statutory rights. However, please be aware that the warranty
will become null and void if the product is found to have been deliberately
damaged, misused or disassembled.
PGM6002 Ma GB-IRE-1101-17.indd 3 1/18/11 3:35:35 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
4 Model Number: PGG-800
Introduction
GENERATOR (2 STROKE)
For your own safety and that of others, we recommend that you
read this instruction manual carefully before using this machine.
Keep this instruction manual and the documentation provided
with the machine for future reference.
Contents of packing
1 Generator
1 Auxiliary handle
1 Spark plug key
1 Users manual
1 After sales support card
1 Quick Start guide
Check the appliance, any loose parts and accessories for damage caused
during transport.
PGM6002 Ma GB-IRE-1101-17.indd 4 1/18/11 3:35:35 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 5
Machine data
Technical specifications
Rated voltage AC 230 V
Rated frequency (AC) 50 Hz
Rated output 650 W
Max. output power of apparatus 800 W
Tool class I
Weight 16 kg
Dimensions 395x338x315 mm
Outdoor noise (Lwa) 94,0 dB(A)
Vibration level < 2.5 m/s2
Type Engine Air cooled 2-stroke petrol
Cylinder arrangement Inclined, 1 cylinder
Max. output 1.5 kW
Operation hours 6 hours
Fuel Gasoline-oil (50:1)
Fuel tank capacity 4 L
PGM6002 Ma GB-IRE-1101-17.indd 5 1/18/11 3:35:35 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
6 Model Number: PGG-800
Machine data
Product information
2
1
12
11
3
9
4
5
6
7
8
10
Fig. A
1. Fuel tank
2. Fuel cap
3. AC socket
4. AC Switch
5. Engine switch
6. Choke lever
7. Recoil starter
8. Fuel tap
9. Air filter cover
10. Spark plug
11. DC output
12. DC switch
PGM6002 Ma GB-IRE-1101-17.indd 6 1/18/11 3:35:36 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 7
Machine data

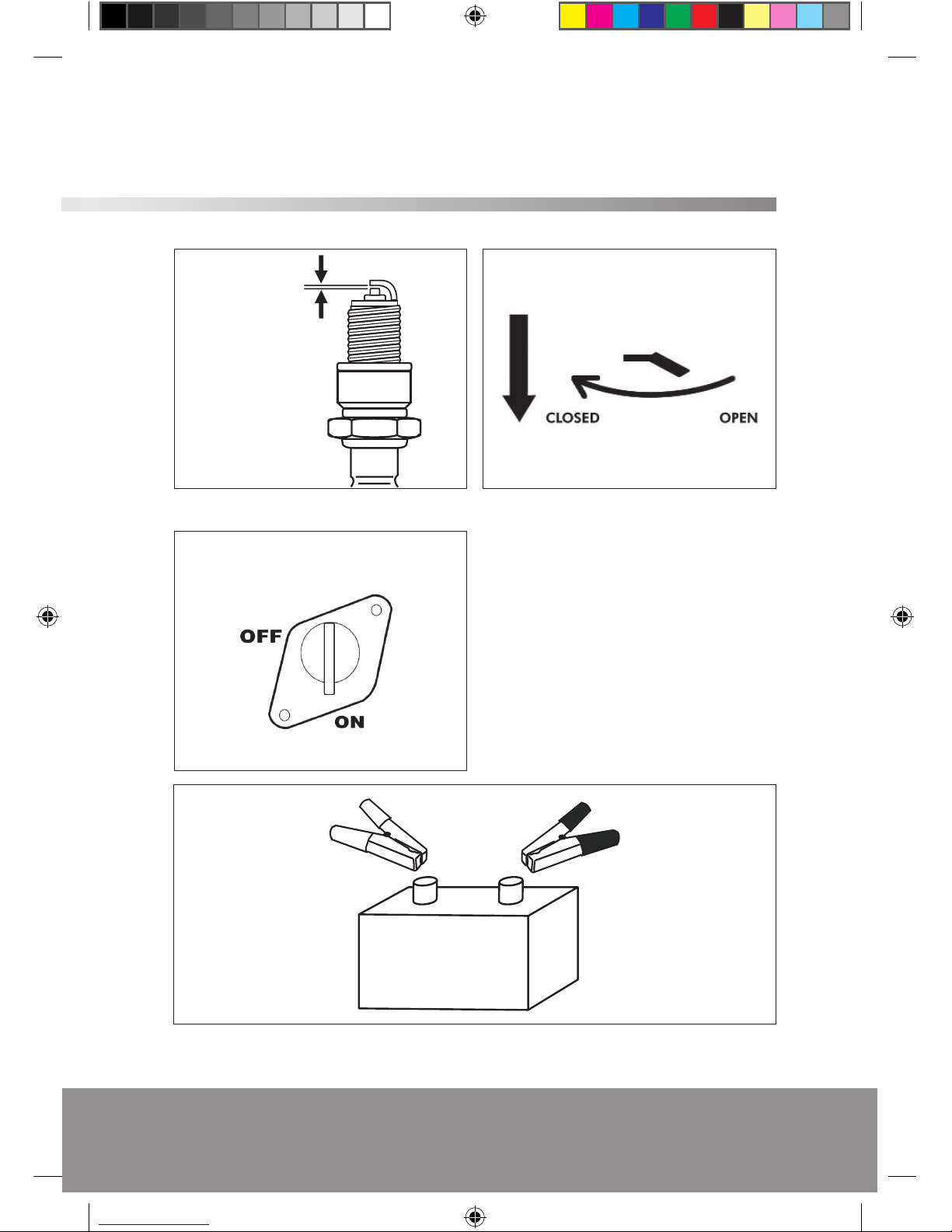

Red Black
+-
A
B
(0.70 - 0.80 mm)
Fig. 2 Fig. 3
Fig. 4
Fig. 5
PGM6002 Ma GB-IRE-1101-17.indd 7 1/18/11 3:35:37 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
8 Model Number: PGG-800
Safety instructions
Explanation of the symbols
Read instructions carefully.
In accordance with essential applicable safety standards of
European directives.
Denotes risk of personal injury, loss of life or damage to the tool in
case of non-observance of the instructions in this manual.
Indicates electrical shock hazard.
Do not use in rain.
Outdoor noise
Risk of high temperature
Caution: the generator contains some parts which might reach
high temperatures
Faulty and/or discarded electrical or electronic apparatus have to
be collected at the appropriate recycling locations.
Safety instructions
Persons
• Neverallowchildrenorpeopleunfamiliarwiththeseinstructionstouse
the appliance. Local regulations may restrict the age of the operator.
• Alwaysoperateoutdoorswithgoodventilation.Exhaustgascontains
poisonous carbon monoxide.
• Alwaysstoptheenginebeforerellingthefueltankandcleanthe
machine after filling the fuel tank.
• Donotinhalefumesfrompetrol.
Electricity
• Donottouchthegeneratorifyouhavewethands.
• Donotoperatethegeneratorinwetconditions.
PGM6002 Ma GB-IRE-1101-17.indd 8 1/18/11 3:35:38 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 9
Safety instructions
• Donotoperatethegeneratornearwater.
• Neverconnecttwogeneratorstogether.
• Neverconnectthegeneratortoanycommercialpoweroutlet.
• Makesureanyextensioncordsusedareinasafeconditionandof
sufficient capacity for the task.
• Ensurethattheloadonthegeneratorfallswithinitscapacityas
specified in the table before plugging in any cords.
Fire and burn hazards
• Theexhaustsystemgetshotenoughtoignitesomematerials:
- keep the generator at least 1 meter away from buildings and other
equipment during operation.
- keep flammable materials away from the generator.
• Theexhaustbecomesveryhotduringoperationsandremainshotfora
while after stopping the engine:
- Let the engine cool before storing the generator indoors.
- Do not touch the hot exhaust with your hands.
• Gasolineisextremelyammableandisexplosiveundercertain
conditions.Donotsmokeorallowamesorsparkswherethegenerator
is refueled or where gasoline is stored.
• Fuelvaporsareextremelyammableandmayigniteaftertheengine
has started. Make sure that any spilled fuel has been wiped up before
starting the generator.
• Nevershadethegeneratorwithclothesorotherarticles.
PGM6002 Ma GB-IRE-1101-17.indd 9 1/18/11 3:35:38 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
10 Model Number: PGG-800
Assembling and operations
Before starting the generator
Ground terminal
The generator ground terminal is connected to the frame of the
generator, the metal non-current-carrying parts of the generator,
and the ground terminals of each receptacle. Before using the
ground terminal, consult a qualified electrician, electrical inspector
or local agency having jurisdiction for local codes or ordinances
that apply to the intended use of the generator.
Assembly
Unscrew the tank cover. Remove the measuring jug and fit it into the recess
on the bottom of the tank cover. Screw the tank cover back onto the tank.
Use the enclosed screws to fasten the carry handle onto the tank.
Important! Before use, the tank needs to be filled up with a petrol mixture
in a mixing ratio of 50:1. Refer to the table below.
Use the measuring jug inside the tank. One increment equals 20ml. Mix the
mixture well.
Mixture 50:1
Regular unleaded petrol 2 stroke oil
1l 20ml
2l 40ml
3l 60ml
4l 80ml
For general use you can use 2-stroke oil.
Filling up the tank
• Usepetrolmixtureonly
• Removeanypowercords
• Turnpowerswitchesoff
• Donotoverll–leaveairgapattopoffuellevel
• Alwaysscrewdownfuelcap
• Cleanupanyspilledfuel
• Donotsmokewhileoperatingthegenerator
Always use caution!
PGM6002 Ma GB-IRE-1101-17.indd 10 1/18/11 3:35:38 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 11
Assembling and operations
Starting the generator
Fig. 1 + 3 + 4
1. Turn on fuel tap (8).
2. Turn on engine switch (5).
3. Move choke lever (6) to closed position (to restart a warm engine, leave
the choke lever in open or half-open position).
4. Pull slowly on the starter cord until it engages, then pull sharply to start
the engine (7).
5. Allow the engine to run until it warms up, and then move the choke
lever to the open position (6).
Using the AC Output (230 V)
• Startthegenerator.
• Plugintheelectricalapplianceplug.
Stopping the generator
Fig. 1 + 4
1. Unplug all cords (5)
2. Turn engine switch to “OFF” (5)
3. Turn off fuel tap (8)
Using the DC Output (12V)
Fig. 5
• PlugthechargingleadintotheDCoutput
• Startthegenerator
• Connecttheredclampwiththe+terminalofthebattery
• Connecttheblackclampwiththe–teminalofthebattery
PGM6002 Ma GB-IRE-1101-17.indd 11 1/18/11 3:35:38 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
12 Model Number: PGG-800
Periodic maintenance
Periodic maintenance
Daily (pre-operation check)
• Checkfuelhoseforcracksorotherdamage.Replaceifnecessary.
• Checkexhaust-systemforleakage.Retightenorreplacegasketif
necessary.
• Checkchokeoperation.
• Checkrecoilstarteroperation.
3 Months or 50 hrs
• Checkconditionofsparkplug.Adjustgapandclean.Replaceif
necessary.
6 Months or 100 hrs
• Cleanfueltapandfueltanklter.Replaceifnecessary.
• Checkttingsandfasteners.Replaceifnecessary.
12 Months or 300 hrs
• Contactaspecializedservicecentretocheckthevalveclearance.
• Checkthefanofthecoolingsystemfordamage.
Spark plug inspection
Fig. 2
• Disconnectthesparkplugcap,andremoveanydirtfromaroundthe
spark plug area.
• Removesparkplug(10)withtheplugspannersupplied.
• Inspectthesparkplug.Itshouldbeatancolour.
• Measurethegap(distancecontactpoint)withasuitablegauge.The
gap should be 0,7 - 0,8 mm. Correct the gap, if necessary, by carefully
bending the side electrode.
• Replacethesparkplugiftheelectrodesareworn,oriftheinsulatoris
cracked or chipped.
• Installthesparkplugcarefully,byhand,toavoidcross-threading.
• Placethesparkplugwithcorrecttorque:20Nm.
• Attachthesparkplugcap.
Exhaust screen
• Waitforexhausttocool.
• Exhaustscreenmaybeblockedupwithcarbondeposits.
• Undothescrewcapandremovetheexhaustscreen.
PGM6002 Ma GB-IRE-1101-17.indd 12 1/18/11 3:35:38 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 13
Periodic maintenance
• Cleanthescreenwithawirebrushandret.
• Replaceexhaustscreenifdamaged.
Air filter cleaning
• Removetheairltercover(9).
• Removelterelementandwashwellinsolvent.
• Pourasmallamountofoilontothelterelementandgentlysqueeze
out any excess oil.
• Replacethelterelementandairltercover.
• Besuretheltercoversealsproperlyallaround.
Do not run the engine without the air filter element in place.
Never place a wet filter (with solvent) on the machine.
Fuel tap
• Toremovethefueltaplter,simplyundothecupatthebottomofthe
fuel tank.
• Useasmallspannertoremovethetap.
• Cleanandwashoutthelterandcup,andreplace.
PGM6002 Ma GB-IRE-1101-17.indd 13 1/18/11 3:35:39 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
14 Model Number: PGG-800
Troubleshooting
Basic checks
• Makesureyouhaveplentyoffuel
• Makesurethefueltapison
• Makesuretheengine-switchison
• Removesparkplug,connectsparkplugleadandearthittothe
generator. Pull starter cord gently and look for a spark. If there is no
spark, replace spark plug.
Spark plug is OK, but engine still won’t start
• Checkfueltaplterisclean
• Checkfuellineisclear
• Checkcarburetorisnotclogged
Engine will not start
• Cleanorreplacesparkplug
• Checkignitionsystem–iffaulty,contactyourservicecentre
• Checkcompression–iflow,contactyourservicecentre
• Checkforloosecylinderhead–tightenbolts
• Checkfordamagedcylinderheadgasket–replaceifnecessary
PGM6002 Ma GB-IRE-1101-17.indd 14 1/18/11 3:35:39 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 15
Maintenance
Cleaning
Clean the housing regularly with a soft cloth, preferably every time it is
used. Keep the air vents free of dust and dirt.
Remove stubborn dirt with a soft rag moistened in soapy water. Do not use
any solvents such as petrol, alcohol, ammonia, etc. as such substances can
damage the plastic parts.
Storage (Long term)
• Drainfueltank,fueltap,carburetorbowlandcarburetor
• Pour1cupofengineoilintothefueltankandshakethegeneratorto
spread the oil around the tank. Drain excess oil.
• Removesparkplugandpourin1spoonfulofengineoil,pullthestarter
cord several times with the starter switch OFF. Replace spark plug.
• Pullonthestartercorduntilyoufeelcompressionandstop.
• Cleanthegeneratorsexteriorandcoatwithrustinhibitor.
• Placethegeneratoronatgroundandcoverwithacleandrycloth.
Faults
Should a fault occur, e.g. after wear of a part, please contact the service
address on the warranty card. In the back of this manual you find an
exploded view showing the parts that can be ordered.
Environment
To prevent damage during transport, the appliance is delivered in a solid
packaging which consists largely of reusable material. Therefore please
make use of options for recycling the packaging.
Faulty and/or discarded electrical or electronic apparatus have to be
collected at the appropriate recycling locations.
Warranty
Read the terms of warranty on the separate warranty card which is
enclosed.
PGM6002 Ma GB-IRE-1101-17.indd 15 1/18/11 3:35:39 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
16 Model Number: PGG-800
Parts list
Part no Description Position
701133 Rotor 3+4
701134 Stator 5
701113 Oilsealset 10+33
701135 Collar bush 13
701115 Pistoncomplete 14+25
701116 Spark plug 16
701117 Cylinderheadboltandnutset 17+18
701118 Cylindergasketset 21+23
701119 Gasket ring set 24
701114 Crankshaft 26
701120 Carburator complete 27 TILL 31
701121 Ignitioncoilassy 36+37
701122 Recoil starter assembly 41
701123 Choke complete 43 TILL 49
701124 Mufer 50
701125 AC socket 55
701126 Circuitbreaker 56+57
701127 Switch 58+59
701128 CDIwinding 61+62
701129 Fuelcap 63+64
701130 Handle 65
701131 Foot set (4pcs) -
701132 Air filter -
PGM6002 Ma GB-IRE-1101-17.indd 16 1/18/11 3:35:39 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 17
Technical drawing
PGM6002 Ma GB-IRE-1101-17.indd 17 1/18/11 3:35:40 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
18 Model Number: PGG-800
WARRANTY CERTIFICATE
Year of manufacture: 12/2010 GENERATOR (2 STROKE) PGG-800
Congratulations! You have made an excellent choice with the purchase of this Quality
product. Our commitment to quality also includes our service. Should you, contrary
to expectations, experience defects due to material or manufacturing faults during
private use within 36 months of the date of purchase we shall be liable for warranty in
accordance with statutory warranty regulations, provided that: - The device was not put to any use other
than the intended.- Was not overloaded. - Was not used with the wrong accessories. - Repairs where not
carried out by any other than the authorised workshop. The warranty certificate is only valid in connection
with the receipt. Please keep both in a safe place. The warranty does not affect your statutory rights.
The product is guaranteed for a period of three years beginning on the day of purchase. Keep your purchase
receipt safe as proof of the date of purchase. The guarantee period can only be extended for the duration
of any repair required.
During the warranty period, defective devices can be sent FREIGHT PREPAID to the service address stated at
the end of this booklet. We will, at our discretion either repair or exchange the device in accordance with
warranty legislation.
Please include the following when sending in your product for repair:
1. The receipt (proof of purchase)
2. This warranty certificate with your name, address, contact details and a fault description
completed overleaf.
If the original receipt is not enclosed the repair will be charged for in all cases. After the warranty has
expired you can still send defective devices for repairs FREIGHT PREPAID to the address at the end of this
booklet. Quotes as well as repairs after warranty period are to be paid for in all cases. Ensure the product
is sent well packed as no responsibility can be accepted for items lost or damaged in transit. This warranty
does not affect your statutory rights.
EC DECLARATION OF CONFORMITY
We Ferm B.V.
Lingenstraat 6, 8028 PM Zwolle, The Netherlands
declare that the design and construction of the following machine, in the form supplied by us, comply with
the requirements of the appropriate EC directives.
Product Description:
GENERATOR (2 STROKE)
Model:
PGG-800
Appropriate EC directives:
2005/88/EC,
2006/42/EC, 2000/14/EC, 2002/95/EC, 2006/96/EC, 2004/108/EC,
2002/96/EC
Applicable harmonised norms:
EN12601, EN55012, EN61000-6-1
J.A. Bakker - van Ingen
CEO Ferm B.V. 12/2010
Warranty
PGM6002 Ma GB-IRE-1101-17.indd 18 1/18/11 3:35:41 PM
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PGG-800 19
PGM6002 Ma GB-IRE-1101-17.indd 19 1/18/11 3:35:41 PM
800W GENERATOR (2 STROKE)
PGG-800
Name:
Address:
Contact Telephone No.:
Fault Description:
Please complete this section before sending in your warranty certificate.
If you are requested by the manufacturer to return the item for
repair please complete the enclosed section and send it together
with your product and your receipt (proof of purchase) to the
service address shown below.
In order to deal with your enquiry as quickly and efficiently as possible, we ask you to send your
daytime telephone number.
Alternatively, you can contact our service hot-line on the number given below.
Office hours are as follows:
Mon - Fri: 8 am - 6 pm, Sat: 10 am - 2 pm, Sun: 10 am - 4 pm
UK Helpline
Circuit Tech Ltd.
Units 1/9 Stanley Mill • Kirkebrok Road • Deane, Bolton Lancs, England • BL3 4JE
Service Center
0905-1460005 - £ 0,06 /min.
Ireland Helpline
Circuit Tech Ltd.
Units 1/9 Stanley Mill • Kirkebrok Road • Deane, Bolton Lancs, England • BL3 4JE
Service Center
1520-932626 - E 0,15 /min.
WEB SUPPORT
www.servotool.eu
Replacements or repairs under guarantee regulations are free of charge.
1101-17
PGM6002 Ma GB-IRE-1101-17.indd 20 1/18/11 3:35:43 PM
Table of contents
Other Power Craft Inverter manuals
