Power Fist 208 cc User manual

V4.4 8622953
Please read and understand all instructions before use. Retain this manual for
future reference.
208cc Reversible
Plate Compactor
User Manual

8622953 208cc Reversible Plate Compactor V4.4
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Compacting Plate Dimensions (LxW) 24-3/8 x 14-3/4 in.
Vibrations/Minute 5,040 VPM
Travel Speed 72 ft/min
Compaction Force 5,620 lb
Compaction Depth 13-3/4 in.
Compaction Area/Hour 5,659 sq. ft
Operation Weight 258 lb (117 kg)
INTRODUCTION
The 208cc reversible plate compactor is designed to compact granular soils,
crushed aggregate, asphalt, paving stones, bricks and other materials.
Utilizes a hydraulic system to perform forward, reverse and on-spot compaction.
The self-adjusting centrifugal clutch eliminates the need to retighten the V-Belt.
Lifting hook for easy handling and placement. The paving pad attachment prevents
the compactor from damaging or scuffing concrete pads, paving stones, bricks etc.
The wheel kit simplifies the task of moving the compactor around the jobsite.
A separate engine manual is included. Please consult it when necessary.
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
208cc Reversible
Plate Compactor

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 3
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A notice is
an alert that there is a possibility of property damage, injury or death if certain
instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that will
result in severe personal injury or death if the proper precautions
are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that could
result in severe personal injury or death if the proper precautions
are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result
in minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will
result in equipment or property damage, but not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well lit and
free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
3. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
4. Do not install or use in the presence of flammable gases, dust or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection for
the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI
Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce
the effects of tool vibration.

8622953 208cc Reversible Plate Compactor V4.4
4 For technical questions call 1-800-665-8685
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
5. Wear steel toe footwear or steel toe caps to prevent a foot injury from
falling objects.
6. Wear a NIOSH approved respirator when working on materials that produce
hazardous fumes, dust or particulate matter.
7. This tool can cause hearing damage. Wear hearing protection gear with an
appropriate Noise Reduction Rating to withstand the decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid personal
injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the moving
parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance enables
better control in unexpected situations.
4. Securely hold this tool using both hands. Using a tool with only one hand can
result in loss of control.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from repeated
use) replace strict adherence to the tool safety rules. If you use this tool
unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a specific function.
Do not modify or alter this tool or use it for an unintended purpose.
2. Do not operate the tool if the safety guards are missing.
3. Do not allow anyone to stand next to the plate compactor while it is in
operation. The compactor’s plate can cause a serious injury.
4. Before operation, the operator has to be made familiar with the necessary
safety precautions and operating techniques.

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 5
5. All users must understand the operation of all controls and learn how to stop
the engine quickly in case of emergency.
5.1 Become familiar with the machine’s controls and all the caution, warning
and danger decals affixed to the machine before attempting to start or
operate.
6. The engine and exhaust are hot during operation. Severe thermal burns can
occur on contact, especially with the muffler.
6.1 Remove accumulated debris from the muffler and cylinder area.
Combustible debris, such as leaves, grass, brush, etc. can catch fire if
they come in contact with a hot engine.
6.2 Do not place anything on the engine while it is running.
6.3 Allow the muffler, engine cylinder and fins to cool before touching grass-
covered or brush-covered unimproved land.
7. Always operate this equipment with all guard and safety devices in place.
Never operate this machine if any guard or safety devices have been removed
or if they have malfunctioned.
8. Do not insert your hand or finger between the pulley cover and engine during
operation to avoid injury to your hand.
9. Never operate the plate compactor with the belt cover removed. The exposed
belt and pulley may cause serious injury when the tool is in use.
10. Never leave the machine unattended while running as it can move on its own.
Move the throttle lever to low gear, the shift stick to neutral and shut the plate
compactor’s engine off before leaving the area.
11. Do not use on steep slopes, as the tool can topple over.
12. Never pick up or carry a machine while the engine is running.
13. If the unit strikes a foreign object, stop the engine, disconnect the spark plug,
thoroughly inspect the machine for any damage and repair the damage before
restarting and operating the machine.
14. Stay away from the edge of ditches and avoid actions that may cause the plate
compactor to topple over.
15. Do not operate on concrete or extremely hard, dry, compacted surfaces. The
plate will jump rather than vibrate and could damage both plate and engine.

8622953 208cc Reversible Plate Compactor V4.4
6 For technical questions call 1-800-665-8685
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to vibration
may cause temporary or permanent physical injury, particularly to the hands,
arms and shoulders.
2. Anyone using vibrating tools regularly or for an extended period should first be
examined by a doctor and then have regular medical check-ups to ensure
medical problems are not being caused by or worsened from tool use.
3. If you feel any medical symptoms related to vibrations (such as tingling,
numbness and white or blue fingers), seek medical attention as soon as
possible.
4. DO NOT use this tool if one of the following applies:
a. Pregnant
b. Impaired blood
circulation to the hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud's Disease
5. Do not smoke while operating the tool. Nicotine reduces the blood flow to the
hands and fingers, increasing the risk of vibration-related injury.
6. Wear suitable gloves to reduce the effects of vibration.
7. Use the tool with the least amount of vibration, when there is a choice between
different processes.
8. Do not use for extended periods. Take frequent breaks when using this tool.
9. Let the tool do the work. Grip the tool as lightly as possible (while still keeping
safe control of it).
10. To reduce vibrations, maintain the tool as explained in this manual. If abnormal
vibrations occur, stop using this tool immediately.
CARBON MONOXIDE POISONING
WARNING! Never start or run this engine indoors as exhaust contains carbon
monoxide gas. Opening windows and doors is not enough to ventilate the area.
Carbon monoxide is a colourless and odourless gas that is difficult to detect.
Carbon monoxide poisoning results from inhalation of the gas and may be lethal if
left untreated. Evacuate all people to an area with clean air and seek immediate
medical attention for any person experiencing the following symptoms:

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 7
1. Headache
2. Confusion
3. Shortness of breath
4. Weakness
5. Fatigue
6. Dizziness
7. Unstable gait (stumbling around)
8. Nausea and vomiting
9. Unconsciousness
10. Flu-like symptoms without fever
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the missing
part before operating. Failure to do so could result in a malfunction and
personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the parts list are included.
Contents:
• Plate Compactor Chassis
• Handle
• Wheel Kit
• Paving Pad Kit
• Hardware: bolts, washers and nuts.
IDENTIFICATION KEY
Consult the engine manual to identify the engine components
A Stick shift
B Throttle Control
C Hand Grip
D Lift Point
E Air Cleaner
F Oil Drain Hose
G Fuel Tank
H Engine
I Vibrator
J Base Plate
K Adjustable Wheels
L Handle Bar Latch Pin
M Handle Bar
Fig. 1

8622953 208cc Reversible Plate Compactor V4.4
8 For technical questions call 1-800-665-8685
STICK SHIFT
Push the stick forward, the compactor will move in a forward direction. Pull the
stick backwards, the compactor will move in reverse direction. Placing the stick in
the middle will cause the compactor not to move (neutral).
THROTTLE CONTROL
The throttle lever controls engine speed. Moving the throttle lever in the directions
shown makes the engine run faster or slower.
HAND GRIP
Use this hand grip to maneuver the compactor.
LIFT POINT
Lift the machine with crane or other lifting device.
OIL DRAIN HOSE
Running the engine with dirty oil can cause premature engine wear and failure.
Changing oil regularly is extremely important. The flexible oil drain hose is equipped
to drain oil into an approved receptacle.
VIBRATOR
An eccentric weight mounted on the vibrator shaft contained within vibrator housing
is driven at high speed by a clutch and belt drive system. This high speed shaft
revolution causes the rapid lifting and downward ramming motion of the machine.
HANDLEBAR LATCH PIN
Lock the handlebar in the upward position for transporting and stowing.
HANDLEBAR
When operating the compactor, this handle is to be in the downward position. When
the compactor is to be stored, move the handlebar to the upright position.

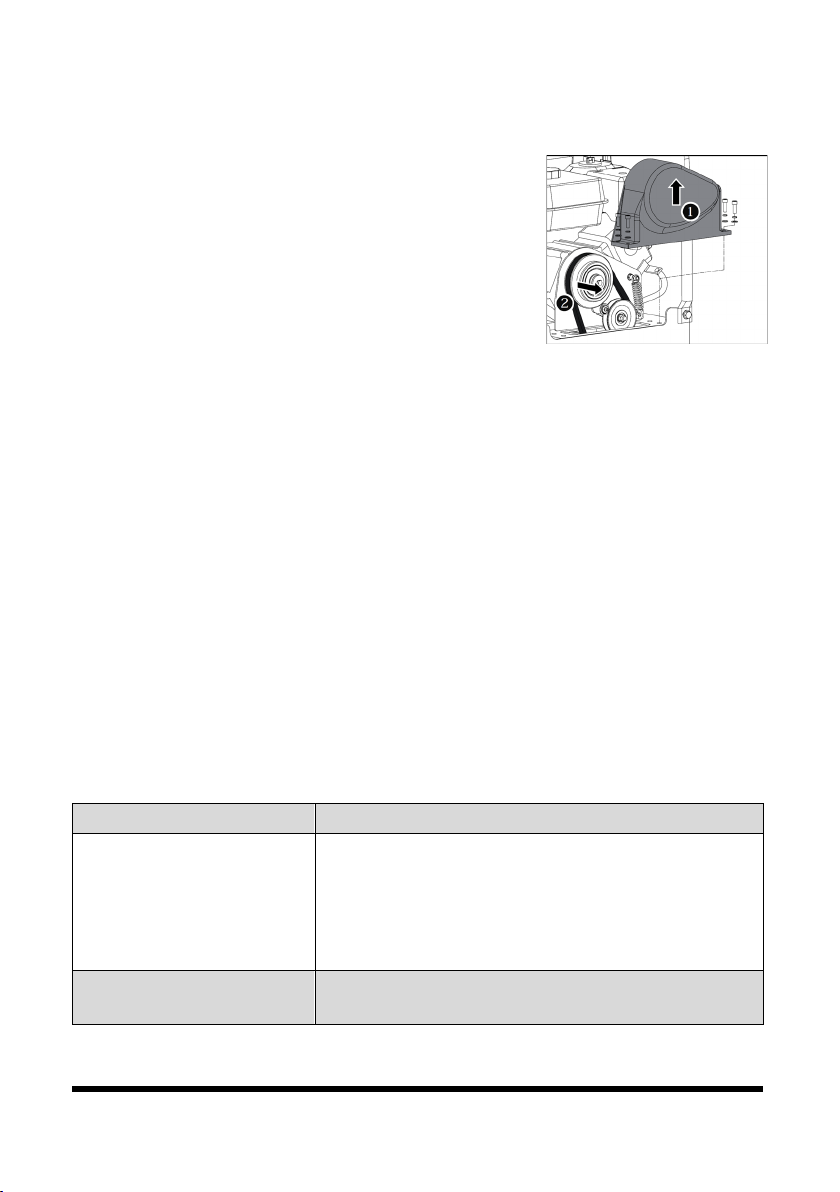

BELT GUARD
Remove this guard to gain access to the V-belt. Never run the compactor without
the V-belt guard. If the V-belt guard is not installed, the possibility exists that your
hand may get caught between the V-belt and clutch, thus causing serious injury and
bodily harm.

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 9
ASSEMBLY & INSTALLATION
When this manual refers to a part number, it refers to the included Parts
Identification section.

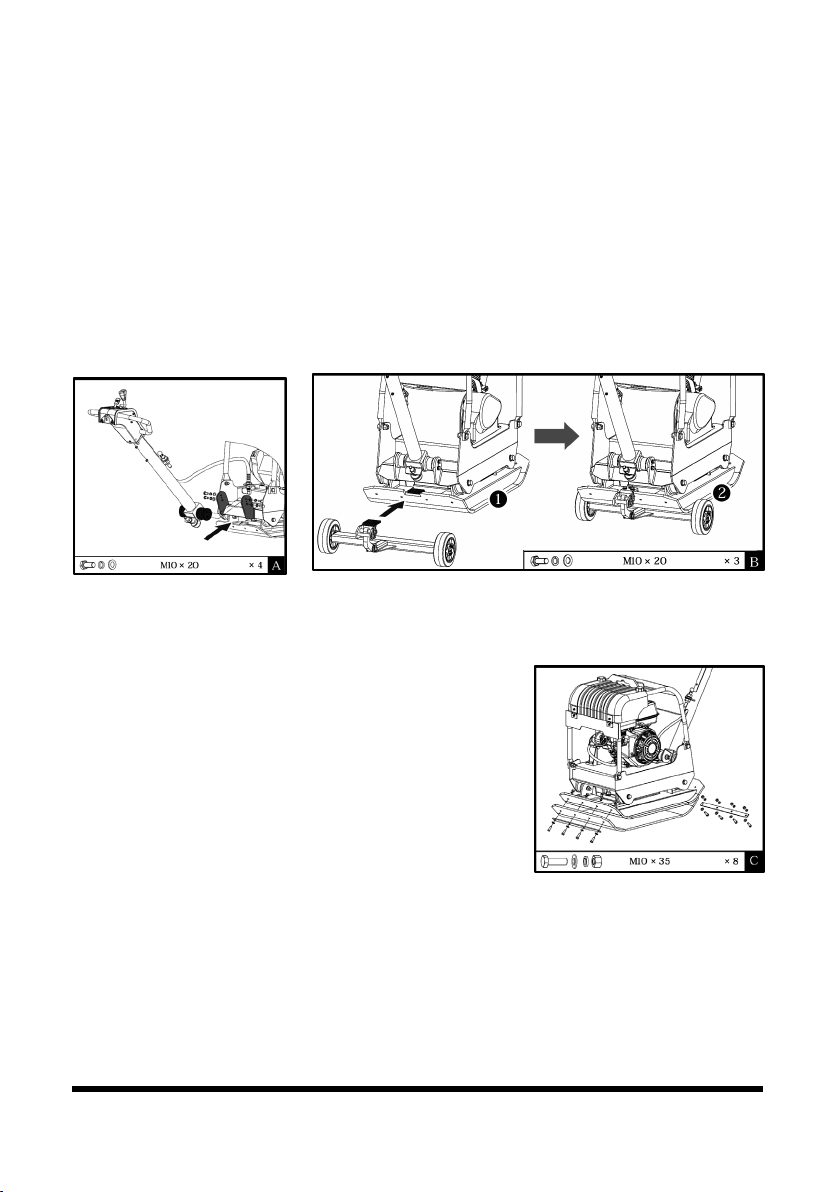

1. Mount the handlebar end slots into the channels provided on the engine deck
and secure with M10X20 hex bolts, spring washers and flat washers (Fig. 2).
2. Attach the pre-assembled wheel kit to the plate compactor using M10X20 hex
bolts, spring washers and flat washers (Fig. 3). Remove the wheel kit before
compacting.
PAVING PAD KIT
The transparent rubber paving pad allows the tool to
compact concrete paving slabs, stones, bricks and
blocks without marring their surface.
Attach the paving pad onto the base plate as shown.
Align the holes in the base plate, paving pad and
clamp plates. Secure it with flat washers, lock
washers and M10 x 35 bolts (Fig. 4).
Fig. 2
Fig. 3
Fig. 4

8622953 208cc Reversible Plate Compactor V4.4
10 For technical questions call 1-800-665-8685
OPERATION
NOTICE! This tool ships without oil. Consult the engine manual on how to refill
the engine oil. See Lubrication section in this manual on how to fill the vibrator
with oil. Failure to fill engine or vibrator with oil before starting the engine will
result in permanent damage to the tool.
IMPORTANT! Before digging or compacting, contact your local utilities to
determine the location of buried pipes or cables.
The plate compactor can compact loose soil, sand, gravel, asphalt and broken
concrete. Soils with a high clay content are not recommended for compacting with
this tool, but it can be done with the proper technique (see Compacting High Clay
Content Soil).
The tool vibrates the surface through the base plate, forcing the soil/gravel into a
smaller physical space. The surface material must be loose enough to allow
movement during compaction. Some surfaces may require preparation before
compacting.
A surface that is too hard can cause the tool to bounce instead of compact. This
may damage the tool or cause a vibration injury over time due to repeated
exposure. A bouncing plate compactor indicates the material is compact. Add
another layer of material if building up a compacted area.
PREPARING THE SURFACE
1. Dry Surface – A dry surface will produce dust during compaction. Sprinkle
water over the soil and allow it to soak in, before resuming compaction. Only
sprinkle enough water on gravel to keep the dust down. This will extend the life
of the engine’s air filter.
2. Wet Surface – Soil that is too wet may stick to the base plate. The sticking soil
will then compact onto the tool and cause excess weight that can put more
stress on the engine. It will also prevent the proper compaction of the soil
surface. Dry the surface or wait until it is suitable for compaction.
3. Asphalt – Wet the asphalt surface and base plate of the tool to prevent the
asphalt from sticking during compaction. Dampen the surface and base plate
as needed.

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 11
4. Stones/Broken Concrete – Remove large stones or chunks of concrete as the
compactor does not break these apart. Larger stones and broken concrete
may not compact as much as expected. Compaction is more effective with
smaller objects.
5. Obstacles – A work site may have natural obstacles (stump, buried stones) or
manmade obstacles (construction waste, power cords or hoses) that
will interfere with the compacting process. Check the work area and remove all
obstacles before beginning compacting.
OPERATING THE PLATE COMPACTOR
The plate compactor is started with the throttle lever in low gear. The power
bypasses the centrifugal clutch and the base plate does not vibrate.
Once the throttle lever is opened, the base plate begins to vibrate. As the throttle
lever is opened further, the vibrating force increases in strength and frequency. This
results in deeper compaction.
WARNING! Maintain a grip on the tool at all times when under power, as it will
move by itself when the throttle is open and may pose an injury risk to
bystanders and the operator.
1. Check the plate compactor before use (see Maintenance Chart - Daily
before operating)
1.1 Check the gasoline engine before use per the separate engine
instruction manual.
1.2 Attach the paving pad to the bottom of the plate when compacting paving
stones to prevent chipping or grinding the surface.
2. Position the throttle lever in low gear.
3. Position the stick shift in the neutral middle position so the compactor will
not move.
4. Start the gasoline engine per instructions in the engine instruction manual.
5. Hold the compactor handle and move the throttle lever towards high gear. The
vibrator assembly will engage and begin compacting.
6. Push the stick shift forward and the compactor will begin moving forward. Pull
the stick shift into reverse and the compactor will move backwards. The higher
the throttle setting the faster it will move forward or backward.

8622953 208cc Reversible Plate Compactor V4.4
12 For technical questions call 1-800-665-8685
7. Retain a hold of the handle and guide the tool as it compacts. Inclines may
require a gentle pressure to maintain forward momentum (see Compacting on
an Incline).
8. Watch for obstacles in the tool’s work path that can create a dangerous hazard
or may damage the tool. Move the stick shift into neutral and the throttle lever
to low gear and wait for the compactor to stop moving before removing the
obstacle. Turn the tool off and move to a safe location if the object will require
more than a few seconds to remove.
9. The surface may require 3 or 4 passes to achieve full compaction. The type of
surface material will determine how many passes are needed. The tool will
begin to bounce when the material is compact.
10. Move the stick shift to neutral and the throttle lever to low gear once the job is
complete. Wait until the tool stops vibrating. Shut the engine off per the engine
instruction manual instructions and allow it to cool.
10.1 Let the engine idle for several minutes before shutting it off if the
compactor was used for a length of time or the job was hard on the
equipment. This will allow a gradual cooling of the engine components
without damage.
FORWARD AND REVERSE MOTION
The direction of travel is determined with the operating
stick shift. Depending on the position of the stick shift,
the plate compacts in forward direction, on the spot or
in reverse direction.
1. Push the stick shift forward to move the
compactor forward (F).
2. Place the stick shift in the neutral position and the
compactor will vibrate on the spot (N).
3. Pull the stick shift back and the compactor will
move in reverse (R).
COMPACTING HIGH CLAY CONTENT SOIL
A dry intermediary material may be used to cover the soil surface to prevent the soil
from sticking to the compactor’s base plate.
Fig. 5

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 13
1. To compact soil with a high clay content, reduce speed so the compactor’s
base plate is still vibrating, but not leaving the surface. This will require the
operator to push the compactor more to account for the loss of
natural momentum.
2. Check underneath the base plate and remove all material that is stuck after
each pass or more often if required.
3. Double the number of passes to compact the soil as the plate compactor is not
at full power.
COMPACTING ON AN INCLINE
WARNING! Never stand below the plate compactor when using on an incline as
it may topple and cause a serious injury. When changing direction, always
remain uphill.
WARNING! Stop compacting immediately if the tool is difficult to control on an
incline. The tool may topple and cause a serious injury to the operator or
bystanders.
The incline cannot exceed a 20° angle. There may be a risk that the tool will topple
during compaction. The angle will also prevent the oil lubrication system from
operating correctly and damage the engine.
1. The best method of compacting on an incline is starting at the top and moving
down the incline.
2. Adjust the speed that the compactor moves with the throttle, until it
is comfortable.
3. At the slope’s bottom, move the throttle to idle speed to stop the base plate
from vibrating.
4. Pull the plate compactor to the top of the incline and fully open the throttle to
start the base plate vibrating. Resume the soil compacting.
4.1 The wheel assembly will make it easier to pull the plate compactor up the
incline.
5. A shallow incline may allow compacting from side-to-side, moving down the
incline as each section is complete. In this case, compacting on an incline may
require the operator to lightly push the tool to maintain forward momentum.

8622953 208cc Reversible Plate Compactor V4.4
14 For technical questions call 1-800-665-8685
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient, easier to
control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged or worn
components. Only use identical replacement parts when servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool handles clean, dry and free from oil/grease at all times.
6. Maintain the tool’s labels and name plates. These carry important information.
If unreadable or missing, contact Princess Auto Ltd. for replacements.
7. Have the plate compactor inspected at least once a year.
8. Consult the engine instruction manual for engine care and maintenance steps.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
PREVENTATIVE MAINTENANCE
1. Turn off engine. Engine must be cool.
2. Keep the engine’s throttle lever in the slow position and remove spark plug
wire from spark plug and secure.
3. Inspect the general condition of the plate compactor. Check for loose screws,
misalignment or binding of moving parts, cracked or broken parts and any
other condition that may affect its safe operation.
4. Remove all debris from the plate compactor with a soft brush, vacuum or
compressed air. Then use a premium quality lightweight machine oil to
lubricate all moving parts.
5. Clean the bottom of the compactor base as soon as it begins to pick up soil
being compacted. The unit cannot do a good job if the bottom surface is not
smooth and clean.
6. Return spark plug wire.
NOTICE! Never use a pressure washer to clean your plate compactor. Water can
penetrate tight areas of the unit and cause damage to spindles, pulleys,
bearings or the engine. The use of pressure washers will result in shortened life
and reduce serviceability.

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 15
CHECKING V-BELT
To ensure optimum power transmission from the
engine to the eccentric shaft, the V-belt must be in
good condition and operate under proper tension.
1. Turn the engine off. The engine must be cool.
2. Remove the four bolts securing the belt guard and
remove it to access the V-belt (Fig. 6-1 and 6-2).
3. Check the V-belt condition. Replace any V-belt
that is cracked, frayed or glazed.
REPLACING V-BELT
1. Remove the belt guard (see Checking V-Belt).
2. Release the spring from the tension pulley hook to void the belt tension.
3. Slip the old V-belt off of the wheel pulley and install the new V-belt in its place.
4. Position the V-belt over the engine pulley and tension pulley.
5. Hook the released spring securing the tension pulley to its original position
and check if the V-belt tension is correct.
6. Replace the belt guard.
CLEANING
Do not use strong detergents or petroleum based cleaners when cleaning plastic
parts. Chemicals can damage plastics.
MAINTENANCE SCHEDULE
Maintenance Interval Maintenance Point
Daily before operating. 1. Check the fuel level.
2. Check the engine oil level.
3. Inspect the fuel lines.
4. Inspect the air filter and replace it if needed.
5. Check and tighten the external hardware.
After the first 20 operating
hours.
1. Change the engine oil.
Fig. 6

8622953 208cc Reversible Plate Compactor V4.4
16 For technical questions call 1-800-665-8685
Maintenance Interval
Maintenance Point
After the first 50 operating
hours or every week.
1. Check the drive belt.
2. Clean the air cleaner element.
3. Change the engine oil.
4. Check and clean the spark plug.
After the first 100 operating
hours or every month.
1. Clean the fuel strainer.
Each 200 hours or every two
months.
1. Replace vibrator fluid.
After the first 300 operating
hours or every year.
1. Check and adjust the valve clearance.
2. Clean the cylinder head.
3. Change the lubrication oil.
LUBRICATION
Inspect and lubricate the tool when required. Use grease to lubricate the tool.
Other lubricants may not be suitable and could damage the tool or cause a
malfunction during use.
VIBRATOR SYSTEM LUBRICATION
The tool’s vibrator housing contains the vibrator rotary shaft that causes the base
plate to move. The vibrator housing contains extreme pressure oil to bathe the
rotary shaft during operation.
Use automatic transmission fluid to lubricate the vibrator housing.
REPLACING VIBRATOR SYSTEM OIL
1. Run tool briefly to mix and warm the oil.
2. Place a receptacle below the opening to catch
the waste oil.
3. Remove oil drain plug to drain oil from the
vibrator assembly (Fig. 7-2)
4. Tilt the housing forward to drain the oil from
the vibrator.
4.1 Examine oil for metal chips to determine if
further maintenance is needed.
5. Return the housing to a level position.
Fig. 7

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 17
6. Reinstall the oil drain plug.
7. Fill the vibrator housing with 400 ml of gear oil API GL-4 80W/90 or
75W/90 through the oil filler plug (Fig. 7-1).
8. Apply a pipe sealant to the oil filler plug and reinstall into the vibrator housing.
STORAGE
When not in use for an extended period, apply a thin coat of lubricant to the steel
parts to avoid rust. Remove the lubricant before using the tool again.
LONG-TERM STORAGE
In case of long period storage for more than 30 days:
1. Remove foreign objects such as loose stones and dirt from the plate
compactor and engine.
2. Consult the engine instruction manual and follow storage procedures in
that manual.
3. Use clean cloths to wipe down the compactor. Keep the air vents free of
obstructions.
4. Secure the handle with the lock pin.
5. Store the plate compactor upright in a clean, dry area. Cover it up with dry
cloth for storage.
TRANSPORTING
WARNING! Transport the plate compactor with an empty fuel tank or with the
fuel shut-off valve secured in the OFF position.
1. Allow the engine to cool before transporting
to prevent burn injuries or a fire hazard.
2. Do not attempt to load the plate
compactor onto a vehicle by yourself. Use
a crane or additional people to assist in
loading/unloading. The tool is heavy and
may cause a back injury.

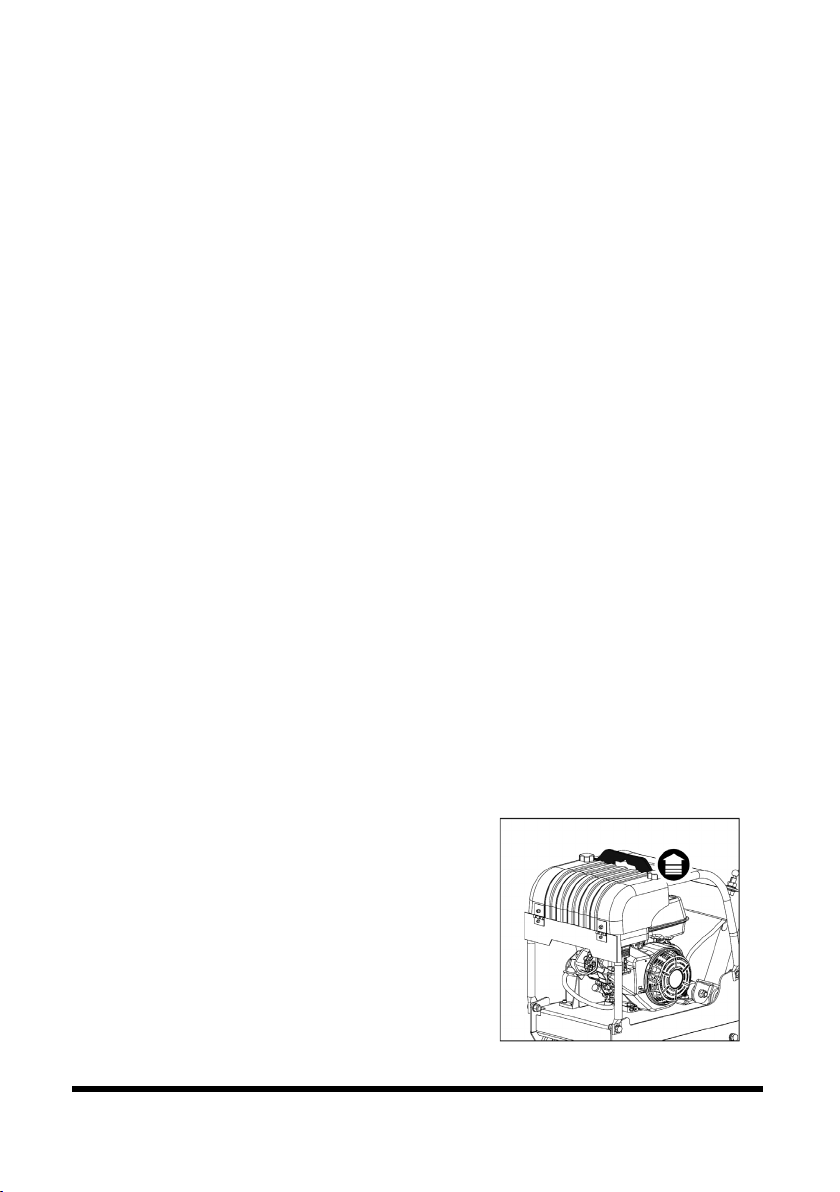

3. Lift unit by the lift hook on the roll cage. Use
a reliable chain, cable or strap of adequate
lifting capacity (Fig. 8). Fig. 8

8622953 208cc Reversible Plate Compactor V4.4
18 For technical questions call 1-800-665-8685
4. Latch the handlebar in place with the lock pin
during lifting/transporting (Fig. 9)
5. Secure the tool upright to prevent it from
moving or toppling over during transportation.
Secure or tie down unit using the lift hook or
roll cage when transporting. The tool is heavy
and can cause a crushing injury if it falls over
onto the user or a bystander.
6 Transport the tool in the upright position. Turn
all valves to the OFF position. Ensure all caps
are in place and sealed tight to prevent spills if
it should fall over during transportation.
6.1 Remove fuel from the engine’s fuel tank
when possible before transportation.
7. Do not transport with the engine’s spark plug facing down. Transporting with
the spark plug down will result in hard starting and/or engine smoking.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
Contact your local municipality for a list of disposal facilities or by-laws for
electronic devices, batteries, oil or other toxic liquids.
IMPORTANT! DO NOT pollute the environment by allowing uncontrolled
discharge of waste oil.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified technician service
the tool.
Fig. 9

V4.4 208cc Reversible Plate Compactor 8622953
Visit www.princessauto.com for more information 19
Problem(s) Possible Cause(s) Suggested Solution(s)
Poor
performance
(plate
compactor
does not
develop to its
full speed).
1. The engine throttle is not open
fully.
2. The throttle lever is not set
correctly.
3. The ground is too wet for
compacting.
4. Drive belt is loose or worn out
and slips on pulleys.
5. Vibrating shaft bearings are
binding.
6. Air filter is clogged with dust,
reducing engine performance.
7. The engine speed is too low.
1. Open the engine throttle completely.
2. Set the throttle lever.
3. Dry the soil before compacting.
4. Check whether the engine mounting
bolts are tight. Replace the belt.
5. Check the oil condition and level in the
vibrator housing. Add/change the oil.
6. Clean or replace the air filter cartridge.
7. Check the engine speed with
tachometer and adjust the engine to
run at correct speed. Refer to the
engine instruction manual.
Engine is
running but
not vibrating.
1. The engine throttle is not
opened.
2. Clutch is damaged.
3. Engine speed is too low.
4. The drive belt is loose or
broken.
1. Open engine throttle.
2. Replace the clutch.
3. Too much oil in the vibrator housing.
Adjust the oil level.
4. Replace drive belt.
Plate jumps
or compacts
unevenly.
1. The ground surface is too hard.
2. Rubber isolator is loose or
damaged.
1. Wet soil or ground and allow to seep
in before compacting.
2. Adjust/replace the rubber isolator.
Slow travel
speed and
weak
vibration.
1. Slow engine speed.
2. Clutch slips.
3. Drive belt slips.
4. Over-filling of vibrator oil.
5. Vibrator housing defect.
1. Reset the engine RPM appropriately.
2. Check and/or replace clutch.
3. Replace the drive belt.
4. Drain additional oil and maintain at
appropriate level.
5. Check eccentric vibrator, gear and
counterweight.
No forward
movement.
1. Drive belt slips.
2. Clutch slips.
3. Vibrator locks.
4. Piston or bearing defect in
cylinder.
1. Replace the drive belt.
2. Check and/or replace clutch.
3. Check the vibrator housing (eccentric
vibrator, gear and counterweight).
4. Replace worn piston or bearing in
cylinder.
Slow travel
speed.
Material stuck to base plate. Clean material from base plate.

8622953 208cc Reversible Plate Compactor V4.4
20 For technical questions call 1-800-665-8685

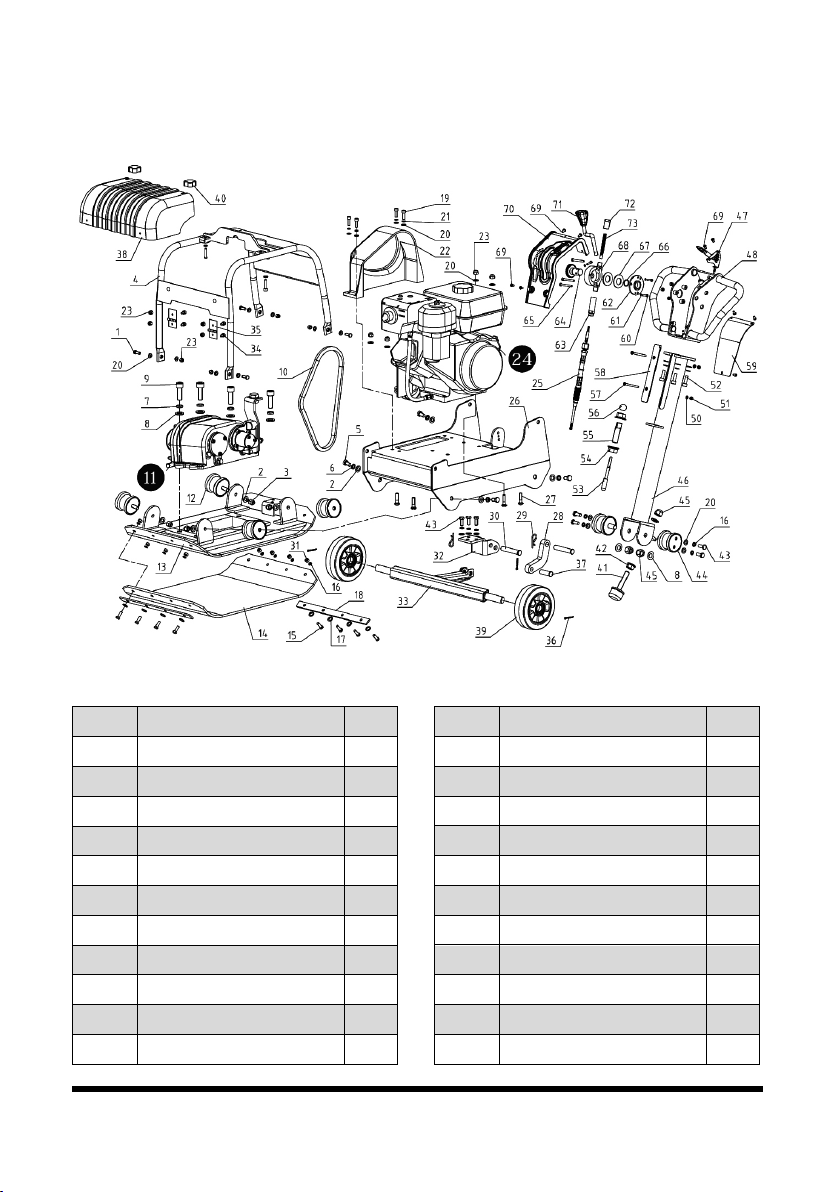

PARTS BREAKDOWN
PARTS LIST
PART# DESCRIPTION QTY
1 Bolt M8X25 4
2 Washer 12 10
3 Lock Nut M12 4
4 Engine Frame 1
5 Bolt M12X20 4
6 Spring Washer 12 4
7
Spring Washer 16
4
8 Washer 16 6
9 Screw M16X45 4
10 V-Belt 1
11 Vibrator Assembly 1
12 Rubber Isolator 1
13 Vibrating Plate 1
14 Rubber Plate 1
15 Bolt M10X35 8
16 Spring Washer 10 21
17 Washer 10 16
18 Polyurethane Bracket 2
19 Screw M8X25 9
20 Washer 8 33
21 Spring Washer 8 23
22 Engine Belt Safety Guard 1
23 Lock Nut M8 17
