Power Fist 8973158 User manual

V4.0 8973158
Pleaseread and understand all instructionsbefore use.Retain thismanual for
futurereference.
User Manual
5/8 in. x 300 ft 2-Wheel Hose
Reel Cart

8973158 5/8 in. x300 ft2-Wheel Hose Reel Cart V4.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
ReelDiameter(in.) 17
Reel Width (in.)
16
Overall Length(in.) 32
Overall Width(in.) 24-1/2
Overall Height(in.) 36
Hose Capacity 300 ft
Material
Steel
Finish
Powdercoated
Handle Type Polypropylene
Wheel Type Pneumatic
Wheel Size (in.)
16 x 2-1/8
Wheel Material Rubber
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personalinjury
and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-lit
and free of distractions. Place lights so you are not working in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
5/8 in. x 300 ft 2-Wheel Hose
Reel Cart

V4.0 5/8 in. x 300 ft2-Wheel Hose Reel Cart 8973158
Visitwww.princessauto.comfor more information 3
3. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
PERSONAL SAFETY
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
SPECIFIC SAFETYPRECAUTIONS
WARNING! DO NOTlet comfort or familiarity with product (gained from
repeated use) replace strict adherence to thetool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. Thistool was designed for a specific function.
Do not modifyor alter thistoolor useitfor an unintended purpose.
2. Do not use the tool if any parts are damage broken or misplaced. Repair or
replace the parts.
3. Do not leave water running through the hose reel unsupervised.
4. Do not expose the reel to freezing temperatures with water remaining in
the unit.
5. Turn the water off after each use.
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failureto do so could result in a malfunction
and personal injury.

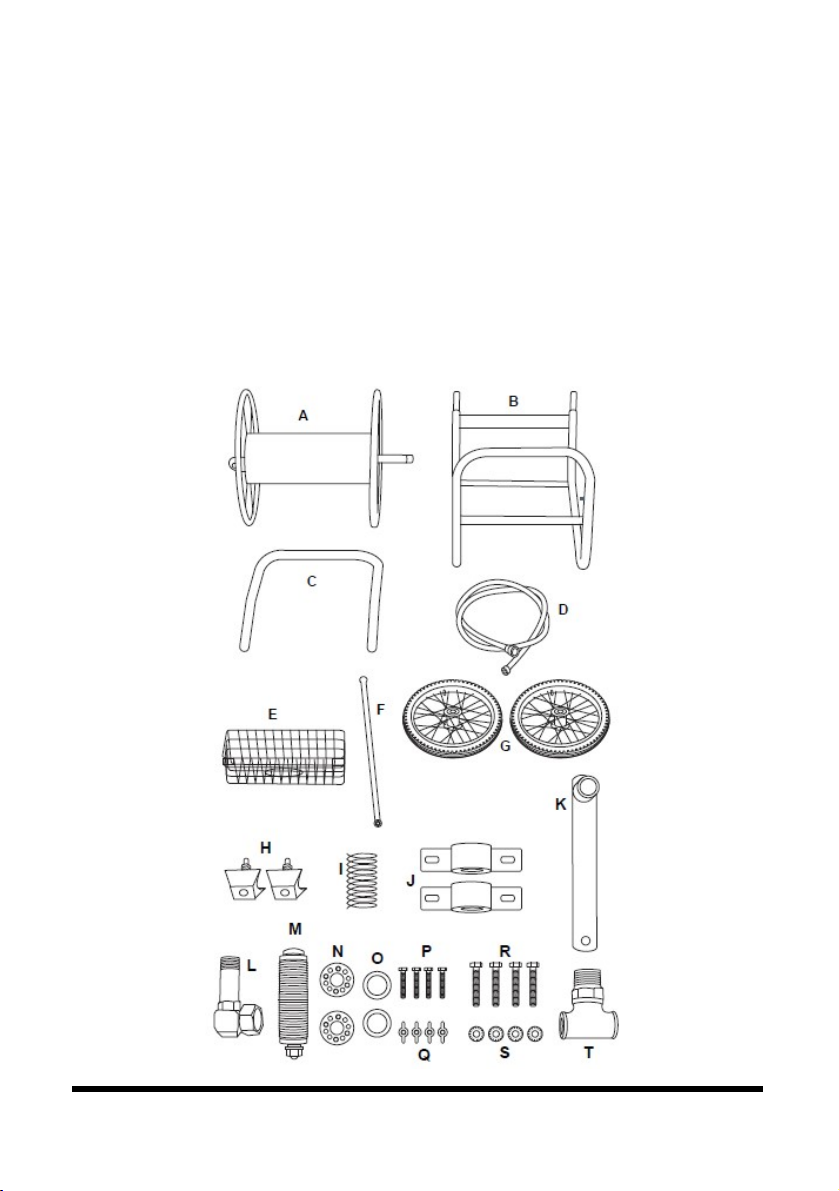

Remove the parts and accessories from the packaging and inspect for damage.

8973158 5/8 in. x300 ft2-Wheel Hose Reel Cart V4.0
4 For technical questions call 1-800-665-8685
ASSEMBLY& INSTALLATION

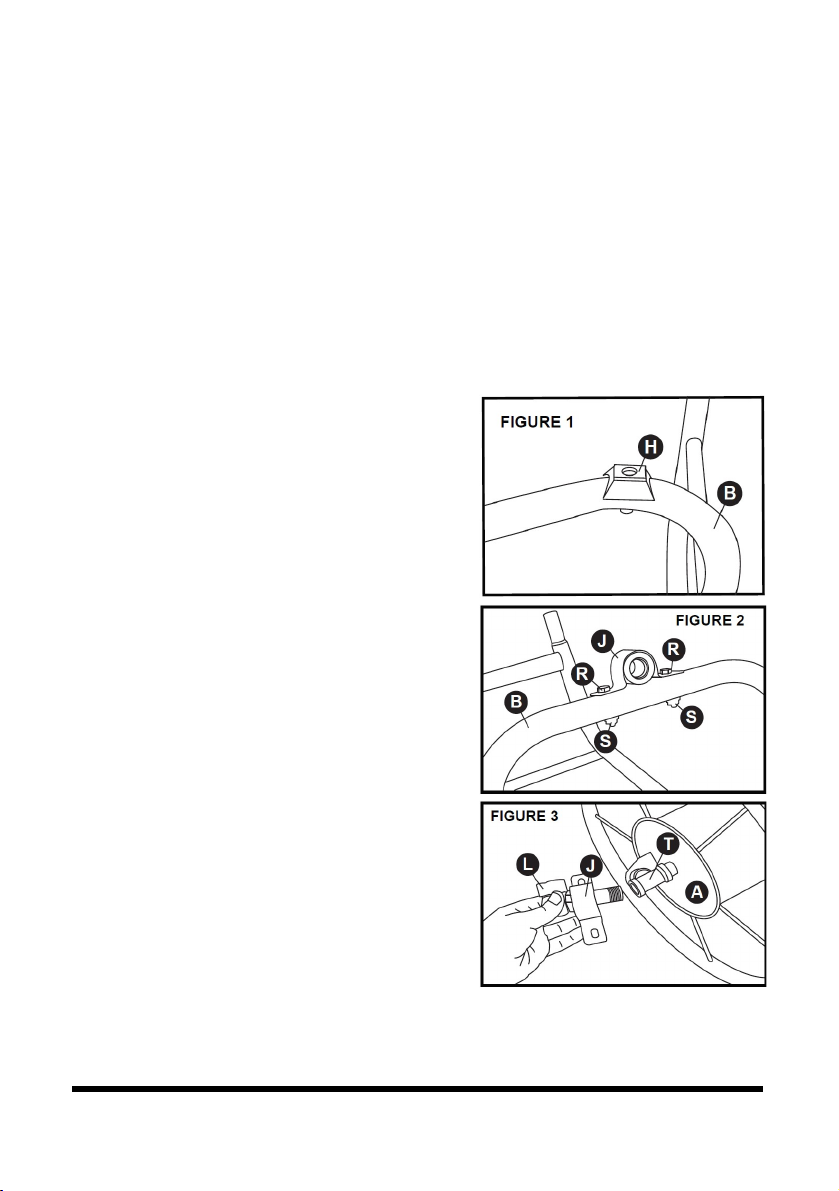

1. Attach rubber feet (H) to the bottom
frame (B). Insert bolts into bottom of
frame. Attach nuts and tighten. Figure 1
2.
Turn frame (B) over and attach U-
bushing (metal side facing out) (J) to
frame using two U-bushing bolts (R)
and nuts. (S) Hand tighten only. Figure 2
3. Spool Assembly
Screw galvanized tee (T) onto spool.
Insert brass swivel (L) thru U-bushing
(J) and screw into galvanized tee (T) on
the spool (A). Tighten using a wrench.
Figure 3
NOTE! DO NOT overtighten. This could damagethe threads. Be sure to use
thread seal tape.
4. Turn spool (A) around and slide plastic
spacer washer (O), spring (I) and
another plastic spacer washer (O) over
the pipe. Figure 4

V4.0 5/8 in. x 300 ft2-Wheel Hose Reel Cart 8973158
Visitwww.princessauto.comfor more information 5
5. Attaching spool to the frame
Insert pipe end of spool into U-bushing
(J) that is attached to frame (B). Figure
5
6. On the other end of spool (A), align the
other U-
bushing (J) with the holes in the
frame. Insert U-bushing bolts (R) and
attach nuts (S). You may need to put
pressure on the spool by compressing
the spring to align holes. Tighten all four
U-bushing nuts (S) using a wrench.
Figure 6
7. Attach handle (M) to crank handle (K)
using handle bolt and nut. Tighten
securely. Thread crank
handle to pipe on
end of spool (A). Figure 7

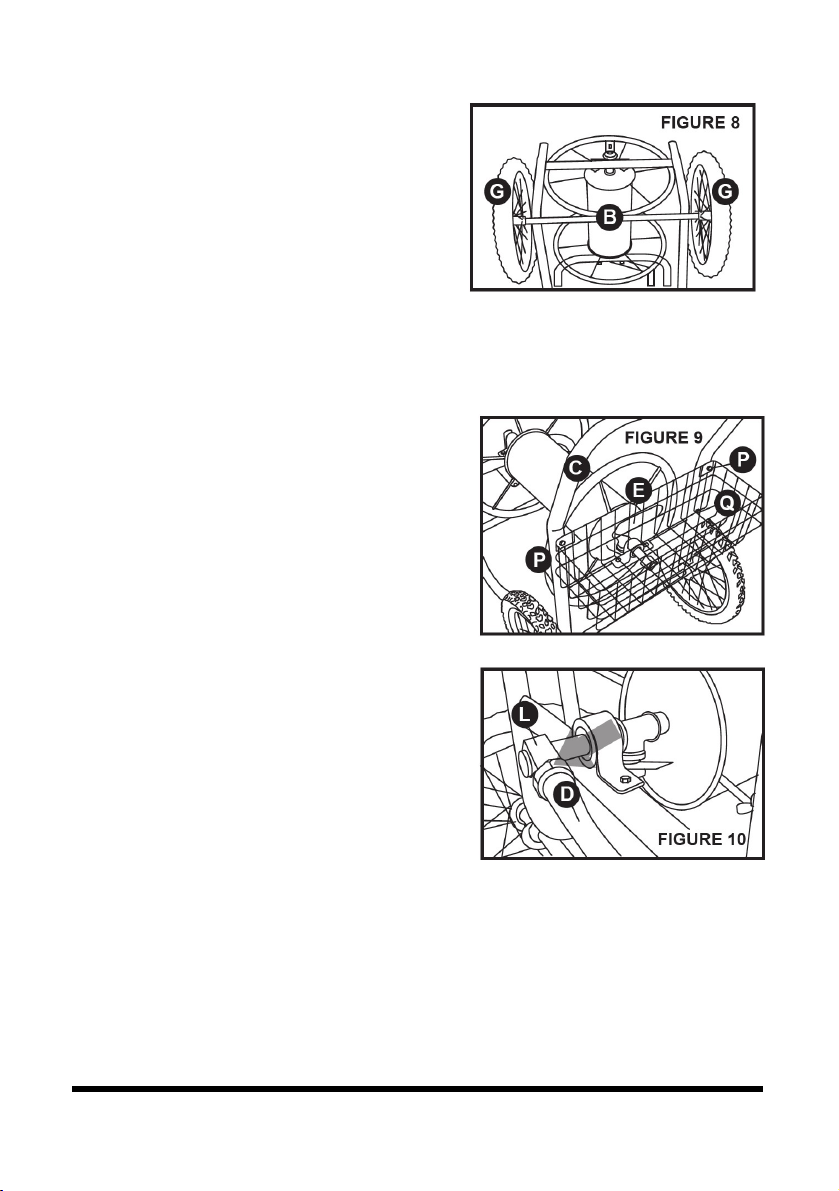

8. Attach wheels (G) by removing nuts on
axle. Slide axle (F) thru the frame (B).
Before adding wheels (G) slide the
plastic spacers (N) thru both ends of the
axle (F) Slide on wheels (G) and tighten
nuts on each end. Figure 8
NOTICE! DO NOT use a compressor while inflating the tires. Pump by hand
only. 25 PSI maximum.
