Power Fist 8383853 User manual

8383853V 2.0
User Manual
Multi-Purpose
Oscillating Tool
Please read and understand all instructions before use.
Retain this manual for future reference.

8383853V 2.0
3
For technical questions call: 1-800-665-8685
Multi-Purpose
Oscillating Tool
SPECIFICATIONS
No load speed 21,000 OPM
120V, 60Hz
IMPORTANT SAFETY PRECAUTIONS
WARNING! Read and understand all instructions before using this tool. Keep
this manual for the safety warnings and precautions, operating, inspection
and maintenance instructions. When using this tool, basic precautions
should always be followed to reduce the risk of personal injury and/or
damage to the equipment. Note that when this manual refers to a part
number, it refers to the parts list included. Before allowing someone else to
use this tool, make sure they are aware of all safety information.

Multi-Purpose Oscillating Tool
4For technical questions call: 1-800-665-8685
8383853V 2.0
WORK AREA
1. Keep your work area clean and well lit. Cluttered and dark areas
invite accidents.
2. Operate in a safe work environment. Do not use machines or air tools in
damp or wet locations. Do not expose to rain. Do not use power tools in
the presence of flammable gases or liquids.
3. Keep children, bystanders and visitors away from the work area. Do not
let them handle tools or extension cords. No one should be in the work
area if they are not wearing suitable protective equipment.
4. Store unused equipment. When not in use, tools must be stored in a
dry location to prevent rust. Always lock up tools and keep them out of
reach of children.
PERSONAL SAFETY
1. Dress properly, wear protective equipment. Use breathing, ear, eye,
face, foot, hand and head protection. Always wear ANSI approved
impact safety goggles, which must provide both frontal and side
protection. Protect your hands with suitable gloves. Wear a full
face shield if your work creates metal filings or wood chips. Protect
your head from falling objects by wearing a hard hat. Wear an ANSI
approved dust mask or respirator when working around metal,
wood and chemical dusts and mists. Wear ANSI approved earplugs.
Protective, electrically non-conductive clothes and non-skid footwear
are recommended when working. Wear steel toed boots to prevent
injury from falling objects.
2. Do not over reach; keep proper footing and balance at all times.
Proper footing and balance enables better control of the tool in
unexpected situations.
3. Keep any articles of clothing, jewelry, hair etc. away from moving parts.
These can be caught in moving parts, resulting in damage to the tool
and/or serious injury.
4. Stay alert, watch what you are doing and use your common sense. Do
not operate any machine or tool when you are tired, under the influence
of drugs, alcohol or medications.

Multi-Purpose Oscillating Tool
5
For technical questions call: 1-800-665-8685
8383853 V 2.0
5. Use clamps or other practical ways to secure and support the work
piece to a stable platform. Holding the work piece by hand or against
your body is unstable and may lead to loss of control.
6. Do not allow the spray to strike you and do not spray toward people or
animals. Do not spray the tool itself or any electrical source.
ELECTRICAL SAFETY
1. Disconnect power supply. Disconnect from power supply when not in
use, before cleaning, servicing or changing any parts or accessories.
2. Protect yourself against electric shocks when working on electrical
equipment. Avoid body contact with grounded surfaces such as pipes,
radiators, cooking stoves and refrigerators. There is an increased
chance of electrical shock if your body is grounded.
3. Double insulated tools are equipped with a polarized plug (one blade
is wider than the other). This plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to install a polarized outlet.
Do not change the plug in any way. Double insulation eliminates the
need for a three wire grounded power cord and grounded power
supply system.
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove
the grounding prong or modify the plug in any way. Do not use any
adapter plugs. Check with a qualified electrician if you are in doubt as to
whether the outlet is properly grounded. If the tool should electronically
malfunction or break down, grounding provides a low resistance path
to carry electricity away from the user.
5. Do not abuse the cord. Never use the cord to carry the tools or pull
the plug from an outlet. Keep cord away from heat, oil, sharp edges
or moving parts. Do not operate this tool if the power cord is frayed
or damaged. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock. Do not modify the plug in any way.

Multi-Purpose Oscillating Tool
6For technical questions call: 1-800-665-8685
8383853V 2.0
6. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These cords are rated for outdoor use and
reduce the risk of electric shock. Use in conjunction with a Ground Fault
Circuit Interrupter (GFCI). If operating a power tool in a damp location
is unavoidable, the use of a GFCI reduces the risk of electric shock. It is
recommended that the GFCI should have a rated residual current of
30 mA or less.
7. Avoid using an unnecessarily long extension cord. Choose a cord that
is appropriate for the situation, as a cord that is too long and running
across the floor can be more dangerous than helpful. Using a cord
that is too long or too thin could damage the tool. Unroll the cord
completely to prevent it from overheating.
8. Place the electrical cord in a position that prevents it from coming into
contact with the tool and from getting caught by the work piece. The
cord should always stay behind the tool.
SPECIFIC SAFETY PRECAUTIONS
WARNING! Know your multi-function power tool. Do not plug the tool
into the power source until you have read and understand this Instruction
Manual. Learn the tool’s applications and limitations, as well as the specific
potential hazards related to this tool. Following this rule will reduce the risk
of electric shock, fire, or serious injury.
• Always keep hands out of the path of the saw blade. Avoid awkward
hand positions where a sudden slip could cause your hand to move into
the path of the saw blade.
• Secure workpiece. Use clamps or a vice to hold the workpiece. It is
safer than using your hand and it frees both hands to operate the tool.
• Make sure there are no nails or foreign objects in the part of the
workpiece to be cut or sanded.
• To avoid injury from accidental starting, always remove the plug from
the power source before installing or removing an accessory.
• Never use dull blades in the tool. They will cut slower, leave rough cuts
and break easily due to added pressure and excessive heat. They will
also overload the motor and cause premature failure of the tool.

Multi-Purpose Oscillating Tool
7
For technical questions call: 1-800-665-8685
8383853 V 2.0
• Never use damaged or bent blades. They will be brittle and break easily
possibly causing injury to the operator.
• Never touch a saw blade immediately after using the tool. The blade will
be extremely hot and will burn your hand.
• Only use accessories designed for use with this tool.
SYMBOLS
WARNING! Some of the following symbols may appear on the multi-
function power tool. Study these symbols and learn their meaning. Proper
interpretation of these symbols will allow for more efficient and safer
operation of this tool.
V Volts
A Amperes
Hz Hertz
W Watts
kW Kilowatts
Microfarads
L Litres
kg Kilograms
H Hours
N/cm2Newtons per
square centimetre
Pa Pascals
Min Minutes
S Seconds
Alternating current
Three-phase
alternating current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding
at grounding terminal,
Class I tools
../min
Revolutions or
reciprocations per
minute
Diameter
0Off position
Arrow
Warning symbol

Multi-Purpose Oscillating Tool
8For technical questions call: 1-800-665-8685
8383853V 2.0
TOOL USE AND CARE
1. Use the right tool for the job. Do not attempt to force a small tool
or attachment to do the work of a larger industrial tool. The tool will
perform better and more safely at the task for which it was intended. Do
not modify this tool or use for a purpose for which it was not designed.
2. Securely hold this tool using both hands. Using tools with only one
hand can result in loss of control.
3. Maintain tools with care. Keep tools clean, sharp and in good condition
for a better and safer performance. Follow instructions for lubricating
and changing accessories. Inspect tool fittings, alignment and hoses
periodically and, if damaged, have them repaired by an authorized
technician or replaced. The handles must be kept clean, dry and free
from oil and grease at all times. A properly maintained tool reduces the
risk of binding and is easier to control. Sharp tools are safer than tools
which have become dull because you do not have to apply excessive
amounts of force to make your cuts. Applying excessive force can lead
to slips and damage to your work or personal injury.
4. Remove adjusting keys and wrenches. Check that keys and adjusting
wrenches are removed from the tool or machine before connecting it. A
wrench or key that is left attached to a rotating part of the tool increases
the risk of personal injury.
5. Avoid unintentional starts. Be sure that the switch is in neutral or OFF
position when not in use and before connecting it to any power source.
Do not carry the tool with fingers near or on the switch.
6. Only use the lubricants supplied with the tool or specified by the
manufacturer. Other lubricants may not be suitable and may damage
the tool or even make the tool explode.
7. When not in use for an extended period, apply a thin coat of lubricant to
the steel parts to avoid rust.
8. Maintain the label and name plate on the tool. These carry important
information. If unreadable or missing, contact Princess Auto
for a replacement.

Multi-Purpose Oscillating Tool
9
For technical questions call: 1-800-665-8685
8383853 V 2.0
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient amount of high
grade lubricant for the life of the unit under normal conditions. Therefore, no
further lubrication is required.
UNPACKING
1. Carefully remove the parts and accessories from the box.
2. Make sure that all items listed in the parts lists are included.
3. Inspect the parts carefully to make sure the tool was not damaged
while shipping.
4. Do not discard the packaging material until you have carefully inspected
and satisfactorily operated the tool.
WARNING! If any part is missing, do not operate the tool until the missing
parts are replaced. Failure to do so could result in serious personal injury.
OPERATION
PARTS IDENTIFICATION
ON/OFF switch
Accessory holder Air vents Hex key holder

Multi-Purpose Oscillating Tool
10 For technical questions call: 1-800-665-8685
8383853V 2.0
ACCESSORIES
WARNING! Use only accessories that are recommended for this
multi-function power tool. Follow the instructions that accompany the
accessories. The use of improper accessories may result in injury to the
operator or damage to the tool.
NOTE: Before using any accessory, carefully read the instructions or the owner’s
manual for the accessory.
• Saw blades
• Scraper blades
• Sandpaper
WARNING! If any part is missing or damaged, do not plug the tool into the
power source or install any accessory until the missing or damaged
part is replaced.
CONTENTS
Carefully unpack the multi-function power tool. Compare the contents against
the “MULTI-FUNCTION POWER TOOL COMPONENTS” chart below.
NOTE: See illustration of the multi-function power tool
WARNING! To avoid fire or toxic reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar highly volatile solvents to clean the tool.
MULTI-FUNCTION POWER TOOL COMPONENTS
KEY DESCRIPTION QTY
AMulti-function power tool 1
B 5 mm Hex key 1
C Plunge cutting saw blade for cutting softwood, plastic & drywall 1
D Half circle saw blade for cutting wood, plastic & drywall 1
E Rigid scraper blade 1
F Sanding pad 1
GSandpaper
60 grit - 1, 80 grit - 1, 120 grit - 1 3
Owner’s Manual 1

Multi-Purpose Oscillating Tool
11
For technical questions call: 1-800-665-8685
8383853 V 2.0
A
B
C
D
E
G
F

Multi-Purpose Oscillating Tool
12 For technical questions call: 1-800-665-8685
8383853V 2.0
INSTALLING ACCESSORIES
All accessories are installed on the multi-function power tool in a similar
manner. For the purposes of describing the accessory installation, the half
circle blade is used.
WARNING! Always remove the plug from the power source before installing
or removing accessories or sandpaper. Failing to remove the plug from the
power source may result in the tool accidentally being started and causing
serious injury to the operator.

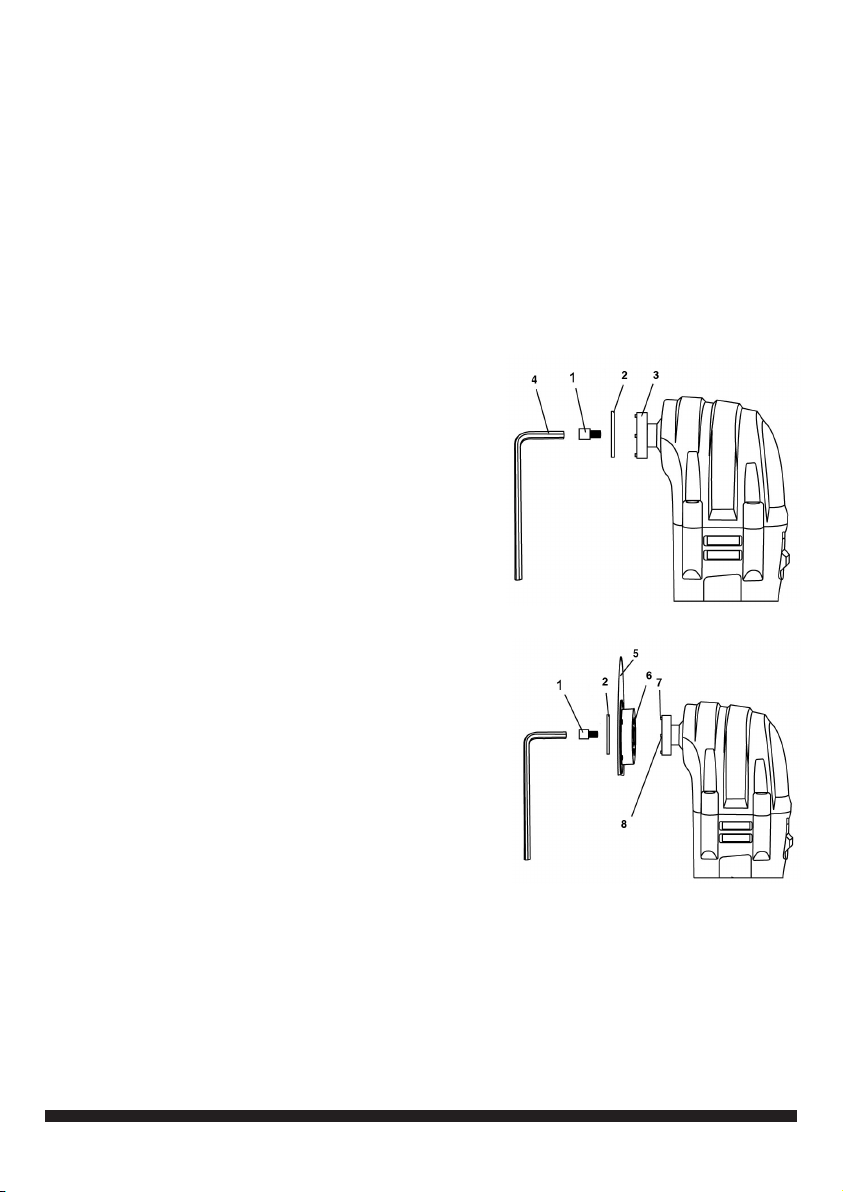

1. Remove the screw (1)and washer (2)
from the accessory holder (3) by turning
the screw counter clockwise. Use the
5 mm Hex key (4) if the screw is too
tight to be removed by hand (Fig. 1).
2. Place the blade (5) on the accessory
holder (Fig. 2).
NOTES:
a) Make sure the alignment holes (6)in
the blade fit over the alignment pins (7)
in the accessory holder and the printed
side of the blade is facing the tool.
b) The blade can be mounted at various
angles left or right of center if required.
3. Thread the screw (1) through the
washer (2) and the blade and into the
accessory holder threaded hole (8).
4. Turn the screw clockwise until it is finger tight.
NOTES:
a) Check to make sure the convex curve of the washer is facing the
head of the screw and the slots in the edge of the washer fit over the
alignment pins in the accessory holder.
Fig. 1
Fig. 2

Multi-Purpose Oscillating Tool
13
For technical questions call: 1-800-665-8685
8383853 V 2.0
b) Make sure the alignment holes in the blade are still mated with the
alignment pins in the accessory holder.
5. Firmly tighten the screw with the 5 mm hex key.
NOTE: Check to make sure the holes in the blade are still mated with the
alignment pins on the accessory holder after the screw
is fully tightened.
INSTALLING SANDPAPER

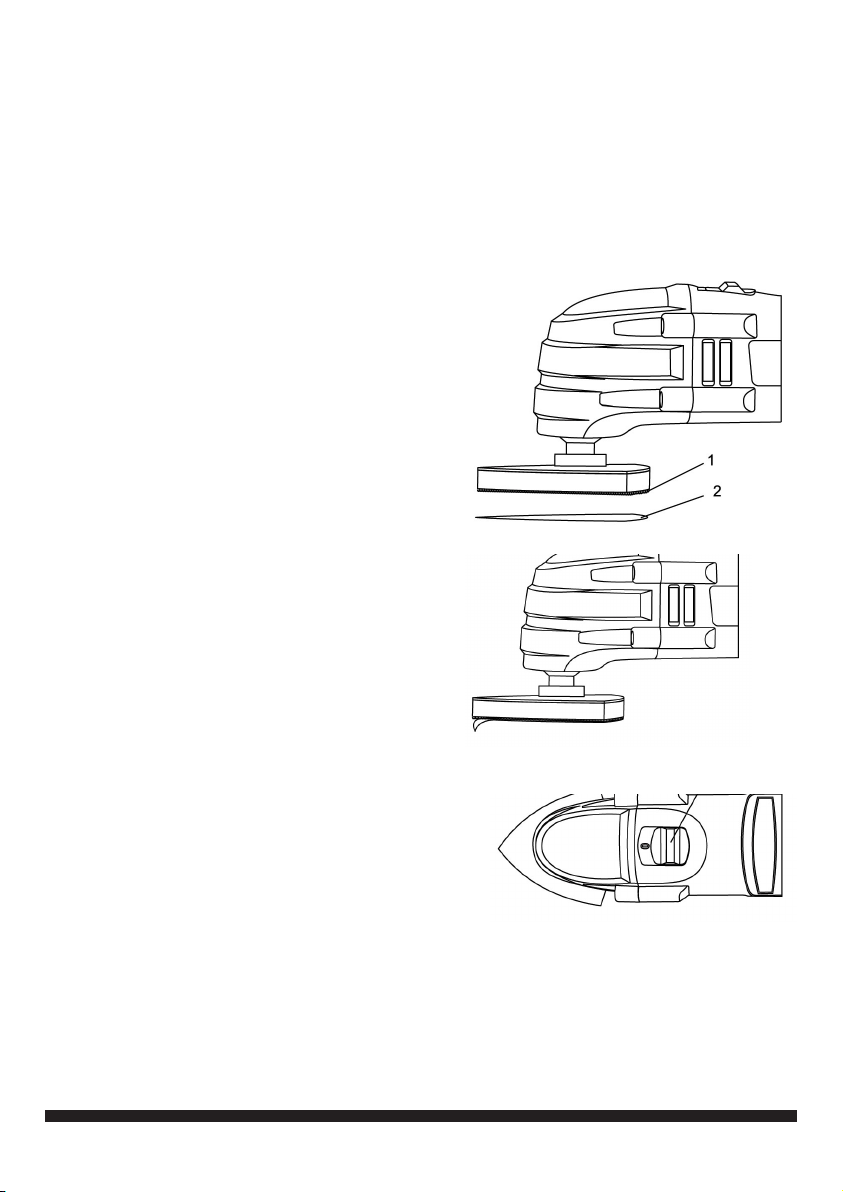

1. Install the hook & loop sanding
pad (1) onto the tool (Fig. 3).
2. Firmly press the sandpaper (2)
onto the hook & loop pad.
NOTES:
a) Place the sandpaper so the
holes in the sandpaper line up
with the matching holes in the
hook & loop pad.
b) Press the sandpaper firmly
onto the hook & loop pad.
3. To remove the sandpaper,
simply peel the sandpaper away
from the hook & loop pad (Fig. 4).
ON/OFF SWITCH
1. To turn the tool ON, slide the
ON/OFF switch (1) toward the
front of the tool (Fig. 5).
2. To turn the tool OFF, slide the
ON/OFF switch toward the rear
of the tool.
WARNING! For safety reasons, the operator must read the sections of this
Owner’s Manual entitled “GENERAL SAFETY WARNINGS”, “POWER TOOL
SAFETY”, “SPECIFIC SAFETY RULES” and “SYMBOLS” before using this
multi-function power tool.
Fig. 3
Fig. 4
Fig. 5

Multi-Purpose Oscillating Tool
14 For technical questions call: 1-800-665-8685
8383853V 2.0
Verify the following every time the multi-function power tool is used:
1. Safety glasses, safety goggles, or face shield are being worn.
2. Hearing protection is being worn.
3. The blade or sandpaper is in good condition.
4. The accessory is properly tightened onto the accessory holder
of the tool.
Failure to observe these safety rules will significantly increase the
risk of injury.
FLUSH CUTTING A DOOR JAMB AND CASING
FOR INSTALLING FLOORING
The multi-function power tool can be used
to flush cut a door jamb and casing to allow
space for the new flooring to fit neatly under
the door jamb and casing. For the purpose
of demonstrating the procedure, floor tile is
being used.
1. Install the plunge cutting wood saw
blade for wood in the tool (Fig. 2).
NOTE: The blade should be centered on
the tool housing and NOT installed in
the 90° position.

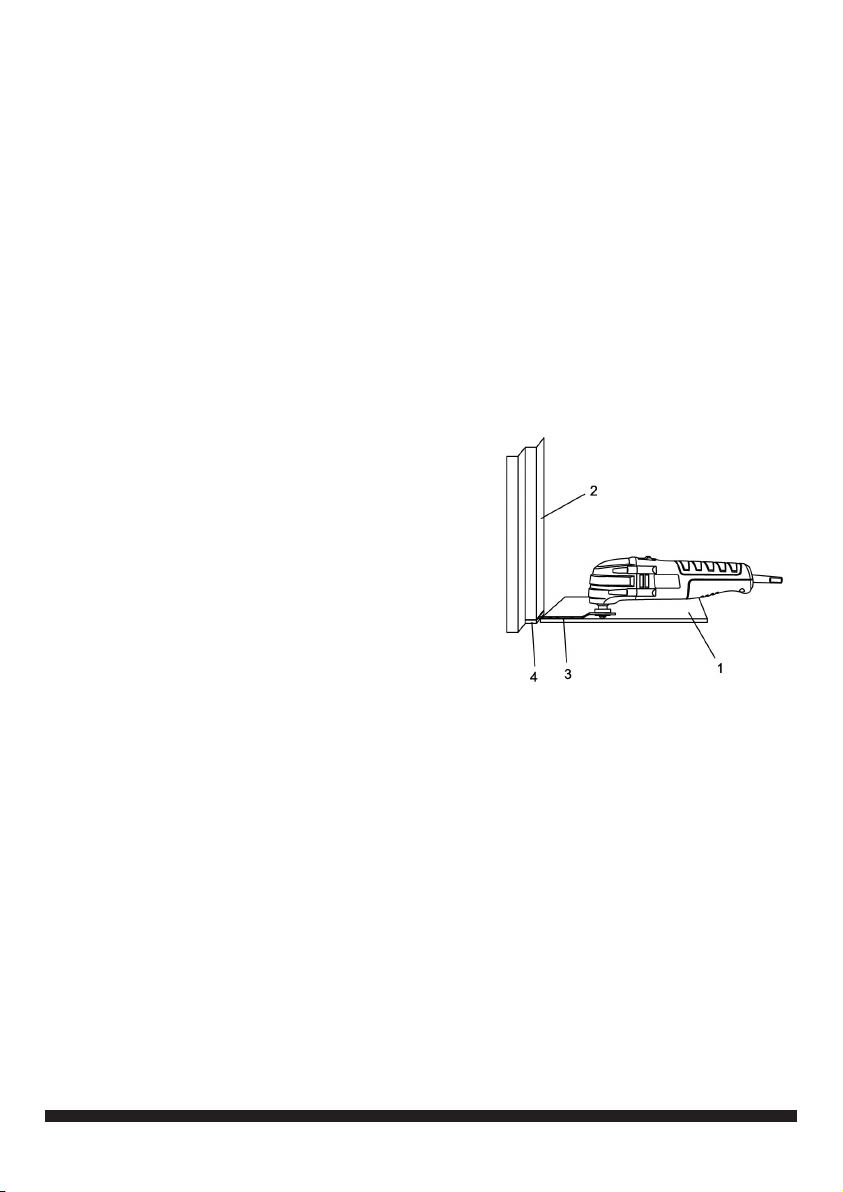

2. Place a scrap piece of floor tile (1) on the floor about 1/2” (25 mm)
from the door jamb (2) (Fig. 6).
NOTE: Make sure the “good” side of the tile is facing upward to provide a
smooth surface for the blade to follow.
3. Place the tool with the saw blade (3)lightly touching the surface of the
tile and the cutting teeth NOT touching the surface to be cut.
4. Turn the tool ON (Fig. 5 Page 14).
5. When the tool reaches its maximum set speed, carefully plunge the
blade into the door jamb (4) while sliding the blade along the floor tile.
NOTE: Hold the tool tightly and do not put too much forward pressure on
the saw blade when cutting, as this will cause the tool to
vibrate excessively.
Fig.6

Multi-Purpose Oscillating Tool
15
For technical questions call: 1-800-665-8685
8383853 V 2.0
Fig.7
6. Continue to make several plunge cuts until the bottom of the
door jamb and casing are completely cut off and the loose pieces can
be easily removed.
Follow the same basic procedure for installing carpet, using a thicker
spacer that is the samethickness of the carpet being installed.
CUTTING A HOLE IN WOOD FLOORING
TO INSTALL A HEATING VENT
The multi-function power tool can be used
to cut a hole in wood flooring for installing a
heating vent.
1. Install the plunge cutting saw blade for
wood in the tool
(Fig. 2 Page 13).
NOTE: The blade should be centered
on the tool housing and NOT installed in
the 90° position
2. Place the floor vent on the floor and
use a soft lead pencil to trace the
required rectangular hole (1) on the flooring (Fig. 7).
3. Place the saw blade (2) near the floor surface in the middle of one of
the cutting lines.
4. Turn the tool ON (Fig. 5).
NOTE: The tool and blade should be at a 45° angle to the floor to allow
the corner of the blade to plunge cut into the flooring.
5. While holding the tool tightly, slowly plunge the corner
of the blade into the flooring until it cuts through the flooring.
Once the plunge cut is complete, set the tool to its highest
speed and complete the cut to the corner of the rectangle.
6. Turn the saw OFF, remove it from the cut and proceed to cut in the
opposite direction to complete the cut for the first side of the rectangle.
7. Repeat steps #4, #5 & #6 to cut the remaining three sides
of the rectangle.

Multi-Purpose Oscillating Tool
16 For technical questions call: 1-800-665-8685
8383853V 2.0
8. When all cuts are complete, use a flat blade screw driver to carefully pry
the cut-out from the floor.
NOTE: Do NOT use the saw blade to pry the cut-out from the floor. You
will break the blade. If the cut-out is not easy to pry from the floor,
check to make sure each line is cut completely into the corner
of the rectangle.
CUTTING A HOLE IN DRYWALL FOR INSTALLING
AN ELECTRICAL OUTLET BOX
The multi-function power tool can be used to cut a hole
in drywall for installing an electrical outlet box.
1. Install the half circle saw blade for wood & drywall in the tool (Fig. 2).
NOTE: The blade should be centered on the tool housing and NOT
installed in the 90° position.
2. Place the outlet box on the drywall and use a soft
lead pencil to trace the required rectangular hole
(1) on the drywall (Fig. 8).
3. Place the corner edge of the saw blade (2)
near the drywall in the middle of one of the
cutting lines.
4. Turn the tool ON (Fig. 5).
5. When the tool reaches its maximum speed,
carefully plunge the blade into the drywall until it
cuts through the drywall. Complete the cut to the
corner of the rectangle.
NOTE: Hold the tool tightly and do
not put too much pressure on the saw
blade when cutting.
6. Turn the saw OFF, remove it from the cut and proceed to cut in
the opposite direction to complete the cut for the first side of
the rectangle.
7. Repeat steps #4, #5 & #6 to cut the remaining three sides
of the rectangle.
Fig. 8

Multi-Purpose Oscillating Tool
17
For technical questions call: 1-800-665-8685
8383853 V 2.0
8. When all cuts are complete, use a flat blade screw driver to carefully pry
the cut-out from the drywall.
NOTE: Do NOT use the saw blade to pry the cut-out from the drywall.
You will break the blade. If the cut-out is not easy to pry from the
drywall, check to make sure each line is cut completely into the corner
of the rectangle.
USING THE DETAIL SANDER ATTACHMENT
1. Install the sanding pad on the multi-function power tool as outlined on
Fig. 1 & 2.
2. Install the sandpaper on the sanding pad as outlined on Fig. 3 & 4.
3. Turn the switch ON as outlined on Page 14, Fig. 5.
This tool is designed for detail sanding on small surface areas. Place the
sandpaper surface of the sanding pad on the workpiece to be sanded. Keep
the tool moving to avoid gouging the surface. Use coarse sandpaper and lower
speeds when sanding rough surfaces and for removing previous finishes. Use
fine sandpaper and higher speeds to produce the smoothest surface
USING THE SCRAPER BLADE
1. Install the scraper blade on the multi-function power tool as outlined on
Fig. 1 & 2.
2. Turn the switch ON.
When using the scraper blade to scrape old finishes or glue from a workpiece,
place the under side of the blade flat on the workpiece surface and then lift
upward on the rear of the tool to allow the blade to form a very slight angle
with the workpiece surface. Feed the blade slowly into the material that is to
be removed. Do not force the tool as slower travel speeds will produce better
cutting action and reduce the risk of gouging the workpiece.
When using the scraper blade to cut carpet, place a scrap workpiece under the
carpet where the cut is being made. Turn the tool so the scraper blade
is at right angles (perpendicular) to the carpet and then feed the blade
into the carpet

Multi-Purpose Oscillating Tool
18 For technical questions call: 1-800-665-8685
8383853V 2.0
MAINTENANCE
Before making any adjustments or changing any accessory, turn off the tool
and unplug it from its air source.
1. Check for damaged parts. Before using any tool, any part that appears
to be damaged should be carefully checked to determine that it
will operate properly and perform its intended functions. Check for
alignment and binding of moving parts, for broken parts or mounting
fixtures, or for any other condition that may affect proper operation.
Any part that is damaged should be repaired or replaced by a
qualified technician.
2. When servicing, use only identical replacement parts. Only use
accessories intended for use with this tool. Replace damaged
parts immediately.
3. Keep the tool clean. Wipe the tool with a clean cloth and periodically
blow out all areas with compressed air. If compressed air is not
available, use a brush to remove dust from all areas. Do not use harsh
chemicals or solvents to clean the tool. These chemicals could seriously
damage the plastic housing.
4. Regularly inspect all mountings and screws to ensure tightness. Should
any screws become loose, tighten immediately.
5. If repairs are required, bring your tool to an authorized service center.
DISPOSING OF THE TOOL
If your tool has become damaged beyond repair, do not throw it out. Bring it to
the appropriate recycling facility.

Multi-Purpose Oscillating Tool
19
For technical questions call: 1-800-665-8685
8383853 V 2.0
PARTS BREAKDOWN

Multi-Purpose Oscillating Tool
20 For technical questions call: 1-800-665-8685
8383853V 2.0
Part# Description Qty
1Screw
ST3.9 x 25 4
2Gear housing
cover 1
3 Gear housing 1
4 Bolt1/4” 1
5 Washer 1
6 Inner ring 28 1
7Rubber
washer 1
8Needle
bearing 0709 1
9 Fork 1
10 Ball bearing
6001-2RS 1
11 Output shaft 1
12 E ring 4 1
13 Bearing 625 1
Part# Description Qty
14 O ring 1
15 Bearing
support 1
16 Ball bearing
608-2Z 1
17 Level knob 1
18 Baffle 1
19 Stator 1
20 Switch level 1
21 Rotor 1
22
Carbon
brush
assembly
2
23 Brush holder 2
24 Brush holder
support 2
25 Ball bearing
627-2Z 1
Part# Description Qty
26 Switch 1
27 Switch
support 1
28 PCB 1
29 Screw
ST2.9 x 9 2
30 Motor
housing 1
31 Rubber cap 2
32 Cord guard 1
33 Power cord 1
34 Wrench 1
35 Cord clamp 1
36 Screw
ST3.9 x14 2
37 Handle cover 1
38 Screw
ST3.9 x 19 2
