Power Fist 9049040 User manual

V1.0 9049040
Please read and understand all instructions before use. Retain this manual for
future reference.

9049040 20V Li-ion Cordless Jig Saw V1.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Voltage Rating (V DC) 20
Speed Control Yes
Stroke Length (in.) 1
Strokes Per Minute (SPM) 0 to 2,400
Blade Type T-shank
Bevel Angle (°) 0 to 45
Handle Type D
Material Plastic/metal
Adjustable Shoe Yes
Keyless Blade Clamp Yes
Tool Length (in.) 8
Includes (1 ea) Metal blade, wood blade, guide and dust tube
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A
notice is an alert that there is a possibility of property damage, injury or
death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices are
not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice
will result in equipment or property damage, but not
personal injury.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 3
INTRODUCTION
This cordless jigsaw features variable speed, a tool-free chuck, tilting
footplate, electric brake, and wire blade guard. It accepts T-shank blades
and requires the Powerfist 20V cordless system Li-ion battery and
charger (sold separately).
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection
and maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-lit
and free of distractions. Place lights so you are not working in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away from
the work area.
3. Store unused tools properly in a safe and dry location to prevent rust
or damage. Lock tools away and keep out of the reach of children.
4. Do not install or use in the presence of flammable gases, dust or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection
for the eyes. Eye protection equipment should comply with CSA Z94.3-07
or ANSI Z87.1 standards based on the type of work performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate matter.
3. Do not wear gloves when operating a tool that can snag the material
and pull the hand into the tool.
4. Wear protective clothing designed for the work environment and tool.
5. Non-skid footwear is recommended to maintain footing and balance in
the work environment.

9049040 20V Li-ion Cordless Jig Saw V1.0
4 For technical questions call 1-800-665-8685
6. Wear steel toe footwear or steel toe caps to prevent a foot injury from
falling objects.
7. Wear the appropriate rated dust mask or respirator.
8. This tool can cause hearing damage. Wear hearing protection gear with
an appropriate Noise Reduction Rating to withstand the decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
POWER TOOL PRECAUTIONS
1. Do not use any power tool with a malfunctioning power switch or
control. A power tool that fails to respond to the controls is dangerous
and can cause an injury. A qualified technician must repair and verify
the power tool is operating correctly, before it can be used.
2. Do not cover the air vents. Proper cooling is necessary prevent damage
to the tool’s motor.
3. Avoid unintentional starts. Ensure the switch is off when connecting to
the power source.
4. Disconnect the power source before installing or servicing the tool.
5. Remove adjusting keys and wrenches before using the tool. The tool may
eject an attached wrench or a key and cause an injury to you or a bystander.
6. Never point the tool towards yourself. It could inflict an injury.
7. Never force the tool. Excessive pressure could break the tool, resulting
in damage to your workpiece or serious personal injury. Excessive
pressure is the cause if your tool runs smoothly under no load, but
roughly under load.
8. Keep hands and fingers away from the work area. Any part of the body
contacting the tool’s working parts could result in an injury.
9. Only use accessories that are specifically designed for use with the
tool. Ensure the accessory is tightly installed.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 5
10. Only use an accessory that exceeds the Speed Rating (see Specifications).
11. Before using the tool on a workpiece, test the tool by running it at the
highest Speed Rating for at least 30 seconds in a safe position. Stop
immediately if there is any abnormal vibration or wobbling. Check the
tool to determine the cause.
a. Do not allow the tool to run without load for an extended period of
time, as this will shorten its life.
12. Never touch the tool accessory or workpiece during or immediately
after use. They may be hot and could inflict a burn injury.
13. Take work breaks to prevent the tool's motor from overheating
and/or overloading.
14. Never use a tool with a cracked or worn tool accessory. Change the
tool accessory before using it.
15. Do not start the tool when the tool’s accessory is touching the workpiece.
ELECTRICAL SAFETY
WARNING! Do not touch or handle a live tool with any part of your body that
is wet or damp. Wet skin reduces resistance to electrical current, increasing
the danger of a serious or fatal shock.
1. Do not alter any parts of the tool or accessories. All parts and
accessories are designed with built-in safety features that may be
compromised if altered.
2. Protect yourself against electric shocks when working on electrical
equipment. Avoid body contact with grounded surfaces. There is an
increased chance of electrical shock if your body is grounded.
3. Do not expose the saw to rain, snow, frost or any other damp or wet
conditions. Water entering a tool will increase the risk of electric shock.
4. Hold the tool by the insulated gripping surfaces when performing an
operation where the cutting accessory may contact hidden wiring.
Contact with a live wire will also make exposed metal parts of the
power tool live and shock the operator.
BATTERY SAFETY
WARNING! Only charge a battery with a charger designed for that purpose. Do
not use modified chargers or a charger that does not specify the voltage,
amperage or recharge rate. Improper charging can lead to battery rupturing.

9049040 20V Li-ion Cordless Jig Saw V1.0
6 For technical questions call 1-800-665-8685
WARNING! Do not charge a damaged or frozen battery. Contact your local
municipality for proper disposal procedures. Consult the Safety Data
Sheet (SDS) for your battery before use or maintenance.
1. Do not expose the battery to heat or throw it in a fire. The contents are
flammable and the battery may explode. Remove any source of ignition
such as an open flame or a tool like a heater from the area.
2. Do not inhale smoke issuing from a burning battery, as it is toxic.
3. Do not disassemble or crush the battery as the contents are corrosive
and flammable. Exposure may cause an injury. There is a risk of
escaping hazardous vapors. These vapors can irritate the respiratory
track. Always ensure proper ventilation and immediately consult a
doctor, if you feel unwell.
4. Even a discharged battery may still carry a charge. To prevent a shock,
place battery terminal caps or covers over the terminal to prevent
accidental contact. Hold the battery by the bottom if moving the
battery to a different location.
5. Do not store the battery in containers / spaces with loose metal
objects. Keep it away from other metal objects that can make a
connection between terminals. Shorting out the battery terminals may
cause burns or a fire.
6. A battery-operated tool with internal batteries or with a separate
battery pack must only be powered by the included battery. Do not
mix different brands of tools and batteries or use adapters to allow
you to use a battery pack with a different voltage. This can damage the
tool’s electrical mechanism and create a fire hazard.
7. If fluids leak from the battery, avoid contact. Leaking battery fluid can
cause irritation of the skin or burns. If contact should occur, flush
immediately with water. In case of accidental contact with the eyes,
seek medical aid.
8. Do not disconnect from the power source in place of using the ON/OFF
switch on the tool. This can lead to an accidental startup when the tool
is connected to the power supply.
9. Do not allow a rechargeable battery to fully discharge. This will
damage the battery. Recharge the battery as soon as possible.
10. Do not store the battery completely discharged. Charge it fully before
storing. Recharge occasionally if storing for a long time.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 7
CHARGER PRECAUTIONS
WARNING! Voltage is present at the charging terminals, do not probe with
conductive objects. Electric shock or electrocution may result. A battery
short can cause a large current flow, overheating, possible burns and even a
breakdown of the tool.
Before using the charger, read all instructions and cautionary markings on
the charger, battery pack and the product using the battery pack.
1. Only use the included battery charger to recharge the battery. Other
chargers may be unsafe, causing an electrical short circuit or fire.
2. Disconnect the charger from its power source before attaching or
removing batteries or battery clamps.
3. Charge the battery in a well-ventilated area and never obstruct the
vents in the top and bottom of the charger. Place the charger on a flat
nonflammable surface and away from flammable materials when re-
charging the battery.
4. Do not place any object on top of the charger or place the charger on a
soft surface that may result in excessive internal heat. Place the
charger in a position away from any heat source.
5. Charge the battery at rates recommended by the battery manufacturer.
6. Do not insert the battery into the charger backwards. Make sure the
polarity symbols on the battery lines up with the polarity symbols of
the charger. A battery inserted backwards may explode causing fire
and/or injury.
7. Do not use the charger with an extension cord. This can cause a low
voltage outage during charging.
8. Do not charge leaking batteries. A compromised casing will release
volatile chemicals and gases. Charging a leaking battery can cause a
fire or explosion.
9. Do not operate the charger if it has received a sharp blow, been dropped
or otherwise damaged in any way. Have it serviced or replaced.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.

9049040 20V Li-ion Cordless Jig Saw V1.0
8 For technical questions call 1-800-665-8685
1. Use the correct tool for the job. This tool was designed for a specific
function. Do not modify or alter this tool or use it for an
unintended purpose.
2. Do not use the tool if any parts are damage broken or misplaced.
Repair or replace the parts.
CUTTING PRECAUTIONS
WARNING! Some surfaces contain materials which can be toxic. When
working on materials that may contain lead, asbestos, copper chromium
arsenate or other toxic materials, extra care should be taken to avoid
inhalation and minimize skin contact.
1. Only use accessories that are specifically designed for use with the
tool. Ensure the accessory is tightly installed.
2. Use caution when cutting damp wood, pressure treated lumber or
wood containing knots. Adjust speed of cut to maintain smooth
advancement of tool without decrease in cutting accessory speed.
3. Do not use a dull or damaged cutting accessory. A dull cutting accessory
requires more force to use the tool, possibly causing the accessory to
break. This may cause an injury and will damage the workpiece.
a. Dull or improperly set cutting accessories produce a narrow kerf
that can cause excessive friction on the cutting accessory,
resulting in binding or a kickback. Keep the cutting accessory’s
edge sharp and clean.
4. Only use a cutting accessory that exceeds the No Load Speed
rating (see Specifications).
5. Always wait until the motor has reached full speed before starting a cut.
CUTTING TOOL PRECAUTIONS
1. Use the correct mounting hardware. The mounting hardware is
designed to hold the cutting accessory on the tool to allow optimum
performance and safety of operation. Mismatched mounting hardware
may result in a tool malfunction and cause an injury.
a. Always use blades that are correctly sized and shaped for the
tool. Blades that do not match the tool’s mounting hardware will
run erratically, causing loss of control.
2. Check the cutting accessory for damage before each use. A damaged
accessory can break during use and cause serious injury.
3 Inspect material for foreign objects such as staples, nails or debris.
Remove from material before cutting.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 9
4. Affix the workpiece to a stable platform to prevent movement, minimize
body exposure to injury, cutting accessory binding or loss of control.
5. Position the tool on the larger section of a supported workpiece to
complete a cut. Cut the small portion away from the larger portion.
Support the smaller portion if possible to prevent it from binding when
the cut is almost complete.
6. Never confine the part of the workpiece being cut away by holding,
clamping or using length stops against it. That part of the workpiece
could become wedged against the blade and be thrown violently. The
cut away part of the workpiece must be free to move sideways
JIG SAW PRECAUTIONS
DANGER! When the tool is in operation, keep hands away from the saw
blade and the area it is being applied to. Failure to follow this warning will
result in amputation, serious personal injury or death.
1. Always make sure the jig saw is clean before using.
2. Always handle the jig saw blade with care when mounting or
removing it.
3. Always be aware of the position of your hands relative to the blade.
Avoid awkward hand positions where a sudden slip could cause a hand
to move into the blade.
4. Never reach behind or beneath the blade.
5. Do not attempt to cut a workpiece that is thicker than the maximum
cutting depth of the blade, or where there is insufficient space for the
blade under the workpiece.
6. This tool is equipped with a laser guide. When the tool is in operation,
do not stare directly at the laser beam. Do not aim the beam at people
or objects other than the workpiece. Ensure that the beam is directed
towards a sturdy workpiece without reflective surfaces. Reflective
surfaces could bounce the beam back at the operator.
WARNING! Radiation from direct or reflected laser beams can cause
permanent eye damage when exposed for longer than 0.25 sec.
KICKBACK PRECAUTIONS
Kickback is a sudden reaction to a pinched or snagged cutting accessory.
The tool kicks out and away from the workpiece while the cutting accessory
is still active. This can inflict a serious injury on the user or a bystander.
Kickback can also damage the tool or workpiece.

9049040 20V Li-ion Cordless Jig Saw V1.0
10 For technical questions call 1-800-665-8685
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the tool and position your body and arms to
allow you to resist a kickback. Kickback will propel the tool in the
direction opposite to the cutting accessory’s teeth or direction of
rotation. A snagged rotary cutting bit may pull the tool out of the grasp
of the user.
2. If kickback occurs:
a. The cutting accessory may pass over a body part, causing a
seriously injury;
b. A rotary bit may wrench the user’s arm causing muscle or joint
injuries; and
c. The tool may strike bystanders.
3. Use clamps or a vice to hold down smaller workpieces.
4. Use special care when working on corners, sharp edges or flexible
material. These workpieces have a tendency to snag the
cutting accessory.
5. When the blade is the binding, or when interrupting a cut for any
reason, release the trigger and hold the saw motionless in the material
until the blade comes to a complete stop. Never attempt to remove the
saw from the workpiece or pull the saw backward while the blade is in
motion as kickback may occur. Investigate and take corrective actions
to eliminate the cause of blade binding.
6. When restarting a saw in the workpiece, center the saw blade in the
kerf and check that saw teeth are not engaged into the material. If saw
blade is binding, it may walk up or kickback from the workpiece as the
saw is restarted.
7. Support large panels to minimize the risk of blade pinching and
kickback. Large panels tend to sag under their own weight. Supports
must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
8. Use extra caution when making a plunge cut into existing walls or other
blind areas. The protruding blade may cut objects that can cause kickback.
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury. Take
frequent breaks when using the tool.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 11
2. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical attention
as soon as possible.
3. Wear suitable gloves to reduce the effects of vibration.
4. DO NOT use this tool before consulting a physician if one of the
following applies:
a. Pregnant
b. Impaired blood circulation
to the hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud's Disease
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a malfunction
and personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the Identification Key are included.

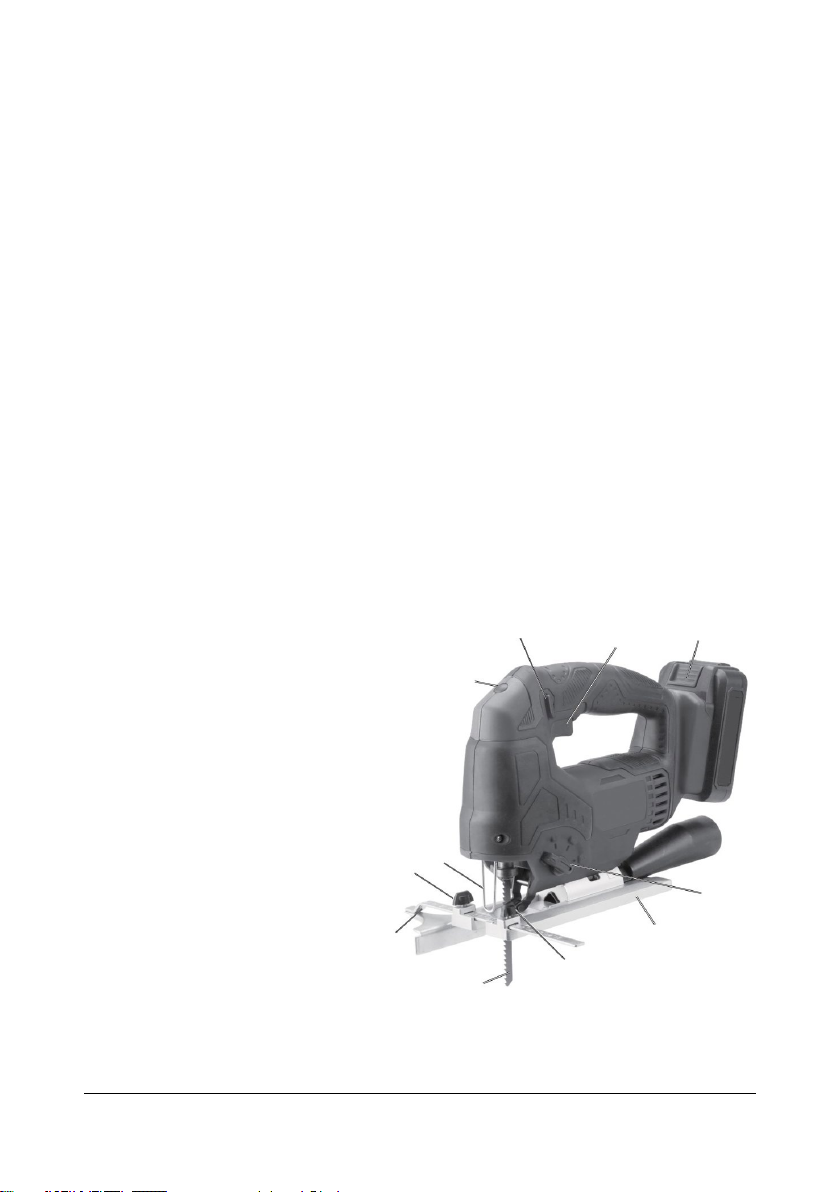

IDENTIFICATION KEY
A Trigger Lock
B Trigger
C Battery (sold separately)
D Orbital-Action Dial
E Shoe
F Blade Guide
G Blade
H Fence
I Fence Lock Knob
J Blade Guard
K Laser Guide Button
A
B
C
D
E
F
G
H
I
J
K

9049040 20V Li-ion Cordless Jig Saw V1.0
12 For technical questions call 1-800-665-8685
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key.
Dashed numbers in parenthesis (Fig. 1-1) refer to a specific point in an
illustration or image.
INSTALL EXTERNAL BATTERY PACK
WARNING! Avoid unintentional starts by ensuring the trigger lock (A) is
engaged before installing the battery pack.
1. Check the battery power level before each use.
a. The battery is not fully charged out of the carton. Charge the
battery before first use.
2. Install the battery by aligning the rib on the battery with the groove
on the battery port and push forward until the latch clicks.
3. Remove the battery by pushing the battery lock button and pulling the
battery free.

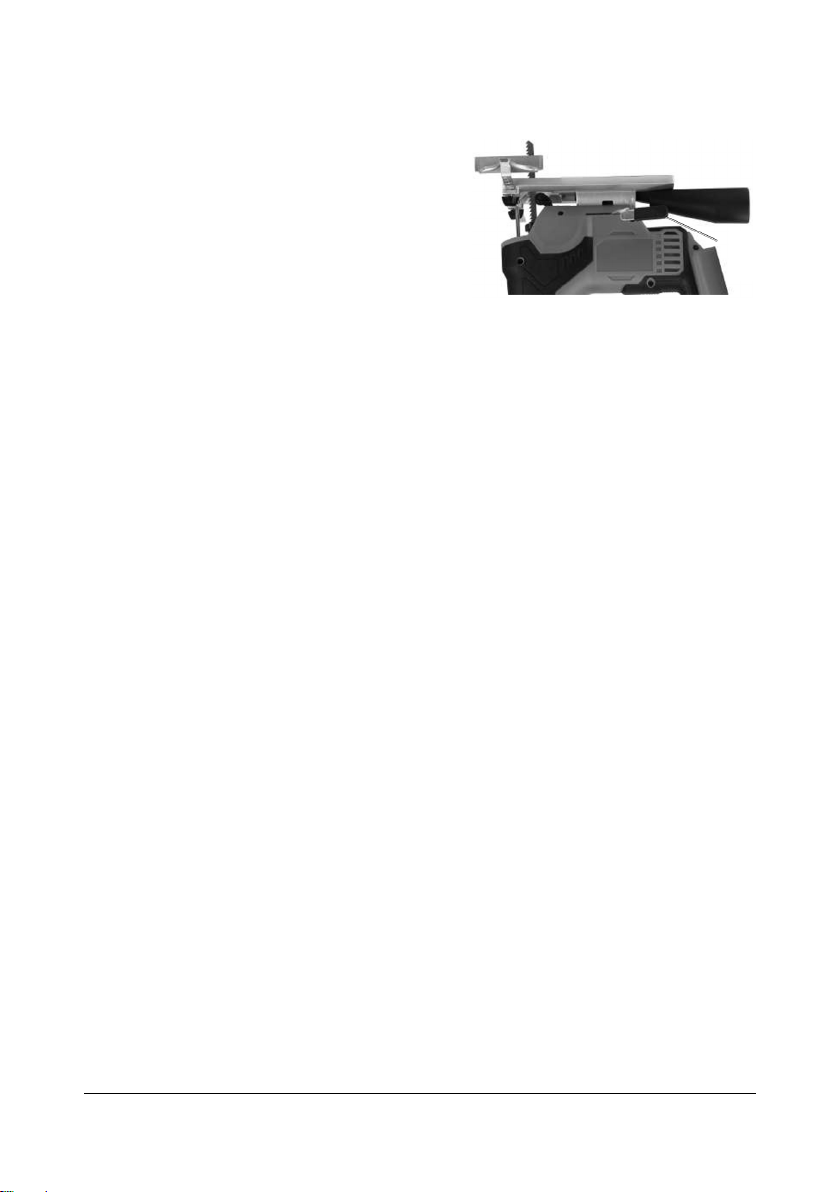

INSTALLING THE BLADE
1. Turn the saw upside down.
2. Twist the chuck (Fig. 1-1) clockwise to open.
The chuck will move to the left, creating
space for the blade.
2. Insert the blade (E) into the chuck, with the
teeth pointing away from the saw.
3. Release the chuck to close.
4. Ensure that the blade is securely locked.
ADJUSTING THE FENCE
1. Loosen the fence lock knob and slide the fence (H) to the desired
cutting width.
IMPORTANT! The ruler on the fence shows the approximate cutting width.
The fence can be removed completely if needed.
2. Tighten the fence lock knob.
Fig. 1
1
-1

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 13
ADJUSTING THE BEVEL ANGLE
1. Turn the saw upside-down.
2. Move the bevel lock lever (Fig. 2-1)
into the unlocked position.
3. Push the shoe (E) forward to
disengage the gears.
4. Adjust the shoe to the desired angle.
5. Push the shoe backwards to engage
the gears.
6. Move the bevel lock lever into the locked position.
SETTING THE CUTTING ACTION
Use the orbital-action dial (D) to set one of the following cutting actions:
•Straight. Set the dial to 0. The blade travels in a vertical motion (up and
down) only.
•Orbital. Set the dial to 1, 2 or 3. The blade travels in an orbital
motion (up and down; forward and backward). Higher settings indicate
a larger orbital motion.
OPERATION
WARNING! To reduce the risk of serious injury, ensure the following
precautions are followed before operation: the guard is in place and in proper
working order; the bevel lock lever and fence lock knob are tightened.
1. Hold the jig saw firmly with one hand. Position the blade near the work
piece. Press the laser guide button (K) to turn the laser guide on.
2. Push in and hold the trigger lock (B), then press the trigger (A).
a. Apply more pressure on the trigger to increase the speed.
b. Apply less pressure to decrease.
3. Allow the blade to reach full speed before contacting the workpiece.
4. Press the shoe against the workpiece. Guide the saw blade through the
cutline in a smooth and steady motion.
5. After completing the cut, release the trigger. Press the laser guide
button again to turn the laser guide off.
Fig. 2
2-
2

9049040 20V Li-ion Cordless Jig Saw V1.0
14 For technical questions call 1-800-665-8685
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient, easier
to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged or
worn components. Only use identical replacement parts when servicing.
3. Only use accessories intended for use with this tool.
4. Keep the tool handles or gripping surfaces clean and dry.
5. Maintain the tool’s labels and name plates. These carry important
information. If unreadable or missing, contact Princess Auto Ltd.
for replacements.
6. Clear the vents of any dirt, dust and debris on a regular basis to
prevent the tool from overheating.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
BATTERY MAINTENANCE
Avoid the risk of battery short circuits during transport, storage or disposal
by isolating both terminals with adhesive tape or pack the battery in a
plastic bag or a cardboard box.
1. The longest life and best performance can be obtained if the battery
pack is charged when the air temperature is between 50 to
86°F (10 to 30°C). Do not charge the battery when the temperature is
below 32°F (0°C) or above 104°F (40°C). This is important and will
prevent damage to the battery pack.
2. Charge the battery at rates recommended by the manufacturer.
CLEANING
1. Remove all swarf from the machine with a vacuum cleaner or
compressed air. Focus on removing dust from the motor’s fan vents.
2. Thoroughly clean all surfaces.
CLEANING THE CHARGER
1. Only clean with a damp cloth. Avoid using solvents when cleaning
plastic parts.
2. To reduce risk of electric shock, unplug the charger from the outlet
before attempting any cleaning. Removing the battery pack will not
reduce this risk.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 15
STORAGE
When not in use for an extended period, apply a thin coat of lubricant to the
steel parts to avoid rust. Remove the lubricant before using the tool again.
1. Components should be kept dry, with machined surfaces lightly oiled.
2. Always remove the saw blade and store in a safe place.
3. Never store equipment in a wet/damp environment.
BATTERY STORAGE
Remove the battery when not in use for an extended period of time to
prevent damage.
1. Do not store the battery completely discharged. Charge it fully before
storing. Recharge occasionally if storing for a long time.
2. Do not store batteries in containers / spaces with loose metal objects.
Battery terminals could be short circuited if they come into contact
with metal objects. In addition to damaging the battery, you increase
the risk of a fire.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
Contact your local municipality for a list of disposal facilities or by-laws for
electronic devices, batteries, oil or other toxic liquids.

9049040 20V Li-ion Cordless Jig Saw V1.0
16 For technical questions call 1-800-665-8685
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified technician
service the tool.
Problem(s) Possible Cause(s) Suggested Solution(s)
The saw will not
start.
1. Supplied power is
interrupted.
2. On/Off switch is faulty.
3. Motor components are
short-circuiting or are
defective.
4. Motor has overheated.
5. The battery is not
installed correctly.
6. Battery power
depleted.
7. Battery is worn out.
1. Check that power supply is
still available.
2. Replace faulty switch.
3. Have a qualified technician
service the tool.
4. Allow motor to cool before
attempting to use.
5. Clean battery contacts
individually to avoid a shock.
Then install the battery
correctly. Make sure the
polarity matches and the
battery locks into place.
6. Follow instructions to charge
the battery in Care &
Maintenance.
7. Replace with a new battery
from the same manufacturer.
Dispose or recycle your old
battery according to your
local municipal bylaws.
Motor starts slow
and doesn't reach
operation speed.
1. Motor is damaged.
2. The battery has
insufficient charge.
3. Battery is worn out.
1. Have a qualified technician
service the tool.
2.
Follow instructions to charge
the battery in Care &
Maintenance.
3. Replace with a new battery
from the same manufacturer.
Dispose or recycle your old
battery according to your
local municipal bylaws.

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 17
Tool is making
unusual sounds
1. The saw's parts may
be rubbing or binding.
2. Electrical components
may be shorting.
1. Check for obstructions or
misaligned tool components.
Lubricate, repair or replace
the components based on
the particular problem.
2. Disconnect tool from the
power source immediately.
Have the tool examined by a
qualified technician.
Heavy sparking
inside motor
housing.
Motor is shorting. Disconnect tool from the power
source immediately. Have the tool
examined by a qualified
technician.
Overheating 1.
Forcing machine to
work too fast.
2.
Blocked motor housing
vents.
1. Allow machine to work at its
own rate.
2. Keep the blade sharp.
Replace as needed
3. Blow dust out of motor using
compressed air.

9049040 20V Li-ion Cordless Jig Saw V1.0
18 For technical questions call 1-800-665-8685
PARTS BREAKDOWN
PARTS LIST
# DESCRIPTION QTY
1 Laser Guide Button 1
2 --- ---
3 Locating Pin Spring 1
4 Laser Switch Subassembly 1
5 Safety Gear Lever 1
6 Return Spring Piece 1
7 Dustproof Block 1

V1.0 20V Li-ion Cordless Jig Saw 9049040
Visit www.princessauto.com for more information 19
8 Reciprocating Rod
Subassembly
1
9 Sliding Way 1
10 Circlip for Shaft 1
11 Gear Gasket 1
12 Pulley 1
13 Gear Subassembly 1
14 Adjusting Spindle 1
15 Steel Ball 1
16 Locating Pin Spring 1
17 Adjusting Knob 1
18 Balance Block 1
19 Roller Pin 1
20 Support Chip 1
21 Needle Bearing 2
22 Left Enclosure 1
23 Center Bracket Assembly 1
24 Push Rod Return Spring 1
25 Bearing 1
26 Push Rod 1
27 Motor Gear 1
28 Switch 1
29 Battery Bracket
Subassembly
1
30 Fan 1
31 --- ---
32 --- ---
33 Screw 2
34 Spring Washer 2
35 Motor Locating Plate 1
36 Motor 1
37 Black Inner Wire 1
38 Red Inner Wire 1
39 Dust Tube 1
40 Lock Lever Sheath 1
41 Clamping Plate 1
42 Screw 1
43 Bottom Plate 1
44 Screw 6
45 Clamping Cam 1
46 Lock Lever 1
47 Cam Gasket 1
48 Limiter Piece 1
49 Aluminum Baseplate 1
50 Guide Ruler Locking Button
2
51 Tapping Screw 2
52 Guide Ruler 1
53 Tapping Screw 13
54 Right Enclosure 1
55 Guide Roller Pin 1
56 Roller Pin 1
57 Guide Roller 1
58 Guide Roller Bracket 1
59 Split Washer 1
60 LED Light 1

V1,0 9049040
Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.
Conservez ce manuel afin de pouvoir le consulter plus tard.
