Power Fist 8633695 User manual

V 4.0 8633695

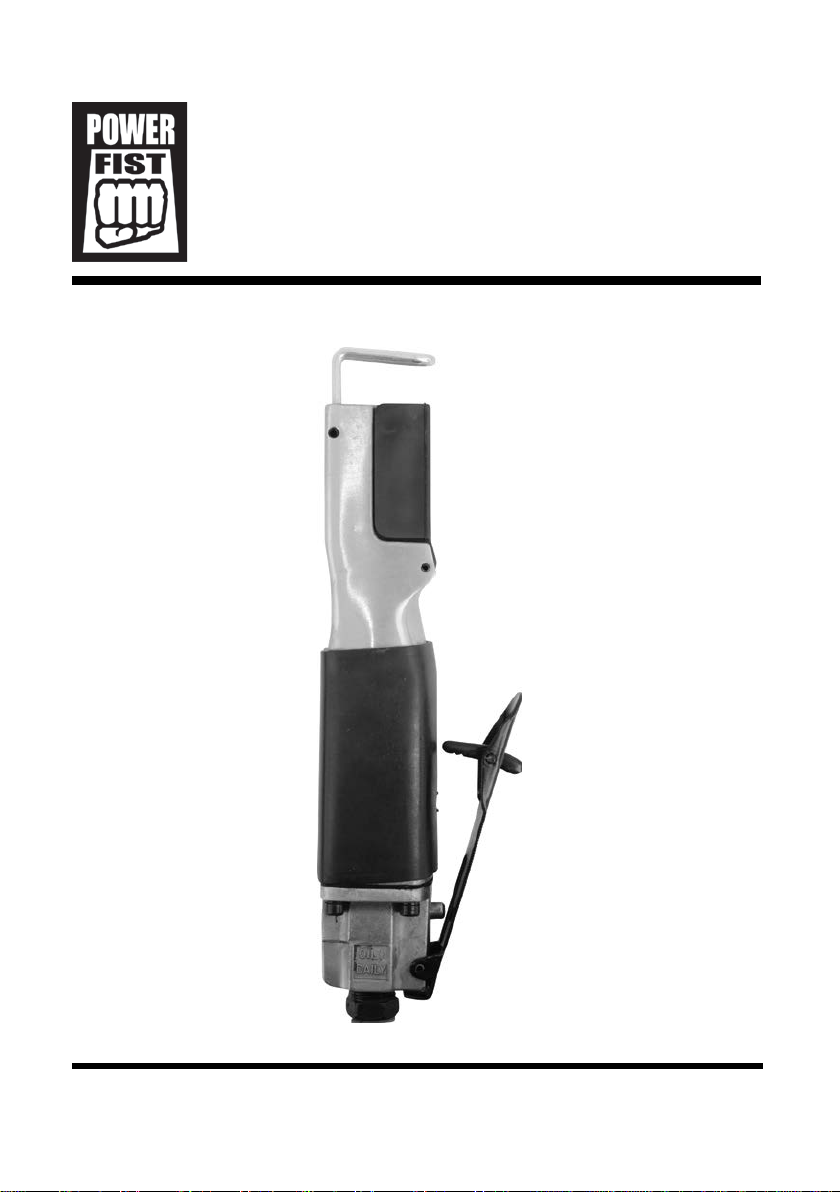

User Manual
HighSpeedAirBodySaw
Please read and understand all instructions before use. Retain this manual for
future reference.

8633695 High Speed Air Body Saw V 4.0
SPECIFICATIONS
Air Consumption @ 90 PSI 4 CFM
No Load Speed 10,000 SPM
Max. Cutting Capacity Sheet Metal 16 gauge
Air Inlet 1/4 in. NPT
Max. Pressure 90 PSI
Recommended Air Hose Size 3/8 in.
Material Aluminum Alloy
Feature(s) Lever throttle and adjustable
regulator, 10,000 strokes per minute
for fast and smooth cutting,
adjustable blade guard to control
depth of cut.
Application(s)
Recommended for various
applications. Excellent for body shop
repair, muffler and exhaust work,
sun roof installations.
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
SAVE THESE INSTRUCTIONS
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
HighSpeedAirBodySaw
2 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A notice
is an alert that there is a possibility of property damage, injury or death if certain
instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that will
result in severe personal injury or death if the proper precautions
are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result
in minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will
result in equipment or property damage, but not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well lit and
free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
3. Store tools properly in a safe and dry location. Keep tools out of the reach
of children.
4. Do not install or use in the presence of flammable gases, dust or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National Standards
Institute (ANSI).
Visit www.princessauto.com for more information 3

8633695 High Speed Air Body Saw V 4.0
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection
for the eyes. Wear a full-face shield if your work creates metal filings or
wood chips.
a. Eye protection equipment should comply with ANSI Z87.1 standards.
2. Wear gloves that provide protection based on the work materials or to
reduce the effects of tool vibration.
3. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
4. Steel toe footwear or steel toe caps to prevent injury from falling objects.
5. Wear protective clothing designed for the work environment and tool.
6. Wear a NIOSH approved respirator when working on materials that
produce dust or particulate matter.
7. This tool can cause hearing damage. Wear hearing protection gear with an
appropriate Noise Reduction Rating to withstand the decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
4. Support the workpiece or clamp it to a stable platform. Holding the
workpiece by hand or against your body may lead to personal injury.
5. Securely hold this tool using both hands. Using a tool with only one hand
can result in loss of control.
4 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for
an unintended purpose.
2. Accessories must be rated for at least the recommended strokes per
minute speed of the tool. See the Specifications section for the no
load speed.
3. Keep hands away from cutting area and the blade. Keep both hand
securely on the saw. If both hands are holding the saw, they cannot be
cut by the blade.
4. Keep your body positioned to either side of the blade, but not in line with
the saw blade. Kickback could cause the saw to jump backwards.
5. Do not reach underneath the work piece.
6. Never hold a work piece being cut in your hands or across your leg. Secure
the work piece to a stable platform. It is important to support the work
properly to minimize body exposure, blade binding, or loss of control.
7. Stay clear of end pieces that may fall after cutting. They may be hot, sharp
and / or heavy. Serious personal injury may result.
8. Always handle the saw blade with care when mounting or removing it.
9. Do not start the tool when the blade is touching the work piece.
10. Hold the tool by insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or its own cord. Contact
with a "live" wire will also make exposed metal parts of the power tool "live"
and shock the operator.
Visit www.princessauto.com for more information 5

8633695 High Speed Air Body Saw V 4.0
11. Always use blades that are designed to be used with this saw. Blades that
do not match the mounting hardware of the saw may be launched with
great force from the saw causing damage to property or personal injury.
A blade that does not match the mounting hardware may also run
eccentrically, causing loss of control.
12. After changing a blade or making adjustments, make sure that the blade
chuck is holding the blade securely.
13. Do not use dull or damaged blades.
14. Do not use the tool on any material containing asbestos.
15. Avoid cutting nails. Inspect the work piece for any nails and remove
before cutting.
16. Do not touch the blade or the surface that has been cut with this tool
immediately after use. The surface will be hot and may cause an injury.
AIR TOOL PRECAUTIONS
1. Extended exposure to air tool noise may cause hearing loss. Ear protection
gear can reduce or eliminate the noise level.
2. Inspect the tool's air line for cracks, fraying or other faults before each use.
Discontinue use if the air line is damaged or hissing is heard from the air
line or connectors, while operating the tool. Replace the defective
component/air line.
3. Do not allow people, mobile equipment or vehicles to pass over the
unprotected air line. Position the air line away from high traffic areas, in a
reinforced conduit or place planks on both sides of the airline to create a
protective trench.
4. Prevent damage to the air line by observing the following:
a. Never carry the tool by the air line.
b. Keep the air line behind the tool and out of the tool's work path.
c. Keep the air line away from heat, oil, sharp edges or moving parts.
d. Do not wrap the air line around the tool as sharp edges may pierce or
crack the airline. Coil the air line when storing.
6 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
5. A damaged or disconnected air line under pressure may whip around and
inflict personal injury or damage the work area. Secure the compressor's
air line to a fixed or permanent structure with clamps or cable ties.
6. Install an in-line shutoff valve or regulator to allow immediate control over
the air supply in an emergency, even if a hose is ruptured.
KICKBACK PRECAUTIONS
Kickback is a sudden reaction to a pinched, bound or misaligned blade, causing
an uncontrolled tool to lift up and out of the workpiece toward the operator;
when the blade is pinched or bound tightly by the cut workpiece closing down,
the blade stalls and the motor reaction drives the unit rapidly back toward the
operator. Kickback may result in loss of control of the tool leading to serious
personal injury and / or damage to the workpiece and / or tool.
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the tool and position your body and arms to allow
you to resist kickback forces. Kickback will propel the tool in the direction
opposite to the wheel's movement at the time of snagging.
2. Never place your hand near the blade. If kickback occurs, the wheel may
pass over your hand and seriously injury you. Use clamps or a vice to hold
down the workpiece.
3. Use special care when working on corners, sharp edges etc. Corners,
sharp edges or bouncing have a tendency to snag the blade and cause loss
of control or kickback.
4. When the blade is binding, or when interrupting a cut for any reason,
release the trigger and hold the saw motionless in the material until the
blade comes to a complete stop. Never attempt to remove the saw from
the workpiece or pull the saw backward while the blade is in motion or
kickback may occur. Investigate and take corrective actions to eliminate the
cause of blade binding.
5. When restarting a blade in the workpiece, center the blade in the cut and
check that blade teeth are not engaged into the material. If saw blade is
binding, it may walk up or kickback from the workpiece as the cut-off saw
is restarted.
Visit www.princessauto.com for more information 7

8633695 High Speed Air Body Saw V 4.0
6. Support large panels to minimize the risk of blade pinching and kickback.
Large panels tend to sag under their own weight. Supports must be
placed under the panel on both sides, near the line of cut and near the
edge of the panel.
To minimize the risk of blade pinching and kickback, when cutting
operation requires the resting of the tool on the workpiece, the tool should
be rested on the larger portion and the smaller piece cut off.
7. Use extra caution when making a "plunge cut" into existing walls or other
blind areas. The protruding blade may cut objects that can cause kickback.
8. Only use blades designed for the tool. Do not use dull or damaged blades.
Unsharpened or improperly set blades produce narrow cuts causing
excessive friction, blade binding and kickback. Keep blades sharp and
clean. Gum and wood pitch hardened on blades slows the saw and
increases potential for kickback.
9. Never force the saw. Forcing the tool can cause uneven cuts, loss of
accuracy, and possible kickback. Push the tool forward at a speed so that
the blade cuts without slowing.
VIBRATION PRECAUTIONS
This tool vibrates during use. Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury, particularly to the hands, arms
and shoulders.
1. Anyone using vibrating tools regularly or for an extended period should
first be examined by a doctor and then have regular medical check-ups to
ensure medical problems are not being caused by or worsened from tool
use. Pregnant women or people who have impaired blood circulation to the
hands, past hand injuries, nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool. If you feel any medical
symptoms related to vibrations (such as tingling, numbness, and white
or blue fingers), seek medical attention as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood flow to the hands
and fingers, increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
8 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
4. Use tools with the lowest amount of vibration when there is a choice
between different processes.
5. Do not use for extended periods. Take frequent breaks when using
this tool.
6. Let the tool do the work. Grip the tool as lightly as possible (while still
keeping safe control of it).
WARNING! If abnormal vibrations occur, stop using this tool immediately.
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a malfunction
and personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the parts list are included.
INSTALLING AIR QUICK COUPLER
Prepare a standard 1/4 in. NPT male air quick coupler for use with your tool.
1. Wrap the external threads of the male quick coupler with sealant tape.
a. Wrap the tape in a clockwise direction so it will not unravel.
b. Do not tape all the threads. Leave several leading threads unwrapped for
easier alignment.
2. Screw the quick coupler into the tool's air inlet and tighten with a wrench
until snug.
3. Run the compressor at a low volume and check the connection for air
leaks. Do not use the tool until all air leaks are repaired or the faulty
component is replaced.
Visit www.princessauto.com for more information 9

8633695 High Speed Air Body Saw V 4.0
ASSEMBLY & INSTALLATION
When this manual refers to a part number, it refers to the included Parts List.
BLADE GUARD INSTALLATION
The air body saw comes with a long and short blade guard. Select the blade
guard that is appropriate for the task.

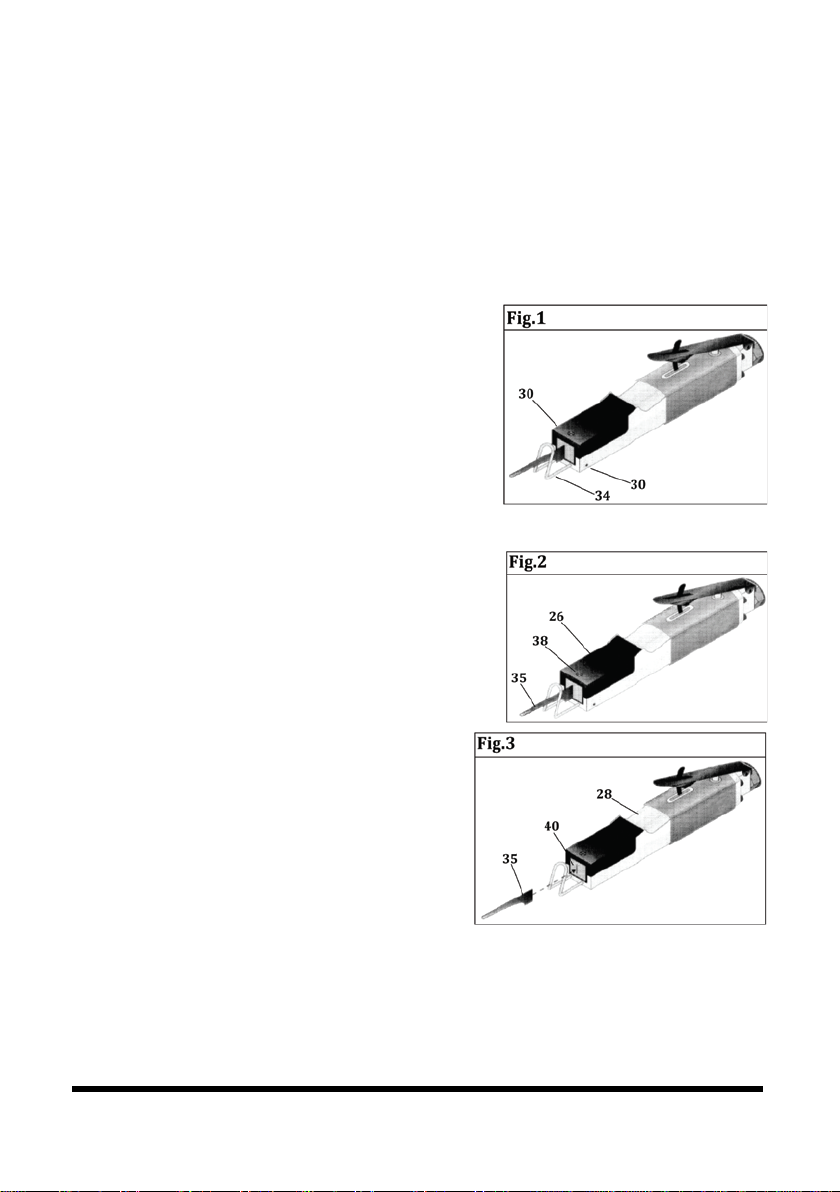

1. To install or replace the blade guard (34),
use the 2mm hex key wrench (31) to
loosen the set screws (30).
2. Insert the blade guard (34).
3. Tighten the set screws (30) using the hex
key wrench (31).
SAW BLADE INSTALLATION
1. Loosen the screw (38) holding the chuck
cover (26) to the body saw housing (28).
2. Lift up the chuck cover (26).
3. Loosen one of the set screws (30) on
the blade chuck (33) with the 4mm hex
key wrench (36).
4. Install a new blade. Make sure
the blade is properly seated in the
blade chuck (33).
5. Tighten the set screw (30) on the blade
chuck (33), loosened in step 3, using
the hex key wrench (36).
6. Fasten the screw (38) to fix the chuck
cover (26) to the body saw housing (28).
10 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
OPERATION
1. Draw a guide line for cutting (if possible)
on the workpiece.
2. Press the safety latch on the throttle
lever (13) forward while pressing the
throttle lever (13) to begin operating
the body saw.
NOTE: Allow the saw to reach full
speed before placing the blade onto
the workpiece.
3. Cut your line. Let the body saw do the work. Do not place unnecessary
pressure on the body saw. Excessive pressure may break the blade or
stall the body saw, potentially causing damage to the workpiece or
personal injury.
4. When you have finished cutting your line, pull the body saw from the
workpiece and release the throttle lever (13) to stop the body saw.
CARE & MAINTENANCE
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for an
unintended purpose.
2. Do not carry the tool with fingers near or on the trigger/switch.
3. Avoid unintentional starts. Be sure that the regulator/throttle switch is
in the neutral or OFF position when not in use and before connecting it
to any air source.
4. Remove adjusting keys and wrenches from the tool before operation or
connecting it to a power source. A wrench or key that is left attached to a
rotating part of the tool increases the risk of personal injury.
5. Maintain the tool with care. A tool in good condition is efficient, easier to
control and will have fewer problems.
Visit www.princessauto.com for more information 11

8633695 High Speed Air Body Saw V 4.0
6. Make sure the throttle lever is in the OFF position and the air source is
removed from the tool before performing any inspection, maintenance,
or cleaning.
7. Before each use: Check the general condition of the tool. Check for
misalignment or binding of moving parts, cracked or broken parts,
damaged hoses, and any other conditions that may affect the safe
operation of the tool. If abnormal noise or vibration occurs, have the
problem corrected before further use. Do not use damaged equipment.
8. Daily maintenance: Use a soft, dry cloth to remove all dirt, grease, and
debris from the exterior of the tool. Do not use solvents to clean the tool.
9. When servicing, use only identical replacement parts. Use accessories
that are only intended for use with this tool. Replace damaged
parts immediately.
10. If repairs are required, bring your tool to an authorized service center.
11. Inspect the tool components periodically. Repair or replace damaged or
worn components. Only use identical replacement parts when servicing.
12. Follow instructions for lubricating and changing accessories.
13. Only use accessories intended for use with this tool.
14. Keep the tool handles clean, dry and free from oil/grease at all times.
15. Maintain the tool’s labels and name plates. These carry important information.
If unreadable or missing, contact Princess Auto Ltd. for replacements.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
12 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
LUBRICATION
Only use air tool oil to lubricate the tool. Other lubricants may not be suitable
and could damage the tool or cause a malfunction during use.
1. It is very important that the tool be properly lubricated. Without proper
lubrication, the tool will not work properly and parts will wear prematurely.
Manually dropping a drop or two of air tool oil once a day into the tool's
male connector is better than using an automatic in-line lubricator, which
should only be required when there are multiple users of the same tool.
2. Apply a few drops of oil to the throttle
lever (13). Work the throttle lever a few
times to distribute the oil.
3. Keep the air line lubricator filled and
correctly adjusted. The in-line lubricator
should be regularly checked and filled
with air tool oil. Proper adjustment of
the in-line lubricator is performed by placing a sheet of paper next to the
exhaust ports and holding the throttle open approximately 30 seconds. The
lubricator is properly set when a light stain of oil collects on the paper.
Excessive amounts of oil should be avoided.
4. Air tool oil is the only recommended lubricant for use in all air tools. Do
not try to use other types of lubricants to oil your tools. Using the wrong
lubricant will cause premature tool failure and / or loss of power. Use only
recommended lubricants, specially made for pneumatic applications.
Substitutes may harm the rubber compounds in the tool's O-rings and
other rubber parts.
5. Oiling your air tool regularly is important, but also is important not to
OVER oil your air tool. Over oiling can cause premature tool failure. Your
tool may not be ruined, but it will begin to experience loss of power that
will continually get worse until it no longer works. The tool then has to be
taken apart and cleaned of excess oil.
Visit www.princessauto.com for more information 13

8633695 High Speed Air Body Saw V 4.0
6. All air tools are packed in grease to prevent corrosion of internal parts
during shipping and storage. We recommend that you clean this out to
have optimum performance from your new air tool. Use two drops of air
tool oil to lubricate the tool and run the tool under no load until exhaust
is clear.
7. In the event that it becomes necessary to store the tool for an
extended period of time (overnight, weekend, etc.), it should receive
a generous amount of lubrication at that time. The tool should be run
for approximately 30 seconds to ensure oil has been evenly
distributed throughout the tool. The tool should be stored in a clean
and dry environment.
NOTICE! NEVER use a penetrating oil to lubricate the tool. Penetrating oil
may act as a solvent that can break down the grease and cause the tool to
seize up.
STORAGE
When not in use for an extended period, apply a thin coat of lubricant to the
steel parts to avoid rust. Remove the lubricant before using the tool again.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
14 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified technician
service the tool.
Problem(s) Possible Cause(s) Suggested Solution(s)
Tools will not run. Air
flows freely from exhaust.
O-rings throttle valve
dislodged from seat
inlet valve.
Have a qualified technician
replace the O-ring.
Damage to, or excessive
wearing of internal parts.
Bring to service centre.
Tool will not shut off. O-rings throttle valve
dislodged from seat
inlet valve.
Have a qualified technician
replace the O-ring.
Tool runs slowly. Air flows
slightly from exhaust.
Excessive air tool oil
in tool or build of
shipping grease.
Run tool under no load for
short periods of time until
exhaust clears.
Loss of power or
erratic performance.
Excessive drain on the air
line. Moisture or
restriction in the air hose.
Incorrect size or type of
hose connectors.
Check the air supply.
Ensure tool is connected
to a 3/8 in. I.D. or larger
air hose with no kinks
or restrictions and that
the fittings are
connected properly.
Air compressor has
insufficient flow.
Ensure tool is connected
to a compressor whose
rated flow matches
the tool.
Tool runs at normal
speed but loses power
under load.
Motor parts worn. Have a qualified technician
replace worn parts.
Lack of air tool oil. Pour air tool oil into air
inlet per instructions.
Visit www.princessauto.com for more information 15

8633695 High Speed Air Body Saw V 4.0
PARTS BREAKDOWN
16 For technical questions call 1-800-665-8685

V 4.0 High Speed Air Body Saw 8633695
PARTS LIST
No. Description Qty.
1 Valve Screw 1
2 O-ring 1
3 O-ring 1
4 Air Controller 1
5 Valve Spring 1
6 Valve Stem 1
7 O-ring 1
8 Valve Bushing 1
9 Inlet Bushing 1
10 Cap Screw 4
11 Washer 1
12 Lever Pin 1
13
Throttle Lever
1
15 Valve Case 1
16 Bushing 1
17 Cylinder 1
18 Valve Sleeve 1
19 Actuate Valve 1
20 Washer 1
21 Cap Screw 2
22 Gasket 1
23
Valve Block
1
24 Set Screw 1
25 Bushing 1
26 Chuck Cover 1
No. Description Qty.
27 Screw 2
28 Housing 1
29 Piston Assembly 1
30 Set Screw 2
31 Hex Key
Wrench 2mm
1
32 Guide Plate 1
33 Blade Chuck 1
34 Blade Guard (long) 1
Blade Guard (short) 1
35 Blade
(sold separately)
36 Hex Key
Wrench 4mm
1
38 Set Screw 1
39 Upper Wear Shoe 1
40 Blade Guide 1
41 Bridge 1
42 Front Bumper 1
43 Rear Bumper 2
44 Roll Pin 1
45 Spring 1
46 Gasket 1
47 Gasket 1
48 Gasket 1
49 Set Screw 1
Visit www.princessauto.com for more information 17

V4,0 8633695
Manuel d'utilisateur
Sciepneumatiqueà
hautevitesse
Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.
Conservez ce manuel afin de pouvoir le consulter plus tard.

8633695 Scie pneumatique à haute vitesse V4,0
SPÉCIFICATIONS
Consommation d’air à 90 lb/po carré 4 pi cubes/min
Vitesse à vide 10 000 tr/min
Capacité de coupe max. pour la tôle 16 gauge
Entrée d’air 1/4 po NPT
Pression max. 90 lb/po carré
Taille de tuyau à air recommandée 3/8 po
Matériau Alliage d’aluminium
Caractéristique(s)
Levier d'accélérateur et régulateur
ajustable, 10 000 cycles par minute afin
d'assurer une coupe rapide et uniforme,
protecteur de lame ajustable afin de
contrôler la profondeur de coupe.
Application(s) Recommandé pour diverses
applications. Excellent pour réparer les
carrosseries, pour les travaux sur le
silencieux ou le système d'échappement
et pour installer des toits ouvrants.
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les instructions avant
d'utiliser cet outil. L'utilisateur doit respecter les précautions de base
lorsqu'il utilise cet outil afin de réduire le risque de blessure ou de
dommage à l'équipement.
CONSERVER CES INSTRUCTIONS
Conservez ce manuel qui contient les avertissements de sécurité, les précautions, les
instructions de fonctionnement ou d'inspection et d'entretien.
Sciepneumatique
àhautevitesse
2 En cas de questions techniques, appelez le 1-800-665-8685
