Power Fist 8567356 User manual

3 in. 3.5A
Electric
Cut-Off Tool

3 in. 3.5A
Electric
Cut-Off Tool

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
SAFETY
WARNING! Read and understand all instructions before using this tool.
The operator must follow basic precautions to reduce the risk of
personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A
notice is an alert that there is a possibility of property damage, injury or
death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard
that will result in severe personal injury or death if the
proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice
that could result in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices
are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but
not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well
lit and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away
from the work area.
Visit www.princessauto.com for more information
3

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
3. Store tools properly in a safe and dry location. Keep tools out of the
reach of children.
4. Do not use in explosive atmospheres such as the presence of
flammable gases or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Wear a full-face shield if your work creates
metal filings or wood chips.
a. Eye protection equipment should comply with ANSI
Z87.1 standards.
2. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.
3. Non-skid footwear is recommended to maintain footing and balance
in the work environment.
4. Steel toe footwear or steel toe caps to prevent injury from
falling objects.
5. Wear protective clothing designed for the work environment and tool.
6. Wear a NIOSH approved respirator when working on materials that
produce dust or particulate matter.
7. Wear a hard hat to protect your head from falling objects.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
4 For technical questions call1·800-665-8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating the tool. Proper footing and
balance enables better control in unexpected situations.
4. Support the workpiece or clamp it to a stable platform. Holding the
workpiece by hand or against your body may lead to personal injury.
5. Securely hold this tool using both hands. Using a tool with only one
hand can result in loss of control.
6. Use clamps or other practical ways to support or secure the
workpiece to a stable platform.
SPECIFIC SAFETY PRECAUTIONS
1. Only use accessories that are specifically designed for use with the
tool. Make sure accessories are capable of handling the tool's
maximum speed of 24,000 RPM. Ensure the accessory is
tightly installed.
2. Keep hands and fingers away from cutting area. Any body part
coming in contact with moving parts could cause injury.
3. To maintain complete control, firmly hold your tool with both hands.
Do not place hands over air vents. Proper cooling of the motor is
necessary to ensure normal life of the tool.
4. Never point the cutter towards yourself. If it should slip, part of your
body could come in contact with moving parts.
5. Never force the tool. Excessive pressure could bend or break the
mandrel, resulting in damage to the tool, your workpiece or serious
personal injury. If your cut-off tool runs smoothly under no load, but
does not run smoothly under load, then excessive pressure is
being used.
6. This tool will not stop moving immediately. Do not lay the tool down
or leave it unattended until it has come to a complete stop. A part that
is moving could make the tool jump or grab a surface and pull the
tool out of your control.
Visit www.princessauto.com for more information
5

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
7. Hold the tool by the insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own
cord. Contact with a"live" wire will make exposed metal parts of the
tool "live" and shock the operator.
8. Always make sure the work surface is free from nails and other
foreign objects. Cutting into a nail can cause the tool to jump.
9. After changing the cutting wheel and accessories or making
adjustments, make sure the collet nut and any other adjustment
devices are securely tightened. Loose adjustment devices will be
violently thrown.
10. Remove any adjusting keys or wrenches before turning the power
tool on.
11. Always use the correct collet size. If the collet size is larger than the
accessory shank size it will not grip the shank properly, leading to
possible injury to the operator , damage to the tool or the workpiece.
12. Always check cut-off wheels for damage before each use. Damaged
accessories can break during use and cause serious injury.
13. Never use dull or damaged cut-off wheels. Sharp cut-off wheels must
be handled with care. Damaged cut-off wheels can snap during use.
Dull cut-off wheels require more force to push the tool, possibly
causing the cut-off wheel to break.
14. Never touch the cutting wheel or workpiece during or immediately
after use. After use, the cutting wheel and workpiece will be too hot
to be touched by bare hands.
15. If devices are used for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of a dust collection system reduces dust-related hazards.
16. Do not use accessories that require liquid coolants. Using water or
other liquid coolants may result in shock or electrocution.
6 For technical questions call1·800·665·8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356

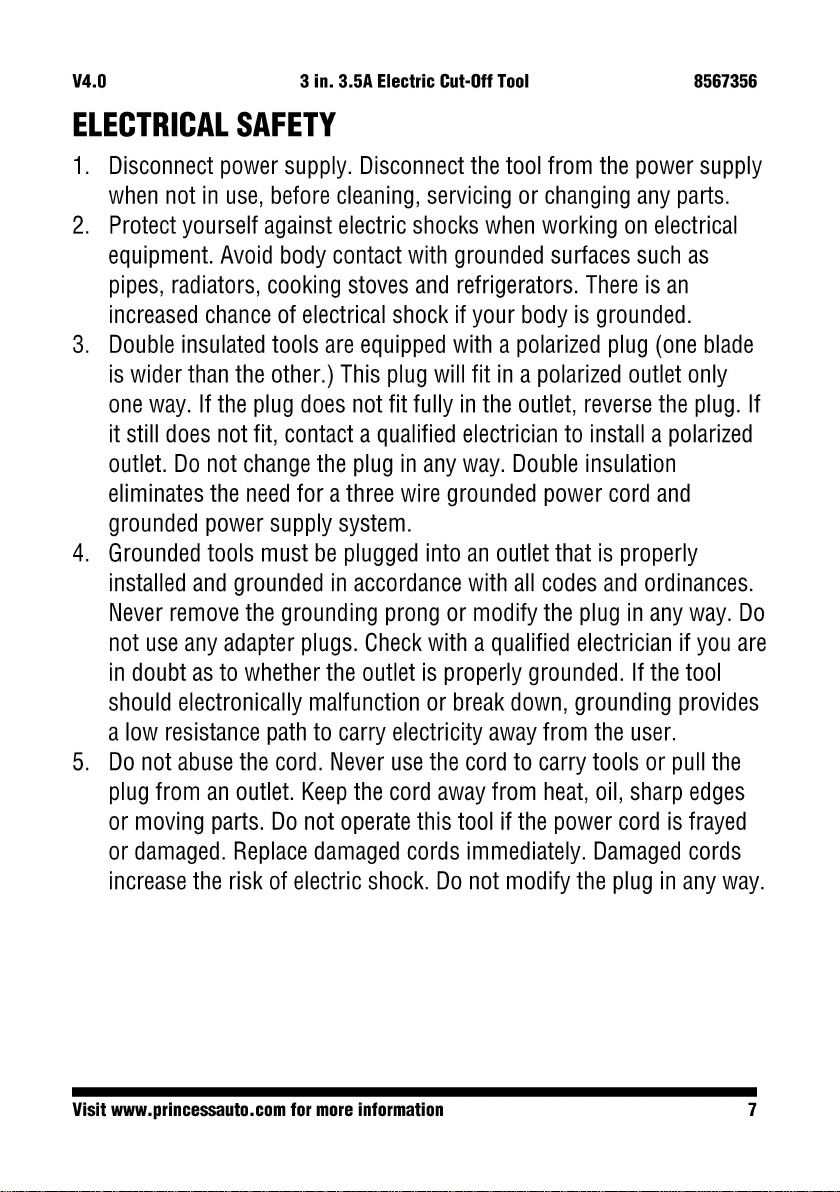

ELECTRICAL SAFETY
1. Disconnect power supply. Disconnect the tool from the power supply
when not in use, before cleaning, servicing or changing any parts.
2. Protect yourself against electric shocks when working on electrical
equipment. Avoid body contact with grounded surfaces such as
pipes, radiators, cooking stoves and refrigerators. There is an
increased chance of electrical shock if your body is grounded.
3. Double insulated tools are equipped with a polarized plug (one blade
is wider than the other.) This plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install a polarized
outlet. Do not change the plug in any way. Double insulation
eliminates the need for a three wire grounded power cord and
grounded power supply system.
4. Grounded tools must be plugged into an outlet that is properly
installed and grounded in accordance with all codes and ordinances.
Never remove the grounding prong or modify the plug in any way. Do
not use any adapter plugs. Check with a qualified electrician if you are
in doubt as to whether the outlet is properly grounded. If the tool
should electronically malfunction or break down, grounding provides
a low resistance path to carry electricity away from the user.
5. Do not abuse the cord. Never use the cord to carry tools or pull the
plug from an outlet. Keep the cord away from heat, oil, sharp edges
or moving parts. Do not operate this tool if the power cord is frayed
or damaged. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock. Do not modify the plug in any way.
Visit www.princessauto.com for more information 7

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
6. When operating a power tool outside, use an outdoor extension cord
marked "W-A" or "W". These cords are rated for outdoor use and
reduce the risk of electric shock. Use in conjunction with a Ground
Fault Circuit Interrupter (GFCI). If operating a power tool in a damp
location is unavoidable, the use of a GFCI reduces the risk of electric
shock. It is recommended that the GFCI should have a rated residual
current of 30 mA or less.
7. Avoid using an unnecessarily long extension cord. Choose a cord that
is appropriate for the situation, as a cord that is too long and running
across the floor can be more dangerous than helpful. Using a cord
that is too long or too thin could damage the tool. Unroll the cord
completely to prevent it from overheating.
8. Place the electrical cord in a position that prevents it from coming
into contact with the tool and from getting caught by the work piece.
The cord should always stay behind the tool.
9. Keep all connections dry and off the ground to reduce the risk of
electric shock. Do not touch the plug with wet hands.
WARNING! People with pacemakers should consult their physician(s)
before using this product. Operations of electrical equipment in close
proximity to a heart pacemaker could cause interference or failure of
the pacemaker.
LOW VOLTAGE
Low voltage may cause overheating due to higher power current being
drawn to the tool that will shorten the motor life.
An extension cord may cause a drop in power to the tool if it is too long
or the amperage rating is not correct. This may result in the following:
1. The tool will not activate when switched on.
2. The tool may switch on, but fails to maintain power when applied to
a workpiece.
3. The tool may overheat, possibly starting a fire.
8
For technical questions call1·800-665-8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
Test the tool by plugging it directly to the power supply. If it powers on,
change the extension cord with the correct rating and as short as needed.
The workpiece may also need to be relocated closer to the power supply.
KICKBACK PRECAUTIONS
Kickback is a sudden reaction to a pinched, bound or misaligned disc,
causing an uncontrolled tool to lift up and out of the workpiece toward
the operator; - when the disc is pinched or bound tightly by the
workpiece closing down, the disc stalls and the motor reaction drives the
tool rapidly back toward the operator. Kickback may result in loss of
control of the tool leading to serious personal injury and I or damage to
the workpiece and I or tool.
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the tool and position your body and arms to
allow you to resist kickback forces. Kickback will propel the tool in
the direction opposite to the wheel's movement at the time
of snagging.
2. Never place your hand near the disc. If kickback occurs, the disc may
pass over your hand and seriously injury you. Use clamps or a vice to
hold down the workpiece.
3. Use special care when working on corners, sharp edges etc. Corners,
sharp edges or bouncing have a tendency to snag the disc and cause
loss of control or kickback.
4. When the disc is binding, or when interrupting a cut for any reason,
release the trigger and hold the tool motionless in the material until
the tool comes to a complete stop. Never attempt to remove the tool
from the workpiece or pull the tool backward while the disc is in
motion or kickback may occur. Investigate and take corrective actions
to eliminate the cause of disc binding.
Visit www.princessauto.com for more information
9

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
5. Never restart the cutting operation in the workpiece. Allow the wheel
to reach full speed and carefully reenter the cut. If saw blade is
binding, it may walk up or kickback from the workpiece as the cut-off
saw is restarted.
6. Support large panels to minimize the risk of disc pinching and
kickback. Large panels tend to sag under their own weight. Supports
must be placed under the panel on both sides, near the line of cut
and near the edge of the panel.
7. To minimize the risk of disc pinching and kickback, when cutting
operation requires the resting of the tool on the workpiece, the tool
should be rested on the larger portion and the smaller piece cut off.
8. Use extra caution when making a "plunge cut" into existing walls or
other blind areas. The protruding disc may cut objects that can
cause kickback.
9. Only use discs designed for tool. Do not use dull or damaged discs.
Unsharpened or improperly set discs produce narrow cut causing
excessive friction, disc binding and kickback. Keep discs sharp and
clean. Gum and wood pitch hardened on blades slows the tool and
increases potential for kickback.
10. Never force the tool. Forcing the tool can cause uneven cuts, loss of
accuracy, and possible kickback. Push the tool forward at a speed so
that the disc cuts without slowing.
VIBRATION PRECAUTIONS
This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury, particularly
to the hands, arms and shoulders.
10 For technical questions call1·800-665-8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
1. Anyone using vibrating tools regularly or for an extended period
should first be examined by a doctor and then have regular medical
check-ups to ensure medical problems are not being caused by or
worsened from tool use. Pregnant women or people who have
impaired blood circulation to the hands, past hand injuries, nervous
system disorders, diabetes, or Raynaud's Disease should not use this
tool. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical attention
as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood flow to the
hands and fingers, increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest amount of vibration when there is a choice
between different processes.
5. Do not use for extended periods. Take frequent breaks when using
this tool.
6. Let the tool do the work. Grip the tool as lightly as possible (while
still keeping safe control of it).
WARNING! If abnormal vibrations occur, stop using this
tool immediately.
USE AND CARE OF THE TOOL
WARNING! Do not use the tool if the throttle does not function
properly. Any tool that cannot be controlled with the ON I OFF switch is
dangerous and must be repaired.
1. Use the correct tool for the job. Maximize performance and safety by
using the tool for its intended task.
2. Do not modify this tool or use for a purpose for which it was
not designed.
Visit www.princessauto.com for more information 11

8567356 3 in. 3.5A Electric Cut·Off Tool

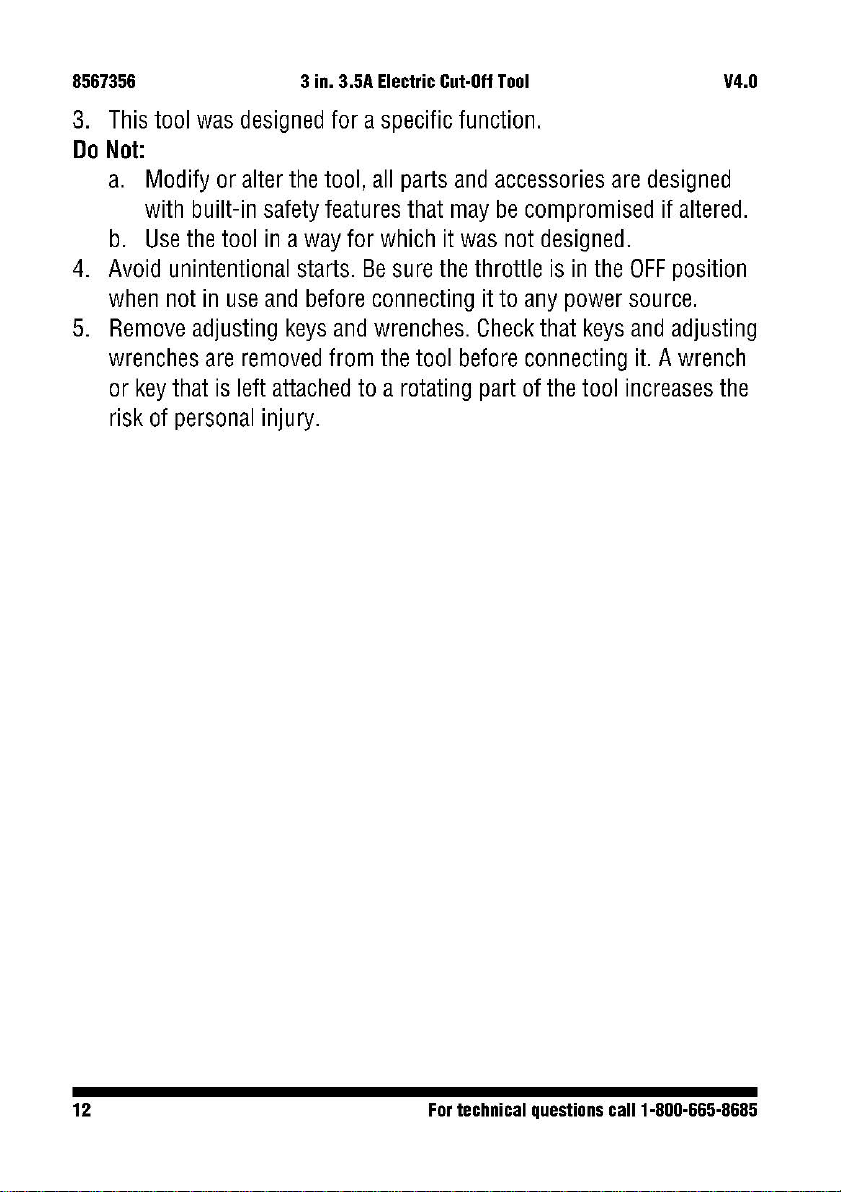

3. This tool was designed for a specific function.
Do Not:
V4.0
a. Modify or alter the tool, all parts and accessories are designed
with built-in safety features that may be compromised if altered.
b. Use the tool in a way for which it was not designed.
4. Avoid unintentional starts. Be sure the throttle is in the OFF position
when not in use and before connecting it to any power source.
5. Remove adjusting keys and wrenches. Check that keys and adjusting
wrenches are removed from the tool before connecting it. A wrench
or key that is left attached to a rotating part of the tool increases the
risk of personal injury.
12 For technical questions call1·800·665·8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356

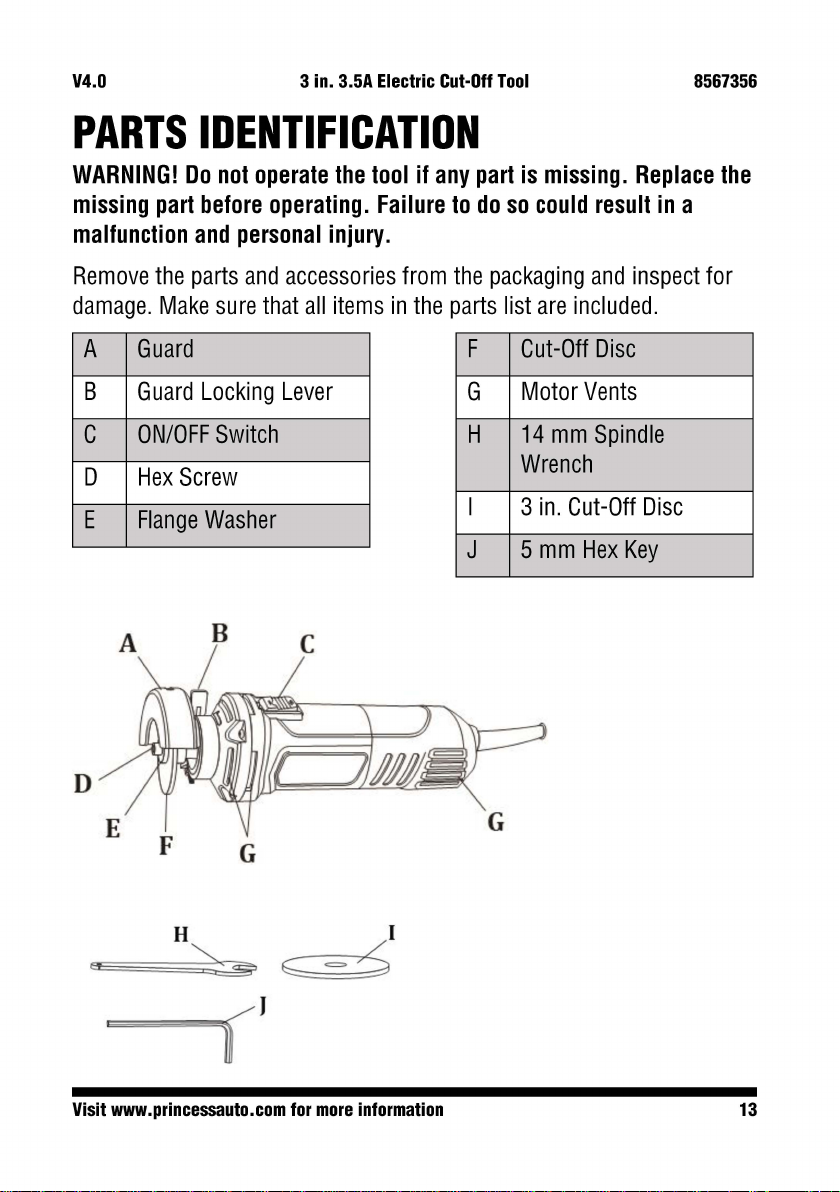

PARTS IDENTIFICATION
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a
malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for
damage. Make sure that all items in the parts list are included.
A Guard F Cut-Off Disc
B Guard Locking Lever
G
Motor Vents
c ON/OFF Switch H 14 mm Spindle
D Hex Screw
Wrench
E Flange Washer
I 3 in. Cut-Off Disc
J 5
mm Hex Key
B
D
G
H I
oet:=f =======~0~;;:]5>~ ~
=~(
Visit www.princessauto.com for more information 13

8567356 3 in. 3.5A Electric Cut-Off Tool

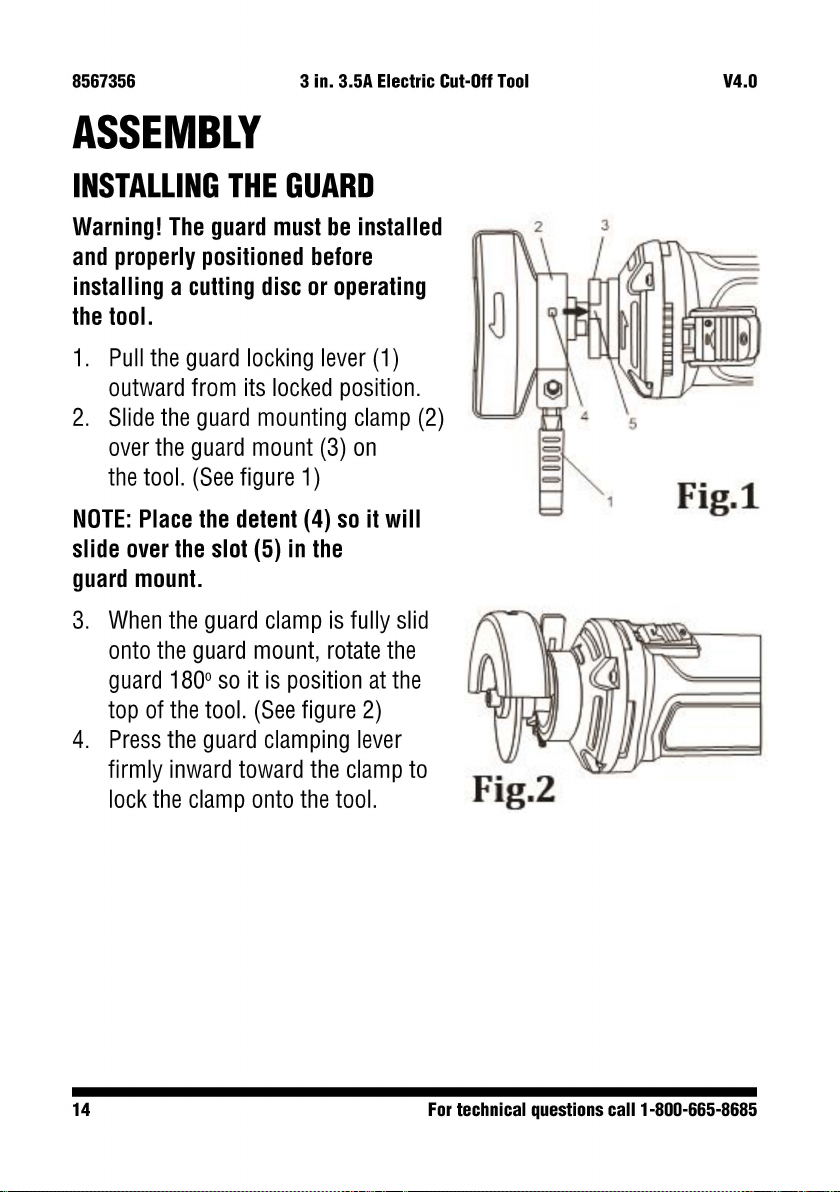

ASSEMBLY
INSTALLING THE GUARD
Warning! The guard must be installed
and properly positioned before
installing a cutting disc or operating
the tool.
1. Pull the guard locking lever (1)
outward from its locked position.
2. Slide the guard mounting clamp (2)
over the guard mount (3) on
the tool. (See figure 1)
NOTE: Place the detent (4) so it will
slide over the slot (5) in the
guard mount.
3. When the guard clamp is fully slid
onto the guard mount, rotate the
guard 180° so it is position at the
top of the tool. (See figure 2)
4. Press the guard clamping lever
firmly inward toward the clamp to
lock the clamp onto the tool. Fig.2
V4.0
Fig.l
14 For technical questions call1-800-665-8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
INSTALLING THE CUTTING DISC
WARNING! Remove the plug from the power source before installing
or removing a cutting disc.
WARNING! Make sure the replacement cutting disc is rated for at least
24,000 RPM and is in good condition.
1. Place the spindle wrench (1) on the Fig.3 6
flat portion of the spindle.
(See figure 3)
2. Insert the 5 mm hex key (2) into the
hex head screw (3).
3. While holding the spindle wrench,
turn the hex screw
counterclockwise to remove both
the hex head screw and the flange
washer (4).
5 7 8
4. Slide the cutting disc (5) into the guard (6) and place it over the
spindle shoulder (7) so it rests flat against the large spindle
flange (8).
5. Reinstall and tighten the flange washer and hex screw.
NOTE: Make sure the cutting dis is on the spindle shoulder before
tightening the hex head screw.
WARNING! Once the hex screw is firmly tightened, hold the tool so the
guard is between you and the cutting disc and turn the tool ON. If the
cutting disc wobbles or the tool vibrates, turn the tool OFF
immediately and investigate and correct the cause.
Visit www.princessauto.com for more information 15

8567356

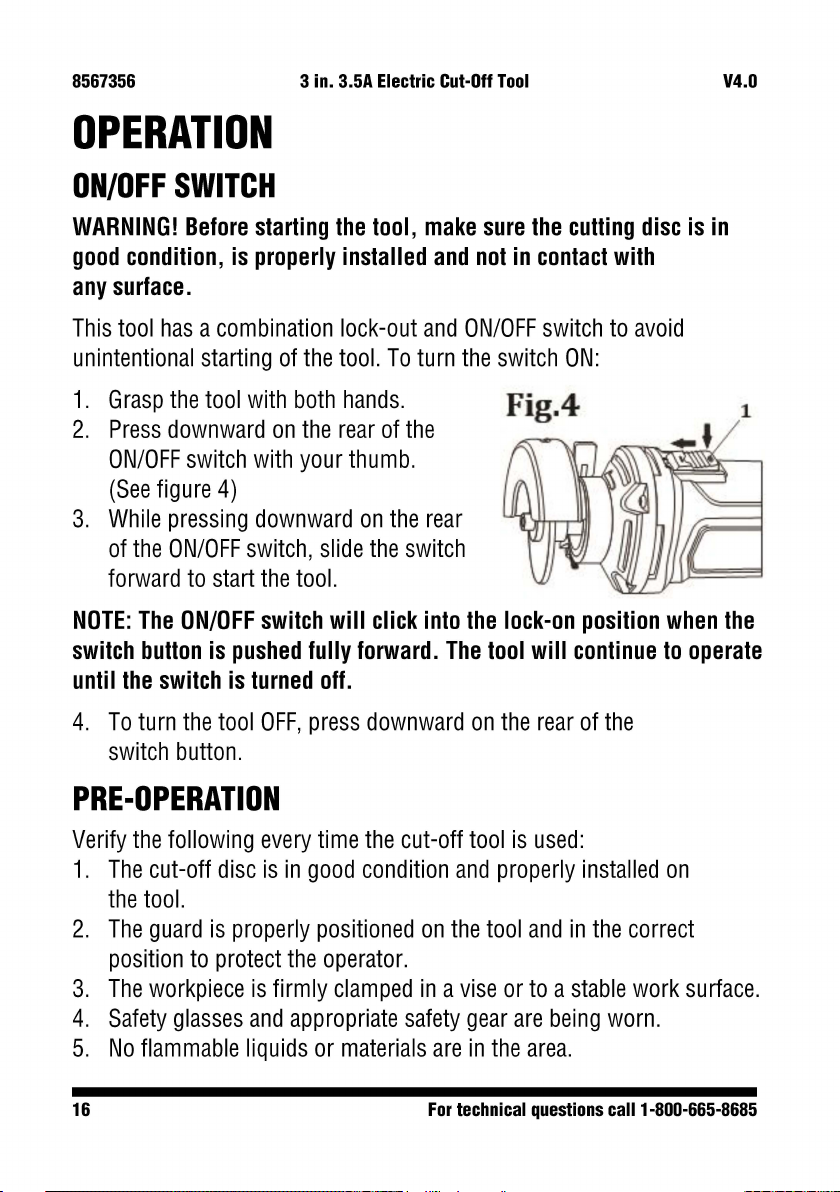

OPERATION
ON/OFF SWITCH
3 in. 3.5A Electric Cut·Off Tool V4.0
WARNING! Before starting the tool, make sure the cutting disc is in
good condition, is properly installed and not in contact with
any surface.
This tool has a combination lock-out and ON/OFF switch to avoid
unintentional starting of the tool. To turn the switch ON:
1. Grasp the tool with both hands. Fig.4 1
2. Press downward on the rear of the
ON/OFF switch with your thumb.
(See figure 4)
3. While pressing downward on the rear
of the ON/OFF switch, slide the switch
forward to start the tool.
NOTE: The ON/OFF switch will click into the lock-on position when the
switch button is pushed fully forward. The tool will continue to operate
until the switch is turned off.
4. To turn the tool OFF, press downward on the rear of the
switch button.
PRE-OPERATION
Verify the following every time the cut-off tool is used:
1. The cut-off disc is in good condition and properly installed on
the tool.
2. The guard is properly positioned on the tool and in the correct
position to protect the operator.
3. The workpiece is firmly clamped in a vise or to a stable work surface.
4. Safety glasses and appropriate safety gear are being worn.
5. No flammable liquids or materials are in the area.
16 For technical questions call1·800-665-8685

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
6. All bystanders are well clear of the area.
Failure to observe these safety rules will significantly increase the risk
of injury.
GENERAL CUTTING
DANGER! Always clamp the workpiece firmly into a vise or to a stable
work surface. Never hold the workpiece with one hand and the tool
with the other hand. Severe injury may result.
WARNING! Always wear appropriate eye, ear and breathing protection
and protective clothing when operating the cut-off tool.
1. Mark the workpiece where the cut is to be made.
2. Firmly clamp the workpiece in a vise or to a stable work surface.
3. Grasp the tool with both hands, turn the tool ON and wait until it
reaches full speed.
4. Carefully place the edge of the cutting disc onto the
workpiece surface.
5. While cutting, keep the tool moving over the workpiece, while
maintaining a steady pressure on the cut-off disc.
NOTE: Do not force the tool by applying too much pressure. The tool
will slow down and will not cut properly. It will also damage
the motor.
6. When the cut is completed, release the ON/OFF switch and allow the
cut-off disc to come to a complete stop before putting the tool down.
Visit www.princessauto.com for more information 17

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
MAINTENANCE
It has been found that electric tools are subjected to accelerated wear and
possible premature failure when they are used for cutting and grinding
metals. The grindings from these materials are highly abrasive to electric
tool parts such as bearings, brushes, commutators, etc. Consequently, it
is not recommended that this tool be used for extended work on any
metals. During any use on these materials it is extremely important that
the tool is cleaned frequently by blowing it out with an air jet.
CAUTION! Disconnect the power cord from the power supply before
any maintenance or cleaning. Do not use water or corrosive fluids to
clean electrical parts of the tool.
1. Maintain the tool with care. A tool in good condition is efficient,
easier to control and will prevent unnecessary problems.
2. Keep the tool handles clean, dry and free from oil/grease at all times.
3. Follow instructions for changing accessories.
4. Inspect the tool fittings periodically. Have damaged or worn
components repaired or replaced by an authorized technician.
5. Inspect the tool fittings, alignment, power supply cord and
components periodically. Have damaged or worn components
repaired or replaced by an authorized technician.
6. Sharp tools are safer than dull tools. Applying excessive force while
using a dull tool can lead to slips and cause damage to your work
piece or personal injury.
7. Maintain the tool's label and name plate. These carry important
information. If unreadable or missing, contact Princess Auto Ltd.
for replacements.
8. Periodically check the carbon brushes and replace worn out brushes
(see Replacing Carbon Brushes).
9. Keep the vent passages clear of accumulated dirt, dust, and oil.
10. Clean the tool after each use.
18 For technical questions call1·800-665-8685

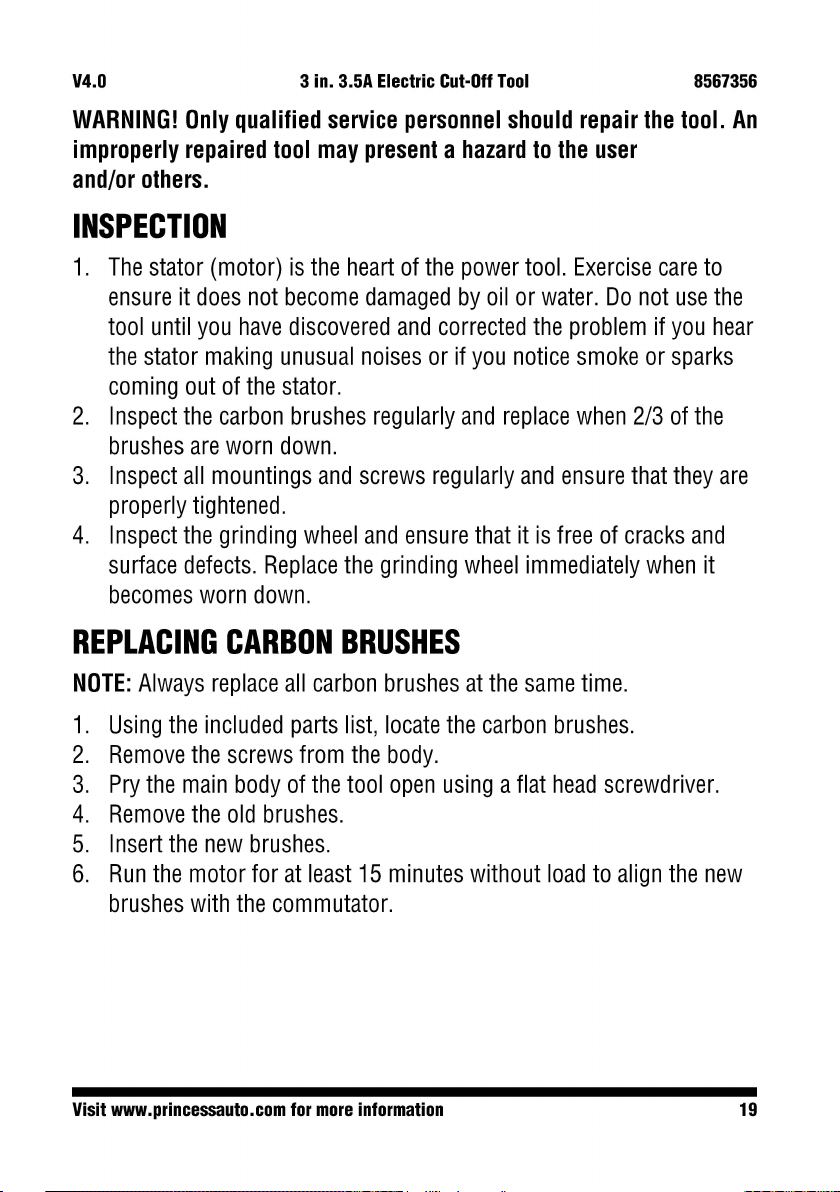

V4.0 3 in. 3.5A Electric Cut·Off Tool 8567356
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user
and/or others.
INSPECTION
1. The stator (motor) is the heart of the power tool. Exercise care to
ensure it does not become damaged by oil or water. Do not use the
tool until you have discovered and corrected the problem if you hear
the stator making unusual noises or if you notice smoke or sparks
coming out of the stator.
2. Inspect the carbon brushes regularly and replace when 2/3 of the
brushes are worn down.
3. Inspect all mountings and screws regularly and ensure that they are
properly tightened.
4. Inspect the grinding wheel and ensure that it is free of cracks and
surface defects. Replace the grinding wheel immediately when it
becomes worn down.
REPLACING CARBON BRUSHES
NOTE: Always replace all carbon brushes at the same time.
1. Using the included parts list, locate the carbon brushes.
2. Remove the screws from the body.
3. Pry the main body of the tool open using a flat head screwdriver.
4. Remove the old brushes.
5. Insert the new brushes.
6. Run the motor for at least 15 minutes without load to align the new
brushes with the commutator.
Visit www.princessauto.com for more information 19

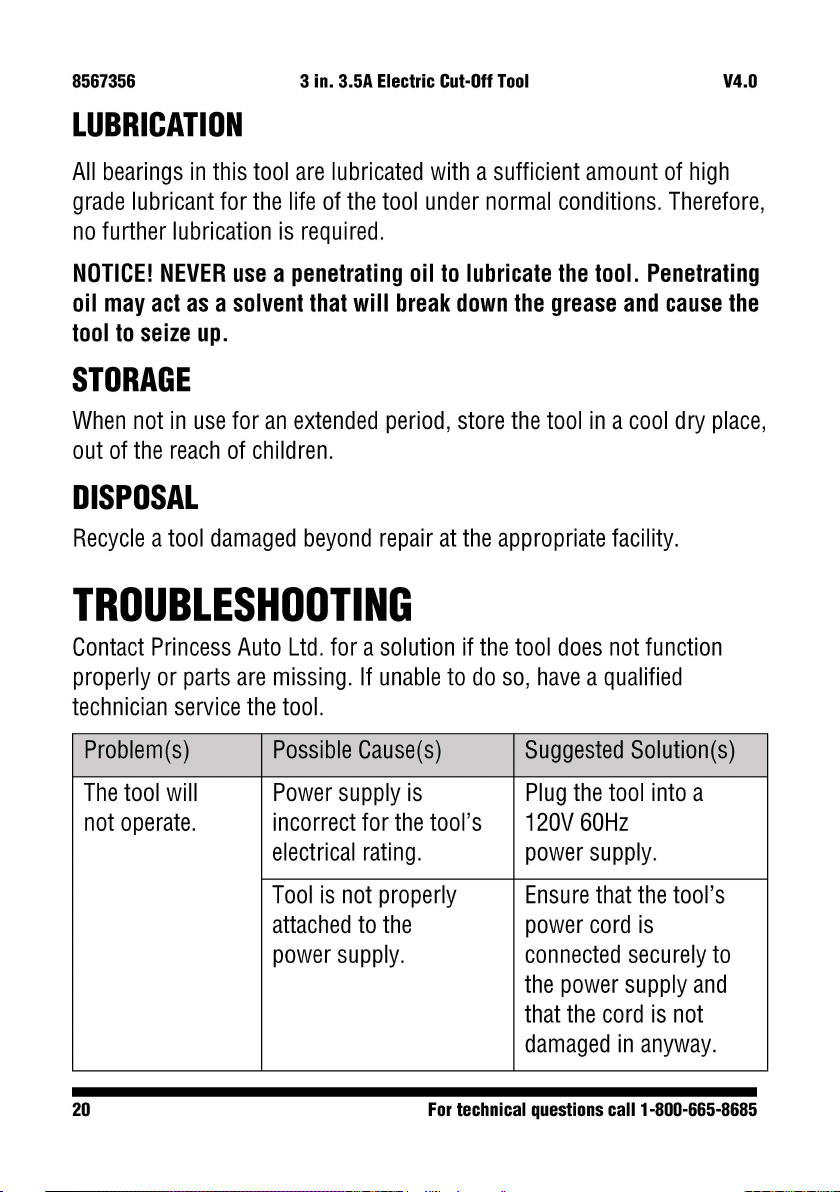

8567356 3 in. 3.5A Electric Cut·Off Tool V4.0
LUBRICATION
All bearings in this tool are lubricated with a sufficient amount of high
grade lubricant for the life of the tool under normal conditions. Therefore,
no further lubrication is required.
NOTICE! NEVER use a penetrating oil to lubricate the tool. Penetrating
oil may act as a solvent that will break down the grease and cause the
tool to seize up.
STORAGE
When not in use for an extended period, store the tool in a cool dry place,
out of the reach of children.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
TROUBLESHOOTING
Contact Princess Auto Ltd. for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified
technician service the tool.
Problem(s) Possible Cause(s)
Suggested Solution(s)
The tool will
Power supply is Plug the tool into a
not operate. incorrect for the tool's
120V 60Hz
electrical rating. power supply.
Tool is not properly Ensure that the tool's
attached to the
power cord is
power supply. connected securely to
the power supply and
that the cord is not
damaged in anyway.
20 For technical questions call1·800-665-8685
