Power Master SLU Series User manual

SOLAR
INVERTER
LCD DISPLAY
PURE SINE WAVE INVERTER
LC Series: Inverter + Battery Charger + UPS (ATS)
SLU Series: Inverter + Solar Charge Controller + Battery Charger + UPS
USER’S MANUAL
800W / 1600W / 2400W / 4000W / 6000W / 8000W
1
CONTENTS
1. INTRODUCTION .............................................……......... 2
2. SAFTY INSTRUCTION...................……...………….….... 3
3. CABLE CONNECTION..........................……..……..…..... 5
4. SYSTEM DESCRIPTION.............……........…….......…... 6
5. SOLAR INVERTER OPERATION..................................... 12
6. TROUBLE SHOOTING GUIDE.......................….….....… 17
7. OPERATION MODES OF THE SOLAR INVERTER........ 19
8. SPECIFICATION OF SOLAR INVERTER..............…....... 21

2
1. INTRODUCTION
1.1 General Description
The Solar Inverter, a powerful all-in-one solution, delivers unsurpassed clean
true sine wave output power and combines this with a selectable multistage
battery charging current.Applicable for any kind of loads such as air
conditioner, home appliances, consumer electronic and office equipments.
This series features a durable&continuous 24 operation.
The built-in 5-stage intelligent charger automatically charges any type of
batteries without the risk of overcharge. The compact&modular design
makes utility interactive installations easier and more cost effective. It is a
high quality product that offers the best price/performance ratio in the
industry.
1.2 Key features
1. Multiple microprocessor design base.
2. Compatible with both linear&non-linear load.
3. Stronger charger to support batteries of 500AH up.
4. 24 hours operation on the inverter.
5. DC start and automatic self-diagnostic function.
6. THD less than 3%.
7. High efficiency design to save electricity.
8. Low heat dissipation in long time operation
9. Design to operate under harsh environment
10 3U 19” Rack Mount or WALL Mounted design
1.3 Important Notices
1. Read instructions carefully before operating the Solar Inverter.
2. Solar Inverter power connect instruction should be followed.
3. Please don‘t open the case to prevent danger.
5. Retain the load within the rating of Solar Inverter to prevent faults.
6. Keep the Solar Inverter clean and dry.
3
2. SAFTY INSTRUCTION
2.1 Transporting
1. Disconnect all power cables if necessary.
2. Be careful not to damage the Solar Inverter while transporting.
3. Don‘t move the Solar Inverter upside down.
4. Please transport the Solar Inverter system only in the original packaging (to
protect against shock and impact).
2.2 Positioning
1. Do not put the Solar Inverter on rugged or declined surface.
2. Do not install the Solar Inverter system near water or in damp
environments.
3. Do not install the Solar Inverter system where it would be exposed to direct
sunlight or near heat.
4. Do not block off ventilation openings in the Solar Inverter system’s housing
and don’t leave objects on the top of the Solar Inverter.
5. Keep the Solar Inverter far away from heat emitting sources.
6. Do not expose it to corrosive gas.
7. Ambient temperature : 0℃- 40℃
2.3 Installation
1. Connect the Solar Inverter system only to an earthed shockproof socket
outlet.
2. Place cables in such a way that no one can step on or trip over them.

4
2.4 Operation
1. Do not disconnect the mains cable on the Solar Inverter system or the
building wiring socket outlet during operations since this would cancel the
protective earthing of the Solar Inverter system and of all connected loads.
2. The Solar Inverter has its own internal power source (batteries). The output
terminals may be live even when the Solar Inverter is not connected to the
AC supply.
3. Ensure that no fluids or other foreign objects can enter the Solar Inverter
system.
2.5 Maintenance and Service
1. Caution - risk of electric shock.
Even after the unit is disconnected from the mains power supply (building
wiring socket outlet), components inside the Solar Inverter system are still
connected to the battery and are still electrically live and dangerous. Before
carrying out any kind of servicing and/or maintenance, disconnect the
batteries and verify that no current is present.
2. Batteries may cause electric shock and have a high short-circuit current.
Please take the precautionary measures specified below and any other
measures necessary when working with batteries:
- remove wristwatches, rings and other metal objects
- use only tools with insulated grips and handles.
5
3. CABLE CONNECTION
3.1 Inspection
1. The system may be installed and wired only by qualified electricians in
accordance with applicable safety regulations.
2. When installing the electrical wiring, please note the nominal amperage of
your incoming feeder.
3. Inspect the packaging carton and its contents for damage. Please inform
the transport agency immediately should you find signs of damage.
Please keep the packaging in a safe place for future use.
4. Please ensure that the incoming feeder is isolated and secured to prevent
it from being switched back on again.
3.2 Connection
1. Solar Inverter Input Connection
If the Solar Inverter is connected via the power cord, please use a proper
socket with protection against electric current, and pay attention to the
capacity of the socket.
2. Solar Inverter Output Connection
The output of this model is with socket-types only (NEMAor IEC). Simply
plug the load power cord to the output sockets to complete connection.

6
4. SYSTEM DESCRIPTION

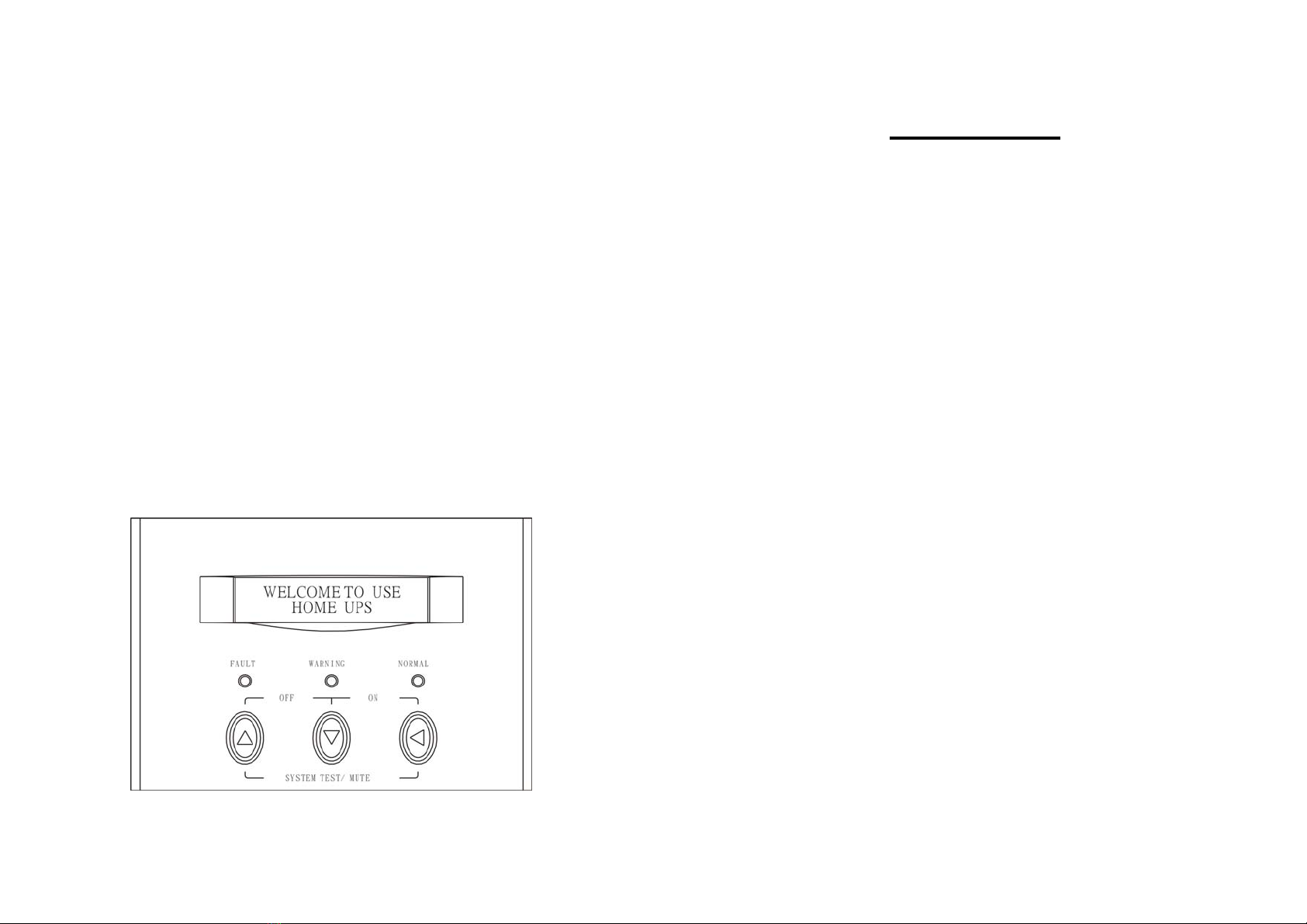

4.1 Front Panel Description for LCD Model
1. LCD Display: This indicates the Solar Inverter operation information,
including Solar Inverter status, input/output voltage, input/output frequency,
battery voltage, battery capacity left, output load, inside temperature, and
the times of history events.
2. Up-key: Use to select upward the Solar Inverter status on LCD Display.
3. Down-key: Use to select downward the Solar Inverter status on LCD
Display. Beside, press it simultaneously with the Up-key to switch off the
Solar Inverter.
4. Enter-Key: It is pressed with the Down-key to turn on the Solar Inverter. In
battery operation mode, press it with Up-key at the same time to disable
the buzzer. Beside, it is pressed to confirm and enter the item selected.
5. Fault LED (red): To indicate the Solar Inverter is in fault condition because
of inverter shutdown or over-temperature.
7
6. Warning LED (yellow): To indicate the Solar Inverter is in the status of
overload, bypass and battery back-up.
7. Normal LED (green): To indicate the Solar Inverter is operating normally.
8. ON/TEST/MUTE key: It should be pressed with the control key
simultaneously to switch on Solar Inverter, do Solar Inverter auto-test in
normal AC mode and turn off the buzzer in battery operation.
4.2 Outline Description
800W Rack Mount Type

8
1600W / 2400W Rack Mount Type
9
800W Wall Mounted Type

10

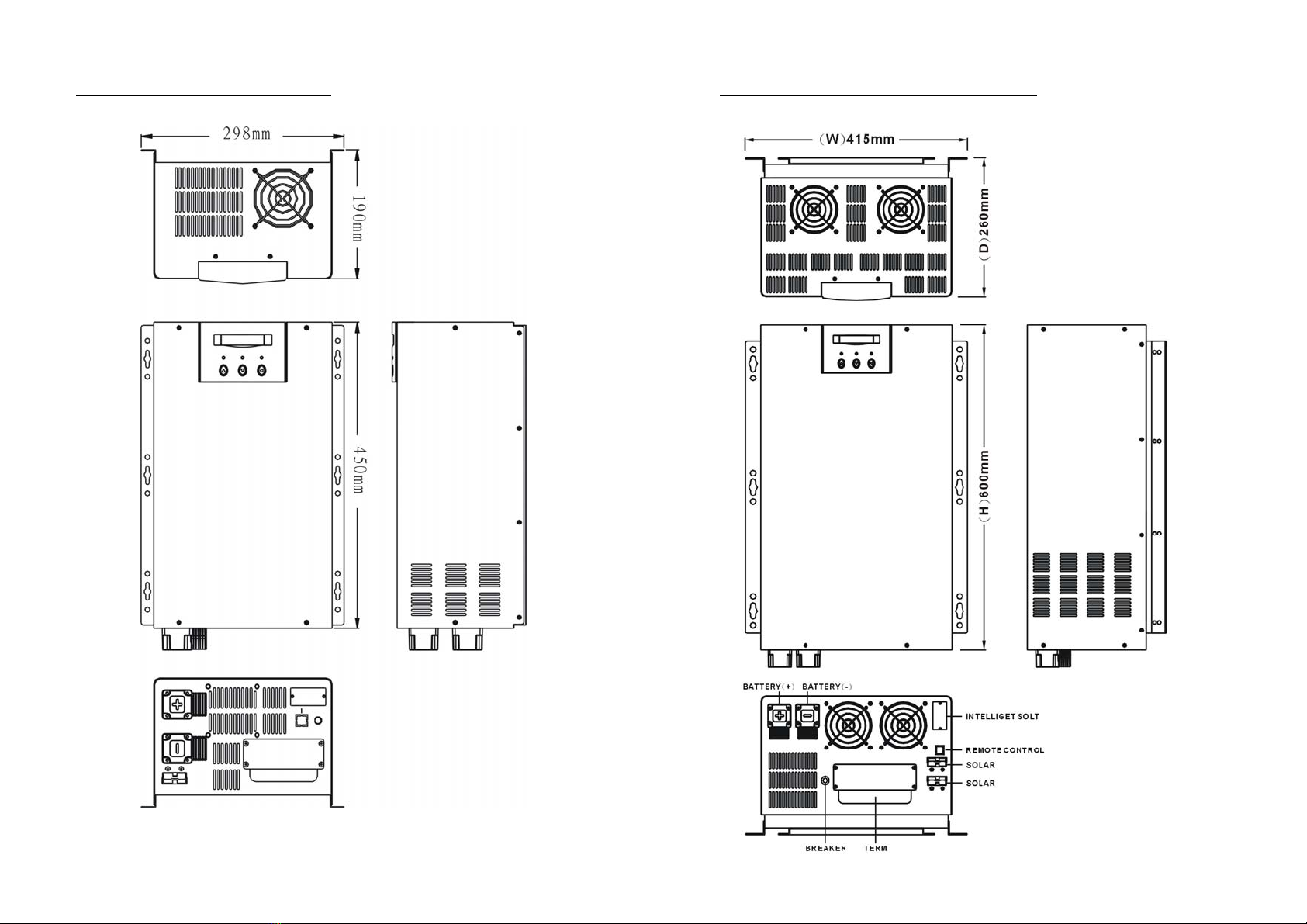

1600W / 2400W Wall Mounted Type
11
4000W / 6000W / 8000W Wall Mounted Type

12
5. Solar Inverter OPERATION
5.1 Check Prior to Start Up
1. Ensure the Solar Inverter is in a suitable positioning.
2. Check input cord is secured.
3. Make sure the load is disconnected or in the “OFF” position.
4. Check if input voltage meets the Solar Inverter rating required.
5.2 Storage Instruction
Disconnect input power in rear panel if you will not use it for long period. If the
Solar Inverter is stored over 3 months, please keep supplying power to the
Solar Inverter for at least 24 hours to ensure battery fully recharged.
5.3 Operation Procedure for LCD Model
Please follow the instructions below for Solar Inverter operation.
1. Once the AC source is connected, the
LCD Display shall light up immediately
to display first the main menu of
greeting context and the Normal LED is
blinking to indicate ready to switch on
the inverter.
2. By pressing the Enter-key and the Down-key simultaneously for 3 seconds,
the Solar Inverter will start up after two beeps and Normal LED lights up to
indicate the power is from its inverter to the load.
3. When the Down-key and the Up-key are pressed simultaneously for 3
seconds, the inverter will be turned off after two beeps and the Solar
Inverter is on the standby status (LCD display illuminates and Normal LED
is blinking) until AC source is disconnected.
13

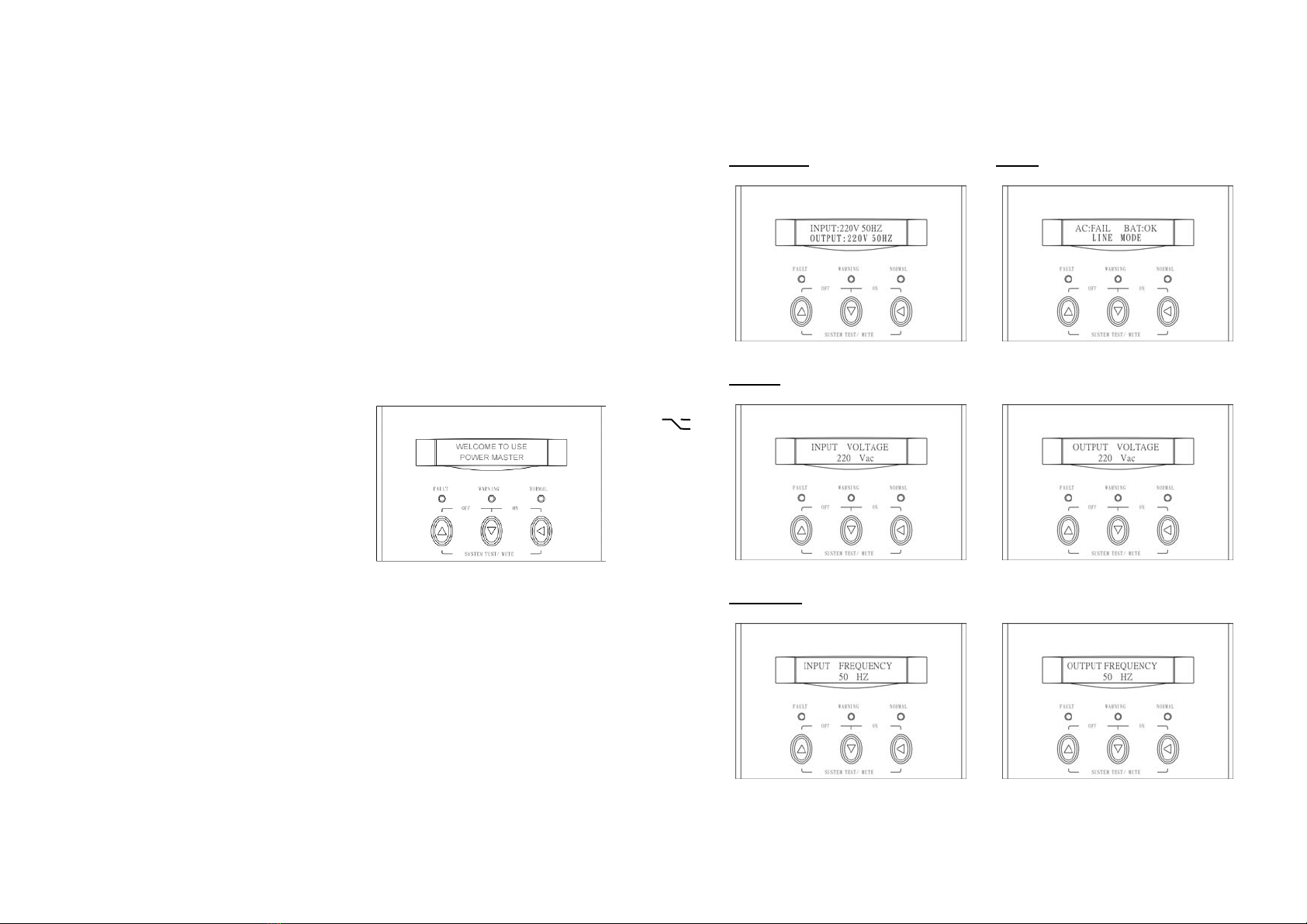

4. LCD Display Menu
Use Up/Down key to select menu-displays of the LCD described below. This
screen will refresh once the system power is enabled.
Rated Spec
Status
Voltage
Frequency

14

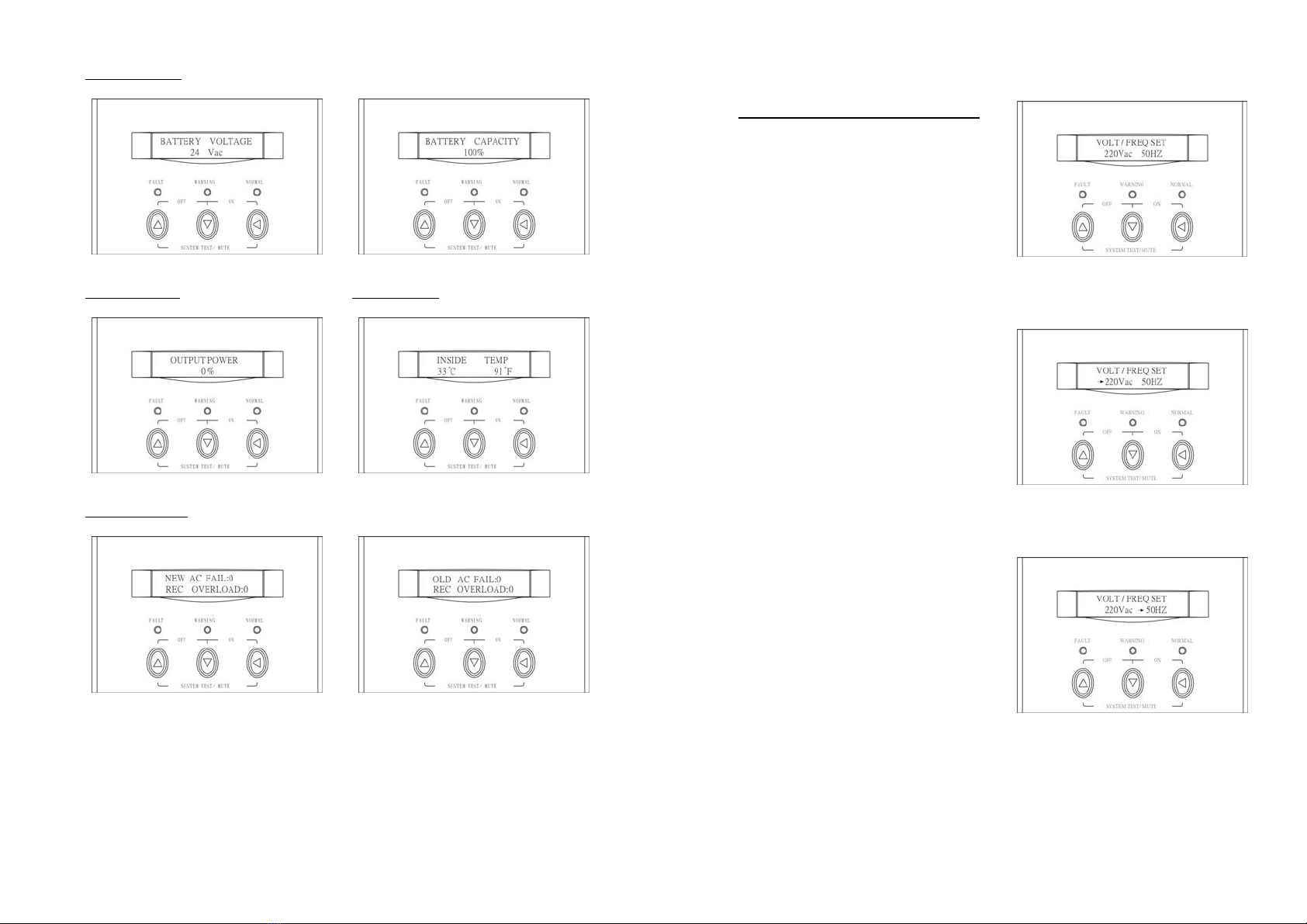

Battery Status
Output Power
Temperature
History Record
15
Output Voltage & Frequency Adjust
A. In this screen, press Enter-key to
enter the following steps for
output voltage and frequency
adjustment.
B. The cursor (→) will pop up to
indicate the output voltage and
frequency newly selected.
C. Use Up or Down-key to adjust
the output voltage (if 220V
configure, 220V, 230V, and 240V
is selectable; if 110V configure,
110V, 115V, and 120V is
selectable). Press Enter-key to
confirm voltage and then the
cursor will move to frequency
selection. The output frequency
(50Hz or 60Hz) can be adjusted
by the same key operation.
D. Once the correct voltage is
selected, press Enter-key again
to save the selection.

16
Charging Current Adjust
A. In this screen, press Enter-key to
enter the following steps for
general battery AH adjustment.
B. The cursor (→) will pop up to
indicate the battery AH newly
selected.
C. Use Up or Down-key to select
the battery AH ( 100AH, 200AH,
300AH, 400AH, and 600AH
selectable). Press Enter-key to
confirm your battery AH.
D. Once the correct battery AH is
selected, press Enter-key again
to save the selection.
17
6. TROUBLE SHOOTING GUIDE
6.1 For LCD Model
The following guideline may be helpful for basic problem solving.
No. SOLAR INVERTER STATUS POSSIBLE CAUSE ACTION
1
AC utility power is normal.
Solar Inverter is running
normally, but fault LED lits
up. Buzzer beeps
continuously.
1.Charger PCB is
damaged.
2.Fan is
damaged.
3.Unknown
1. Replace the
charger PCB.
2. Replace the
fan.
3. Restart UPS
3
AC utility power is normal
but Solar Inverter is
overloaded. Warning LED
lits up and buzzer beeps per
second.
Overload
100%< load<
125%
Please reduce
the critical load
to <100%.
4
AC utility power is normal.
Warning LED does not fade
out and buzzer beeps per
0.5 second.
Overload
125%<
load<150%
Please reduce
the critical load
to <100%.
5
AC utility power is normal.
Warning LED lits up and
buzzer beeps continuously.
Overload
150%< load
Please reduce
the critical load
to <100%.

18
No. SOLAR INVERTER STATUS POSSIBLE CAUSE ACTION
6
AC utility power fails .The
load is supplied by battery
power. Buzzer alarm
sounds every 4 seconds.
1. AC utility
power failure.
2. AC input
connection
may be not
correct.
1. Reduce the less
critical load in
order to extend
backup time.
2. Please check
the rated input or
connected line.
7
AC utility fails. Solar Inverter
is in battery backup mode.
Buzzer alarm beeps every
second.
Battery power is
approaching low
level.
Solar Inverter will
shut down
automatically.
Please save data
or turn off the
loads soon.
8
AC utility power fails. Solar
Inverter has shut down
automatically.
Battery runs out Solar Inverter will
restart up when
AC utility power is
restored.
19
7. OPERATION MODES OF THE SOLAR INVERTER
7.1 Solar Inverter System Block Diagram
7.2 Normal Operation
There are two main loops whenAC utility is normal: the AC loop and the
battery charging loop. The AC output power comes from AC utility input and
passes through static switch to support power to load. The battery charging
voltage comes fromAC utility input and converted byAC/DC charger to
support battery-charging power.

20
7.3 AC Utility Failure (Battery Mode)
The AC output comes from battery, passing through DC/AC inverter and
static switch within the battery backup time.
21
8. SPECIFICATION OF SOLAR INVERTER
Model PM-0800LC
PM-0800SLU PM-1600LC PM-1600SLU PM-2400LC PM-2400SLU
Capacity VA / Watt 1.2KVA /
800W 2.4KVA / 1600W 3.6KVA / 2400W
Nominal Voltage 220Vac ; 110Vac
Acceptable Voltage
Range 120-275Vac ; 60-135Vac
Frequency 50Hz / 60Hz ( 45Hz - 70Hz)
Line Low Transfer 120VAC ± 2% ; 60VAC ± 2%
Line Low Return 130VAC ± 2% ; 65VAC ± 2%
Line High Transfer 275VAC ± 2% ; 135VAC ± 2%
Input Voltage
Range
Line High Return 260VAC ± 2% ; 130VAC ± 2%
Voltage
220Vac (230V or 240VAC re-settable via LCD
panel);
110Vac (115V or 120VAC re-settable via LCD
panel)
Voltage Regulation
(Batt. Mode) < 3% RMS for entire battery voltage range
Frequency 50Hz or 60Hz
Frequency Regulation
(Batt. Mode) ±0.1Hz
Power Factor 0.8
Waveform Pure Sine Wave
Efficiency > 75% > 80%
Line Mode Circuit Breaker
Output
Overload
Protection Battery Mode 110% ~ 150% for 30 sec., > 150% for 200 ms
Transfer Time Typical *< 8 ms.

22
Model PM-0800LC
PM-0800SLU PM-1600LC PM-1600SLU PM-2400LC PM-2400SLU
Capacity VA / Watt 1.2KVA /
800W 2.4KVA / 1600W 3.6KVA / 2400W
Battery Voltage 12Vdc 24Vdc 24Vdc
Backup Time (at full load) *long time available
Battery
Max. Charging Current
(5 steps selectable) *> 40A > 50A
Solar Inverter status, I/P&O/P Voltage
Frequency, Load%,
Display LCD LCD Battery Voltage & %, Charge current *,
Temperature, Model
LED Normal (Green), Warning (Yellow), Fault (Red)
Battery Mode Beeping every 4 seconds
Low Battery Beeping every second
Inverter Fault Beeping Continuously
Audible Alarm
Overload Beeping twice per second
Operation Temperature 0-40 degree C; 32-104 degree F
Relative Humidity 0-95% non-dondensing
Environment
Audible Noise Less than 55dBA (at 1M)
Net Weigh (Kgs) 12.00 24.00 31.50
(WxHxD)mm Rack Mount 440*132*290 440*132*360 440*132*360
Physical
(WxHxD)mm Wall Mounted 298*400*150 298*450*190 298*450*190
*Feature on SLU models only.
Specifications are subjected to change without prior notice.
23
Model PM-4000LC
PM-4000SLU PM-6000LC PM-6000SLU PM-8000LC PM-8000SLU
Capacity VA / Watt 5KVA /
4000W 6KVA / 6000W 8KVA / 8000W
Nominal Voltage 220Vac ; 110Vac 220Vac only
Acceptable Voltage
Range 120-275Vac ; 60-135Vac 120-275Vac
Frequency 50Hz / 60Hz ( 45Hz - 70Hz)
Line Low Transfer 120VAC ± 2% ; 60VAC ± 2% 120VAC ± 2%
Line Low Return 130VAC ± 2% ; 65VAC ± 2% 130VAC ± 2%
Line High Transfer 275VAC ± 2% ; 135VAC ± 2% 275VAC ± 2%
Input Voltage
Range
Line High Return 260VAC ± 2% ; 130VAC ± 2% 260VAC ± 2%
Voltage
220Vac (230V or 240VAC re-settable via LCD
panel);
110Vac (115V or 120VAC re-settable via LCD
panel)
Voltage Regulation
(Batt. Mode) < 3% RMS for entire battery voltage range
Frequency 50Hz or 60Hz
Frequency Regulation
(Batt. Mode) ±0.1Hz
Power Factor 0.8 1.0
Waveform Pure Sine Wave
Efficiency > 80%
Line Mode Circuit Breaker
Output
Overload
Protection Battery Mode 110% ~ 150% for 30 sec., > 150% for 200 ms
Transfer Time Typical *< 8 ms.

24
Model PM-4000LC
PM-4000SLU PM-6000LC PM-6000SLU PM-8000LC PM-8000SLU
Capacity VA / Watt 5KVA /
4000W 6KVA / 6000W 8KVA / 8000W
Battery Voltage 24Vdc 48Vdc
Backup Time (at full load) *long time available
Battery
Max. Charging Current
(5 steps selectable) *> 40A > 60A
Solar Inverter status, I/P&O/P Voltage
Frequency, Load%,
Display LCD LCD Battery Voltage & %, Charge current *,
Temperature, Model
LED Normal (Green), Warning (Yellow), Fault (Red)
Battery Mode Beeping every 4 seconds
Low Battery Beeping every second
Inverter Fault Beeping Continuously
Audible Alarm
Overload Beeping twice per second
Operation Temperature 0-40 degree C; 32-104 degree F
Relative Humidity 0-95% non-dondensing
Environment
Audible Noise Less than 55dBA (at 1M)
Net Weigh (Kgs) 49.20 51.40 55.00
Physical (WxHxD)mm Wall Mounted 415*600*260 415*600*260 415*600*260
*Feature on SLU models only.
Specifications are subjected to change without prior notice.
