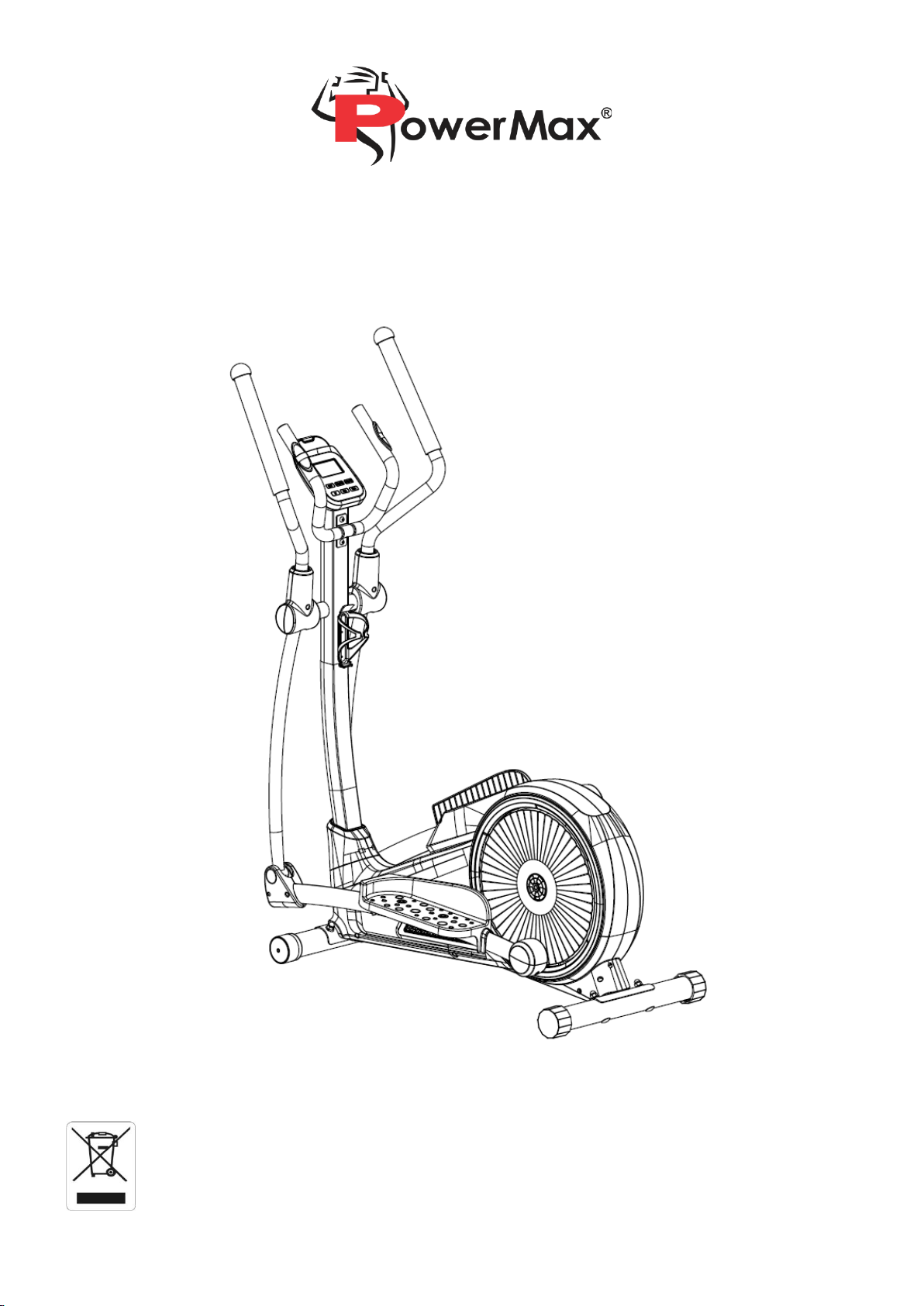

Power Max EH-760 User manual

EH-760
Elliptical Cross Trainer
OWNER’S MANUAL
Retain this owner’s manual for future reference. Read and follow all Instructions
in this owner are manual.

www.powermaxfitness .net
2
TABLE OF CONTENTS
WARRANTY
2
SAFETY INSTRUCTIONS, WARNING AND CAUTION
3
BASIC PARAMETER
5
MAIN SPARES
6
STANDARD COMPONENT / TOOLS
7
ASSEMBLY INSTRUCTION
8
MAIN PARTS DESCRIPTION
12
P102 INSTRUCTION MANUAL
13
OPERATING INSTRUCTIONS AND DAILY MAINTENANCE TROUBLESHOOTING
14
1 YEAR LIMITED WARRANTY
PowerMax Fitness warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it has
been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax
Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any
parts which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application. From the date of
purchase, the frame is warranted to be free from defects for 1(one) year*.
Customer Care
Phone: [phone]
Email: [e-mail]
Support / Complaint Generation: support.powermaxfitness.net
This warranty is extended only to the original owner and is not transferable.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
* Terms and Conditions Apply. For T&C visit www.powermaxfitness.net

www.powermaxfitness .net
3
WARNING AND SAFETY
This icon indicates a potentially dangerous situation, which, if not avoided, may result in death,
death, or serious injury. Please observe the following warnings! : Read and understand all
warnings on this machine.
Read and understand the assembly instructions carefully.
•Always keep bystanders and children away from the product being assembled.
•Do not load the battery into the machine before the time specified in the assembly
manual.
•Do not assemble this machine outdoors or in a humid place.
•Ensure that the assembly is carried out in an appropriate work space to avoid crowds and
exposure to bystanders.
•Some components of the machine may be heavy or awkward. When doing it, use a
second person to involve the assembly steps of these parts. Do not perform heavy or
awkward steps to exercise on your own.
•Install the machine on a solid, level surface.
•Do not try to change the design or function of this machine. This may damage the safety
of the machine and invalidate the warranty.
•If you need replacement parts, please use only the original replacement parts and
hardware provided by the following companies: Failure to use original replacement parts
may cause danger to users, please keep the machine. Failure to operate correctly and
invalidates the warranty.
•Please use the machine after it is fully assembled and checked for correct performance.
Follow the manual.
•Before using it for the first time, please read and understand the complete manual that
comes with the machine. Keep the manual for future reference.
•Perform all assembly steps in the given order. Incorrect assembly can cause injury or
incorrect operation.
•Before using this equipment, please observe the following warnings:
•Read and understand the complete manual. Keep this manual for future reference.
•Read and understand all warnings on this machine.
•If at any time the warning label becomes loose and cannot be read or shifted, please
contact customer service to obtain a replacement label.
•Do not put children on or near the machine. Moving parts and other functional machines
may be dangerous to children.
•Not suitable for anyone under 14 years old.
•Consult a doctor before starting an exercise program.
•If you feel pain or chest tightness, shortness of breath or fainting. Before you contact,
please contact your doctor to use the machine again
•The value calculated or measured by the machine computer is used for reference only.

www.powermaxfitness .net
4
Before each use, please check the machine for loose parts or signs of wear. If found in this
situation. Closely monitor the seats, pedals and crank arms. Contact customer maintenance
information service.
•Maximum user weight limit: 263 pounds. (110 kg). If you exceed this weight, do not use it.
•This machine is for family use only. Do not place this machine in commercial places,
including gymnasiums, companies, workplaces, clubs, fitness centres, and any public or
private entity members who own machines for their members, customers, employees, or
employees.
•Do not wear loose clothes or jewellery. This machine contains moving parts. Do not put
fingers or other objects into the moving parts of the fitness equipment.
•Install and operate the machine on a firm, level surface.
•Before stepping on the pedal, make it steady. Be careful of the machine when you get on
and off the car.
•Before servicing the machine, disconnect all power sources.
•Do not operate this machine outdoors or in a humid place. Keep the pedals clean and
dry.
•Keep a distance of at least 24 inches (0.6 m) on both sides of the machine. This is the
distance that the recommended safe machine can enter and pass as well as the distance
of emergency exit. When keeping the machine in use, third parties are not in this space.
•Do not overwork during exercise. Operate the machine manual in the manner described
in this manual.
•Do not drop or put objects into any openings of the machine.
•Correctly adjust and safely engage all position adjustment devices. Make sure that the
adjustment device does not hit the user.
•Exercising on this machine requires coordination and balance. Be sure to anticipate
changes. There may be a drop in speed and resistance levels during exercise, and care
should be taken to avoid loss of balance and possible injury.
•Slow down the speed of the pedals. Do not remove the bicycle before the pedals are
stepped on. Wait for it to stop completely. Please note that the moving pedal may hit the
back of the leg.
•This equipment is not suitable for people with weak limbs, senses or spirits, or lack of
knowledge, unless they have been supervised or instructed about the use of this
equipment by persons responsible for their safety.
•Keep your child at a safe distance from this machine. Children should be supervised to
ensure that they do not play with this product.

www.powermaxfitness .net
5
BASIC PARAMETER
PRECAUTIONS BEFORE INSTALLATION
1. Choose the area where you want to set up and operate the machine before assembling. For
safe operation, the setting must be on a hard, level surface. The minimum allowed exercise
area is 82*61 (2.1m*1.5m).
2. Basic assembly skills
3. When assembling the machine, please follow the basic points below:
1. Please read and understand the "Important Safety Instructions" before assembling.
2. Collect all the parts required for each assembly step.
3. When installing the front and rear legs gently lift and pass through the bolt hole to help
insert the bolt through the hole.
4. 2 people are required for assembly

www.powermaxfitness .net
6

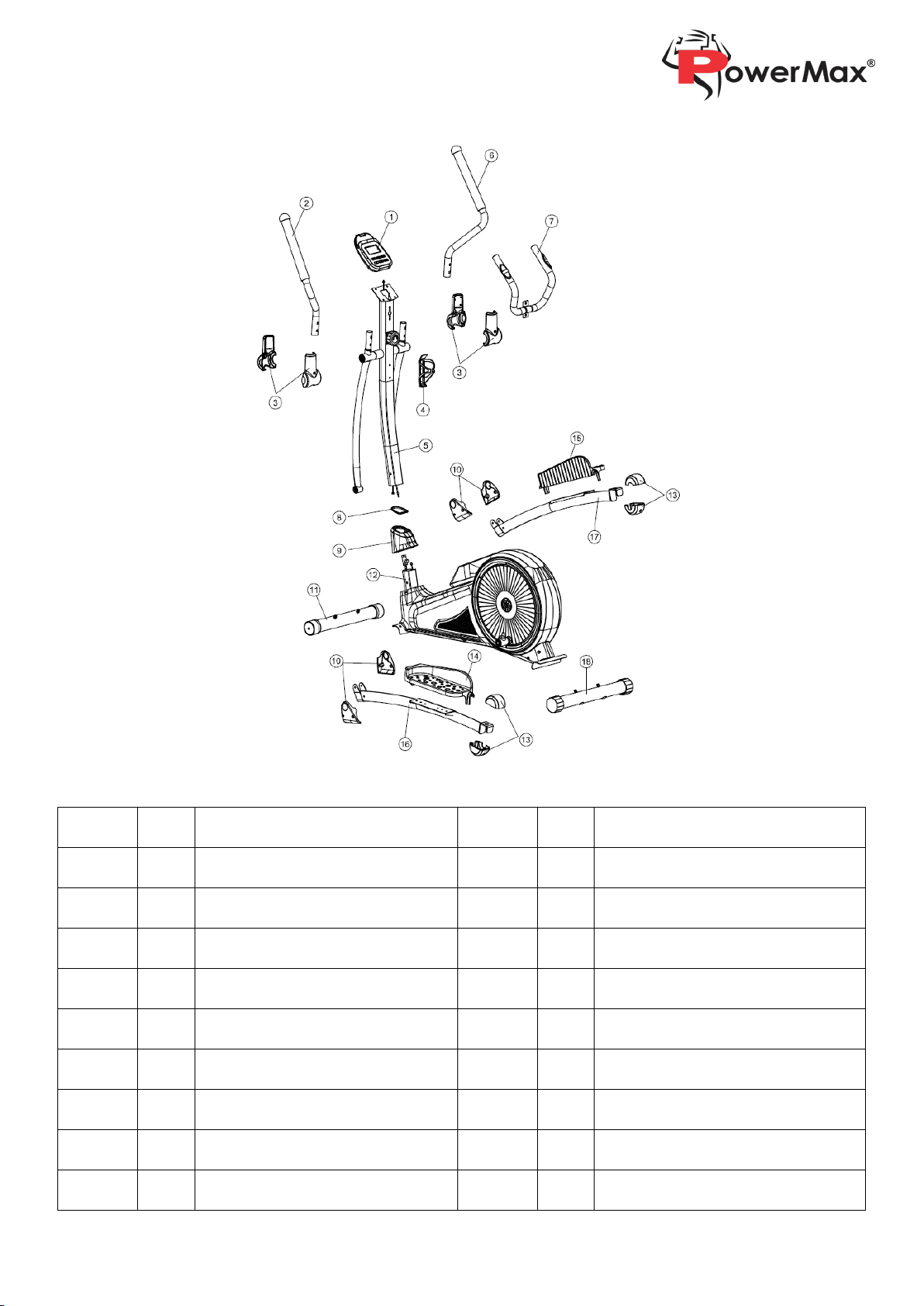

MAIN SPARES
Series
Qty
Description
Series
Qty
Description
1
1
Console
2
1
Left upper handle
3
2
Handle cover
4
1
Bottle holder
5
1
Console support
6
1
Right upper handle
7
1
Front handle
8
1
Rubber spacer
9
1
Console support cover
10
2
Front cover for foot tube
11
1
Front stabilizer
12
1
Frame
13
2
Rear cover for foot tube
14
1
Left pedal
15
1
Right pedal
16
1
Left foot tube
17
1
Right foot tube
18
1
Rear stabilizer

www.powermaxfitness .net
7

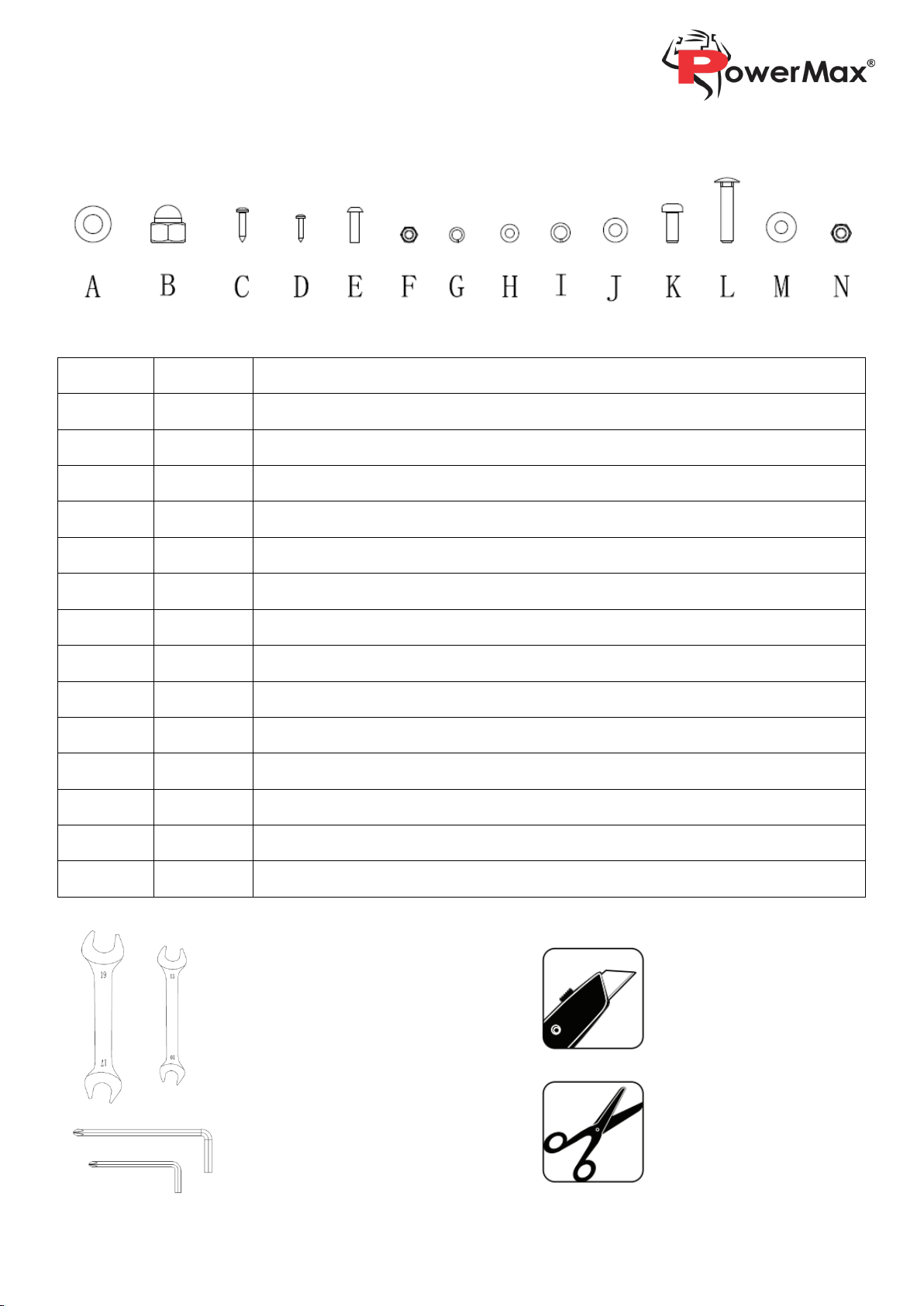

STANDARD COMPONENT / TOOLS
Series
Qty
Description
A
4
Curved flat washer Ф10
B
4
Nut M10
C
2
Screw 4*20
D
6
Screw 3*20
E
4
Bolt M6*20
F
4
Nut M6
G
4
Spring washer Ф6
H
4
Flat washer Ф6*Ф13*2
I
2
Spring washer Ф8
J
2
Flat washerФ8*φ20*2
K
2
Bolt M8*20
L
4
Bolt M8*40
M
4
Curved flat washer Ф8
N
4
Nut M8
INCLUDED
EXCLUDED

www.powermaxfitness .net
8

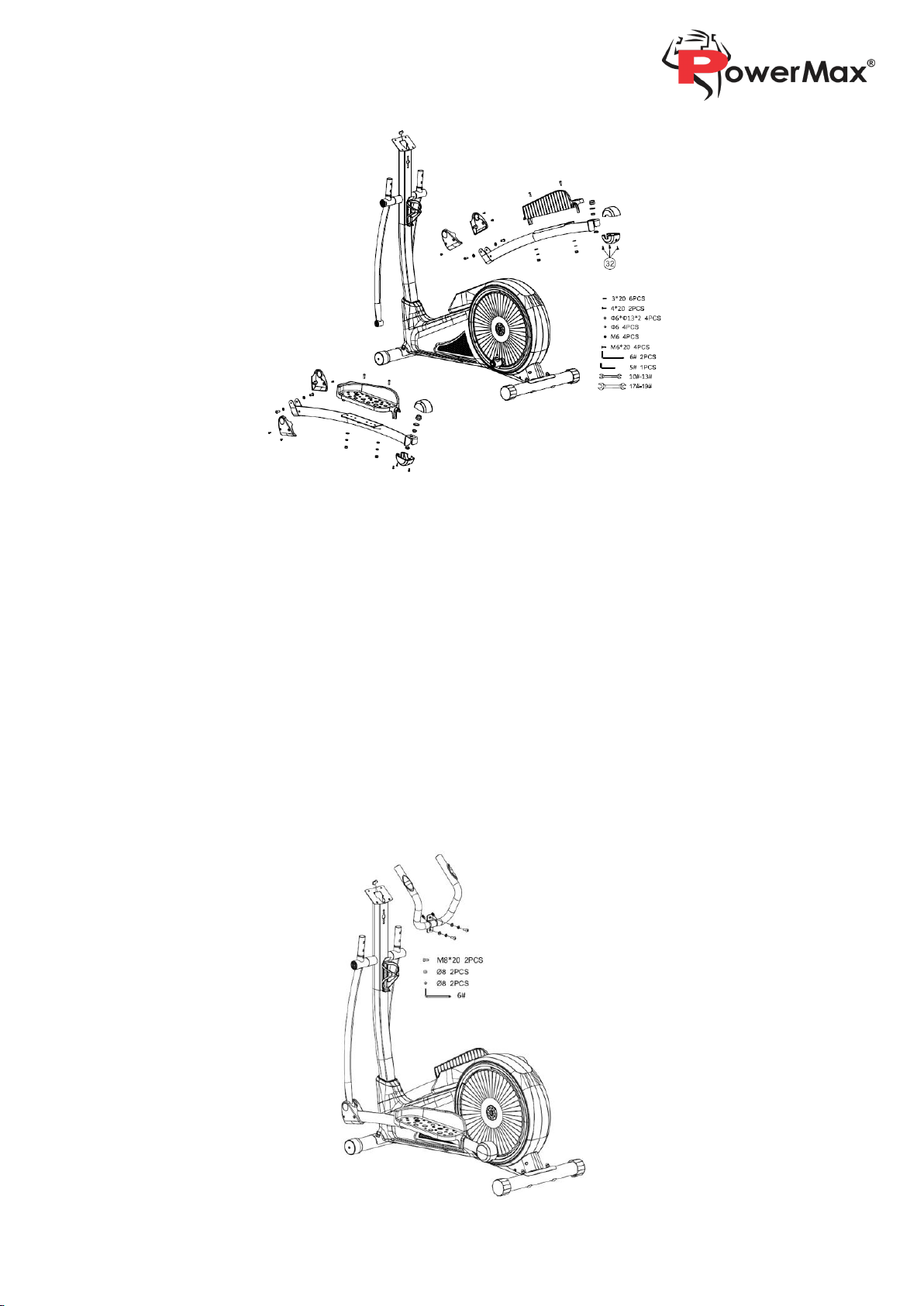

ASSEMBLY 1
Take the front and rear legs out and put them into the strip holes in the front of the frame, and
put the arc flat washer Ф10 on the bolts, then put on the cap nut M10, and lock it with an open-
end wrench.
ASSEMBLY 2
Take out the hood on the frame and the screw set pre-installed on the frame, put the hood on
the armrest riser assembly, connect the armrest riser with the wire on the frame, and flatten it
with the screws just removed. The pad and spring pad are fixed by 6# Allen wrench, take out the
M5*14 screw pre-installed on the armrest standpipe and fix the bottle cage with Allen wrench.

www.powermaxfitness .net
9
ASSEMBLY 3
Install the left foot tube and pedal: Take out the left foot tube and the left pedal and the
decorative cover, remove the screws and flat pads pre-installed on the lower armrest, align the
U-shaped seat of the left foot tube with the lower armrest and just take it off Use 2 6# Allen
wrenches to lock the screw flat washer, take out the flat washer and nut pre-installed on the
universal seat, and align the U-shaped seat behind the left foot tube with the universal seat with
a 17-19 wrench Tighten it, align the left pedal with the hole on the tread tube, and insert the
inner hexagonal pan head screw M6*20, the flat washer 6, the spring washer 6, and the outer
hexagonal lock nut M6 with 5# inner hexagon wrench and 10 -13 open-end wrench to lock it
tightly, use 5# Allen wrench to fix the front and rear decorative covers with screws.
The installation of the right foot tube and pedal is the same as the installation of the left;
Pay attention to the right, left and direction of punishment.
ASSEMBLY 4

www.powermaxfitness .net
10
Take out the front armrest, pass the handle wire of the front armrest out
of the table board through the armrest riser hole, and lock it with M8 screws, flat washers, and
spring washers with an Allen key 6#.
ASSEMBLY 5
Take out the left and right sides of the upper armrest, put the upper armrest on the shrink tube
on the lower armrest, lock it with carriage bolt M8*40, arc washer 8, outer hexagonal lock nut
M8 and open-end wrench, take out the pre-installed M5 on the lower armrest *14 screw 4PCS,
use 6# Allen wrench to lock the upper armrest cover.
Pay attention to the right, left and direction of punishment.
ASSEMBLY 6

www.powermaxfitness .net
11
Take out the electronic watch and remove the screws pre-installed on the
back of the electronic watch, connect the upper line of the electronic watch to the upper line of
the armrest riser, and lock it with a 6# Allen key.
7. Final inspection
Check the machine to make sure that all hardware is tight and the components are assembled
correctly. Be sure to record the serial number in the field provided at the front of this manual.
Please refer to the "Safety Warning Label and Serial Number" section of this manual.
Do not use or put the machine into use before it is fully used. Assemble according to
requirements and check whether its performance is correct.
MAIN PARTS DESCRIPTION
8. Adjustment

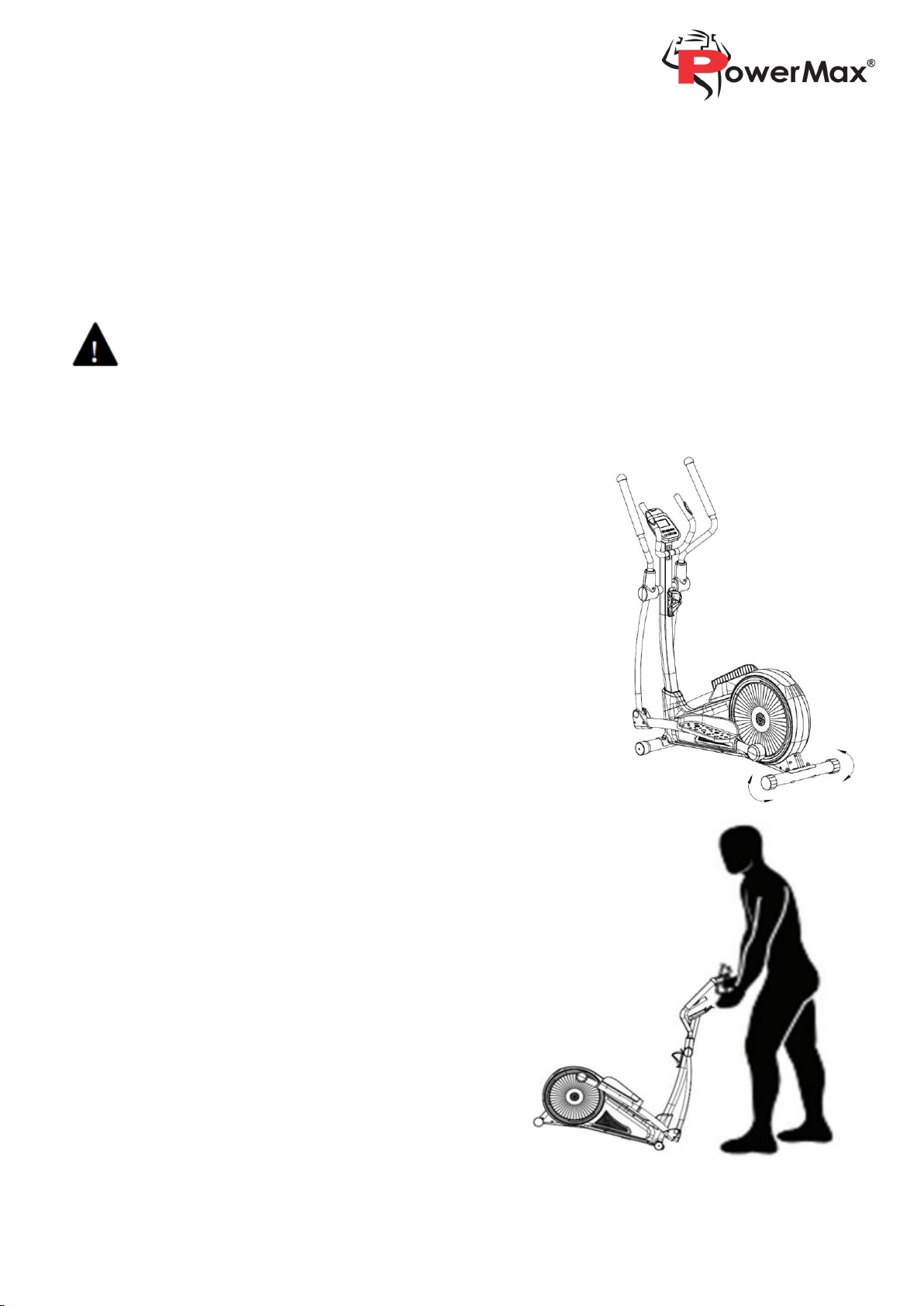

To level the vehicle, the leg plugs can be rotated at both
ends of the rear leg to adjust the leg legs to make the whole
machine level with the ground. Ensure that the fitness
equipment is level and stable before exercise.
9. Movement
To level the vehicle, the leg plugs can be
rotated at both ends of the rear leg to adjust
the leg legs to make the whole machine level
with the ground. Ensure that the fitness
equipment is level and stable before exercise.

www.powermaxfitness .net
12
MAIN PARTS DESCRIPTION
A
Console
B
Front handle
C
Right upper handle
D
Bottle holder
E
Right bottom handle
F
Console support
G
Cover for console support
H
Right foot tube
I
Right pedal
J
Shell
K
Cross
L
Rear stabilizer
M
Rear cover for foot tube
N
Left pedal
O
Front stabilizer
P
Front stabilizer plug
Q
Left foot tube
R
Console support cover
S
Left upper handle
T
Handle cover
U
Left bottom handle
V
Foam for handle
W
Pipe plug
X
Rear stabilizer plug
Y
Frame

www.powermaxfitness .net
13
P102 INSTRUCTION MANUAL
I. Button function
II. Power-on
After installing batteries, the LCD full display 1second along with “Di” sound, then the console
will go to Standby mode.
III. Workout and Target value setting
1. Under power-on mode: start exercise directly, the monitor will calculate workout data
automatically.
2. Under power-on mode, without signal input:
2.1. TIME/DISTANCE/SPEED/CALORIE/RPM/PULSE will alternately display in every 6 seconds.
Press “SET” to set target value, press “MODE” to confirm and then go to next value
setting.
2.2. After setting, start exercise, console will start count down from target value. If any target
value counts down to 0, the console will alarm 10 seconds; If user stop exercise, all data
will stop; If user continue exercise, the value will count up, the unfulfilled target value
continues counting down.
SET
In Setting mode, press this button to set target TIME/DISTANCE
/CALORIES/HEART RATE.
MODE
Press this button to confirm the setting value.
RESET
1. Hold on this button for 2 seconds in any mode, the console will reboot.
2. In Setting mode, press this button to clear all data.

www.powermaxfitness .net
14
IV. Function
1. TIME
To display working time when there is signal (in Min: Sec). Range 00:00 to 99:59. Press SET
button to set count down time, when counts down to 0:00, buzzer will alarm, screen will
display original setting time.
2. SPEED
To display current exercise speed in KM/HOUR; It will show “0”if no signal input.
3. DISTANCE
To display accumulated exercise distance, Max. value is 99.9KM/MILE.
4. CALORIE
To display accumulated calorie consumption, 15CAL per Kilometer.
5. Heart rate
To display current heart rate; It will show “0”if no heart rate.
6. RPM
Revolutions Per Minute
7. PULSE
Real-time exercise heart rate
I. Notes
1. Please take out batteries if long time no use, to avoid battery leakage damage to the
console.
2. When the console is dark, please change battery.
3. Replace the battery when the connection is often disconnected.
OPERATING INSTRUCTIONS AND DAILY MAINTENANCE
TROUBLESHOOTING
What to wear: Wear rubber-soled sneakers or suitable exercise bike shoes. You will need
appropriate sports clothing to allow you to move around freely.
1. Please check this product regularly for damage or loose parts.
2. Regularly lubricate and maintain the connecting parts of the rotating parts and the main
parts.
3. Before each use, please check whether the armrests and other parts are well fastened,
whether the pedal part is loose, etc., if there is any looseness, please lock it in time.
Replace the defective parts in time.
4. Clean the exercise bike regularly, use soft cloth, neutral detergent, and should not use any
solvents and corrosive detergents.

www.powermaxfitness .net
15
5. Any problems involving the main body of the body, bearings,
belts, and rotating vulnerable parts, please do not repair it yourself, and report back to
the dealer and after-sales organization in time.
6. Avoid direct sunlight; especially the electronic watch will be easily damaged. Please put
the exercise bike in a clean and dry environment, away from children.
1. Resolve the shaking of the exercise bike. Turn the knob at the foot tube as appropriate
until the exercise bike is stable.
2. The screen of the electronic watch does not display the troubleshooting. Check whether
the connecting wire between the armrest and the electronic watch is connected correctly;
check whether the battery is installed; whether the battery is dead, replace the battery
3. No heart rate display or display abnormal resolution. Check whether the heartbeat wire of
the lower armrest is connected correctly; make sure that both hands hold the armrest
sensor sheet; be careful not to hold the armrest heart rate sensor sheet tightly.
4. Resolve the squeaking noise during use. Please check whether the bolts are loose and
make sure the bolts are tight.
