PowerAcoustik CPAA-70D10F Administrator Guide

Operation Instruction Manual CPAA-70D10F
Operation Instruction Manual
CPAA-70D10F

2
1. Appearance
2. Accessories and Installation
3. Wiring Connection
4. Front panel Description
5. Remoto Control
6. Main Menu
7. Settings
8. Apple CarPlay & Android auto
9. Radio
10. USB
11. Disc
12. BT Audio
13. BT Phone
14. Specification
15. AV IN
FCC Notes
---------------------------------------------
3
3
5
7
8
9
9
11
12
13
13
14
15
17
18
19
---------------------------------
Content
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------

Main Menu
Carplay Menu
Android Auto Menu
Appearance Accessories & Installation
(2) Screw 8
(1) Mounting bracket
2
Package contains the following accessories for
installation and operation of the unit.
(3) Remote 1
/
#
1 2 3
4 5 6
7 8 9
/0
EJECT EQ
DISC BT USB
CP/AA
SXM Radio
(4) Trim Ring 1
(5) User Manual 1
(8) Warranty Card 1
(10) Harness cable 1
(9) ISO Cable 2
Page 1 of 31
Opera tion In struc tion Ma nual CPAA-7 0D10F
Oper ation I nstru ction M anual
CPAA -70D 10F
3
(11) USB cable 1
1. Appearance 2. Accessories & Installation

Installation
Dashboard
1.Put the 2 brackets to the left and right
side of the headunit.
2.Use screws to fix the brackets to the
unit.
3.Install the body chassis into the
dashboard via the 2 brackets.
4.Install the trim ring to the body
chassis.
5.Install the faceplate.
Note: Please note this faceplate is not
designed for detachable.
Disconnect / Connect the screen
connector ONLY for installation in
the vehicle.
Note:
1. Make sure the ignition is turned off,
and disconnect the cable from the
vehicle batteryʼs negative (-)
terminal.
You never want electricity running
when you install this 2-DIN car
receiver.
2. Before installation, disconnect the
wire harness and the antenna.
3. Attach the brackets on the both
sides of the car receiver with
screws as shown as the installation
drawing. Please buy from your
dealer according to the drilling of
holes size.
4. Consult with your nearest dealer if
installation requires the drilling of
holes or other modification of the
vehicle.
5. Install the car receiver in the dashboard.
6. Connect the wire harness & antenna
to the car receiver being carefully not
to pinch any wires or cables.
7. Install the plastic outer trim ring onto
the car receiver.
8. Reconnect the battery and run through
all of the options on this car receiver to
ensure that everything is working
correctly.
9. Particulars will vary widely depending
upon the kind of your car and the car
you intend to install it in. Please
choose the correct installation method
according to the actual situation of
your car. Always contact the car dealer
or manufacturer if you have any
questions.
Installation
Trim Ring
Faceplate
Bracket
Faceplate Adjustable Position
1.Vertical
2. Tilt
4
2. Accessories & Installation

3. Swivel
Un-Installation
Faceplate
Panel Lock System
1.Pull and release the panel lock
system.
2.Pull out the faceplate.
Note: Please note this faceplate is not
designed for detachable.
Disconnect / Connect the screen
connector ONLY for installation in
the vehicle.
Note: To watch video the parking wire
should be connected to brake signal.
Parking wire
Note: The parking wire is connected with
brake signal; for safety, the programs can
be seen on the monitor after braking the
car..
Connecting the reversing line to taillight on
the car
After connecting, when you start up the
reverse gear, the unit will receive the
picture from car rear view camera.
Conn e ct t he s peaker s acc o rd ing the
following diagram, incorrect connections
will damage the unit or your loudspeakers
Speaker Connection
White
Green
Grey
Purple
2A
Parking brake lead
Brown wire
Brake light
12V
battery
Car frame
+
-
12V
Car frame
Battery
Reverse driving light
Car frame
Pink wire
Rear view video camera lead
P
R
N
D
L
2
Gearbox
5

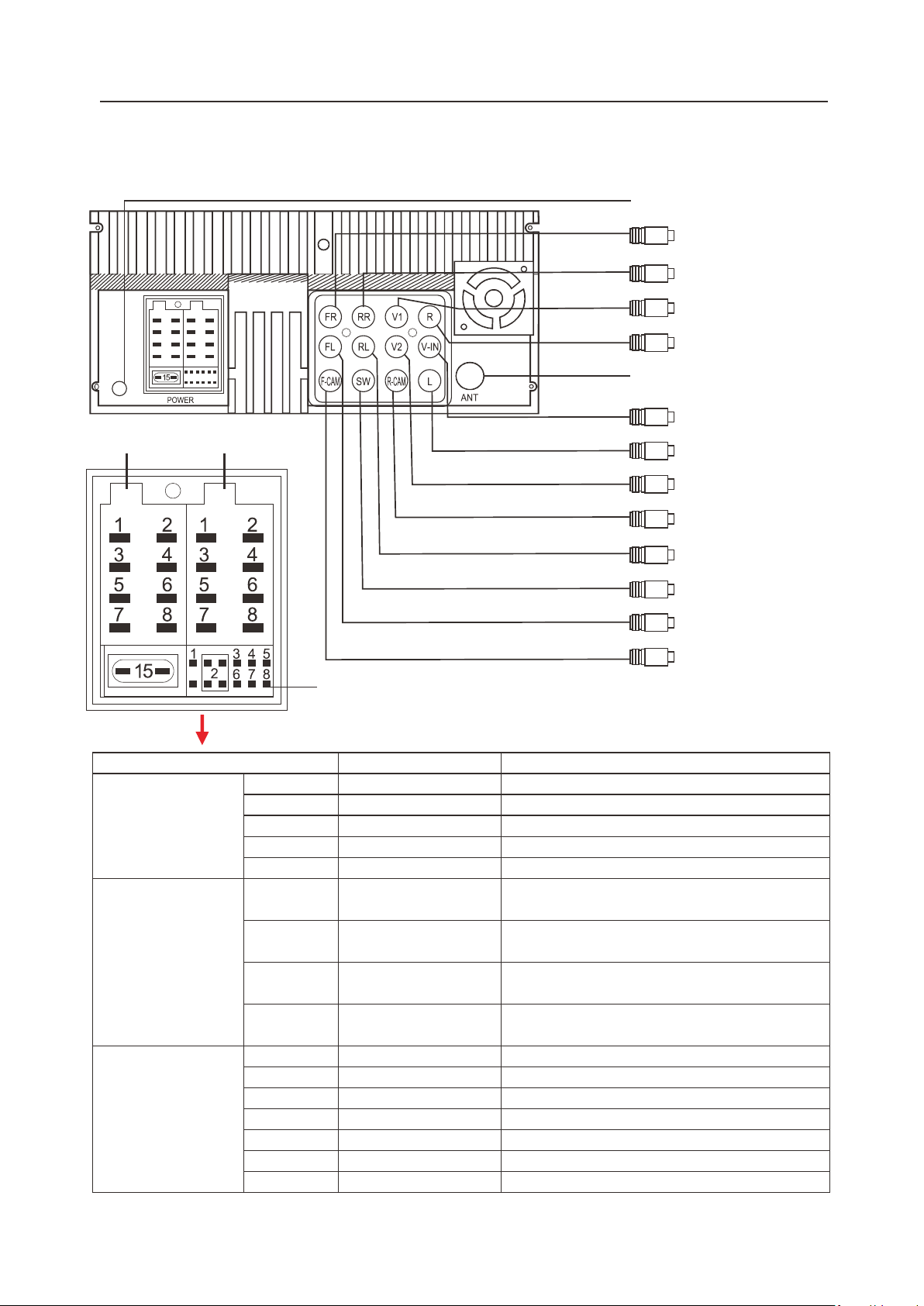

3. Wiring2. Accessories & Installation

MIC
Video Input
Red
White
Yellow
Yellow
Yellow
white
Green Subwoofer Out
Red
White
Brown Front camera input
Line Out (FL)
Line Out (RL)
Line Out (FR)
Line Out (RR)
Audio In (R)
Audio In (L)
Video Output2
Back camera input
Extraposition MIC jack
Video Output1
Red
Yellow
Radio antenna
ISO A ISO B
ISO A
8 Pin
connector
Portion Colour Connection
ISO B
Yellow
Orange
Blue
Black
Red
Purple
Purple / Black
Grey
Grey / Black
White
White / Black
Green
Green / Black
Blue / White
Brown
Pink
Pink / Black
Black
Green
Grey
Battery B+
ILL B+
Antenna
Ground
ACC B+
Rear right speaker(+)
Rear right speaker(-)
Front right speaker(+)
Front right speaker(-)
Front left speaker(+)
Front left speaker(-)
Rear left speaker(+)
Rear left speaker(-)
Amplifier control(B+)
Brake detect (Ground)
Back car control(Back camera B+)
Front camera(B+)
Ground
Steering Wheel 2
Steering Wheel 1
6
3. Wiring
A3
A5
A6
A7
A8
B2
B1
B4
B3
B6
B5
B8
B7
C
C1
C3
C4
C5
C6
C7
C8

CPAA-70D10F
MODE
4.Front panel Description
10 11 12 13 14
1
2 3 4 5 6 7 8 9
Front panel
15 16
USB Slot
Base:
10.6 inch TFT LCD
Mic
Build in Microphone.
1
2
3
IR Sensor of Remote
IR remote control signal receiving
window.
4MENU button
Press to back to Main menu.
5MODE button
Press to select desired mode.
6
Rotary Control
On/Off button
Short press to switch On the
source unit.
Long press to switch Off the
source unit.
In operation, short press to Mute
the sound system, press again
to Un-Mute.
In operation, rotate to adjust the
sound output level.
7Siri button
When Apple CarPlay or Android
Auto available, hold Siri button
to start the voice control function.
8button
[Radio] Press repeatedly ro fine
tune the radio frequency upward
or downward.
9
/
Press and hold to tune the radio frequency
to the upward or downward station for
broadcasting.
[Disc/USB/SD Music] Press repeatedly to
shift track previous or next for playback.
Press and hold to active various fast rewind
or fast forward speeds for playback.
[Bluetooth Music] Press repeatedly to
shift track previous or next for playback.
10
Press to eject the disc.
Eject Button
11
Insert an extrenal device to this port
in order to have sound output of
that external device through the unit.
AUX in jack
12
Insert or eject the the disc.
Slot-in
13
Insert micro SD for playback.
Micro SD slot
14
Support fast charge USB port.
Fast charging USB port
15
Press to default factory settings.
Reset button
16
Connect USB for digital playback.
Connect your iPhone for Apple
CarPlay.
Connect your Android Phone for
Android Auto.
USB port
7

5.REMOTE CONTROL
NO. SYMBOL OPERATION & CONTROL MODES 1.
Press and hold to power it on or off.
Short press this button mute the
volume output when unit turn on.
Long press is Power OFF function
when unit turn on.
Press it to confirm selection.
Press it to increase or decrease the
volume level.
It is UP /Down/Left/Right Arrow, use
this button to select the menu item,
the title track or to show next frame.
[DVD/USB/SD]: short press it to
skip to the next track or previous
functions.
long press to activate fast forward
or fast review in a track .
Note: 1. SXM just for include SiriusXM
function models.
2. * # these functions
for Bluetooth.
2
1
4
5
7
10
17
14 16
15
12
13
11
9
8
6
3
/
#
1 2 3
4 5 6
7 8 9
/0
EJECT EQ
ENTER
DISC BT USB
CP/AA
SXM Radio
2. [Bluetooth ]: Press it to make a call
after inputted a phone number or
answer an incoming call.
3. [Bluetooth ]: Press it to reject a coming
call or hangup while calling
4. Press it to switch to CarPlay or Android
Auto mode; Head Unit will show string
"invalid operation" when CP/AA is not
pluged in Head Unit.
CP/AA
5. Press it to switch to SXM mode.
SXM
6. Press it to switch to RADIO mode.
Radio
7. Press it to switch to DVD mode.
DISC
8. Press it to switch to Bluetooth mode.
BT
9. Press it to switch to USB mode.
USB
10.
VOL+/-
11.
12.
ENTER
13.
[Bluetooth Music]: short press it to
skip to the next track or previous
functions.
Press it to eject the disc.
14.
EJECT
15.
/
[DVD/USB/SD]: short press it to
switch play or pause.
16.
EQ Press it to Equalizer functions .
17.
0-9 [Radio ]: Select 1-6 desired preset
station.
[DVD/SUB/SD ]:Input 0-9 for
selecting track number.
#
[BT Phone ]:Input 0-9/*/# for
desired phone number.
8

with Android Auto
6.MAIN MENU
CPAA-70D10F is a 2-DIN car audio with
following functions:
Apple CarPlay, Google Android Auto,
Radio, Disc, Bluetooth, USB, SD.
The Mode icon in gray means the corre-
sponding function is not ready or proper
device have not been connected.
Touch the corresponding Mode icon to
enter playing mode.
Setup, to enter the Settings Menu.
Turn off TFT display.
TFT enter black mode touch any
zone return to TFT on.
7.Settings
Touch the icon to enter the Setup menu.
The Setup menu is included Time Settings,
Audio Setting s, Disc settings, General
Settings, Wallpaper Settings.
Time Settings
The Time Settings allow the user to set Date
& Time.
Audio Settings
Below shown is the Audio Setting Menu.
EQ Settings
Balance/Fader:
Touch the “+” or “-” of Balance /Fader to tune
for the driver and passenger preference.
The value of Balance (Left15-Right 15) and
Fader ( Front 15- Rear 15).
Touch Reset to set both Balance and Fader
to 0.
9

7.Settings
10 band of EQ tuning, slide the EQ bar to
tune each band frequency level according
to user preference.
Touch Reset to set all Band to０.
10-Band Equalizer:
Disc settings:
Steering Wheel Control Settings
General settings:
Touch SWC for steering wheel
control setting.
Click SWC Default Switch to be "on"
status.
Click Custom SWC to SWC study
mode.
Press the steering wheel control
button of the car first and then touch
the corresponding button on player
screen for learning and setting.
①
①
10

7.Settings
Touch Save to confirm the setting
Touch Reset to erase and reset
the setting
Radio Area:
Serial & Version:
Wallpaper:
User can select the preset wallpaper.
Touch the corresponding picture to select
the prefer background.
8.1 Apple Carplay
8.CarPlay & Android Auto
Plug the iPhone (iPhone 5 or latter models,
and IOS 7.1 or above) through the lightening
cable to the USB port of the source unit.
The iPhone will be shown the “CarPlay”.
The source unit will enter the CarPlay
interface, the APP that support the CarPlay
feature will be displayed on the source unit
as shown below. Touch the corresponding
APP can operate, touch button to go
back the CarPlay interface.
Siri
In Carplay mode, user can talk to SIRI to
control the CarPlay functions. Press
to start the SIRI function, or touch the
button for 2 seconds or the HOME button
of iPhone. Now you can talk to Siri for playing
music, I am going....
Note: For SIRI function in the source unit, the
Micriphone has to be connected.
In CarPlay mode, touc”Home” button or
icon to go back the main menu of source
unit.
11

8.2 Android auto Operations
Android Auto enables you to use functions
of your Androd device convenient for driving.
You can easily access route guidance,
make calls, listen to music, etc. For details
about Android Auto, visit
https://www.android.com/auto
or
https://support.google.com/androidauto.,
Compatible Android devices
You can use Android Auto with Android
devices of Android version 5.0 or later.
Note: Android Auto may not be available
on all devices and is not available in all
countries or regions.
.
Operations:
1. Connect an Android device via USB
terminal. To use the hands-free function,
connect the Android device via Bluetooth.
When an Android device compatible with
Android Auto is connected to USB terminal,
the device is connected iva Bluetooth
automatically, and the Bluetooth smartphon
currently conected is disconnected.
2. Unlock your Android device
3. To enter Android Auto mode, touch
Android Auto icon in the head unit screen.
You can perform the operations of the
Apps of the connected Android device.
4. In Android Auto model, touch “Home”
to the head unit main menu.
8.CarPlay & Android Auto
Radio mode
9.Radio mode
Touch the Radio mode icon to enter Radio.
Touch FM1 to select FM1 Band.
Touch AM1 to select AM1 Band.
Touch to select Band, FM1>FM2
>FM3>AM1>AM2
Touch to auto scan searching.
Touch to enter EQ settings.
Touch to switch LOCAL or DX.
Touch to input tune directly.
Short touch to Tune-, long touch
for Seek-
Short touch to Tune+, long touch
for Seek+
Preset station,6 preset store
and recall station for each
band.
12

Store a Station
1 . Tune radio to desired station.
2. Touch and hold the one of the preset
station for more than 3 seconds, then
the preset button will be highlighted on
the screen,and the preset station will be
stored.

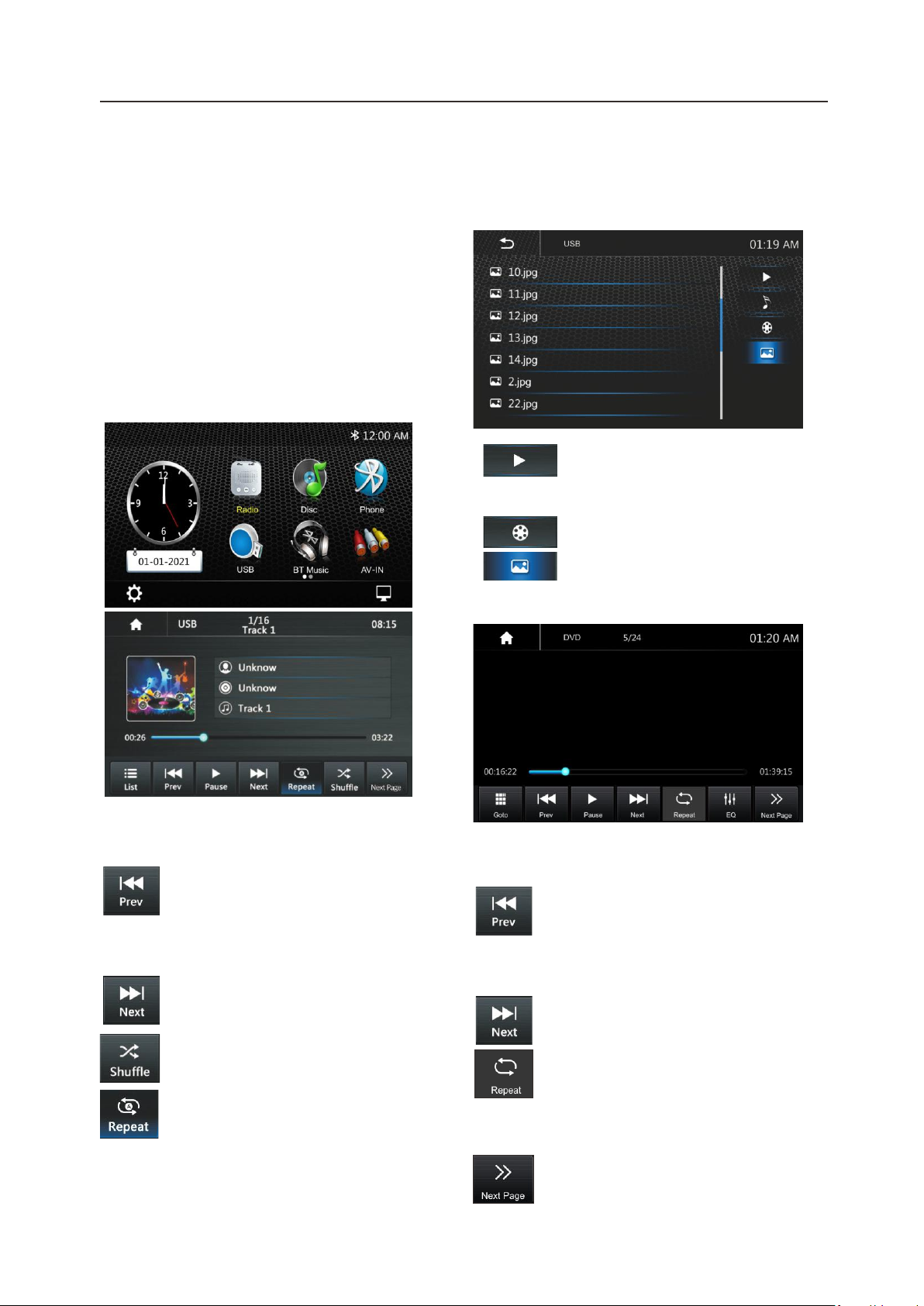

10.USB
USB
Plug the USB , the USB icon will be
colorful. Touch the USB icon to enter
the USB playback mode. The source
unit default the play the Audio in the
USB device.
Press to list Audio , Video, Picture
files in USB.
Short press to skip previous track,
Long press to fast reverse.
Play or pause button.
Short press to skip next track,
Long press to fast forward.
Press to switch Random is
On or Off.
Press to select Repeat All >
Repeat 1> Repeat folder>
Repeat Off.
Press to select Audio setting or
set the prefer EQ of each band
in custom mode.
File List browsing
Touch to browse the folder and file list
of the USB device.
You can select the multi-media type.
Return to playing previous file.
Select Audio or Music files.
Select Movie or Video files.
Select Picture files.
DISC
10.Disc
Touch to handle goto selecting.
Touch to select previous chapter.
Play or pause button.
Press to select Audio setting or
set the prefer EQ of each band
in custom mode.
Touch to select next chapter.
Press to select Repeat All >
Repeat 1> Repeat folder>
Repeat Off.
Touch to select second page buttons.
13
11.DISC

Touch to select audio language.
Touch to select subtitle language.
Touch to select section.
Touch to show title menu.
Touch to adjust angle.
Touch to select the first page
of the keypad.
Bluetooth Audio
Touch the BT Audio icon to enter Bluetooth
Audio playing mode. If the Bluetooth is
connected, the music will be playing as
following shown;
Bluetooth Audio Playback
Press to skip previous track
Play or pause button.
Press to skip next track.
Press to switch Random is
On or Off.
Press to select Repeat All >
Repeat 1> Repeat folder>
Repeat Off.
Press to select Audio setting or
set the prefer EQ of each band
in custom mode.
Bluetooth Connect
If the Bluetooth is not connected, press Re-
connect the paired phone or paring to pair the
new device.
12.Bluetooth Audio
14

13.Bluetooth Phone
Bluetooth Pairing
Pairing mode screen will be shown as below:
Turn On the Bluetooth of the mobile phone
or Bluetotth device, you can see the
CPAA-70D10F, select the CPAA-70D10F
for pairing and connection.
Bluetooth Phone
Touch the Phone icon in main menu to go to
Phone mode. After the mobile phone is
connected with the source unit via Bluetooth
(HFP), user can through the source unit to
make a phone call. Please note it needs to
connect the microphone for phone call.
Dial Pad. tap it to enter call mode.
Call logs, to show the call record,
missed, received and dialed calls
Contact, tap to show the phone-
book connected phone.
Show the usable devices.
BT Setup, tap t set auto answer
and load phonebook.
Search the available devices.
Manage the connected device.

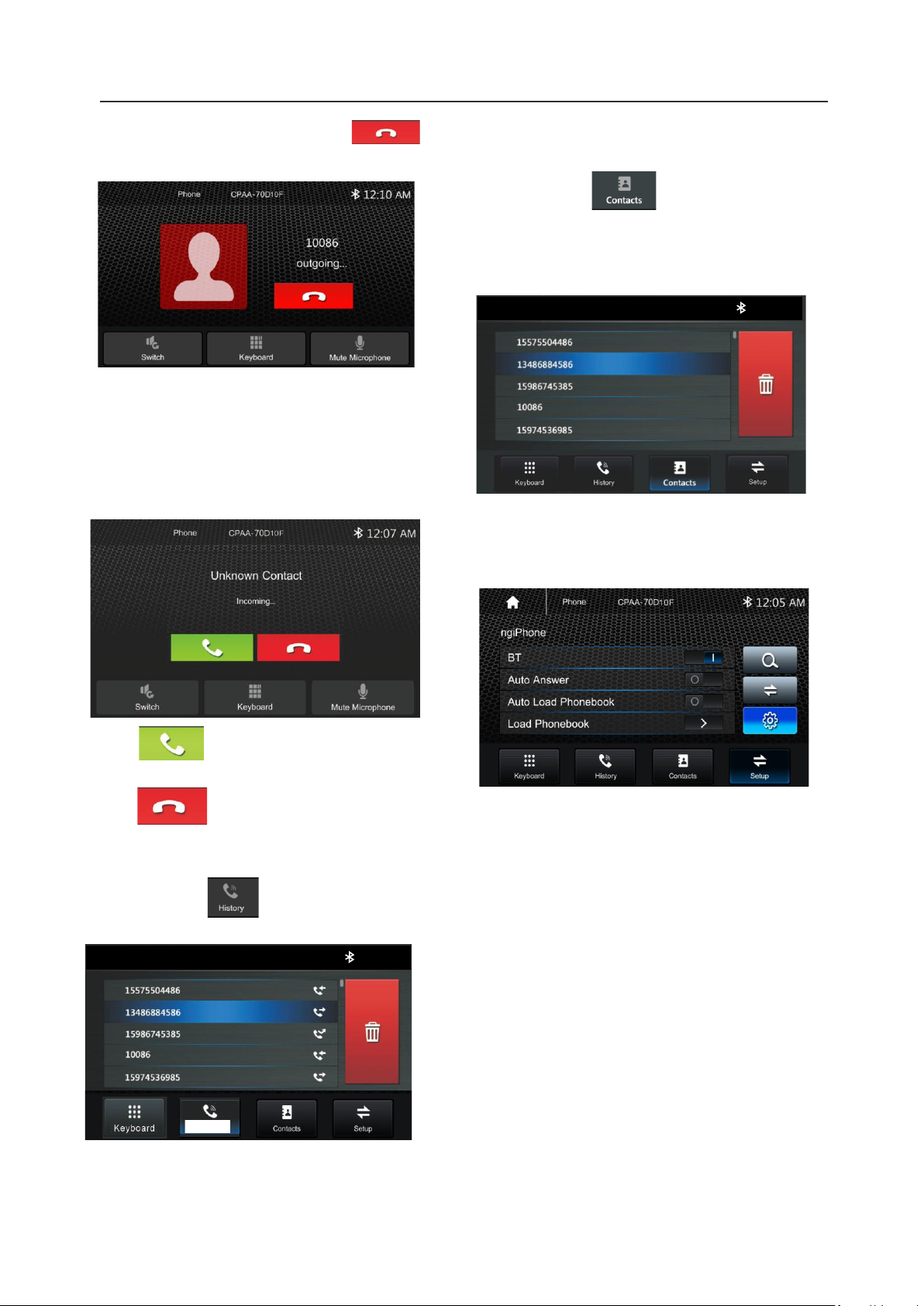

Make a Call
1. Touch the icon to enter below screen.
2. Using the keypad, touch 0-9,*,#, enter the
phone number you wish to dial. If you input
an incorrect number, touch the icon
on the keypad to delete the incorrect number.
3. Once the correct number appears on the
screen, touch the icon. To go to dialing
interface.
15

13.Bluetooth Phone
4. To end the call, touch the icon
on the screen.
Receive an incoming call
If the Phone is connected with the source
unit via Bluetooth, when an incoming call,
below screen will be shown:
Press to answer the incoming call.
Press to reject the incoming call.
Call Logs
Touch the icon to display the Call
combined list.
Slide the bar at right side up and down to display
a call logs up to 20 records.
Touch the icon to access the phone
book of the connected mobile phone.
To make a call from the phonebook, simply
touch the contact name.
Contacts
BT On /OFF, Power On or Off BT function.
BT Setup
Auto Answer On /OFF, incoming call
auto answer.
Auto Loadpbk, On /OFF, when connectphone
auto load phonebook on or
off.
Loadpbk, Manually load phone book.
16
Phone
CPAA-70D10F
12:07 AM
History
Phone
CPAA-70D10F
12:07 AM

14. Specification
17
General
Power Supply ………………………….………………………………….……..…………. DC10~16Volts
Grounding System …………………………………..……..……….………..…….. Negative Ground
Current Drain ………………………………….…………………………...……..….……..……. 15A(Max.)
Max Power Output …………………………………………….………………..……. ..4×75W/channel
RMS Power Output …………………………………………………………………….... 4x25w/channel
Speaker Impedance ……………………………………....…..…………….. 4~8ohms per channel
Frequency Response……………………………………..……….………………………. 20Hz~20KHz
Operating Temperature …………………………………..……………….................... -20~+60℃
Dimensions ……………………………………........…255mm(W)x250mm(D)x175.1mm(H)
TFT Display
TFT Screen size…………………………………………..……………………….………………….10.6inch
Resolution………………………………………………………………..…..………….…1024x600 pixels
FM Radio
Frequency Range (USA) ………………………………………………...……..….…87.5~107.9MHz
Frequency Range (Europe) ………………………….………………...…..…....……87.5~108MHz
Usable Sensitivity (S/N=30dB)………..…………………………….…..…….…..….…….…≤15dB
S/N Ratio……………………………………………………………………..….....……………....……≥55dB
Stereo Separation………………………………………...…..…………………..………...………≥30dB
AM
Frequency Range (USA) ………………………………………….…………..…….…530~1710KHz
Frequency Range (Europe) ………………………..………………..…..………….522~1620KHz
Usable Sensitivity(S/N=20dB)……………….……………………………..……….…….…≤40dB
S/N Ratio………………………………………………………………………….…..………………...≥45dB
DVD/CD
S/N Ratio……………………………………………………….………………………..…………..…≥60dB
Channel Separation ……………………………….…………………………..……..........……>50dB
Line-Out/Subwoofer Output
Maximum Output Level (10K ohms load)……………….……………..…….....….…≥4Vrms
Subwoofer Time Align………………………………………………………………...…………0~18ms

15.AV IN
The Audio/Video source with RCA cable can
through the source unit to play the Audio/
Video. Plug the RCA to the corresponding
A/Vsocket.
Touch the icon to view the playing
Audio /Video.
The Audi and Video will via the RCA cable to
the source unit.
18

19
WARNING! Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the userʼs authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
FCC Notes
