Epsilon Electronics, the parent company for PowerAcoustik
Electronics was founded in January, 1981. My favorite hobbies included
music, which became my passion and my guiding inspiration for launching
Epsilon Electronics. Webster’s dictionary describes Epsilon “as arbitrari-
ly small quantity in mathematical analysis”. I should say my musical
Epsilon became and infinite love for music and ultimately the beginnings for
my career in Audio. After attending live music events I found the market
needed product that had the possibility of recreating the musical experi-
ence that made you feel like you were at a live concert.
We decided once music transitioned to hi-tech studio recordings with eso-
teric mixer boards, we needed to produce products that were capable of
sound reproduction of the most sensitive of musical instruments. We have
continued to re-invent our business model to address the needs of an ever
changing industry. Today the music has transitioned from analog to digital
and added the video component.
Few companies will be able to remain competitive due to these kinds of
technological advancements. Our company transitioned from Importer in
the early 1980’s to a company with design and engineering capabilities in
both audio and video. The last eight years have be our most productive
years with the US Patent office awarding us with two design patents (#
406,850 446,589) three full mechanical patents (#5,956,188 6,196,694 &
6,286,974) and two more mechanical patents are currently pending (#
10/216,908 & 10/281,282).
You have put your trust in us for 25 wonderful years and I want to
personally thank you for that!
Jack Rochel
President
pa-06 2006-4-17 16:23 Page 2

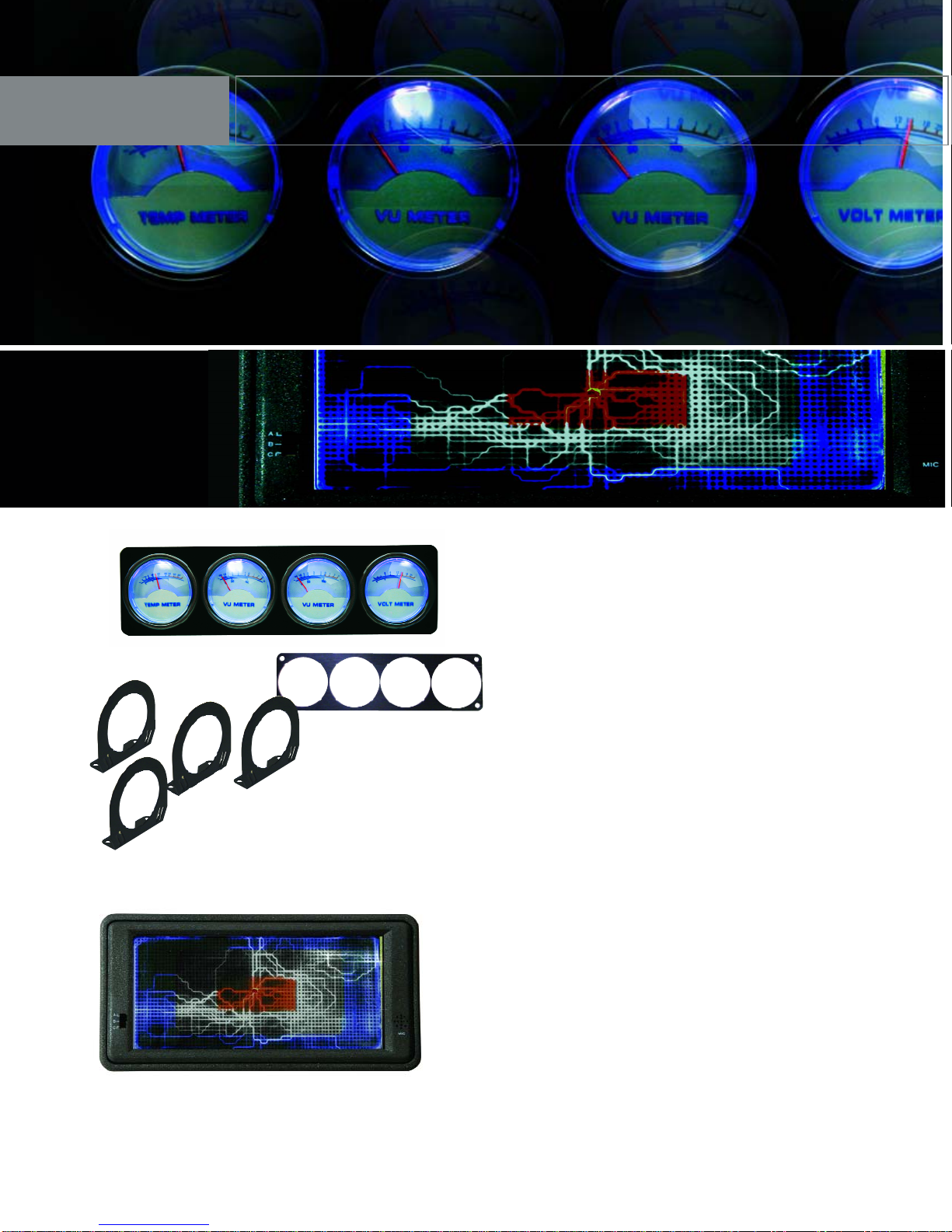

MOFO Series 18
FX Series 19
FUBAR Series 20
FUBR Series 21
BM Series 22
KSW Series 23
BL Series 24
Class D Series 7
Plasma Sphere 9
Gothic Series 11

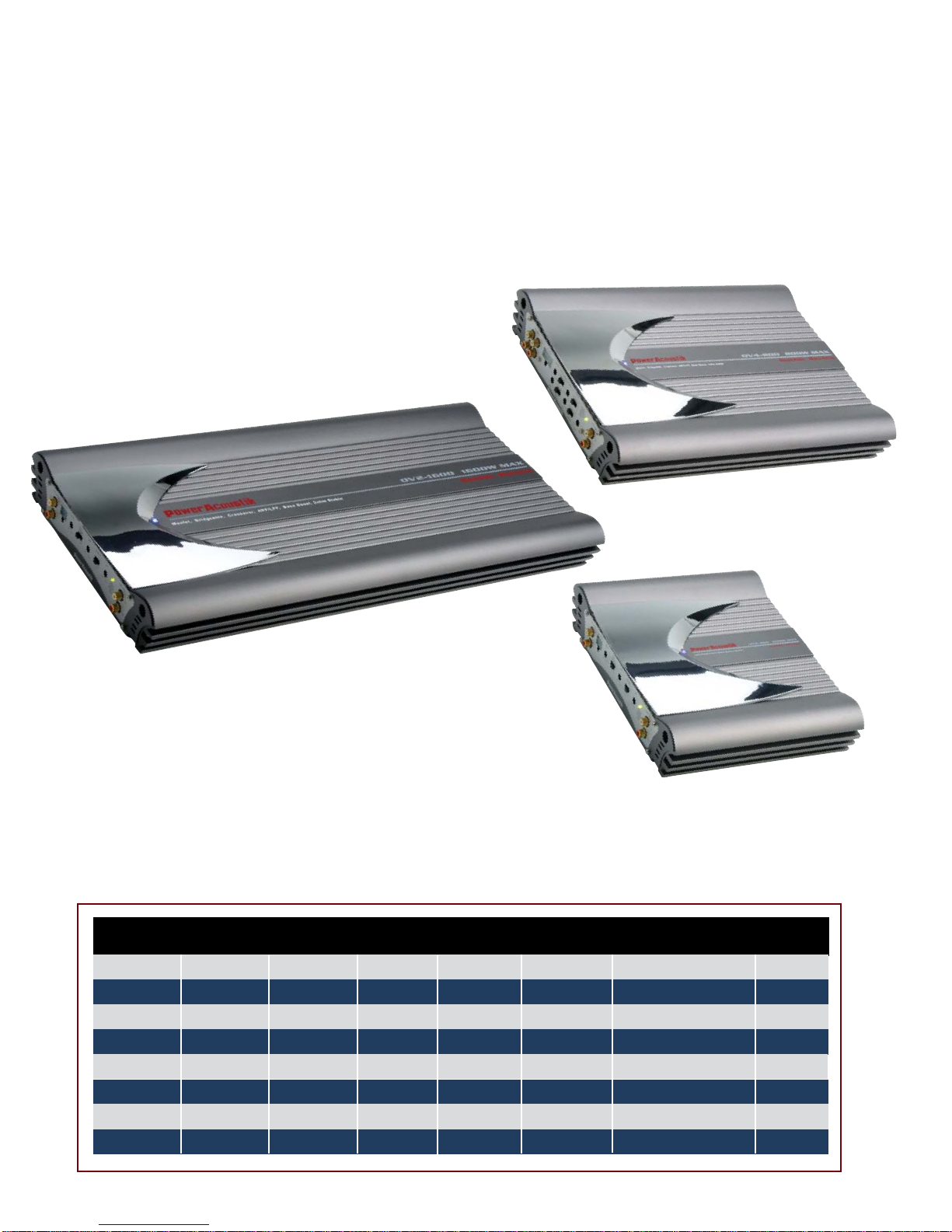

Power Series 13

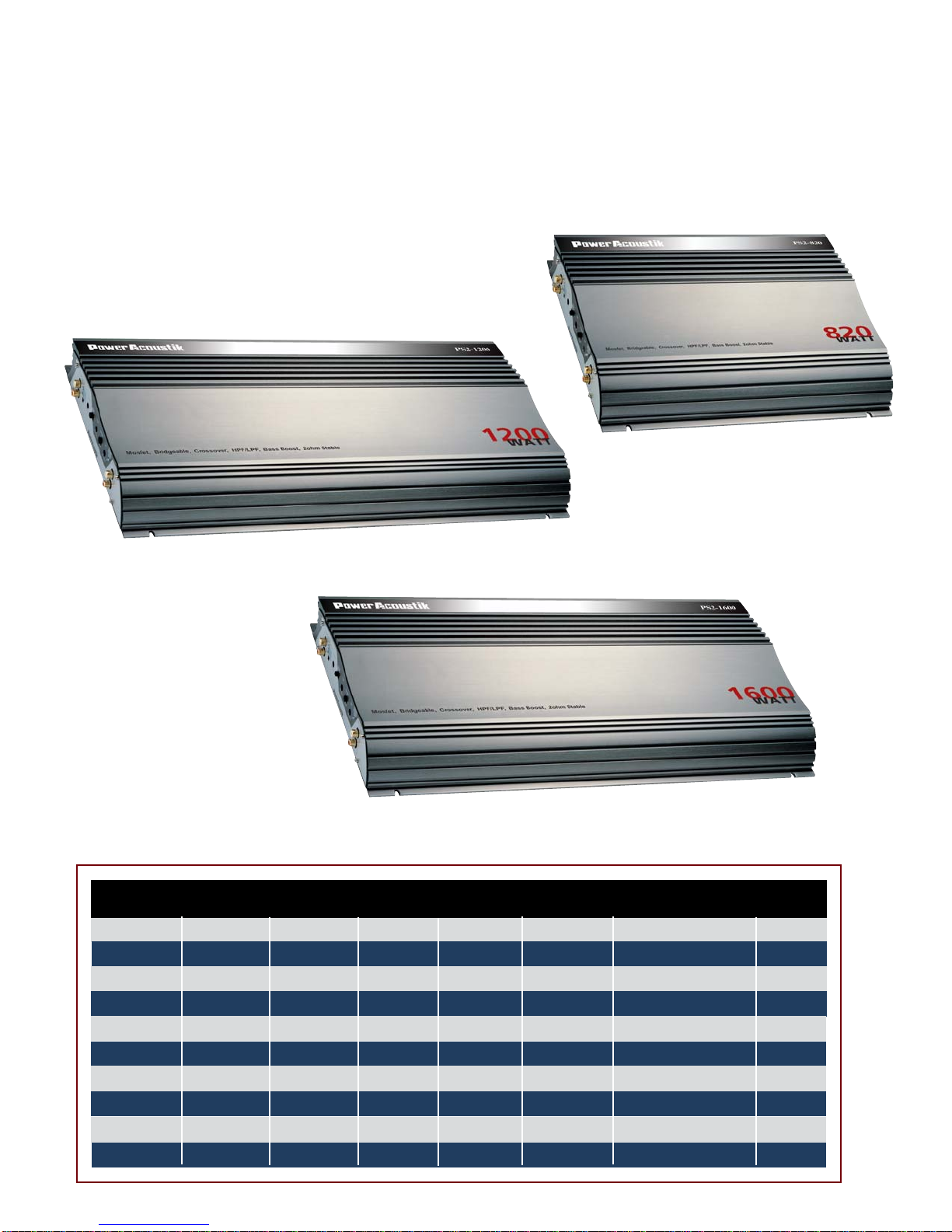

LT Series 15
Grills & Tweeters 25
Components 27
XP2K Series 29
PR Series 30
KP Series 31
Power Capacitors 32
Signal Processors 35
X-Overs 37
Amp Kits 38
Head Units 39
Xenon Bulbs 40
Amplifiers
Amplifiers 3
Woofers 5
Components 6
Silver Edition
Audio Prodcuts Index
Woofers Speakers Audio add-ons
Monitor/DVD 51
DVD 53
Ceiling Combos41
Ceiling Monitors 45 All 55
Monitors
Headrest Combos47
Headrest Monitors48
Sunvisor Monitors49
Rearview 50
Portable TV 50
Monitors
Video Prodcuts Index
In-Dash Accessories
pa-06 2006-4-17 16:23 Page 3

PowerAcoustik Silver Edition, sports a clean new look with cool blue reactor light bars hidden
under stylish black mesh grills and chrome end caps. Our proprietary mosfet power supply
delivers deep tight bass with rapid decay 18db. subwoofer slopes. We also include dash mounted
subwoofer controls on our 1000 watt and up 2-channel class A/B amplifiers.
Check out our new monster class “D” 5500 watt behemoth, this should loosen the welds on your
car.
Silver edition pg3
Hi Speed Digital Circuitry
Fully Regulated PWM Power Supply
Four Way Protection Circuit
1 Ohm Stable
Bridging Synchronization
Variable Low Pass 50Hz-150Hz
Variable Subsonic Filter 15Hz-40hz
Variable Subwoofer EQ @ 45Hz
Phase Switch 0-180
Remote Dash Mount Low Level Gain Control With
Cable
Frequency Response: 15Hz to 150hz
S/N Ratio: 100 db
THD: 0.5%
System Distress Indicator
Inputs Sensativity: 200mv-8v
Dual Mono Speaker Output Connectors
Platinum Plated Heavy Duty Power & Speaker Terminals
Common Features For Class D:
pa-06 2006-4-17 16:23 Page 4

http://www.poweracoustik.com
Silver edition pg4
Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD” Bass Knob
Sl2-340 2 80x2 95x2 190 340 8.4x2.3x11.7 No
SL2-460 2 95x2 120x2 240 460 9.7x2.3x11.7 No
SL2-620 2 150x2 180x2 360 620 12.4x2.3x11.7 No
Sl2-1000 2 220x2 280x2 560 1000 15.2x2.3x11.7 Yes
Sl2-1500 2 300x2 380x2 760 1500 19.6x2.3x11.7 Yes
Sl2-2000 2 370x2 450x2 900 2000 20.7x2.3x11.7 Yes
Sl4-680 4 80x4 95x4 190x2 680 11.25x2.3x11.7 No
SL4-1000 4 100x4 125x4 250x2 1000 13.2x2.3x11.7 No
Class D Digital Series
Model Ch 4 Ohm Rms 2 Ohm Rms 1 Ohm Rms Max Dimensions (LxWxH) Bass Knob
SL-5500D 1 2100 3600 4200 5500 21” x 11” x 2.3” Yes
SL-3400D 1 1400 2100 2600 3400 16.7” x 11.7” x 2.3” Yes
SL-2000D 1 800 1300 1600 2000 12.7” x 11.7” x 2.3” Yes
SL-2600D 1 1100 1600 2000 2600 15” x 11.7” x 2.3” Yes
Class A/B Series
Remote Dash Mount Bass
Knob Control
New Hyper Bass
Chrome End Caps
Blue Reactor Light Bars
THD: 0.02%
2 ohm Stable Stereo
System Distress Indicator
High/Low Level inputs With Floating Ground
4 Gauge Power/Ground Connection
Platinum plated RCA Connectors
Line output
V-Angled Transparent Terminals
Full Mosfet Power Supply
PWM Circuitry
Full Selectable Crossover Hi/Full/Low
Three Way Protection Circuit
Tri-Mode Capable
Variable Low Pass 40Hz-120Hz
Variable Hi Pass 150Hz-1.5Khz
18dB Bass Boost @ 40Hz.
Frequency Response: 10Hz to 30Khz
S/N Ratio:97 db
Common Features For Class A/B:
pa-06 2006-4-17 16:24 Page 5

Silver edition pg5
Common Features:
Wide UV Coated Foam Surround
Black Chrome Coated PP Cone
Stiff Poly Cotton Spider
Dual 4 ohm 2” KSV Voice Coil
Reinforced Aluminum Voice Coil Former
Integrated Tinsel Leads
Stamped Steel Basket
Steel Gasket
Black Chrome Finish
Chrome Push Terminals
Vented Pole Piece
Silver Edition
SL-10W
• 800 Watts power handling
• 400 Watts RMS
• 70 oz. magnet
• 2” BASV/Kapton Hybrid 18AWG Voice Coil
• SPL89dB
• Fs: 42 Hz
• Vas: 1.06 cu.ft.
• Qms: 4.057 • Qes: 0.667 • Qts: 0.573
• Xmax: 0.32"
• Sealed box: .95 cu..Ft.
• Ported box: 1.25 cu..Ft.
• Tuning: 38 Hz
• Port size: 3”(dia)x8”(length)
• # of ports: 1
”
SL-12W
• 1000 Watts power handling
• 500 Watts RMS
• 80 oz. magnet
• 2” BASV/Kapton Hybrid 18AWG Voice Coil
• SPL89dB
• Fs: 39 Hz
• Vas: 1.20 cu.ft.
• Qms: 2.019 • Qes: 0.674 • Qts: 0.506
• Xmax: 0.32"
• Sealed box: 1.25 cu..Ft.
• Ported box: 2 cu..Ft.
• Tuning: 38 Hz
• Port size: 4”(dia)x8.25”(length)
• # of ports: 1
”
Our collection of Silver Edition woofers and component systems are
the new technological innovations of our engineers designed both
for high power handling accurate bass reproductions, as well as
sound quality to quench the thirst of the most crtitic audio-files.
pa-06 2006-4-17 16:24 Page 6

http://www.poweracoustik.com
Silver edition pg6
res:
oam Surround
ed PP Cone
ider
V Voice Coil
m Voice Coil Former
eads
ket
h
inals
Common Features:
Wide Foam Surround
One Piece Cone/Dust Cap Assembly
Large Diameter Poly-Cotton Spider
Integrated Tinsel Leads
Dual 4 ohm BASV Voice Coils
Reinforced Aluminum Voice Coil Former
Die Cast Aluminum Basket
1-Piece Rubber Gasket
Black Chrome Finish
Chrome Push Terminals
Vented Pole Piece
STW-10W
• 800 Watts power handling
• 400 Watts RMS
• 100 oz. magnet
• 2” BASV/Kapton Hybrid 18AWG Voice Coil
• SPL88dB
• Fs: 35 Hz
• Vas: 0.08 cu.ft.
• Qms: 8.133 • Qes: 0.4778 • Qts: 0.458
• Xmax: 0.3"
• Sealed box: .7 cu..Ft.
• Ported box: 1 cu..Ft.
• Tuning: 38 Hz
• Port size: 3”(dia)x10”(length)
• # of ports: 1”
STW-12W
• 1000 Watts power handling
• 500 Watts RMS
• 120 oz. magnet
• 2.5” BASV/Kapton Hybrid 18AWG Voice Coil
• SPL89dB
• Fs: 32.8 Hz
• Vas: 1.7 cu.ft.
• Qms: 4.49 • Qes: 0.737 • Qts: 0.683
• Xmax: 0.3"
• Sealed box: 1 cu..Ft.
• Ported box: 1.5 cu..Ft.
• Tuning: 35 Hz
• Port size: 3”(dia)x7.75”(length)
• # of ports: 1”
SL-6C
• 6.5” Component system
• 3” high power handling kapton voice coil
• 250 Watts max
• High performance Neodymium magnet
• PP cone mid-bass
• Butyl rubber surround
• Chrome magnet cover
• Shallow mount 2.25”
• 2-way die-cast passive crossover
• 12db/Octave roll off
• Impedance balancing network
• Impedance: 4 ohm
• Frequency response: 45Hz-30KHz
• Sensitivity: 90dB
• 1” silk dome tweeter
• NDFEB magnet
• 80Hz/6KHz
• Flush, angle, and surface mount tweeter
• Ferro fluid cooled
Shallow Mount
3” Voice Coil & Massive Neo Mganet
For Extrem Power Handling
pa-06 2006-4-17 16:24 Page 7

Full Mosfet Power Supply
PWM Circuitry
Full Selectable Crossover Hi/Full/Low
Three Way Protection Circuit
Tri-Mode Capable
Variable Low Pass 40Hz-120Hz
Variable Hi Pass 150Hz-1.5Khz
18dB Bass Boost @ 40Hz.
Frequency Response: 10Hz to 30Khz
S/N Ratio:97 db
THD: 0.02%
2 ohm Stable Stereo
System Distress Indicator
High/Low Level inputs With Floating Ground
4 Gauge Power/Ground Connection
Gold plated RCA Connectors
Line output
Amplifiers pg7
Common Features For Class A/B:
CLASS A/B Series
Dash Mount Bass Knob
AMPLIFIERS
pa-06 2006-4-17 16:25 Page 8

Class D Digital Series
Model Ch 4 Ohm Rms 2 Ohm Rms 1 Ohm Rms Max Dimensions (LxWxH) Bass Knob
A3000DB 1 1100 1800 2300 3000 16.8” x 11” x 2.3” Yes
A2400DB 1 900 1400 1800 2400 15” x 11” x 2.3” Yes
A1000DB 1 450 800 N/A 1000 10.5” x 11” x 2.3” Yes
A1800DB 1 600 1100 1400 1800 12.6” x 11” x 2.3” Yes
Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD”
A520-2HP 2 125x2 150x2 300 520 11.25x11x2.3
A600-4HP 4 70x4 85x4 170x2 600 11.25x11x2.3
Amplifiers pg8
Class A/B Series
Hi Speed Digital Circuitry
Fully Regulated PWM Power Supply
Four Way Protection Circuit
1 Ohm Stable
Bridging Synchronization
Variable Low Pass 50Hz-150Hz
Variable Subsonic Filter 15Hz-40hz
Variable Subwoofer EQ @ 45Hz
Phase Switch 0-180
Remote Dash Mount Low Level Gain Control With Cable
Frequency Response: 15Hz to 150hz
S/N Ratio: 100 db
THD: 0.5%
System Distress Indicator
Inputs Sensativity: 200mv-8v
Dual Mono Speaker Output Connectors
Gold Plated Heavy Duty Power & Speaker Terminals
Common Features For Class D:
High Speed Digital Circuitry
CLASS D Series
ies
http://www.poweracoustik.com
pa-06 2006-4-17 16:25 Page 9

Synchronized Lightning Pulse Dish
Full Mosfet Power Supply
PWM Circuitry
Full Selectable Crossover Hi/Full/Low
Remote Dash Mount Bass Knob Control
Three Way Protection Circuit
2 Ohm Stable Stereo
Tri-Mode Capable
Variable Low Pass 40Hz-250Hz
Variable Hi Pass 40Hz-250Hz
Amplifiers pg9
Remote Dash Mount Bass
Knob Control
Variable 18dB Bass Boost @ 40Hz.
Frequency Response: 10Hz to 30KHz
S/N Ratio: 98 dB
THD: 0.02%
System Distress Indicator
4 Guage Power/Ground Connection
Platinum Plated RCA Connectors
Line Output
High/Low Level Inputs with Floating Ground
Common Features:
PLASMA SPHERE
AMPLIFIERS
