PowerBear HSM V-Press 1160 plus Operating manual

Important Information

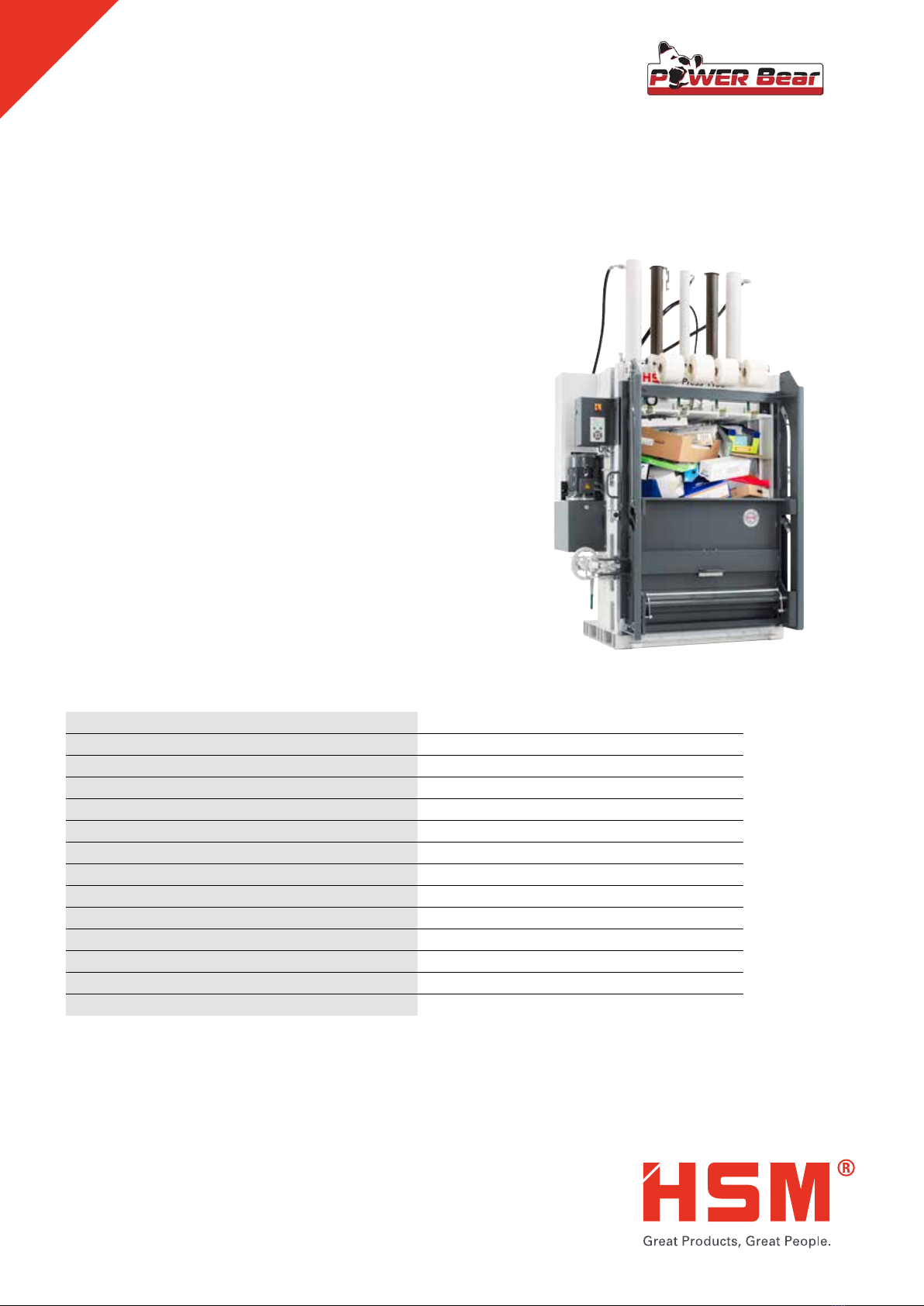

HSM V-Press 1160 plus
Vertical baling press
Model: HSM V-Press 1160 plus
Sliding door with hand wheel door lock
incl. operating manual / declaration of conformity
Pressing power in kN 548
Motor in kW 4
Voltage / Frequency 3 x 400 V / 50 Hz
Loading aperture W x H in mm 1195 x 650
Bale weight in kg (depending on material) up to 550
Bale size L x W x H in mm 1200 x 1100 x max. 1200
Hourly output in bales 1-2
Cycle time in idle operation (theor.) in sec. 25
Acoustic level in dB(A) 62.9
Press chamber size W x D x H in mm 1195 x 1100 x 1640
Dimensions of machine* W x D x H in mm 1780 x 1568 x 2985
Transport dimensions of machine W x D x H in mm 1780 x 1568 x 2140
Machine weight in kg 2427
Strapping 4-fold with wire / optional polyester tape
xRapid stroke technolgy saves time and money
xHigh capacity press chamber means optimum filling
eciency
xLow-maintenance, sturdy hydraulics and hard-chromed
pistons ensure long service life
xHighly compressed bales which can already be marketed
without requiring any further pressing
xHigh process reliability due to HSM TCS
(TorsionControlSystem)
xBasic equipment: 2 coils wire 2.8 x 4400 mm
*External dimensions of the machine when set up for operation.
All technical data and dimensions are approximate values. Technical and design modifications reserved.

Transporthöhe
2140
1568
R
1562
1195
Breite Einfüllöffnung
ca.
300
ca. 400
1115
Einfüllhöhe
650
Einfüllöffnung
1 : 15
Pos.-Nr. Menge Materialnummer Benennung
1 1 Pressplatte kpl.
2 1 Presskasten kpl.
3 1 Schiebetür kpl.
4 1
Hydraulikaggregat 4,0kW
3x230/400V 50Hz
5 1 Ballenauswerfer kpl
6 1
Ballenentnahmetuer mit
Schiebetür vorm.
7 1 Handradverschluss kpl M30
8 1 6144150080 Zsb. Abdeckung
9 1 6150010040 Halteblech Schaltkasten
10 1 6408180012 Schaltschrank BPG3 Var.2
11 1 6144190140 Presszylinder kpl.
Toute communication ou reproduktion de ce document, toute exploitation ou communication de son contenu sont interdites, sauf autorisation expresse. Tout manequement à cette règle est illicite et expose son auteur au versement de dommages et intérêts. Tous nos droits sont réservés pour le cas de la délivrance d'un brevet ou celui de l'enregistrement d'un modèle d'utilité.
Copying of this document, and giving it to othners and the use or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design.
Weitergabe sowie Verfielfaeltigung dieses Dokuments, Verwendung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdruecklich gestattet. Zuwiderhandlungen verpflichten zu Schadensersatz. Alle Rechte fuer den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.
B
C
D
E
F
B
D
E
F
C
A
1234678
4
678
5
5
100000144437
Datum
07.03.2016
Zust.
A2
Zeichnungs Nr.
Gepr.
Werkstoff
Blatt
Erstellt
KSE
Ers. d.
6144184
KSE
Änderung
Allgemeintoleranz
bearbeitete Flaechen:
ISO 2768 T1 m / T2 K
Schweisskonstruktionen:
EN ISO 13920 A / E
Ers. f.
CAD
Bl.
Urspr.
1
Benennung
1:20
Datum
R
HSM GmbH & Co.KG
88699 Frickingen
V-Press 1160 plus
07.03.2016
Material Nr.
Oberflaechen-
angaben:
DIN ISO 1302
Darstellung
Schweissnaht:
DIN EN 22553
Bearb.
Name
1
Name
Maßstab
Schutzvermerk nach DIN ISO 16016 beachten
KG
Gewicht
Oberfläche
m²
2403,0
2985
Transporthöhe
2140
1568
R
1562
1195
Breite Einfüllöffnung
ca.
300
ca. 400
1115
Einfüllhöhe
650
Einfüllöffnung
1 : 15
Pos.-Nr. Menge Materialnummer Benennung
1 1 Pressplatte kpl.
2 1 Presskasten kpl.
3 1 Schiebetür kpl.
4 1
Hydraulikaggregat 4,0kW
3x230/400V 50Hz
5 1 Ballenauswerfer kpl
6 1
Ballenentnahmetuer mit
Schiebetür vorm.
7 1 Handradverschluss kpl M30
8 1 6144150080 Zsb. Abdeckung
9 1 6150010040 Halteblech Schaltkasten
10 1 6408180012 Schaltschrank BPG3 Var.2
11 1 6144190140 Presszylinder kpl.
Toute communication ou reproduktion de ce document, toute exploitation ou communication de son contenu sont interdites, sauf autorisation expresse. Tout manequement à cette règle est illicite et expose son auteur au versement de dommages et intérêts. Tous nos droits sont réservés pour le cas de la délivrance d'un brevet ou celui de l'enregistrement d'un modèle d'utilité.
Copying of this document, and giving it to othners and the use or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design.
Weitergabe sowie Verfielfaeltigung dieses Dokuments, Verwendung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdruecklich gestattet. Zuwiderhandlungen verpflichten zu Schadensersatz. Alle Rechte fuer den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.
B
C
D
E
F
B
D
E
F
C
A
1234678
4
678
5
5
100000144437
Datum
07.03.2016
Zust.
A2
Zeichnungs Nr.
Gepr.
Werkstoff
Blatt
Erstellt
KSE
Ers. d.
6144184
KSE
Änderung
Allgemeintoleranz
bearbeitete Flaechen:
ISO 2768 T1 m / T2 K
Schweisskonstruktionen:
EN ISO 13920 A / E
Ers. f.
CAD
Bl.
Urspr.
1
Benennung
1:20
Datum
R
HSM GmbH & Co.KG
88699 Frickingen
V-Press 1160 plus
07.03.2016
Material Nr.
Oberflaechen-
angaben:
DIN ISO 1302
Darstellung
Schweissnaht:
DIN EN 22553
Bearb.
Name
1
Name
Maßstab
Schutzvermerk nach DIN ISO 16016 beachten
KG
Gewicht
Oberfläche
m²
2403,0
2985
Dimensions and space requirement
HSM V-Press 1160 plus
Required entire depth incl. swing
range of the pressing door: 3000 mm
Ceiling height min. 3000 mm
Please note the projections!
All technical data and dimensions are approximate values. Technical and design modifications reserved.All technical data and dimensions are approximate values. Technical and design modifications reserved.

2170 mm
1620 mm
1000 kg
Delivery and installation
HSM V-Press 1160 plus
Delivery by truck:
xIs the place of delivery easily to access? c yes c no
If NO – why not?
____________________________________________________
xDo you have to cross a pedestrian zone for the delivery? c yes c no
xHas the truck to go through a gate for the delivery? c yes c no
(Dimensions of the gate: ________)
xIs there a truck loading ramp? (Height: __________) c yes c no
xIs a truck with an liftgate needed? c yes c no
xIs there a forklift truck available? (Lifting power: __________) c yes c no
xIs there a need to deliver without a trailer? c yes c no
xAre there limited delivery hours? c yes c no
Movement to the place of installation:
Is there a stair / a higher ledge on the way to the place of installation?
(an at-grade insertion has to be ensured)
c yes cno
Has the press to be transported with an elevator / a lift?
(loading capacity min. 2.4 t)
c yes c no
Are the dimension of the doors high enough for the movement of the
machine? (dimensions as pictured)
c yes cno
If not: width: _________ height: _________
Is the potential floor loading adequate for the machine?
(floor loading max. = 1000 kg per m², bale weight enclosed)
c yes c no
Is the place of installation with basement?
c yes c no
Is there a ceiling height of in minimum 3 m?
c yes c no
Floor loading max. = 1000 kg per m²
(bale weight enclosed)
Minimum sizes of the doors /
passages
All technical data and dimensions are approximate values. Technical and design modifications reserved.

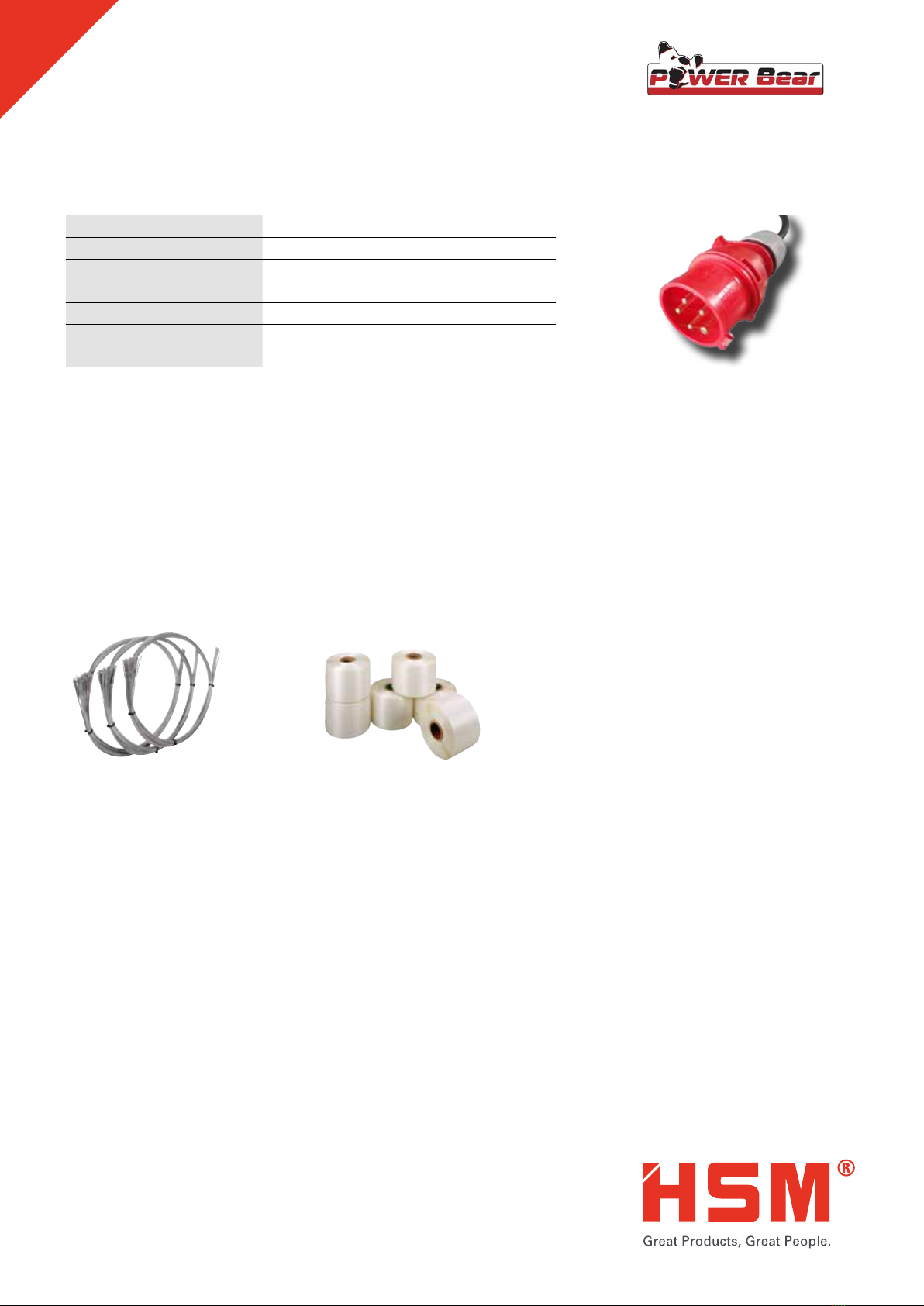

Electrical connection
HSM V-Press 1160 plus
Strapping wire
order number: 6136 993 002
Ø x L = 2.8 x 4400 mm
Rated power 4.0 kW
Operating voltage U 400 V
Frequency 50 Hz
Rated current In 8.5 A
Battery backup 3 x 16 A (K-, C-, gL-characterise)
Connector plug CEE 5 x 16 A 6 H
Length of power supply approx. 3000 mm
Consumable materials
HSM V-Press 1160 plus
Is there an electrical connection with the mentioned values at
the place of installation?
c yes c no
Do you have any questions ?
You can reach us on Phone: [phone], Fax: [phone],
Email: [email protected]
Contact person: ___________________________________________
Telephone: ___________________________________________
Delivery address: ___________________________________________
___________________________________________
Place / Date / Customer signature:
_________________________________________
Strapping tape WG 55
order number: 6514 993 000
(Tape station for strapping with polyester tape
must be ordered separately)
All technical data and dimensions are approximate values. Technical and design modifications reserved.
