PowerBoozt PB PS 1000 User manual

1
USER‘S MANUAL/BEDIENUNGSANLEITUNG
PB PS 1000 - PB PS 1500
www.powerboozt.de

2
CONTENT
1. SAFETY AND HAZARD INFORMATION 3
2. INTRODUCTION 4
3. PANEL FUNCTION DESCRIPTION 4-6
4. OPERATING INSTRUCTIONS AND PRECAUTIONS 7
4.1 HOW TO USE AC 7
4.2 HOW TO OPERATE 7
4.3 HOW TO CHARGE 8
4.4 HOW TO USE DC 12V AND USB 8
5. PRODUCT SPECIFICATION 9
6. ENVIRONMENTAL CONDITIONS 9
7. ELECTRICAL SPECIFICATIONS 10
8. PROTECTION INSTRUCTIONS 11
9. MISUSE AND COUNTERMEASURES 12
10. PACKAGE CONTENT 13
11. TRANSPORT 13
12. WASTE DISPOSAL 13
13. SERVICE AND MAINTENANCE 13
14. CUSTOMER SERVICE / WARRANTY 14

3
1. IMPORTANT SAFETY AND HAZARD INFORMATION
(PLEASE READ COMPLETELY BEFORE USE)
To prevent danger to life and limb and to avoid damage to the device, please observe
the following instructions before using the product.
• Please read this manual carefully to ensure proper use of the Powerstation and to familiarize your-
self with the use of the device and the power supply.
• Keep the Powerstation out of the hands of children, keep the Powerstation in a safe place.
• As there may be voltage up to 250V inside the powerstation, never open the device, there is a risk of
electric shock.
• Since this device generates voltage like a household outlet, be sure to handle it with great care and
caution to prevent life-threatening electric shock.
• Keep the unit away from heat sources or fire.
• Do not use the device in the rain, do not expose it to water or heavy moisture.
• Do not place any objects on the device.
• Make sure that the ventilation slots are not covered during operation, do not put any objects into the
slots.
• Avoid hitting the power station or dropping it.
• Do not use the device if it is damaged externally.
• The power station may only be charged with the supplied power supply units
• Short circuits may occur at the output sockets due to contact with metallic objects, this must be
avoided at all costs, if a short circuit does occur, remove the causes.
• The power station must not be charged at ambient temperatures below 0°C, as this may damage
the lithium battery inside.
• Charge the device every 3 months if it is not used for a longer period of time to avoid deep discharge
and possible damage.
• The seller or the manufacturer are not responsible for any damage to the device or your equipment
caused by improper use of the power supply.
• This manual must always be kept together with the product, please do not throw away the manual,
always give the device only together with the manual, also when selling the product, this manual
must be given along.
WARNING:
The power station must never be used as a mains replacement or feed-in source for
existing electrical systems (e.g. in mobile homes, caravans, mobile homes or houses).
Insert the mains plug of the intended consumer (terminal devices) directly into the
mains socket of the power station, do not use multiple sockets.
Non-observance can lead to non-functioning of the protective measures against shut-
down in the event of a fault and thus to danger to life and limb.

4
2. INTRODUCTION
PowerBoozt PS 1000 & PS1500 is a functional outdoor portable power station, it has safe Lithi-
um-ion battery and inverter conversion technology, with light weight, high capacity, high power
function, to provide portable power solutions, its main function is as below:
• Pure sine wave output
• DC output 12V10A; USB*4; QC3.0
• LCD smart display screen
• Support solar charging
• Support car charging (need to add an external car charger adapter)
PB PS 1000 & PB PS1500 can be used in series smart products, such as mobile phones, satellite
telephone, digital camera, mobile driver, digital camera, tablet, car start, outdoor illumination,
water pump, post and telecommunications, medical device, and it also can use in these area:
financial, first aid, dig, exploration, military, science, media, tourism, disaster relief, medical
assistance and areas with widespread power shortages.
Please read the user manual carefully before you use, and please save it with the pur-
chase certificate for future reference.

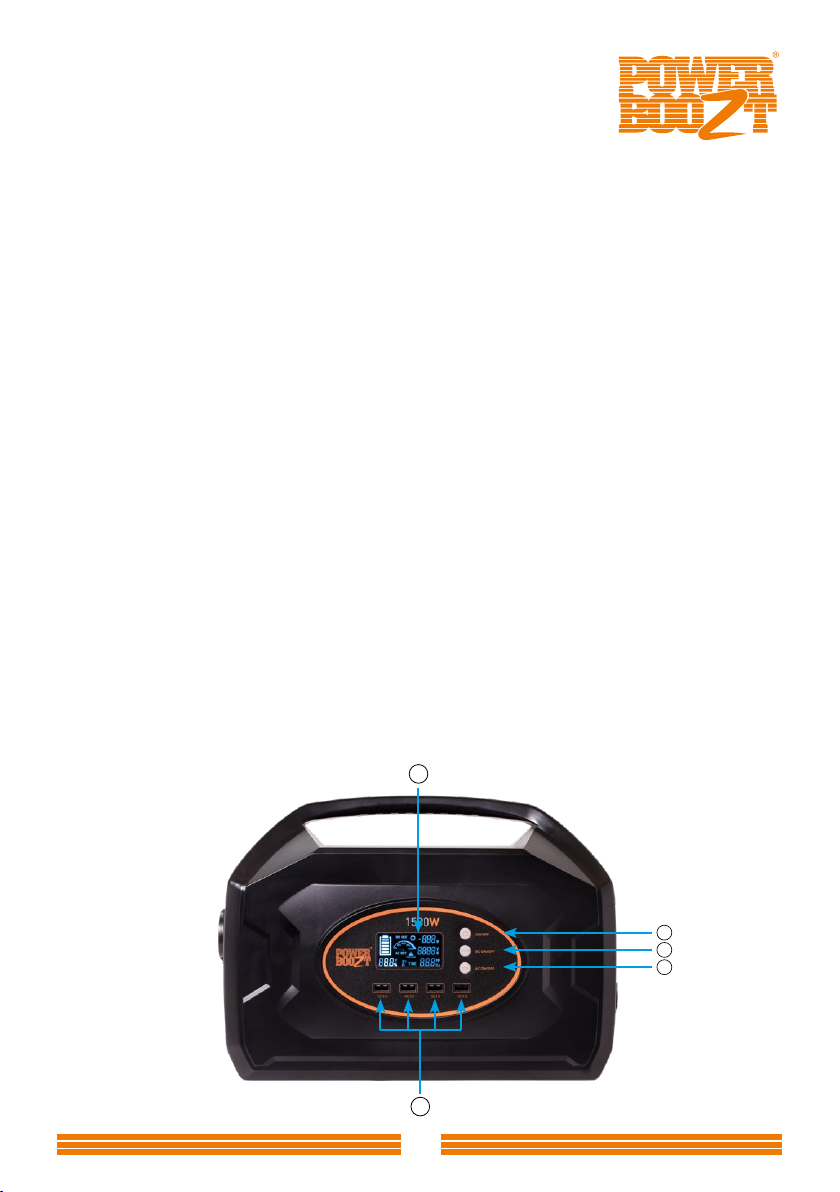

3. PANEL FUNCTION DESCRIPTION
1
2
3
4
5

5
1.) Power Switch Slightly press the power switch to initialize the dynamic percentage dis-
play, the full screen will light up and resume normal after 1 second.
At the same time, the brightness of the LCD will be 100%. At this time the power station is
on, lightly press the power switch again, the brightness of LCD will change to 50% (Lightly
press the power switch to adjust the LCD brightness after it is on), and then press and
hold the switch for 1 second to shut down and enter sleep mode.
2.) DC Switch: After the power station on, press and hold the DC switch for 1 second, the
USB and 12V output will be on, at the same time, the LCD screen shows the battery per-
centage, DC discharge time (h) DC discharge power, DC OUT symbol(shown as Display_1).
After DC output on, press the DC switch and hold 1 second, the USB and 12V output shut
down. After powering on, lightly press DC switch, switch the real-time battery percentage
/Battery real-time voltage mode.

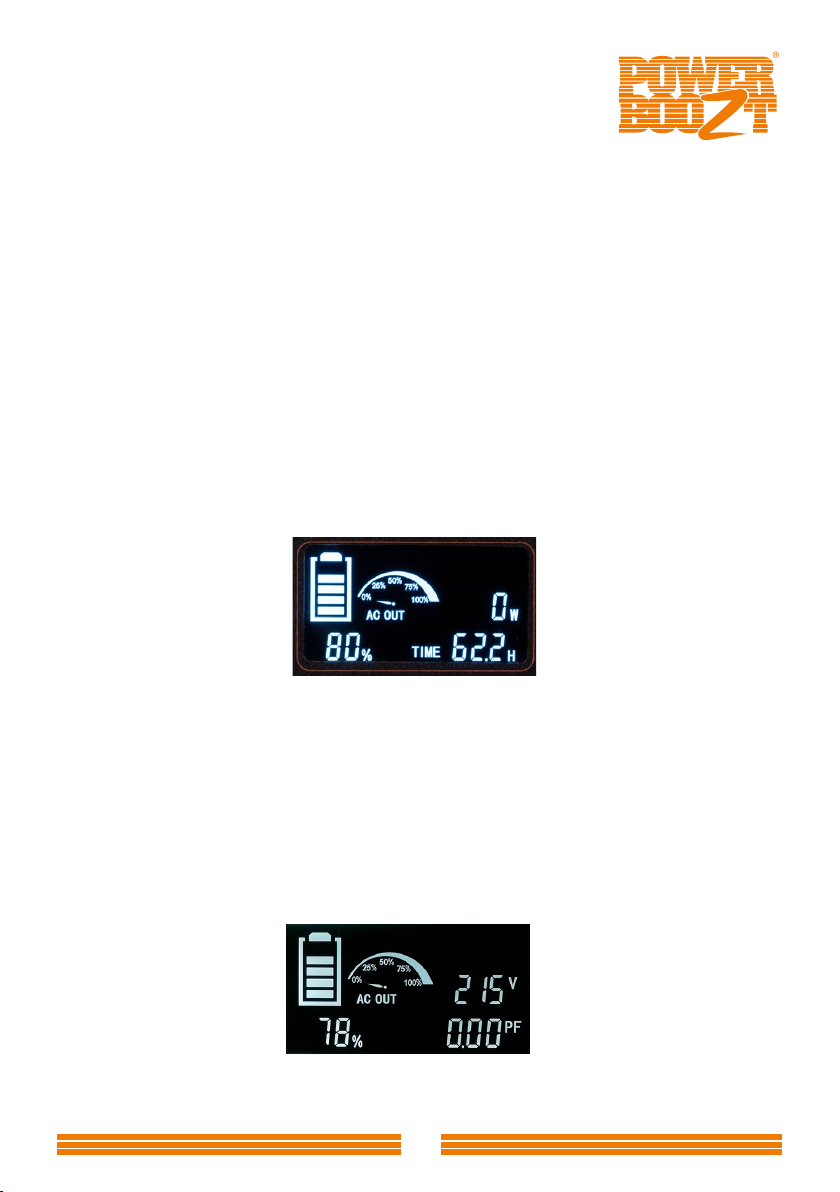

Display_1
3.) AC Switch: After powering on, press the AC switch and hold 1 second, the AC output will
be on, at the same time the LCD screen shows battery capacity percentage / battery
voltage, AC discharge time (H) AC discharge power, AC output power percentage “AC
OUT” symbol (shown as Display_2). After AC output is on, press the AC switch and hold
1 second, the AC output will shut down After AC output on, lightly press the AC switch to
switch AC discharge power + AC discharge time / AC discharge voltage + PF value mode
(shown as picture Display_3)
Display_2

6
Display_3
4.) LCD smart display screen
5.) USB Output port: When DC switch is on, it can supply USB device.
AC output DC output Discharging
Charging
warning
Percentage of AC load power
Percentage of battery
voltage and volume Temperature warning Time PF number/ discharging time/
charging time
Power of charging
and discharging
AC power/DC voltage
Overload warning
6
7 8 10
9
6.) Cooling fan outlet
7.) DC output: 16MF two core aviation connector (1 is positive 2 is negative)
When DC switch turn on, it can supply power to DC appliance (12V 10A)
8.) DC input: 16MF 4 core aviation connector (1,2 is positive; 3,4 is negative)
When the power station need to charge, you can use the power adapter to connect to the
16MF 4 core aviation connector. (IN 29.4 - 40V 10A)
9.) AC output socket x 2: When AC turn on, you can use the appliance to connect to
the AC socket .
10.) Cooling air inlet

7
4. OPERATING INSTRUCTIONS AND PRECAUTIONS
To make sure safety transportation, when you receive the power station, the power station is under
low capacity status, please charge the power station to full capacity before you use.
If you want fast charge, please use our standard original power adapter to charge it, or use 36V
200~300W solar panel to charge it. To make sure safety, please use our standard charger, when PO-
WERBOOZT-PS1500 is full charge, please disconnect the charger.
4.1 HOW TO USE AC
Please note the following below before using:
1. Please make sure the input voltage and frequency is same as PS 1000 & PS1500
2. Please make sure the appliance rated power is lower than 1000W (PS 1000) / 1500W
(PS1500), it is better that don’t over 80% rated power.
* If you violate these, the charger may damage or out of work.
* If your appliance power higher than 1000W (PS 1000) / 1500W (PS1500), please choose
other higher power portable power station.
Remark: Because when some appliances turn on, its consumption power is higher than the
rated power, such as sensitive load device start up current normally is 3-8 times than its rated
power, Energy-saving lamps start up power is dozens of times than its rated power, if their start
up power is higher than the emergency power station’s peak power, it will trigger the over load
protection, and shut down the power station. The PS1500 is with over load, short circuit, over
temperature protection.
When the following happens, PS 1000/PS1500 will stop output to protect the appliance:
1. When the appliance load power is higher than the power station rated power.
2. AC output or appliance circuit
3. The internal temperature of power station is too high
4. The internal battery voltage is too low
4.2 HOW TO USE OPERATE
Step 1: Lightly press “ON/OFF” ,after the power is on, press “AC ON/OFF” and hold for 1 second,
at this time, the AC output is on.
Step 2: Check whether the load input voltage and frequency correspond.
Step 3: Check the load power and make sure it does not exceed the amount of this power supply.
Step 4: Plug the device into this AC outlet and turn on the load switch
Step 5: After using the power station, please lightly press
the ON/OFF to shut down.
Step 6: If the power of the power supply is exhausted or
insufficient at this time, please charge the power
supply in time for the next use!

8
4.3 HOW TO CHARGE
You can use the following methods to charge the power station:
1. Use our standard power adapter to charge the power station: Please connect the power cord
with the adapter, and connect to the power station input port, then plug to the grid, start to
charge.
NOTES:
1. Our standard power adapter only use in our Powerstation, please don’t use in
other device and keep away from rain.
2. When you use car charge and solar charge, please pay attention to the positive
and negative
3. When the portable power is left unused for a long time, the battery will run out.
Please make sure to charge it every six months.
2. Use solar panel to charge: Use the solar cable to connect to the solar panel, and the other side
connect to the input port, start to charge (Solar panel max voltage can’t over 40V, min voltage
not lower than 29.4V).
3. Use car adapter to charge: when you use car charging, after you start up the car and then just
insert the cigar connector to the car cigar port, the other side connect to the power station
input port. When the car is not on startup status, please don’t use car charge.
+=
4.4 HOW TO USE DC 12V AND USB
DC output 16MF two core aviation connector, press DC switch for 1 second,
DC 12V output turn on, its rated current is 10A,
press DC switch for 1 second, the DC output will turn off.
USB output, press DC switch for 1 second, USB output turn on,
press DC switch for 1 second, USB output turn off.

9
5. PRODUCT SPECIFICATION
6. ENVIRONMENTAL CONDITIONS
Introduction PB PS1000 PB PS1500
Rate Power 1000W 1500W
Peak Power 2000W 3000W
AC Output 2 x AC 230V/50Hz ±5%
Output Waveform Pure sine wave
DC Output DC 12V 10A; 4 x USB
Quick Charge 3.0
Battery Capacity 1028 Wh (25.2V; 40.8Ah) 1512 Wh (25.2V; 60Ah)
Battery Type Lithium-ion
Charging Time 7~ 8 h
Charging by car and solar Car 13V (with Adapter) DC 29,4V/5A; Solar 36V/20A (MAX)
Charging voltage and current AC 80V-260V, 29,4V/9A
Protection Function Over-voltage, low-voltage, over-temperature, overload, AC short
circuit protection
Working Temperature 0°C ~ 45°C (Charge)
-20°C ~ 60°C (Discharge)
Product Dimension L 352 * W 187 * H 260 (mm)
Shell Material UL94-V0; PC+ABS
Net Weight 11.6 kg 12,5 kg
Test Project Specification Unit Remark
Working Temperature 0 ~ 45 °C
Storage Temperature -20 ~ 60 °C
Humidity 45% ~ 85% RH
Cooling type Air-cooled Cooling ≥ 45 °C
Altitude 3000 m
Mean time between failures ≥5000 H

10
7. ELECTRICAL SPECIFICATIONS
Specification Unit
AC Charging
Rated Voltage 100 / 240 V AC
Rated Frequency 50/60 Hz
Input Voltage 29.4 V DC
Input Current ≤ 10 A
Solar Charging
Load Voltage 29.4-40 V DC
Current ≤ 20 A
AC Output
Rated Voltage 230 ±5% V AC
Rated Frequency 50 ±1% Hz
Rated Power 1500 W
Harmonic < 3%
Conversion ≥ 85%
DC Output
USB Voltage 5 ±5% V DC
USB Current, max. 2.0 ±10% A
Aviation Connector Output Voltage 12 ±5% V DC
Aviation Connector Output Current 10 ±10% A
