Powerfix Profi PLS 10 A2 Product information sheet

V 1.0
English.................................................................................................2
Nederlands .......................................................................................18
Deutsch..............................................................................................34

Powerfix PLS 10 A2
2 - English
Contents
1. Intended use...........................................................................................3
2. Package contents ...................................................................................4
3. Technical specifications ...........................................................................5
4. Safety instructions ..................................................................................6
5. Copyright ...............................................................................................9
6. Before you start....................................................................................10
6.1. Mounting.........................................................................................................................10
6.2. Charging the battery ......................................................................................................11
7. Getting started .....................................................................................11
8. 12/24 V car charger cable ....................................................................11
8.1. Replacing the fuse...........................................................................................................12
9. Maintenance / cleaning ........................................................................13
9.1. Servicing..........................................................................................................................13
9.2. Cleaning..........................................................................................................................13
9.3. Storage when not in use.................................................................................................13
10. Troubleshooting .................................................................................14
11. Environmental regulations and disposal information..........................14
11.1. Removing the battery ...................................................................................................14
12. Conformity notes ................................................................................15
13. Warranty and Service Information .....................................................16

Powerfix PLS 10 A2
English - 3
Congratulations!
By purchasing the Powerfix PLS 10 A2 battery LED emitter, hereinafter referred to as the
battery LED emitter, you have opted for a quality product.
The User’s Manual forms part of this product. It contains important information on safety,
usage and disposal. Before using the product, please familiarise yourself with all operating
and safety instructions. Only use the product as described and for the applications given. If
you pass the product on to someone else, make sure to give them all the relevant documents
with it.
1. Intended use
The battery LED emitter is suitable for domestic inside and outside use. The battery LED
emitter is not destined for commercial use. The battery LED emitter must be used with the
stand only; wall-mounting is not permitted. The device fulfils all relevant norms and standards
relating to CE conformity. Any modifications to the battery LED emitter other than
recommended changes by the manufacturer may result in these standards no longer being
met.

Powerfix PLS 10 A2
4 - English
2. Package contents
A 10 W Rechargeable Battery LED Working Light Powerfix PLS 10 A2
B Wall plug battery charger
C 12/24 V car charger cable
D These operating instructions (line-art illustration)

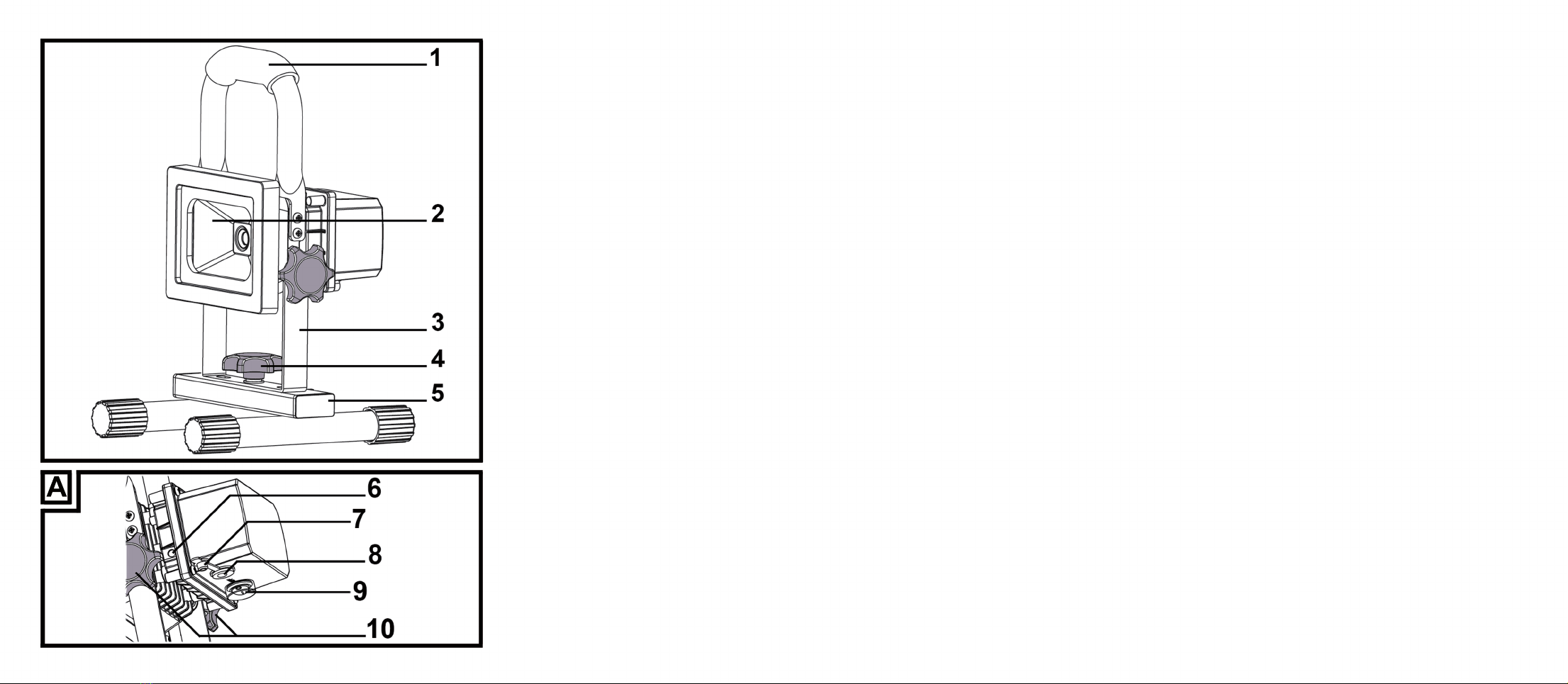

These operating instructions have a fold-out cover. On the inside of the cover is a diagram of
the battery LED emitter with the components numbered. The meanings of the numbers are as
follows:
1 Handle
2 10 W Rechargeable Battery LED Working Light
3 Mounting bracket
4 Knurled screw
5 Stand
6 LED charging indicator
7 Rubber cover (for DC-IN receptacle)
8 DC-IN receptacle
9 On/Off switch
10 Knurled screws

Powerfix PLS 10 A2
English - 5
3. Technical specifications
Battery LED emitter
Brand Powerfix
Model name PLS 10 A2
Operating voltage 12 – 24 V (Direct current)
Rechargeable battery Rechargeable Li-Ion battery 7.4 V / 5200 mAh
Battery charging time approx. 6 hours
Runtime with fully charged battery approx. 3 hours at around 80% of luminous flux
Power consumption
complete battery LED emitter
approx. 10 W
Safety class III, (Extra Low Voltage, ELV)
Degree of protection IP65 (protection against dust and jets of water)
Operating position vertical - emitter at the top, stand (5) at the
bottom
Max. area projected approx. 10m² if set up at 3 metre distance
Luminaire Citizen LED
LED power consumption approx. 8.5 W
Total luminous flux 700 lm +/-5% (with cover / glass window)
Colour temperature approx. 5000 K (neutral white)
Light beam aperture approx. 120°
Operating temperature -10°C to +45°C
Dimensions (W x H x D) approx. 11.4 x 8.6 x 10.5 cm
Weight approx. 1040 g

Powerfix PLS 10 A2
6 - English
Wall plug battery charger
Manufacturer Aurolite Electrical (Panyu Guangzhou) Limited
Model HV-T16VB-12100A
Input voltage 100 - 240 VAC, 50/60 Hz
Output voltage 12 V (Direct current), 1 A, Polarity
Safety class II,
Car charger cable
Manufacturer Powerfix
Model PLS 10 A2
Input voltage 12 V/24 V (Direct current)
Output voltage 12 V/24 V (Direct current), 1 A,
Polarity
Fuse T 3.15 A H 250 V
The technical specifications and design can be changed without prior notice.
4. Safety instructions
Before you use this battery LED emitter (A) for the first time,
please read and comply with these instructions and
warnings, even if you are familiar with handling electronic
devices! Keep these operating instructions in a safe place
for future reference. If you sell the device or give it away,
pass on the operating instructions at the same time. The
User Manual is part of the device.

Powerfix PLS 10 A2
English - 7
DANGER! This symbol and the word
“Danger” alert you to a potentially
dangerous situation. Ignoring it can lead to
severe injury or even death.
WARNING! This symbol and the word
“Warning” denote important information
required for the safe operation of the battery
LED emitter (A) and for the safety of its users.
The power adapter is only suitable for use in
dry inside spaces.
Short-circuit protected, sealed safety
transformer
Safety extra-low voltage with special
protection against electric shock
Independent operating device for use outside
lights without additional cover
CAUTION! Electrical devices are not suitable for
children. Do not allow children to play with electrical
devices when not under supervision. Children may not

Powerfix PLS 10 A2
8 - English
understand that they can be dangerous. Keep the
packaging materials out of the reach of children.
There is a risk of suffocation.
CAUTION! LED Radiation! Avoid damage to your
eyes! Never look into the LED beam. If you suspect
you have damaged your eyes, seek medical
attention.
CAUTION! If you notice any smoke, unusual noises
or strange smells, switch the battery LED emitter off
immediately. If this occurs, do not continue to use it
and have it checked out by an expert. Never inhale
smoke from a possible device fire. If you do
inadvertently inhale smoke, seek medical attention.
Smoke inhalation can be damaging to your health.
CAUTION! Never use optical instruments such as a
magnifying glass to look directly into the beam. This
could damage your eyes. If you suspect you have
damaged your eyes, seek medical attention.
