Powerfix KH 3322 User manual

KOMPERNASS GMBH · BURGSTRASSE 21 · D-44867 BOCHUM
www.kompernass.com
ID-Nr.: KH3322-05/08-V3
MULTIMETER
MULTIMETER
Operating instructions
VEČNAMENSKI MERILNIK
Navodila za uporabo
MULTIMETAR
Upute za upotrebu
KH 3322
C
CV_KH3322_BN23558_LB4c 26.08.2008 15:02 Uhr Seite 1

D
j
h
g
f
s
a
o
i
u
q
w
e
r
t
k
y
A
B
d
C
KH 3322
CV_KH3322_BN23558_LB4c 26.08.2008 15:02 Uhr Seite 4

- 3 -
INDEX PAGE
Introduction 6
Meaning of the symbols on the device . . . . . . . . . . . . . . . . . . . .6
Regarding these instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Device features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety instructions 8
Consequences of an electrical shock . . . . . . . . . . . . . . . . . . . .10
Interaction with batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Commissioning 11
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Items supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Inserting the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Preparing measuring leads and sockets for use . . . . . . . . . . . .12
Preparing the temperature sensor . . . . . . . . . . . . . . . . . . . . . . .12
Description of the appliance 13

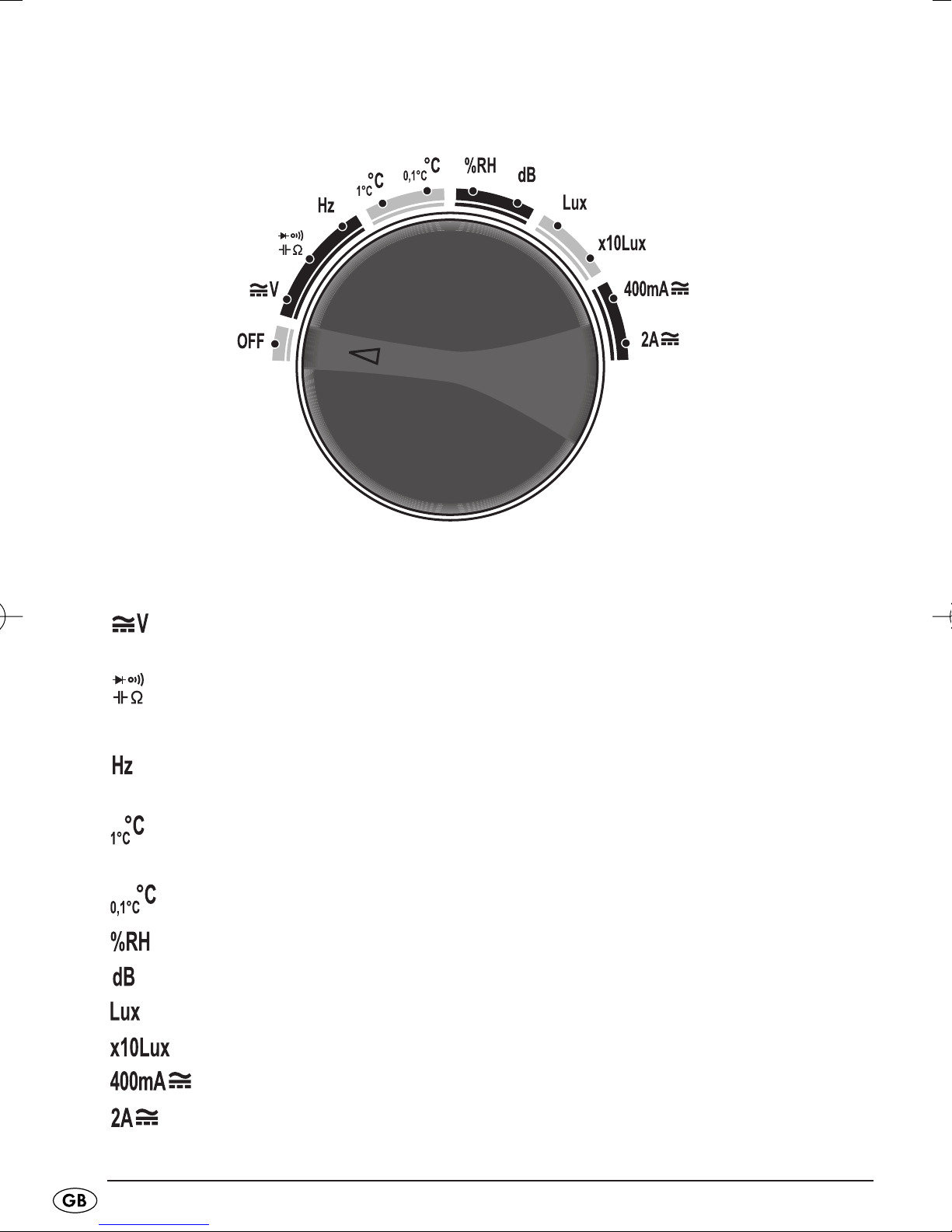

Measurement functions of the function switch . . . . . . . . . . . . . .14
Utilisation 15
Switching the multimeter on and off . . . . . . . . . . . . . . . . . . . . .15
Display for weak battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 3

- 4 -
Display functions 16

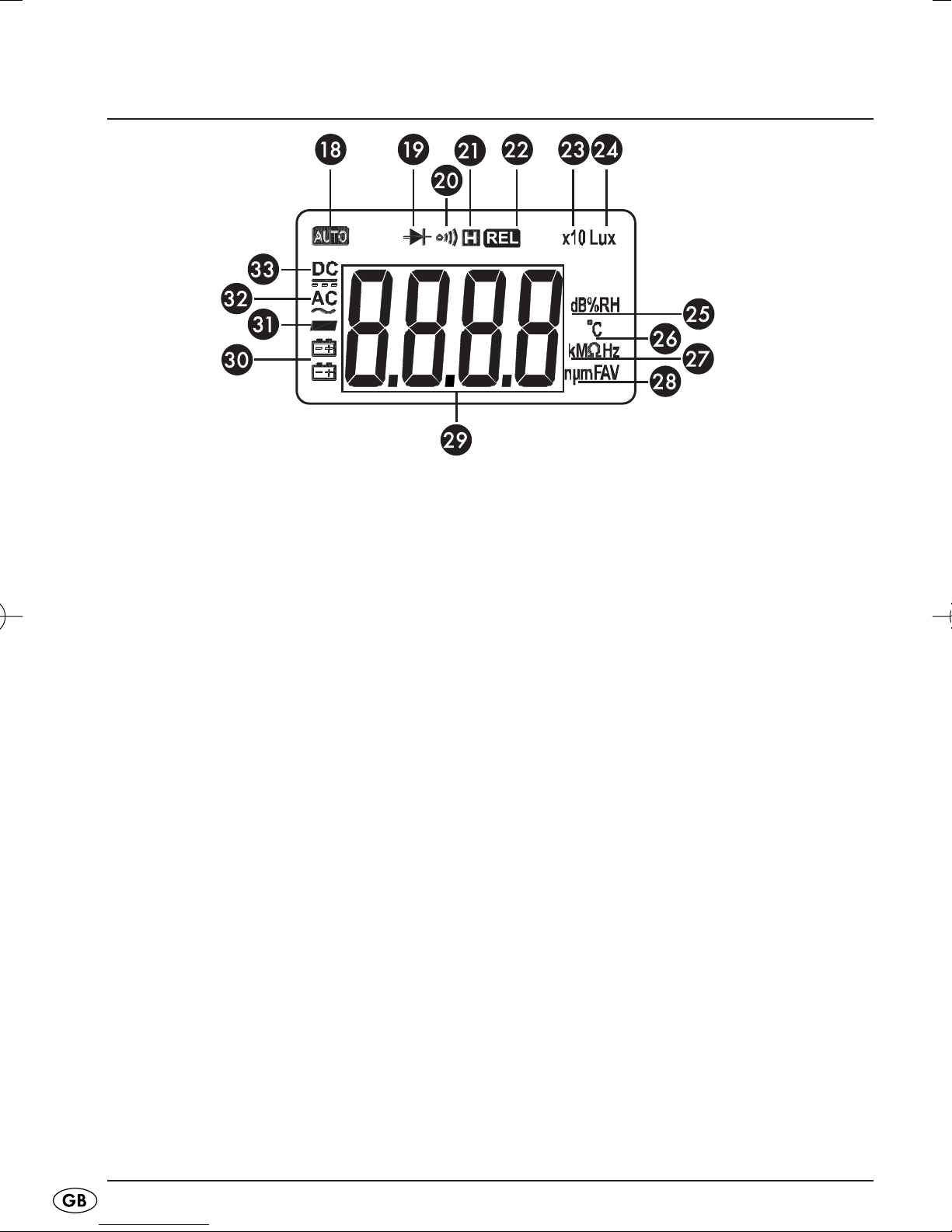

Indicators on the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Saving measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Showing a measurement difference . . . . . . . . . . . . . . . . . . . . .17
Switching on the display illumination . . . . . . . . . . . . . . . . . . . .17
Carrying out measurements 18
Important notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Voltage measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Resistance measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Measuring diodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Measuring continuity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Measuring condensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Frequency measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Measuring temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Air humidity measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Sound measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Measuring light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Measuring conductivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Maintenance and Cleaning 31
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Disposal 32
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 4

- 5 -
Technical data 33
Direct current measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Alternating current measurement . . . . . . . . . . . . . . . . . . . . . . . .33
Direct current voltage measurement . . . . . . . . . . . . . . . . . . . . .34
Alternating current voltage measurement . . . . . . . . . . . . . . . . .34
Resistance measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Measuring condensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Frequency measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Impulse range measurement . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Measuring temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Air humidity measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Sound measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Measuring light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
General technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Warranty and Service 38
Importer 39
Read the operating instructions carefully before using the appliance for
the first time and preserve this booklet for later reference. Pass this
manual on to whoever might acquire the appliance at a later date.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 5

- 6 -
MULTIMETER KH3322
Introduction
Meaning of the symbols on the device
Warning about an area of risk
Earthing
Regarding these instructions
Should this product be used in a manner that is not described here, under
certain circumstances its built-in safety protections could be impaired. Repairs
may only be carried out by the manufacturer, his Customer Service or a
similarly qualified person.
Intended Use
This multimeter is a multiple measuring device for the measurement of electrical
voltages, currents, resistances and condensors, and also for measuring light,
sound and temperature. This device has been built and tested in accordance
with the safety regulations for electronic measurement devices. This multimeter
is a valuable aid for hobby electronic engineers. Its utilisation presumes the
existence of a basic knowledge of electrotechnical and measurement-technical
matters.
This device is intended for measurements on electrical circuits that are con-
nected directly to the power network (measurement device of the category
CAT II). This device is intended for use only in domestic environments, not
for commercial purposes.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 6

- 7 -
Device features
4-figure digital display, max. value: 3999
Manual and automatic selection of the measurement conclusion
Retention of the measured value
Voltage measurements up to 600 V ~and
Electrical current intensity measurements up to 2 A ~and
Resistance measurements up to 40 MΩ
Continuity test
Diode test
Condensor test up to 200 µF
Frequency measurements up to 200 kHz
Impulse breadth measurement
Temperature measurement from -20°C to 1000°C
Sound level measurement from 40 dB to 100 dB
Light measurement from 4000 to 40000 Lux
Air humidity measurement from 30% to 90% RH
(Relative Humidity)
Overload protection
Automatic polarity function
Automatic switch-off
If the switched-on multimeter is not used for approx. 15 minutes, notice is
given of the pending automatic switch-off by the sounding of several signal
tones. After these, the display extinguishes and the multimeter switches itself
off. To switch the device back on, first of all place the function switch at the
position OFF and then at a measurement function.
You can also switch the device back on by pressing the button FUNC. r.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 7

- 8 -
Safety instructions
Warning!
There is a risk of receiving an electric shock or serious injuries if the
following safety instructions are not strictly observed!
• Do NOT use the multimeter if it is damaged in any way.
• Before use, inspect the multimeter for cracks or broken-off plastic parts.
Thereby, inspect especially carefully the insulation in the area of the
connections.
• Additionally, inspect also the measuring leads  with regard to
damaged insulation. Damaged measuring leads MUST be replaced
before using the appliance.
• Do not use the multimeter in localities subject to explosive gases, vapours
or dust.
• NEVER subject the connections to a voltage that exceeds the nominal
voltages detailed on the multimeter.
• Check the functional capability of the multimeter before use by measuring
a known voltage.
• Before taking an electrical measurement, switch off the power supply
to the object to be measured BEFORE connecting the multimeter to it.
Ensure that the multimeter is switched in series.
Warning!
Exercise especial caution when working with more than 30 V alternating
voltage eff., 42 V peak or 60 V direct voltage. Such voltages carry the
risk of an electric shock!
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 8

- 9 -
• First connect a measuring lead to the earth and THEN the other measuring
lead to the live wire. When disconnecting the measuring leads , di-
sconnect first of all the lead connected to the live wire.
• When working with the measurement prods, keep your fingertips
BEHIND the finger protectors on the prods.
• Before opening the battery compartment cover, remove the measuring
leads  from the multimeter.
• Do not use the multimeter if the battery compartment cover or parts of
the housing are not assembled or have become loose.
• To avoid incorrect measurement values, which could lead to electric
shocks or injuries, replace the batteries as soon as the indicator for
weak batteries ( ) resp. drained batteries ( ) is displayed.
• For the power supply of the multimeter use exclusively 9 V block batteries
of the type 6F22/6LR61 and insert them into the battery compartment
correctly.
Caution!
To avoid damage to the multimeter and/or the object being tested, pay
heed to the following instructions:
• Before continuity, diode, frequency and resistance measurements, switch
off the power supply to the object being tested and discharge all high-
voltage condensors.
• For current measurements, switch off the power supply to the object
being tested before connecting the multimeter to it.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 9

- 10 -
Consequences of an electrical shock
The risk level from an electrical current is dependant, amongst other factors,
on the voltage (U), resistance (R), current (I), duration of the current effect,
type of current (direct or alternating current), the route of the current through the
body and the frequency of the current. As an example, the following table
details the consequences of an electric shock with alternating current.
Consequences of an electric shock by an alternating current:
Interaction with batteries
Risk of explosion!
Do not throw batteries into a fire. Do not recharge the batteries.
Current
strength
Physiological Effects
< 0,5 mA Electrification not perceptible; perceivable with the tongue from approx. 45 µA
> 0,5 - 15 Tingling perceptible; From approx. 10–15 mA the release limit is reached
(adherence, clinging)
> 15 - 25 Paroxysmal contractions of the hand and arm musculature, breathing difficul-
ties, rise in blood pressure
25 – 30 Critical, due to the impact variations - body resistance (esp. skin resistance)
decreases, amperage increases
>25 - 50 Muscle contractions, severe increase in blood pressure and interference with
the heart
> 50 to several
hundred mA
decisive is the duration of the influence, the risk of ventricular fibrillation and
cardiac standstill
Ampère range Damage through large local temperature increases, destruction and pulping
of tissue, bursting of red blood corpuscles
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 10

- 11 -
• Never open batteries, never solder or weld batteries. The risk of
explosions and injuries exists!
• Regularly check the condition of the batteries. Leaking batteries can
cause damage to the appliance.
• If you do not intend to use the appliance for an extended period,
remove the batteries.
• If the batteries have leaked, to avoid the risk of injury through chemical
burns put on a pair of protective gloves before removing the batteries.
• Clean the battery compartment and the battery contacts with a dry
cloth.
Commissioning
Unpacking
• Take the multimeter and all of its ancillaries out of the packaging.
• Remove all transportation fasteners and tapes/foils.
Items supplied
Before puting the appliance into use, check that all items are present and
free of visible damage.
• Digital Multimeter
• 2 Measuring leads (red and black) with measurement prods
• 2 Measuring leads (red and black) with measurement plugs
• 1 Temperature sensor with a yellow plug
• 1 Red adaptor for the temperature sensor
• 1 Battery, 9 V, Type 6F22
• these Operating Instructions
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 11

- 12 -
Inserting the batteries
• Separate the multimeter from the measuring circuit and switch it off.
• Before opening the battery compartment cover, remove the measuring
leads  from the multimeter.
• Open the battery compartment by loosening the two crosshead
screws at the rear and then removing the battery compartment cover u.
• Connect the poles of the 9 V battery, with regard to the polarity, to the
press fasteners in the battery compartment .
• Carefully reclose the battery compartment cover uand then retighten
the two crosshead screws.
Preparing measuring leads and sockets for use
• Before use, remove the protective caps from the measurement prods
and plugs on the measuring leads .
• Preserve the protective caps and refit them if you do not intend to use
the device for an extended period.
Preparing the temperature sensor
• Insert the yellow plug of the temperature sensor onto the red adaptor.
Thereby, ensure that the positive pole (+) of the yellow plug is connected
to the positive pole (+) of the red adaptor, and that the negative pole (-) of
the yellow plug is connected to the negative pole (-) of the red adaptor.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 12

- 13 -
Description of the appliance
1Sensor for air humidity measurements
2Sensor for light measurements
3Sensor for sound measurements
4Button LIGHT
5Button REL
6Fold-out stand
7Socket VΩ , positive
8 Socket COM, negative
9Socket mA °C
0Socket 2A
qFunction switch
wButton Hz/DUTY
eButton RANGE
rButton FUNC.
tButton HOLD
zDisplay
uBattery compartment cover
Measuring leads with measurement prods
Temperature sensor (on the red adaptor)
Measuring leads with measurement plugs
Battery compartment (on the rear)
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 13

- 14 -
Measurement functions of the function switch
OFF Deactivate the multimeter
Voltage measurement
Diode test, continuity test, condensor and resistance
measurements
Frequency measurement
Temperature measurement in degrees
Temperature measurement in tenths of degrees
Air humidity measurement
Sound measurement
Light measurement in Lux
Light measurement in Lux x 10
Measurement of electric current intensity up to 400 mA
Measurement of electric current intensity up to 2 A
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 14

- 15 -
Utilisation
Switching the multimeter on and off
• The multimeter is switched on by moving the function switch qto a me-
asuring function position.
• To switch the multimeter off, move the function switch qback into the
position OFF.
Display for weak battery
Should the battery symbol ( ) be indicated in the lower left corner of the
display z, this indicates that the battery is weak and must be replaced.
Note:
Should both battery symbols y( ) be exhibited in the display, false
measurement results will be given due to feeble battery performance.
Warning!
Replace the battery as soon as the battery symbols y( ) or ( )
are indicated, this will avoid both false measurements and the possible
occurrence of an electric shock or an injury.
Caution!
If the device is not to be used for an extended period, the battery must be
removed to avoid potential damage caused by it possibly leaking.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 15

- 16 -
Display functions
iIndicator for automatic measurement range selection
oIndicator for diode testing
pIndicator for continuity testing
aIndicator for retained measurement values
sIndicator for measurement difference
dIndicator for light measurement in Lux x 10
fIndicator for light measurement in Lux
gIndicator for sound (dB) and air humidity measurements (%RH)
hIndicator for temperature measurements
jIndicator for resistance (k, M, Ω) and frequency measurements (Hz)
kIndicator for condenser (n-, µ-F), current (A) and voltage
measurements (V)
lNumeric display
yIndicator for weak battery
xIndicator for negative voltage
cIndicator for alternating current
vIndicator for direct current
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 16

- 17 -
Indicators on the Display
The measurement value in the display zis shown to a maximum of four
figures.
A point appears, depending on the measured value, to show the decimal
place.
Saving measured values
• During the course of measurement, press the button HOLD tto retain
the measured value in the display zso that it is available after the me-
asurement.
In the display zthe symbol appears.
• To quit the HOLD indicator, press the button HOLD tonce again.
Showing a measurement difference
• During the course of measurement, press the button REL 5.
In the display zthe indicator REL appears.
• The last measured value is, as a reference value, reset to nil and in the
display zappears the current measured value as a difference to the
measured value.
• If the current measured value corresponds with the reference value, in
the display z0.0 is shown.
• To quit the REL indicator, press the button REL 5once again.
Switching on the display illumination
• Press the button LIGHT 4to switch on the background illumination of
the display zfor approx. 5 seconds.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 17

- 18 -
Carrying out measurements
Important notices
• Always remove the measuring leads  from the object being tested
before switching over to a new function or a different area of measure-
ment.
• The device may only be used in a dry and clean environment. Dirt and
moisture diminish the insulation resistances and this could, especially
with large voltages, lead to you receiving an electric shock.
• The device may only be utilised within the given measurement ranges.
• Before being taken into use, the device must be tested for correct func-
tioning (e.g. on a known current or voltage source).
• Steps are to be taken to ensure that the measuring leads  are in a
faultless condition.
• For voltage measurements use exclusively the input sockets VΩ
7and COM 8and, for measurement of electrical current intensity,
exclusively the sockets COM 8 and 2A 0resp. COM 8 and mA °C 9.
• Connect the measuring leads  correctly and appropriate to their
polarity.
• The device has an automatic polarity function.
• If the object being tested is not correctly connected to the multimeter
with the regard to polarity, the indicated measurement value is preceded by
a minus sign.
• With component measurements, the component being tested may not be
located within a switching, as this would falsify the measurement results.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 18

- 19 -
Voltage measurement
Warning!
NO MORE than 600 V ~resp. 600 V may be fed in at the input sockets.
Should this limit be exceeded, there is a risk of both damaging the device
and an imperilment of the user.
Caution
Disconnect the measurement prods from the object being tested before
selecting a different area of measurement. Otherwise, the device could
be damaged.
• Place the function switch qat the position .
The indicator for direct voltage measurement appears.
Press the button FUNC.rto switch between
either direct current or alternating current measurement .
• Insert the measuring leads  into the input sok-
kets VΩ 7and COM 8.
• Connect the measurement prods with the object being tested.
The measured value is shown in the display z, depending on the voltage
size and the measurement conclusion, in Millivolt (mV) or Volt (V).
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 19

- 20 -
Adjusting the measurement conclusion
• Press the button RANGE eonce to switch from the automatic to the
manual measurement conclusion.
The indicator AUTO extinguishes.
• Press the button RANGE eonce again to show the various measurement
conclusions, one after the other. Subject to the fed voltage, the display
of the measurement conclusions begins with one of the following indicator
formats:
-> Measured value in Millivolt (mV) with one decimal place
-> Measured value in Volt (V) with three decimal places
-> Measured value in Volt (V) with two decimal places
-> Measured value in Volt (V) with one decimal place
-> Measured value in Volt (V) without decimal places
After this, the display of measurement conclusions starts again from the
beginning.
• To switch back to automatic measurement conclusions, hold the button
RANGE epressed down for approx. 2 seconds.
Note:
If the indicator OL appears in the display z, the measured value is located
outside of the measurement conclusion. In this case, enter in a higher measure-
ment conclusion. With open measurement prods and an automatic measure-
ment conclusion, a vacillating measurement conclusion appears in the mV
range, resulting from the high input sensitivity. During the actual measure-
ment a stable and correct indication is given.
IB_KH3322_Bn23558_LB4c 26.08.2008 14:57 Uhr Seite 20
