PowerInMotion MOTIONHeat User manual

Thank you for choosing MOTIONHeat battery-operated heated glove liners. Your high
performance heated glove liners have been designed to provide you with warmth where and
when you need it, whatever the weather.
Our unique heating system uses thin carbon fiber wires that are extremely efficient in
generating heat from a low voltage source. These nonmetallic fiber bundles are sewn into your
heated glove liners to provide warmth to your hands.
Enjoy, and stay warm!
Power In Motion
176, 200 Barclay Parade S.W.
Calgary, Alberta T2P 4R5
Canada
Phone: [phone]
email: [email protected]
website: www.PowerInMotion.ca
Canadian online store: ca.ItsElectric.ca
USA online store: us.ItsElectric.ca
MOTIONHeat glove liners can be custom ordered with various contents, although will be
typically include:
•One pair of heated glove liners
•Two 12v Li-ion batteries
•One 12v one Amp dual connector battery charger
•One “Stickman” wire harness
THANK YOU FOR YOUR PURCHASE
PACKAGED CONTENTS

STEP 1: CONNECT THE BATTERIES
STEP 1: CONNECT THE BATTERIESSTEP 1: CONNECT THE BATTERIES
STEP 1: CONNECT THE BATTERIES
MOTIONHeat glove liners are flexible and can be powered from batteries placed inside the
glove liner pockets, from batteries placed on the body (using “stickman” wireset or
MOTIONHeat heated vest or heated belt). Or from an external 12v power source. The follow
diagrams illustrate how to connect your batteries.
Option 1 : Batteries Placed in Glove Liner Pockets
1. Open the zipper pocket and
extract the connector
2. Connect battery to the connector
3. Insert the battery into the
pocket
4. Tuck the wire inside the pocket,
zip up the pocket
TIP!
USING YOUR HEATED LINERS

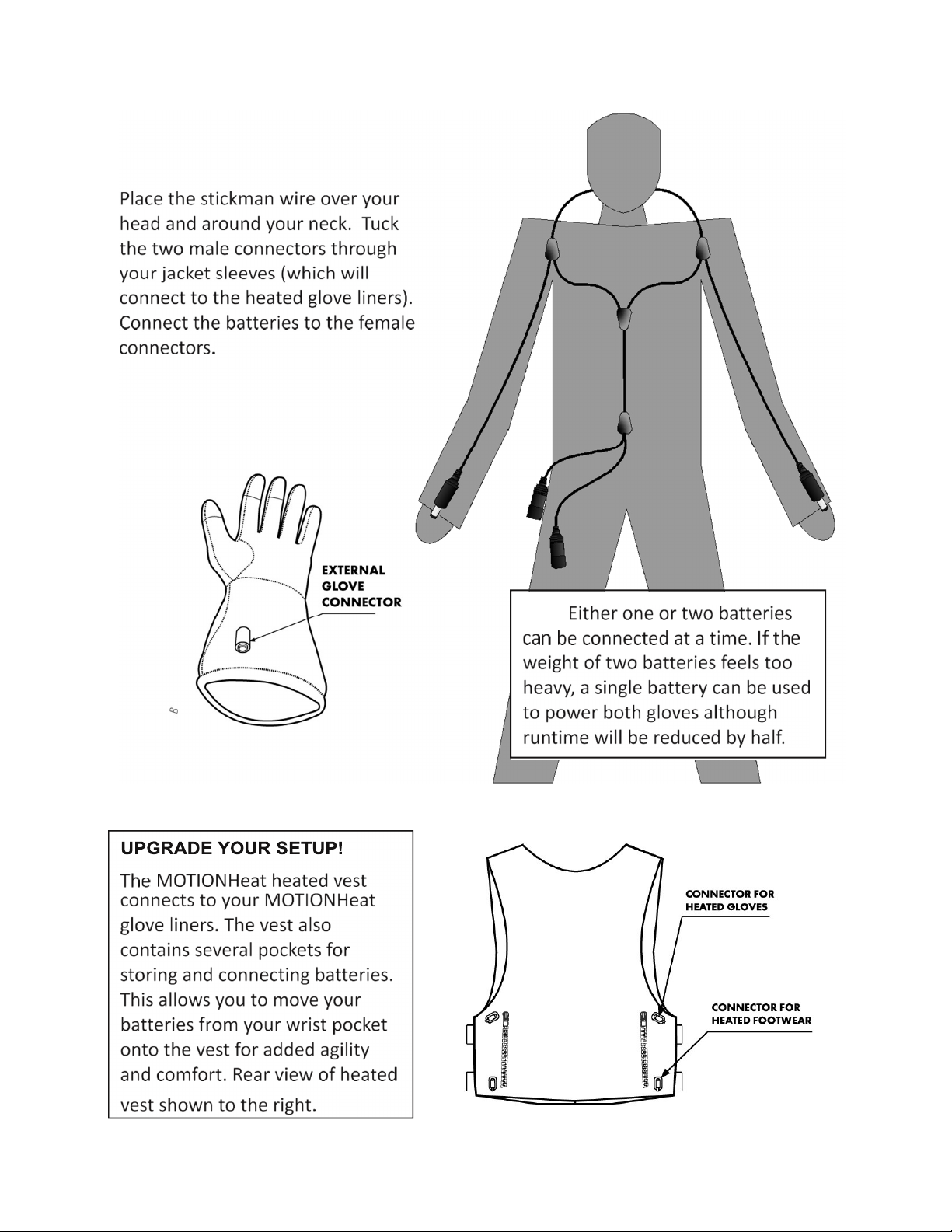

Option 2: Batteries
Connected via
"Stickman" wireset
TIP!

STEP 2
STEP 2STEP 2
STEP 2:
: :
: TURN GLOVE LINERS ON/OFF
TURN GLOVE LINERS ON/OFFTURN GLOVE LINERS ON/OFF
TURN GLOVE LINERS ON/OFF
To turn the gloves ON, press and hold the
power button for 1 – 2 seconds until the
power button illuminates.
To Turn the gloves OFF, press and hold the
power button for 1 – 2 seconds until the
button turns off.
STEP 3: ADJUST HEAT LEVEL
STEP 3: ADJUST HEAT LEVELSTEP 3: ADJUST HEAT LEVEL
STEP 3: ADJUST HEAT LEVEL
When you first turn-on, it will go direct to Pre-Heat. It will run for 5 minutes, it will blink while in
this stage. After 5 minutes, it will automatically switch back to high setting.
Click the button to toggle to a different heat setting. Each glove liner has three heat settings.
Ensure to adjust your heat setting to the desired level after turning on your gloves. The glove
liners will start in the Pre-Heat setting after being turned on.
Click on the button to
change setting
Battery
Indicator:
High
50 – 55c (122f)
Red
TIP!
The battery life will
change depending
on the heat setting of
your heated glove
liner. After your
hands are warmed
up. Reduce the heat
setting to low to
extend battery life.
Med
40 – 45c (104f)
Blue
Please notice the button
contains the percentage
of the battery remaining.
This will inform you how
much battery percentage
you have remaining.
Low
30 – 35c (86f)
Green

STEP 4: CHARGE BATTERIES
STEP 4: CHARGE BATTERIESSTEP 4: CHARGE BATTERIES
STEP 4: CHARGE BATTERIES
Connect the charger unit to the battery connector and plug the charger into the wall outlet. If your
battery is fully discharged, it will take up to 5 hours to charge both batteries. If you charge only one
battery at a time, it will take half of the typical charge time. The light on the charger will be red
when the battery are charging, and green when they are fully charged. The charger is a smart
charger, so it will not over charge the batteries. However, it is not a good idea to leave the charger
plugged into the battery for weeks or months.
External Power Adapters (12v)
The MOTIONHeat glove liners can be powered from external 12v power sources.
The images shown below detail the various wiring adapters available (sold
separately). These adapters can be used for application such as:
• Car charger/adapter (power source from 12v lighter socket, can be use as
charger, but also be uses for running the gloves without batteries )
• Motorcycle (power source from SAE trailer connector)
• Snowmobile (power source from RCA jack)
• Motorcycle (power source from 3/8” eyelet connector)
HEATED GLOVE ACCESSORIES

International Chargers Options
We offer chargers for different countries, which can run 110v or 240v as listed
below:
North
America European United Kingdom Australia
Battery Options
For users who desire a more compact battery, or for those who desire higher temperatures, we
offer the following additional battery options. Please note that the 16v battery does not fit within
the cuff, and must be worn in conjunction with the “Stickman” wire set or MOTIONHeat vest, or
heated belt.
Battery size vs weight and maximum temperature
B a tt e r y S i z e 1 2v 900mAh
(58 x 45 x 23
cm)
12v 2600mAh
(58 x 75 x 23
cm)
16v 2600mAh
(76 x 75 x 23
cm)
W e i ght P e r B a tt e r y 86g / 0. 1 65lb 1 54g / 0. 345lb 204g / 0. 455lb
M a x i m u m
T e m p e r a t u r e
50°c / 1 22°f 50°c / 1 22°f 65°c / 1 49°f
Battery size vs heat setting, temperature, and runtime
B a tt e r y S i z e 1 2v 2600mAh
H ea t S e tt i n g high med low
Temperature (°C/°F) 55 / 1
31
45 / 1 1
3
35 / 95
R un t i m e ( h r s ) 2. 5 3. 5 7. 25

Off Season Storage
When winter is over and you no longer need to use your heated glove liners, remove
the battery from the cuff, fully charge the batteries, and place the batteries in a cool,
dry area. It is VERY important to charge the batteries before storing for long periods
of time. Failing to charge the batteries before storing can SEVERELY decrease the
capacity of the batteries.
Care and Washing Guide
IMPORTANT! The battery pack must never get wet. To avoid damaging your heated glove liners,
before washing you MUST remove the battery pack from the glove liners.
Your heated glove liners must be HAND WASHED separately in cold water with mild detergent.
HANG DRY with battery inputs facing downwards allowing any water to drain.
Hand
Wash
Dry
Flat
Do Not
Bleach
Do Not
Dry Clean
Do Not
Iron
IMPORTANT – DON’T get wet
The heating system, including the battery pack is not designed to be used underwater. If the glove
liners get very wet during use (such as heavy rain, heavy perspiration, or soaked outer gloves),
detach the battery pack and do not use until the glove liners are fully dry. In addition, the battery
back must never be immersed in water, as this will cause electrical faults. Keep all electrical parts
dry.
MAINTAINING YOUR HEATED LINERS

Things That You Should NOT Do:
The heating system has been designed for safe and reliable use. DO
NOT replace or interfere with the electrical components in the heated
glove liners or the battery pack.
It is safe to use the heated gloves to heat other body parts such as
chest, back, etc. However, do not fall asleep while using the glove
liners.
Our heated glove liners were designed to provide a tight fit and are
made from Spandex. The heated glove liners should be used with
other external gloves for protection. If the heated glove liners are
used without other external gloves, they may be more easily
damaged.
Do not leave the heated glove liners ON if they are unattended.
When the heated glove liners are not in use for long periods of time,
or when transporting the heated glove liners (e.g. in a bag, purse,
backpack, of suitcase), the batteries should be disconnected from the
liners.
As a safety precaution, do not leave the heated glove liners turned on
near highly flammable materials.
To reduce the risk of injury, always unplug the charger and remove the
battery pack from the heated gloves before performing any maintenance.
Never disassemble the heated gloves, battery pack, or charger. Contact
Power In Motion or its dealers for all repairs.
To reduce the risk of personal injury and damage, disconnect and remove
the battery pack from the battery pocket before washing. Never immerse
your battery pack or charger in liquid or allow liquid to flow inside them.
If the heated gloves do not operate properly with a fully charged battery
pack, clean the contacts on the battery pack. If the heated gloves still do
not work properly, return the heated gloves, charger, and battery pack to
Power In Motion or its dealers for all repairs.
Do not use the battery pack if it has become wet. Keep the batteries away
from fire and other heat sources to avoid the risk of explosion. Always keep
the battery pack out of reach of children.
WARNINGS

If your heated gloves are packed in your luggage, and the battery have
NOT been disconnected, then the pressure of other items in the luggage
could push the buttons and turn on the glove liners from inside your
luggage.
Avoid stacking item on top of your heated liners during storage. The
pressure and weight of other gear could push the buttons and cause the
liners to turn on without your knowledge.
When the liners are stored in an enclosed compartment that may bounce or
move (backpack, hand bag, or vehicle compartments) the movement may
cause adjacent objects to turn on the heated gloves if the batteries are still
connected. Always disconnect the batteries after use.
Many electronic devices can interfere with avalanche transceiver beacons.
This include metallic foil, headlamps, cameras, cell phones, GPS, which
also include heated gloves. As a rule of thumb, you should keep your
electronics at least 50cm (20 inches) from your avalanche transceiver when
in searching mode. For safety reason, TURN OFF the heated gloves when
you are wearing a transceiver beacon, or entering into avalanche terrain.
WARNINGS: Avoid Accid ntal Turn
Avoid Accid ntal TurnAvoid Accid ntal Turn
Avoid Accid ntal Turn-
--
-On/
On/ On/
On/ Int rf r
Int rf rInt rf r
Int rf r s
ss
s with
with with
with
b acons
b aconsb acons
b acons

RETURN AND EXCHANGE POLICY
Exchange
MOTION
MOTIONMOTION
MOTIONHeat
™
gloves may be exchanged for a different size within 30 days from the date of purchase provide that the
gloves were never used. Customer’s exchange glove can’t have any damage or altered look to gloves. No exchanges
will be accepted for gloves if these conditions are not met.
Return and Refund
MOTION
MOTIONMOTION
MOTIONHeat
™
gloves can be returned and refunded (must be within 30 days) when the following conditions are met:
•Gloves are in new condition and was never used
•Customer’s return glove can’t have any damage or altered look to gloves and its components
•Package cardboard tag had not been removed from the glove
Refund will include complete set of glove, shipping cost (if applicable) and tax.
Return shipping cost will paid by customers.
WARRANTY or RETURN FORM
Complete this form and send item via tracked package to:
Power In Motion
176, 200 Barclay Parade S.W.
Calgary, Alberta
Canada T2P 4R5
Today’s Date : _____________
Contact Information
First Name: Last Name:
Daytime Phone: Evening Phone:
Email Address:
Order Information
Date of Purchase: Sales#:
Shipping information
Street Address:
City: State/Province:
Country: Postal Code:
Product Information
Product Name: Qty:
RMA Type:
Refund Exchange Repair Other __________________________
Please provide a brief description of the problem:
