Powerline XL2G User manual

INSTRUCTION MANUAL
XL2G Multi-line Laser

2
Please read this instruction manual before operating this product.
Please store this instruction manual in the carry case for future reference.
CAUTION: Class 3 Laser Product
Do not stare directly into the laser beam from apertures.
Do not disassemble the instrument or attempt to perform any internal servicing
as this will void your warranty. No user serviceable parts included.
Only approved and authorised service technicians can carry out warranty repairs.
SAFETY

3
Powerline XL2G
Please ensure the following items are included with your laser.
If anything is missing please contact your retailer.
ITEM CHECKLIST
Carry case
Laser glasses
Battery packCharger
Laser targetIndoor tripodDetector and clamp
Tripod spacer
INCHES CM
1
1
2
3
4
5
6
7
2
3
MODE

4
PRODUCT OVERVIEW
Adjustable support legs 360° protractor base
Carry strap
Vertical laser ports (x4)
Horizontal laser ports (x1)
Control panel and bubble vial
Power / locking switch

5

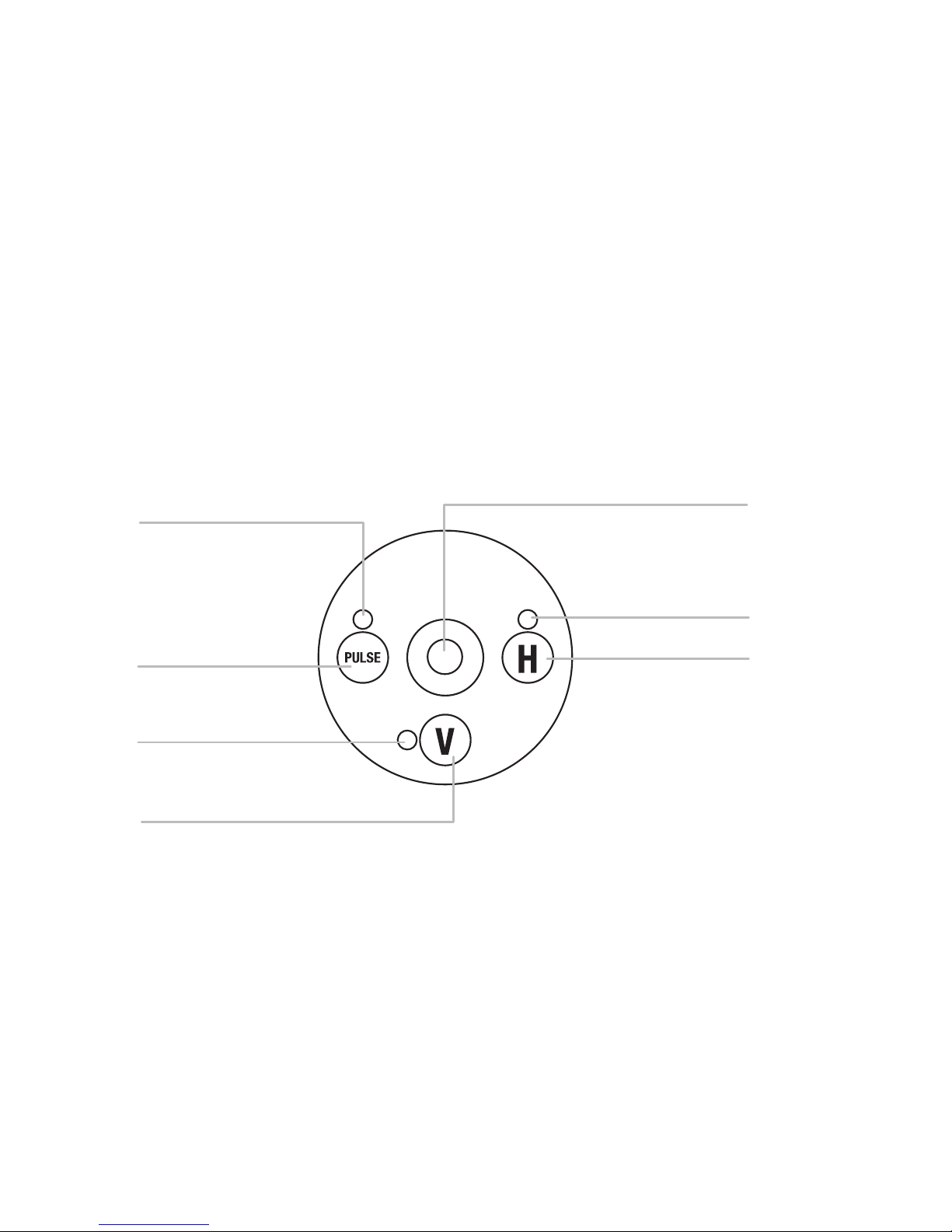

CONTROL PANEL
Bubble vial
Horizontal line
Horizontal line indicator
Pulse mode indicator
Pulse mode
Vertical line indicator
Vertical lines

6
DETECTOR CONTROL PANEL
MODE
Sound on / off
Laser sensor
Power indicator
Coarse / fine mode indicator
Coarse / fine mode
Bubble vial
On/off switch
Direction arrows

7
USING YOUR LASER
Setting Up
Power Supply
Operation
‣Select a place as close as practical to the work site.
Ensure the location is clear of traffic.
‣Place the laser on a level surface such as a bench or mount.
The XL2G is powered by a lithium-ion battery pack. To charge the unit
insert the charger into the port located on the side of the battery pack.
‣Once the unit is approximately level, turn the power switch to
“on” position. Self levelling will commence and the horizontal
beam will appear.
‣If the unit is outside the self levelling range the unit will not
level and the beam will flash repeatedly.
‣Press the Vand Hbutton on the control panel to cycle
through the active beams.

8
USING A CONSTRUCTION TRIPOD
‣Stand the tripod on a level surface with legs spaced for stability.
‣Screw the tripod spacer into the base of the laser until firm.
‣ Push the yoke through the hole of the tripod spacer and screw into place.
See page 9 for illustration.
Instructions are for a domed or flat construction tripod only,
and do not apply when using the indoor tripod supplied.
Please note: attaching a laser to a tripod without
the correct tripod spacer may cause damage.

9
USING A CONSTRUCTION TRIPOD (DIAGRAM)
Tripod yoke
Tripod spacer

10
Using Your Detector
‣Press the pulse button on the control panel on top of the laser to
enter into pulse mode.
‣Switch the detector on and move it into the path of the laser beam.
‣Hold the detector upright for horizontal beams. Rotate the detector 90°
for vertical beams. The direction arrows will indicate the position of the
laser beam. The centre LED will indicate alignment with the beam.
MODE
MODE

11
CARE AND MAINTENANCE
‣Reflective surfaces such as glass may reflect the beam, causing
two beams to strike the detector at the same time. This may
create inaccurate reference points.
‣This is a precision instrument and should always be transported
within the carry case provided.
‣Always turn the unit off before transporting.
‣Whenever possible, store the instrument in a dry, shady location.
‣The XL2G should be calibrated every 6 months, if ongoing accurate
levelling is required or an impact has occurred.
‣The operator should check the XL2G for accuracy before precision
levelling is attempted.
‣Clean the instrument with a dry, soft cloth after use in dusty, damp
or wet conditions before storing.
‣Smudges and fingerprints may be removed with a damp tissue
or a soft, lint-free cloth.

12
WARRANTY
The Powerline XL2G comes with a 6 year manufacturers warranty. The lithium-ion battery
pack supplied comes with a 12 month warranty.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Separate to the above Australia Consumer Law, Spot-on oers a global warranty.

13
Customer Support
To assist you with any queries or technical questions please contact the
customer support line: 1300 658 338
30 Day Free Service
If your laser is out of calibration within the rst 30 days of purchase you
are entitled to a free calibration adjustment. For more information please
contact your retailer or Spot-on.

14
SPECIFICATIONS
Specications Powerline XL2G
Product code 50035
Warranty 6 Years
Accuracy ±0.67mm at 10m
Range 60m (detector)
Levelling range ±5°
Laser class 3 Green
Battery life 5 hours
Battery type Lithium-ion (sealed pack)
Vertical lines 4
Horizontal lines 1
IP rating 65
Weight (kg) 1.50
Dimensions (mm) 210x130x130

15
