PowerOak PS10B User manual

PS10B
Portable Power Station
Operating Manual
Many thanks for buying POWEROAK Portable Power Station.In order to use this product safely, p
lease read this manual carefully; and please safekeep this manual (including letter of guarantee) so
that you can read it any time you need.Please refer and keep the additional detail file together wit
h this manualif it’s offered.
Disobeying safety considerations may cause human injury such as fire hazard or
electric shock, etc.
Note:

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
1
2
3
7
8
9
11
12
15
16
17
18
19
20
21
21
Contents
Packing Confirmation
Preface
Safety Considerations
Name of the parts
Lifting &Handling
AC Charging
Solar Charging
AC Output
Estimated Backup Time
Storage
How to Keep Long Using Life of
Polymer Lithium Battery
Recycle of Lithium ion battery
Malfunction & Maintenance
Product Specification Parameters
Guarantee & After-service
Attachment: Product Guarantee
Charge & discharge simultaneously

1

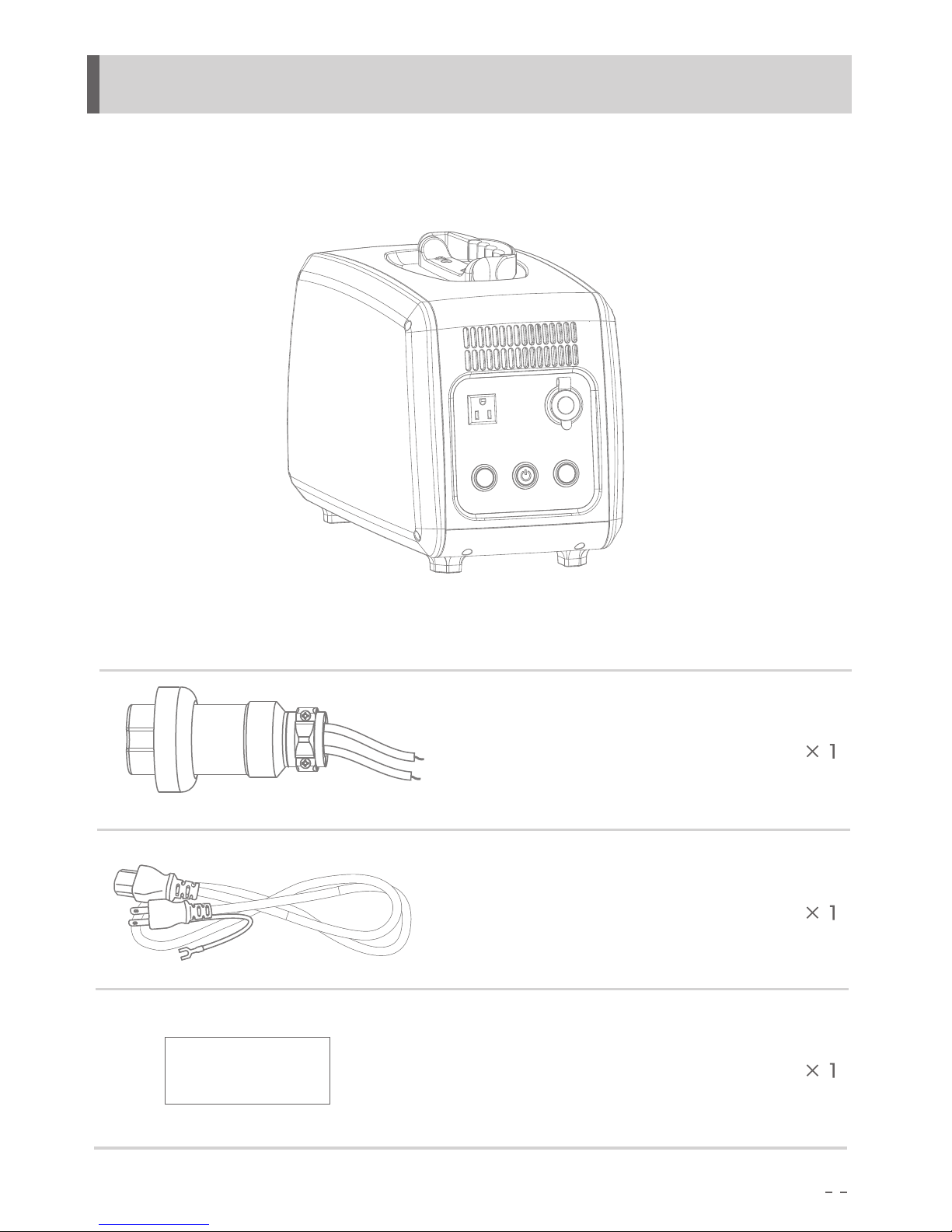

1.The confirmation of products and accessories
Product specifications
and guarantee
Solar Input Plug
AC input Plug

●
●
●
●
●
●
●
●
●
2
2.Preface
Please pay attention to the following content when reading the operating instruction.
Whether the content of the product manual content is changed without information.
In the case that appearance and specifications of some products have changed, whether the
reason of the change informed or not.
We have tried our best to make this manual. Please contact us if any unclear elaboration,
mistake, and omission found.
Except for personal use, this manual is not allowed to copy and reprint.
Disclaimer (For guarantee content please refer to letter of guarantee)
Our company is not liable for the damage caused by fires, earthquakes, thirdparty’s use, or
other accidents, customer’s willful misconduct, misuse, and other abnormal conditions.
Please do not repair the connector failure when using the product.
Letter of guarantee covered all the guarantee content, matters excluded of the guarantee is
beyond our scope of responsibility.
Our company refuses to take responsibility for damages caused by operation that disobey our
operation manual.
Our product is not suitable for equipment that concerns personal safety such as medical equip
ment, Atomic energy equipment, Aerospace equipment, etc, neither is it suitable equipment
that highly dependent on electricity. We refuse to take responsibility for personal safety accid
ents, fire accidents or machine breakdown that caused by applying our product to the equipm
ent mentioned above.

3
3.Safety considerations
Please follow the instructions for safely use.
Display description
Danger indicates that
Warning indicates that
Incorrect operation will very likely to result in death or serious injury.
Notice indicates that
Incorrect operation will lead to the possibility of death or serious injury.
Incorrect operation may result in injury or property damage.
Serious injury: refers to blindness, injury, burns, electric shock, fractures, poisoning t hat
may leadto complications, hospitalization or regular treatment.
Harm: refers to injuries, burns, electric shock that does not need hospitalization or regular
treatment.
Goods damage: refers to damage to houses, family property, and pet, etc.
Symbol indicator
Triangular means attention to fire breakout, fracture, and high temperature,
etc. The picture describes the specific attention content.
Means the behavior is prohibited during the operation of the product. The sp
ecific prohibited behavior is illustrated or described in the picture.
Circle means the behavior that is required during the operation of the produc
t. The specific required behavior is illustrated or described in the picture.
Dangerous
Do not disassemble, repair and reform this product.
It may cause electric shock, fever, fire etc.
Do not put this product close to fire or in fire and heat it
It may cause fire or burn injury.
Do not charge, use and store this product in the bathhouse,rain or the place wit
h dew.
It may cause electric shock,fever,fire etc.
For safe use of PS10B, we pasted notice label, please use the product with reference to the man
ual content and label.
Please do not make the lable on the product dirty or drop off.

4
Dangerous
Do not touch this product and connector socket, when your hands are wet
It may cause electric shock.
BAN
BAN
BAN
Do not connect the metal to AC input and AC output
It may cause electric shock, fever, fire etc
Do not wipe when the liquid inside of this product gets into your eyes.
Please rinse and seek medical advice urgently.It may cause blindness.
Do not disposal this product as a normal waste.
It may cause electric shock, fever, fire etc in dumping ground or waste collector.
Do not connect the AC wire in twice.Do not insert the AC wire to the AC input socket
when it already has connected to AC input socket.
It may cause electric shock, fever, fire etc.
Do not connect the output socket to metallic conductor like distribution wire directly
.(Output socket is connected to AC socket of machine )
It may cause electric shock, fever, fire etc.
Do not use the un-specified AC connector wire
It may cause electric shock, fever, fire etc.
Do not work this product over the rated specification of connector or machine.
It may cause electric shock, fever, fire etc.
Do not attack this product, such as drop it down and hit it by hammer.
It may cause electric shock, fever, fire and product damaged etc.
Please do not use it when it is in a suspended state
It may cause electric shock,fever,fire and product damaged etc.
Please do not move the product when it is in charging or using.
When you move it may happen the following appearance fire or electric
shock and other injuries or damage the product.
Do not store and use this product in the place where easy to fall down(like high shelf)
It may cause electric shock,fever,fire and product damaged etc.

5
Warning
Please keep the place clean where you use or storage the product.
It may cause short circuit, smoke or fire accident if powdered or small metal
object contact the terminal.
Pls check the products before using
When you found the products have damage, rupture, cracks, fever and other
abnormal, stop using it and contact selling shop or our customer service center.
Pls notice when the AC line is damaged.
Do not move AC line.
Do not unplug the AC line from the input port.
Do not let AC line near to heat sources
Do not stampede and pull the AC line.
These are the reason of AC line damage, fire and heat shock.
Do not let children use this product.
It may lead to an accident or injury.
If the plug is loose or deformation pls do not use it,
it may cause shock, over heat and fire.
Pls do not use it in coastal and dusty places,
it may cause smoke and fire.
Pls do not use or storage the product in the following place, in a car, trunk, loading
countertop or high temperatures environment,
it may cause the products deterioration and over heat.
When the liquid inside the product is stained to skin or cloth, please wash and
clean with tap water.
It may lead to skin hurt.
When thundering , please pull out the AC cable from the socket.
When thunder ,big current from the socket may cause heating,fire,or other accidents.
Please do not charge the device beyond AC 100-240V.
It may cause heating, fire,etc.
When using or storing, please do not put the product up-side-down or sidewards.
May cause leak,heating,fire etc accidents.
BAN
BAN
BAN
BAN
BAN
BAN
CAUTION
ENFORCE
ENFORCE
NOTE SENSE
OF POWER
ENFORCE

6
Caution
For unusual conditions such as rusting,rare smell,heating , please stop using the
product Immediately and contact the agent shop or Customer Service Center of
our company.
This product is very heavy, please mind when operation.
It may cause lumbar pain or hurt.
Please do not make the label stuck to the product dirty or fall.
For transportation , the product conforms with all the legal requests about the
dangerous goods.
The capacity of the li-polymer batteries inside this product has exceeded 100WH, whi
ch is the standard set by the UN, when ship this product by air or vessel, it must be acc
ording to IATA standard packaging,instructions, label and fill in the declarations.
Please make the product stable when ship it by automobile.
It may cause product damage , which may cause electric shock,heating,fire etc. accide
nts.
Product must connect to AC ground wire when charging .
Do not make product wet or AC ground wire wet by water or other liquid.
It may cause short-circuit,heating or fire etc.
Please charge,use and keep within the temperature environment of 0〜40°C.
It will cause low efficiency or heating if product used beyond this temperature range.
Please stop using the product immediately if it fall off or stroke by mistake in order
to prevent accident, please contact the seller or our company customer service
center to ask for checking and repairing.
Please read carefully the instructions of electrical facilities you need to connect to.
Please ensure that the facility is turned off before connecting.
Sudden start of the facility may lead to accident or injury.
In case of protection function start and the product sotped, please pluck the elec
trical appliances plug off the AC output socket. Do turn off the power button when
preservation.To prevent unnecessary discharge of the battery, also prevent electric
shock and fever, etc.
BAN
BAN
BAN
ENFORCE
ENFORCE
ENFORCE
ENFORCE
ENFORCE
ENFORCE
ENFORCE
ENFORCE
BAN

DC output button
AC input socket
AC output indicator
Power Button
AC output socket
Solar inputIndicator
DC 12V output socket
Solar input Socket
Capacity Indicator
AC input indicator
AC output button
DC output indicator
7
4.The name of the parts
Handle

8
5.Lifting & Handing
1. Pull The Handle Up 2.Moving by carry handle
Notice
Keep the product away from anything
when moving.
Notice
Hold the handle steady.
3.Placed at smooth surface
Notice
Please put the product at smooth surface.
And indicator be easier to see.
4.Do not placed where unsteady

Capacity
AC OUT DC OUT
DC 12V
DC ONAC ON
AC Output
Plea se tur n the p ower o ff for long perio d no-o perat ion st atus
ACCh arg ing So larCh argi ng
Sol ar in
AC IN
Capacity
AC OUT DC OUT
DC 12V
DC ONAC ON
AC Output
Plea se tur n the p ower o ff for long perio d no-o perat ion st atus
Capacity
AC OUT DC OUT
DC 12V
DC ONAC ON
AC Output
Plea se tur n the p ower o ff for long perio d no-o perat ion st atus
9
6.AC Charging

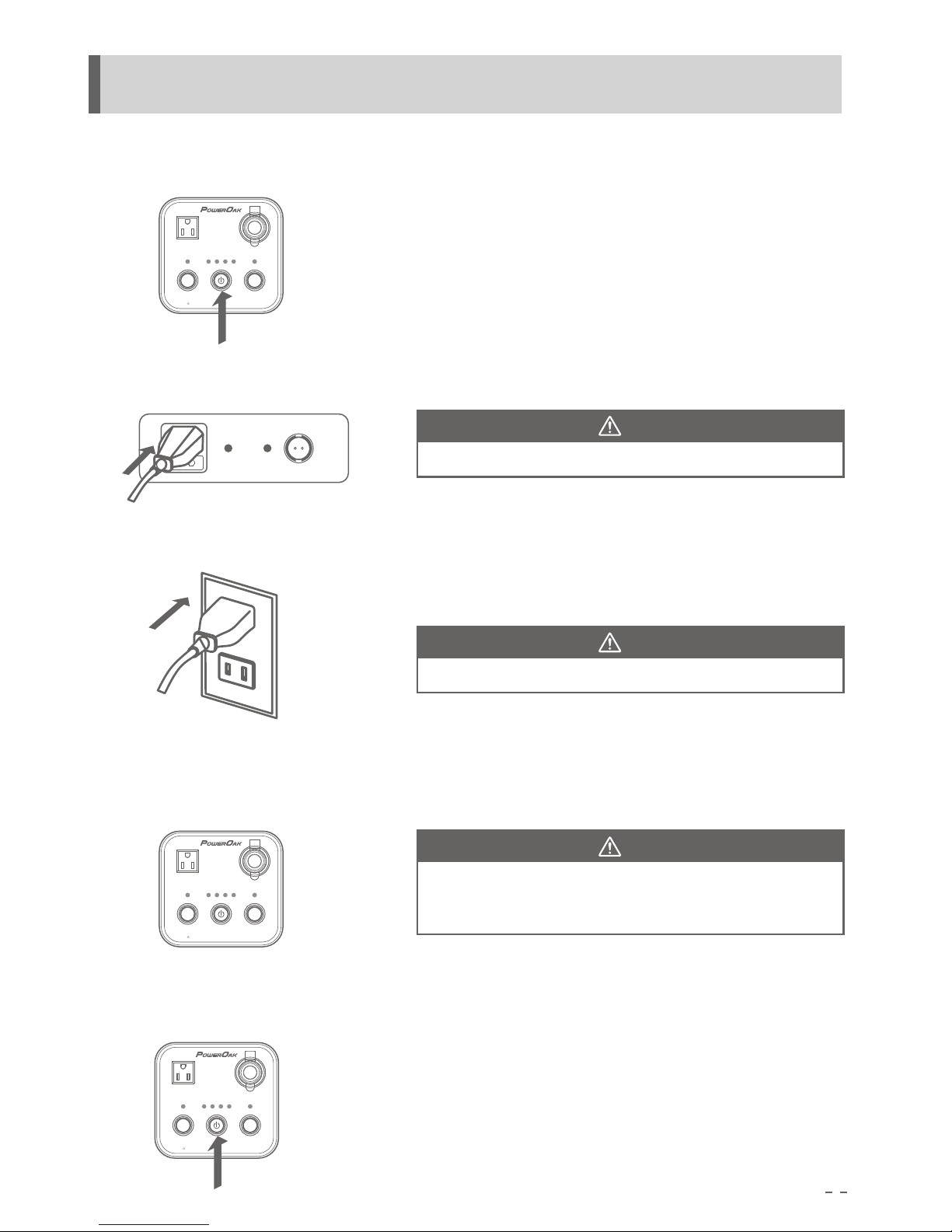

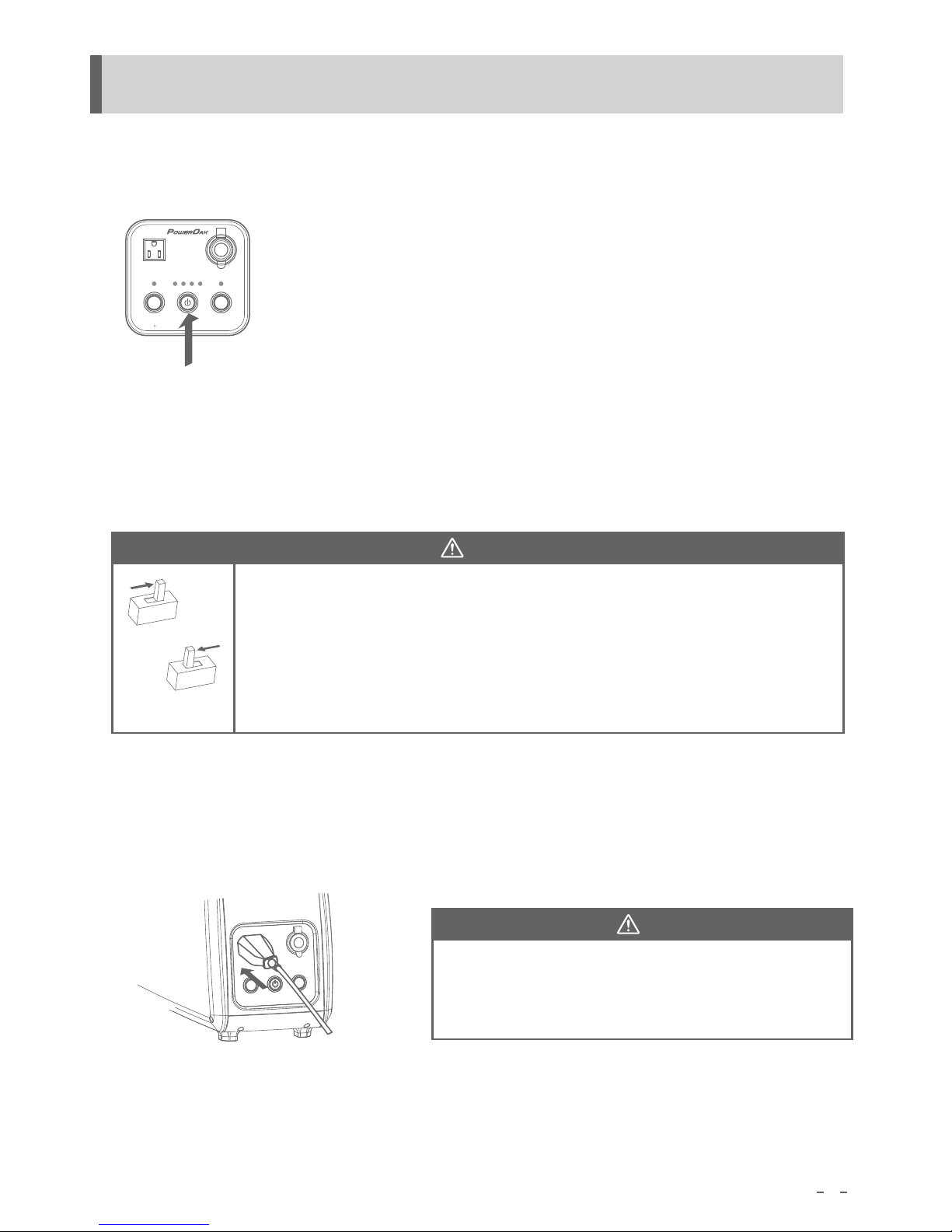

1.Press the power button:Power button indicator lights, also the capacity status is shown.
2.Connect AC cable
Notice
Notice
Notice
Make sure the AC cable plug is inserted into the AC input socket
3.Connect AC cable plug with socket: Please make sure AC cable plug is inserted into the 100V
socket. Capacity indicator flash every 2 seconds, AC input
indicator lights.
Please charge under the temperature 0~40°C
4.After fully charged: 4green indicators will light.
Charging time alters based on ambient temperature or
charger internal state.
5.Press Power on/off button, stop charging: Power off, stop charging, and disconnect
the AC connector of the wire from AC char
ging socket.

11

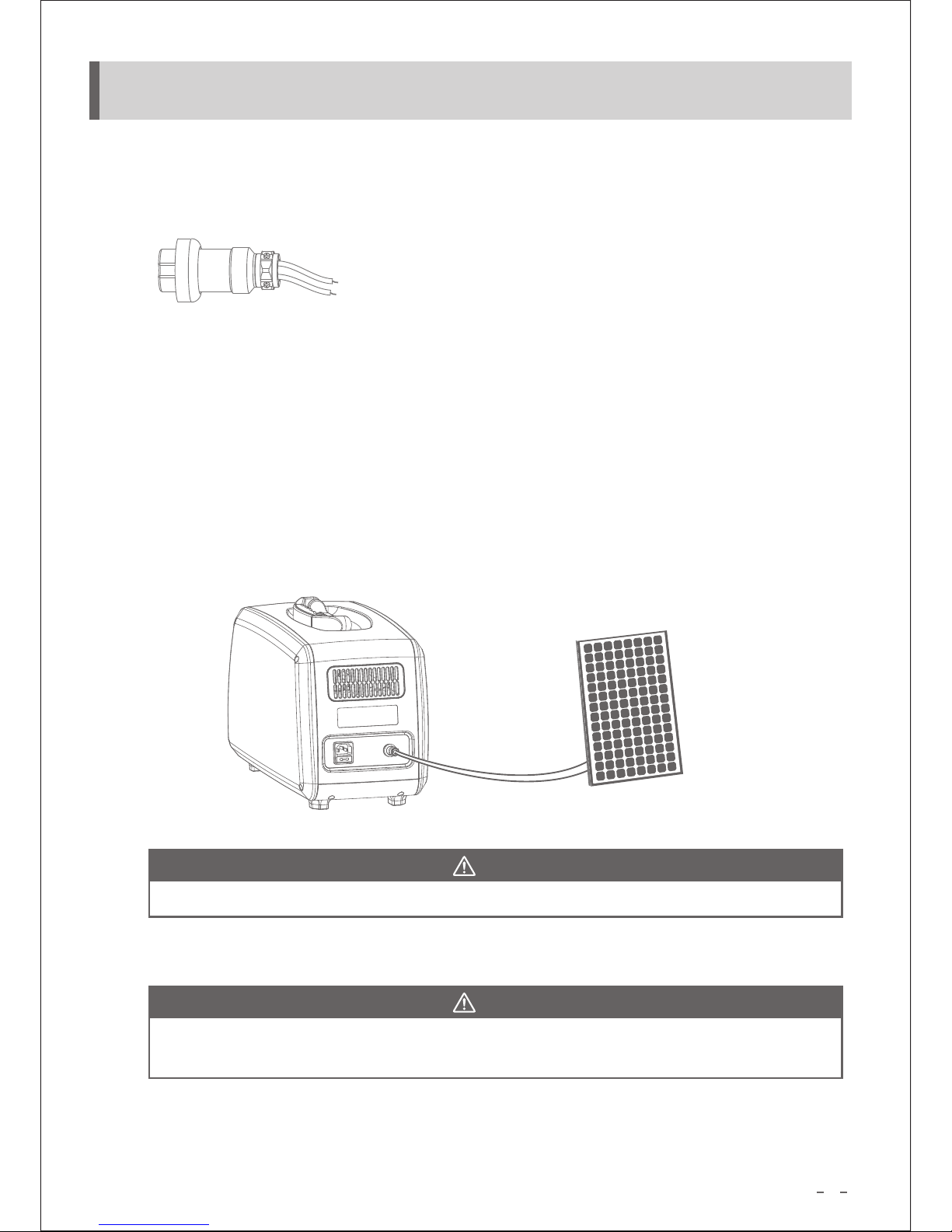

7.Solar Charging
1.Special solar input connector
1# Red wire harness connect to positive pole
2# Black wire harness connect to negative pole
2.Connect the solar panel to solar input connector: Red wire harness connect to positive pole and b
lack wire harness connect to negative pole of solar panel.(attention: solar panel voltage:DC18V-
DC54V)
3.Press power on/off: power indicator lights up and also SOC indicator
4.Plug the solar input connector into solar energy input port: SOC indicator twinkle once a second
,and also solar input indicator light up ,it’s normal case that if with power station heating (chargi
ng ambient temperature: 0~40°C)
Notice
Notice
Please charge under the temperature 0~40°C
5.Fully charged by solar panel: 4 green indicators light up(PV max power 210 watt)
Charging time may be different because of environment temperature or solar charge
r internal factor
6.Power off and stop charging.
unplug solar input connector from solar input port of power station, press the power on/off

1 green on Twinkle per second, charging, SOC 0%~25%
255075100
255075100
255075100
255075100
255075100
10
Green on
Light off
Red on
Red twinkle
Orange on
Orange twinkle
Normal Ac Input
Abnormal Ac Input
AC charging short-circuit protection
AC charging over temp protection
Fan failure
Battery failure
Green on
Light off
Red on
Red twinkle
Orange on
Orange twinkle
Normal Solar Input
Abnormal Solar Input
Solar charging short-circuit protection
Solar charging over temp protection
Fan failure
Battery failure
4 indicators off
Indicator State Indication
Power off, no electric inside
2 green on Twinkle per second, charging, SOC25%~50%
3 green on
4 green on
Twinkle per second, charging, SOC50%~75%
Twinkle per second, charging, SOC75%~100%
4 lights on, charged fully; stop charging
Normal
Need confirmation
AC input
indicator
Solar input
indicator
6.Light indicator

Capacity
AC OUT DC OUT
DC 12V
DC ONAC ON
AC Output
Plea se tur n the p ower o ff for long perio d no-o perat ion st atus
60Hz
50Hz
12
Connect electric appliance to AC output port and che
ck whether well connected(make sure the electric ap
pliance is power off before connecting)
Note
Note
8.AC output
1.Press the on/off button
2.Match the frequency of thee electronic appliance.(50Hz or 60Hz)
Standard frequency : 50Hz . Different frequency may lead to abnormal operati
on of the electronic product, it may also lead to the breakdown of the electroni
c appliance.
Switch frequency: please contact the agent, or please operate with the auth
orization of agent.
Switch method: In power-off mode, open the cover on the left side, and push t
he button of on the inverter to the corresponding frequency.
3.Connect the plug of the electronic product to the AC output port.
Make sure the plug of the electronic product is certainly inserted into the AC output port.

Cap acity
AC OU T DC OU T
DC 12 V
DC ONAC ON
AC Ou tput
Ple ase tu rn the powe r off for l ong p eriod no-o pera tion s tatus
13
4.Using of electrical appliances
Make sure electric appliances is powered off before using
them.
Confirm the battery level according to indicator
1-4 lights during the processing
Usage time is varied due to the ambient temperature or
change of the li-ion battery state.
It’s normal if the product is heat in the output process
Note
Please make sure the electric appliance operate well before using the product.
the max AC load of power consumption for electric appliance is 500 watt.
Due to the different electrical appliances, there are circumstances that it don’t work even if in or le
ss than 500 watt.
Compared with household AC power source (AC 100V), it’s also possible happen that low capacity
at electrical products.
After the product is connected to the radio or video player or TV screen, etc., there might be some
noise.
Please stop using it immediately when repeated output stops, and then contact the retail store or
consult customer service center of our company for help.
5.Stop using the appliance.
Power off: pull out the connector of electric appliance, press power on/off button;
Note
When the product operates more than 12
hours without load, AC output will cut down
automatically to avoid self-consuming of
electronic. Please restart the product when
you use it.
Connect To
Electric Device

6.Discharging SOC indicators
Indicator State
25 50 75 100
25 50 75 100
25 50 75 100
25 50 75 100
Indication
Discharging,SOC75～100%
Discharging,SOC50～75%
Discharging,SOC25～50%
Discharging,SOC0～25%
14
Twinkle between
green and red
Inverter over load, over temp; battery low voltage,
over voltage; fan failure; general alarm if inverter
outputs still.
Red twinkle
Wrong inverter model, no output from inverter: bad
alarm
Cut off load, check if there is over load, short-circuit.
Light off
Abnormal DC12V output.
Green
Output 50Hz
Red Output 60Hz
1 green on
2 green on
3 green on
4 green on
Light on Twinkle Light off
Normal
Abnormal
AC output
indicator
AC output
indicator
DC output
indicator

20W 70hours
50W 28 hours
100W 14hours
200W 7hours
300W 4.5hours
400W 3.5hours
Power consumption Estimated back up time
20Wh
LEDLight
70hours
（32model）
LCD TV
75Wh
18
hours
15
1400
9. Estimated Backup Time
Please ensure the load for power station is no more than 500 watt,matching to
electrical appliances with AC100V(50Hz/60Hz).
Estimated Backup Time
25pieces
5.6
10Wh
Smart Phone
hours
3
Electric Kettle
430Wh
hours
Electric Tool
80Wh
17.5hours
Refrigerator
90Wh
15.5hours
Note
Above data as a reference. we collect the approx values when we develop it with ambient tempera
ture of 25°C and full charged,these values may vary regarding to different electrical appliance man
ufacturer or other else.
It may not work even the load for power station is less than 500 watt depending on different electri
cal appliances.
No output and power off automatically if with overload.
power consumption 10W or less in the case,about 12 hours after the output is
automatically stopped, restart output button, then restart output.
When plasma TV, LCD TV above 41 type, desktop computers started with high power, or load vari
ation appliances, PFC circuit equipped with devices etc., it may not work even the load for power st
ation is less than 500 watt.
Power Consumption
Hours
≈
Model PS10B back up calculation

16
PS10B power station can be discharged while charging
In the condition of charging, it can supply power to electric appliance at the same time.
10.Function of Charging & Discharging Simultaneously
Connect To
Electric Device

Fully charge the power station before long term storage
Fully charge the power bank at least once a year.
2.Shut down all the buttons
After fully charged, pull out AC input connector from AC input port,Shut down on/off buttons
3.Clean
Mop the unclean spot by not dripping duster
Capa city
AC OUT DC OUT
DC 12V
DC ONAC ON
AC Out put
Ple ase tu rn the power off fo r long perio d no- opera tion s tatus
17
10.Storage method
Note
Gasoline, naphtha, diluent, kerosene et
c. have the effect of the soluble resin , p
lease do not use.
Note
4.Storage
Try to storage the power station in dry and less dust environment.
Suitable storage temperature: 0~40°C, avoid direct sunshine .
Please store the product at stable place
1.Full charge
please refer to the content in page 11

18
12.Long Using Life of Polymer Lithium Battery
Charge, discharge and storage at 0~40°C
Using battery with too low or high temperature shorten battery cycle life
Don’t connect the load more than 500W continually
Over load makes PS10B stop discharging automatically and shorten battery cycle life.
Don’t charge battery after it’s fully charged
Pay attention to the SOC indicators, don’t charge battery after be fully charged or finishing fully
charged. Otherwise, it shortens cycle life of lithium battery.
Don’t discharge battery when SOC is 0
PS10B cuts off discharging automatically. But electric device connecting to AC output port shorte
ns cycle life of lithium battery.
Shut it down when no need to use
Wasting the electricity inside the battery is another reason of less cycle life of lithium battery.
Fully charge the product for storage
For long-time no-use state, please keep the product fully charged for storage, and recharge it at
least once a year.
