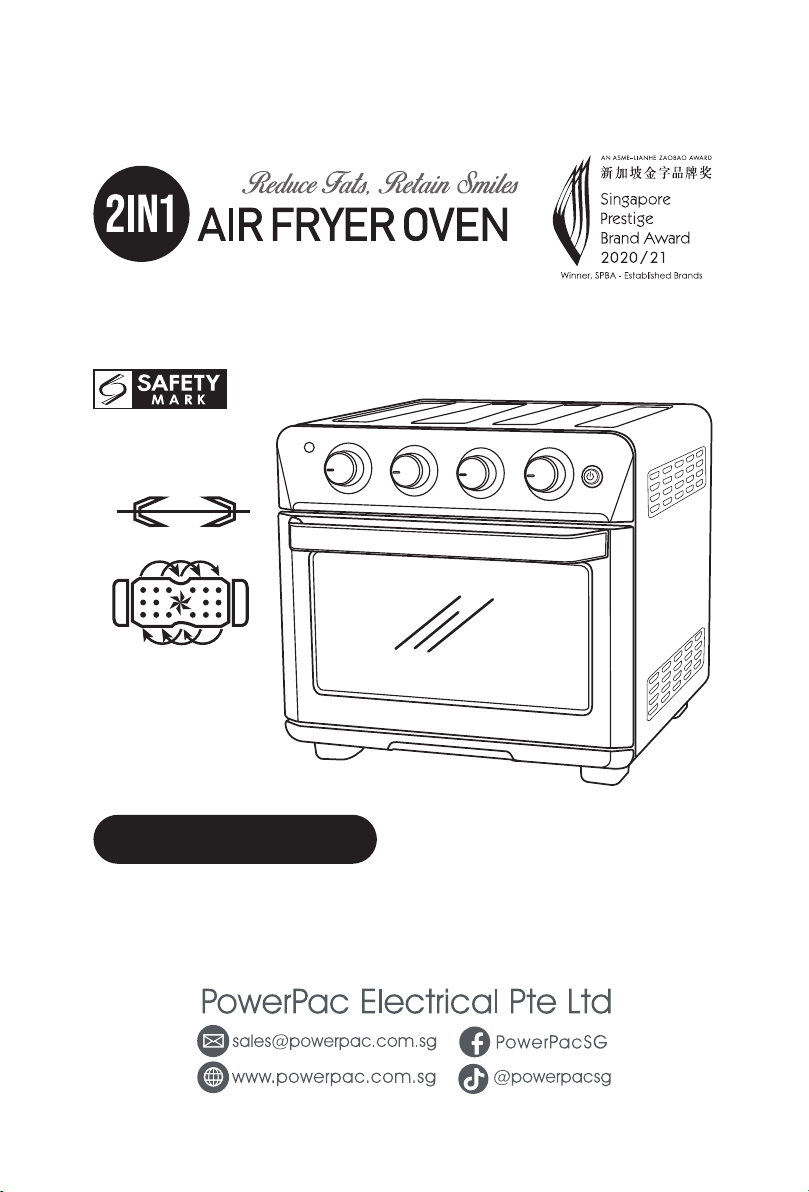

PowerPac PPAF535 User manual

220232-24
Model: PPAF535
25L
COOL TOUCH CONTROL PANEL
& INNER LIGHT INDICATOR
CHIP/ BEAN/ NUT
ROTISSERIE BASKET
ROTISSERIE

PARTS & DESCRIPTION
1. Power Light Lights up when the Main Switch is ON
Sets duration of cooking (max 120 min)
2. Timer Dial
Air Fryer, Broil, Toast, Bake, Dehydrator, Convection
3. Function Dial
Sets temperature of the Air Fryer (100 – 230°C)
4. Air Fryer
Temperature Dial
Sets temperature of the Oven (100 – 230°C)
5. Oven
Temperature Dial
Interior Lamp Button
Micro-switch
Oven Feet
Glass Door
Cool-Touch Handle
Crumb Tray
Rotisserie Handle
Rotisserie Rod
Bake Rack
Air Fryer Basket
Bake Pan
Lights up the interior to view progress of cooking
Shuts off Air Fryer when Glass Door is opened; restores when closed
Made of materials of low thermal conductivity
Crumb Tray slides out from front bottom of oven
To remove the Rotisserie Rod and contents
Food is skewered and the rod rotates
Rotisserie Basket Food is roasted and the Basket rotates
For toasting, baking, grilling and general cooking in casserole dishes
Used in conjunction with Air Fry, Broil or Dehydrate functions
For roasting, baking, and general cooking
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
7
8
9
10
11
12
13
14
15
16
17
1
2 64
53
1

ATTENTION :
Read this booklet carefully as it contains important instructions for a safe installation, use and
maintenance.
Important instructions to be kept for future reference.
The following basic precautions should always be followed when using electrical appliances:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Read all instructions before using the appliance.
The Appliance
This appliance must be used only for the purpose it was expressly designed; any use NOT
complying with the instructions contained in the manual is considered inappropriate and
dangerous. The manufacturer is NOT responsible for possible damages caused by the
inappropriate and/or unreasonable use.
The installation/assembly of the appliance will be made in accordance with the indications
of the manufacturer. A wrong procedure may cause damages to persons, animals or objects,
for which the manufacturer cannot be considered responsible.
Before use, check the integrity of the appliance and power cable. DO NOT operate the
appliance when its housing is damaged. In case you are not sure, contact a qualified person.
If the power cable is damaged, it must be replaced by the manufacturer or its service agent
or a qualified technician in order to avoid a shock hazard.
Before powering the appliance make sure the rating (voltage and frequency) corresponding
to the grid and the socket is suitable for the plug of the appliance, and that the wall socket is
properly grounded. This appliance is fitted with an earth wire for extra safety.
DO NOT power the appliance using multiple sockets. If possible, avoid the use of adapters
and/or extension cables; if their use is absolutely necessary, use only materials in compliance
with the current safety regulations and according to the electrical parameters of the adapters.
The appliance must NOT be switched on using external timers and/or other remote control
appliances which are not specified in this manual.
Only use original components & accessories provided by the manufacturer. Any non-original
component or accessory NOT recommended by the manufacturer (including those made by
other manufacturers or by the same manufacturer but for other models) may cause injuries
to persons or damage to the appliance. Use (and store in the oven when not in use) only the
accessories provided: Bake Pan, Bake Rack, Rotisserie Handle, Rotisserie Rod, Air Fryer Basket
and Crumb Tray.
The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out of the
reach of children or disabled persons since they represent potential sources of danger.
Location
This appliance is NOT suitable to be used or stored near heat sources (open flame, ovens,
heaters, stoves, etc.) and/or in an explosive environment (in the presence of flammable
substances such as gas, vapour, mist or dust, in atmospheric conditions when, after ignition,
the combustion is spread in the air). Items containing these substances should never be
placed in the appliance, and never be used to clean the appliance in order to avert the risk of
fire or explosion.
The appliance should NOT be placed on a surface, or in the vicinity of objects which can be
damaged by heat such as carpets or plastics. DO NOT locate multiple portable socket outlets
or power supplies at the bottom or rear of the appliance. During operation, as heat is
transferred away from the appliance, the surface that the appliance is placed upon as well
WARNINGS
2

Clean the inside of the oven, Bake Pan, Bake Rack, Rotisserie Handle, Rotisserie Rod and Air
Fryer Basket with water & detergent with a non-abrasive sponge. Ensure that the oven is
completely dry before use.
DO NOT use metal scouring pads. Notice: you may use a dishwasher to clean the Bake Pan
and Air Fryer Basket.
Place the appliance upright on a horizontal, stable, dry and heat-resistant surface.
Damage to the appliance may occur if it is placed on an incline or decline.
The following items should NOT be placed in the appliance during heating as they may
create a fire or risk of electric shock:
• oversized foods or metal utensils must NOT be inserted into the appliance;
• containers constructed of any materials (including but not limited to: cardboard, plastic,
paper, etc.) other than metal or glass, and ensure that the containers used are approved
for use at the set temperature;
• metal foil covering the Rotisserie Rod, Bake Pan, Bake Rack, Air Fryer Basket or any part of
the oven as this may cause overheating of the oven. Put oil or grease on Rotisserie Rod,
Bake Pan, Bake Rack or Air Fryer Basket before inserting/adding food to prevent food from
sticking onto the utensils at the end of heating.
Always wear protective, insulated oven gloves when inserting or removing items from the
hot oven.
The Glass Door is heavy, please hold the Cool-Touch Handle until the door is completely
open. DO NOT let the door fall by itself without support.
DO NOT rest cooking utensils or baking dishes on the Glass Door.
Smoke will be emitted for several minutes as the oils used in the manufacturing process is
burnt off. This is normal.
Extreme caution must be used when moving the oven containing hot oil or other hot
liquids, or when removing a tray or disposing of hot grease or other hot liquids.
cover the appliance during functioning;
obstruct totally nor partially the air inlet & outlet;
insert objects or body parts inside the protection cover of the appliance;
use the appliance near curtains or textiles;
heat foods without removing the wrappers (including plastic, paper or metal) first;
switch the appliance on if it is empty except during preheating (in order to get better
cooking performance, it is recommended to pre-heat the oven about 10 to 15 minutes);
move the oven by the Cool-Touch Handle;
leave the appliance unsupervised during operation.
12.
13.
14.
the surface immediately above or adjacent to it may become very hot. There should be at
least 10 cm of free space from the back, left & right sides and at least 30 cm from the top to
allow adequate air circulation to cool the compressor. Never put things on top of the
appliance, for this will prevent air flow and reduce the effect of hot air heating. If the
appliance is operated on wooden furniture, use a protective pad to prevent damage to
delicate finishes.
Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be
damaged easily. The cable must NOT be placed under carpets, or covered with throw rugs,
runners or similar. Arrange the cable away from the high traffic area, and where it will NOT be
tripped over.
DO NOT use or store the appliance outdoors. Store and use the appliance only indoors, or in
any case, protected from weathering such as rain, direct radiation of the sun and dust.
Operation
If you are using the appliance for the first time, you should:
a.
b.
c.
d.
e.
f.
g.
h.
Make sure to remove any label or protective sheet which may prevent its proper functioning.
DO NOT:
•
•
•
•
•
•
•
•
3

cover the appliance during functioning;
ensure that the appliance is correctly positioned before heating;
DO NOT open the Glass Door during operation;
DO NOT touch any part of the appliance except the Cool-Touch Handle, the three dials and
the Interior Lamp Button as the appliance becomes exceedingly hot during and after
operation;
one’s hands and face should be angled away from the Glass Door and the back of the
appliance;
DO NOT pour oil, grease or fat into the appliance, for this may lead to fire;
DO NOT use the appliance as an air fryer without inserting the Air Fryer Basket and Bake Pan.
Switch in water, DO NOT try to take it out, but first of all unplug immediately the power
cable from the socket.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
During the period of heating, foods containing a high level of moisture may lead to high
temperature steam being emitted. To avoid scalding:
•
•
•
•
•
•
•
During operation, DO NOT touch the appliance with wet body parts, and it is recommended
to have between you and the standing surface, an isolating element (for example, wearing
shoes with rubber soles).
DO NOT soak the appliance in water or other liquids, wash it under the tap, or let any liquid
flow into the internal casing of the appliance to prevent electric shock. In case of accidental
fall in water, DO NOT try to take it out, but immediately unplug the power cable from the
socket.
•
Switch the appliance off by turning the Function Dial to OFF, switch the socket switch OFF
and detach the 3-pin plug from the socket on the wall if it is NOT used for a long period, and
before storing, cleaning or performing any maintenance operation.
Insert and detach the 3-pin plug from the socket on the wall holding it firmly with dry hands.
Always detach the 3-pin plug to avoid overheating. DO NOT pull the power cable, tug it or
use it to drag the appliance to which is connected.
In case of malfunction or anomaly during the functioning, switch the appliance off
immediately, turn off the power and check the cause of the anomaly, if possible, with the
support of a qualified person.If smoke is observed coming out of the appliance, switch the
appliance off immediately.
If smoke is observed coming out of the appliance, switch the appliance off immediately.
This appliance is NOT intended for commercial use and is limited to normal domestic usage.
It should NOT be used in the dining rooms of shops, office, farms, dormitories or other
working environments. And it should not be used by customers in hotels, motels, guest
houses or breakfast rooms, or other accommodation environments without the use of a
functioning kitchen.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall NOT play with the appliance. Cleaning and
user maintenance shall NOT be made by children unless they are older than 8 and supervised.
Keep the appliance and its cable out of reach of children less than 8 years old.
Save these instructions.
4

OVEN
a.
b.
Turn the Timer Dial to the recommended duration.
Turn the Oven Temperature Dial to the recommended temperature for the type of food.
c.
d.
e.
f.
g.
h.
Turn the Function Dial to any of the above. Heating commences.
Meanwhile oil the Bake Pan and/or Bake Rack. Place the food on the Bake Pan and/or Bake
Rack.
When pre-heating has completed, open the Glass Door using the Cool-Touch Handle.
Donning oven gloves, place the Bake Pan and/or Bake Rack in the correct positions.
Close the Glass Door using the Cool-Touch Handle for Baking, Toasting and Grilling. Keep the
Glass Door half-opened for Broiling.
You can press the Interior Lamp Button to view the progress of the cooking. For larger items
of food, you can open the Glass Door to turn the food over for even heating. Ensure that you
wear oven gloves and utilise tongs when turning the food over; then close the Glass Door
immediately.
When the cooking time is over, the Timer will auto shut off and the bell will ring. If you wish
to end the heating earlier than the set cooking time, simply turn the Timer Dial to OFF.
Air Fryer
(with 4 upper heating element + Fast speed fan)
Dehydrate
(with 2 upper heating element + Fast speed fan)
Broil with Convection
(with 2 upper heating element + Convection fan)
Broil
(with 2 upper heating element)
Toast with Convection
(with 2 upper & 2 lower heating element + Convection fan)
Bake with Convection
(with 2 lower heating element + Convection fan)
Bake
(with 2 lower heating element)
HOW TO USE
Insert the 3-pin plug to the socket on the wall. Switch the socket switch ON.
It is recommended to pre-heat the oven for about 10 – 15 minutes prior to cooking.
5

i.
j.
AIR FRYER
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
ROTISSERIE
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
k.
l.
m.
n.
o.
Turn the Function Dial to OFF, switch the socket switch OFF and detach the 3-pin plug from
the socket on the wall before opening the oven using the Cool-Touch Handle.
Carefully remove the food, once again donning oven gloves. Beware NOT to touch the food
as it is extremely hot at this moment.
Turn the Timer Dial to the recommended duration.
Turn the Air Fryer Temperature Dial to the recommended temperature.
Turn the Function Dial to (Air Fryer). Heating commences.
Meanwhile put the food into the Air Fryer Basket.
When pre-heating has completed, open the Glass Door using the Cool-Touch Handle.
Donning oven gloves, place the Air Fryer Basket in the correct position.
Close the Glass Door using the Cool-Touch Handle.
You can press the Interior Lamp Button to view the progress of the cooking. To remove from
or add items into the Air Fryer Basket, you can open the Glass Door. Ensure that you wear
oven gloves when removing and re-inserting the Air Fryer Basket; then close the Glass Door
immediately.
When the cooking time is over, the Timer will auto shut off and the bell will ring. If you wish
to end the heating earlier than the set cooking time, simply turn the Timer Dial to OFF.
Turn the Function Dial to OFF, switch the socket switch OFF and detach the 3-pin plug from
the socket on the wall before opening the oven using the Cool-Touch Handle.
Carefully remove the food, once again donning oven gloves. Beware NOT to touch the food
as it is extremely hot at this moment.
The Rotisserie uses the Air Fryer as the source of heating since the Air Fryer uses a high speed
fan, heating will be evenly distributed throughout the interior of the food item
Turn the Timer Dial to the recommended duration. It usually takes 30 minutes to roast a 2
kilogram chicken using the Rotisseie Rod, while it takes a shorter time to roast chips, beans
or Nuts using the Rotisserie Basket (which is a circular metal cage). Factor in the pre-heating
time as well.
Turn the Air Fryer Temperature Dial to 230°C (max).
Turn the Function Dial to (Air Fryer). Heating commences.
Using the Rotisserie Rod
Repeat points (a) – (d).
After putting oil or grease on the Rotisserie Rod, insert the Rotisserie Rod directly through
the center of the food item which you intend to roast.
Put one skewer through the pointed end of the Rod, and slide the Skewer towards the square
end of the Rod.
Put the other Skewer through the pointed end of the Rod, and slide the skewer towards the
square end of the Rod.
Put the two Skewers into the food, and secure both Skewers with the thumb screws.
Make sure the food is centered horizontally on the Rod.
Place the hooks of the Rotisserie Handle under the grooves on both sides of the Rotisserie Rod.
When pre-heating has completed, open the Glass Door using the Cool-Touch Handle.
Donning oven gloves, use the Rotisserie Handle to insert the left end of the Rotisserie Rod
into the left drive socket, followed by the right end of the Rotisserie Rod into the right drive
socket (or vice versa).
Close the Glass Door using the Cool-Touch Handle. The Rotisserie Rod starts rotating, and
heating commences.
You can press the Interior Lamp Button to view the progress of the cooking.
When the cooking time is over, the Timer will auto shut off and the bell will ring. If you wish
to end the heating earlier than the set cooking time, simply turn the Timer Dial to OFF.
Turn the Function Dial to OFF, switch the socket switch OFF and detach the 3-pin plug from
the socket on the wall before opening the oven using the Cool-Touch Handle.
6

p.
q.
r.
s.
t.
u.
v.
w.
DEHYDRATOR
a.
b.
c.
d.
After the oven has cooled, don oven gloves once again. Place the hooks of the Rotisserie
Handle under the grooves on both sides of the Rotisserie Rod. Lift the right side of the Rod
first, move it a fraction to the right, so that the left side of the Rod can exit the drive socket
(or vice versa). Then carefully move the roasted food out of the oven. Beware NOT to touch
the food as it is extremely hot at this moment.
Using the Rotisserie Basket
Repeat points (a) – (d).
Put the food (e.g. chips, french fries, nuts, beans, etc.) into the Rotisserie Basket.
When pre-heating has completed, open the Glass Door using the Cool-Touch Handle.
Donning oven gloves, insert the left end of the Rotisserie Basket into the left drive socket,
followed by the right end of the Rotisserie Basket into the right drive socket (or vice versa).
Close the Glass Door using the Cool-Touch Handle. The Rotisserie Basket starts rotating, and
heating commences.
You can press the Interior Lamp Button to view the progress of the cooking.
When the cooking time is over, the Timer will auto shut off and the bell will ring. If you wish
to end the heating earlier than the set cooking time, simply turn the Timer Dial to OFF.
Turn the Function Dial to OFF, switch the socket switch OFF and detach the 3-pin plug from
the socket on the wall before opening the oven using the Cool-Touch Handle.
After the oven has cooled, don oven gloves once again. Lift the right side of the Rotisserie
Basket first, move it a fraction to the right, so that the left side of the Basket can exit the drive
socket (or vice versa). Then carefully move the Basket out of the oven. Beware NOT to touch
the Basket as it is extremely hot at this moment.
Place the food on the Bake Pan and/or Bake Rack.
Turn the Timer Dial to the recommended duration.
Turn the Function Dial to (Dehydrator).
Since there is a fixed thermostat to control the temperature of the Dehydrator specifically,
there is no need to adjust temperature settings.
HOW TO CLEAN
1.
2.
3.
4.
5.
Turn the Function Dial to OFF, switch the socket switch OFF and detach the 3-pin plug from
the socket on the wall before opening the oven using the Cool-Touch Handle. Wait until the
oven has completely cooled before cleaning or performing any maintenance operation.
Wipe the exterior of the oven using a soft, damp cloth or sponge. Remove stubborn spots
with a cloth moistened with mild liquid detergent. DO NOT use abrasive scouring pads or
powders.
Never immerse the oven in water or other liquids.
Clean the interior chamber with a clean damp cloth and a mild liquid soap solution or a spray
solution on a sponge. Remove any residue with a clean, damp rag. Never use harsh abrasives
or corrosive products. These could damage the surface of the oven. DO NOT use abrasive
scouring pads or powders. If this is performed on a regular basis, your appliance will perform
like new.
Cleaning the accessories:
•
•
•
Bake Rack, Bake Pan and Crumb Tray should be hand-washed in hot, sudsy water, or use a
nylon scouring pad or nylon brush. Thoroughly rinse with running water. These items are
NOT dishwasher safe.
Rotisserie Rod and Skewers should also be hand-washed in hot, sudsy water, or use a nylon
scouring pad or nylon brush. Thoroughly rinse with running water. Be very careful when
washing theses accessories. These items are NOT dishwasher safe.
Air Fryer Basket is dishwasher safe. It can also be hand-washed in hot, sudsy water, or use a
nylon scouring pad or nylon brush. Thoroughly rinse with running water.
7

This appliance, along with all other electronic appliances, should, when it is no longer capable of
functioning, be disposed with the least possible environmental damage according to the local
regulations in your area. In most cases you can discard the appliance at your local recycling centre.
DISPOSAL: Do not dispose this appliance as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
Risk of child or animal entrapment
Before you discard this appliance, please remove all doors and leave the shelves inside so that
children or animals may not easily get trapped inside.
ENVIRONMENTAL TIP
Warranty Conditions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
This warranty provides against defective materials and manufacturing faults throughout for
two years from the date of purchase of the appliance. The warranty on the Compressor is 10
years subject to the same conditions as above.
This warranty also does not cover normal wear and tear, replacement of consumable
materials and accessories, and the cost of maintenance of the appliance.
This warranty does not cover the repair or replacement of part/s damaged by misuse,
accidents, negligence, alterations, or modifications in any way, or repairs done by any repair
organisation without the prior consent of PowerPac Electrical Pte Ltd.
Repair and service are to be performed at: 5 Changi South Lane #03-01 Singapore 486045.
A transport fee will be charged for personal doorstep service.
The original purchaser of the appliance must furnish proof of purchase to our Service Centre
with the email or number as registered during submission of warranty when this appliance is
sent for repair/service. Failure to do so may delay the receipt of said repair/service by the
customer.
Under no circumstances whatsoever shall the serial number be erased, defaced or altered by
the customer and/or his representatives, or the dealer and/or his agents. Failure to ensure
this shall invalidate the warranty.
This warranty is deemed to be void if the defect is cause by the attack of household pests,
fire, lightning, natural disasters, pollution, abnormal voltage or the usage of generators.
This warranty is valid in Singapore only.
This warranty will be honoured subject to the customer’s registration of the warranty
inclusive of original invoice or valid purchase receipt. Failure to present these documents will
result in denial of service. However, if the customer still requests that the defective appliance
be repaired, PowerPac Electrical Pte Ltd may, at its discretion, repair the appliance but impose
a labour charge, as well as the costs of the replacement parts, to be borne solely by the
customer.
Please refer to the attached picture for the location of one of our appliance’s serial number,
as an example.
Please complete the on-line registration warranty form available
on our website. There is no further requirement to send us any
hard copy as part of our efforts to save the environment.
In accordance with the terms and conditions of this limited
warranty as stated above, PowerPac Electrical Pte Ltd, at its
expense shall provide free services for the appliance within the
warranty period from its date of purchase from our Authorised
dealers.
WARRANTY
8

PPAF535
MODEL
220V ~ 60Hz
VOLTAGE
1700W
POWER
25 L
LITRE
SPECIFICATION
9
