Powerplus POWX0153 User manual

POWX0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 1
www.varo.com
1
APPLICATION..................................................................................3
2
DESCRIPTION (FIG. A) ...................................................................3
3
PACKAGE CONTENT LIST.............................................................3
4
SYMBOLS........................................................................................4
5
GENERAL POWER TOOL SAFETY WARNINGS ..........................4
5.1
Working area...........................................................................................................4
5.2
Electrical safety.......................................................................................................4
5.3
Personal safety .......................................................................................................4
5.4
Power tool use and care.........................................................................................5
5.5
Service.....................................................................................................................5
6
ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND
CHARGERS .....................................................................................5
7
FEATURES.......................................................................................6
7.1
Keyless chuck (1)....................................................................................................6
7.2
Torque adjustment ring (2).....................................................................................6
7.3
On/off switch (4)......................................................................................................6
7.4
Forward/reverse selector (right/left rotation selector) (7).....................................6
7.5
Variable speed (3) ...................................................................................................7
7.6
Speed selector (3)...................................................................................................7
8
(PRE)OPERATION...........................................................................7
8.1
Charging the battery pack......................................................................................7
8.2
Install/remove battery pack....................................................................................8
8.2.1
To install battery pack on your cordless drill.................................................................8
8.2.2
To remove battery pack................................................................................................8
8.3
Installing/removing bits..........................................................................................8
8.3.1
Installing bits................................................................................................................8
8.3.2
Removing bits..............................................................................................................8
8.4
Adjustable torque clutch........................................................................................8
9
CLEANING AND MAINTENANCE...................................................9
9.1
Cleaning...................................................................................................................9
9.2
Maintenance............................................................................................................9
10
CHUCK REMOVAL/REPLACEMENT)............................................9

POWX0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 2
www.varo.com
10.1
Chuck removal:.......................................................................................................9
10.2
(Re)tighten a (loose) chuck ....................................................................................9
11
STORAGE ......................................................................................10
12
TECHNICAL DATA........................................................................10
13
SOUND EMISSION ........................................................................10
14
WARRANTY...................................................................................11
15
ENVIRONMENT .............................................................................11
16
BATTERY PACK............................................................................11
17
DECLARATION OF CONFORMITY ..............................................12

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 3
www.varo.com
POWX0153 CORDLESS DRILL 14.4V
POWX0155 CORDLESS DRILL 18V
POWX0157 CORDLESS DRILL 21.6V
1 APPLICATION
Your rechargeable drill/screwdriver has been designed for drilling in wood, metal and plastics
and for screw driving applications
It is not designed for commercial use.
WARNING! For your own safety, read this manual and the general safety
instructions carefully before using the appliance. Your power tool should
only be given to other users together with these instructions.
2 DESCRIPTION (FIG. A)
Before using this tool, familiarize yourself with all operating features and safety requirements.
However, do not let familiarity with the tool make you careless. This new drill is equipped with
the following features.
1. keyless chuck
2. torque adjustment ring
3. speed selector switch knob
4. switch
5. battery pack
6. charger
7. forward/reverse knob
8. battery indication
9. battery pack release button
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period. Dispose
it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
1 x cordless drill
1 x charger
1 x battery
1 x instruction manual
When parts are missing or damaged, please contact your dealer.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 4
www.varo.com

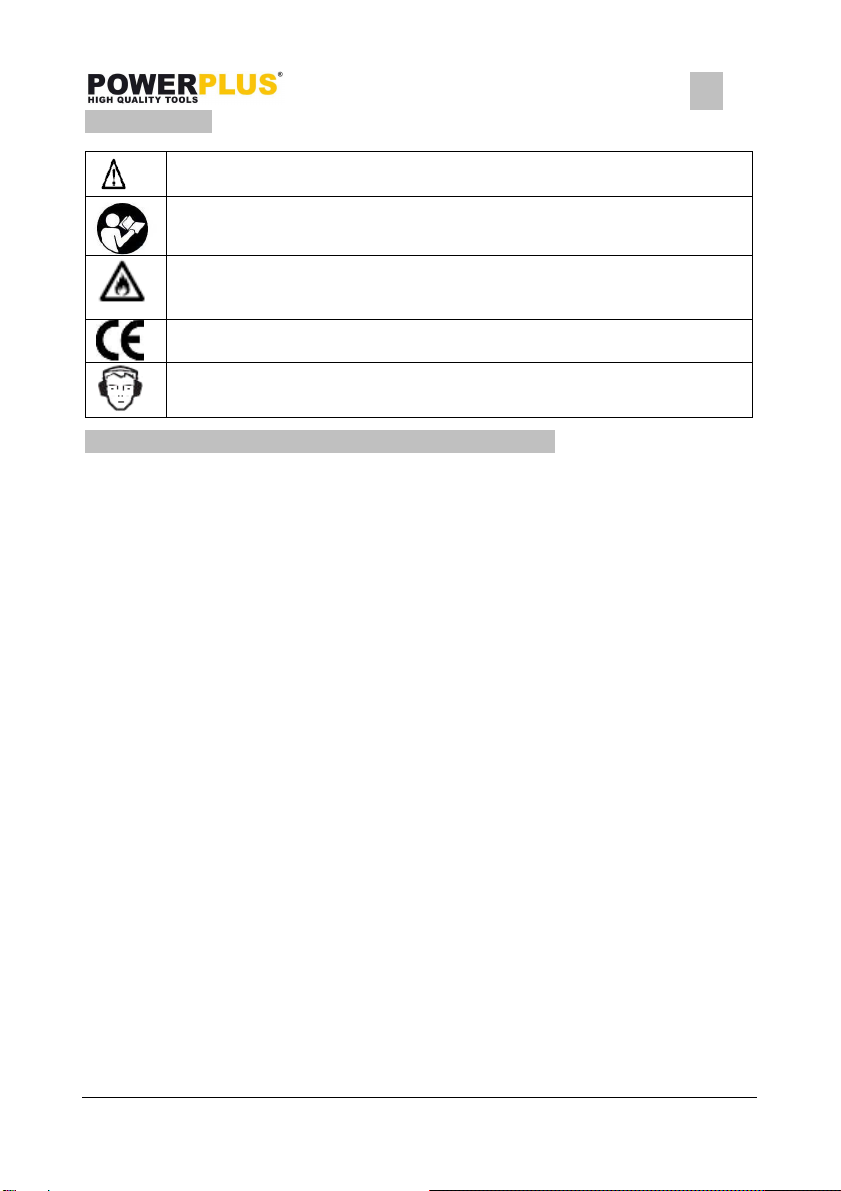

4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Denotes risk of personal injury, loss of life or damage to the tool in case of non-
observance of the instructions in this manual.
Warning-to reduce the risk of injury, user must read instruction manual.
Fire hazard!
Conforms to all regulatory standards in the country EU where the product is
purchased.
Always wear hearing protection with impact drills. Exposure to noise can cause
hearing loss.
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions
may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions
for future reference. The term "power tool" in the safety warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless) power tool.
5.1 Working area
Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
Do not operate power tools in potentially explosive surroundings, for example, in the
presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite
the dust or fumes.
Keep children and bystanders at a distance when operating a power tool. Distractions can
cause you to lose control of it.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce
the risk of a lethal electric shock.
Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and
refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will
increase the risk of a lethal electric shock.
Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of a lethal electric shock.
When operating a power tool outdoors, use an extension cable suitable for outdoor use.
Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
If operating a power tool in a damp location is unavoidable, use a power supply protected
by a residual current device (RCD) . Using an RCD reduces the risk of a lethal electric
shock.
5.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool when you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention when operating a power tool may result in serious
personal injury.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 5
www.varo.com
Use safety equipment. Always wear eye protection. Using safety equipment such as a dust
mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will
reduce the risk of personal injury.
Avoid accidental starts. Ensure the switch is in the off position before inserting the plug .
Carrying power tools with your finger on the switch or plugging in power tools when the
switch is in the on position makes accidents more likely.
Remove any adjusting keys or spanners before turning on the power tool . A spanner or key
left attached to a rotating part of the power tool may result in personal injury.
Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable
you retain control over the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from the power tool. Loose clothes, jewellery or long hair can become entangled in
the moving parts.
If there are devices for connecting dust extraction and collection facilities, please ensure
that they are attached and used correctly. Using such devices can reduce dust-related
hazards.
5.4 Power tool use and care
Do not expect the power tool to do more than it can. Use the correct power tool for what you
want to do. A power tool will achieve better results and be safer if used in the context for
which it was designed.
Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken
switch is dangerous and must be repaired.
Disconnect the plug from the power source before making adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
Store power tools, when not in use, out of the reach of children and do not allow people
who are not familiar with the power tool or these instructions to operate it. Power tools are
potentially dangerous in the hands of untrained users.
Maintenance. Check for misalignment or jammed moving parts, breakages or any other
feature that might affect the operation of the power tool . If it is damaged, the power tool
must be repaired . Many accidents are caused by using poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to jam and are easier to control.
Use the power tool, accessories and cutting tools, etc., in accordance with these
instructions and in the manner intended for the particular type of power tool, taking into
account the working conditions and the work which needs to be done. Using a power tool in
ways for which it was not intended can lead to potentially hazardous situations.
5.5 Service
Your power tool should be serviced by a qualified specialist using only standard spare
parts. This will ensure that it meets the required safety standards.
6 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND
CHARGERS
Batteries
1. Never attempt to open for any reason.
2. Do not store in locations where the temperature may exceed 40 °C.
3. Charge only at ambient temperatures between 4 °C and 40 °C.
4. Charge only using the charger provided with the tool.
5. When disposing of batteries, follow the instructions given in the section “Protecting
the environment”.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 6
www.varo.com
6. Do not cause short circuits. If connection is made between the positive (+) and
negative (-) terminal directly or via accidental contact with metallic objects, the
battery is short circuited and an intense current will flow causing heat generation
which may lead to casing rupture or fire.
7. Do not heat. If batteries are heated to above 100 °C, sealing and insulating
separators and other polymer components may be damaged resulting in electrolyte
leakage and/or internal short circuiting leading to heat generation causing rupture or
file. Moreover do not dispose of the batteries in fire, explosion and/or intense
burning may result.
8. Under extreme conditions, battery leakage may occur. When you notice liquid on
the battery, proceed as follows:
- Carefully wipe the liquid off using a cloth. Avoid skin contact.
- In case of skin or eye contact, follow the instructions below:
i. Immediately rinse with water. Neutralize with a mild acid such
as lemon juice or vinegar.
ii. In case of eye contact, rinse abundantly with clean water for at
least 10 minutes. Consult a physician.
Chargers
1. Use the charger provided with the tool only to charge the battery
2. Never attempt to charge non-rechargeable batteries.
3. Have defective cords replaced immediately.
4. Do not expose to water.
5. Do not open the charger.
6. Do not probe the charger.
7. The charger is intended for indoor use only.
7 FEATURES
7.1 Keyless chuck (1)
Your drill has a keyless chuck that allows you to hand tighten or release drill bit in the chuck
jaws.
7.2 Torque adjustment ring (2)
The drill has a torque adjustment ring. It allows you to select the desired torque depending on
the task you have to perform (drill / different types of screws into different materials). The
proper setting depends on the type of material and the size of screw you are using.
7.3 On/off switch (4)
The switch trigger can be locked in the OFF position. This feature helps reduce the possibility
of accidental starting when not in use.
7.4 Forward/reverse selector (right/left rotation selector) (7)
The drill has a forward/reverse selector located above the switch trigger.
Press selector F(orward) on left side of machine (to the right side): drill turns right
(forward/fasten screws).
Press selector R(everse) on right side (to the left side): drill turns left (reverse/loosen
screws).
CAUTION: To prevent damage to the gearbox, always allow the chuck to come to a complete
stop before changing the direction of rotation or selecting another speed (HI-LO). To stop,
release the trigger switch.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 7
www.varo.com
7.5 Variable speed (3)
Your cordless drill has a variable speed switch. The rotational speed and torque will in-/
decrease equivalently to applied trigger pressure. This drill has an electric brake, when the
trigger switch is released, the chuck stops turning.
7.6 Speed selector (3)
Your cordless drill has a two-speed gear, designed for drilling or driving at LO (1) or HI (2)
speed. A slide switch is located on top of your drill to select either LO (1) or HI (2) speed.
8 (PRE)OPERATION
WARNING: Do not allow familiarity with the drill make you careless. One careless fraction of a
second is sufficient to inflict severe injury.
8.1 Charging the battery pack
The battery pack for this tool is supplied in a low charge condition to prevent possible
problems, therefore, you have to charge the battery before first use.
Note: The Ni-Cd battery will not reach full charge after the first charge. Allow several cycles
(drilling followed by recharging) for them to become fully charged.
TO CHARGE
(POWX0155 & X0157)
Charge battery pack solely with the charger provided !
Make sure that the power supply is 230 Volts AC / 50Hz.
Connect the charger to the power supply, the green light is on. Attach the battery pack (5)
to the charger (6) by aligning the ribs on battery pack (5) with grooves on the charger,
then slide battery pack (5) into the charger.
The red light is on when the battery pack is charging. When the battery is fully charged the red
light goes off and the green light goes on.
(POW X0153)
Connect the charger to a power supply. Attach battery pack (5) to charger (6): the red light
goes on.
- For POW X0155 (18V) and POW X0157 (21.6 V) battery pack the charging time after normal
use is about 1 hour for a full charge.
- For POW X0153 (14.4V) the charging time after normal use is about 3 hours to be fully
charged.
The battery pack will become slightly warm while charging. This is normal and does not
indicate a problem.
Do not place charger in an area of extreme heat or cold. It will work best at normal room
temperature.
When the battery is fully charged, unplug your charger from the power supply and remove the
battery pack from the charger.
CAUTION:
To prevent damage to the battery pack, remove the battery pack immediately from the charger
when no LED illuminates. Return battery pack and charger to your dealer for checking or
replacing.
Do not insert a battery pack into a damaged charger, it may damage your battery pack.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 8
www.varo.com
8.2 Install/remove battery pack.
8.2.1 To install battery pack on your cordless drill
Lock the switch trigger (4) on the drill by placing the forward/reverse) selector in its centre
position. Place the battery pack in the drill. Align the raised rib on battery pack with the groove
inside the drill. (Make sure the latches on each side of your battery pack snap in place and
battery pack is secured in the drill before beginning operation.)
8.2.2 To remove battery pack
Lock the switch trigger on the drill by placing the forward/reverse) selector in its centre position.
Locate latches (9) on the side of the battery pack and depress them to release the battery
pack from the drill.
The battery pack will automatically disconnect in the direction it should be removed in.
Remove the battery pack from you drill.
8.3 Installing/removing bits
8.3.1 Installing bits
Lock the switch trigger by placing the direction of rotation selector in centre position.
Open or close chuck jaws to a point where the opening is slightly larger than the bit size you
intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the
chuck jaws. Insert drill bit straight into chuck the full length of the jaws as shown in. Tighten
the chuck jaws on the drill bit.
Note: Rotate the chuck body in the direction of the arrow marked GRIP to tighten chuck jaws.
Do not use a wrench to tighten or loosen the chuck jaws.
WARNING:
Make sure to insert drill bit straight into chuck jaws.
Do not insert drill bit into chuck jaws at an angle, this could cause drill bit to be thrown from drill
resulting in possible serious personal injury or damage to the chuck.
8.3.2 Removing bits
Lock the switch trigger by placing rotation selector in centre position.
Loosen the chuck jaws from the drill bit.
Note: Rotate chuck body in the direction of the arrow marked RELEASE to loosen chuck jaws.
Do not use a wrench to tighten or loosen the chuck jaws.
Remove the drill bit from the chuck jaws.
8.4 Adjustable torque clutch
This drill is equipped with an adjustable torque clutch for driving different types of screws into
different materials. The proper setting depends on the type of material and the size of screw
you are using.
TO ADJUST TORQUE: Identify the 24 (25) torque indicator settings located on the front of the
drill.
Rotate adjusting ring (2) to the desired setting.
1-5 For driving small screws
6-10 For driving screws into soft material
11-15 For driving screws into soft and hard materials
16-20 For driving screws in hard wood
21-22+1(X0157)
21-23+1 (X0153&X0155) (
)For heavy drilling

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 9
www.varo.com
POW X0157 only:
For hammer drilling
* Drilling hard smooth surfaces
When drilling hard smooth surfaces use a centre punch to mark desired hole location. This will
prevent the drill bit from slipping off centre as the hole is started. However, the low speed
feature allows starting holes without centre punching if desired. To accomplish this, simply
operate the drill at a low speed until the hole is started. The material to be drilled should be
secured in a vise or with clamps to keep it from turning as the drill bit rotates. Hold tool firmly
and place the bit at the point to be drilled. Move the drill bit into the work piece applying only
enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole.
WARNING:
Be prepared for binding or bit breakthrough. When these situations occur, drill has a tendency
to grab and kick opposite to the direction of rotation and could cause loss of control when
breaking through material. If not prepared, this loss of control can result in possible serious
injury. hen drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will
prolong the life of the bit and increase the drilling action. If the bit jams in work piece or the drill
stalls, release switch trigger immediately. Remove the bit from the work piece and determine
the reason for jamming.
9 CLEANING AND MAINTENANCE
9.1 Cleaning
Keep the ventilation slots of the machine clean to prevent overheating of the engine.
Regularly clean the machine housing with a soft cloth, preferably after each use.
Keep the ventilation slots free from dust and dirt.
If the dirt does not come off use a soft cloth moistened with soapy water.
Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may
damage the plastic parts.
9.2 Maintenance
Our machines have been designed to operate over a long period of time with a minimum of
maintenance. Continuous satisfactory operation depends upon proper machine care and
regular cleaning.
10 CHUCK REMOVAL/REPLACEMENT)
10.1 Chuck removal:
Lock the switch trigger by placing the direction of rotation selector in centre position.
Open the chuck jaws and remove the hex key. Remove the chuck screw, turning it in a
clockwise direction. Note: the screw has left hand threads.
Insert the hex key in the chuck and tighten chuck jaws securely. Tap sharply with a mallet in
a counter clockwise direction. This will loosen the chuck on the spindle. It can now be
unscrewed by hand.
10.2 (Re)tighten a (loose) chuck
The chuck may become loose on spindle and develop a wobble. Periodically check chuck
screw for tightness.
To tighten, follow these steps:
Lock the switch trigger by placing the direction of rotation selector in centre position.
Open the chuck jaws.
Insert the hex key into the chuck and tighten chuck jaws securely. Tap the hex key sharply
with a mallet in a clockwise direction. This will tighten the chuck on the spindle.
Open the chuck jaws and remove the hex key.
Tighten the chuck screw.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 10
www.varo.com
Note: The chuck screw has left hand threads.
11 STORAGE
Store it out of the reach of children, in a stable and secure position, in a cool and dry place,
avoid too high and too low temperatures.
−Battery storage
Store and charge your batteries in cool area. Temperatures below 10 °C (50 °F) or above
38 °C (100 °F) will shorten battery life.
Never store batteries in discharged condition. Recharge them immediately after they are
discharged.
Batteries gradually lose their charge, the higher the temperature the quicker, so If you store
your tool for longer periods of time without using it, recharge the batteries every month or
two. This will prolong battery life.
12 TECHNICAL DATA
Model No.
POWX01
53
POWX01
55
POW
X015
7
Chuck Max 10mm Max 10mm Max 10mm
Motor 14.4 V 18 V 21,6 V
Switch Variable Speed Variable Speed Variable Speed
Gear Train 2-Speed 2-Speed 2-Speed
No Load Speed 0-500/0-1400 min
-
1
0-500/0-1400 min
-
1
0-500/0-1400 min
-
1
Clutch 23+1 Position 23+1 Position 22+2 Position
Charger input 230-240V 50 Hz 230-240V 50 Hz 230-240V 50 Hz
Charger Rate 3 hours 1 hour 1 hour
Torque 17 Nm (MAX.) 21 Nm (MAX.) 23 Nm (MAX.)
Battery Pack Model POWX0153B POWX0155B POWX0157B
Battery Type Ni-Cd Ni-Cd Ni-Cd
Battery capacity 1300 mAh 1300 mAh 1500 mAh
Weight 2.00 kg 2.10 kg 2.60 kg
13 SOUND EMISSION
Noise emission values measured according to relevant standard.
POWX0153 / POWX0155
POWX0157
LpA K=3 68dB(A) 78 dB(A)
LwA K=3 79 dB(A) 89 dB(A)
The machine may exceed 85 dB(A) at the workplace. In this case, noise
protection measures need to be introduced to protect the user.
Vibration:
POW
X0153 POW
X0155
POW
X0157
Vibration: K=1.5 ah 1.4 – 13.6 m/s²

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 11
www.varo.com
14 WARRANTY
This product is warranted for a 36-month period effective from the date of purchase by the
first user.
This warranty covers all material or production flaws. It does not include defective parts
subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories
such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment,
accidents or alterations; nor the cost of transportation.
This warranty covers all material or production flaws, excluding batteries, chargers,
defective parts subject to normal wear and tear such as, in particular, bearings, brushes,
cables, plugs… Accessories such as drills, drill bits, saw blades etc. also do not fall under
this warranty.
Damage and/or defects resulting from inappropriate use also do not fall under the warranty
provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
Repairs may only be carried out by an authorised customer service centre for Powerplus
tools.
You can always obtain more information at the number 00 32 3 292 92 90.
Any transportation costs shall always be borne by the customer, unless agreed otherwise in
writing.
At the same time, no claim can be made on the warranty if the damage of the device is the
result of negligent maintenance or overload.
Definitely excluded from the warranty is damage resulting from fluid permeation, excessive
dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate
usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not
following the instructions given in the manual), inexpert assembly, lightning strike, erroneus
net voltage. This list is not exhaustive.
Acceptance of claims under warranty can never lead to the prolongation of the warranty
period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of
Varo NV.
We reserve the right to reject a claim whenever the purchase cannot be verified or when it
is clear that the product has not been properly maintained. (Clean ventilation slots, carbon
brushes serviced regularly, etc.).
Your purchase receipt must be kept as proof of date of purchase.
Your appliance must be returned undismantled to your dealer in an acceptably clean state,
(in its original blow-moulded case if applicable to the unit), accompanied by proof of
purchase.
15 ENVIRONMENT
Should your appliance need replacement after extended use, do not dispose of it
with the household refuse, but in an environmentally safe way.
Waste of electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
16 BATTERY PACK
This product contains nickel-cadmium. To preserve natural resources, please recycle or
dispose of batteries properly. Local, state or federal laws may prohibit disposal of nickel-
cadmium batteries in ordinary trash. Consult you local waste authority for information
regarding available recycling and/or disposal options.

POW X0153, 0155 & 0157
EN
Copyright © 2011 VARO
P a g e | 12
www.varo.com
17 DECLARATION OF CONFORMITY
VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,
Product : Cordless Drill 14.4V
Cordless Drill 18V
Cordless Drill 21,6V
Trade mark : POWERplus
Model : POWX0153 / POWX0155 / POWX0157
Is in conformity with the essential requirements and other relevant provisions of the applicable
European Directives, based on the application of European harmonized standards. Any
unauthorized modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amending directives):
2004/108/EC The Electromagnetic Compatibility Directive
98/37/EC The Machinery Directive
European harmonized standards, and their amendments:
EN60745-1 : 2006
EN60745-2-1 : 2003
EN55014-1 : 2006
EN55014-2 : 1997
The undersigned acts on behalf and under the power of attorney of the company
management,
Philippe Vankerkhove
Certification Manager
Date : 24/11/2008
