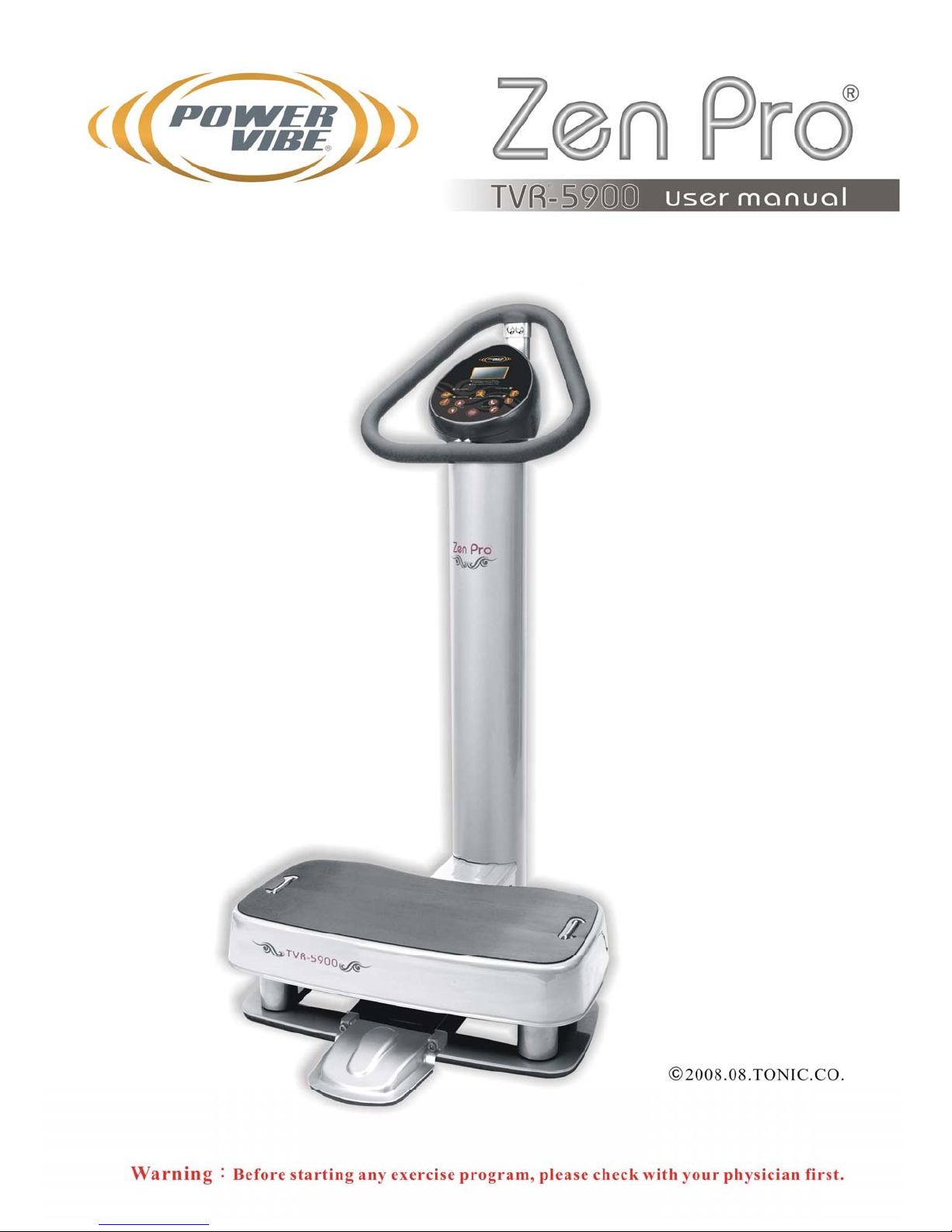

PowerVibe Zen Pro User manual

Contents
Contents
1. Safety Instructions P1
2. Technical Information－Product View
2.1 Parts Package
2.2 Assembly Instruction
2.3 Warranty
P2
P3~P4
P5-P9
P10
3. What is Whole Body Vibration Training
Origin－Vibration Training
Principle－Vibration Theory
Application of Vibration Training
3.1 The Benefits of Vibration Training on the Human Body
¾Sports Performance
¾Health Performance
¾Rehab/Sport medicine Performance
P11
P11
P11
P11~P12
P12
P12
P13
P13
4. About Zen Pro®
4.1 Product Specification
4.2 Operating Instructions
4.2.1 Console view & description
4.2.2 Console operation
4.2.3 Exercise Instruction
4.2.4 Programs overall
P14
P15
P16
P16
P16
P17-P20
P21-P26
5. The efforts of Tonic Fitness with Academic and Organization
Researches P27-P30
6. References
6.1 U.S.A & European References
6.2 Asia References
6.3 Website References
P31
P31-P32
P32-P33
P33

Contents

Important Safety Instruction
- 1 -
1. Safety Instructions
☆ATTENTION
Please do not use this product if you have any of the following
conditions. Always consult with your physician FIRST before starting
any exercise program。
9Acute arthritis、rheumatoid arthritis
9Cardiovascular disease
9Epilepsy
9Acute migraine
9Pregnancy
9Other serious diseases
9Keep children under age 12 and pets away from the vibration
platform at all times.
¾STOP use of this product immediately if you encounter any
discomfort or if the machine is not functioning properly！

Technical Information
- 2 -
2. Technical Information
－Product View

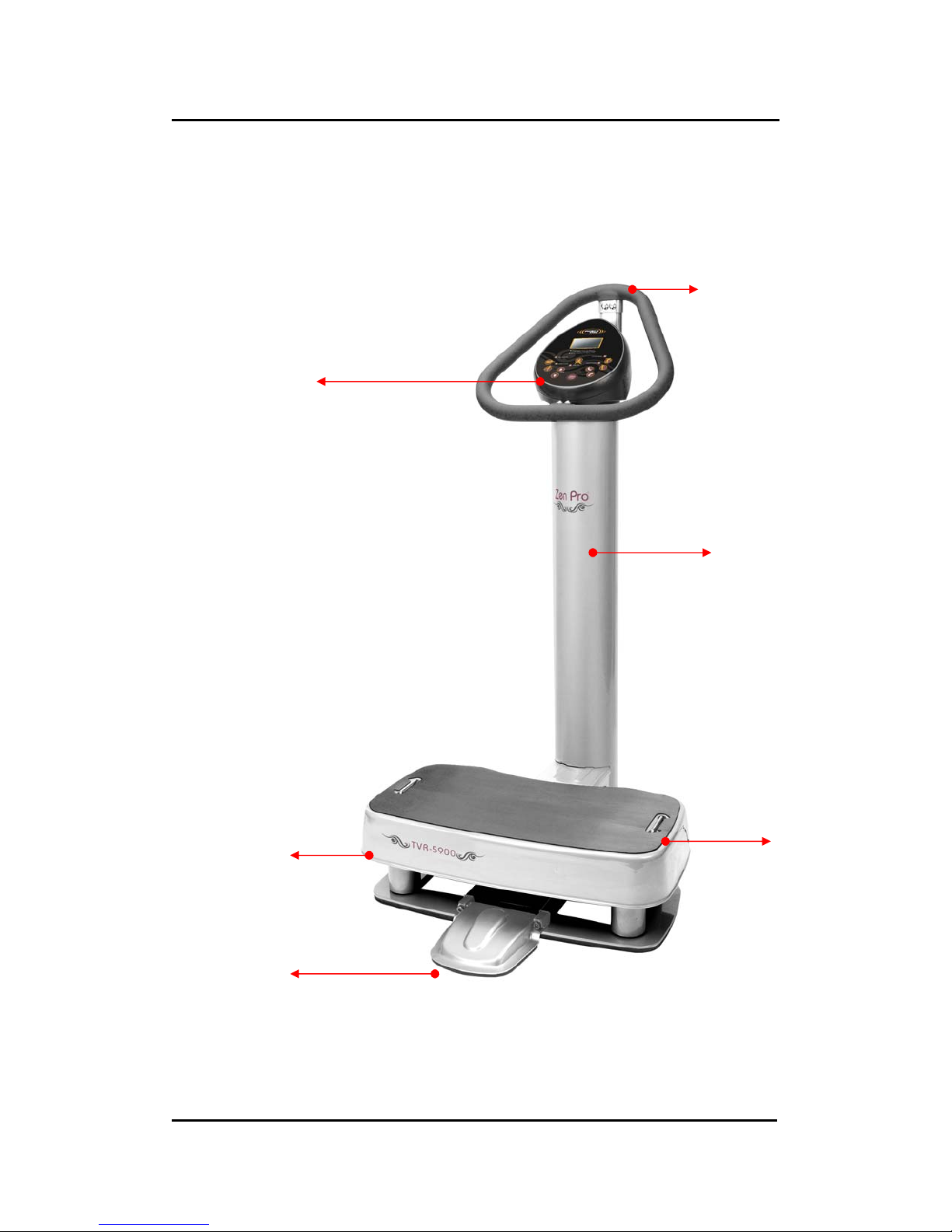

1. Handlebar
3. Stem
5. Strap Hook4. Platform
2. Console Panel
6. Stabilizer

Technical Information
- 3 -

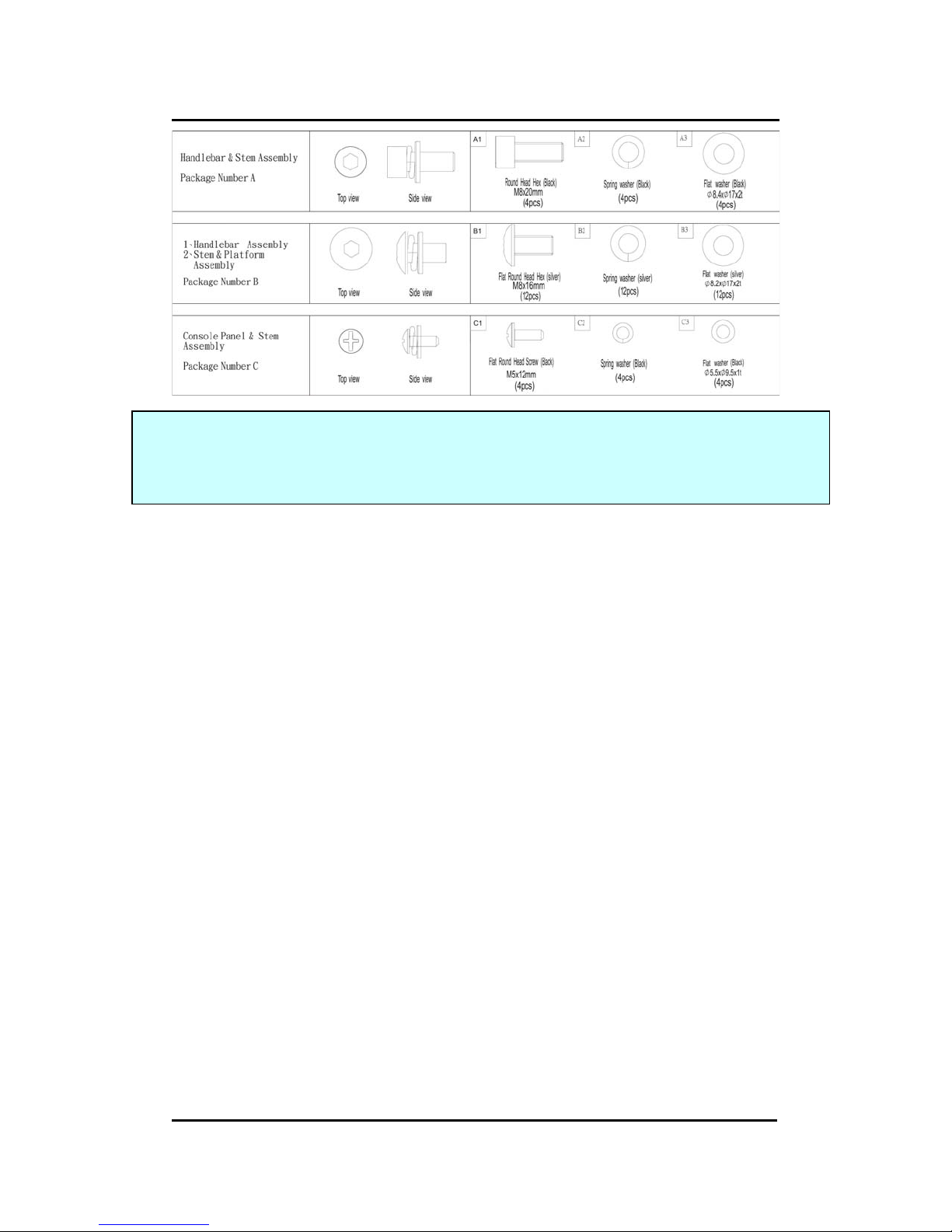

2.1 Parts Package
Numbers Name Q’ty
1 Handle Bar 1 SET
2 Console 1 SET
3 Stem 1 SET
4 Platform 1 SET
5 U type Strap Hook 2 PCS
6 Stabilizer 1 SET
7 Fixed Tube 1 SET
8 Stem Rubber 1 SET
9 Console wire 1 SET
10 Control Board Wire 1 SET
11 Power cord 1 SET
12 Straps 2 PCS
13 Plugs 2PCS
A1 Round Head Hex﹙Black﹚﹙M8*20mm﹚4 PCS
A2 Spring Washer﹙Black﹚4 PCS
A3 Flat Washer﹙Black﹚4 PCS
B1 Flat Round Head Hex﹙Silver﹚﹙M8*16mm﹚12 PCS
B2 Spring Washer﹙Silver﹚12 PCS
B3 Flat Washer﹙Silver﹚12 PCS
C1 Round Head Screw﹙Black﹚4 PCS
C2 Spring Washer﹙Black﹚4 PCS
C3 Flat Washer﹙Black﹚4 PCS
■Screws Contrast List：

Technical Information
- 4 -
The owner’s manual is only for customer reference.
The supplier can not guarantee against mistakes occurring due to translation or changes in
technical specifications of the product..
Please follow the above steps for assembling the Zen Pro®TVR-5900 closely.
Attention：Make sure all fasteners are tightened properly during assembly. Improper
assembly may void the warranty.

Technical Information
- 5 -

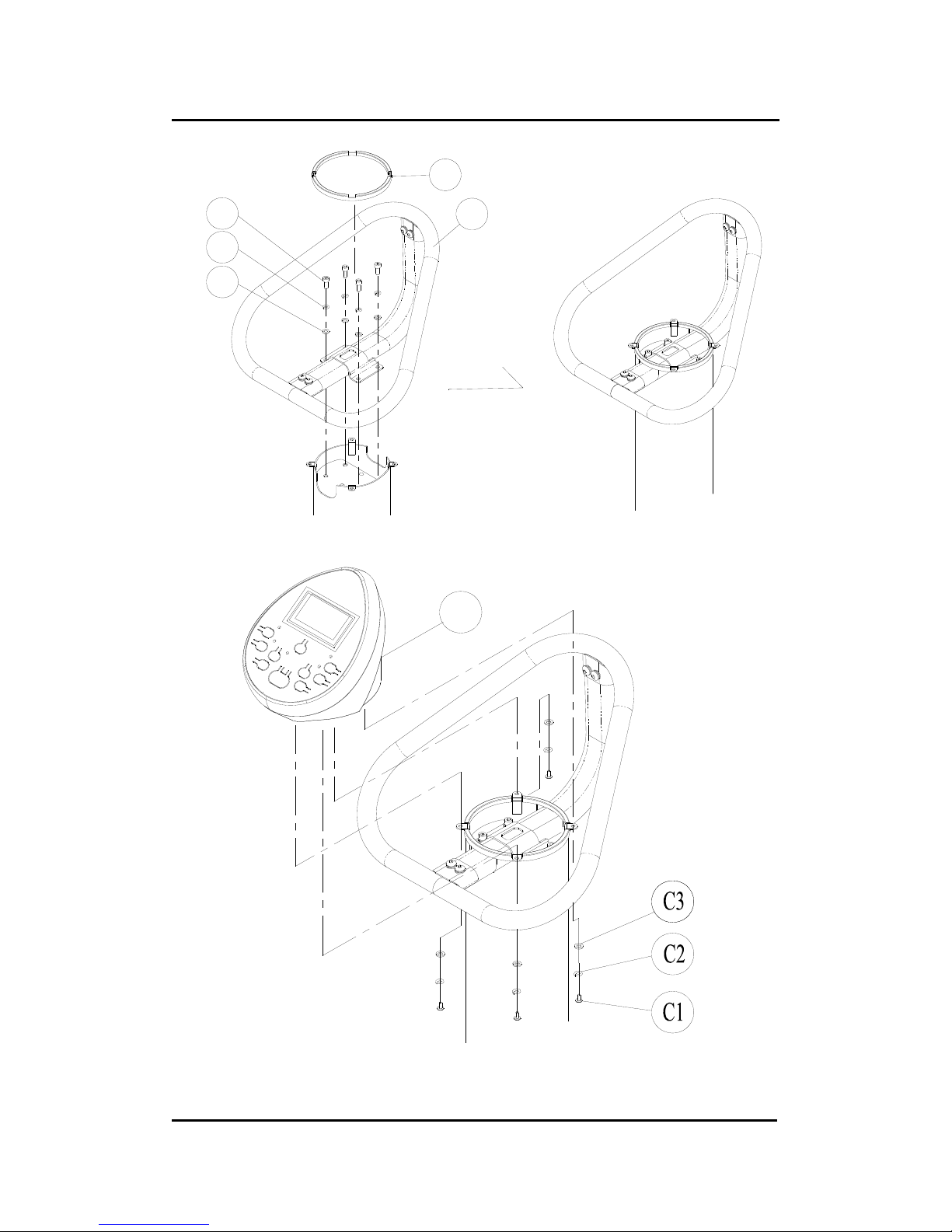

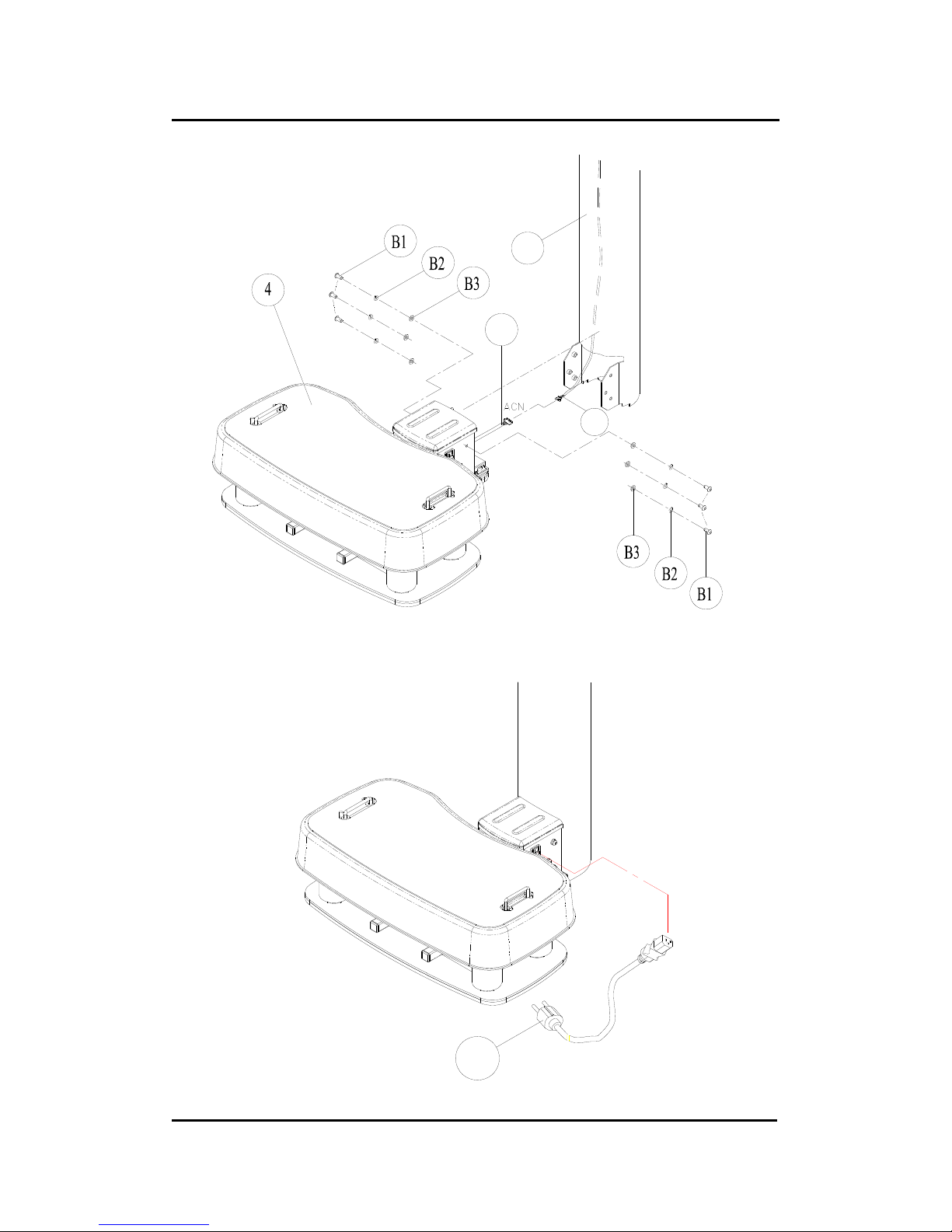

2.2 Assembly Instructions

Technical Information
- 6 -
1
12
2
3
4
5
6

Technical Information
- 7 -
1
7

Technical Information
- 8 -
1
8
A1
A3
A2
2

Technical Information
- 9 -
10
9
3
11

Technical Information
- 10 -
12
12
5
13

Technical Information
- 11 -
2.3 Warranty
Valid Period：Warranty starts from the time of purchase. Keep your receipt! Proof of
purchase is required at time of warranty validation.
Warranty Parts Quantity (PC) Time Period
Console 1 2 years
DC Motor 1 2 years
Main Frame 1 5 years
Warranty Limitations
The forgoing warranty shall not be applied to the following：
¾If serial number is damaged, unreadable, modified or missing.
¾Product has been used improperly, misuse, negligence, incorrectly
maintained, modifications, dismantled, unauthorized service to or on the
machine.
¾Faulty wiring or electrical surges.
¾If it is damaged by natural disasters, such as lightening, flood, typhoon, fire,
earthquake or other natural disasters.
¾Factory guarantee conditions apply.

Technical Information
- 12 -

What is Whole Body Vibration Training
- 13 -
3. Origin－Vibration Training
Humans experience the effects of externally applied forces constantly
when exercising. When our feet contact ground during locomotion or as
we strike objects with sport implements and daily activities, for example
skiing, surfing, riding, dancing, public transportations, boat, aircraft and
many more. These contacts create vibrations within the tissues of the
limbs, which gradually decline as soft tissues dampen these oscillations,
so that calls “vibration stimulus”. The body relies on a number of factors
to achieve this reduction in vibrations, primarily soft tissue structures, but
also bone, synovial fluids, specific joint positions, and muscle activity.
Principle－Vibration Theory
Whole Body Vibration training(WBV) is, that subject stands on a
platform or plate that produces sinusoidal oscillations either in a vertical
up and down motion, or that rotates about a center fulcrum producing up
and down vertical motion on alternating sides of the fulcrum, applied to
either muscle tendons, or skeletal muscle indirectly to increases muscle
activity and subsequently enhances muscle performance in both acute and
chronic conditions for training purpose and sports performance
enhancement. Through WBV to induce Tonic Vibration Reflex(TVR),
which is a sustained contraction of a muscle subjected to vibration caused
by vibratory activation of muscle spindles-muscle receptors sensitive to
stretch, has significant improvements on strength and explosive power.
And today, vibration has been proven with significant positive effects on
neuromuscular, bone density, metabolism and many more by sports
scientists and academic.
Application of Vibration Training
Since the early 1960s, vibration stimulation has been used in medical
rehabilitation to stimulate and induce the activation of the muscle
proprioceptors. The contractions caused by this stimulation help restore
normal muscle function. In the field of rehabilitation vibration is being
used on patients to help relieve muscle stress, repair and restore range of

What is Whole Body Vibration Training
- 14 -
motion, osteoporosis prevention, improve blood circulation, metabolism
and improve the autonomic nervous system.
Initially, the concept behind vibration training had its roots in East
Germany with a technique called Rhythmic Neuromuscular Stimulation
(RNS). This science was later embraced and developed by Russian
scientists to combat the growing issue of osteoporosis.
Since osteoporosis and muscular atrophy were both noted in Russia’s
cosmonauts the Russian space agency used vibration training to combat
the effects of the zero gravity environment of space. (Because there is no
gravitational force in space, muscles and bones are not loaded leading to
bone loss and muscle atrophy.) The results of vibration training on the
cosmonauts were very significant including improved muscular strength,
increased bone density and preventing osteoporosis.
In 1970s Russia used vibration training on elite athletes to improve
muscle strength and endurance. The performance gains on these athletes
had been significant through this new mode of training and hence the
beginning of vibration training in sports. Since than there have been
continued studies on the effects of vibration training.(Please refer to the
documents and experiment data in the addendum).
3.1 The Benefits of Vibration Training on the Human Body
¾Sports Performance
3Enhances neuromuscular performance.
3Improves strength, explosive power, agility and flexibility.
3Help to prevent sports injuries.
3Increases the range of motion.
3Increases bone density.
3Quicker recovery.

What is Whole Body Vibration Training
- 15 -
¾Health Performance
9Reduces the hormone reaction- promotes plasma consistency
of testosterone, Human Growth Hormone, and decreases
cortisol.
9Increases bone density and prevents osteoporosis.
9Induces bone remodeling.
9Increases blood circulation and enhances metabolism.
9Releases stressed muscles.
9Improves lower back pain.
9Reduces the tightness in joints, ligaments and tendons.
9Vibrating stimulus enhances bone recovery.
¾Rehab/Sports medicine Performance
9Positive effect on preventing and improving osteoporosis.
9Enhances body control and balance.
9Improves joint disease- rheumatoid arthritis.
9Help to insulin of NIDDM patients on blood glucose control.

Product Introduction
- 16 -
4. About Zen Pro®
It has been documented for thousands of years in Chinese culture that
stimulating specific parts of the body affects well being. Acupuncture,
focused breathing, massage and meditation are used to alleviate stress
responses that adversely impact all the bodies systems. Through Zen Pro®,
people can release stress, calming the spirit and balancing the body, heart
and mind.
A long-term academic study found that meditation exercises combined
with the benefits of vibration training and fitness could substantially
improve the quality of life by relieving symptoms caused by high stress
environments, overwork and lack of rest.
The Whole Body Vibration Zen Pro®series was developed based on
Static State Meditation combined with the benefits of fitness and
vibration technology. It can train full-body muscle groups and enhance
the function of mental and physical efficiency at the same time. The Zen
Pro®can also be used as an auxiliary piece of equipment for warm-up and
cool down before and after exercise. With the proper training program, it
can enhance the flexibility of the body, hand strength, control, flexibility
and the sense of balance, releasing the deep healthy energy of the human
body creating wellness and a strong, healthy mind.

Product Introduction
- 17 -
4.1 Product Specification
‧Product Name Zen Pro®TVR-5900
Voltage U.S：100V~120V / EU：220V~240V
Frequency 20Hz~50Hz
Amplitude Maximum 1.5mm
Force 800N
Motor DC Motor 1.0HP
Main Frame color Pearl White
Console Display LCD display, Backlit LCM 160*80dots
Exercise Programs 5 programs：
Total body, Upper body, Abdominal, Upper body, Manual
Workout Display Posture Exercise Program, Exercise Time, Frequency,
Exercise Group
Panel keys 4 Program keys, 2 Time keys, 2 Frequency keys,
1 Start/Stop key, 1 Manual key
Accessories User Manual*1, Straps*2, Exercise Poster*1,
Platform mat 8mm*1
Maximum Load 140Kgs (300Ibs)
Dimension (L) 74.9 cm x (W) 76.1 cm x (H) 141.6 cm
(L) 29.5 in x (W) 30.0 in x (H) 55.7 in
Weight N.W. : 58.4Kgs , G.W. : 65.95Kgs
Certifications CE, ETL, RoHS Compliant
