PowerWasher TN-1200 User manual

•
'< POtVI.ItfA
. .
. @[p@[?<3)~[?~ ~<3)[K)[)<3)0
' ~®~@0~ IJ[K}u~~@@
·I
Internet Address: www.FAIPNORTHAMERIC~INC.com
'

~....--_ S _ A _FE_TY_A_ N _D_O_P_E_R_I4._J' I _O_N_R_U_L_E S _--.~ j- ~
~----------------------------
Safety precautions are essential when any mechanical equipment is involved. These
precautions are necessary when using, storing, and servicing mechanical equipment.
Using.this equipment with the respect and caution demanded will considerably lessen
the possibilities of personal injury. If safety precautions are overlooked or ignored,
personal injury or property damage may occur.
The following symbols shown below are used extensively throughout this manual.
Always heed these precautions,
as they are essential when using any mechanical
equipment.
WARNING
CAUTION
This warning symbol identifies specific instructions of procedures which if
not correctly followed could result in personal injury or death.
This caution symbol identifies specific instructions of procedures which, if
not strictly observed, could result in damage to, or destruction of
equipment.
This unit was designed for specific applications. It should not
be modified and/or used
for any application other than which it was designed. If there are any questions
regarding its application, write or call.
Do not use this unit until you have been advised.
WARNING
When using this product basic precautions should always be followed,
including the following:

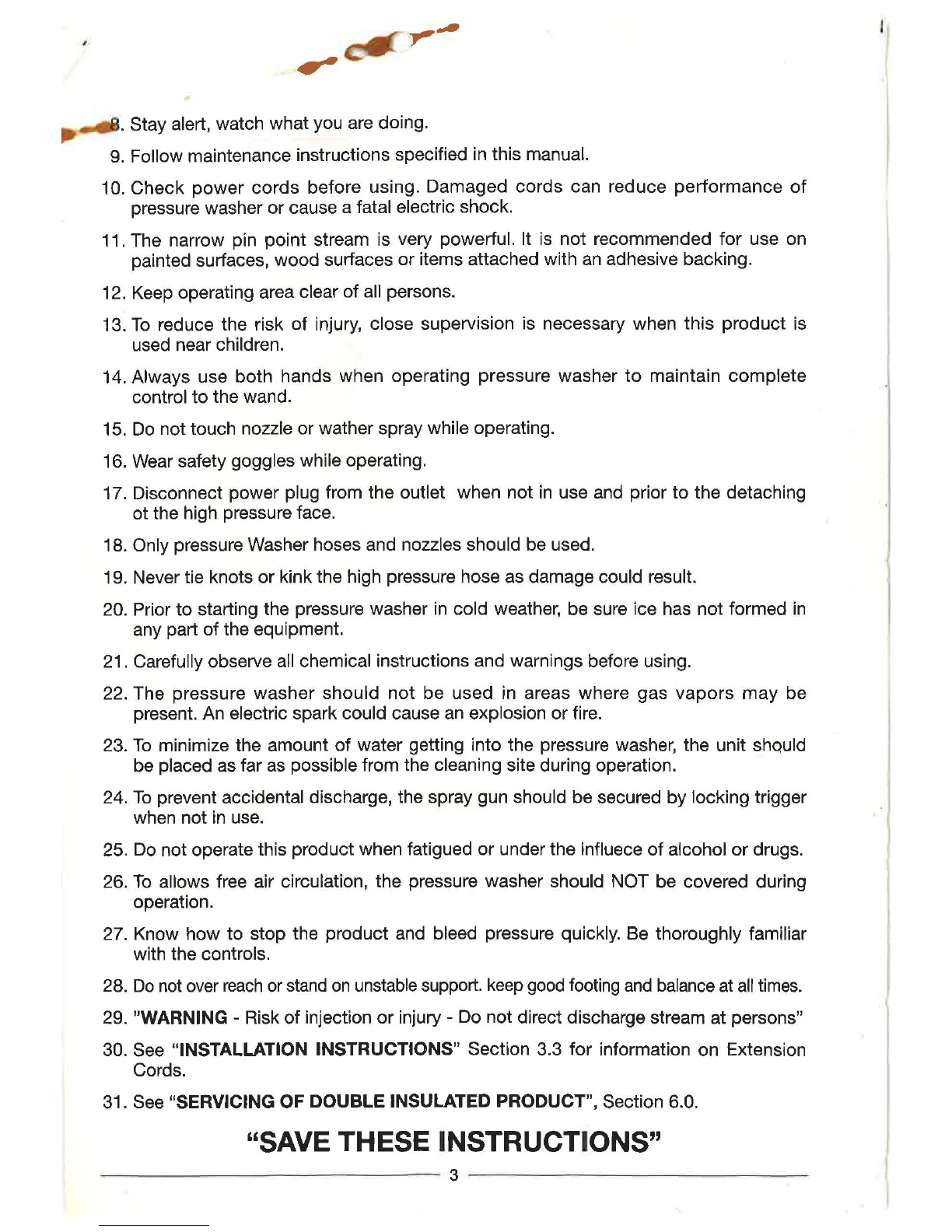

1. Read this manual carefully -know your equipment. Consider the applications,
limitations,
and the potential hazards specific to your unit.
2. This product shall only be connected to a power supply receptacle pretected by a
ground-fault-circuit-interrupter.
3. Do not touch plug or outlet with wet hands.
4. Avoid accidental stars. Move switch on unit to "OFF" position before connecting or
disconnecting cord to electrical outlets.
5. Water spray must never be directed towards any electric wiring or directly towards
the pressure washer machine itself or fatal electric shock my occur.
6. Never carry your pressure washer by the cord. Do not pull on the cord to disconnect
from the outlet
7. To prevent damage, the cord should not be crushed, placed next to sharp objects
nor near a heat source.
-- -- ---- ------------ -- ---- --- 2 ------------ ------------ -------

_.s .Stay alert, watch what you are doing.
9. Follow maintenance instructions specified in this manual.
10. Check power cords before using. Damaged cords can reduce performance of
pressure washer or cause a fatal electric shock.
11. The narrow pin point stream is very powerful. It is not recommended for use on
painted surfaces, wood surfaces or items attached with an adhesive backing.
12. Keep operating area clear of
all persons.
13.
To reduce the risk of injury, close supervision is necessary when this product is
used near children.
14. Always use both hands when operating pressure washer to maintain complete
control to the wand.
15. Do not touch nozzle or wather spray while operating.
16.
Wear safety goggles while operating.
17. Disconnect power plug from the outlet when not
in use and prior to the detaching
ot the high pressure face.
18. Only pressure Washer hoses and nozzles should be used.
19. Never tie knots or kink the high pressure hose as damage could result.
20. Prior to starting the pressure washer
in cold weather, be sure ice has not formed in
any part of the equipment.
21. Carefully observe
all chemical instructions and warnings before using.
22. The pressure washer should not be used
in areas where gas vapors may be
present.
An electric spark could cause an explosion or fire.
23.
To minimize the amount of water getting into the pressure washer, the unit shquld
be placed as far as possible from the cleaning site during operation.
24.
To prevent accidental discharge, the spray gun should be secured by locking trigger
when not
in use.
25. Do not operate this product when fatigued or under the influece of alcohol or drugs.
26.
To allows free air circulation, the pressure washer should NOT be covered during
operation.
27. Know how to stop the product
and bleed pressure quickly. Be thoroughly familiar
with the controls.
28. Do not over reach or stand on unstable support. keep good footing and balance at all times.
29. "WARNING -Risk of injection or injury - Do not direct discharge stream at persons"
30.
See "INSTALLATION INSTRUCTIONS" Section 3.3 for information on Extension
Cords.
31.
See "SERVICING OF DOUBLE INSULATED PRODUCT", Section 6.0.
"SAVE THESE INSTRUCTIONS"
3 -------------------------------

PARTS DRAWING
8 1
.____PA_R_T_ S _L_I S _T___. I !c oMPONENT LI ST!
Item Description
A High pressure hose & gun assembly
B Wand & Turbo nozzle assembly
C Nozzle Cleaner
D Inlet Screen
E Garden hose quick connect
coupling assembly
F High pressure hose threaded
nut coupler
G Quick connect wand o ring
Art. Description
1 Motor
and pump in case
3 Power supply cord
4 On/off switch
Inlet screen
Garden hose quick connect
coupling assembly
8 High pressure outlet
High .pressure hose
High pressure gun
Triggor
Safety Lock
Quick connection coupling
Spray wand
Adjustable nozzle
16 Soap Lance Assembly
---------- -------- ------ --- 4 -- ---- ------------ ---- ---- -

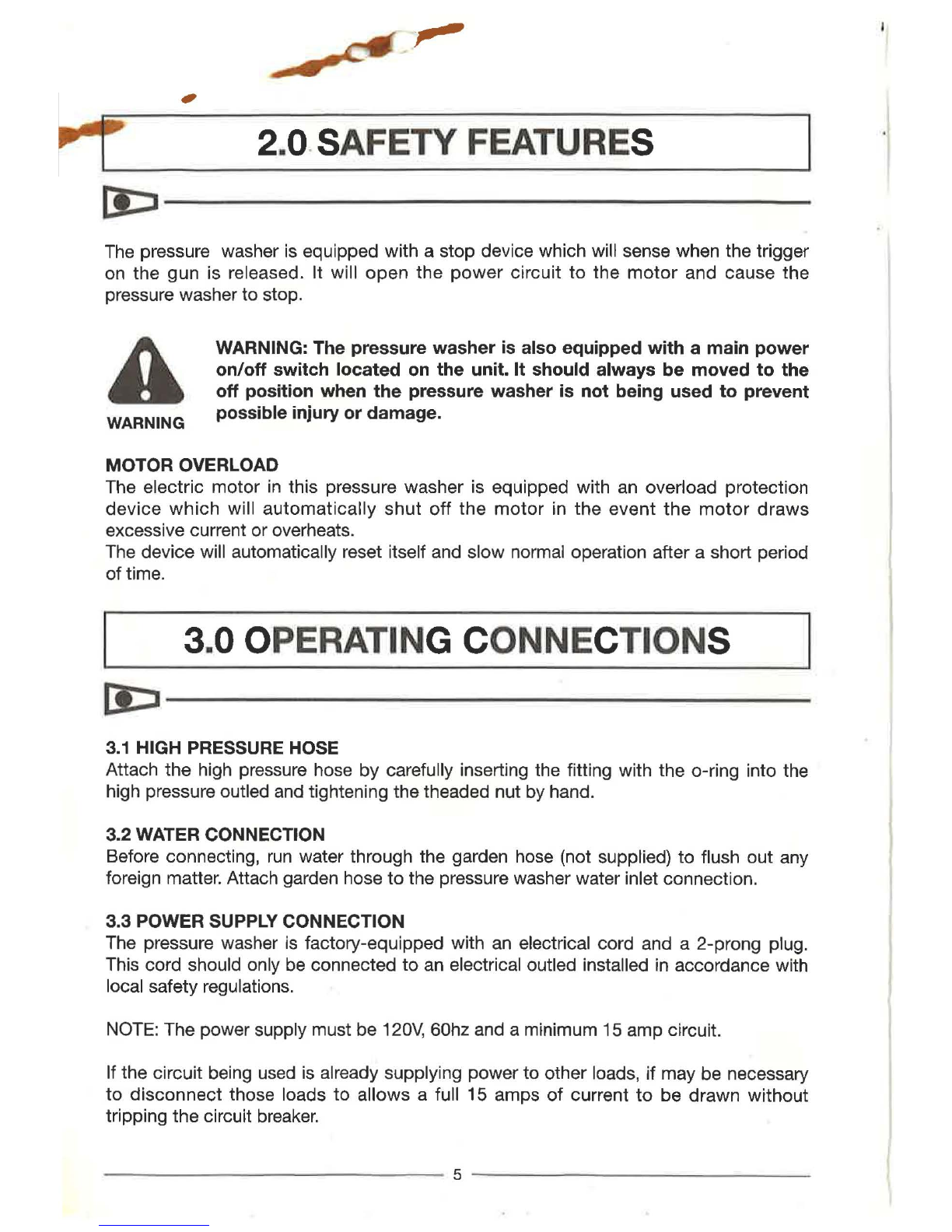

2.0.SAFETY FEATURES
~----------------------------
The pressure washer is equipped with a stop device which will sense when the trigger
on the gun is released. It will open the
power circuit to the motor and cause the
pressure washer to stop.
WARNING
WARNING: The pressure washer is also equipped with a main power
on/off switch located
on the unit. It should always be moved to the
off position when the pressure washer
is not being used to prevent
possible injury or damage.
MOTOR OVERLOAD
The electric motor in this pressure washer is equipped with an overload protection
device
which will automatically shut off the motor in the event the motor draws
excessive current or overheats.
The device will automatically reset itself and slow normal operation after a short period
of time.
3.0 OPERATING CONNECTIONS
~-----------------------------
3.1 HIGH PRESSURE HOSE
Attach the high pressure hose by carefully inserting the fitting with the o-ring into the
high pressure outled and tightening the theaded nut by hand.
3.2 WATER CONNECTION
Before connecting, run water through the garden hose (not supplied) to flush out any
foreign matter. Attach garden hose to the pressure washer water inlet connection.
3.3 POWER SUPPLY CONNECTION
The pressure washer is factory-equipped with an electrical cord and a 2-prong plug.
This cord should only
be connected to an electrical outled installed in accordance with
local safety regulations.
NOTE: The power supply must be 120V, 60hz and a minimum 15 amp circuit.
If the circuit being used is already supplying power to other loads, if may be necessary
to disconnect those loads to allows a full 15 amps
of current to be drawn without
tripping the circuit
breaker.
-------------------------- ----- 5 -- -- ---- ---- ------ -- -----------

WARNING:
WARNING
'
A. GROUND FAULT CIRCUIT INTERRUPTER PROTECTION -
comply with the National Electrical Code (NFPA 70), and to prov ~ i "e •._
additional protection from the risk of electrical shock, the
pressure washer should only be connected to a receptable that is
protected by a ground fault circuit interrupter (GCFI).
B. Inspect cord before using. Do not use in cord is damaged.
C. Keep alia connection dry and off the ground.
D. Do not touch plug with wet hands.
E. Replacement of the cord or plug should be done by a qualified
service person only.
EXTENSION CORDS
Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking "Acceptable for use with outdoor appliances: store indoors
while not in use". Use only extension cords having an electrical rating not less than the
rating of the product.
Do not use damage extensio cord. Examine extension cord
before using
and replace if damage. Do not abuse extension cord and do not yank on
any cord disconnect. Keelp cord away from heat sharp edges. Always disconnect the
product from the extension cord.
When using
an extension cord, observe the specifications below:
WARNING
Cable Lenght
Up to 50 ft.
50 to 100ft.
Wire Gauge
14AWG
12AWG
WARNING: To reduce the risk of electrocution, keep all connections
dry and off the ground. Do not touch plug with wet hands.
4.0 OPERATING INSTRUCTIONS
~----------------------------
WARNING
CAUTION
WARNING: Risk of injection or injury. Do not direct discharge stream
at persons.
CAUTION: Read before operating. Before the very first starting and
after extended storage of the machine, carry out the follow ing
opearation: With the unit unplugged. Insert the allen wrench into the
motor shaft through the louvers at the rear of the machine and rotate
three full
turns clock wise to verify the motor turns freely. After this
operation, follow all directions in Section 3.0 (Operating Connections)
and 4.0 (Operating Instructions).
-------- ---- -------- ---- -- -- 6 -- ---- ------------ ---- -- ----

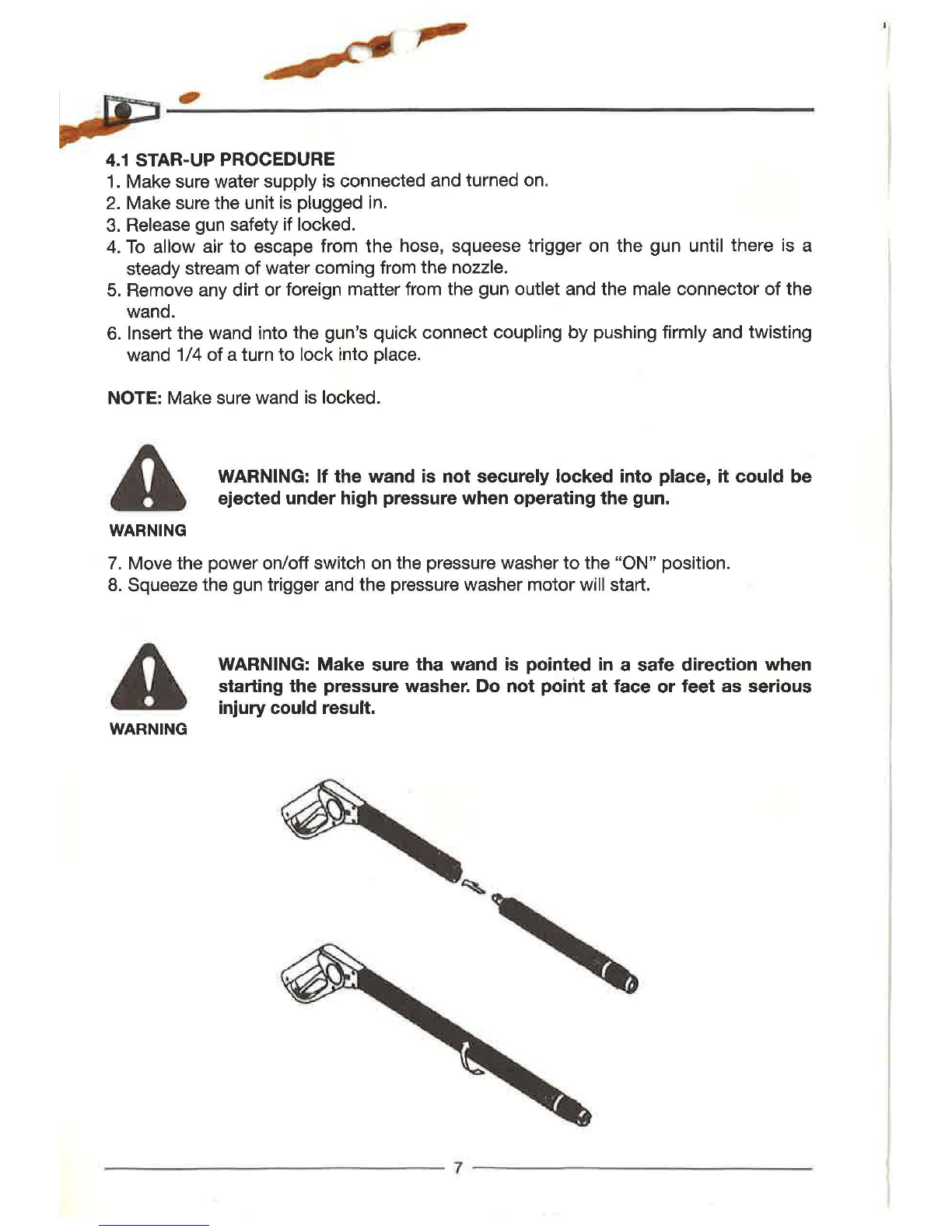

4.1 STAR-UP PROCEDURE
1. Make sure water supply is connected and turned on.
2. Make sure the unit is plugged in.
3. Release gun safety if locked.
4. To allow air to escape from the hose, squeese trigger on the gun until there is a
steady stream of water coming from the nozzle.
5. Remove any dirt or foreign matter from the gun outlet and the male connector of the
wand.
6. Insert the wand into the gun's quick connect coupling by pushing firmly and twisting
wand 1/4 of a turn to lock into place.
NOTE: Make sure wand is locked.
WARNING
WARNING: If the wand is not securely locked into place, it could be
ejected under high pressure when operating the gun.
7. Move the power on/off switch on the pressure washer to the "ON" position.
8. Squeeze the gun trigger and the pressure washer motor will start.
WARNING
WARNING: Make sure tha wand is pointed in a safe direction when
starting the pressure washer. Do not point at face or feet as serious
injury could result.
---- ---------- ---- ------ -- ---- -- - 7 ------------ ------ -----------

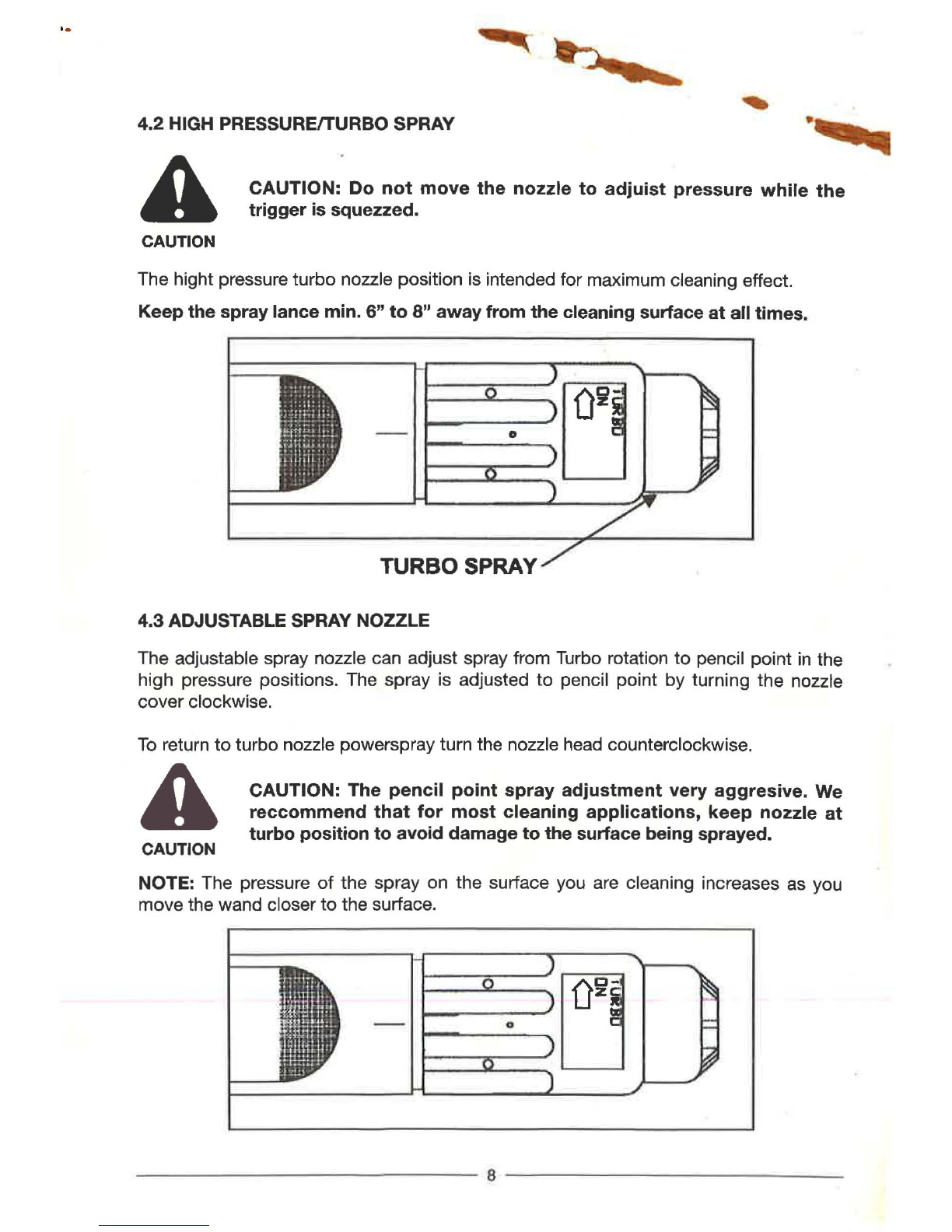

4.2 HIGH PRESSURE/TURBO SPRAY
CAUTION
CAUTION: Do not move the nozzle to adjuist pressure while the
trigger is squezzed.
The hight pressure turbo nozzle position
is intended for maximum cleaning effect.
Keep
the spray lance min. 6" to 8" away from the cleaning surface at all times.
TURBO SPRAY
4.3 ADJUSTABLE SPRAY NOZZLE
The adjustable spray nozzle can adjust spray from Turbo rotation to pencil point in the
high pressure positions. The spray is adjusted to pencil point by turning the nozzle
cover clockwise.
To return to turbo nozzle powerspray turn the nozzle head counterclockwise.
CAUTION
CAUTION: The pencil point spray adjustment very aggresive. We
reccommend that for most cleaning applications, keep nozzle at
turbo position to avoid damage to the surface being sprayed.
NOTE: The pressure of the spray on the surface you are cleaning increases
as you
move the wand closer to the surface.
------------ ------ ---- ---- -- 8 ------ -- ------ -- ------ -- ----

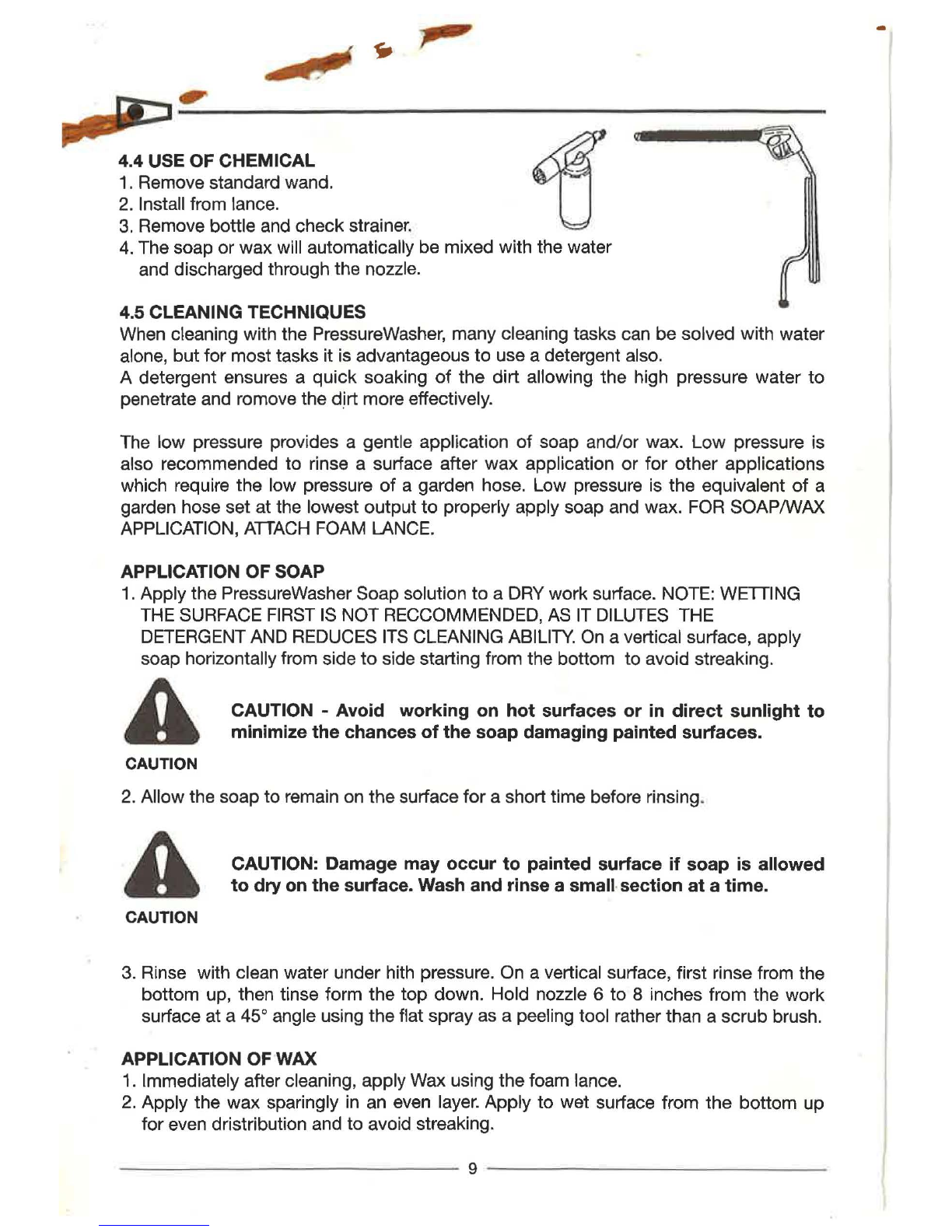

4.4 USE OF CHEMICAL
1. Remove standard wand.
2. Install from lance.
3. Remove bottle and check strainer.
4. The soap or wax will automatically be mixed with the water
and discharged through the nozzle.
4.5 CLEANING TECHNIQUES
When cleaning with the PressureWasher, many cleaning tasks can be solved with water
alone, but for most tasks it is advantageous to use a detergent also.
A detergent ensures a quick soaking of the dirt allowing the high pressure water to
penetrate and romove the dirt more effectively.
The low pressure provides a gentle application of soap and/or wax. Low pressure is
also recommended to rinse a surface after wax application or for other applications
which require the low pressure of a garden hose. Low pressure is the equivalent of a
garden hose set at the lowest output to properly apply soap and wax.
FOR SOAP/WAX
APPLICATION, ATIACH
FOAM LANCE.
APPLICATION OF SOAP
1. Apply the PressureWasher Soap solution to a DRY work surface. NOTE: WETIING
THE SURFACE FIRST IS NOT RECCOMMENDED, AS IT DILUTES THE
DETERGENT AND REDUCES
ITS CLEANING ABILITY. On a vertical surface, apply
soap horizontally from side to side starting from the bottom to avoid streaking.
CAUTION
CAUTION -Avoid working on hot surfaces or in direct sunlight to
minimize the chances of the soap damaging painted surfaces.
2. Allow the soap to remain on the surface for a short time before rinsing.
CAUTION
CAUTION: Damage may occur to painted surface if soap is allowed
to dry on the surface. Wash and rinse a small·section at a time.
3. Rinse with clean water under hith pressure. On a vertical surface, first rinse from the
bottom up, then tinse form the top down. Hold nozzle 6 to 8 inches from the work
surface at a 45° angle using the flat spray
as a peeling tool rather than a scrub brush.
APPLICATION OF WAX
1. Immediately after cleaning, apply Wax using the foam lance.
2. Apply the wax sparingly in an even layer. Apply to wet surface from the bottom up
for even dristribution and to avoid streaking.
-- ---- ------ ---------- ---- ----- 9 -------------------------------

-
3. Remove the suction tube from the wax bottle and rinse off the surplus wax fro m · ~ -= ··
.vehicle under lo w pressure. NOTE- IF SURPLUS WAS IS NOT REMOVED, A HAZ
F INI SH MAY RESULT.
4. Wipe dry to reduce water spotting
4.6 END OF OPERATION
When you have completed use of the soap/wax application, remove bottle and flush
clean water through the tube until it
is thoroughly cleaned.
NOTE: Failure to clean properly will cause the injection system to become clogged and
inoperable.
• Stop the cleaner by pressing the on/off button.
• Disconnect electrical plug.
•
Turn off water and depressurize unit by squeezing trigger.
WARNING
WARNING: Turn off water supply and squeeze trigger to depressurize
the unit. Failure do so could result
in personal injury due to discharge
of high pressure water.
• Disconnect the high pressure discharge hose and the water inlet hose
5.0 MAINTENANCE
5.1 CONNECTIONS
Connections on PressureWasher hoses, gun and spray wand should be cleaned
regularly and lubricated with grease to prevent leakage
and damage to the
o-rings.
5.2 NOZZLE
Clogging of the nozzle causes the pump pressure to be high and possibly a distorted
spray pattern. Cleaning
is immediately required.
1. Separate the wand from the gun.
2. Clear the nozzle with the nozzle cleaner.
CAUTION
CAUTION: The nozzle cleaner must only be used when the spray
wand
is disconnected from the gun or personal injury could result.
------------------------------- 10 -------------------------------

•
.-, --

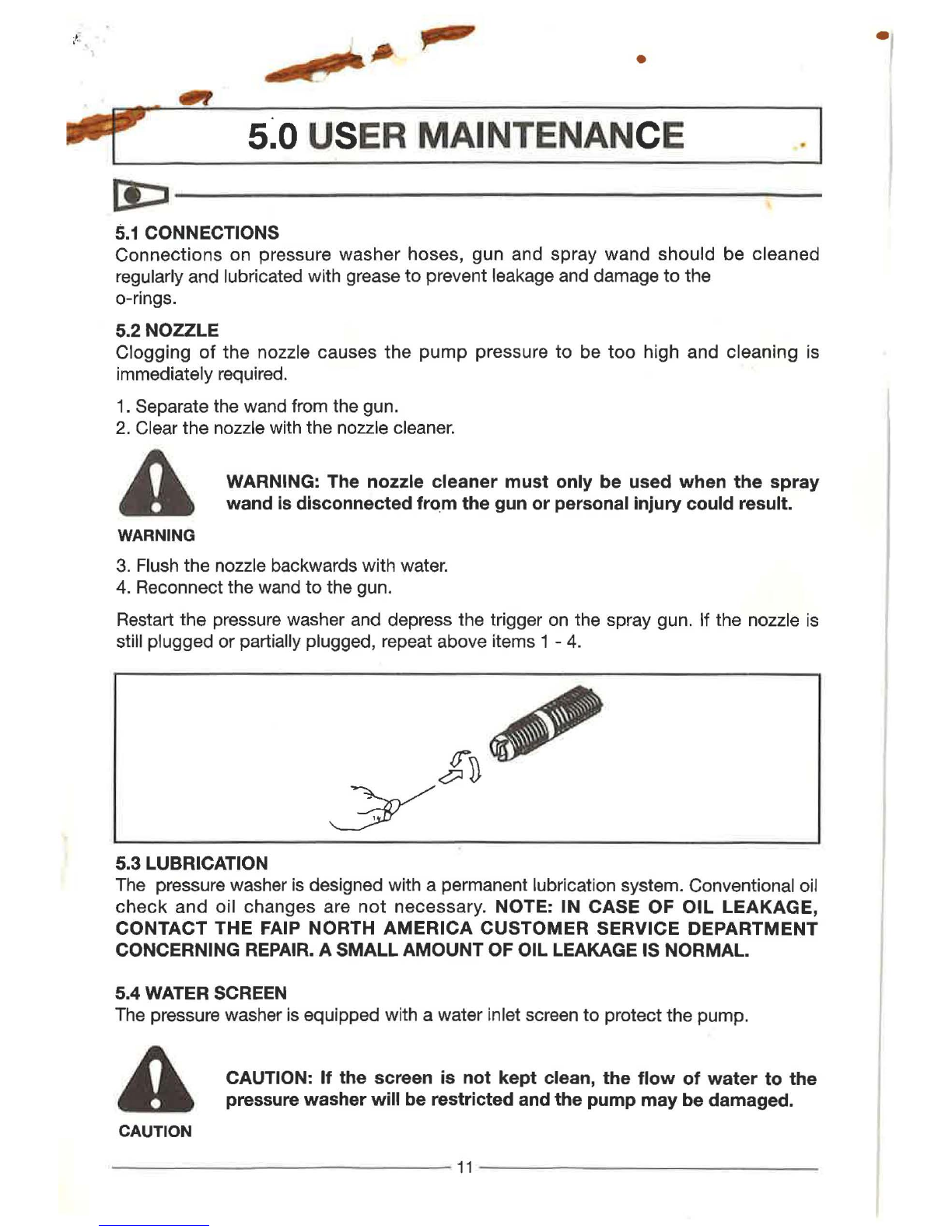

5~0 USER MAINTENANCE
~----------------------------
5.1 CONNECTIONS
Connections on pressure washer hoses, gun and spray wand should be cleaned
regularly and lubricated with grease to prevent leakage and damage to the
o-rings.
5.2NOZZLE
Clogging of the nozzle causes the pump pressure to be too high and cleaning is
immediately required.
1. Separate the wand from the gun.
2. Clear the nozzle with the nozzle cleaner.
WARNING
WARNING: The nozzle cleaner must only be used when the spray
wand is disconnected fro .m the gun or personal injury could result.
3. Flush the nozzle backwards with water.
4. Reconnect the wand to the gun.
Restart the pressure washer and depress the trigger
on the spray gun. If the nozzle is
still plugged or partially plugged, repeat above items 1 - 4.
5.3 LUBRICATION
The pressure washer is designed with a permanent lubrication system. Conventional oil
check and oil changes are not necessary. NOTE: IN CASE OF OIL LEAKAGE,
CONTACT THE FAIP NORTH AMERICA CUSTOMER SERVICE DEPARTMENT
CONCERNING REPAIR. A SMALL AMOUNT OF OIL LEAKAGE IS NORMAL.
5.4 WATER SCREEN
The pressure washer
is equipped with a water inlet screen to protect the pump.
CAUTION
CAUTION: If the screen is not kept clean, the flow of water to the
pressure washer will be restricted and the pump may be damaged.
------ ---- -- ---- -- ---- -- ---- - 11 -- ---- ---- -- -------- ---------

• •

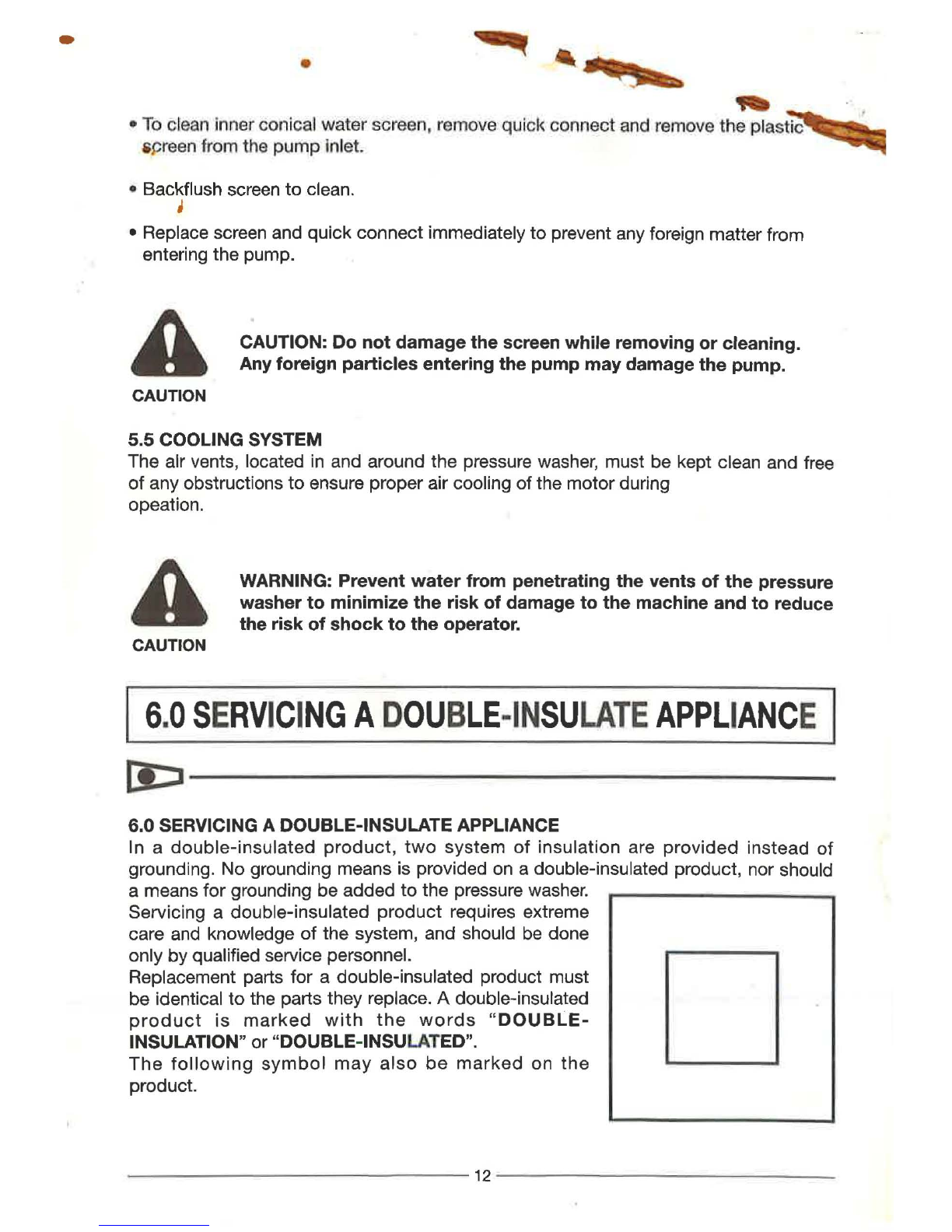

• To clean inner conical water screen, remove quicl( connect and remove the plastic ~~~-
•p reen from the pump Inlet.
• Backflush screen to clean.
I
• Replace screen and quick connect immediately to prevent any foreign matter from
entering the pump.
CAUTION: Do not damage the screen while removing or cleaning.
Any foreign particles entering the pump may damage the pump.
CAUTION
5.5 COOLING SYSTEM
The air vents, located in and around the pressure washer, must be kept clean and free
of any obstructions to ensure proper air cooling of the motor during
opeation.
WARNING: Prevent water from penetrating the vents of the pressure
washer to minimize the risk of damage to the machine and to reduce
the risk of shock to the operator.
CAUTION
I 6.0 SERVICING A DOUBLE-INSULATE APPLIANCE I
~-----------------------------
6.0 SERVICING A DOUBLE-INSULATE APPLIANCE
In a double-insulated product, two system of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated product, nor should
a means for grounding be added to the pressure
washer.
Servicing a double-insulated product requires extreme
care
and knowledge of the system, and should be done
only by qualified service personnel.
Replacement parts for a double-insulated product must
be identical to the parts they replace. A double-insulated
product is marked with the words "DOUBLE-
INSULATION" or "DOUBLE-INSULATED".
The following symbol may also be marked on the
product. D
------------------------------ 12 -------------------- -- -------

•
~ ~ ~ _____ 7_.0 _M __ O_V_ IN _G_& __ S_ TO __ RA _G __ E __ _
~------------------------~--

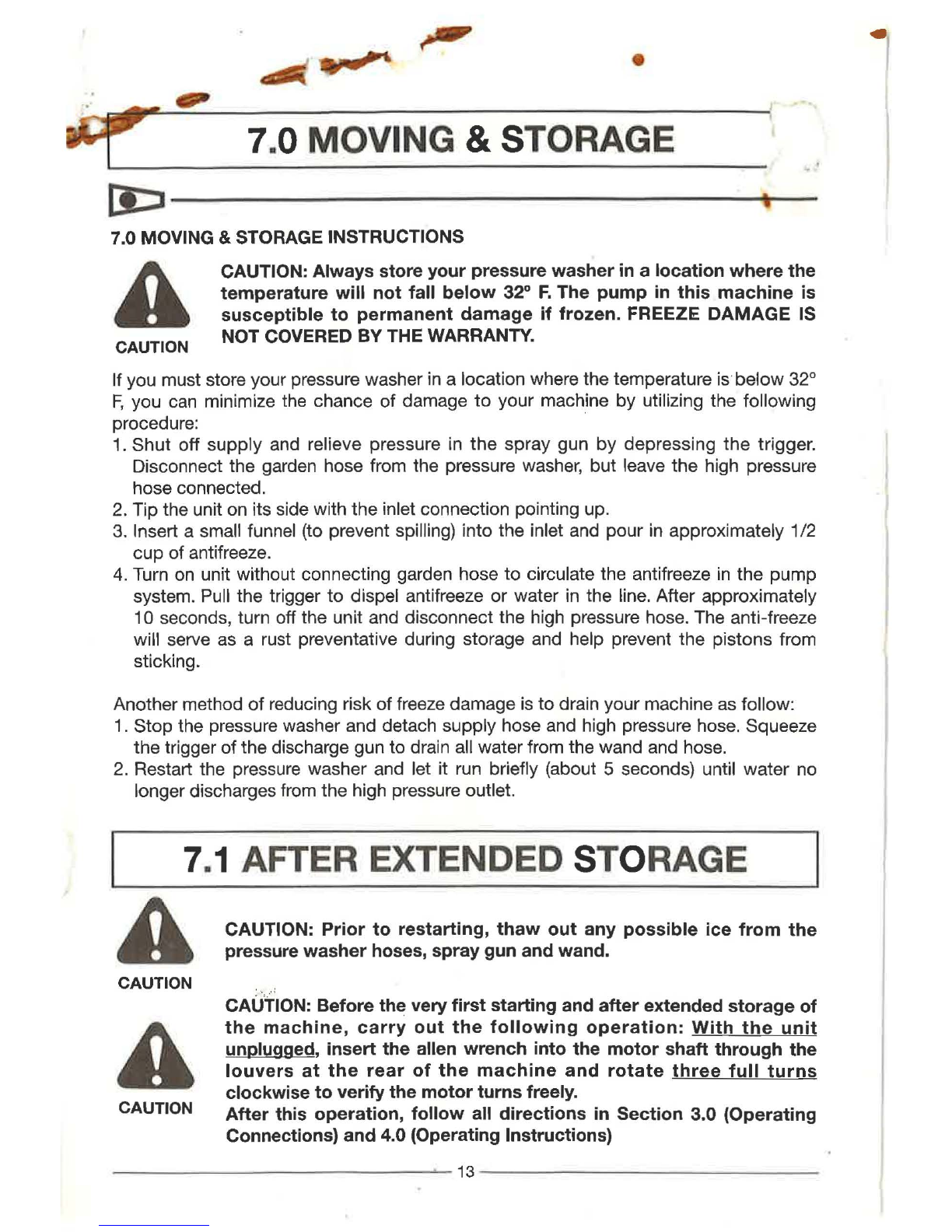

7.0 MOVING & STORAGE INSTRUCTIONS
CAUTION
CAUTION: Always store your pressure washer in a location where the
temperature will not fall below 32° F. The pump in this machine is
susceptible to permanent damage if frozen. FREEZE DAMAGE IS
NOT COVERED
BY THE WARRANTY.
If you must store your pressure washer in a location where the temperature is below 32°
F, you can minimize the chance of damage to your machine by utilizing the following
procedure: ·
1. Shut off supply and relieve pressure in the spray gun by depressing the trigger.
Disconnect the garden hose from the pressure washer, but leave the high pressure
hose connected.
2. Tip the unit on its side with the inlet connection pointing up.
3. Insert a small funnel (to prevent spilling) into the inlet and pour in approximately 1/2
cup of antifreeze.
4. Turn on unit without connecting garden hose to circulate the antifreeze in the pump
system. Pull the trigger to dispel antifreeze or water
in the line. After approximately
10 seconds, turn off the unit and disconnect the high pressure hose. The anti-freeze
will serve as a rust preventative during storage and help prevent the pistons from
sticking.
Another method
of reducing risk of freeze damage is to drain your machine as follow:
1. Stop the pressure washer and detach supply hose and high pressure hose. Squeeze
the trigger of the discharge gun to drain all water from the wand and hose.
2. Restart the pressure washer and let it run briefly (about 5 seconds) until water no
longer discharges from the high pressure outlet.
7.1 AFTER EXTENDED STO RAGE
CAUTION
CAUTION
CAUTION: Prior to restarting, thaw out any possible ice from the
pressure washer hoses, spray gun and wand.
CAU'fiON: Before the very first starting and after extended storage of
the machine, carry out the following operation: With the unit
unplugged, insert the allen wrench into the motor shaft through the
louvers at the rear of the machine and rotate three full turns
clockwise to verify the motor turns freely.
After this operation, follow all directions in Section 3.0 (Operating
Connections) and 4.0 (Operating Instructions)
------ ---------------- ------~ 13 ------ ---------------------- ---
•

-•
8.0 TROUBLESHOOTING
~---------------------------
PROBLEM POSSIBLE CAUSE CORRECTION
Loose or disconnected plug Reconnect plug.
Motor will not start or stops while Tripped pressure washer thermal Allow to cool and restart unit.
operating. switch.
Power Bias trigger not operating Call customer Service Department.
properly.
Circuit Overload Check that the circuit
is rated 15
amps
or greater. Disconnect all
loads on the circuit.
Extension cord too long or wire Use proper extension cord as
size
too small. recommended in Operator's
Circuit breaker trips or fuse blown Manual.
in fuse box. Nozzle partially blocked Clean nozzle as instructed
in
Section 5.2
Excessive pressure Clean nozzle as instructed
in
Section 5.2.
Water
or oil leaking from bottom of
A small amount of leakage is If excessive leaking occurs call
pump. normal. Customer Service Department.
·-
Trigger will not move. Gun safety
lock engaged. Release safety lock.
Unit will
not stop when trigger is
Power Blast Trigger system not Call Customer Service Department.
released. operating properly.
Fauced closed. Open faucet.
Unit has been stored in freezing Thaw
out unit completely including
temperatures. hose, gun and wand.
Water inlet screen clogged. Clean screen. See section 5.4
Motor running but pump not
Kink in garden hose. Straighten hose.
building maximun pressure
or has
irregular pressure. Wand nozzle worn out. Replace spray wand.
Air in pump. Let pressure washer run with gun
open and wand removed until
steady stream of water is released.
Suction or discharge valves Call Customer Service Department.
clogged
or worm out.
------------------------------ 14 ---- ---------- ---------------

•
r , .,

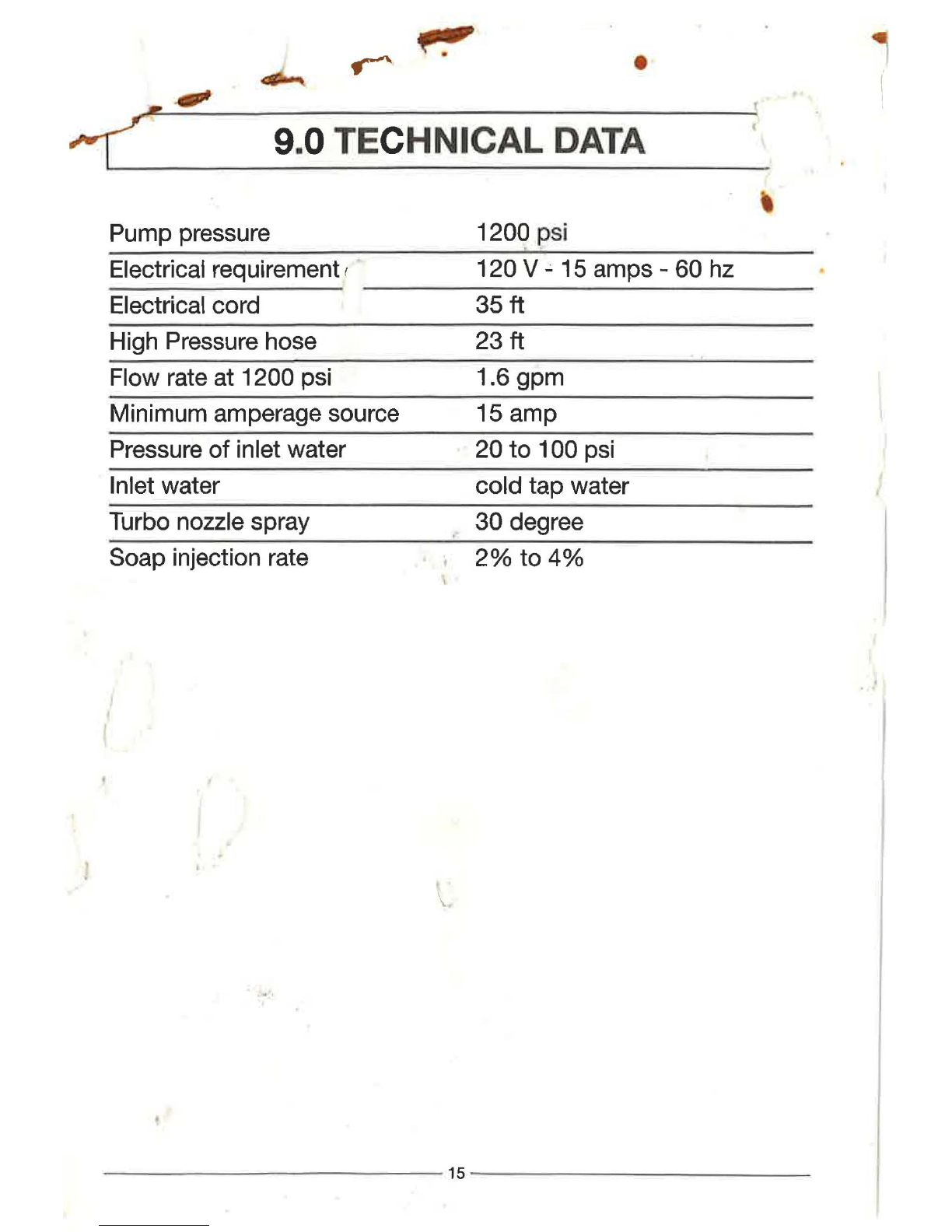

~ 9.0 TECHNICAL DATA
Pump pressure 1200 psi
Electrical requirement 1 120 V ..:. 15 amps -60 hz
------------------------ ---- ---
Electrical cord 35 ft
High Pressure hose 23 ft
Flow rate at 1200 psi 1.6 gpm
Minimum amperage source 15 amp
Pressure of inlet water 20 to 100 psi
Inlet water cold tap water
Turbo nozzle spray 30 degree
Soap injection rate 2% to 4%
\
-- -- ---------- ---- ---- 15 -- ------------ --------

·•- .
..'
i
•I

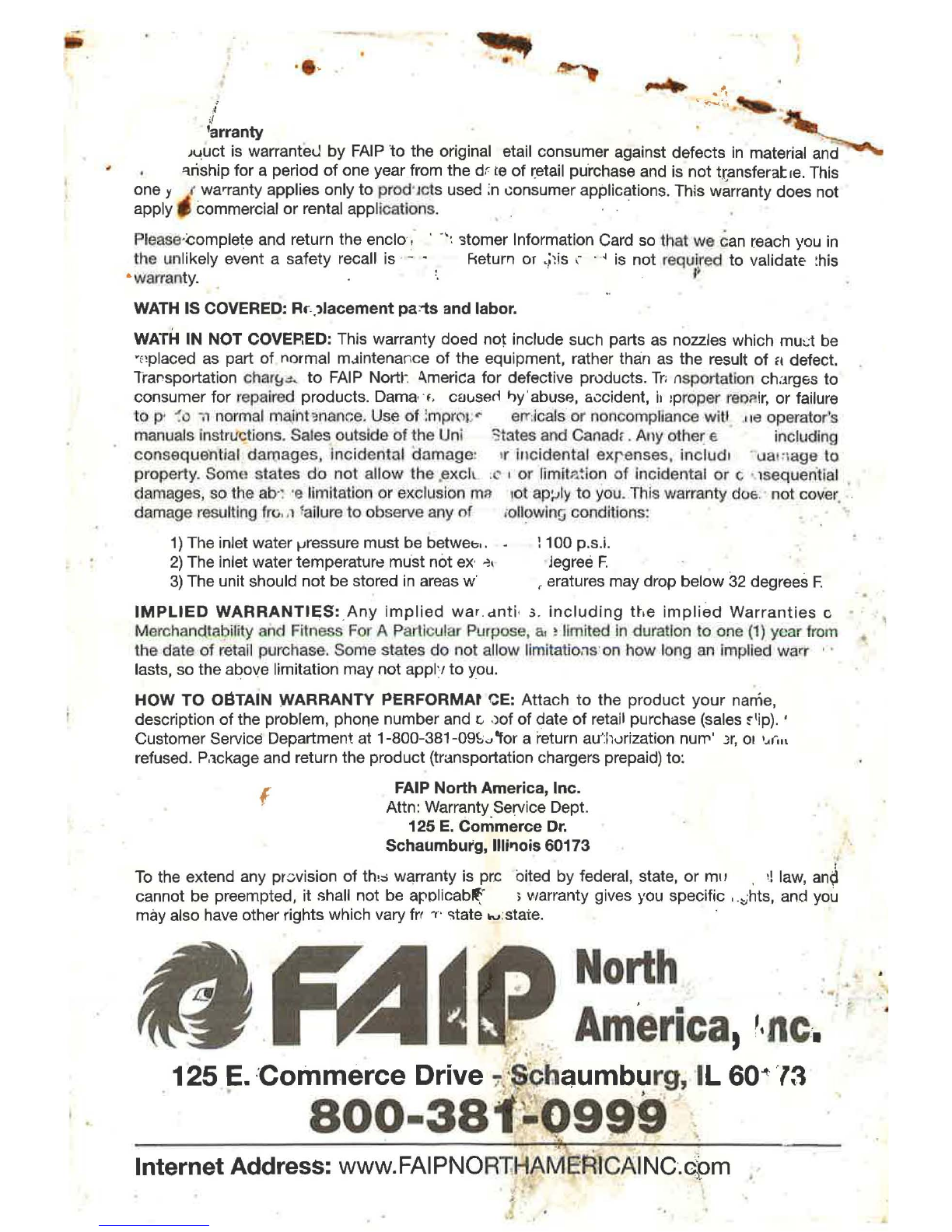

' arranty
one y
apply
J~uct is warranteu by FAIP 'to the original etail consumer against defects in material and
'lriship for a period of one year from the dr te of retail pu'rchase and is not transferat 1e. This
wa•ranty applies only to prod· Jet s used :n .::on~umer applications. This w~rranty does not
commerci
al or rental application s.
Pl ease· :Complete and return the enclo ; ' ''·. stomer Information Card so that we c an reach you in
the unlikely event a safety recall is - • lietum or •. :1is _- ··' is not requl[ed to validate :his
•warranty. · I
WATH IS COVERED: R1 ·.. llacement pa:1s and labor.
WATH IN NOT COVERED: This warranty doed no~ include such parts as nozzles which mud be
· ~ ·placed as part of normal mJintenance of the equipment, rather than as the result of n defect.
Transportation
c h ar ~ ~ to FAIP Nortf·. ~merica for defective products. Tr; nsportation charges to
consumer for repaired products. Dama··F.
CDuserl ">y' abuse, accident, h :p roper reoi!ir, or failure
to p•
-:"o "'1'1 normal maintJnance. Use of : mpmv err:icals or noncompliance w itl ne operator's
manuals in
st ruction s. Sales outside of the Uni :l tates and Canadr . Any ot h e~ e including
consequent
ia l dama ges, incidental oamage: or incidental exrenses, inclu dl . ua ta age to
property. Somtl states do not allow the .
exc l\ .c • or limii P. ~Ion of Incidental or c •.1sequen-tlal
damages, so the ab
·: ·e li mitation or exclusion mn 1 01 ap:,ly to you . This warranty doe. not co ver .
damage resulting fro.,, failureto observe any
of ;otlowlng conditions:
1) The inlet water ._,ressure must be betweb ,.
2) The inlet water temperature must not ex· -'l1
3) The unit should not be stored in areas w·
1100 p.s.i.
· Jegree F.
, eratures may drop below 32 degrees F.
IMPLIED WARRANTIES:Any implied war . dnt i• 3 . including the implied Warranties c
Merchancttab il ity and Fitness For A Parllcular Pur~ose , a. ! limited in duration to one (1) year from
the date of retail purchase. Some states do not allow llmitatio.1s·on how long an Implied warr
lasts, so the above limitation may not appl:1
to you.
HOW TO OBTAIN WARRANTY PERFORMAt CE: Attach to the product your name,
description of the problem, phone number and IJ ,)of of date of retail purchase (sales f1 ip). •
Customer Service Department at 1-800-381-098, 'for a return au ': hurization nurT'' Jr, 01 '"r"'
refused. P.1ckage and return the product (transportation chargers prepaid) to:
f FAIP North America, Inc.
Attn: Warranty Service Dept.
125 E. Commerce Dr.
Schaumburg, llli11ois 60173 .
I
To the extend any pr evision of th,;:; warranty is pre oited by federal, state, or m11 . ,, law, an~
cannot be preempted, it shall not be arolicab~" ; warranty gives you specific ,.,;hts, and you
may also have other rights which vary frr -r· c;tate ~v : state.
North
America , '· nc :.
.125 E. : commerce Drive 7 · ~ 'ch aumb';J rg, ·IL ao ~ 13
800-381•099'9 .
Internet Address: www.FAIPNOR Tr HAM ERl CAING.c{om .
·.
