PR Elecronics 4222 User manual

4222
Universal
I/f converter
No. 4222V101-UK
From ser. no. 060867001

1716
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturudsving,
og alle produkter opfylder de strengeste internationale standarder.
Vores motto »Signals the Best« er indbegrebet af denne filosofi – og
din garanti for kvalitet.
PR electronics A/S oers a wide range of analog and digital signal
conditioning devices for industrial automation. The product range
includes Isolators, Displays, Ex Interfaces, Temperature Transmitters,
and Multifunctional Devices. You can trust our products in the
most extreme environments with electrical noise, vibrations and
temperature fluctuations, and all products comply with the most
exacting international standards. »Signals the Best« is the epitome
of our philosophy – and your guarantee for quality.
PR electronics A/S ore une large gamme de produits pour le
traitement des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux acheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm
an analogen und digitalen Signalverarbeitungsgeräte für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Übereinstimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE

4222V101-UK 3
Warning....................................................................................................... 4
Symbol identification............................................................................ 5
Safety instructions................................................................................. 5
How to dismantle system 4000....................................................... 7
Advanced features................................................................................. 8
Application................................................................................................. 8
Technical characteristics...................................................................... 8
PR 4501 Display / programming front........................................... 9
Mounting / demounting the PR 4501/4511............................... 10
Applications............................................................................................... 11
Order codes ............................................................................................... 12
Electrical specifications........................................................................ 12
Configuration of sensor error detection........................................ 16
Display readout on the 4501 ............................................................ 16
Display outside range........................................................................ 16
Sensor error detection limits.......................................................... 17
Signal conditioning limits ................................................................ 17
Error indications................................................................................... 17
Connections .............................................................................................. 18
Block diagram........................................................................................... 19
Configuration / operating the function keys............................... 20
Routing diagram...................................................................................... 23
Routing diagram, Advanced settings (ADV.SET)........................ 26
Scrolling help text in display line 3................................................. 27
UNIVERSAL I/fCONVERTER
4222
CONTENTS

4 4222V101-UK
WARNING
SYSTEM 4000 must be mounted on a DIN rail according to DIN
46277.
WARNING
This device is designed for connection to hazardous electric vol-
tages. Ignoring this warning can result in severe personal injury
or mechanical damage. To avoid the risk of electric shock and fire,
the safety instructions of this manual must be observed and the
guidelines followed. The specifications must not be exceeded, and
the device must only be applied as described in the following. Prior
to the commissioning of the device, this manual must be examined
carefully. Only qualified personnel (technicians) should install this
device. If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
WARNING
Until the device is fixed, do not connect hazardous voltages to
the device.
The following operations should only be carried out on a discon-
nected device and under ESD safe conditions:
General mounting, connection and disconnection of wires.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must
be done by PR electronics A/S only.
WARNING
Do not open the front plate of the device as this will cause damage
to the connector for the display / programming front PR 4501. This
device contains no DIP-switches or jumpers.
HAZARDOUS
VOLTAGE
GENERAL
INSTAL-
LATION

4222V101-UK 5
SYMBOL IDENTIFICATION
Triangle with an exclamation mark: Warning / demand.
Potentially lethal situations.
The CE mark proves the compliance of the device with
the essential requirements of the directives.
The double insulation symbol shows that the device
is protected by double or reinforced insulation.
SAFETY INSTRUCTIONS
DEFINITIONS
Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and
50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also
troubleshoot technically correct and in accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust
and operate the knobs or potentiometers during normal operation.
RECEIPT AND UNPACKING:
Unpack the device without damaging it. The packing should always follow the
device until this has been permanently mounted. Check at the receipt of the device
whether the type corresponds to the one ordered.
ENVIRONMENT
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation.
All devices fall under Installation Category II, Pollution Degree 1, and Insulation
Class II.
MOUNTING
Only technicians who are familiar with the technical terms, warnings, and instruc-
tions in the manual and who are able to follow these should connect the device.
Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com

6 4222V101-UK
Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.a. wire cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in the block
diagram and side label.
The following apply to fixed hazardous voltages-connected devices:
The max. size of the protective fuse is 10 A and, together with a power
switch, it should be easily accessible and close to the device. The power
switch should be marked with a label indicating that it will switch off the
voltage to the device.
Year of manufacture can be taken from the first two digits in the serial number.
UL INSTALLATION REQUIREMENTS
Use 60/75°C copper conducters only.
For use only in pollution degree 2 or better.
Max. ambient temperature ............................ 60°C
Max. wire size...................................................... AWG 26-14
UL file number .................................................... E231911
CALIBRATION AND ADJUSTMENT
During calibration and adjustment, the measuring and connection of external
voltages must be carried out according to the specifications of this manual. The
technician must use tools and instruments that are safe to use.
NORMAL OPERATION
Operators are only allowed to adjust and operate devices that are safely fixed in
panels, etc., thus avoiding the danger of personal injury and damage. This means
there is no electrical shock hazard, and the device is easily accessible.
CLEANING
When disconnected, the device may be cleaned with a cloth moistened with distil-
led water.
LIABILITY
To the extent that the instructions in this manual are not strictly observed, the
customer cannot advance a demand against PR electronics A/S that would other-
wise exist according to the concluded sales agreement.

4222V101-UK 7
HOW TO DISMANTLE SYSTEM 4000
First, remember to demount the connectors with hazardous voltages.

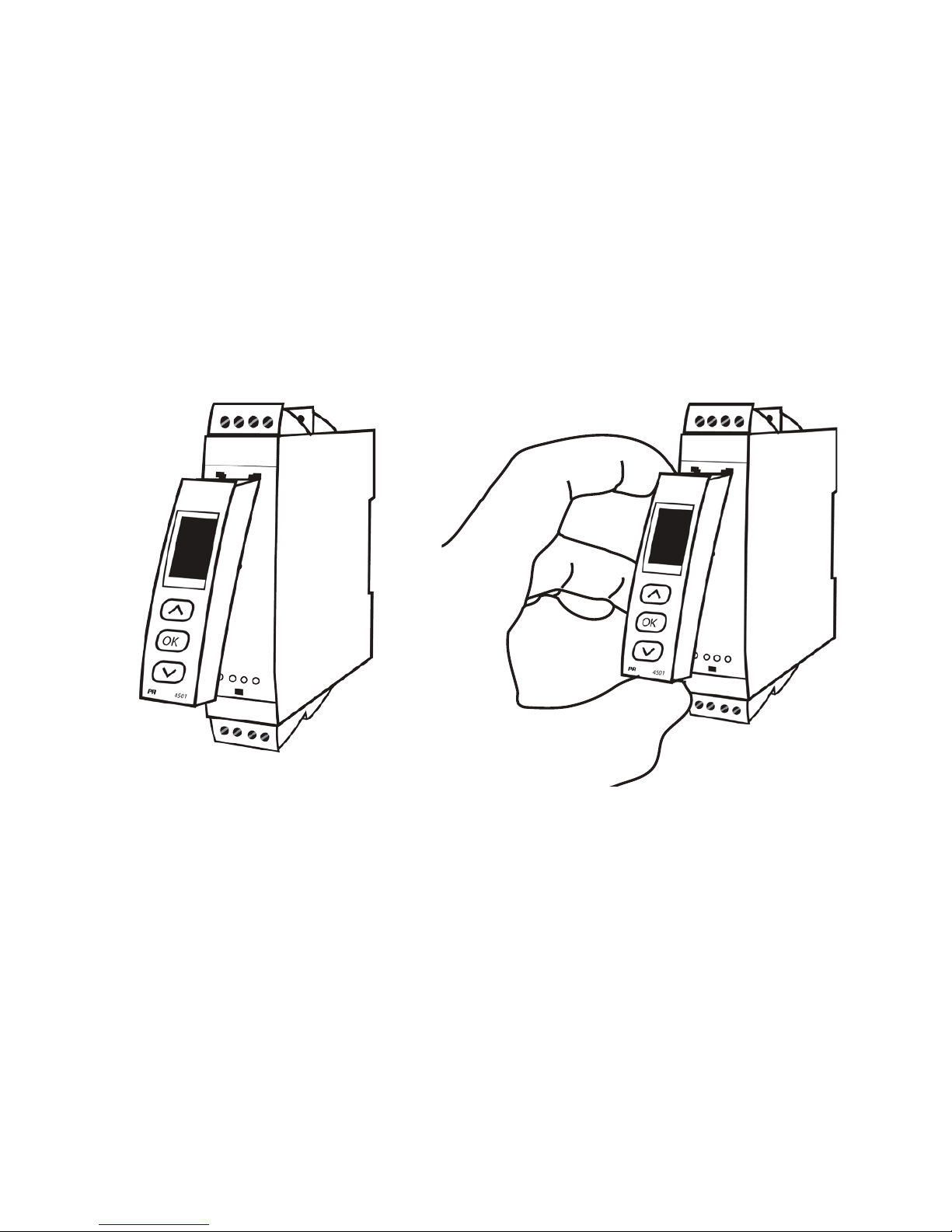

Picture 1:
Detach the device from the DIN rail
by lifting the bottom lock.

8 4222V101-UK
UNIVERSAL I/fCONVERTER
4222
• Input for RTD, TC, Ohm, potentiometer, mA and V
• Frequency output NPN, PNP and TTL
• Generates frequencies from 0.001...25000 Hz
• 2-wire supply > 16 V
• Universal AC or DC supply
Advanced features
• Programmable by way of detachable display front (4501), process calibration,
signal simulation, password protection, error diagnostics and help text available
in several languages.
Application
• Linearised, electronic temperature measurement with RTD or TC sensor.
• Conversion of linear resistance variation to a frequency signal, e.g. from solenoids
and butterfly valves or linear movements with attached potentiometer.
• Power supply and signal isolator for 2-wire transmitters.
• Process control by way of a frequency signal transmitted to e.g. a PLC or a process
computer.
• Galvanic separation and conversion of analogue signals to frequency signals.
Technical characteristics
• When 4222 is used in combination with the 4501 display / programming front,
all operational parameters can be modified to suit any application. As the 4222
is designed with electronic hardware switches, it is not necessary to open the
device for setting of DIP-switches.
• A green front LED indicates normal operation.
• Continuous check of vital stored data for safety reasons.
• 3-port 2.3 kVAC galvanic isolation.

4222V101-UK 9
PR 4501 DISPLAY / PROGRAMMING FRONT
Functionality
The simple and easily understandable menu structure and the
explanatory help texts guide you effortlessly and automatically
through the configuration steps, thus making the product very
easy to use. Functions and configuration options are described in
the section ”Configuration / operating the function keys”.
Application
• Communications interface for modification of operational parameters in 4222.
• Can be moved from one 4222 device to another and download the configuration
of the first converter to subsequent converters.
• Fixed display for readout of process data and status.
Technical characteristics
• LCD display with 4 lines; line 1 (H = 5.57 mm) shows input signal, line 2
(H = 3.33 mm) shows units. Line 3 alternates between digital output value and
scaling (kHz, Hz, mHz, P/m, P/h, P/d) or shows TAG no. Line 4 shows tendency
readout for the input signal and communication status.
• Programming access can be blocked by assigning a password. The password is
saved in the converter in order to ensure a high degree of protection against
unauthorised modifications to the configuration.
Mounting / installation
• Click 4501 onto the front of 4222.

OK
4501


1
3

4
2
10 4222V101-UK
MOUNTING / DEMOUNTING THE PR 4501/4511
1: Insert the taps of 4501/4511 into the holes at the top of the device.
2: Swing 4501/4511 into place.
Demounting of 4501/4511
3: Push the release button on the bottom of 4501/4511 and swing 4501/4511
up.

33
32
31
44
43
42
41
24
23
22
21
+
+
-
-
4222V101-UK 11
APPLICATIONS
Input signals:
Current
Volt-
age RTD and lin. R TC
Connection, wires
Output signals:
Supply:
21.6...253 VAC
or
19.2...300 VDC
PNP, +24 V
Frequency output
TTL, 5 V
NPN, 24 V
Out. Gnd.
Poten-
tiometer

12 4222V101-UK
Order codes
4222 = Universal I/f converter
4501 = Display / programming front
Electrical specifications
Specifications range............................................... -20°C to +60°C
Calibration temperature ........................................ 20...28°C
Relative humidity..................................................... < 95% RH (non-cond.)
Protection degree.................................................... IP20
Mechanical specifications
Dimensions (HxBxD) ............................................... 109 x 23.5 x 104 mm
Dimensions, with 4501 / 4511 (HxBxD)......... 109 x 23.5 x 116 / 131 mm
Weight .......................................................................... 155 g
Weight with 4501 / 4511.................................... 170 g / 255 g
Max. wire size............................................................ 1 x 2.5 mm2stranded wire
Screw terminal torque ........................................... 0.5 Nm
Common specifications
Supply voltage, universal..................................... 21.6...253 VAC, 50...60 Hz or
19.2...300 VDC
Max. consumption.................................................... ≤2.5 W
Fuse............................................................................... 400 mA SB / 250 VAC
Isolation voltage, test / operation.................... 2.3 kVAC / 250 VAC
Communications interface ................................... Communication enabler 4511
Programming front 4501
Signal / noise ratio .................................................. Min. 60 dB (0...100 kHz)
Response time (0...90%, 100...10%), programmable:
Temperature input............................................. 1...60 s
mA / V input......................................................... 0,4...60 s
Accuracy, the greater of the general and basic values:
General values
Input
type Absolute accuracy Temperature coefficient
All ≤±0.1% of span ≤±0.01% of span / °C

4222V101-UK 13
Auxiliary supplies:
2-wire supply (terminal 44...43)........................ 25...16 VDC / 0...20 mA
RTD, linear resistance and potentiometer input:
Input for RTD types:
Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000
Ni50, Ni100, Ni120, Ni1000
Cable resistance per wire (max.), RTD............. 50 Ω
Sensor current, RTD................................................ Nom. 0.2 mA
Effect of sensor cable resistance
(3- / 4-wire), RTD..................................................... < 0.002 Ω/ Ω
Sensor error detection, RTD................................ Yes
Short circuit detection, RTD ................................ < 15 Ω
Basic values
Input
type Basic accuracy Temperature coefficient
mA ≤±4 µA ≤±0.4 µA / °C
Volt ≤±20 µV ≤±2 µV / °C
Pt100 ≤±0.2°C ≤±0.01°C / °C
Linear resistance ≤±0.1 Ω ≤ ±0.01 Ω/ °C
Potentiometer ≤±0.1 Ω ≤ ±0.01 Ω/ °C
TC type:
E, J, K, L, N, T, U ≤±1°C ≤±0.05°C / °C
TC type: B, R, S,
W3, W5, LR ≤±2°C ≤±0.2°C / °C
EMC immunity influence........................................... < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst .......................... < ±1% of span
Input
type Min. value Max. value Standard
Pt100
Ni100
Lin. resistance
Potentiometer
-200°C
-60°C
0 Ω
10 Ω
+850°C
+250°C
10000 Ω
100 kΩ
IEC60751
DIN 43760
-
-

14 4222V101-UK
TC input
Cold junction compensation (CJC)
via internally mounted sensor...................... < ±1.0 °C
Sensor error detection, all TC types................. Yes
Sensor error current:
when detecting................................................... Nom. 2 μA
else .......................................................................... 0 μA
Current input
Measurement range................................................ -1...25 mA
Programmable measurement ranges............... 0...20 and 4...20 mA
Input resistance........................................................ Nom. 20 Ω+ PTC 50 Ω
Sensor error detection:
loop break 4...20 mA......................................... Yes
Voltage input:
Measurement range................................................ -20 mV...12 VDC
Programmable measurement ranges............... 0...1 / 0.2...1 / 0...2.5 / 0.5...2.5 /
0...5 / 1...5 / 0...10 and 2...10 VDC
Input resistance........................................................ Nom. 10 MΩ
Output
Frequency output
Frequency range...................................................... 0...25000 Hz
Min. frequency (span) ............................................ 0.001 Hz
Duty cycle (0...25000 Hz) .................................... 50% or
Programmable pulse time (f ≤ 500 Hz) .......... 1...1000 ms (max. 90% duty cycle)
Type Min. value Max. value Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
LR
+400°C
-100°C
-100°C
-180°C
-200°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
-200°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
+800°C
IEC 60584-1
IEC 60584-1
IEC 60584-1
IEC 60584-1
DIN 43710
IEC 60584-1
IEC 60584-1
IEC 60584-1
IEC 60584-1
DIN 43710
ASTM E988-90
ASTM E988-90
GOST 3044-84

4222V101-UK 15
PNP output
Iout max........................................................................ 30 mA
Vout................................................................................ 24 VDC ±10%
Cout ................................................................................ 10 nF
Rout typ........................................................................ 20 Ω
Electromechanical counter................................... 24 V / 135 mA / 20 ms / ≤10 Hz
NPN output
Isink max....................................................................... 150 mA
Isink max. peak........................................................... 300 mA
External voltage (terminal 23) max................. 55 VDC
Cout ................................................................................ 10 nF
Rout typ........................................................................ 10 Ω
TTL output
Isink/source max........................................................... 15 mA
Isink/source peak.......................................................... 100 mA
Vout................................................................................ 5 V ±5%
Cout ................................................................................ 10 nF
Rout typ........................................................................ 55 Ω
Sensor error detection
Programmable........................................................... 0...26250 Hz
Ex / I.S. approval
FM, applicable in....................................................... Class I, Div. 2, Group A, B, C, D
Class I, Div. 2, Group IIC
Zone 2
Max. ambient temperature for T5 .................... 60°C
Observed authority requirements Standard
EMC 2004/108/EC .................................................. EN 61326-1
LVD 2006/95/EC...................................................... EN 61010-1
FM .................................................................................. 3600, 3611, 3810 and ISA 82.02.01
UL, Standard for Safety......................................... UL 508
EAC TR-CU 020/2011............................................ EN 61326-1
of span = of the currently selected measurement range

16 4222V101-UK
Configuration of sensor error detection
Display readout on the 4501
Display outside range
Module: Configuration Sensor error detection:
4222 OUT.ERR=NO OFF
Else: ON
Display readout below min. / above max. (-1999, 9999):
Input Range
Flashing
readout Limit
All All -1999 Display readout <-1999
9999 Display readout >9999

4222V101-UK 17
Sensor error detection limits
Signal conditioning limits
Error indications
Outside range readout (IN.LO, IN.HI):
If the valid range of the A/D converter or the polynomial is exceeded.
Input Range Readout Limit
VOLT
0...1 V / 0.2...1 V IN.LO < -25 mV
IN.HI > 1.2 V
0...2.5 / 0.5...2.5 / 0...5 V / 1...5 V /
0...10 V / 2...10 V
IN.LO < -25 mV
IN.HI > 12 V
CURR 0...20 mA / 4...20 mA IN.LO < -1.05 mA
IN.HI > 25.05 mA
LIN.R
0...800 ΩIN.LO < 0 Ω
IN.HI > 1075 Ω
0...10 kΩIN.LO < 0 Ω
IN.HI < 110 kΩ
POTM Min. readout = 0%, Max. readout = 100% IN.LO < -0.5 %
IN.HI > 100.5 %
TEMP TC / RTD IN.LO < temperature range -2°C
IN.HI > temperature range +2°C
Sensor error detection (SE.BR, SE.SH):
Input Range Readout Limit
CURR Loop break (4...20 mA) SE.BR <= 3.6 mA; > = 21 mA
POTM All, SE.BR on all 3-wire SE.BR > ca. 126 kΩ
LIN.R 0...800 ΩSE.BR > ca. 875 Ω
0...10 kΩSE.BR > ca. 11 kΩ
TEMP
TC SE.BR > ca. 750 kΩ/ (1,25 V)
RTD: 2-, 3- and 4-wire
No SE.SH for Pt10, Pt20 and Pt50
SE.BR > ca. 15 kΩ
SE.SH < ca. 15 Ω
Readout at hardware error
Error search Readout Cause
Test of internal CJC sensor CJ.ER CJC sensor defect or
temperature outside range
Checksum test of the configuration in FLASH FL.ER Error in FLASH
Communications test 4501 / 4222 NO.CO Connection error
Check that input signal matches input configuration IN.ER 1) Error levels on input
Check that saved configuration in 4501 matches module TY.ER Configuration is not 4222
! All error indications flash once per second. The help text explains the error.
1) The error is reset by switching off and then switching on the supply voltage to the module.

+5 V ++24 V
31 32 33
41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44
41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44
41 42 43 44
21 22 23 24 21 22 23 24 21 22 23 24
-+
- +- +
Tx
- +
18 4222V101-UK

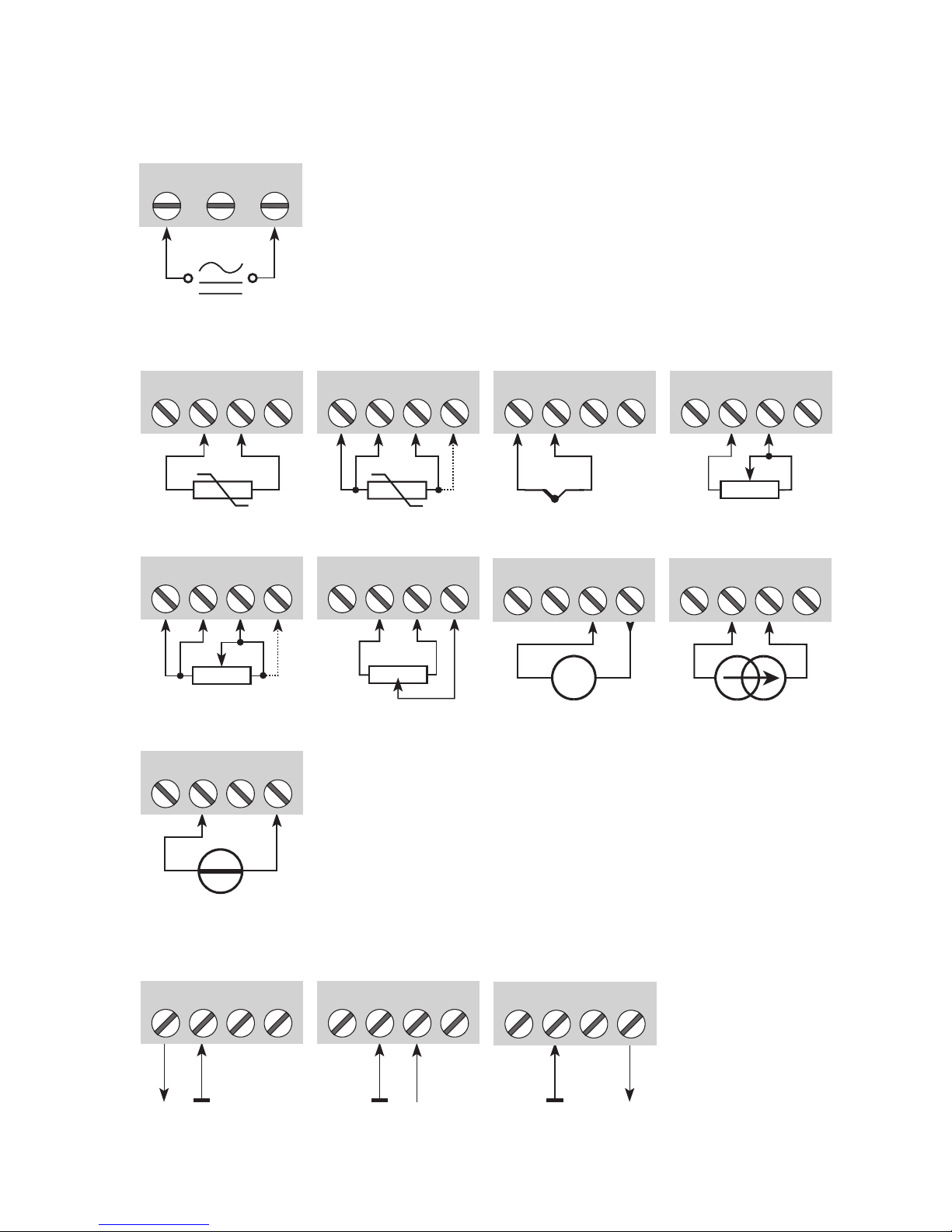

CONNECTIONS
Inputs
Outputs
Supply:
RTD, 3- / 4-wire
Resistance,
3- / 4-wire Potentiometer Current2-wire transmitter
Voltage
NPNTTL PNP
RTD, 2-wire Resistance, 2-wireTC
Gnd. Gnd. Gnd.

4222 21
22 23 31 33 24
MUX
EEPROM
CPU
Vloop
44 43 42 41
PTC
CJC
0.2 mA
20 Ω
+
-
+
-
24 3
+
-
50.0
VALVE 5
l / min
4222V101-UK 19
BLOCK DIAGRAM
Potentiometer
2-wire transmitter
Voltage
Current
RTD and lin. R,
connection
wires TC
Supply Supply
21.6...253 VAC or 19.2...300 VDC
Gnd. TTL, 5 V NPN PNP, 24 V
Green
Yellow
Frequency
generator

20 4222V101-UK
CONFIGURATION /
OPERATING THE FUNCTION KEYS
Documentation for routing diagram.
In general
When configuring the 4222, you will be guided through all parameters and you can
choose the settings which fit the application. For each menu there is a scrolling
help text which is automatically shown in line 3 on the display.
Configuration is carried out by using the 3 function keys:
1 will increase the numerical value or choose the next parameter
2will decrease the numerical value or choose the previous parameter
3will save the chosen value and proceed to the next menu
When configuration is completed, the display will return to the default state 1.0.
Pressing and holding 3will return to the previous menu or return to the default
state (1.0) without saving the changed values or parameters.
If no key is activated for 1 minute, the display will return to the default state (1.0)
without saving the changed values or parameters.
Further explanations
Password protection: Programming access can be blocked by assigning a
password. The password is saved in the converter in order to ensure a high
degree of protection against unauthorised modifications to the configuration.
Default password 2008 allows acces to all configuration menus.
