3114
Isolated universal converter
TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY
No. 3114V102-UK
From serial no.: 171814001

Communication
Display
I.S. Interface
Isolation
Multifunction
Temperature
6 Product Pillars
to meet your every need
With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.
Individually outstanding, unrivalled in combination
Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self-
calibration, sensor error detection, low drift, and top EMC performance in any environment.
Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.
We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. The detachable 4501 Local Operator Interface (LOI) allows for local monitoring of process values,
device configuration, error detection and signal simulation. The next generation, our 4511 Remote Operator
Interface (ROI) does all that and more, adding remote digital communications via Modbus/RTU, while the analog
output signals are still available for redundancy.
With the 4511 you can further expand connectivity with a PR gateway, which connects via industrial Ethernet,
wirelessly through a Wi-Fi router or directly with the devices using our Portable Plant Supervisor (PPS) application.
The PPS app is available for iOS, Android and Windows.
Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals, and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry, and are engineered to provide a user-friendly and
reliable relay of information, even in demanding environments.
We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.
Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

3114V102-UK 3
Isolated universal converter
3114
Table of contents
Warning ................................................................................................ 4
Symbol identification .................................................................................... 4
Safety instructions ...................................................................................... 4
Flexible supply .......................................................................................... 7
Mounting and demounting of system 3000 ............................................................... 8
Installation on DIN rail / power rail ........................................................................ 9
Supply of power rail ..................................................................................... 9
Marking................................................................................................. 9
Side label ............................................................................................... 10
Advanced features ...................................................................................... 11
Applications ............................................................................................ 11
Technical characteristics ................................................................................. 11
Product overview ....................................................................................... 11
PR 4501 display / programming front ..................................................................... 12
ConfigMate 4590 adapter................................................................................ 12
Order ................................................................................................... 13
Accessories ............................................................................................. 13
Technical data .......................................................................................... 13
Display readout on the 4501 of sensor error detection and input signal outside range ....................... 17
Sensor error detection limits ............................................................................. 17
Error indications......................................................................................... 18
Connections ............................................................................................ 19
LED indication........................................................................................... 20
Default configuration .................................................................................... 21
Configuration / operating the function keys ............................................................... 22
Routing diagram ........................................................................................ 25
Routing diagram, advanced settings (ADV.SET) ............................................................ 26
Help text overview ...................................................................................... 27
Document history ....................................................................................... 28

4 3114102-UK
Warning
To avoid the risk of electric shock and fire, the safety instructions of this guide must be observed and
the guidelines followed. The specifications must not be exceeded, and the device must only be applied
as described in the following. Prior to the commissioning of the device, this installation guide must be
examined carefully. Only qualified personnel (technicians) should install this device. If the equipment is
used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired. Until the device is fixed, do not connect hazardous voltages to the device.
To avoid explosion and serious injury: Modules having mechanical failures must be returned to PR
electronics for repair or replacement.
Repair of the device must be done by PR electronics A/S only.
Warning
In applications where hazardous voltage is connected to in-/outputs of the device, sufficient spacing or
isolation from wires, terminals and enclosure - to surroundings (incl. neighboring devices), must be
ensured to maintain protection against electric shock.
The connector behind the front cover of 3114 is connected to the input terminals on which dangerous
voltages can occur.
Potential electrostatic charging hazard. To avoid the risk of explosion due to electrostatic charging of the
enclosure, do not handle the units unless the area is known to be safe, or appropriate safety measures
are taken to avoid electrostatic discharge.
Symbol identification
Triangle with an exclamation mark: Read the manual before installation and commissioning of the
device in order to avoid incidents that could lead to personal injury or mechanical damage.
The CE mark proves the compliance of the device with the essential requirements of the directives.
Ex devices have been approved acc. to the ATEX directive for use in connection with installations in
explosive areas.
Safety instructions
Receipt and unpacking
Unpack the device without damaging it and check whether the device type corresponds to the one ordered. The packing
should always follow the device until this has been permanently mounted.
Environment
Avoid direct sun light, dust, high temperatures, mechanical vibrations and shock, and rain and heavy moisture. If necessary,
heating in excess of the stated limits for ambient temperatures should be avoided by way of ventilation.
The device can be used for Measurement Category II and Pollution Degree 2.
The device is designed to be safe at least under an altitude up to 2 000 m.
GENERAL
CAUTION
HAZARDOUS
VOLTAGE

3114V102-UK 5
Mounting
Only technicians who are familiar with the technical terms, warnings, and instructions in the manual and who are able to
follow these should connect the device.
Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire
cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in this installation guide and on the side label.
The device is provided with field wiring terminals and shall be supplied from a Power Supply having double / reinforced
insulation. A power switch should be easily accessible and close to the device. The power switch shall be marked as the
disconnecting unit for the device.
SYSTEM 3000 must be mounted on a DIN rail according to EN 60715.
UL installation
Use 60/75°C copper conducters only.
Wire size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AWG 26-12
UL file number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E314307
The device is an Open Type Listed Process Control Equipment. To prevent injury resulting from accessability to live parts the
equipment must be installed in an enclosure.
The power Supply unit must comply with NEC Class 2, as described by the National Electrical Code® (ANSI / NFPA 70).
cFMus installation in Division 2 or Zone 2
FM17CA0003X / FM17US0004X . . . . . . . . . . . . . . . . . . . . . . . . . . Class I, Div. 2, Group A, B, C, D T4 or
Class I, Zone 2, AEx nA IIC T4 or Ex nA IIC T4
In class I, Division 2 or Zone 2 installations, the subject equipment shall be mounted within a tool-secured enclosure which is
capable of accepting one or more of Class I, Division 2 wiring methods specified in the National Electrical Code (ANSI/NFPA 70)
or in Canada in the Canadian Electrical Code (C22.1).
The 3000 System Isolators and Converters must be connected to limited output NEC Class 2 circuits, as outlined in the
National Electrical Code® (ANSI / NFPA 70), only. If the devices are connected to a redundant power supply (two separate
power supplies), both must meet this requirement.
Where installed in outdoor or potentially wet locations the enclosure shall at a minimum meet the requirements of IP54.
Warning: Substitution of components may impair suitability for zone 2 / division 2.
Warning: To prevent ignition of the explosive atmospheres, disconnect power before servicing and do not separate
connectors when energised and an explosive gas mixture is present.
Warning: Do not mount or remove devices from the power rail when an explosive gas mixture is present.
IECEx, ATEX installation in Zone 2
IECEx KEM 10.0068 X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ex nA IIC T4 Gc
KEMA 10ATEX0147 X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II 3G Ex nA IIC T4 Gc
For safe installation the following must be observed. The device shall only be installed by qualified personnel who are familiar
with the national and international laws, directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
The devices shall be installed in a suitable enclosure providing a degree of protection of at least IP54 according to EN60529,
taking into account the environmental conditions under which the equipment will be used.

6 3114102-UK
When the temperature under rated conditions exceeds 70°C at the cable or conduit entry point, or 80°C at the branching point
of the conductors, the temperature specification of the selected cable shall be in compliance with the actual measured
temperature.
Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40%.
For installation on power rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 is allowed.
To prevent ignition of the explosive atmospheres, disconnect power before servicing and do not separate connectors when
energised and an explosive gas mixture is present.
Do not mount or remove devices from the power rail when an explosive gas mixture is present.
Cleaning
When disconnected, the device may be cleaned with a cloth moistened with distilled water.
Liability
To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR
electronics A/S that would otherwise exist according to the concluded sales agreement.

3405
3114V102-UK 7
Flexible supply
The technical specifications specifies the maximum required power at nominal operating values, e.g. 24 V supply voltage,
60°C ambient temperature, 600 Ω load, and 20 mA output current.
(*) External fuse characteristics:
The 2.5 A fuse must break after not more than 120 seconds at 6.4 A.
Protective fuse: 2.5 A.
Power rail solution #1:
Alternately, you can connect 24 VDC to any
one 3000 device with power rail connector
which will then energize other units on the
rail.
Power rail solution #3:
The 9410 power control unit can energize
and power 96 W to the rail. Redundant power
supplies are possible.
Protective fuse: 2.5 A.
DIN rail solution - device daisy chain:
The units can be supplied with 24 VDC ±30%
via direct wiring and a loop between the
devices.
Power rail solution #2:
The 3405 power connector unit allows easy
connection of a 24 VDC / 2.5 A source to the
power rail.
Protective fuse: 0.4 A. Protective fuse: Located inside the PR 9410.
Note:
3114-N can only be supplied via the DIN rail solution.

8 3114102-UK
Mounting and demounting of system 3000
Picture 1:
Mounting on DIN rail / power rail.
Click the device onto the rail.
Picture 2:
Demounting from DIN rail / power rail.
First, remember to demount the connectors with hazardous voltages.
Detach the device from the DIN rail by lifting the bottom lock.
Picture 3:
Wire size AWG 26-12 / 0.13 x 2.5 mm2stranded wire.
Screw terminal torque 0.5 Nm.

< 3.5 mm
> 24 mm
35 mm
3114V102-UK 9
Installation on DIN rail / power rail
The 3114 can be installed on a DIN rail or on a power rail. For marine applications the devices must be supported by a module
stop (PR part number 9404). Power supply units can be mounted on the power rail according to customer requirements.
If you want to install a 3114 device with power rail connectors on a standard DIN rail, the head of the screws holding the 7.5
mm DIN rail shall be no more than 3.5 mm high in order to avoid short circuit between the power rail connectors on the 3114
and the screws.
Supply of power rail
It is possible to supply the power rail via the supply terminals.
The terminals can pass a current of max. 400 mA.
Marking
The front cover of the 3114 has been designed with an area
for affixation of a click-on marker. The area assigned to the
marker measures 5 x 7.5 mm. Markers from Weidmüller’s
MultiCard System, type MF 5/7.5, are suitable.
Module stop

10 3114102-UK

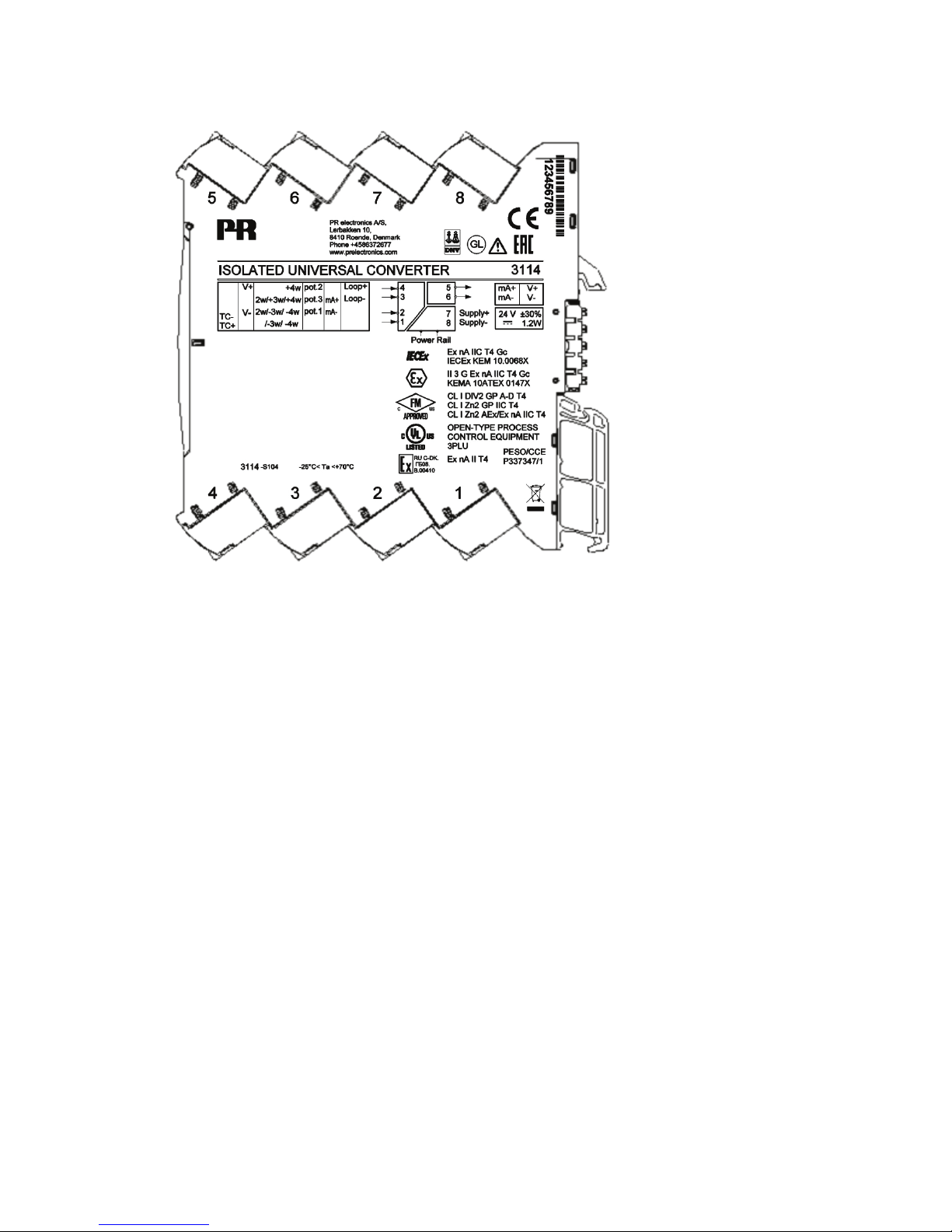

Side label
}
}
}
}
Approvals
Pin
connections
Type no.
Terminal numbers

3114V102-UK 11
Isolated universal converter
3114
• Input for RTD, TC, Ohm, potentiometer, mA and V
• 2-wire supply > 15 V
• I.S. approvals: FM Div. 2, ATEX Zone 2, IECEx Zone 2
• Output for current and voltage
Advanced features
Programmable by way of detachable display front 4501 and ConfigMate 4590, process calibration, signal simulation, password
protection, error diagnostics and help text available in several languages.
Applications
• Linearised, electronic temperature measurement with RTD or TC sensor.
• Conversion of linear resistance variation to a standard analogue current / voltage signal, i.e. from solenoids and butterfly
valves or linear movements with attached potentiometer.
• Power supply and signal isolator for 2-wire transmitters.
• Process control with standard analog output.
• Galvanic separation of analogue signals and measurement of floating signals.
Technical characteristics
• When 3114 is used in combination with the 4501 display / programming front and ConfigMate 4590, all operational
parameters can be modified to suit any application. As the 3114 is designed with electronic hardware switches, it is not
necessary to open the device for setting of DIP-switches.
• A green front LED indicates normal operation and malfunction.
• Continuous check of vital stored data for safety reasons.
• 3-port 2.5 kVAC galvanic isolation.
Product overview
PR type no. 3114
PR product name Isolated universal converter
Description Universal DC / DC and temperature
converter with loop supply output
Parameterisation 4501 / ConfigMate 4590
Input signal
RTD, TC and potentiometer
2-, 3-, and 4-wire
0...10 V
0...20 mA
Sensor type All standard Pt, Ni, TC
CJC sensor Internal Pt100
Loop supply output > 15 V
@ 20 mA
Output signal (active) 0...20 mA / 0...10 V
Approvals UL, safety / FM Div. 2 / ATEX zone 2 /
IECEx Zone 2 / DNV, marine / GL, marine

12 3114102-UK
PR 4501 display / programming front
Functionality
The simple and easily understandable menu structure and the explanatory help texts guide you
effortlessly and automatically through the configuration steps, thus making the product very easy to
use. Functions and configuration options are described in the section ”Configuration / operating the
function keys”.
Application
• Communications interface for modification of operational parameters in 3114.
• Can be moved from one 3114 device to another and download the configuration of the first unit to
subsequent units.
Technical characteristics
• LCD display with 4 lines:
Line 1 (H=5.57 mm) shows input signal.
Line 2 (H=3.33 mm) shows units.
Line 3 (H=3.33 mm) shows analog output or tag no.
Line 4 shows communication status.
• Programming access can be blocked by assigning a password. The password is saved in the device
in order to ensure a high degree of protection against unauthorised modifications to the
configuration.
ConfigMate 4590 adapter
Connect the adapter by opening the front plate on 3114 and inserting the jack into the plug.
Once configuration of the device with 4501 has been terminated, the
parameters can be transferred into the PC-based PReset program. The included
USB cable is connected between ConfigMate 4590 and the USB port of the
computer and the PC will then automatically retrieve the necessary driver from
the internet. For further instructions regarding use of the PReset software,
please consult the manual for PReset 5909.
4590

3114V102-UK 13
Accessories
4501 = Display / programming front
4590 = ConfigMate adapter
9404 = Module stop for rail
Technical data
Environmental conditions:
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -25°C to +70°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C
Calibration temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20...28°C
Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 95% RH (non-cond.)
Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20
Installation in pollution degree 2 & overvoltage category II.
Mechanical specifications:
Dimensions (HxWxD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 x 6.1 x 115 mm
Weight approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 g
DIN rail type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN EN 60715 - 35 mm
Wire size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.13...2.5 mm2/ AWG 26...12 stranded wire
Screw terminal torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Nm
Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 60068-2-6
2...25 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1,6 mm
25...100 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±4 g
Common electrical specifications:
Supply voltage, universal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.8...31.2 VDC
Max. required power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 W
Max. power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65 W
Max. required power is the maximum power needed at power supply terminals or rail connector.
Max. power dissipation is the maximum power dissipated at nominal operating values.
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mA SB / 250 VAC
Isolation voltage, test / working. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 kVAC / 300 VAC (250 VAC (Ex)
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Display / programming front 4501 /
ConfigMate 4590
Signal dynamics, input / output . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 bit / 16 bit
Signal / noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Min. 60 dB (0...100 kHz)
Response time (0...90%, 100...10%):
Temperature input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 s
mA / V input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 ms
Order
Example : 3114
Type Version
3114 With power rail connector
Supplied via terminals
: -
: -N

14 3114102-UK
Accuracy, the greater of the general and basic values:
Auxiliary supplies:
2-wire supply (terminal 3 and 4) . . . . . . . . . . . . . . . . . . . . . . . . . . 25...15 VDC / 0...20 mA
RTD, linear resistance and potentiometer input:
Input for RTD types:
Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000
Ni50, Ni100, Ni120, Ni1000
Cable resistance per wire (max.), RTD . . . . . . . . . . . . . . . . . . . . . . . 50 Ω
Sensor current; RTD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 0.2 mA
Eect of sensor cable resistance (3- / 4-wire), RTD . . . . . . . . . . . . . . . < 0.002 Ω/ Ω
Conducted RF/LF immunity influence . . . . . . . . . . . . . . . . . < ±0.5% of span
Extended EMC immunity:
ESD / HF / Burst / Surge immunity influence . . . . . . . . . . . . . < ±1% of span
General values
Input type Absolute accuracy Temperature coecient
All ≤ ±0.1% of span ≤ ±0.01% of span / °C
Basic values
Input type Basic accuracy Temperature coecient
mA ≤±16 µA ≤±1.6 µA / °C
0...1 V & 0.2...1 V ≤±0.8 mV ≤±0.08 mV / °C
0...5 V, 1...5 V,
0...10 V & 2...10 V ≤±8 mV ≤±0.8 mV / °C
Pt100, Pt200,
Pt 1000 ≤±0.2°C ≤±0.02°C / °C
Pt500, Ni100, Ni120,
Ni 1000 ≤±0.3°C ≤±0.03°C / °C
Pt50, Pt400, Ni50 ≤±0.4°C ≤±0.04°C / °C
Pt250, Pt300 ≤±0.6°C ≤±0.06°C / °C
Pt20 ≤±0.8°C ≤±0.08°C / °C
Pt10 ≤±1.4°C ≤±0.14°C / °C
TC type:
E, J, K, L, N, T, U ≤±1°C ≤±0.1°C / °C
TC type: R, S, W3, W5,
LR ≤±2°C ≤±0.2°C / °C
TC type: B
160...400°C ≤±4.5°C ≤±0.45°C / °C
TC type: B
400...1820°C ≤±2°C ≤±0.2°C / °C
Input type Min. value Max. value Standard
Pt100
Ni100
Linear resist.
Potentiometer
-200°C
-60°C
0 Ω
10 Ω
+850°C
+250°C
10000 Ω
100 kΩ
IEC 60751
DIN 43760
-
-

3114V102-UK 15
Sensor error detection, RTD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Short circuit detection, RTD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 15 Ω
TC input:
Cold junction compensation (CJC):
via internal CJC sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±(2.0°C + 0.4°C * ∆t)
∆t = internal temperature - ambient temperature
Sensor error detection, all TC types. . . . . . . . . . . . . . . . . . . . . . . . . Yes
Sensor error current:
when detecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 2 μA
else. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 μA
Current input:
Measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...23 mA
Programmable measurement ranges . . . . . . . . . . . . . . . . . . . . . . . . 0...20 and 4...20 mA
Input resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 20 Ω+ PTC 50 Ω
Sensor error detection:
Loop break 4...20 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Voltage input:
Measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...12 VDC
Programmable measurement ranges . . . . . . . . . . . . . . . . . . . . . . . . 0...1 / 0.2...1 / 0...5 / 1...5 / 0...10 and 2...10 VDC
Input resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 10 MΩ
Current output:
Signal range (span) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...23 mA
Programmable signal ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...20 / 4...20 / 20...0 and 20...4 mA
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤600 Ω
Load stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤0.01% of span / 100 Ω
Sensor error detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 / 3.5 / 23 mA / none
NAMUR NE 43 Upscale / Downscale. . . . . . . . . . . . . . . . . . . . . . . . . 23 mA / 3.5 mA
Output limitation:
on 4...20 and 20...4 mA signals . . . . . . . . . . . . . . . . . . . . . . . . . . 3.8...20.5 mA
on 0...20 and 20...0 mA signals . . . . . . . . . . . . . . . . . . . . . . . . . . 0...20.5 mA
Current limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤28 mA
Voltage output:
Signal range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...10 VDC
Programmable signal ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...1 / 0.2...1 / 0...10 / 0...5 / 1...5 /
2...10 / 1...0 / 1...0.2 / 5...0 / 5...1 /
10...0 og 10...2 V
Load (min.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >10 kΩ
of span = of the currently selected measurement range
Type Min. value Max. value Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
LR
0°C
-100°C
-100°C
-180°C
-200°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
-200°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
+800°C
IEC 60584-1
IEC 60584-1
IEC 60584-1
IEC 60584-1
DIN 43710
IEC 60584-1
IEC 60584-1
IEC 60584-1
IEC 60584-1
DIN 43710
ASTM E988-90
ASTM E988-90
GOST 3044-84

16 3114102-UK
Observed authority requirements:
EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU
LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/35/EU
RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU
Approvals:
DNV-GL, Ships & Oshore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI-7-2
UL, Standard for Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL 61010-1
Safe Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61140
EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011
I.S. / Ex approvals:
ATEX 2014/34/EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KEMA 10ATEX0147 X
IECEx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KEM 10.0068 X
c FM us. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FM17US0004X / FM17CA0003X
EAC Ex TR-CU 012/2011 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RU C-DK.GB08.V.00410

3114V102-UK 17
Sensor error check:
Device: Configuration Sensor error detection:
3114 OUT.ERR=NONE. OFF
Else: ON
Outside range readout (IN.LO, IN.HI):
If the valid range of the A/D converter or the polynomal is exceeded
Input Range Readout Limit
VOLT
0...1 V / 0.2...1 V IN.LO < -25 mV
IN.HI > 1.2 V
0...10 V / 2...10 V IN.LO < -25 mV
IN.HI > 12 V
CURR 0...20 mA / 4...20 mA IN.LO < -1.05 mA
IN.HI > 25.05 mA
LIN.R
0...800 Ω IN.LO < -10 Ω
IN.HI > ca. 1075 Ω
0...10 kΩ IN.LO <-10 Ω
IN.HI > 11 kΩ
POTM 0...100% IN.LO < -0.5 %
IN.HI > 100.5 %
TEMP TC / Pt100 IN.LO < temperature range -2°C
IN.HI > temperature range +2°C
Sensor error detection (SE.BR, SE.SH):
Input Range Readout Condition
CURR Loop break (4...20 mA) SE.BR <= 3.6 mA; > = 21 mA
POTM All, SE.BR on all 3-wire SE.BR > ca. 126 kΩ
LIN.R 0...800 Ω SE.BR > ca. 875 Ω
0...10 kΩ SE.BR > ca. 11 kΩ
TEMP
TC SE.BR > ca. 750 kΩ / (1.25 V)
RTD, 2-, 3-, and 4-wire
No SE.SH for Pt10, Pt20 and Pt50
SE.BR > ca. 15 kΩ
SE.SH < ca. 15 Ω
Display readout below min. / above max. (-1999, 9999):
Input Range Readout Limit
All All -1999 Display readout <-1999
9999 Display readout >9999
Display readout on the 4501 of sensor error detection and input
signal outside range
Sensor error detection limits

18 3114102-UK
Readout at hardware error
Error search Readout Cause
CJC sensor error - check device temperature CJ.ER Defect internal CJC sensor or CJC temperature out
of allowed range**
Flash memory error - default configuration is
loaded FL.ER Error in FLASH (configuration)*
No communication NO.CO No communication
Input error - check input connection and reset
power IN.ER Error levels on measurement inputs*
Programming mode only - no output signal PROG. Offline configuration mode (3114 powered by
communications interface)***
Invalid configuration type or version TY.ER Configuration read from EEprom has invalid type
or rev. no.
Hardware error RA.ER RAM memory error*
Hardware error EE.ER EEPROM memory error*
Hardware error NO.CA Device not factory-calibrated
Hardware error AD.ER A/D converter error*
Hardware error EF.SU External Flash error*
Hardware error IF.ER Internal Flash error*
!All error indications in the display flash once per second. The help text explains the error. If the error is a
sensor error, the display backlight flashes as well - this is acknowledged (stopped) by pushing the 3button.
* Error is acknowledged by entering the menu and saving or by resetting the device power.
** Error can be disregarded by selecting input type different than TC.
*** Error indication does not flash. Error is acknowledged by connecting device power.
Error indications

+
-
A
Tx
DBF E C H
mA
G
I
J
5
6
7
81
2
3
4
81 82 83 84 85
K
+
-
+
-
+
-
+
-
+
-
V
3114V102-UK 19
Connections
A
B
C
D
E
F
G
H
I
J
K
Input signals
Current 1
TC
RTD
Potentiometer
Voltage
Current 2
Output signals
Current
Voltage
Supply
Supply +
Supply -
Power rail
connections
(Only type 3114
with power rail
option)
Input Output
Supply

20 3114102-UK
Condition LED Output and
loop supply Action required
No supply / device error or
code-flash CRC error OFF De-energized Closed
Power-up or restart 1 Flash
(0.5 s OFF + 0.5 s ON) De-energized Closed
Device OK Flashing 13 Hz
(15 ms ON) Energized Open
Sensor error Flashing 1 Hz
(15 ms ON) De-energized Open
Restarting due to:
Supply error/hardware.
RAM or program flow error
Flashing 1 Hz
(0.5 s ON) De-energized Open
LED indication
The device is equipped with a green power LED in the front to indicate the operation
status, see the table below.
