PR electronics 3000 Series User manual

6 mm Series of
Temperature Converters
Models no.:
3101 / 3102 / 3111 / 3112
3113 / 3331 / 3333 / 3337
No. 3000V101-UK
From ser. no 131667001
3000 series

1438
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturudsving,
og alle produkter opfylder de strengeste internationale standarder.
Vores motto »Signals the Best« er indbegrebet af denne filosofi – og
din garanti for kvalitet.
PR electronics A/S oers a wide range of analogue and digital
signal conditioning devices for industrial automation. The product
range includes Isolators, Displays, Ex Interfaces, Temperature
Transmitters, and Universal Devices. You can trust our products in
the most extreme environments with electrical noise, vibrations and
temperature fluctuations, and all products comply with the most
exacting international standards. »Signals the Best« is the epitome
of our philosophy – and your guarantee for quality.
PR electronics A/S ore une large gamme de produits pour le
traitement des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux acheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm an
analogen und digitalen Signalverarbeitungsmodule für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Übereinstimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE

3000V101-UK 1
6 MM SERIES OF
TEMPERATURE CONVERTERS
3101 - 3102 - 3111 - 3112 - 3113 -
3331 - 3333 - 3337
CONTENTS
Warning...................................................................................................................... 2
Safety instructions................................................................................................ 3
Mounting on DIN rail............................................................................................. 5
Installation on DIN rail......................................................................................... 6
Module stop ............................................................................................................. 6
Flexible supply........................................................................................................ 7
Marking ...................................................................................................................... 8
Side label................................................................................................................... 8
Applications.............................................................................................................. 9
Technical characteristics..................................................................................... 9
Mounting / installation........................................................................................ 9
Order codes .............................................................................................................. 10
Accessories............................................................................................................... 10
Specifications.......................................................................................................... 10
DIP-switch configuration .................................................................................... 14
Temperature range programming.................................................................... 15
Front LED Indications........................................................................................... 15
Block diagram and wiring................................................................................... 16

2 3000V101-UK
SYMBOL IDENTIFICATION
Triangle with an exclamation mark: Read the manual before
installation and commissioning of the device in order to avoid
incidents that could lead to personal injury or mechanical damage.
The CE mark proves the compliance of the device with the
essential requirements of the directives.
Ex devices have been approved according to the ATEX directive for
use in connection with installations in explosive areas.
WARNING
To avoid the risk of electric shock and fire, the safety instructions
of this guide must be observed and the guidelines followed. The
specifications must not be exceeded, and the device must only be
applied as described in the following. Prior to the commissioning
of the device, this installation guide must be examined carefully.
Only qualified personnel (technicians) should install this device.
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may
be impaired. Until the device is fixed, do not connect hazardous
voltages to the device.
Repair of the device must be done by PR electronics A/S only.
In applications where hazardous voltage is connected to in-/
outputs of the device, sufficient spacing or isolation from wires,
terminals and enclosure - to surroundings (incl. neighbouring
devices), must be ensured to maintain protection against electric
shock.
Potential electrostatic charging hazard. To avoid the risk of
explosion due to electrostatic charging of the enclosure, do not
handle the units unless the area is known to be safe, or appropriate
safety measures are taken to avoid electrostatic discharge.
GENERAL
HAZARD-
OUS
VOLTAGE
CAUTION

3000V101-UK 3
SAFETY INSTRUCTIONS
RECEIPT AND UNPACKING
Unpack the device without damaging it. The packing should always follow the
device until this has been permanently mounted. Check at the receipt of the device
whether the type corresponds to the one ordered.
ENVIRONMENT
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation.
Can be used in overvoltage Category II and Pollution Degree 2. The devices are
designed to be safe at least under an altitude up to 2 000 m.
MOUNTING
Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.e. wire cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in this installation
guide and on the side label.
The device is provided with field wiring terminals and shall be supplied from a
Power Supply having double / reinforced insulation. A power switch should be
easily accessible and close to the device. The power switch shall be marked as the
disconnecting unit for the device.
SYSTEM 3000 must be mounted on a DIN rail according to EN 60715.
UL INSTALLATION
Use 60/75°C copper conductors only.
Wire size...................................................................... AWG 26-12
UL file number .......................................................... E314307
The device is an Open Type Listed Process Control Equipment. To prevent injury
resulting from accessibility to live parts the equipment must be installed in an
enclosure.
The power Supply unit must comply with NEC Class 2, as described by the National
Electrical Code®(ANSI / NFPA 70).
CFMUS INSTALLATION IN DIVISION 2 OR ZONE 2
Class I, Div. 2, Group A, B, C, D T4 or I, Zone 2, AEx nA IIC T4 or Ex nA IIC T4.
In class I, Division 2 or Zone 2 installations, the subject equipment shall be
mounted within a tool-secured enclosure which is capable of accepting one or more
of Class I, Division 2 wiring methods specified in the National Electrical Code (ANSI/
NFPA 70) or in Canada in the Canadian Electrical Code (C22.1).

4 3000V101-UK
The 3000 System Isolators and Converters must be connected to limited output
NEC Class 2 circuits, as outlined in the National Electrical Code®(ANSI / NFPA 70),
only. If the devices are connected to a redundant power supply (two separate
power supplies), both must meet this requirement.
Where installed in outdoor or potentially wet locations the enclosure shall at a
minimum meet the requirements of IP54.
Warning: Substitution of components may impair suitability for zone 2 / division 2.
Warning: To prevent ignition of the explosive atmospheres, disconnect power
before servicing and do not separate connectors when energised and an explosive
gas mixture is present.
Warning: Do not mount or remove devices from the power rail when an explosive
gas mixture is present.
IECEX, ATEX INSTALLATION IN ZONE 2
IECEx KEM 10.0068X............................................. Ex nA IIC T4 Gc
KEMA 10ATEX0147X............................................. II 3G Ex nA IIC T4 Gc
For safe installation the following must be observed. The device shall only be
installed by qualified personnel who are familiar with the national and international
laws, directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
The devices shall be installed in a suitable enclosure providing a degree of
protection of at least IP54 according to EN60529, taking into account the
environmental conditions under which the equipment will be used.
When the temperature under rated conditions exceeds 70°C at the cable or conduit
entry point, or 80°C at the branching point of the conductors, the temperature
specification of the selected cable shall be in compliance with the actual measured
temperature.
Provisions shall be made to prevent the rated voltage from being exceeded by
transient disturbances of more than 40%.
For installation on power rail in Zone 2, only Power Rail type 9400 supplied by
Power Control Unit type 9410 is allowed.

3000V101-UK 5
To prevent ignition of the explosive atmospheres, disconnect power before
servicing and do not separate connectors when energised and an explosive gas
mixture is present.
Do not mount or remove devices from the power rail when an explosive gas mixture
is present.
CLEANING
When disconnected, the device may be cleaned with a cloth moistened with
distilled water.

6 3000V101-UK

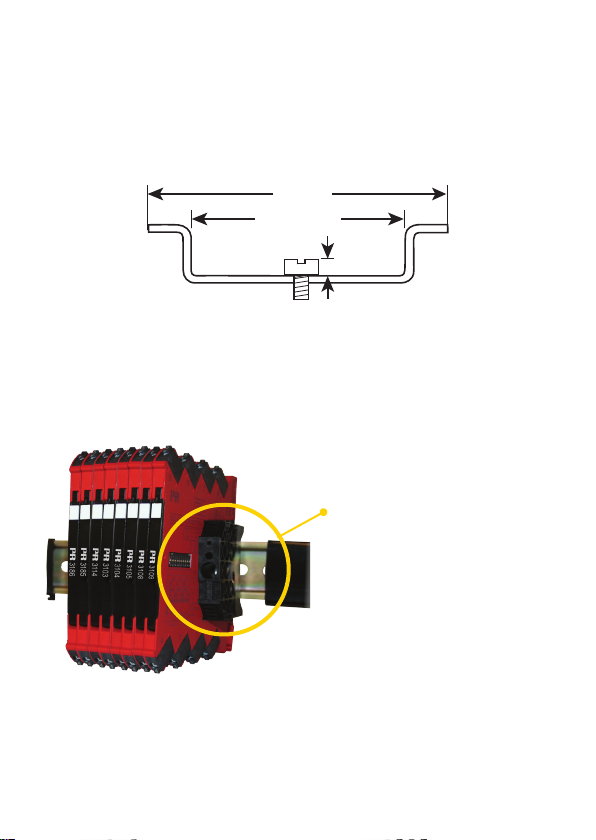

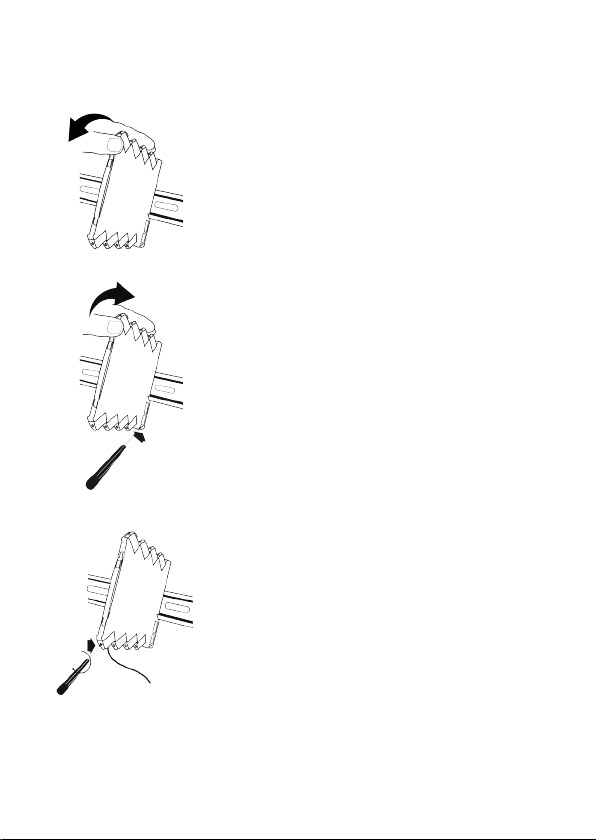

MOUNTING ON DIN RAIL
The system 3000 devices can easily be mounted on a
standard 35 mm DIN rail.
Remove the system 3000 units from the rail by lifting
the DIN rail mounting clip.
Wire size AWG 26-12 / 0.13 x 2.5 mm2stranded wire.
Screw terminal torque 0.5 Nm.

< 3.5 mm
> 24 mm
35 mm
3000V101-UK 7
INSTALLATION ON DIN RAIL
To avoid short circuit between the power rail connectors on the 3111, 3112
and 3113 devices and the screws holding the 7.5 mm DIN rail, the head
of the screws shall be no more than 3.5 mm high.
MODULE STOP
3000 units must be supported
by module stops for marine
applications.
Module stop
- PR part number 9404 -

8 3000V101-UK

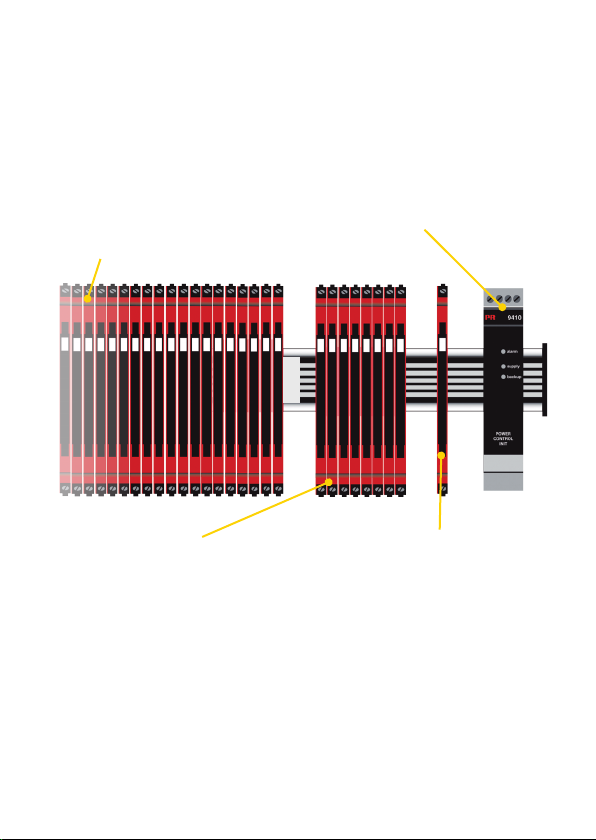

(*) External fuse characteristics:
The 2.5 A fuse must break after not more than 120 seconds at 6.4 A.
Device daisy chain:
The 3101, 3102, 3111, 3112 and
3113 devices are powered by 24
VDC +/- 30%. External protective
fuse requirement: 2.5 A (*).
2.5 A equals 60 W - this means that
up to 85 units can be energized
by connecting the source in parallel
with the power terminals of each unit.
Power rail solution #3:
Alternately, you can connect 24 VDC
to one 3111, 3112, 3113 device
which will energize units on the rail.
External protective fuse requirement
for powering this way: 0.4 A,
meaning that up to 10 pcs of 3111,
3112, 3113 units can be energized
and powered this way.
Power rail solution #1:
The 9410 power control unit can
energize and power 96 W to the rail
meaning that up to 137 pcs of 3111,
3112, 3113 units can be powered
this way. Redundant power supplies
are possible. Protective fuse: Located
inside the 9410.
Power rail solution #2:
The 3405 power connector unit
allows easy connection of a 24 VDC /
2.5 A source to the power rail.
Up to 85 of the 3111, 3112, 3113
units can be powered this way.
External protective fuse: 2.5 A(*).
FLEXIBLE SUPPLY
3405

Group: PR No:
Company:
Date: Sign.:
Drawing: 3112S1 Revision: 02 Design: OBO yyyy-mm-dd: 2014-03-21
Checked: Released:
yyyy-mm-dd: yyyy-mm-dd:
LABEL DATA
Data / Label Drawing:
Characteristic:
NA
2014-05-05
Agency Approval: If marked below changes must be autorized by approval agencies
Customer Approval:
Label Matrial: Laser
Zoom Print Colour: Black
Copyright Prelectronics A/S. All rights reserved. Reproduction without
the written permission of Prelectronics A/S is strictly forbidden.
Confidential and propritary information is contained within and must be
handled accordingly.
S3112-102-01
Label for System 3000
PB
2014-05-05
73
Data / Label Drawing:
KN
ATEX
UL
FM
CSA
DNV
GL
Costomer Approval
IECExl
B.KP1.0X.0X Document S3112-102-01-D001 1/1
}
}
}
}
3000V101-UK 9
MARKING
The hinged cover of the 3000 series
has a space designed to accept a
snap-on marker, which can be used to
identify individual units.
This space measures 5 x 7.5mm, and
markers from Weidmuller’s MultiCard
System, type MF 5/7.5, are suitable.
SIDE LABEL
DIP-switch
settings
Approvals
Pin
connections
Type no.
Terminal numbers
DIP sw.

10 3000V101-UK
TEMPERATURE CONVERTERS
• Converts process measurements from Pt100, TC J and K temperature
sensors to voltage or current outputs
• Multiple pre-calibrated temperature ranges are selectable via DIP-
switches
• High accuracy, better than 0.05% and excellent 50/60 Hz noise
suppression
• Fast signal response time < 30 ms
• 3113 and 3337 with HART® 7 protocol and fast signal response time
< 60 ms
• HART® 7 protocol enables extended device programming for 3113 and
3337
• Slimline 6 mm housing
Applications
• The temperature converters measure standard 2-, 3- or 4-wire Pt100 and/or
TC J & K temperature sensors, and provides an analog voltage or current output.
• High3portisolationprovidessurgesuppressionandprotectsthecontrolsystem
from transients and noise.
• The loop powered devices have high 2-port galvanic separation to eliminate
ground loops.
• ThedevicescanbemountedintheSafeareaorinZone2/Division2areas.
• Approvedformarineapplications.
Technical characteristics
• Highconversionaccuracy,betterthan0.05%ofspan.
• AvisiblegreenLEDindicatesoperationalstatusandstatusoftheinputsensor.
• Allterminalsareprotectedagainstovervoltageandpolarityerror.
• MeetingtheNAMURNE21recommendations,thesystem3000devicesensure
top measurement performance in harsh EMC environments.
• ThedevicesmeettheNAMURNE43standarddefiningoutofrangeandsensor
error output values.
• Highgalvanicisolationof2.5kVAC.
• Excellentsignal/noiseratioof>60dB.

3000V101-UK 11
Mounting / installation
• SelectableDIP-modeforeasyconfigurationofmorethan1000factorycalibrated
measurementrangeswithHART®readonlyfeature.
• Thenarrow6 mmhousingandverylowpowerconsumption allowsup to165
units to be mounted per meter of DIN rail, without any air gap between units.
• Widetemperatureoperationrangeof-25...+70°C.

12 3000V101-UK
Order codes:
Input Output
LED Supply Isola-
ted HART®
TC Pt100 Current
Volt-
age
J & K Int.
CJC
Ext.
CJC
2-, 3-,
4-wire Active Passive
3101      24 VDC
3102     24 VDC
3111       24 VDC /
power rail 2.5 kV
3112     24 VDC /
power rail 2.5 kV
3113       24 VDC /
power rail 2.5 kV 
3331      Loop-
powered 2.5 kV
3333   Loop-
powered
3337      Loop-
powered 2.5 kV 
Accessories for power rail devices
Type Function
3405
9400
9404
9410
9420
Power rail connector unit
Power rail - 7.5 or 15 mm high
Module stop
Power connector unit
Power supply

3000V101-UK 13
Specifications
Environmental conditions:
Specifications range............................................... -25°C to +70°C
Storage temperature .............................................. -40°C to +85°C
Calibration temperature ........................................ 20...28°C
Relative humidity.....................................................  <95%RH(non-cond.)
Protection degree.................................................... IP20 / EN60529
Installation.................................................................. Pollution degree 2 and
overvoltage category II
Mechanical specifications:
Dimensions(HxWxD).............................................. 113 x 6.1 x 115 mm
Weight approx........................................................... 70 g
DIN rail type............................................................... DIN EN 60715 - 35 mm
Wire size...................................................................... 0.13...2.5 mm2/
AWG 26...12 stranded wire
Screw terminal torque........................................... 0.5 Nm
Vibration...................................................................... IEC 60068-2-6 : 2007
 2...25Hz ................................................................. ±1.6 mm
 25...100Hz...................................................... ±4 g
Common electrical specifications:
Supply voltage, 24 VDC nom.............................. 16.8...31.2 VDC
Power consumption, max. .................................... 0.7 W
Loop-powered:
3331........................................................................ 5.5...35 VDC
3333........................................................................ 3.3...35 VDC
3337........................................................................ 6.2...35 VDC
Isolation voltage, test............................................ 2.5 kVAC
Isolation voltage, working.................................... 300 VAC (reinforced) /
250 VAC (Zone 2, Div. 2)
Signal / noise ratio ..................................................  >60dB
Signal dynamics, input........................................... 23 bit
Signal dynamics, output ....................................... 18 bit

14 3000V101-UK
Response time
Selectable HART®
read only mode
HART®
mode
< 30 ms < 300 ms < 60 ms 0.06...60 s
3101  
3102  
3111  
3112  
3113  
3331  
3333  
3337  
Accuracy - the greater of the basic and general value is valid
Device Input Basic
accuracy
General
accuracy
Temperature
coefficient
3112, 3113,
3331, 3337 Pt100 ≤ 0.1°C
≤ ± 0.05%
of span
0.02°C/°C (basic) or
≤ ± 0.01% of span / °C
3111, 3113,
3331, 3337 TC ≤ 0.5°C 0.1°C/°C (basic) or
≤ ± 0.01% of span / °C
3102, 3333 Pt100 ≤ 0.2°C
≤ ± 0.1% of
span
0.02°C/°C (basic) or
≤ ± 0.01% of span / °C
3101 TC ≤ 1°C 0.1°C/°C (basic) or
≤ ± 0.01% of span / °C
Incorrect DIP-sw setting identification:
Supplied.......................................................................  0V/0mAoutput;LED0.5s/1Hz
Loop-powered ........................................................... 3.5 mA output
EMC immunity influence....................................... < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21........................................................... < ±1% of span

3000V101-UK 15
Input specifications:
Specifications for Pt100 input:
Temperature range, Pt100 .................................. -200...+850°C - IEC 60751
Sensor current........................................................... < 150 mA
Sensor cable resistance ........................................ < 50 Wper wire
Effect of sensor cable resistance, 3- / 4-wire.... < 0.002 Ω / Ω
Sensor error detection........................................... Yes - selectable via DIP-switch
Broken sensor detection .................................  >800Ω
Shorted sensor detection ............................... < 18 Ω
Specifications for TC input:
Temperature range, TC J........................................ -100...+1200°C - IEC 60584-1
Temperature range, TC K ...................................... -180...+1372°C - IEC 60584-1
Sensor cable resistance ........................................ < 5 kΩ per wire
Cold junction compensation (CJC) accuracy:
Accuracy @ external Pt100................................. Beter than ±0.15°C
Accuracy @ internal CJC......................................... Better than ±2.5°C
Open Thermocouple detection........................... Yes – selectable via DIP-switch
Internal CJC error detection ................................. Yes
External CJC error detection................................ Yes – selectable via DIP-switch
Output specifications:
Updating time ........................................................... 10 ms
Load stability............................................................. ≤ 0.01% of span / 100 W
Current output
Active Passive
Selectable NAMUR NE43
Max. load
Invert Range Limit Sensor
error
Range
4...20 mA
3101 0/4...20 mA 0/3.8...20.5 mA 0/3.5/23 mA ≤ 600 Ω (12.6 V / 21 mA)
3102 0/4...20 mA 0/3.8...20.5 mA 0/3.5/23 mA ≤ 600 Ω (12.6 V / 21 mA)
3111 0/4...20 mA 0/3.8...20.5 mA 0/3.5/23 mA ≤ 600 Ω (12.6 V / 21 mA)
3112 0/4...20 mA 0/3.8...20.5 mA 0/3.5/23 mA ≤ 600 Ω (12.6 V / 21 mA)
3113 4...20 mA 3.8...20.5 mA 3.5 / 23 mA 600 W(23 mA)
3331   4...20 mA 3.8...20.5 mA 3.5 / 23 mA (Vsupply-5.5)/0.023 [W]
3333   4...20 mA 3.8...20.5 mA 3.5 / 23 mA (Vsupply-3.3)/0.023 [W]
3337   4...20 mA 3.8...20.5 mA 3.5 / 23 mA (Vsupply-6.2)/0.023 [W]

16 3000V101-UK
Approvals:
EMC 2004/108/EC .................................................. EN 61326-1
EMC Emission............................................................. CISPR 22, Class B
LVD 2006/95/EC...................................................... EN 61010-1
UL, Standard for Safety......................................... UL 61010-1
Safe Isolation............................................................. EN 61140
GOST R
Marine:
Det Norske Veritas, Ships & Offshore ............. Stand. f. Certific. No. 2.4
Germanischer Lloyd ................................................ VI-7-2
Ex:
ATEX 94/9/EC............................................................ KEMA 10ATEX0147X
IECEx............................................................................. KEM 10.0068X
c FM us......................................................................... 3041043-C
Selectable voltage output
Low range High range
Min.
load
Range Limit Sensor
error Range Limit Sensor
error
3101 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kW
3102 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kW
3111 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kW
3112 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kW

3000V101-UK 17
DIP-SWITCH CONFIGURATION
(Power must be cycled after DIP-switch positions are changed).
3102 and 3112 - Pt1003101 and 3111 - TC J & K
*3101 - only int CJC
3331 - Pt100 & TC J/K
3113and3337-Pt100&TCJ/K+HART
3333 - Pt100

18 3000V101-UK
TEMPERATURE RANGE PROGRAMMING
Please note:
a. 3101 and 3111 - only TC input available
Valid TC J range: -100...+1200°C = correct DIP-switch setting
Valid TC K range: -180...+1372°C = correct DIP-switch setting
b. 3102, 3112 and 3333 - only Pt100 input available
Valid Pt100 range: -200...+850 °C = correct DIP-switch setting
c. ”Start temp” must be lower than ”End temp” = correct DIP-switch setting
d. Power must be cycled after DIP-switch positions are changed
