PR electronics 5225 User manual

5225
Programmable f/i - f/f
converter
No. 5225V101-UK
From ser. no. 970297001

1535
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturudsving,
og alle produkter opfylder de strengeste internationale standarder.
Vores motto »Signals the Best« er indbegrebet af denne filosofi – og
din garanti for kvalitet.
PR electronics A/S oers a wide range of analog and digital signal
conditioning devices for industrial automation. The product range
includes Isolators, Displays, Ex Interfaces, Temperature Transmitters,
and Multifunctional Devices. You can trust our products in the
most extreme environments with electrical noise, vibrations and
temperature fluctuations, and all products comply with the most
exacting international standards. »Signals the Best« is the epitome
of our philosophy – and your guarantee for quality.
PR electronics A/S ore une large gamme de produits pour le
traitement des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux acheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm
an analogen und digitalen Signalverarbeitungsgeräte für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Übereinstimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE

5225V101-UK 3
PROGRAMMABLE f/I - f/f CONVERTER
5225
TABLE OF CONTENTS
Warning....................................................................................................... 4
Safety instructions................................................................................. 5
How to dismantle system 5000....................................................... 7
In general................................................................................................... 8
Applications............................................................................................... 9
Technical characteristics...................................................................... 9
Input............................................................................................................. 9
Analogue output..................................................................................... 9
Digital output(s)...................................................................................... 10
Relay outputs........................................................................................... 10
Status indication ..................................................................................... 10
Electrical specifications........................................................................ 11
Order ............................................................................................................ 15

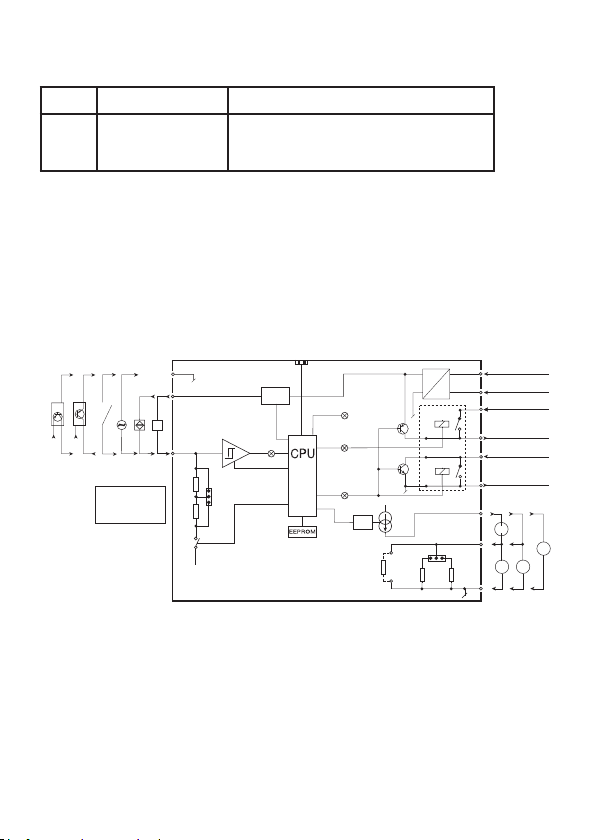

Block diagram........................................................................................... 15

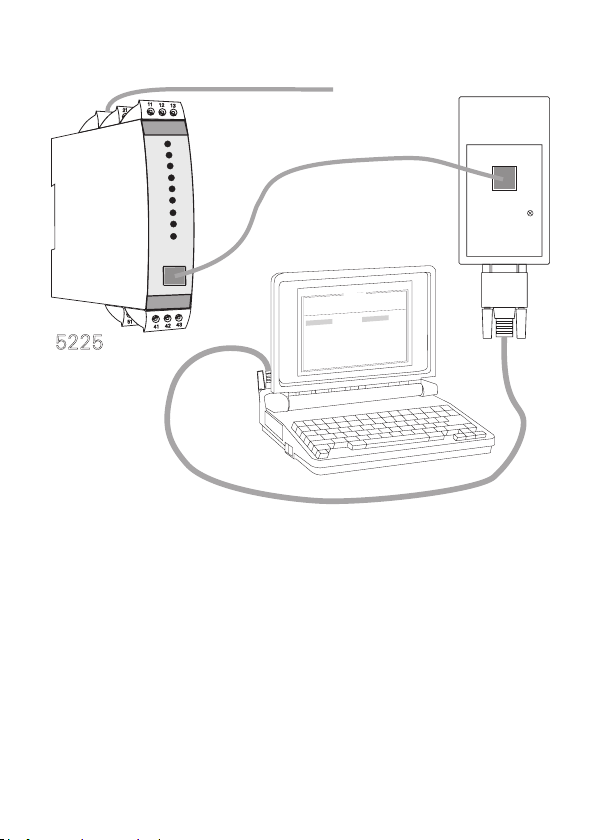

5225 connection to Loop Link.......................................................... 16

4 5225V101-UK
WARNING
This device is designed for connection to hazardous electric volt-
ages. Ignoring this warning can result in severe personal injury or
mechanical damage. To avoid the risk of electric shock and fire,
the safety instructions of this manual must be observed and the
guidelines followed. The specifications must not be exceeded,
and the device must only be applied as described in the following.
Prior to the commissioning of the device, this manual must
be examined carefully. Only qualified personnel (technicians)
should install this device. If the equipment is used in a manner
not specified by the manufacturer, the protection provided by the
equipment may be impaired.
WARNING
Until the device is fixed, do not connect hazardous voltages to the
device. The following operations should only be carried out on a
disconnected device and under ESD safe conditions:
Dismantlement of the device for setting of dipswitches
and jumpers.
General mounting, connection and disconnection of wires.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must
be done by PR electronics A/S only.
WARNING
SYSTEM 5000 must be mounted on DIN rail according to DIN
46277. The communication connector of SYSTEM 5000 is
connected to the input terminals on which dangerous voltages
can occur, and it must only be connected to the programming unit
Loop Link by way of the enclosed cable.
Triangle with an exclamation mark: Warning / demand. Potentially
lethal situations.
The CE mark proves the compliance of the device with the essential
requirements of the directives.
The double insulation symbol shows that the device is protected by
double or reinforced insulation.
HAZARDOUS
VOLTAGE
INSTAL-
LATION
GENERAL
SYMBOL IDENTIFICATION

5225V101-UK 5
SAFETY INSTRUCTIONS
DEFINITIONS
Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and
50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also
troubleshoot technically correct and in accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate the
knobs or potentiometers during normal operation.
RECEIPT AND UNPACKING
Unpack the device without damaging it. The packing should always follow the
device until this has been permanently mounted. Check at the receipt of the device
whether the type corresponds to the one ordered.
ENVIRONMENT
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation.
All devices fall under Installation Category II, Pollution Degree 1, and Insulation
Class II.
MOUNTING
Only technicians who are familiar with the technical terms, warnings, and
instructions in the manual and who are able to follow these should connect the
device.
Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.a. wire cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in the block
diagram and side label.

6 5225V101-UK
The following apply to fixed hazardous voltages-connected devices:
The max. size of the protective fuse is 10 A and, together with a power
switch, it should be easily accessible and close to the device. The power
switch should be marked with a label telling it will switch off the voltage
to the device.
CALIBRATION AND ADJUSTMENT
During calibration and adjustment, the measuring and connection of external
voltages must be carried out according to the specifications of this manual. The
technician must use tools and instruments that are safe to use.
NORMAL OPERATION
Operators are only allowed to adjust and operate devices that are safely fixed in
panels, etc., thus avoiding the danger of personal injury and damage. This means
there is no electrical shock hazard, and the device is easily accessible.
CLEANING
When disconnected, the device may be cleaned with a cloth moistened with
distilled water.
LIABILITY
To the extent the instructions in this manual are not strictly observed, the customer
cannot advance a demand against PR electronics A/S that would otherwise exist
according to the concluded sales agreement.

5225V101-UK 7
HOW TO DISMANTLE SYSTEM 5000
First, remember to demount the connectors with hazardous voltages. By lifting the
bottom lock, the device is detached from the DIN rail as shown in picture 1.
Then, by lifting the upper lock and pulling the front plate simultaneously the PCB
is removed as shown in picture 2.
Switches and jumpers can now be adjusted. By opening the front, the programming
connector is accessible as shown in picture 3.

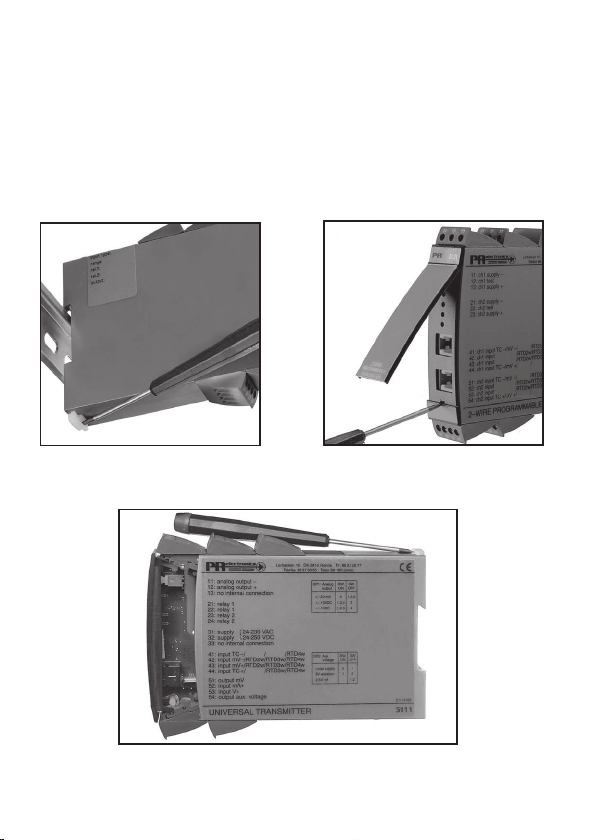

Picture 1: Separation from DIN rail.
Picture 2: Removal of PCB.
Picture 3: Access to programming
connector.

8 5225V101-UK
PROGRAMMABLE f/I - f/f CONVERTER
5225
• Pulse conditioning
• Frequency generator
• Concurrent f/I and f/f function
• Analogue current and voltage output
• PNP / NPN output, optional relays
• Programmable by PC and Loop Link
----------------------------------------------------------------------------------------------------------------
Supply voltage: 24 VDC
----------------------------------------------------------------------------------------------------------------
INPUT RANGE:
Frequency: 0...20000 Hz
Sensor types: NAMUR, tacho,
NPN, PNP, TTL, S0
----------------------------------------------------------------------------------------------------------------
OUTPUT RANGE:
Current and voltage output: 0...20 mA / 0...10 V
Relay outputs: 0...20 Hz
NPN and PNP output as f/f: 0...1000 Hz
NPN and PNP output as generator: 0...20000 Hz
----------------------------------------------------------------------------------------------------------------
IN GENERAL
By way of a standard PC and the Loop Link programming kit, the 5225 f/I - f/f
Converter is configured acc. to the requested function.
Alternatively, the 5225 may be delivered fully-configured acc. to your
specifications.
Typical pulse sources are flow meters, tacho generators, mechanical switches, or
inductive proximity sensors.

5225V101-UK 9
APPLICATIONS
The f/I function performs frequency to current and voltage conversion.
The output can be programmed to show period meaning that the input frequency
can be converted to a linear time signal.
The digital outputs are used as e.g. a frequency watch for speed control or as a
window comparator having one status between 2 limits and the opposite status
outside these limits.
The f/f function can be used for pulse division or multiplication and as a buffer
collecting fast pulse trains. The input pulses are calculated, counted in a buffer, and
sent to the output as a pulse train with the programmed pulse width.
The concurrent f/I and f/f functions enable a scaled digital output signal in
conjunction with the analogue output.
The frequency generator function is used as e.g. a time base or clock
generator.
TECHNICAL CHARACTERISTICS
INPUT
Programmable input for standard pulse generator connection.
Normally, the auxiliary supply and trigger level follow the sensor type, but these
can be programmed acc. to other values.
At contact input, the 50 Hz filter should be applied.
The PRecon 5225 is protected against polarity reversal on input and supply.
ANALOGUE OUTPUT
The analogue current and voltage output can be scaled acc. to your choice in
relation to the digital input. Max. zero offset is 50% of selected measurement
range. Programmable response time.
Short circuit-protected output.
When both current and voltage signals are used simultaneously, the mA loop to
ground passes through the internal shunt.
Standard voltage output (pin 12) is obtained by leading the current signal (pin
13) through an internal shunt resistor (pin 12). At current signals in the ranges
0...1 VDC, a 50 Ωshunt (JP1) is applied; in the ranges 0...10 VDC, a 500 Ωshunt
(JP2) is applied.

10 5225V101-UK
DIGITAL OUTPUT(S)
Both NPN / PNP and relay outputs can be set up with delayed on and off. The
action on the outputs can be inverted, and the hysteresis can be set acc. to your
specifications.
At power-up, shifts on the outputs can be delayed for up to 999 s.
NPN and PNP outputs for external relay, electromechanical counter, PLC input, or
equivalent load.
The outputs are current-limited by way of PTC resistors.
Active output is established by connecting the NPN to the PNP output (jumper
pins 22-23).
RELAY OUTPUTS
The PRecon 5225 can be delivered with 2 relay outputs that are programmed
individually.
STATUS INDICATION
The 5225 is equipped with 4 front LEDs.
f in: Indicates an active input (non-active at NPN input).
Dig. out. 1: Indicates active NPN or relay 1 output.
Dig. out. 2: Indicates active relay 2 output.
Error: Indicates sensor error at NAMUR input.

5225V101-UK 11
ELECTRICAL SPECIFICATIONS
Specifications range:
-20°C to +60°C
Common specifications:
Supply voltage.......................................................... 19.2...28.8 VDC
Internal consumption ............................................. 1.7 W
Max. consumption.................................................... 3.5 W
Power-up delay (digital outputs) ...................... 0...999 s
Warm-up time............................................................ 30 s
Communications interface ................................... Loop Link
Signal / noise ratio .................................................. min. 60 dB
Response time, analogue..................................... < 60 ms + period
Response time, digital output............................ < 50 ms + period
Response time, concurrent f/I and f/f............. < 80 ms + period
Calibration temperature ........................................ 20...28°C
Temperature coefficient........................................ < ±0.01% of span / °C
Linearity error ........................................................... < ±0.1% of span
Effect of supply voltage change....................... < 0.002% of span / %V
Auxiliary voltages:
Namur supply ............................................................ 8.3 VDC ±0.5 VDC / 8 mA
S0 supply .................................................................... 17 VDC / 20 mA
NPN / PNP supply.................................................... 17 VDC / 20 mA
Special supply (programmable).......................... 5...17 VDC / 20 mA
EMC immunity influence....................................... < ±0.5%
Max. wire size............................................................ 1 x 2.5 mm2 stranded wire
Screw terminal torque........................................... 0.5 Nm
Air humidity................................................................ < 95% RH (non-cond.)
Dimensions (HxWxD) ............................................ 109 x 23.5 x 130 mm
DIN rail type............................................................... DIN 46277
Protection degree.................................................... IP20
Weight .......................................................................... 190 g

12 5225V101-UK
Input:
General:
Measurement range................................................ 0...20 kHz
Min. measurement range...................................... 0.001 Hz
Max. offset ................................................................. 90% of selected max. frequency
Low cut off................................................................. 0.001 Hz
Min. pulse width (without filter) ....................... 25 µs
Min. period (without filter)................................... 50 µs
Max. frequency (without filter) ......................... 20 kHz
Min. pulse width (with filter) .............................. 10 ms
Min. period (with filter) ......................................... 20 ms
Max. frequency (with filter) ................................ 50 Hz
Programmable trig-level........................................ 0.025...6.5 V (nom.)
Trig-level LOW........................................................... > 50% of trig high
.................................................................................... - 50 mV
NAMUR input acc. to DIN 19234:
Trig-level LOW........................................................... ≤ 1.2 mA
Trig-level HIGH.......................................................... ≥ 2.1 mA
Input impedance ...................................................... 1000 Ω
Sensor error detection (only for NAMUR):
Breakage ..................................................................... ≤ 0.1 mA
Short circuit................................................................ ≥ 7.0 mA
Response time.......................................................... ≤ 400 ms
Tacho input:
Trig-level LOW........................................................... ≤ - 50 mV
Trig-level HIGH.......................................................... ≥ 50 mV
Input impedance ...................................................... ≥100 kΩ
Max. input voltage .................................................. 80 VAC pp
NPN / PNP input:
Trig-level LOW........................................................... ≤ 4.0 V
Trig-level HIGH.......................................................... ≥ 7.0 V
Input impedance, standard .................................. 3.48 kΩ
Input impedance, special version...................... 13.3 kΩ / NPN

5225V101-UK 13
TTL input:
Trig-level LOW........................................................... ≤ 0.8 VDC
Trig-level HIGH ................................................. ≥ 2.0 VDC
Input impedance ...................................................... ≥ 100 kΩ
S0 input acc. to DIN 43 864:
Trig-level LOW........................................................... ≤2.2 mA
Trig-level HIGH ........................................................ ≥ 9.0 mA
Input impedance ...................................................... 800 Ω
Analogue output:
Current output:
Signal range............................................................... 0...20 mA
Min. signal range...................................................... 5 mA
Max. offset ................................................................. 50% of selected max. value
Signal dynamics........................................................ 16 bit
Updating time ........................................................... 20 ms
Updating time for
concurrent f/I and f/f.............................................. 40 ms
Load (max.)................................................................. 20 mA / 600 Ω / 12 VDC
Load stability............................................................. < ±0.01% of span / 100 Ω
Current limit ............................................................... ≤ 23 mA
Voltage output through internal shunt:
Signal range............................................................... 0...10 VDC
Min. signal span........................................................ 250 mV
Max. offset ................................................................. 50% of selected max. value
Load (min.).................................................................. 500 kΩ
Digital outputs (NPN / PNP):
Imax. source............................................................... 30 mA
Imax. sink.................................................................... 130 mA
Vmax. ........................................................................... 28.5 VDC
f/f converter output:
Signal range............................................................... 0...1000 Hz
Multiplicator / Divisor............................................. 1.0000...1000000
Min. pulse width....................................................... 500 µs
Max. pulse width...................................................... 999 ms
Max. duty cycle......................................................... 50%
Frequency generator:
Min. period ................................................................. 50 µs
Max. frequency......................................................... 20 kHz
Duty cycle................................................................... 50%

14 5225V101-UK
Relay output:
Isolation, test / operation..................................... 3.75 kVAC / 250 VAC
Frequency max......................................................... 20 Hz
Vmax............................................................................. 250 VRMS
Imax............................................................................... 2 A / AC
Max. AC power ......................................................... 500 VA
Max. load at 24 VDC............................................... 1 A
Observed authority requirements: Standard:
EMC 2004/108/EC .................................................. EN 61326-1
LVD 2006/95/EC...................................................... EN 61010-1
PELV/SELV .................................................................. IEC 364-4-41 and EN 60742
EAC TR-CU 020/2011............................................ EN 61326-1
Of span = Of the presently selected range

5225V101-UK 15
ORDER
32
31
11
V
13 I +
A
V
A
5225
50050
12 V +
JP 2JP 1
43
41
22
21
24
23
42 f in
S0
NPN
Vreg.
JP 4
JP 3
13k3
3k48
D/A
Option
Supply gnd.
Gnd.
I + V
Out
I
Out
V
Out
0…20
mA
Input +
+ 24 VDC
Input gnd.
5…17 VDC
Error
Relay 1 / NPN
Relay 1 / dig. gnd.
Front comm.
5…17V+
NamurTacho
Dig out 2
Dig out 1
Relay 2
Relay 2 / PNP
Supply +24 VD
C
Spec.
V Out
NPN pull up:
6.7 mA: JP4 ON
1.7 mA: JP3 ON
Sup.
+
Sup.
+
NPNPNP Contact
BLOCK DIAGRAM
Type Version Output
5225 Standard : A Analogue + NPN / PNP
Analogue + relay output
: 1
: 2

16 5225V101-UK
5225 CONNECTION TO LOOP LINK
5225
FileProductInput
OutputCommunicationLanguageOption08:30:00
PRetop5331
Date:1994-8-10
943201594
PRelectronics
AnaloginputAnalogoutput
Serialno:
Inputtype:Output
type:4-20mA
Upscale
Sensor
error:
Pt100
DIN/IEC
0.00-50.00
C
3-wire
1.00sec
------
Inputrange:
Connection:
Coldjunction
comp:
Responsetime:
Tagno:
COM
Loop Link
Comm.
Supply

Programmable displays with a wide selection
of inputs and outputs for display of temperature, volume and
weight, etc. Feature linearization, scaling, and dierence
measurement functions for programming via PReset software.
Displays
A wide selection of transmitters for DIN form
B mounting and DIN rail devices with analog and digital bus
communication ranging from application-specific to universal
transmitters.
Temperature
Galvanic isolators for analog and digital
signals as well as HART signals. A wide product range with both
loop-powered and universal isolators featuring linearization,
inversion, and scaling of output signals.
Isolation
Interfaces for analog and digital signals as well
as HART signals between sensors / I/P converters / frequency
signals and control systems in Ex zone 0, 1 & 2 and for some
devices in zone 20, 21 & 22.
Ex interfaces
PC or front programmable devices with
universal options for input, output and supply. This range oers
a number of advanced features such as process calibration,
linearization and auto-diagnosis.
Universal

Head oce
Denmark www.prelectronics.com
PR electronics A/S [e-mail]
Lerbakken 10 tel. [phone]
DK-8410 Rønde fax [phone]
www.prelectronics.fr
[e-mail]
www.prelectronics.de
[e-mail]
www.prelectronics.es
[e-mail]
www.prelectronics.it
[e-mail]
www.prelectronics.se
[e-mail]
www.prelectronics.com
[e-mail]
www.prelectronics.com
[e-mail]
www.prelectronics.cn
[e-mail]
www.prelectronics.be
[e-mail]
