PR electronics 2255 User manual

PERFORMANCE
MADE
SMARTER
Product manual
2255
f/I - f/f converter
TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY
No. 2255V103-UK
From serial no.: 191356001

6 Product Pillars
to meet your every need
With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.
Individually outstanding, unrivalled in combination
Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self-
calibration, sensor error detection, low drift, and top EMC performance in any environment.
Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.
We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. All the interfaces are detachable, have a built-in display for readout of process values and diagnostics,
and can be configured via push-buttons. Product specific functionality includes communication via Modbus and
Bluetooth and remote access using our PR Process Supervisor (PPS) application, available for iOS and Android.
Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry and are engineered to provide a user-friendly and reliable
relay of information, even in demanding environments.
We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.
Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

2255V103-UK 3
f/I - f/f converter
2255
Table of contents
Warning ................................................................................................ 4
Symbol identification .................................................................................... 4
Safety instructions ...................................................................................... 5
How to dismantle system 2200 .......................................................................... 6
Technical characteristics ................................................................................. 7
Input ................................................................................................ 7
Output(s) ............................................................................................ 7
Electrical specifications .................................................................................. 8
Order ................................................................................................... 11
Block diagram ........................................................................................... 11
Analog output programming by way of jumpers ........................................................... 11
Programming / operating the function keys ............................................................... 12
Routing diagram: f/I converter with analogue and digital output ............................................ 13
Setting of f/i converter with analogue and digital output................................................... 14
Routing diagram: f/f converter for pulse................................................................... 17
Setting of f/f converter to pulse division / multiplication ................................................... 18
Routing diagram: Frequency generator.................................................................... 20
Setting of frequency generator........................................................................... 21
Document history ....................................................................................... 23

HAZARD-
OUS
VOLTAGE
INSTAL-
LATION
GENERAL
Warning
This device is designed for connection to hazardous electric voltages.
Ignoring this warning can result in severe personal injury or mechanical damage.
To avoid the risk of electric shock and fire, the safety instructions of this manual must be observed and
the guidelines followed.
The specifications must not be exceeded, and the device must only be applied as described in the
following.
Prior to the commissioning of the device, this manual must be examined carefully.
Only qualified personnel (technicians) should install this device.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
Warning
Until the device is fixed, do not connect hazardous voltages to the device.
The following operations should only be carried out on a disconnected device and under ESD-safe
conditions:
Dismantlement of the device for setting of DIP switches and jumpers.
General mounting, wire connection and disconnection.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only.
Warning
To keep the safety distances, devices with two built-in relays must not be connected to both hazardous
and non-hazardous voltages on the same device’s relay contacts.
SYSTEM 2200 must be mounted in socket type S3B Releco (order no 7023).
Symbol identification
Triangle with an exclamation mark: Read the manual before installation and commissioning of the
device in order to avoid incidents that could lead to personal injury or mechanical damage. Warning /
demand. Potentially lethal situations.
The CE mark proves the compliance of the device with the essential requirements of the EU directives.
The UKCA mark proves the compliance of the device with the essential requirements of the UK
regulations.
The double insulation symbol shows that the device is protected by double or reinforced insulation.

Safety instructions
Definitions
Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and 50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also trouble-shoot technically correct and in
accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate the knobs or potentiometers during normal
operation.
Receipt and unpacking
Unpack the device without damaging it and check whether the device type corresponds to the one ordered. The packing
should always follow the device until this has been permanently mounted.
Environment
Avoid direct sun light, dust, high temperatures, mechanical vibrations and shock, and rain and heavy moisture. If necessary,
heating in excess of the stated limits for ambient temperatures should be avoided by way of ventilation.
The device must be installed in pollution degree 2 or better.
The device is designed to be safe up to an altitude of 2 000 m.
The device is designed for indoor use.
Mounting
Only technicians, who are familiar with the technical terms, warnings, and instructions in the manual and who are able to
follow these, should connect the device. Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire
cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in the block diagram and side label.
The following apply to fixed hazardous voltages-connected devices:
The max. size of the protective fuse is 10 A and, together with a power switch, it should be easily accessible and close to
the device. The power switch should be marked with a label telling it will switch off the voltage to the device.
Year of manufacture can be taken from the first two digits in the serial number.
Calibration and adjustment
During calibration and adjustment, the measuring and connection of external voltages must be carried out according to the
specifications of this manual. The technician must use tools and instruments that are safe to use.
Normal operation
Operators are only allowed to adjust and operate devices that are safely fixed in panels, etc., thus avoiding the danger of
personal injury and damage. This means there is no electrical shock hazard, and the device is easily accessible.
Cleaning
When disconnected, the device may be cleaned with a cloth moistened with distilled water.
Liability
To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR
electronics A/S that would otherwise exist according to the concluded sales agreement.

6 2255V103-UK
How to dismantle system 2200
Picture 1:
The back panel of the module is detached from the housing by way of a
screwdriver.
Picture 2:
After this, the back panel can be pulled out together with the PCB, but
please notice the position of the PCB as there is a number of different
positions in the house. Do not pull the wires unnecessarily, instead pull the
PCB.
Switches and jumpers can now be moved.
When assembling the back plate and housing, please make sure no wires are
stuck.

2255V103-UK 7
f/I - f/f converter 2255
• Programmable f/I converter
• Programmable decimal divider / decimal multiplier
• Programmable frequency generator
• Relay output as option
• Supply voltage 24 VDC
General
The 2255 f/I - f/f converter is configured to the requested function by means of a menu-driven dialog with keys and display in
the front. Typical signalling device may be pulse generators e.g. flow meters, tacho-generators or inductive sensors.
The f/I function is used for frequency to current / voltage conversion within the frequency range from 0.001 Hz to 20 kHz
and for speed control with the digital output as frequency watch.
The f/f function is used for division or multiplication of pulses and as a buffer for fast pulse trains.
Max. input frequency 20 kHz.
Max. output frequency 1 kHz.
The frequency generator function is for instance used as a time base or a clock generator. Max. output frequency 20 kHz.
The 2255 can be delivered pre-configured according to specifications.
Technical characteristics
Input
Programmable input for connexion of standard pulse generator. Input filter may be selected for pulse width > 0.02 ms/max.
20 kHz, or > 10 ms/max. 50 Hz. By contact input, the filter for 10 ms/50 Hz should be used.
Auxiliary supplies
(selected by input configuration)
NAMUR supply: 8 VDC ±0.5 V / 8 mA for supply of NAMUR sensors.
S0 Supply: 15 VDC. Imax. 25 mA. Imin. (800 Ω load) 10 mA.
Special supply: As option special voltage supplies within the range 5...15 VDC / 30 mA.
Output(s)
Standard current output (pin 3) programmable within the range 0...20 mA.
Min. span 5 mA. Max. span 20 mA.
Max. offset of 50% of the max. value.
Current limit: Max. 26 mA.
Standard voltage output (pin 2) is obtained by leading the current signal through an internal shunt resistor.
With internal dipswitches a 50 Ω or a 500 Ω shunt resistor is selected, which results in a voltage output of 0...250 mV and 0 /
0.2...1 V (50 Ω) and 0...2.5 V and 0 / 2...10 V (500 Ω).
With a special internal shunt resistor, units with other output voltages can be delivered (max. 12 VDC).
Current and voltage signals are referring to the supply gnd. but if both signals are used simultaneously, only the voltage signal
has gnd. as reference.
NPN pulse output (option) for relay, electromechanical counter or equivalent load. The output is current-limited to 130 mA
with a PTC resistor.

8 2255V103-UK

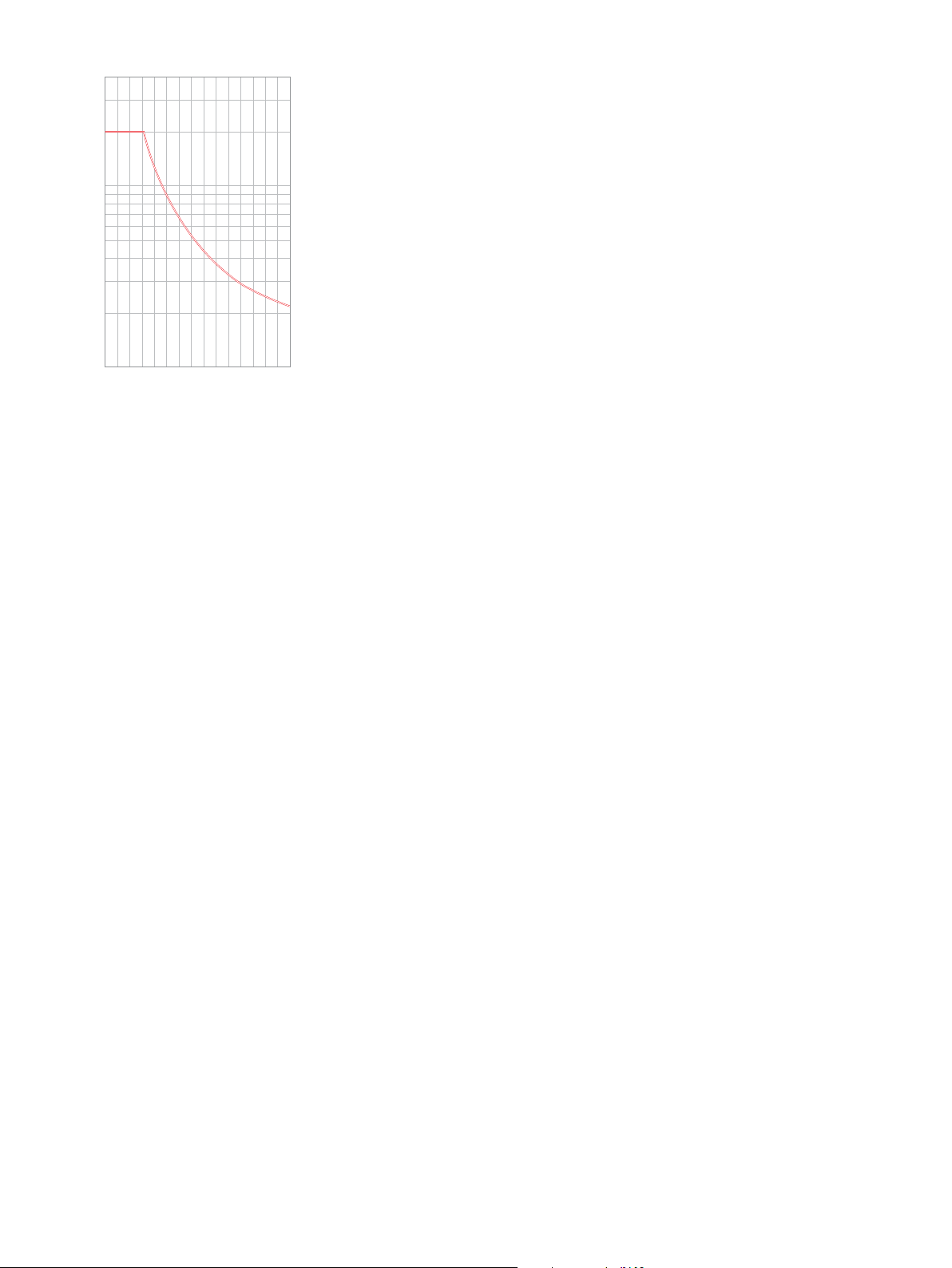

The relay output (option) with change-over contact. 300 VA, max. 150 VRMS, 2 A.
Status indication
2255 is equipped with 3 status indicators in the front.
f in: Indicates active input (inactive by the NPN input).
Input frequencies > 50 Hz are shown by fixed light.
Dig. out: Indicates active output.
Error: Indicates sensor error by NAMUR input.
Electrical specifications
Environmental conditions
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +60°C
Calibration temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20...28°C
Relative air humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 95% RH (non-cond.)
Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP50
Mechanical specifications
Dimensions (HxWxD) (D is excl. pins) . . . . . . . . . . . . . . . . . . . . . . . . 80.5 x 35.5 x 84.5 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 g
Common specifications
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.2...28.8 VDC
Internal consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4 W
Isolation, test / operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400 VAC / 150 VAC
Warm-up time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 min.
Signal / noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Min. 60 dB
Signal dynamics, output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 bit
Response time (programmable) . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 ms to 999 s + period time
Temperature coecient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < ±0.01% of span / °C
Linearity error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ ±0.1% of span
Eect of supply voltage change. . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.005% of span / VDC
Auxiliary voltages:
NAMUR supply 8 VDC ±0.5 VDC / 8 mA
S0 supply 15 VDC / 25 mA
Special (acc. to order) 5...15 VDC / 30 mA
Immunity influence < ±0.5%
Input
General
Measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...20 kHz
Min. measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.001 Hz
Low cut o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.001 Hz
Max. oset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90% of selec. max. value
Min. pulse width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 µs
NAMUR input
Trig-level LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 1.2 mA
Trig-level HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 2.1 mA
Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 Ω
Sensor error detection
Short-circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 7.0 mA
Breakage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 0.2 mA
Response time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 400 ms

2255V103-UK 9
Tacho input
Trig-level LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 100 mV
Trig-level HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 200 mV
Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 100 kΩ
Max. input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 VAC pp
NPN / PNP input
Trig-level LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 4.0 V
Trig-level HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 7.0 V
Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Typ. 3.48 kΩ
TTL input
Trig-level LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 1.2 VDC
Trig-level HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 1.7 VDC
Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 kΩ
S0 input
Trig-level LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 4.5 mA
Trig-level HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 6.2 mA
Analog output
Current output
Signal range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...20 mA
Min. signal range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mA
Max. oset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50% of selec. max. value
Updating time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 ms
Load (max.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA / 600 Ω / 12 VDC
Load stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < ±0.01% of span/100 Ω
Voltage output through internal shunt
Signal range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...10 VDC
Min. signal range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 mV
Max. oset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50% of selec. max. value
Load (min.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 kΩ
NPN output
Max. current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 mA
Max. voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 VD
f/f converter output
Signal range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...1000 Hz
Min. pulse width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 µs
Max. pulse width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 999 ms
Max. duty cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50%
Frequency generator
Pulse width
f < 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Min. 10 ms, max. 999 s
f ≥ 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50% duty cycle
Relay output
Max. frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz
Max. voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 VAC / VDC
Max. AC current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 A
Max. AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 VA
Max. DC current, resistive load:
@ Urelay ≤ 30 VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ADC
@ Urelay >30 VDC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . [1380 x U -2
relay x 1.0085Urelay] ADC

10 2255V103-UK
Graphic depiction of [1380 x U -2
relay x 1.0085Urelay]:
Observed authority requirements
EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU & UK SI 2016/1091
LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/35/EU & UK SI 2016/1101
RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU & UK SI 2012/3032
EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011
Of span = Of the presently selected range
Urelay
50 V 150 V0 V 100 V
Current
0.10 A
0.40 A
0.80 A
0.20 A
1.00 A
0.60 A
2.00 A
3.00 A

2255V103-UK 11
Order
Type Version Output
2255 Programmable : B Analog + NPN output
Analog + relay output
: 1
: 2
Block diagram
Analog output programming by way of jumpers
Output range JP1 JP2 JP3
0...10 mA (current only)
0...20 mA (current only)
0...10 mA / 0...0.5 V
0...20 mA / 0...1.0 V
0...10 mA / 0...5.0 V
0...20 mA / 0...10.0 V
OFF
ON
OFF
ON
OFF
ON
-
-
OFF
OFF
ON
ON
-
-
ON
ON
OFF
OFF
Special voltage output:
(Resistor R38 mounted)
ON or
OFF OFF OFF
D/A
0...20
mA
JP 3 Off
0...10 mA
9
10
CPU
EEPROM
1
V
3I +
A
V +
DC
DC
V
A
2255
500
50
2V +
JP 2JP 1
8
11
4
Namur
NPNPNP
Vreg.
7
5
6
f In
S0
Supply + 24VDC
Supply gnd.
I + V
Out
I
Out
V
Out
Analogue switch
8 / 15 VDC
Spec.
V Out
R 38
Onlyversion: B
Relay common
Relay N.C.
Relay N.O. / NPN
Only
Output : 2
Input +
Sup.
+
Sup.
+
Tacho
Input gnd.
8 / 15 VDC
Error
f Out
Gnd.

12 2255V103-UK
Programming / operating the function keys
Documentation for routing diagram
The programming is menu-controlled. The main menus are numbered in level 0 (x.0), and the submenus are numbered in level
1 (x.1 to x.5). Each submenu has an accompanying entry menu. The menus are structured in such a way that the menus most
frequently used are closer to the default menu 0.0. Please note that programming is only possible when submenu 5.4 PAS has
the value 040.
Main, sub-, and entry menus are selected by the 3 function keys 3, 1and 2as
outlined in the routing diagram.
Activating 2in the submenus will display the current value of the entry and
parameter selection menus.
In entry menus, the digit that can be changed will flash.
Active digit position is shifted by the 3key, and the value is changed by the 1key.
When the decimal point flashes, its position can be changed by the 1key.
In entry menus with fixed parameters, you switch between the parameters by the
1key.
Save by first activating 3and then 1simultaneously.
To return to the previous menu without changing the parameters, activate 2.
5.15.0
Memory
Programming
Press and hold , then press
to store changes
Change of figure / parameter
Next digit or point
Go to entry menu / Leave
menu without changes

2255V103-UK 13
Power On
0.0
2.0 2.1 2.2 2.3
kHz Hz mHz
5.0 5.1 5.2 5.3 5.4 5.5
LO = < 50 Hz
HI = > 50 Hz
4.0 4.1 4.2 4.3 4.4 4.5
3.0 3.1 3.2 3.3 3.4
5.15.0
1.0 1.1 1.2 1.3
kHz Hz mHz
f / I converter with analogue and digital output [Function no. 001]
Routing diagram
At power ON, or if no keys have been activated for a
period of 2 minutes, the display returns to main menu 0.0
0% Input
100% Input
Application selec. Function
001 = f/I converter
002 = f/f converter
003 = Pulse
generator
Sensor type
PnP - open collector
nPn - open collector
ttL - standard TTL
nUr - NAMUR
SO - DIN 43864
tAC - AC Tacho
Input filter
0...999 seconds
0...999
040 = access
accepted
- - - = access
blocked
Password selection
Power-up
delay
setting
Digital output
No function /
100% window Hysteresis Action Function
InC = increasing
dEC = decreasing
UOn = window On
UOF = window Off
L = limit
LC = limit &
cable
C = cable
100%
output
Current /
voltage
Analogue output Response time
0,06...999 seconds
0...20 mA
0...10 VDC
001 = 0...10 mA
002 = 0...20 mA
003 = 0...500 mV
004 = 0...1 VDC
005 = 0...5 VDC
006 = 0...10 VDC
for
Memory
Programming
Press and hold , then press
to store changes
Change of figure / parameter
Next digit or point
Go to entry menu / Leave
menu without changes
0...999 Hz 0...999 mHz
0...999 Hz 0...999 mHz
0...99,9% 0...99,9%
Setpoint /
0% window
0...20 mA
0...10 VDC
0%
output
0...20 kHz
0...20 kHz
0...99,9%
Main menu 0.0
Routing diagram: f/I converter with analogue and digital output

14 2255V103-UK
Setting of f/i converter with analogue and digital output
The following describes the routing diagram menu points from 0.0 to 5.5 for setting the f/I converter with analogue and
digital output.
Example:
Frequency span 0...12550.5 Hz
Analogue output 4...20 mA
Response time 2.5 s
Alarm frequencies < 1000 Hz, > 11000 Hz (alarm window)
Hysteresis 20 Hz
Digital output action Active within the alarm window
Digital output function Trip amplifier and sensor fault alarm
Sensor NAMUR
Input filter Pulse width > 0.02 ms
Digital output power up delay 10.0 s
First, the function f/I converter must be chosen in submenu 5.1.
0.0 DEFAULT - The input frequency is displayed in % of the input span.
At power ON, or if no keys have been activated for a period of 2 minutes, the display returns to default. When the display
is in default, menu 0.0 activating the key 1 will indicate the present function, i.a. F01.
1.0 InL - Setting of 0% frequency.
1.1 L-.- 0% setting of frequency in kHz.
Entering of example = 000.
Valid selections are 0...20.0 kHz.
1.2 -L.- 0% setting of frequency in Hz.
Entering of example = 000.
Valid selections are 0...999 Hz.
1.3 —.L 0% setting of frequency in mHz.
Entering of example = 000.
Valid selections are 0...999 mHz.
2.0 InH - Setting of 100% frequency.
2.1 H-.- 100% setting of frequency in kHz.
Entering of example = 012.
Valid selections are 0...20.0 kHz.
2.2 -H.- 100% setting of frequency in Hz.
Entering of example = 550.
Valid selections are 0...999 Hz.
2.3 —.H 100% setting of frequency in mHz.
Entering of example = 500.
Valid selections are 0...999 mHz.
3.0 AOU - Setting of analogue output.
3.1 ALO - 0% setting of analogue output
Entering of example = 04.0.
Valid selections are current 0.0...20.0 mA or voltage 0.0...10 VDC.
3.2 AHI - 100% setting of analogue output
Entering of example = 20.0.
Valid selections are current 0.0...20.0 mA or voltage 0.0...10 VDC.

2255V103-UK 15
3.3 UI - Current or voltage output setting.
NB: Please see jumper positioning in “Programming of analogue output”.
Entering of example = 002.
Possible selections are:
001 = current output 0...10 mA
002 = current output 0...20 mA (i.a. 4...20mA)
003 = voltage output 0...500 mV
004 = voltage output 0...1 V (i.a. 0.2...1 V)
005 = voltage output 0...5 V
006 = voltage output 0...10 V
3.4 rEP - Response time setting.
If the selected response time < 0.06 s, the response time will be 0.06 seconds plus the input frequency response
time. The response time will also act on the digital output so that the output will not activate / deactivate because
of short-lived changes in the input frequency.
Entering of example = 02.5.
Valid selections are 0.06...999 seconds.
4.0 dOU - Digital setting of output
4.1 dLO - Setting of setpoint / limit frequency in % of the frequency span.
This value corresponds to the setpoint, when menu 4.4 dOA = { InC or dEC }, and it corresponds to the low limit
frequency of a setpoint window when menu 4.4 dOA = { UOn or UOF }.
Entering of example = 7.97 (1000 / 12550.5 * 100 [%]).
Valid selections are 0.0...99.9%.
4.2 dHI - setting of limit frequency in % of the frequency span.
This value corresponds to the high limit frequency of a setpoint window and is only valid when menu 4.4 dOA = {
UOn or UOF }.
Entering of example = 87.6 (11000 / 12550.5 * 100 [%]).
Valid selections are 0.0...99.9%.
4.3 HYS - Setting of hysteresis in % of the frequency span.
If 4.4 dOA = { UOn or UOF } the hysteresis is outside the window (4.1 and 4.2)
If 4.4 dOA = { InC } the hysteresis is below setpoint (4.1).
If 4.4 dOA = { dEC } the hysteresis is above setpoint (4.1).
Entering of example = 0.16 (20 / 12550.5 * 100 [%]).
Valid selections are 0.0...99.9%.
4.4 dOA - Digital output action setting.
For InC or dEC the digital output action will respectively be increasing or decreasing. The setpoint and the hysteresis
must be set in menu 4.1 and 4.3.
For UOn the digital output is activated within the window.
For UOF the digital output is activated outside the window.
The low and the high limit frequency in the window are set in menu 4.1 and 4.2 respectively, and the hysteresis is
set in menu 4.3.
Entering of example = UOn.
Possible selections are InC, dEC, UOn or UOF.
4.5 dOF - Digital output function setting.
If L (Limit) is selected, the digital output will work as a trip amplifier.
If LC (Limit, Cable) is selected, the digital output will act as both a trip amplifier and as a sensor error monitor. If C
(Cable) is selected, the digital output will act as a sensor error monitor.
Sensor error monitoring is performed only by NAMUR sensor when submenu 5.2 InP = nUr
Entering of example = LC.
Possible selections are L, LC or C.

16 2255V103-UK
5.0 APP - Application selection
5.1 FUn - Funktion selection.
On a function change, the unit resets and the display returns to default, menu 0.0.
Possible functions are:
001 = f/I converter
002 = f/f converter
003 = Frequency generator
Entering of example = 001.
Valid selections are 001, 002 and 003
5.2 InP - Sensor type selection.
PnP = PNP proximity switch open collector or switch to +24 VDC.
nPn = NPN proximity switch open collector or switch to Gnd.
ttL = TTL, standard TTL signals at 5 VDC level.
nUr = NAMUR in accordance with DIN 19234.
S0 = S0 interface in accordance with DIN 43864.
tAC = AC Tacho.
Entering of example = nUr.
Possible selections are: PnP, nPn, ttl, nUr, SO and tAC
5.3 FLt - Input filter setting.
On contact input the LO filter should be used to eliminate bounce input.
Entering of example = Hi.
Possible selections are LO - 50 Hz or HI - 20 kHz.
5.4 PAS - Password selection.
When the password is 040, changes may be made in all menu points. When the password is <> 040, programming is
locked in all menu points, but open for reading the value.
Entering of example = 040.
Valid selections are 0...999.
5.5 PUd - Power-up delay setting.
The power-up delay time is the period of time in which the digital output is out of function after power connection.
Entering of example = 10.0.
Valid selections are 0...999 seconds.

2255V103-UK 17
Power On
0.0
5.15.0
1.1 + 1.2
2.1 + 2.2
5.0 5.1 5.2 5.3 5.4
4.0 4.1
2.0 2.1 2.2
1.0 1.1 1.2
f / f converter to multiplication / division [Function no. 002]
Routing diagram
At power ON, or if no keys have been activated for a
period of 2 minutes, the display returns to main menu 0.0
for
Memory
Programming
Press and hold , then press
to store changes.
Change of figure / parameter
Next digit or point
Go to entry menu / Leave
menu without changes
0...999
Denominator in
ones
Numerator in
ones
0...999
LO = < 50 Hz
HI = > 50 Hz
Application selec. Function
001 = f/I converter
002 = f/f converter
003 = Pulse
generator
Sensor type
PnP - open collector
nPn - open collector
ttL - standard TTL
nUr - NAMUR
SO - DIN 43864
tAC - AC Tacho
Input filter
0...999
040 = access
accepted
- - - = access
blocked
Password
selection
Digital output
Denominator
Numerator
Numerator in
thousands
Denominator in
thousands
0...999000
0...999000
0,5...999 ms
Pulse
length
Main menu 0.0
Formula: > 1 = multiplication
< 1 = division
Result:
Routing diagram: f/f converter for pulse

18 2255V103-UK
Setting of f/f converter to pulse division / multiplication
The following describes the routing diagram menu points from 0.0 to 5.4 for setting the f/f converter. When the function is
selected for f/f converter, the analogue output is disabled so that it assumes the value 0 mA.
Example:
Sensor NAMUR
Output frequency Input frequency divided by 6.75
Output pulse length 500 ms
First, the function f/f converter must be chosen in submenu 5.1.
0.0 Default - The number of pulses in the buffer is displayed.
The display returns to default when power is switched ON, or if no keys are activated for a period of 2 minutes.
The pulse function is set as a fraction. The numerator is set in submenu 1.1 and 1.2, and the denominator is set in
submenu 2.1 and 2.2. If for instance the input frequency must be multiplied by 10 the multipler is set to 10 and the
divisor is set to 1.
1.0 MUL - Setting the multiplier.
In submenu 1.1 og 1.2 the numerator is set to a value between 0 and 999999.
1.1 M- - Setting of multiplier in thousands.
Entering of example = 000
Valid selections are 0...999000
1.2 -M - Setting of multiplier in ones.
Entering of example = 100
Valid selections are 0...999
2.0 dIV - Setting the divisor.
In submenu 2.1 and 2.2 the denominator is set to a value between 0 and 999999.
2.1 d- - Setting of divisor in thousands.
Entering of example = 000
Valid selections are 0...999000
2.2 -d - Setting of divisor in ones.
Entering of example = 675
Valid selections are 0...999
4.0 dOU - Output pulse length setting
4.1 PLS - Setting of output pulse length in ms.
Entering of example = 500
Valid selections are 0.5...999 ms (max. 1000 Hz)
5.0 APP - Application selection.
5.1 FUn - Function selection.
On a function change, the unit resets and the display returns to default, menu 0.0.
Entering of example = 002
Possible selections are:
001 = f/I converter
002 = f/f converter
003 = Frequency generator

2255V103-UK 19
5.2 InP - Sensor type selection.
Entering of example = nUr
Possible selections are:
PnP = PNP proximity switch open collector or switch to +24 VDC.
nPn = NPN proximity switch open collector or switch to Gnd.
ttL = TTL, standard TTL signals on 5 VDC level.
nUr = NAMUR in accordance with DIN 19234.
S0 = S0 interface in accordance with DIN 43864.
tAC = AC Tacho.
5.3 FLt - Input filter setting.
LO filter should be used on the switch input to eliminate bounce.
Entering of example = HI
Possible selections are LO - 50Hz or HI - 20kHz.
5.4 PAS - Password selection.
When the password is 040, changes may be made in all menu points.
When the password is <> 040, programming is blocked in all menu points but open for reading the setting value.
Entering of example = 040.
Valid selections are 0...999.

20 2255V103-UK
Power On
0.0
kHz Hz mHz
5.15.0
1.0 1.1 1.2 1.3
5.0 5.1 5.2 5.3 5.4
4.0 4.1
Frequency generator [Function no. 003]
Routing diagram
At power ON, or if no keys have been activated for a
period of 2 minutes, the display returns to main menu 0.0
for
Memory
Programming
Press and hold , then press
to store changes.
Change of figure / parameter
Next digit or point
Go to entry menu / Leave
menu without changes
Fast frequency setting
0...999 Hz 0...999 mHz
E 3 = kHz
E 0 = Hz
E-3 = mHz
Press or 2 s for repeating up / down
Application selec. Function
001 = f/I converter
002 = f/f converter
003 = Frequency
generator
Fast
frequency setting
EFS = Enable
Fast Set
DFS = Disable
Fast Set
Displaying
0...999
040 = access
accepted
- - - = access
blocked
Password
selection
Digital output
Frequency output
Upcount frequency
Downcount frequency
Store and exit frequency set
0...20 kHz
Output pulse
length
for f < 50 Hz
0,01...999 seconds
Main menu 0.0
Routing diagram: Frequency generator
