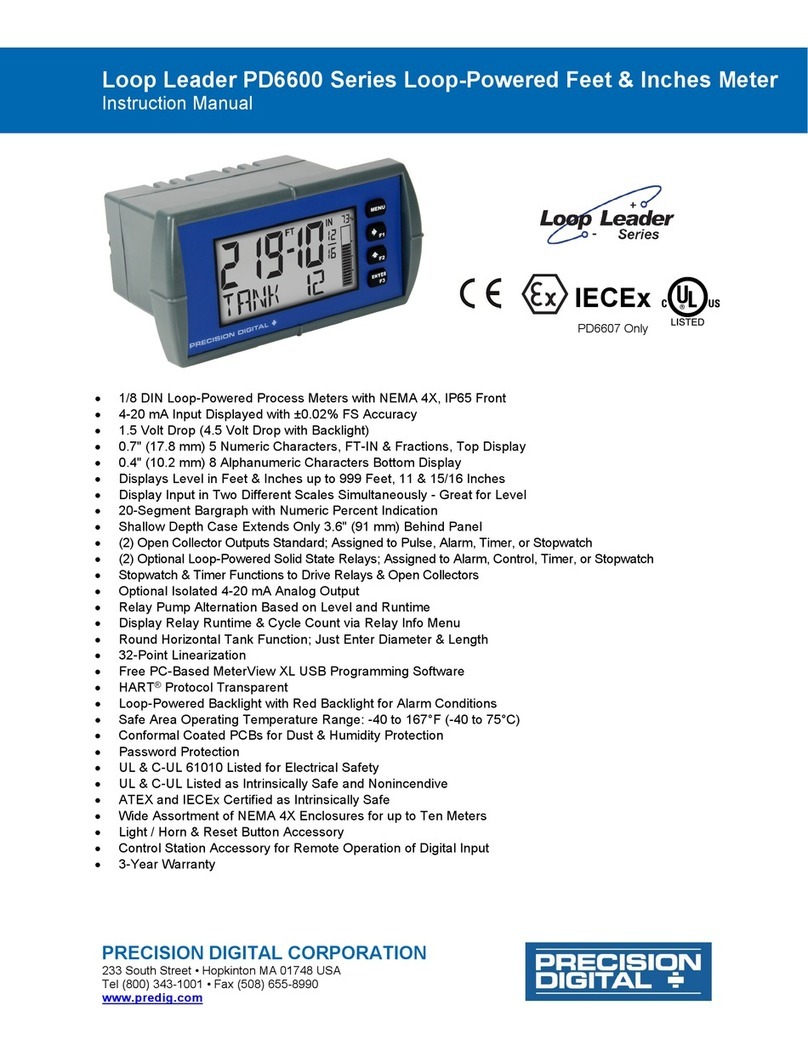

Precision Digital Corporation Loop Leader PD6600 Series User manual

Precision Digital corPoration www.predig.com
PD6600 Series ATEX and IECEx Certified, UL/C-UL Listed
Loop-powered Meter Intrinsic Safety Control Drawing
Note: this is aN aGeNCY CoNtRoLLeD DoCUMeNt
No ChaNGes CaN Be MaDe WithoUt PRioR aPPRoVaL.
1.0 SAFETY INFORMATION
1.1 Read complete instructions prior to installation and operation of
the meter.
1.2 Installation and service should be performed only by trained service
personnel.
1.3 Substitution of components may impair hazardous location safety.
1.4 Service requiring replacement of internal components must be
performed at the factory.
1.5
Equipment contains non-metallic materials and therefore special
care and consideration should be made to the performance of these
materials with respect to chemicals which may be present in a
hazardous environment.
1.6 PD6600 series indicator does not add capacitance or inductance to
loop under normal or fault conditions.
1.7 Hazardouslocationinstallationinstructionsforassociatedapparatus
(barrier) must also be followed when installing this equipment.
Panel
Gasket
Mounting
Bracket Mounting Screw
Removable
Connector
3.622" (92mm)
1.772"
(45mm) Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
Panel Mounting
2.0 ATEX AND IECExSPECIAL CONDITIONS FOR SAFE USE
The following conditions relate to safe installation and/or use of
the equipment.
2.1 For European Community: The PD6600 must be installed in
accordance with the Essential Health & Safety Requirements of
Directive 2014/34/EU, the product certicates CML 17ATEX2015X
and IECEx CML 17.0008X, and the product manual.
2.2 Under certain extreme circumstances, the non-metallic parts
incorporated in the enclosure of this equipment may generate
an ignition-capable level of electrostatic charge. Therefore the
equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge
on such surfaces. This is particularly important if the equipment is
installed in a zone 0 location. In addition, the equipment shall only
be cleaned with a damp cloth.
2.3 The equipment shall be installed in an enclosure which provides a
minimumdegreeofprotectionofIP20fortheequipmentconnections.
2.4 The equipmentloop/power portshall beconnected to anintrinsically
safe barrier with Uo ≥ 11V.
2.5 Entity parameters must meet the following requirements:
Ui = 30 V, Ii = 175 mA, Ci = 0 μF, Li = 0 μH, Pi = 1.0 W
2.6 For ATEX Certification, barrier and transmitter must be ATEX
Certified with Entity Parameters and must be connected per
manufacturer’s instructions.
3.0 UL/C-UL SPECIAL CONDITIONS FOR SAFE USE
3.1 Associated apparatus may be in a Division 2 or Zone location
if so approved.
3.2 For North American Community: Installation and service of this
device and/or associated apparatus (barrier) should be performed
only by trained service personnel, and must be installed in
accordance with the manufacturer’s control drawing, Article 504 of
the National Electric Code (ANSI/NFPA 70) for installation in the
United States, or Section 18 of the Canadian Electrical Code for
installations in Canada.
3.3 Under certain extreme circumstances, the non-metallic parts
incorporated in the enclosure of this equipment may generate
an ignition-capable level of electrostatic charge. Therefore the
equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge
on such surfaces. This is particularly important if the equipment
is installed in a zone 0 location. In addition, the equipment shall
only be cleaned with a damp cloth.
3.4 The equipment shall be installed in a tool secured enclosure
which provides a minimum degree of protection of IP20 for the
equipment connections.
3.5 Entity parameters must meet the following requirements:
Ui = 30 V, Ii = 175 mA, Ci = 0 μF, Li = 0 μH, Pi = 1.0 W
I.S. Equipment
Entity Parameters Required Relationship Between Entity
Parameters
I.S. Barrier
Entity Parameters
V max (or Ui) ≥Voc or Vt (or Uo)
I max (or Ii) ≥Isc or It (or Io)
P max, Pi ≥Po
Ci + Ccable ≤Ca (or Co)
Li + Lcable ≤La (or Lo)
3.6 For Division 2 and Zone 2 Applications: Division 2 and Zone
2 installations do NOT require the use of an intrinsically-safe
barrier or intrinsically-safe entity parameters. Class I, Division
2, Groups A, B, C, and D T4 and Class I, Zone 2, Group IIC
T4, -40C <= Ta <= +70C.
WARNING – EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the area is
known to be non-hazardous
AVERTISSEMENT - RISQUE D’EXPLOSION. NE PAS
BRANCHER NI DÉBRANCHER SOUS TENSION
Ratings: V = 30 V dc, I = 30 mA
Relay Ratings: 250V ac/dc 1A
SECTION AGENCY DESCRIPTION
1.0 Safety Information
2.0 ATEX and IECEx Special Conditions for Safe Use
3.0 UL/C-UL Special Conditions for Safe Use
4.0 ATEX and IECEx,
UL/C-UL Hazardous Area Approvals
4.0 HAzARDOUS AREA APPROvALS
E494837
Class I, Division 1, Groups A, B, C and D T4
Class I, Division 2, Groups A, B, C and D T4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C

www.predig.com
Precision Digital corPoration
233 South Street • Hopkinton MA 01748 USA • Tel [phone] • Fax [phone]
DW2516_A LIM6600-2_B 04/18
PD6600 Series ATEX and IECEx Certified, UL/C-UL Listed
Loop-powered Meter Intrinsic Safety Control Drawing
Switch Port
Relay Outputs4-20 mA Linear Output
Without Backlight
Open Collector Output
HAZARDOUS AREA NON-HAZARDOUS AREA
I.S. GROUND*
U
i
: 30 I
i
: 175 mA; C
i
: 0; Li: 0;
Pi: 1 W;
V;
Switch Port Connection Entity Parameters:
DI+ DI-mA- mA+ BL-X
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
<1 ohm to Ground
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
HAZARDOUS AREA NON-HAZARDOUS AREA
U
i
: 30 V; I
i
: 1.0 A; C
i
: 0.012 μF; Li: 0;
Pi: 1.1 W;
I.S. GROUND*
Relay Output Connection Entity Parameters:
C NO C NO
U
o
: 11.55 V;
I
o
: 0.001 A; Po: 0.013 W;
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
<1 ohm to Ground
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
HAZARDOUS AREA NON-HAZARDOUS AREA
U
i
: 30 V; I
i
: 175 mA; C
i
: 0; Li: 0;
Pi: 1 W;
I.S. GROUND*
I+ I-
4-20 mA Linear Output Connection Entity Parameters:
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
<1 ohm to Ground
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use
section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
<1 ohm to Ground
HAZARDOUS AREA NON-HAZARDOUS AREA
U
i
: 30 V ;
I
i
: 175 mA; C
i
: 0; Li: 0Pi: 1 W;
I.S. GROUND*
DI+ DI-mA- mA+ BL-X
+
-
Suitable transmitter installed per manufacturer’s
hazardous location installation drawing(s).
Loop/Power Connection Entity Parameters:
Loop
Input
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
HAZARDOUS AREA NON-HAZARDOUS AREA
I.S. GROUND*
O1+O1- O2-O2+
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
<1 ohm to Ground
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use
section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
Open Collector Output Connection Entity Parameters:
U
i
: 30 V
;
I
i
: 175 mA; C
i
: 0; Li: 0Pi: 1 W;
HAZARDOUS AREA NON-HAZARDOUS AREA
I.S. GROUND*
DI+ DI-mA- mA+ BL-X
+
-
Loop
Input
U
i
: 30 V;
I
i
: 175 mA; C
i
: 0; L
i
: 0;
P
i
: 1 W;
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
Class I, Division 1, Groups A, B, C and DT4
Class I, Division 2, Groups A, B, C and DT4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
<1 ohm to Ground
Suitable transmitter installed per manufacturer’s
hazardous location installation drawing(s).
Loop/Power Connection Entity Parameters:
European Community: Refer to ATEX &
IECEx Special Conditions for Safe Use section for
installation requirements pertaining to this device.
North American Community: Refer to UL/C-UL
Special Conditions for Safe Use section for
installation requirements pertaining to this device.
*Note: Ground connection shown for reference.
Barrier grounding requirements may vary.
Consult barrier instruction manual for specifics.
With Backlight
