Precision Digital Corporation Survivor PD662 User manual

PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]
www.predig.com

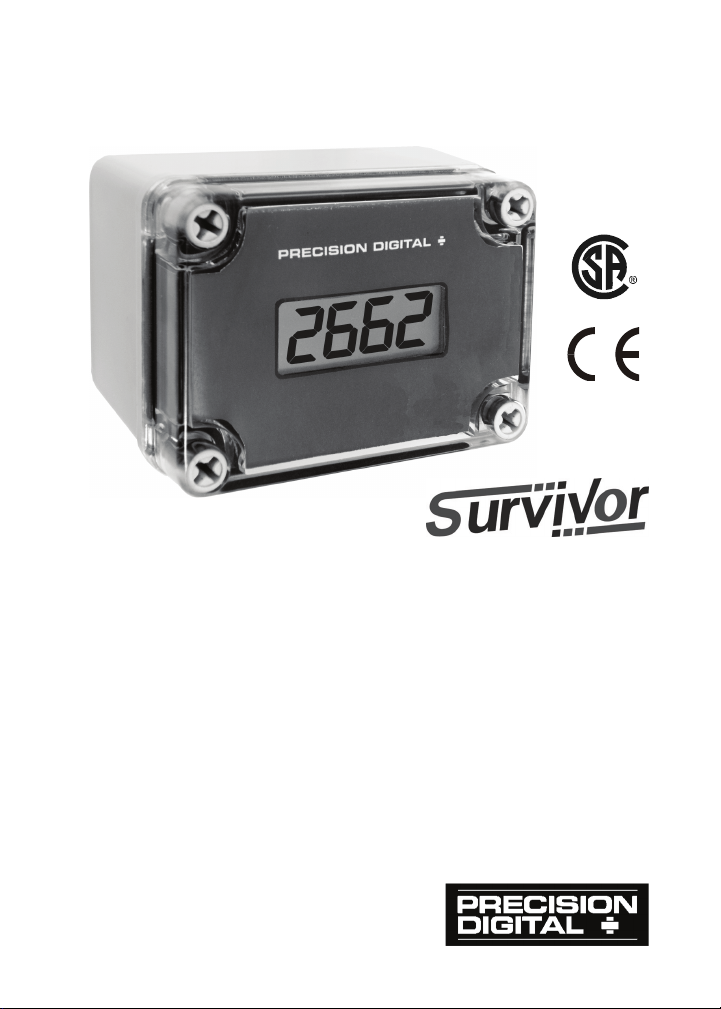

PD662 Loop-Powered Meter
Instruction Manual
 4-20 mA Input Loop-Powered
 -1999 to 2999 Display
 Easy Four-Button Programming
 NEMA 4X Enclosure
 Loop-Powered Backlight Option
 1.7 Volt Drop without Backlight
 32-Point and Square Root Linearization Input Functions
 Programmable Noise Filter
 HART Protocol Transparent
 CSA Certified for -40 to 75°C Operation
(-55 to 75°C with Heater Option)
C US

PD662 Loop-Powered Meter Instruction Manual
2
Disclaimer
The information contained in this document is subject to change without
notice. Precision Digital makes no representations or warranties with
respect to the contents hereof; and specifically disclaims any implied
warranties of merchantability or fitness for a particular purpose.
CAUTION: Read complete
instructions prior to
installation and operation of
the meter.
WARNING: Risk of
electric shock or
personal injury.
Warning
This product is not recommended for life support applications or
applications where malfunctioning could result in personal injury or
property loss. Anyone using this product for such applications does so
at his/her own risk. Precision Digital Corporation shall not be held liable
for damages resulting from such improper use.
Limited Warranty
Precision Digital Corporation warrants this product against defects in
material or workmanship for the specified period under “Specifications”
from the date of shipment from the factory. Precision Digital’s liability
under this limited warranty shall not exceed the purchase value, repair,
or replacement of the defective unit.
Registered Trademarks
All trademarks mentioned in this document are the property of their
respective owners.
© 2018 Precision Digital Corporation. All rights reserved.
www.predig.com
!

PD662 Loop-Powered Meter Instruction Manual
3
INTRODUCTION
The PD662 NEMA 4X, CSA Certified loop-powered meter is perfect for
applications where a simple, inexpensive display is required, and AC
power is not available. The PD662 derives all its power from the 4-20 mA
loop. The PD662 is scaled using four push buttons and can be done
without applying an actual calibration signal. The PD662’s display will
read up to 2999; we call this 3½+ digits! The loop-powered backlighting
option lets you see the display under any lighting condition and is
powered completely from the 4-20 mA loop. This means there is no need
for additional wiring and never any batteries to change. Multi-point
linearization with up to 32 points and the square root function allow for
conditioning of signals from non-linear transmitters without adding
external components to the system.
The PD662 is housed in a rugged NEMA 4X enclosure and is provided
with one ½" NPT pipe conduit hole. The PD662 is also available with an
optional DC-powered heater that allows the PD662 to operate in
temperatures as low as -55°C.
ORDERING INFORMATION
Model Description
PD662-0L0-00* NEMA 4X, CSA Certified Loop-Powered Meter
PD662-0K0-00 NEMA 4X, CSA Certified Loop-Powered Meter with Backlight
PD662-0L0-A0 NEMA 4X, CSA Certified Loop-Powered Meter with Heater
PD662-0K0-A0 NEMA 4X, CSA Certified Loop-Powered Meter with
Backlight & Heater
* Quick Shipment Program product typically shipped within 2 working days
Accessories
Model Description
PDA6624 Panel Mounting Kit
PDA6845 2" Pipe Mounting Kit

PD662 Loop-Powered Meter Instruction Manual
4
Table of Contents
INTRODUCTION ------------------------------------------------------------ 3
ORDERING INFORMATION --------------------------------------------- 3
SPECIFICATIONS ---------------------------------------------------------- 6
General ------------------------------------------------------------------------------- 6
Input ----------------------------------------------------------------------------------- 7
Heater --------------------------------------------------------------------------------- 7
COMPLIANCE INFORMATION ----------------------------------------- 8
Safety --------------------------------------------------------------------------------- 8
Electromagnetic Compatibility ----------------------------------------------- 8
SAFETY INFORMATION ------------------------------------------------- 9
INSTALLATION ------------------------------------------------------------- 9
Unpacking --------------------------------------------------------------------------- 9
Mounting -------------------------------------------------------------------------- 10
PD662 Connections ------------------------------------------------------------ 10
Connection & Wiring Diagrams ------------------------------------------- 11
SETUP AND PROGRAMMING ---------------------------------------- 13
Front Panel Buttons ----------------------------------------------------------- 14
Setting Numeric Values ------------------------------------------------------ 15
Programming the Meter ------------------------------------------------------ 15
Main Menu ------------------------------------------------------------------------ 16
Main Menu Display Functions & Messages ---------------------------- 17
Setting the Decimal Point (dP) -------------------------------------------- 17
Scaling the Meter (SCL) ----------------------------------------------------- 18
Calibrating the Meter (Cal) ------------------------------------------------- 19
Recalibrating the Internal Calibration Reference (Ical) ------------ 19
Advanced Features Menu ---------------------------------------------------- 20
Advanced Features Menu & Display Messages ---------------------- 21
Signal Input Conditioning Function (Fnc) ------------------------------- 22
Information Menu (info) ---------------------------------------------------- 22
Input Signal Filter (FIL) ----------------------------------------------------- 22
Internal Calibration (ICal) -------------------------------------------------- 23
OPERATION ---------------------------------------------------------------- 24
Front Panel Buttons Operation -------------------------------------------- 24
Maximum & Minimum Readings (HI & LO) ----------------------------- 25
Reset Meter to Factory Defaults ------------------------------------------- 26
Heater Operation ---------------------------------------------------------------- 26
Factory Defaults & User Settings ----------------------------------------- 27

PD662 Loop-Powered Meter Instruction Manual
5
MOUNTING DIMENSIONS ---------------------------------------------- 28
TROUBLESHOOTING ---------------------------------------------------- 30
Troubleshooting Tips --------------------------------------------------------- 30
QUICK USER INTERFACE REFERENCE GUIDE ---------------- 31
EU DECLARATION OF CONFORMITY ----------------------------- 33
Table of Figures
Figure 1. PD662 Mounting Board Rear View .................................... 11
Figure 2. PD662 Input Connections without Backlight ................... 12
Figure 3. PD662 Input Connections with Backlight ......................... 12
Figure 4. PD662 Heater Power Connections .................................... 12
Figure 5. Case Dimensions – Front View ......................................... 28
Figure 6. Case Dimensions – Side View ........................................... 28
Figure 7. Case Dimensions – Bottom View ...................................... 29
Figure 8. PDA6845 Pipe Mounting Kit ............................................... 29

PD662 Loop-Powered Meter Instruction Manual
6
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY 0.6" (15.24 mm) LCD, 3½+ digits; -1999 to 2999
DISPLAY
UPDATE RATE
2 Updates/Second
OVERRANGE Display flashes 2999
UNDERRANGE Display flashes -1999
PROGRAMMING
METHOD
Four internal pushbuttons
NOISE FILTER Programmable HI, LO, or OFF
RECALIBRATION Recalibration is recommended at least every 12 months.
MAX/MIN
DISPLAY
Max/Min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.
NON-VOLATILE
MEMORY
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.
NORMAL MODE
REJECTION
64 dB at 50/60 Hz
ENVIRONMENTAL Operating temperature for CSA certification: -40 to 75°C
Functional temperature range: -40 to 85°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS Removable screw terminals accept 12 to 22 AWG wire
ENCLOSURE Impact resistant polyester plastic, body gray, cover clear
with blue faceplate; NEMA 4X, IP66; ½" conduit hole
provided at base.
MOUNTING ½” NPT pipe (0.865 in, 12.7 mm) conduit hole on bottom
of enclosure. 0.166 in (4.2 mm) wall mounting holes
located behind front cover screws.
TIGHTENING
TORQUE
Screw terminal connectors: 4.5 lb-in (0.5 Nm)
OVERALL
DIMENSIONS
4.33" x 3.15" x 2.76" (110 mm x 80 mm x 70 mm)
4.33" x 3.15" x 3.35" (110 mm x 80 mm x 85 mm)
for models with heater option.
WEIGHT 10.4 oz (295 g)
WARRANTY 3 years parts and labor

PD662 Loop-Powered Meter Instruction Manual
7
Input
ACCURACY ±1 count
FUNCTION Linear (2 to 32 points) or square root
TEMPERATURE
DRIFT
50 PPM/C from -40 to 85C ambient
DECIMAL POINT User selectable decimal point
MINIMUM SPAN Input 1 & Input 2: 0.40 mA
CALIBRATION
RANGE
An Error message will appear if input 1 and input 2 signals
are too close together.
Input
Range
Minimum Span
Input 1 & Input 2
4-20 mA 0.40 mA
MAXIMUM
VOLTAGE DROP
Without Backlight With Backlight
1.7 VDC @ 20 mA 3.7 VDC @ 20 mA
EQUIVALENT
RESISTANCE
85 Ω @ 20 mA 185 Ω @ 20 mA
INPUT
OVERLOAD
Over current protection to 2 A max.
Heater
POWER 24 VDC, 11 W max.
REQUIRED
SWITCH & FUSE
A CSA Approved fuse rated min 30 VDC, 1 A, T and a readily
accessible switch or a circuit breaker shall be provided to
facilitate the disconnection of power to the heater.
OPERATION
METHOD
On/Off control with an internal temperature sensor. Heater is
on only when necessary due to external temperatures.
TEMPERATURE
CUTOFF
Internal 104°C thermal cutoff for over temperature protection.
ENVIRONMENTAL
(with Heater)
Operating temperature for CSA certification: -55 to 75°C
Functional temperature range: -55 to 85°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing

PD662 Loop-Powered Meter Instruction Manual
8
COMPLIANCE INFORMATION
Safety
CSA CERTIFIED U.S. & Canada
2252 05 – Process Control Equipment
2252 85 – Process Control Equipment, U.S. Standards
CSA FILE NUMBER 157123
CSA APPLICABLE
REQUIREMENTS
CAN/CSA C22.2 No. 61010-1-04 Safety Requirements
for Electrical Equipment for Measurement, Control, and
Laboratory Use – Part 1: General Requirements
UL 61010-1:2004, 2nd Edition Safety Requirements for
Electrical Equipment for Measurement, Control, and La-
boratory Use – Part 1: General Requirements
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2010
Safety requirements for measurement, control, and la-
boratory use
IEC 61010-1:2010
Safety requirements for measurement, control, and la-
boratory use
Electromagnetic Compatibility
EMC EMISSIONS
& IMMUNITY
EN 61326-1:2013
EMC requirements for Electrical equipment for
measurement, control and laboratory use – Industrial

PD662 Loop-Powered Meter Instruction Manual
9
SAFETY INFORMATION
CAUTION: Read complete
instructions prior to installation
and operation of the meter.
The equipment shall be installed by qualified personnel in accordance
with applicable local and national regulations (e.g. CEC, NEC, FCC,
SCC, etc).
Follow all safety and operation guidelines in this manual. If the meter is
used in a manner not recommended by the manufacturer, the overall
safety will be impaired.
Installation and service should be performed only by trained service
personnel.
This unit is not suitable for hazardous locations such as potentially
explosive zones or locations.
No user replaceable part inside. All service shall be performed at the
factory.
Do not disconnect and reconnect cables during a lightning storm.
Suitable surge suppressor (e.g. lightning protection) shall be provided in
end application installation.
INSTALLATION
All pushbuttons and wiring connectors are accessed by
opening the NEMA 4X enclosure by removing the 4 captive
screws that secure the cover.
Unpacking
Remove the meter from box. Inspect the packaging and
contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.
!

PD662 Loop-Powered Meter Instruction Manual
10
Mounting
The PD662 can be wall mounted using the mounting holes beneath the
cover screws. A ½” NPT pipe conduit hole is provided. It can be panel
mounted with the addition of the PDA6624 panel mount kit. It can also
be pipe mounted by using the PDA6845 pipe mount kit.
Refer to Mounting Dimensions, page 28 for details on wall or panel
space requirements.
The unit shall be installed in a way that will prevent
any accidental contact of the internal meter circuits
and power supply lines.
Cable suitable for outdoor use and a CSA Approved
gland rated 4X, or a suitable conduit and a CSA
Approved connector rated 4X, is intended to be used
in final installation.
Metallic conduit shall be reliably bonded to protective
earth/ground without creating any ground loop.
PD662 Connections
Disconnect power before opening the unit.
To access the connectors, remove the enclosure cover and unscrew the
two captive stainless-steel screws on the rear mounting board. Remove
the meter assembly from the enclosure. Signal connections are made to a
three-terminal removable connector. The signal wiring terminal block is on
the rear of the meter assembly.
S+ 4-20 mA signal input positive terminal connection
S- 4-20 mA signal return/negative terminal connection
X Not connected (no backlight option)
B- 4-20 mA signal return/negative terminal when using the
installed loop powered backlight option

PD662 Loop-Powered Meter Instruction Manual
11

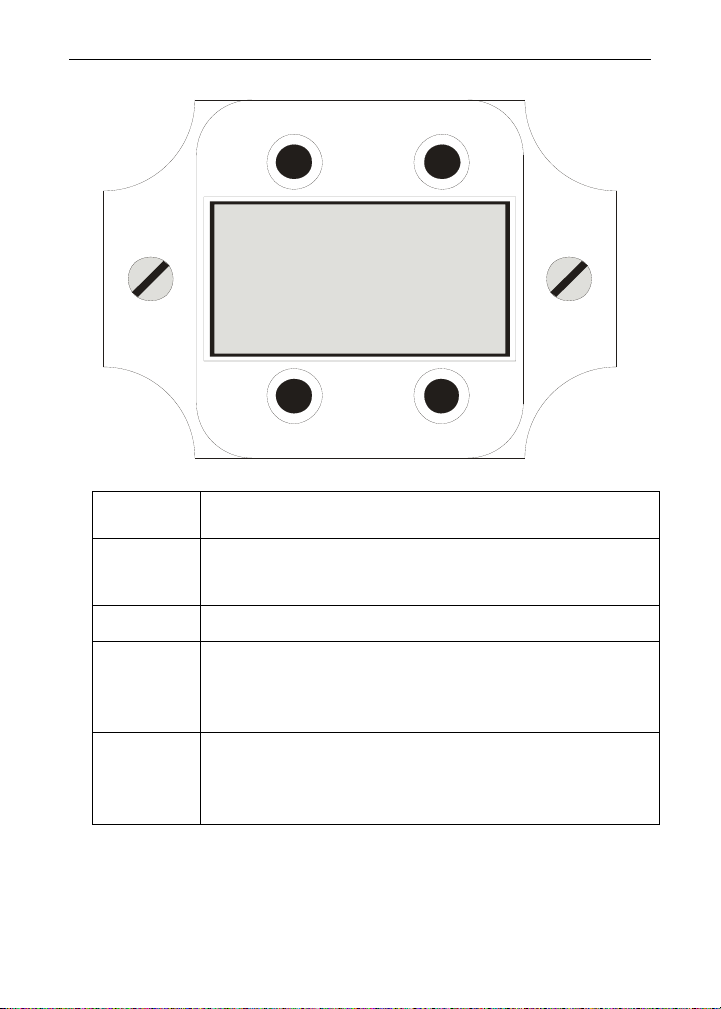

Refer to Figure 1 for terminal positions on the rear of the mounting board
inside the meter enclosure.
Meters with the heater option will also have a two terminal removable
connector on the rear of the assembly. See Figure 4 for wiring details.
P+ 24 VDC power positive terminal connection
P- 24 VDC power negative terminal connection
WIRI NG IN STR UC T ION S Co nnect signal p ositive to terminal S +. Co nnect signal n egative to terminal S -. If backlight in stalled, connect sig na l neg ative to t ermina l B-, no t S-.
S+ S- B- S+ S- B-
Figure 1. PD662 Mounting Board Rear View
Connection & Wiring Diagrams
Signal input connections are made to a three-terminal connector labeled
S+|S-|X for models without a backlight and S+|S-|B- for models with a
backlight. The 4-20 mA input with no backlight has a maximum voltage
drop of 1.7 V and is wired as shown in Figure 2. The loop-powered
backlight configuration requires a total maximum voltage drop of 3.7 V.
The backlight is recommended for dim lighting conditions and is enabled
when wired as shown in Figure 3.

PD662 Loop-Powered Meter Instruction Manual
12
Figure 2. PD662 Input Connections without Backlight
Figure 3. PD662 Input Connections with Backlight
Figure 4. PD662 Heater Power Connections
A CSA Approved fuse rated min 30 VDC, 1 A, T and a
readily accessible switch or a circuit breaker shall be
provided to facilitate the disconnection of power to the
heater.
12
24 VDC
11 W max
P+ P-
-
+
S+ S- X
4-20 mA
Transmitte
r
Power
Supply
S+ S- B-
4-20 mA
Transmitte
r
Power
Supply

PD662 Loop-Powered Meter Instruction Manual
13
SETUP AND PROGRAMMING
 There is no need to recalibrate the meter for
milliamps when first received from the factory.
 The meter is factory calibrated for milliamps
prior to shipment. The calibration equipment
is certified to NIST standards.
Overview
There are no jumpers involved in the setup process of the meter.
Setup and programming is done through the front panel buttons.
After all connections have been completed and verified, apply power to
the loop.
For a Quick User Interface Reference Guide
go to page 31

PD662 Loop-Powered Meter Instruction Manual
14
Front Panel Buttons
2662
MENU ENTER

Button/
S
y
mbol
Description
MENU
Menu button to enter programming mode. Press and
hold for 5 seconds to access the Advanced features of
the meter.
ENTER Enter button to access a menu or accept a setting.

Right arrow to scroll through the menus or move to the
next digit or decimal position during programming.
Displays the Max then Min display values when
pressed during normal run mode.

Up arrow to scroll through the menus, decimal point,
or to increment the value of a digit.
Resets the Max and Min display value when pressed
during normal run mode.

PD662 Loop-Powered Meter Instruction Manual
15
Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons.
Press Right arrow to select next digit and Up arrow to increment digit.
The two left-most digits on the display are set as a single digit, able to
display -19 to 29.
The digit being changed blinks.
Press the Enter button, at any time, to accept a setting or Menu button
to exit without saving changes.
The decimal point is set using the Right or Up arrow button in the
Setup-decimal point menu.
Programming the Meter
It is very important to read the following information, before proceeding
to program the meter:
 There is no need to recalibrate the meter for milliamps when first
received from the factory.
 The meter is factory calibrated for milliamps prior to shipment.
The calibration equipment is certified to NIST standards.
 Use the Scale (SCL) menu to enter scale parameters without
applying a live signal.
 Alternatively, use the Calibrate (CAL) menu to apply a signal from a
calibrator or a 4-20 mA transmitter to calibrate the meter.
Inputs may be calibrated or scaled to any display within the range of the
meter.
Additional parameters, not needed for most applications, are viewed
and programmed with the Advanced Features menu, see Advanced
Features Menu on page 20.

PD662 Loop-Powered Meter Instruction Manual
16
Main Menu
The main menu consists of the most commonly used functions: Decimal
Point Location, Scale, and Calibration.
26.62
MENU
dP SCl CAL
Run
Mode
MENU
 Press Menu button to enter Programming Mode then press the Up
arrow button to scroll main menu.
 Press Menu, at any time, to exit and return to Run Mode. Changes
made to settings prior to pressing Enter are not saved.
 Changes to the settings are saved to memory only after pressing
Enter.
 The display moves to the next menu every time a setting is
accepted by pressing Enter.

PD662 Loop-Powered Meter Instruction Manual
17
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup,
programming, and operation. The following table shows the main menu
functions and messages in the order they appear in the menu.
Display Parameter Action/Setting
dp Decimal point Set decimal point
SCL Scale Enter the Scale menu
Npt Number of Points Set number of linearization points
in1 Scale Input 1 Input signal 1 value (mA)
D1 Scale Display 1 Scaled value for input 1
in2 Scale Input 2 Input signal 2 value (mA)
D2 Scale Display 2 Scaled value for input 2
CAL Calibrate Enter the Calibrate menu
Npt Number of Points Set number of linearization points
in1 Calibrate Input 1 Read input signal 1
D1 Calibrate Display 1 Enter value for input 1
in2 Calibrate Input 2 Read input signal 2
D2 Calibrate Display 2 Enter value for input 2
Setting the Decimal Point (dP)
Decimal point may be set with up to three decimal places or with no
decimal point at all.
Pressing the Right or Up arrow moves the decimal point one place to
the right until no decimal point is displayed, then it moves to the left
most position.
ENTER
dP dd.dd
or
Select Decimal Point
Next

PD662 Loop-Powered Meter Instruction Manual
18
Scaling the Meter (SCL)
The 4-20 mA input can be scaled to display the process in engineering
units.
A signal source is not needed to scale the meter; simply program the
inputs and corresponding display values.
If using linear signal input conditioning, enter the number of scale points
(2-32), followed by the input values and display values. If using square
root signal input conditioning, the number of points input menu will not
be present.
Number of Points (npt)
Set the number of linearization points used in the Scale menu. 2 to 32
points may be used. The Scale menu is entered after entering the num-
ber of points
Minimum Input Span
The minimum input span is the minimum difference between input 1 and
input 2 signals required to complete the calibration or scaling of the
meter. The minimum span is 0.40 mA.
If the minimum span is not maintained, the meter reverts to input 2,
allowing the appropriate input signals to be applied.
d1
Press Enter to
Accept Setting
in2
Scale
Input 2
in1
Set Input 1
Value
SCL ENTER
04.00
Set Display 1
Value
Press Up to
Set Digit Value
Press Right to
Select Next Digit
Press Menu to
Exit at any Time
000.0
MENU
npt
002
Number of Points menu
not displayed for square
root input conditioning.
Set Number of
Scale Points

PD662 Loop-Powered Meter Instruction Manual
19
Calibrating the Meter (Cal)
To scale the meter without a signal source,
refer to Scaling the Meter (SCL), page 18.
The meter can be calibrated to display the process in engineering units
by applying the appropriate input signal.
The use of a calibrated signal source is strongly recommended.
1. Press the Up arrow button to scroll to the Calibration menu (CAL)
and press Enter.
2. If using linear signal input conditioning, enter the number of
calibration points (2-32).
3. The meter displays in1. Apply a known signal and press Enter.
The display will flash while accepting the signal.
4. When the meter displays d1, press Enter. Enter a corresponding
display value for the signal input, and press Enter to accept.
5. The meter displays in2. Apply a known signal and press Enter.
The display will flash while accepting the signal.
6. When the meter displays d2, press Enter. Enter a corresponding
display value for the signal input, and press Enter to accept.
Recalibrating the Internal Calibration Reference (Ical)
The Internal Calibration (ICAL) menu, located in the Advanced Features
menu, is used to recalibrate the internal calibration reference.
Recalibration is recommended at least every twelve months. Refer to
Internal Calibration (ICal), page 23 for instructions.
d1
Press Enter to
Accept Setting
in2
Calibrate
Input 2
in1
ENTER
Set Display 1
Value
Press Up to
Set Digit Value
Press Right to
Select Next Digit
Press Menu to
Exit at any Time
000.0
MENU
npt
002
Number of Points menu
not displayed for square
root input conditioning.
Set Number of
Scale Points
Cal
Display Flashes
Accepting Input

PD662 Loop-Powered Meter Instruction Manual
20
Advanced Features Menu
To simplify the setup process, functions not needed for most
applications are located in the Advanced Features menu. Press and
hold the MENU button for five seconds to access the Advanced
Features menu
Press Enter to Access Menu
or to Accept Setting
ICAL
FIL
ENTER
MENU
Press Up to Scroll Menu and
to Increment Digit Value
Press Menu to Exit at any Time
inFo
MENU Press and hold for five seconds
26.62
Run Mode
fnc
