PRECISION DIGITAL pd663 User manual

PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel [phone] • Fax [phone]
www.predig.com
PD663 EXPLOSION-PROOF
LOOP-POWERED METER
4-20 mA input
3½+ Digits LCD, 0.6" High
Easy Four-Button Programming
Programmable Noise Filter
32-Point and Square Root Linearization Input Functions
Max/Min Display
HART®Protocol Transparent
Loop-Powered Backlight Option
1.7 V drop (4.7 V with Backlight)
NEMA 4X Enclosure
Operates from -40 to 75°C

PD663 Loop-Powered Meter Instruction Manual
2
Disclaimer
The information contained in this document is subject to change without notice.
Precision Digital makes no representations or warranties with respect to the
contents hereof; and specifically disclaims any implied warranties of
merchantability or fitness for a particular purpose.
CAUTION: Read complete
instructions prior to installation and
operation of the meter.
WARNING: Risk of
electric shock or
personal injury.
WARNINGS
• This product is not recommended for life support applications or applications
where malfunctioning could result in personal injury or property loss. Anyone
using this product for such applications does so at his/her own risk. Precision
Digital Corporation shall not be held liable for damages resulting from such
improper use.
• Failure to follow installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.
• Never remove the meter cover in explosive environments when the circuit is
live.
• Cover must be fully engaged to meet flameproof/explosion-proof
requirements.
!

PD663 Loop-Powered Meter Instruction Manual
3
Limited Warranty
Precision Digital Corporation warrants this product against defects in material or
workmanship for the specified period under “Specifications” from the date of
shipment from the factory. Precision Digital’s liability under this limited warranty
shall not exceed the purchase value, repair, or replacement of the defective unit.
Registered Trademarks
All trademarks mentioned in this document are the property of their respective
owners.
© 2013-2014 Precision Digital Corporation. All rights reserved.
www.predig.com

PD663 Loop-Powered Meter Instruction Manual
4
INTRODUCTION
The ProtEX-Lite PD663 is a rugged, NEMA 4X loop-powered meter in an
explosion-proof enclosure ideal for applications where a simple, inexpensive
display is required in a hazardous area. The PD663 is scaled using four push
buttons and can be done without applying an actual calibration signal.
Programming may also be done through the explosion-proof enclosure with
optional magnetic reed switches and a magnet key. The PD663’s display will
read up to 2999; we call this 3½+ digits! The loop-powered backlighting option
lets you see the display under any lighting condition and is powered completely
from the 4-20 mA loop. This means there is no need for additional wiring and
never any batteries to change. Multi-point linearization with up to 32 points and
the square root function allow for conditioning of signals from non-linear
transmitters without adding external components to the system.
The PD663 is housed in a rugged, explosion-proof, cast aluminum, NEMA 4X
enclosure and is provided with two threaded conduit holes and integrated pipe or
wall mounting holes.
ORDERING INFORMATION
Model Options Installed
PD663-0L0-00 None
PD663-0K0-00 Loop-Powered Backlight
PD663-0LA-00 Reed Switch
PD663-0KA-00 Loop-Powered Backlight and Reed Switch
Accessories
Model Description
PDA-MAG Magnet Assembly for Reed Switches
PDA0003 ½" M-NPT to ¾" F-NPT Adapter
PDA6863 2" Pipe Mounting Kit

PD663 Loop-Powered Meter Instruction Manual
5
Table of Contents
INTRODUCTION-----------------------------------------------------------------------4
ORDERING INFORMATION -------------------------------------------------------4
SPECIFICATIONS --------------------------------------------------------------------7
General -------------------------------------------------------------------------------------------7
Input -----------------------------------------------------------------------------------------------8
Product Ratings and Approvals----------------------------------------------------------9
Electromagnetic Compatibility ---------------------------------------------------------10
SAFETY INFORMATION---------------------------------------------------------- 11
INSTALLATION---------------------------------------------------------------------- 12
Unpacking -------------------------------------------------------------------------------------12
Pre-Installed Conduit Plug---------------------------------------------------------------12
Mounting ---------------------------------------------------------------------------------------13
Cover Jam Screw----------------------------------------------------------------------------13
Connections ----------------------------------------------------------------------------------13
4-20 mA Input Connections & Wiring Diagrams........................................ 15
SETUP AND PROGRAMMING-------------------------------------------------- 16
Buttons and Display -----------------------------------------------------------------------17
Setting Numeric Values-------------------------------------------------------------------18
Programming the Meter............................................................................. 18
Main Menu -------------------------------------------------------------------------------------19
Main Menu Display Functions & Messages .............................................. 20
Setting the Decimal Point (dP)................................................................... 20
Scaling the Meter (SCL) ............................................................................. 21
Calibrating the Meter (Cal)........................................................................ 22
Re-calibrating the Internal Calibration Reference (ICal) .......................... 22
Advanced Features Menu ----------------------------------------------------------------23
Advanced Features Menu & Display Messages........................................ 24
Signal Input Conditioning Function (Fnc) .................................................. 25
Information Menu (info) ............................................................................. 25
Input Signal Filter (FIL) ............................................................................. 25
Internal Calibration (ICal) ......................................................................... 26
OPERATION-------------------------------------------------------------------------- 27
Front Panel Buttons Operation---------------------------------------------------------27
Maximum & Minimum Readings (HI & LO)-----------------------------------------28
Reset Meter to Factory Defaults -------------------------------------------------------29
Factory Defaults & User Settings------------------------------------------------------30
TROUBLESHOOTING------------------------------------------------------------- 31
Troubleshooting Tips----------------------------------------------------------------------31
MOUNTING DIMENSIONS ------------------------------------------------------- 32
QUICK USER INTERFACE REFERENCE ----------------------------------- 34
EC DECLARATION OF CONFORMITY--------------------------------------- 35

PD663 Loop-Powered Meter Instruction Manual
6
Table of Figures
Figure 1. PD663 Meter Assembly, Rear View...................................14
Figure 2. PD663 Input Connections without Backlight ...................15
Figure 3. PD663 Input Connections with Backlight.........................15
Figure 4. Enclosure Dimensions – Front View.................................32
Figure 5. Enclosure Dimensions – Side Cross Section View.........33

PD663 Loop-Powered Meter Instruction Manual
7
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY 0.6" (15.24 mm) LCD, 3½+ digits; -1999 to 2999
DISPLAY
UPDATE RATE 2 Updates/Second
OVERRANGE Display flashes 2999
UNDERRANGE Display flashes -1999
PROGRAMMING
METHOD Four internal pushbuttons, optional magnetic reed switches.
NOISE FILTER Programmable HI, LO, or OFF
RECALIBRATION Recalibration is recommended at least every 12 months.
MAX/MIN
DISPLAY Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
NON-VOLATILE
MEMORY All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
NORMAL MODE
REJECTION 64 dB at 50/60 Hz
ENVIRONMENTAL Operating temperature range: -40 to 75°C
Storage temperature range: -40 to 75°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS Removable screw terminals accept 12 to 22 AWG wire
ENCLOSURE Explosion-proof die cast aluminum with glass window,
0.30% max copper content, corrosion resistant epoxy
coating, color: blue. NEMA 4X, 7, & 9, IP68.
Two ½” NPT threaded conduit openings. One ½” NPT
nickel plated brass conduit plug with 10 mm hex key fitting
installed.
MOUNTING May be mounted directly to conduit. Two mounting holes
for 1.5” pipe or wall mounting. See Mounting Dimensions
on page 32.
TIGHTENING
TORQUE Screw terminal electrical connectors: 4.5 lb-in (0.5 Nm)
OVERALL
DIMENSIONS 4.84" x 4.29" x 3.62" (123 mm x 109 mm x 92 mm) (W x H x D)
WEIGHT 2.45 lbs (40 oz, 1.13 kg)
WARRANTY 3 years parts and labor

PD663 Loop-Powered Meter Instruction Manual
8
Input
ACCURACY ±1 count
FUNCTION Linear (2 to 32 points) or square root
TEMPERATURE
DRIFT 50 PPM/C from -40 to 75C ambient
DECIMAL POINT User selectable decimal point
MINIMUM SPAN Input 1 & Input 2: 0.40 mA
CALIBRATION
RANGE An Error message will appear if input 1 and input 2 signals
are too close together.
Input
Range Minimum Span Input 1 & Input 2
4-20 mA 0.40 mA
MAXIMUM
VOLTAGE DROP Without Backlight With Backlight
1.7 VDC @ 20 mA 4.7 VDC @ 20 mA
EQUIVALENT
RESISTANCE 85 Ω@ 20 mA 185 Ω@ 20 mA
LOOP-POWERED
BACKLIGHT
OPTION
Factory installed only. Powered directly from the 4-20 mA
loop, no batteries required. Backlight can be enabled or
disabled via alternative wiring of terminal block. The
display brightness will increase as the input signal current
increases.
INPUT
OVERLOAD Over current protection to 2 A max.

PD663 Loop-Powered Meter Instruction Manual
9
Product Ratings and Approvals
FM Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1; T6
Class I, Zone 1, AEx d IIC T6 Gb
Zone 21, AEx tb IIIC T85°C
Ta = -40°C to +75°C
Enclosure: Type 4X & IP66
Certificate number: 3040391
ATEX II 2 G D
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP68
Ta = -40°C to +75°C
ATEX Certificate: Sira 10ATEX1116X
CSA Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1; T6
Class I, Zone 1, Ex d IIC T6
Ta = -40°C to +75°C
Enclosure: Type 4X & IP66
Certificate number: 11 2325749
IECEx IECEx SIR 10.0056X
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP68
Ta = -40°C to +75°C
Special Conditions for Safe Use:
Use suitably certified and dimensioned cable entry device and/or plug. The
equipment shall be installed such that the supply cable is protected from
mechanical damage. The cable shall not be subjected to tension or torque. If the
cable is to be terminated within an explosive atmosphere, then appropriate
protection of the free end of the cable shall be provided.
Year of Construction
This information is contained within the serial number with the first four digits
representing the year and month in the YYMM format.
For European Community: The PD663 must be installed in accordance with the
ATEX directive 94/9/EC and the product certificate Sira 10ATEX1116X.

PD663 Loop-Powered Meter Instruction Manual
10
Electromagnetic Compatibility
EMISSIONS EN 61326:2006
Safety requirements for measurement, control, and
laboratory use – Industrial
Group 1 Class A ISM emissions requirements
Radiated
Emissions
Class A
IMMUNITY EN 61326:2006
Safety requirements for measurement, control, and
laboratory use
ESD ±4 kV contact,
±8 kV air
RFI – Amplitude
Modulated
80-1000 MHz @ 10 V/m,
1.4-2.0 GHz @ 3 V/m,
2.0-2.7 GHz @ 1 V/m,
80% AM (1 kHz)
EFT ±2 kV DC mains, ±1 kV other
Telco Surge ±1 kV
CRFI 3 V, 0.15-80 MHz, 1 kHz 80% AM

PD663 Loop-Powered Meter Instruction Manual
11
SAFETY INFORMATION
WARNINGS
Read complete instructions prior to installation and operation of the meter.
Installation and service should be performed only by trained service
personnel. Service requiring replacement of internal components must be
performed at the factory.
Disconnect from supply before opening enclosure. Keep cover tight while
circuits are alive. Conduit seals must be installed within 18" (450mm) of the
enclosure.
Verify that the operating atmosphere of the meter is consistent with the
appropriate hazardous locations certifications.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead
!

PD663 Loop-Powered Meter Instruction Manual
12
INSTALLATION
For Installation in USA: The PD663 must be installed in accordance with the
National Electrical Code (NEC) NFPA 70.
For Installation in Canada: Install in accordance with applicable local and
national regulations (e.g. NEC). The PD663 must be installed in accordance with
the Canadian Electrical Code CSA 22.1. All input circuits must be derived from a
CSA approved Class 2 source.
For European Community: The PD663 must be installed in accordance with the
ATEX directive 94/9/EC and the product certificate Sira 10ATEX1116X.
All pushbuttons and wiring connectors are accessed by opening the enclosure.
To access electrical connectors, remove the 2 captive screws and remove the
meter assembly. Pushbuttons may also be accessed using the magnet assembly
if reed switches are installed.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage.
Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or
the factory for assistance.
Pre-Installed Conduit Plug
The PD663 is supplied with one pre-installed optional conduit plug for
installations that do not require the use of both conduit entries. The conduit plug
includes an internal hexagonal socket recess for removal. The pre-installed plug
and installation are included in all hazardous area approvals of the PD663.
WARNING: Disconnect from supply before opening enclosure. Keep cover
tight while circuits are alive. Conduit seals must be installed within 18" (450
mm) of the enclosure.
WARNING: Installations of the supplied conduit plug require the application of
non-setting (solvent free) thread sealant. If the pre-installed conduit plug is
removed or replaced all relevant hazardous area guidelines must be followed
for its installation or replacement conduit.

PD663 Loop-Powered Meter Instruction Manual
13
Mounting
The PD663 has two mounting holes that may be used for a 1.5” pipe mounting or
wall mounting. Alternatively, the unit may be supported by the conduit using the
conduit holes provided.
It can also be pipe mounted by using the PDA6863 pipe mount kit for 2" pipe.
Refer to Mounting Dimensions, page 32 for details on wall or panel space
requirements
Cover Jam Screw
The cover jam screw should be properly installed once the meter has been wired
and tested in a safe environment. The cover jam screw is intended to prevent the
removal of the meter cover in a flameproof environment without the use of tools.
Using a M2 hex wrench, turn the screw clockwise until the screw contacts the
meter. Turn the screw an additional 1/4 to 1/2 turn to secure the cover. Caution:
Excess torque may damage the threads and/or wrench.
Connections
To access the connectors, remove the enclosure cover and unscrew the two
captive stainless steel screws. Remove the meter assembly from the enclosure.
Signal connections are made to a three-terminal removable connector on the
back of the meter assembly. Grounding connections are made to the two ground
screws provided on the base – one internal and one external.
WARNING: Do not attempt to loosen or remove flange bolts while the meter
is in service.
WARNINGS
Static electricity can damage sensitive components.
Observe safe handling precautions for static-sensitive components.
Use proper grounding procedures/codes.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead or
terminal.

PD663 Loop-Powered Meter Instruction Manual
14
Connections (continued)

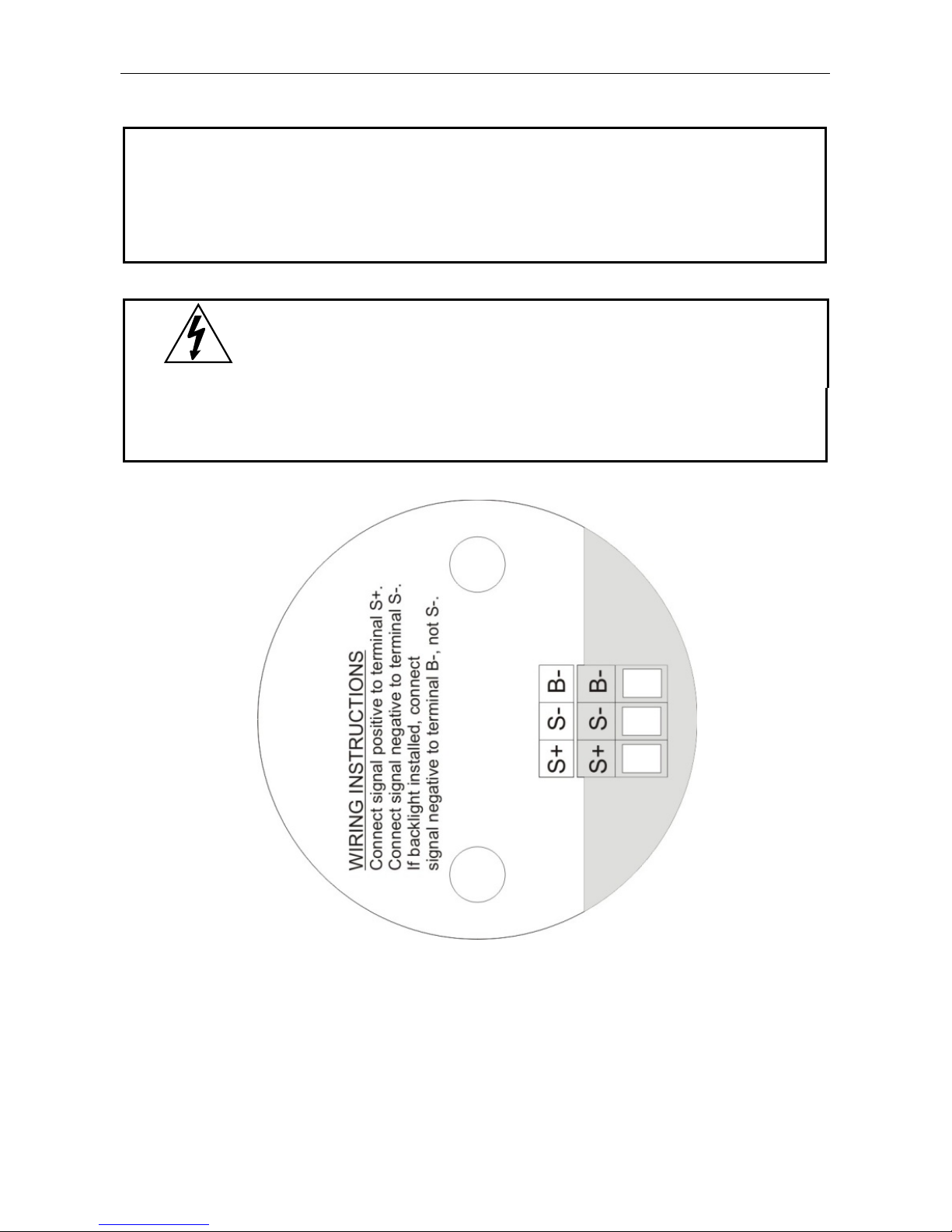

See Figure 1 for terminal positions on the rear of the meter assembly.
Figure 1. PD663 Meter Assembly, Rear View
S+ 4-20 mA signal input positive terminal connection
S- 4-20 mA signal return/negative terminal connection
X Not connected (no backlight option)
B- 4-20 mA signal return/negative terminal when using the installed loop
powered backlight option
WARNING
Observe all safety regulations. Electrical wiring should be performed in
accordance with all agency requirements and applicable national, state, and
local codes to prevent damage to the meter and ensure personnel safety.

PD663 Loop-Powered Meter Instruction Manual
15
4-20 mA Input Connections & Wiring Diagrams
Signal input connections are made to a three-terminal connector labeled S+|S-|X
for models without a backlight and S+|S-|B- for models with a backlight. The
enclosure also provides one internal and one external earth grounding screw.
The 4-20 mA input with no backlight has a maximum voltage drop of 1.7 V and is
wired as shown in Figure 2. The loop-powered backlight configuration requires a
total maximum voltage drop of 4.7 V. The backlight is recommended for dim
lighting conditions and is enabled when wired as shown in Figure 3. The
enclosure also provides one internal and one external earth grounding screw.
Figure 2. PD663 Input Connections without Backlight
Figure 3. PD663 Input Connections with Backlight
S+ S- B-
4-20 mA
Transmitter
Power
Supply
S+ S- X
4-20 mA
Transmitter
Power
Supply

PD663 Loop-Powered Meter Instruction Manual
16
SETUP AND PROGRAMMING
There is no need to recalibrate the meter for milliamps when first received
from the factory.
The meter is factory calibrated for milliamps prior to shipment. The
calibration equipment is certified to NIST standards.
Overview
There are no jumpers involved in the setup process of the meter.
Setup and programming is done through the front panel buttons.
After all connections have been completed and verified, apply power to the loop.
For
Quick User Interface Reference
go to page 34

PD663 Loop-Powered Meter Instruction Manual
17

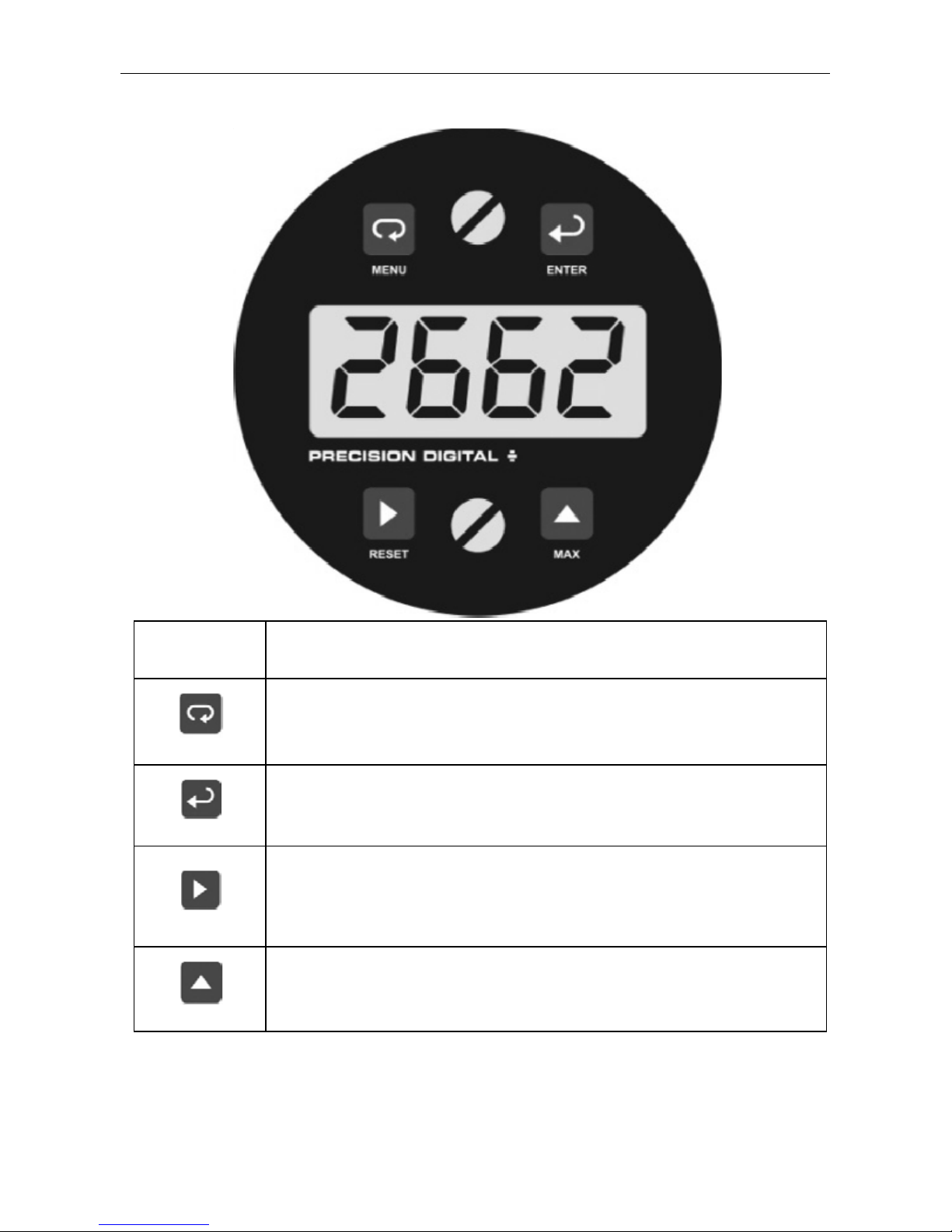

Buttons and Display
Button/
Symbol Description
MENU
Menu button to enter programming mode. Press and hold for
5 seconds to access the Advanced features of the meter.
ENTER
Enter button to access a menu or accept a setting.
RESET
Right arrow to scroll through the menus or move to the next
digit or decimal position during programming.
Resets the Max or Min display value when pressed while
showing Max or Min value.
MAX
Up arrow to scroll through the menus, decimal point, or to
increment the value of a digit. Displays the Max then Min
display values when pressed during normal run mode.

PD663 Loop-Powered Meter Instruction Manual
18
Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press the
Right arrow to select next digit and the Up arrow to increment digit. The two left-
most digits on the display are set as a single digit, able to display -19 to 29.
The digit being changed blinks.
Press the Enter button, at any time, to accept a setting or Menu button to exit
without saving changes.
The decimal point is set using the Right or Up arrow button in the Setup-decimal
point menu.
Programming the Meter
It is very important to read the following information, before proceeding to
program the meter:
There is no need to recalibrate the meter for milliamps when first received from
the factory.
The meter is factory calibrated for milliamps prior to shipment. The calibration
equipment is certified to NIST standards.
Use the Scale (SCL) menu to enter scale parameters without applying a live
signal.
Alternatively, use the Calibrate (CAL) menu to apply a signal from a calibrator or a
4-20 mA transmitter to calibrate the meter.
Inputs may be calibrated or scaled to any display within the range of the meter.
Additional parameters, not needed for most applications, are viewed and
programmed with the Advanced features menu, see Advanced Features Menu,
page 24.

PD663 Loop-Powered Meter Instruction Manual
19
Main Menu
The main menu consists of the most commonly used functions: Decimal Point
Location, Scale, and Calibration.
Press Menu button to enter Programming Mode then press the Up Arrow button
to scroll through the main menu.

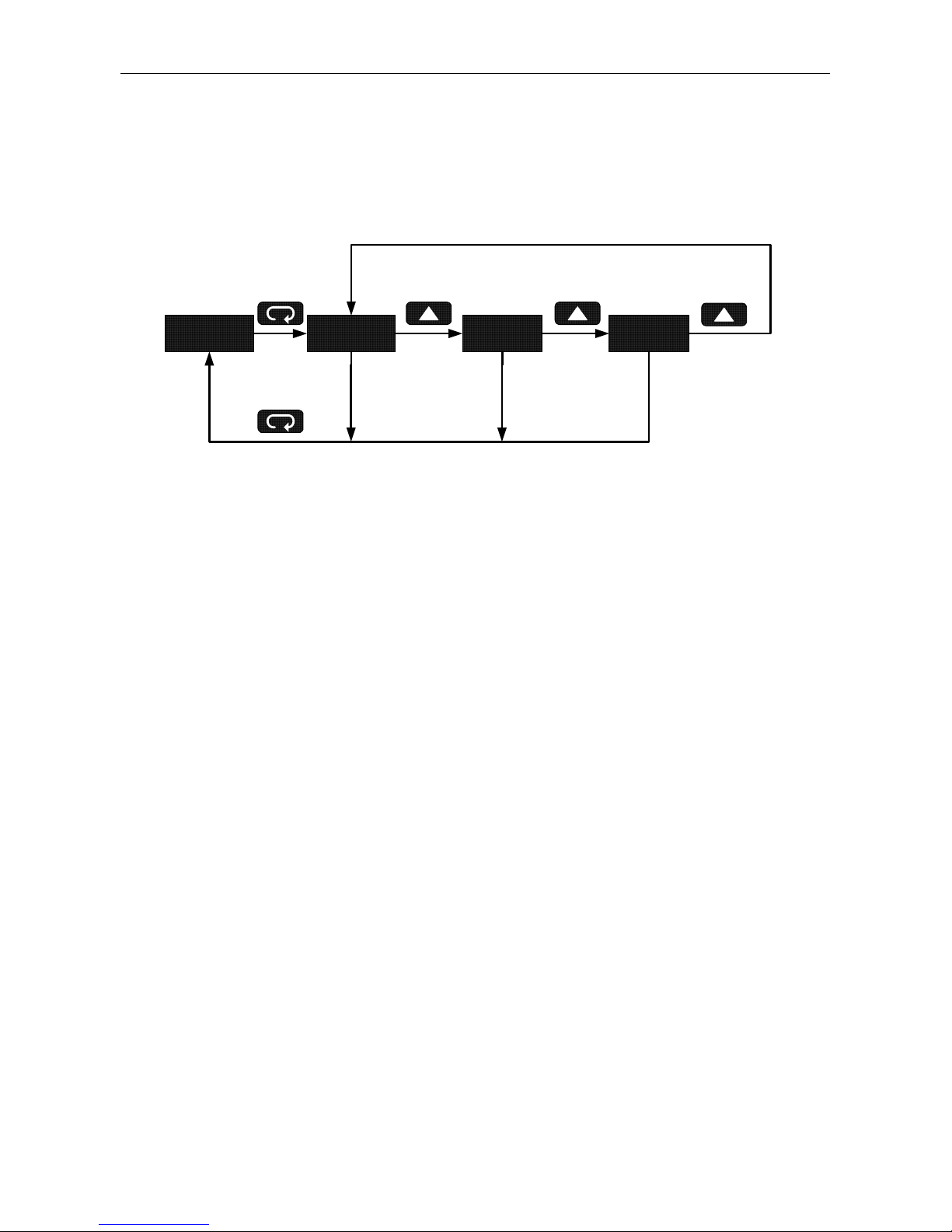

26.62 dP SCl CAL
Run
Mode
Press Menu, at any time, to exit and return to Run Mode. Changes made to
settings prior to pressing Enter are not saved.
Changes to the settings are saved to memory only after pressing Enter.
The display moves to the next menu every time a setting is
accepted by pressing Enter.

PD663 Loop-Powered Meter Instruction Manual
20
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming,
and operation. The following table shows the main menu functions and
messages in the order they appear in the menu.
Display Parameter Action/Setting
dp Decimal point Set decimal point
SCL Scale Enter the Scale menu
Npt Number of Points Set number of linearization points
in1 Scale Input 1 Input signal 1 value (mA)
D1 Scale Display 1 Scaled value for input 1
in2 Scale Input 2 Input signal 2 value (mA)
D2 Scale Display 2 Scaled value for input 2
CAL Calibrate Enter the Calibrate menu
Npt Number of Points Set number of linearization points
in1 Calibrate Input 1 Read input signal 1
D1 Calibrate Display 1 Enter value for input 1
in2 Calibrate Input 2 Read input signal 2
D2 Calibrate Display 2 Enter value for input 2
Setting the Decimal Point (dP)
Decimal point may be set with up to three decimal places or with no decimal
point at all.
Pressing the Right or Up arrow moves the decimal point one place to the right
until no decimal point is displayed, then it moves to the left most position.
dP dd.dd
or
Select Decimal Point
Next
