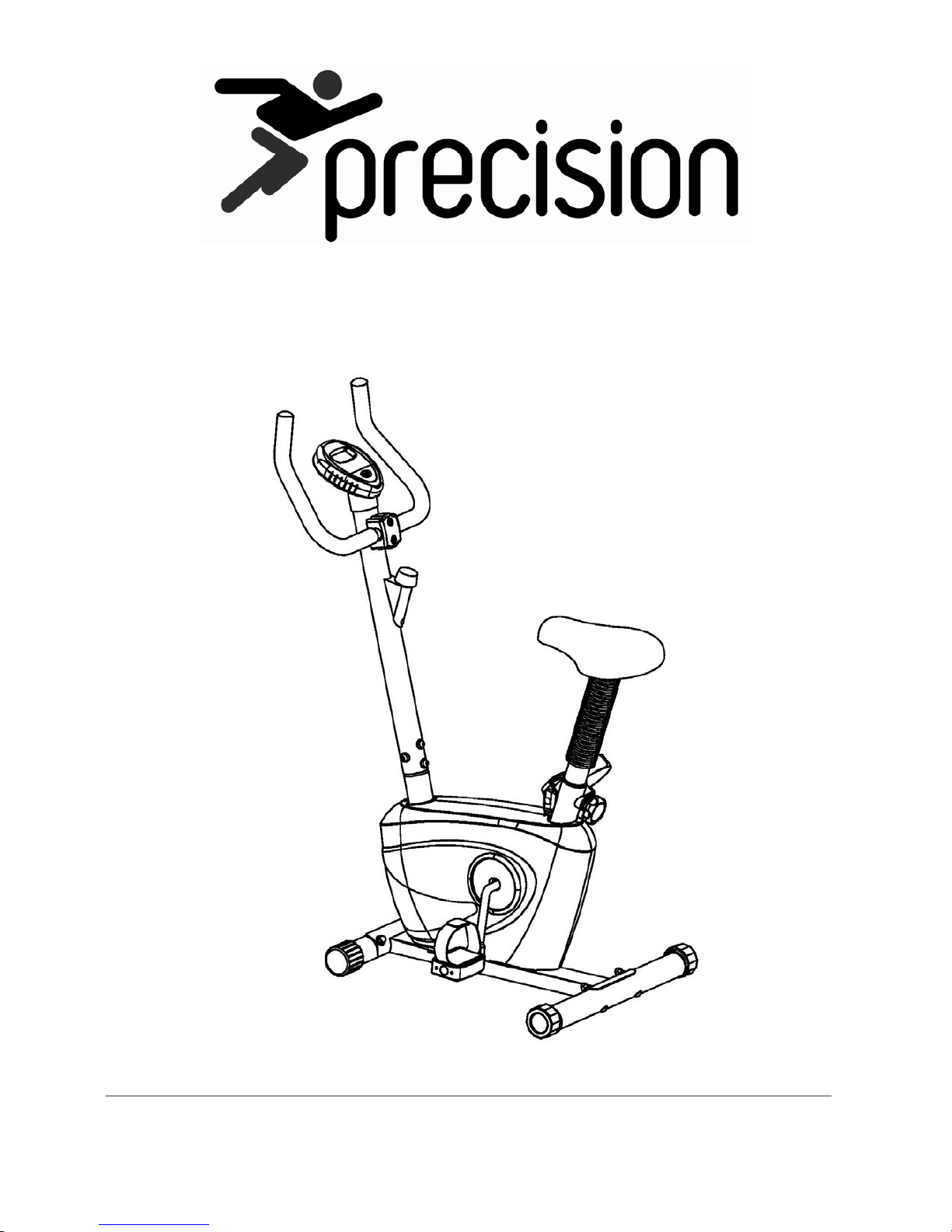

PRE105 FELT EXERCISE BIKE
OWNER’S MANUAL
IMPORTANT !
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject to
change without notice.

1
IMPORTANT SAFETY NOTICE
Note the following precaution before assembling and operating the machine.
1) Read all the instructions in this manual and do warm up exercises before using this
equipment.
2) This bike is home stationary fitness equipment, and also aerobic training equipment that can
help you to develop your cardiovascular function.
3) Please make sure all parts are not damaged and well fixed before use. The equipment
should be placed on a flat surface when using. Using a carpet or other covering material on
the ground is recommended.
4) Please wear proper clothes and shoes when using this bike; do not wear clothes that might
catch any part of the equipment; remember to tighten the pedaling straps.
5) Consult your physician and make a suitable exercise schedule before exercise. This is
particularly important to people who are over 35 years old or who have prior medical history.
In order to attain the ideal exercise result, besides executing a suitable amount of exercise, it
is also very important to insist on doing exercise every day.
6) Before exercise, in order to avoid injuring the muscle, warm-up exercise of every position of
the body is necessary. Refer to Warm Up Exercises. After exercise, relaxation of the body is
suggested for cool-down.
7) Keep children and pets away from the equipment while operating the equipment. This
machine is designed for adults only. The minimum free space required for safe operation is
not less than two meters.
8) Do not use this equipment one hour before or after dinner.
9) If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising
immediately and consult your physician before continuing.
10)The maximum weight capacity of the user is 100kgs / 220lbs.
WARNING: IT WILL BE HARMFUL IF YOU DISOBEY THE ABOVE-MENTIONED
PRECAUTIONS.

2
EXPLOSIVED DIAGRAM

3
PARTS LIST
No. Description Qty No. Description Qty
1 Main frame 1 17 Sensor wire 1
2 Front stabilizer 1 18 Connective wire 1
3 Rear stabilizer 1 19 Allen bolt 4
4 Handlebar post 1 20 Tension controller 1
5 Handlebar 1 21 Flat washer 3
6 Saddle post 1 22 Nylon nut 3
7 Saddle 1 23 Screw 1
8 Computer 1 24 Saddle post bushing 1
9L/R Pedal (L/R) 1 pr 25 Spring washer 2
10 Crank 1 26 Bolt 2
11 Front stabilizer end cap 2 27 Handlebar chuck cover 1
12 Rear stabilizer end cap 2 28 Foam grip 2
13 Carriage bolt 4 29 End cap 2
14 Arc washer 8 30 Computer bracket 1
15 Acorn nut 4 31 Knob 1
16 Tension cable 1 32 Bushing 1
NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled in the identified assembly parts. In these instances, simply remove and
reinstall the hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.

4
ASSEMBLY INSTRUCTION
ATTENTION:
Please follow these assembly instructions step by step to assemble this trainer bike.
1. Install the Front and Rear Stabilizers
Fix the front stabilizer (2) and rear stabilizer (3) to
the main frame (1) with the carriage bolts (13), arc
washers (14) and Acorn nuts (15).
2. Install the Handlebar Post
Connect the sensor wire (17) from the main frame (1)
to the connective wire (18) from the handlebar post
(4). Put the end of tension controller (20) into the
spring hook of tension cable (16). Pull the resistance
cable of tension controller (20) up and force it into
the gap of metal bracket of tension cable (16) as the
picture shows. Finally, insert the handlebar post (4)
to the main frame (1) and secure with the Allen bolts
(19) and arc washers (14).
Ensured the Cable has been connected correctly as
shown.
3. Install the Handlebar
Fix the handlebar (5) onto the handlebar post (4) with
spring washers (25) and bolts (26). Cover the
handlebar chuck cover (27) onto the handlebar (4).

5

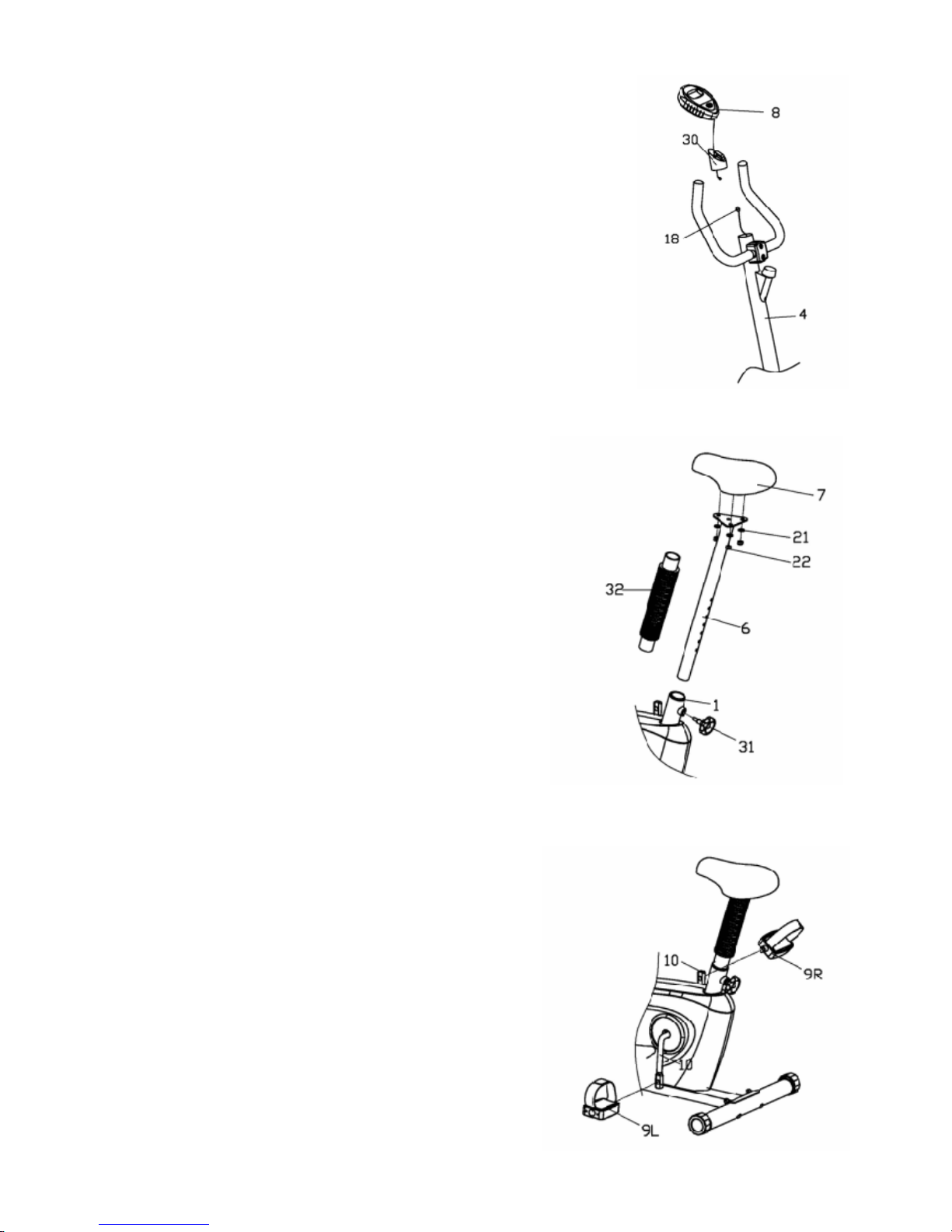

4. Install the computer
Pull the wire of computer (8) through the computer bracket (30) and
out from the hole. Then attach the computer (8) into the computer
bracket (30). Connect the computer wire with the extension wires (18).
Finally, attach the computer bracket (30) onto the top of handlebar
post (4).
5. Install the Saddle Post
Fix the saddle (7) to the saddle post (6) with flat washers
(21) and nylon nuts (22), and then insert the bushing to
the saddle post (6).Finally, insert the saddle post(6) into
the main frame (1), tighten with the knob (31).
Note:when adjusting the height of saddle post, the
maximum insert depth mark line cannot be higher than the
edge of the tube of Main Frame section.
6. Install the Right and Left Pedals
Attach the right and left pedals (9L/R) to the crank (10)
respectively. The right pedal (9R) should be threaded
clockwise. The left pedal (9L) should be threaded
counterclockwise.
Note: The right and left Pedals (9L/R) are marked “R” for
right & “L” for left.

6
USING YOUR BIKE
Using your bike will provide you with several benefits. It will improve your physical fitness, tone your
muscles and in conjunction with a calorie controlled diet, help you lose weight.
WARM-UP PHASE
The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up
for two to five minutes before strength-training or aerobic exercising. Perform activities that raise
your heart rate and warm the working muscles.Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
STRETCHING
Stretching while your muscles are warm after a proper warm-up and again after your strength or
aerobic training session is very important. Muscles stretch more easily at these times because of
their elevated temperature, which greatly reduces the risk of injury. Stretches should be held for 15
to 30 seconds.
DO NOT BOUNCE.
Remember always to check with your physician before starting any exercise program.
EXERCISE PHASE
This is the stage where you put the effort
in. After regular use, the muscles in your
legs will become more flexible. Work at
your own pace and be sure to maintain a
steady tempo throughout. The rate of
work should be sufficient to raise your
heartbeat into the target zone shown on
the graph below.
COOL-DOWN PHASE
The purpose of cooling down is to return the body to its normal or near normal, resting state at the
end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to
return to the heart.

7
EXERCISE MONITOR INSTRUCTION MANUAL
SPECIFICATIONS:
TIME --------------------------------------------------------- 0:00~99:59MIN
CALORIE --------------------------------------------------- 0.0~999.9KCAL
SPEED ------------------------------------------------------ 0.0~999.9ML/H (KM/H)
ODOMETER (IF HAVE) --------------------------------- 0.00~99.99ML (KM)
DISTANCE ------------------------------------------------- 0.0~999.9ML (KM
PULSE (IF HAVE) ---------------------------------------- 40~240BPM
KEY FUNCTIONS:
MODE: This key lets you to select and lock on to a particular function you want.
SET(IF HAVE): To set the values of time, distance and calories when not in scan mode.
RESET/CLEAR (IF HAVE): The key to reset the value to zero by pressing the key.
FUNCTIONS:
1.TIME: Press the MODE key until pointer lock in to TIME. The total working time will be shown
when starting exercise.
2.SPEED: Press the MODE key until pointer lock on to SPEED Display current speed during
working time .
3.DISTANCE: Press the MODE key until pointer lock on to DISTANCE . The distance of each
workout will be displayed when starting exercise.
4.CALORIE: Press the MODE key until pointer lock on to CALORIE The calorie burned will be
displayed when starting exercise.
5. ODOMETER(IF HAVE): Automatically accumulates workout distance when starting exercise.
6.RPM(IF HAVE): Calculate the number of pulses per minute movement (lap) or steps.
7.PULSE(IF HAVE): Please press the MODE of health, switch to the "PULSE" function.
Through the heart rate sensor, measuring the number of beats per minute.
SCAN: Display changes according to the next diagram every 4 seconds.
TIME---SPEED---DISTANCE---CALORIE---ODOMETER (IF HAVE) ---RPM(IF HAVE)---PULSE
(IF HAVE) ---SCAN
NOTE:
1. Without any signal coming in 4-5 minutes, the LCD display will be shut off automatically.
2. When there is signal input,the monitor automatically turns on.
3. If there is a possibility to see an improper display on the monitor, please replace the batteries
to have a good result .You must be to replace the batteries at the same time.
4. Please according to the battery compartment labeled with battery.
5. If there is abnormal, please use the conductive metal in the power of the positive and
negative pole.
（Note: When installed in a battery at the same time, please don't press the button switch）

8
