Impex MARCY NSP-490 Installation and operating instructions

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
CLUB TRAINER
NSP-490
Parts List
Warranty
Ordering Parts
Model
NSP-490
Retain This
Manual for
Reference
180724
ASSEMBLY &
OWNER'S
MANUAL
IMPEX®INC.
2801 S. Towne Ave., Pomona, CA 91766
Tel: [phone] Fax: [phone]
www.marcypro.com
[e-mail]

© IMPEXINC.
1
www. marcypro.c om
TABLE OF CONTENTS
BEFORE YOU BEGIN............................................................................................1
IMPORTANT SAFETY NOTICES...........................................................................2
WARNING LABEL PLACEMENT…………………………………………………. 3
HARDWARE PACK….............................................................................................4
ASSEMBLY INSTRUCTIONS.................................................................................5
EXPLODED DIAGRAM….......................................................................................11
PARTS LIST...........................................................................................................12
CARE, MAINTENANCE….......................................................................................14
EXERCISE GUIDELINES .......................................................................................15
WARRANTY...........................................................................................................17
ORDERING PARTS. ..............................................................................................17
BEFORE YOU BEGIN
Thank you for selecting the MARCY CLUBTRAINER NSP-490 byIMPEX®INC. For your
safety and benefit, read this manual carefully before using the bike. As a manufacturer,
we are committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.marcypro.com
suppor[email protected]

© IMPEXINC.
2
www. marcypro.c om
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise bike is built for optimal safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before you
assemble or operate your bike. In particular, note the following safety precautions:
1.Keep children and pets away from the exercise bike at all times. DO NOT leave
children unattended in the same room with the bike.
2. Only one person at a time should use the bike.
3.If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4.Position the bike on a clear, leveled surface. DO NOT use the bike near water or
outdoors.
5. Keep hands away from all moving parts.
6.Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the bike. Running or aerobic shoes are also
required when using the bike.
7.Use the bike only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the bike.
9.Disabled person should not use the bike without a qualified person or physician in
attendance.
10. Before using the bike to exercise, always do stretching exercises to properly warm up.
11. Never operate the bike if it is not functioning properly.
12. Read all warnings posted on the exercise bike.
13.Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any
loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF
35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO
RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY
OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

© IMPEXINC.
3
www. marcypro.c om

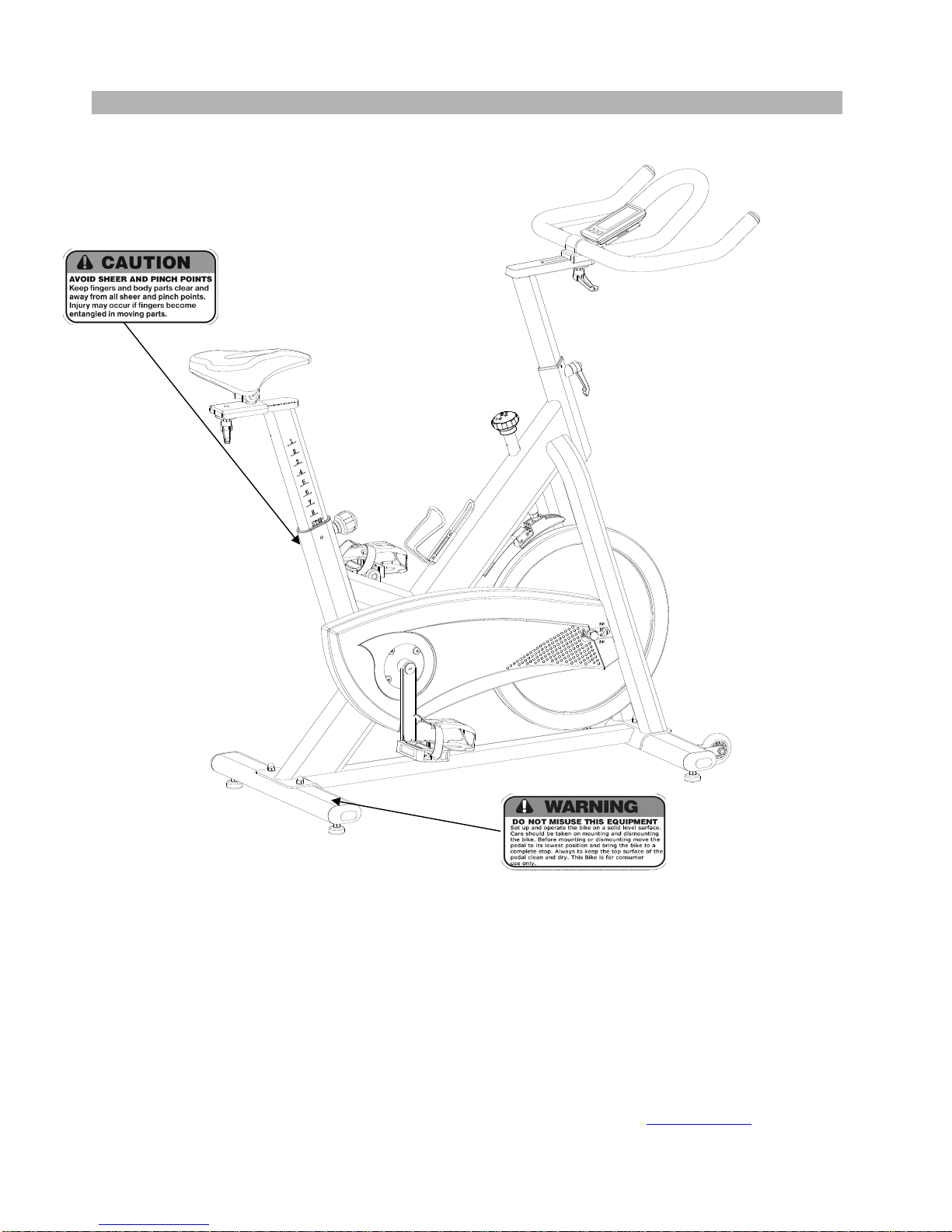

WARNING LABEL PLACEMENT
The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer and Main Frame.
Ifthe labels are missing or illegible, please call customer service at1-800-999-8899 for replacement. Apply the
labels in location shown.

© IMPEXINC.
4
www. marcypro.c om
HARDWARE PACK

© IMPEXINC.
5
www. marcypro.c om
ASSEMBLY INSTRUCTION
1. PREPARATION:
•Before assembling, make sure that you have enough space around the item.
•Tools Required for Assembling the Bike: Spanners, and Allen Wrench (included).
•NOTE: It is strongly recommended that two or more people assemble this bike to
avoid possible injury.

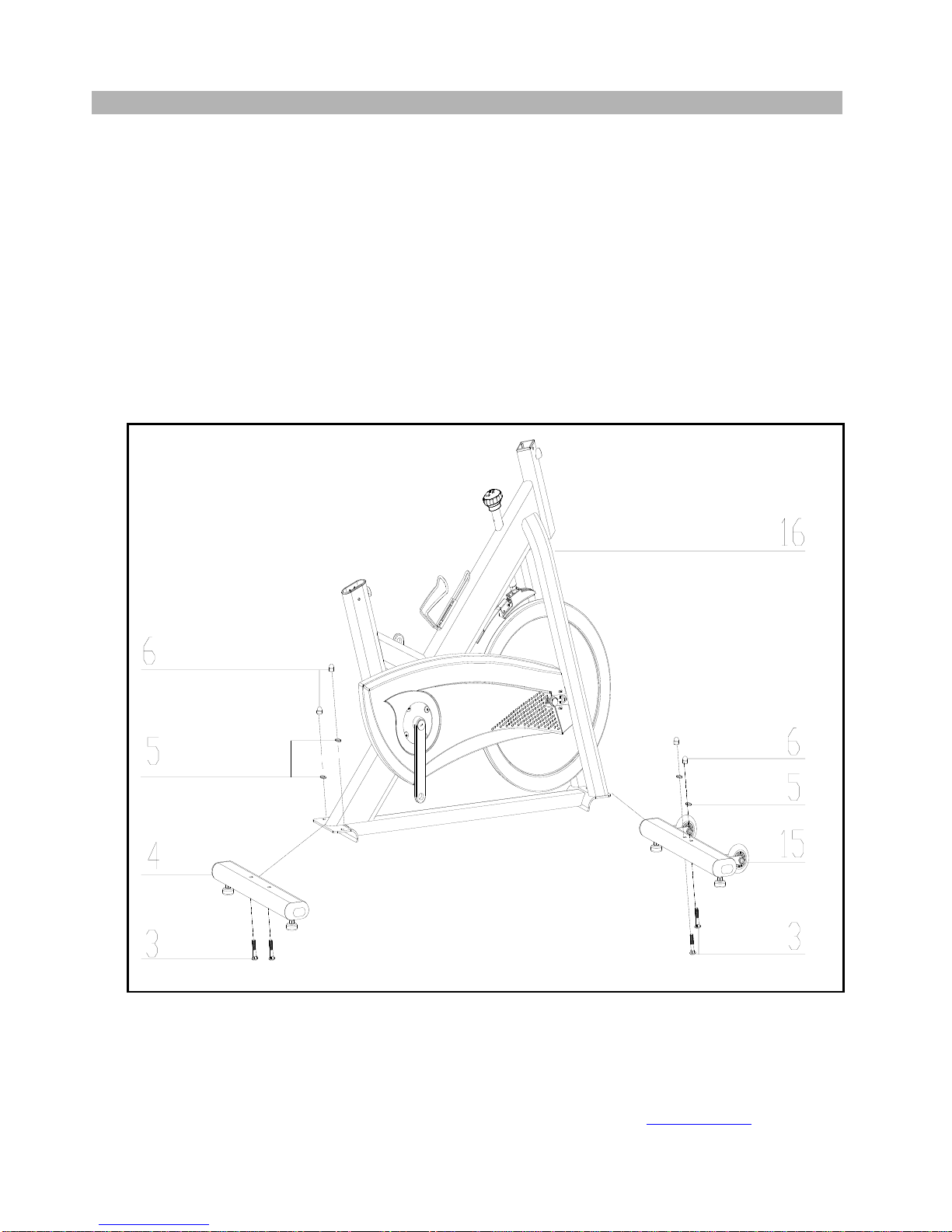

STEP-1
A.) Attach the Front Stabilizer (#15) to the Main Frame (#16) using two Ø8 Flat Washers (#5), M8 Domed Nuts
(#6) and M8x2” Carriage bolts (#3).
B.) Attach the Rear Stabilizer (#4) to the Main Frame (#16) using two Ø8 Flat Washers (#5), M8
Domed Nuts (#6) and M8x2” Carriage bolts (#3).

© IMPEXINC.
6
www. marcypro.c om
STEP 2
A.) Slide the Vertical Seat Post (#10) into the seat post housing on the main frame (#16). Then slide the Seat
Post (#12) into the Vertical Seat Post (#10), then Secure using a flat washer (#23) and L Shape knob
(#25). Secure the saddle in position with the Adjustment Knob (#7). The correct height for the seat can be adjusted
after the bike is fully assembled.
B.) Attach the Seat (#13) to the Seat Post (#12) as shown and tighten the nuts around the bolts under the seat.

© IMPEXINC.
7
www. marcypro.c om

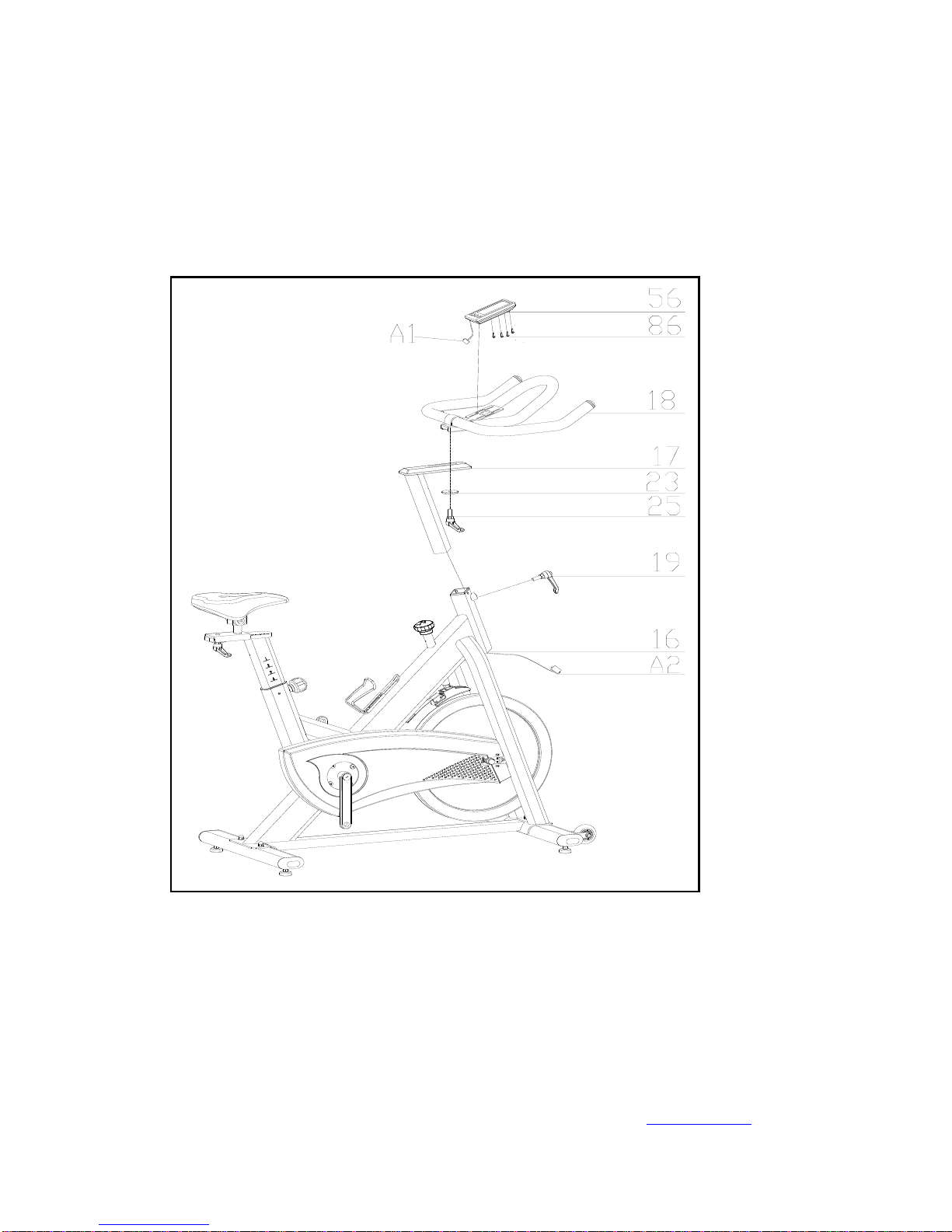

STEP-3
A.) Slide the Handlebar Post (#17) into the handlebar post housing on the main frame (#16). To adjust the
desired height, you will need to loosen the L-Shape Knob (#19) slightly and pull out on the knob. Select
the desired height, release the knob, and tighten.
B.) Attach the Handlebar (#18), Secure using a flat washer (#23) and L Shape knob (#25).
ATTENTION: YOU SHOULD ATTACH THE HANDLEBAR TO THE HANDLEBAR POST TIGHTLY
Attach the computer (#56) to the support tube of the main frame (#16) with 4 screws (#86), and connect the
sensor wire (A1 to A2)

© IMPEXINC.
8
www. marcypro.c om
STEP-4
A.) The Pedals (#1L & #1R) are marked "L" and "R" - Left and Right. Connect them to their
appropriate crank arms. The right crank arm is on the right-hand side of the cycle as you face the
handlebar.
B.) Note that the Right pedal should be threaded on clockwise and the Left pedal counter-clockwise

© IMPEXINC.
9
www. marcypro.c om

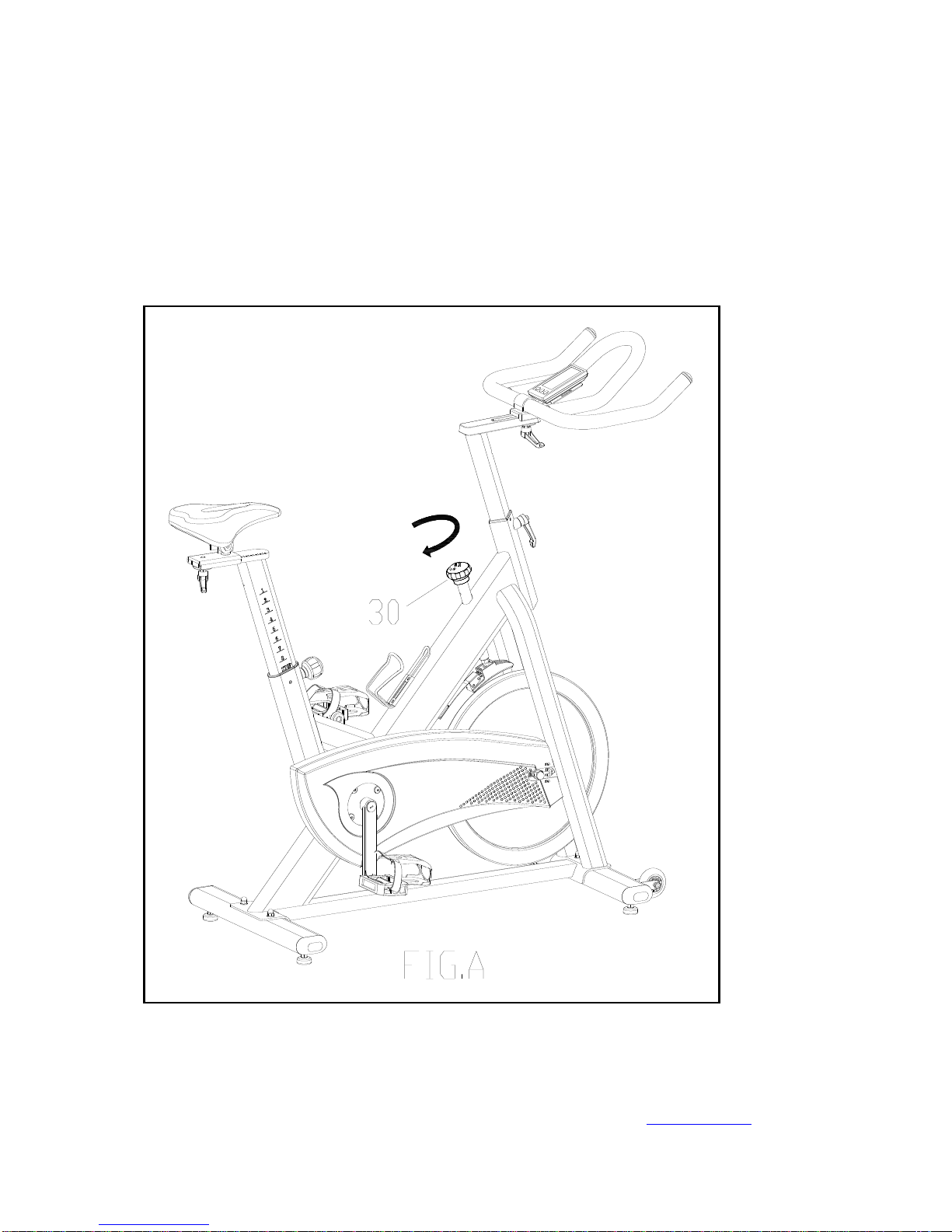

STEP-5
Adjusting the Tension: Increasing or decreasing the tension allows you to add variety to your workout
sessions by adjusting the resistance level of the bike.
A.) To increase tension and increase resistance (requiring more strength to pedal), turn the Tension
Control Knob (#30) to the right.The Tension Control Knob is also the brake.
B.) To decrease tension and increase resistance (requiring less strength to pedal, turn the Tension
Control Knob (#30) to the left.

© IMPEXINC.
10
www. marcypro.c om
STEP-6
A.) The same knob that allows you to adjust the tension of the bike also doubles as the brake or
Emergency Brake.
B.) Use this safety feature in any situation where you would need to get off the bike and/or
stop the bike’s flywheel.
B.) To use the Emergency Brake function, firmly press down on the Emergency Brake & Brake Control
Knob (#30) to immediately stop the momentum of the flywheel.

© IMPEXINC.
11
www. marcypro.c om

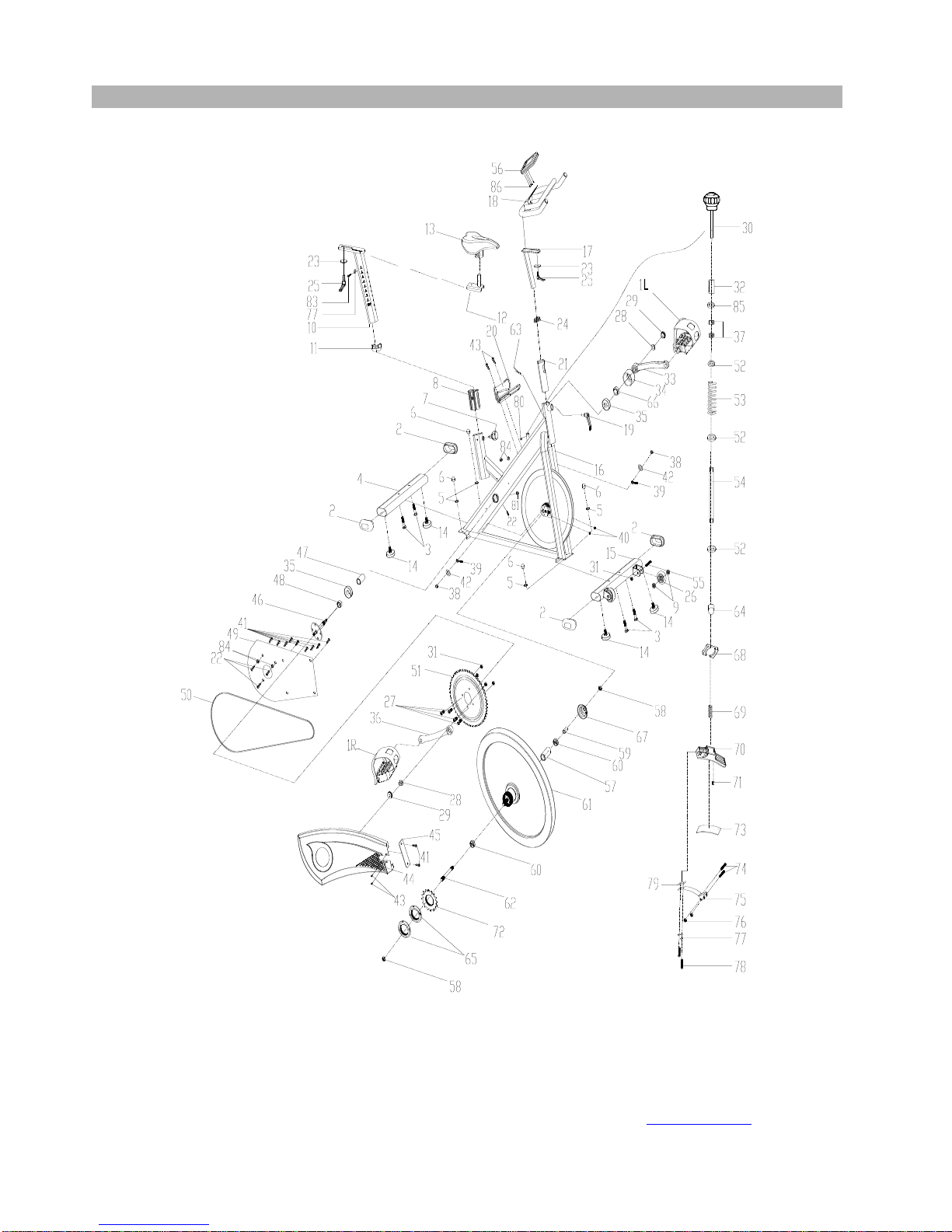

EXPLODED DIAGRAM

© IMPEXINC.
12
www. marcypro.c om
NSP-490 PARTS LIST
PART NO.
DESCRIPTION
SIZE
QUANTITY
1L
Pedal L
1
1R
Pedal R
1
2
Stabilizer End Cap
4
3
Carriage Bolt
M8X2”
4
4
Rear Stabilizer
1
5
Flat Washer
4
6
Domed Nut
4
7
Spring Adjustment Knob
1
8
Plastic Sleeve
1
9
Bearing
4
10
Vertical Seat post
1
11
Vertical Seat Post End Cap
1
12
Seat Post
1
13
Seat
1
14
Stabilizer Feet
4
15
Front Stabilizer
1
16
Main Frame
1
17
Handlebar Post
1
18
Handle Bar
1
19
L Shape Knob
1
20
Bottle Holder
1
21
Plastic Sleeve
1
22
Screw
ST4.2x¾”
4
23
Flat washer
2
24
Handlebar Post End Cap
1
25
L Shape Knob
2
26
Wheel
2
27
Bolt
M8x½”
4
28
Fixing Nut
M10
2
29
Crank end cap
2
30
Knob
1
31
Lock nut
6
32
Brake Assembly sleeve
1
33
Left crank
1
34
Crank cover
1
35
Bearing
2
36
Right crank
1
37
Nut
2
38
Fixing nut 2
M12
2
39
Flywheel alignment bolt
2
40
Nut
2
41
Screw
ST4.2x¾”
11
42
Flat washer
2
43
Screw
ST4.8x¾”
4
44
Outer chain cover
1
45
Little chain cover
1
46
Axel
1
47
Long fixing tube
1
48
Short fixing tube
1

© IMPEXINC.
13
www. marcypro.c om
49
Inner chain cover
1
50
Chain
1
51
Chain wheel
1
52
Washer
3
53
Spring
1
54
Screw rod
1
55
Bolt
2
56
Computer
1
57
Fixing tube
1
58
Fixing nut
2
59
Fixing tube
1
60
Bearing
6001ZZ
2
61
Flywheel
18KG
1
62
Flywheel shaft
1
63
Sensor
1
64
Domed nut
1
65
Lock nut
2
66
Fixing nut
M20x3/16
1
67
Flywheel cover
1
68
Spring cover
1
69
Spring
1
70
Plastic frame
1
71
Brake pad cap
1
72
Chain wheel
1
73
Felt Pad
1
74
Bolt
M5x1⅛”
2
75
Spring brake
1
76
Lock nut
2
77
Spring washer
3
78
Bolt
M5x⅜”
2
79
Flat washer
1
80
Bolt
M6x¼”
1
81
End cap
1
82
End cap
2
83
Screw
ST4.8x½”
1
84
Plastic ring
2
85
Washer
1
86
Bolt
M5x⅜”
4

© IMPEXINC.
14
www. marcypro.c om
CARE, MAINTENANCE AND STORAGE
1. Inspect and tighten all parts each time you use the bike. Replace any worn parts immediately.
2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use
solvents.
3. Store the bike IN-DOOR. Excess moisture and water would cause rust on the frame.
4. The Bike shall be placed at least 24 inches away from the wall or/and any other object such as
furniture to provide safe access to and passage around the bike.
5. To avoid possible injury, the help of two or more people are needed when moving the bike
around.
6. Disposal Instructions –The equipment can be safely disassembled and disposed without
unreasonable hazards. Call your local recycle agency regarding details of recycling.
7. The maximum user weight is 250 lbs.
8. Assembled Dimension: 50” x 21.5” x 47”

© IMPEXINC.
15
www. marcypro.c om
INNER THIGH
FORWARD
BENDS CALF / ACHI
EXERCISE GUIDELINES
Using your Bike will provide you with several benefits, it will improve your physical fitness, tone
muscle and in conjunction with calorie-controlled diet help you lose weight.
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will
also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as
shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your
muscles into a stretch - if it hurts, STOP.
LLES
SIDE BENDS OUTER THIGH
2. The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs will become
more flexible. Work to your targeted heart rate but it is very important to maintain a steady tempo
throughout. The rate of work should be sufficient to raise your heartbeat into the target zone shown
on the graph below.
This stage should last for a minimum of 12 minutes though most people start at about 15-20
minutes

© IMPEXINC.
16
www. marcypro.c om
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the
warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching
exercises should now be repeated, again remembering not to force or jerk your muscles into the
stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three times
a week, and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your BIKE you will need to have the resistance set quite high. This will put
more strain on our leg muscles and may mean you cannot train for as long as you would like. If
you are also trying to improve your fitness you need to alter your training program.
You should train as normal during the warm up and cool down phases, but towards the end of the
exercise phase you should increase resistance making your legs work harder. You will have to
reduce your speed to keep your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work
the more calories you will burn. Effectively this is the same as if you were training to
improve your fitness, the difference is the goal.

© IMPEXINC.
17
www. marcypro.c om
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX
®
") warrants this product to be free from defects in workmanship and material, under normal use
and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to
the original purchaser. IMPEX's obligation underthis Warranty is limited toreplacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer Service
Department at 1-800-999-8899. All freights for products return to IMPEX must be prepaid by the customer. This
warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by
IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or inconnection with the
use or performance of the product or other damages with respect to any economic loss, loss of property, loss of
revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or
whatsoever natures. Some states do not allow the exclusion or limitation of incidental or consequential damages.
Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not
apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line www.marcypro.com
IMPEX
®
INC.
2801 S, Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899 during our
regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[email protected]
When ordering replacement part, always give the following information.
1.
Model
2. Description of Parts
3. Part Number
4. Date of Purch
