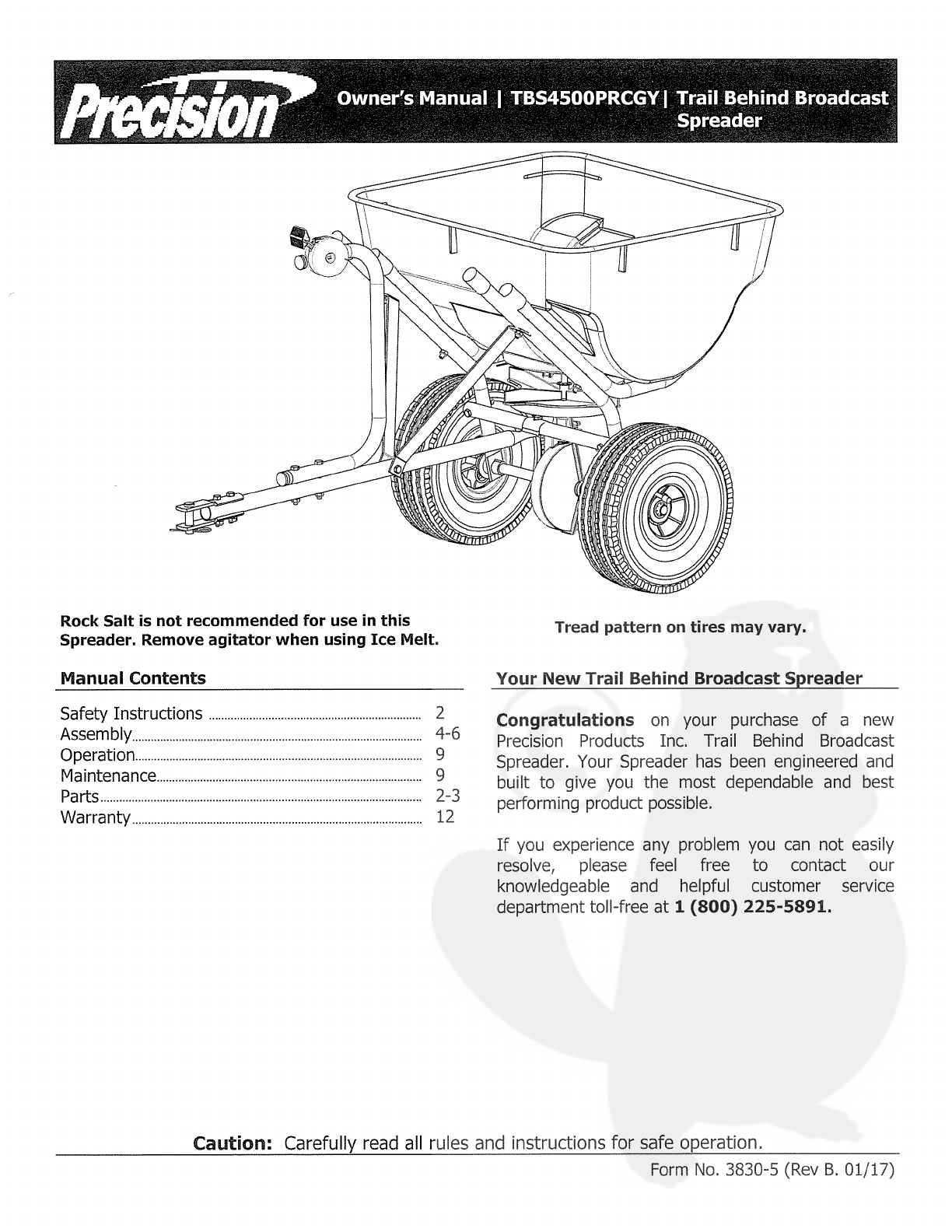

Precision TBS4500PRCGY User manual

Rock Salt is not recommended for use in this
Spreader. Remove agitator when using Ice Melt.
Manual Contents
Your New Trail Behind Broadcast Spreader
Safety Instructions
Assembly
Operation
Maintenance
Parts
Warranty
Congratulations on your purchase of a new
Precision Products mc. Trail Behind Broadcast
Spreader. Your Spreader has been engineered and
built to give you the most dependable and best
performing product possible.
Caut~on: Carefully read all rules and instructions for safe operation.
1
Tread pattern on tires may vary.
2
4-6
9
9
2-3
12
1f you experience any problem
resolve, please feel free
knowledgeable and helpful
department toli-free at 1 (800)
you can not easily
to contact our
customer service
225-5891.
Form No. 3830-5 (Rev B. 01/17)

Safety Instructions
All power equipment can cause injury or property damage if operated improperly. Please read and observe
the following safety rules and exercise caution at all times when operating equipment.
o Read and understand your tractor owner’s manual and towing safely rules. Know how to operate your
tractor before using any atlachment.
o Never allow children to operate the towing vehicle. Do not allow adults to operate the vehicle without
having read the owner’s manual or receiving proper instruction.
• Do not allow anyone to ride or sit on tow behind equipment during operation.
o Keep all people, and animals at a safe distance.
• Always wear substantial footwear. Do not wear loose fitting clothing that may get caught in moving parts.
o Keep your eyes and mmd on your tractor/attachment and area being covered. Do not let yourself be
d istracted.
• Stay alert for holes in the terrain and other hidden hazards.
o Tractor braking and stability may be affected with the attachment of this unit. 8e aware of changing
conditions on slopes. Refer to safety rules in your tractor owner’s manual concerning safe operation on
slopes. Stay 0ff Steep Slopes.
• Always operate up and down a slope, never across the face of a slope.
• This equipment should be operated at reduced speed(s) on rough terrain, along creeks and ditches and
on hillsides or public highways, to prevent tipping or loss of control.
oAlways begin with the transmission in first (10w) gear and engine at low speed, and gradually increase
speed as conditions permit.
o Keep the tractor and attachment in good operating condition and keep safety devices in place.
o Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
• The tractor and att:achment should be stopped and mnspected for damage after striking a foreign object.
Any damage should be repaired before restarting and operating the equipment.
• Follow the maintenance instructions as outlined in this owner’s manual.
o Should not be towed at more than 4 miles per hours.
• Maximum operating weight is 100 lbs.
Carton Contents
4
1 2 3
5
6
2

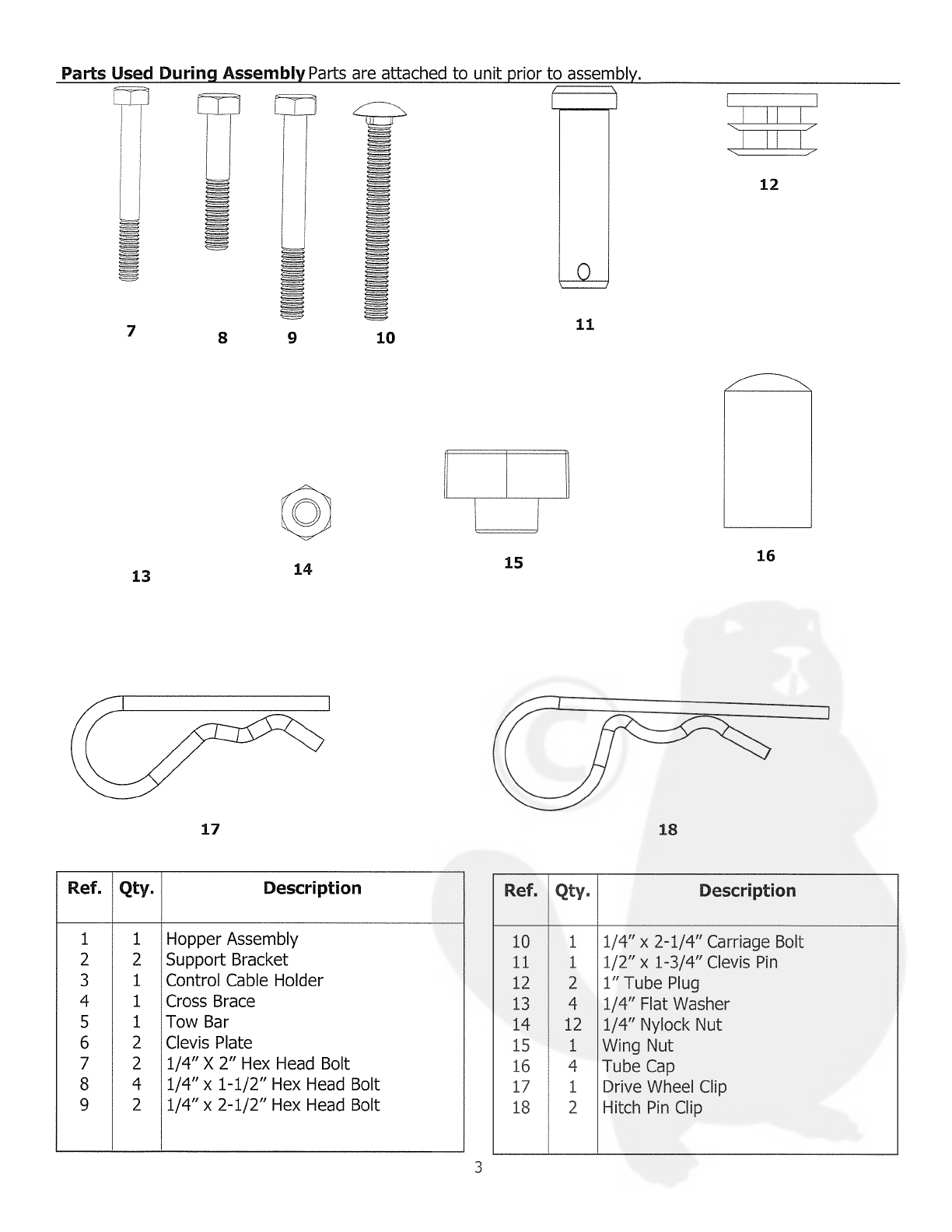

Parts Used During AssemblyParts are attached to unit rrior to assembly.
1
10
7E!
©
13 14
11
H
12
16
15
17
18
Ref. Qty Description
1 1 Hopper Assembly
2 2 Suppoft Bracket
3 1 Control Cable Holder
4 1 Cross Brace
5 1 TowBar
6 2 Clevis Plate
7 2 1/4” X 2” Hex Head Bolt
8 4 1/4” x 1-1/2” Hex Head Bolt
9 2 1/4” x 2-1/2” Hex Head Bolt
Ref. Qty. Description
10 1 1/4” x 2-1/4” Carriage Bolt
11 1 1/2” x 1-3/4” Clevis Pin
12 2 1”Tube Plug
13 4 1/4” Flat Washer
14 12 1/4” Nylock Nut
15 1 Wing Nut
16 4 Tube Cap
17 1 Drive Wheel Clip
18 2 Hitch Pin Clip
3

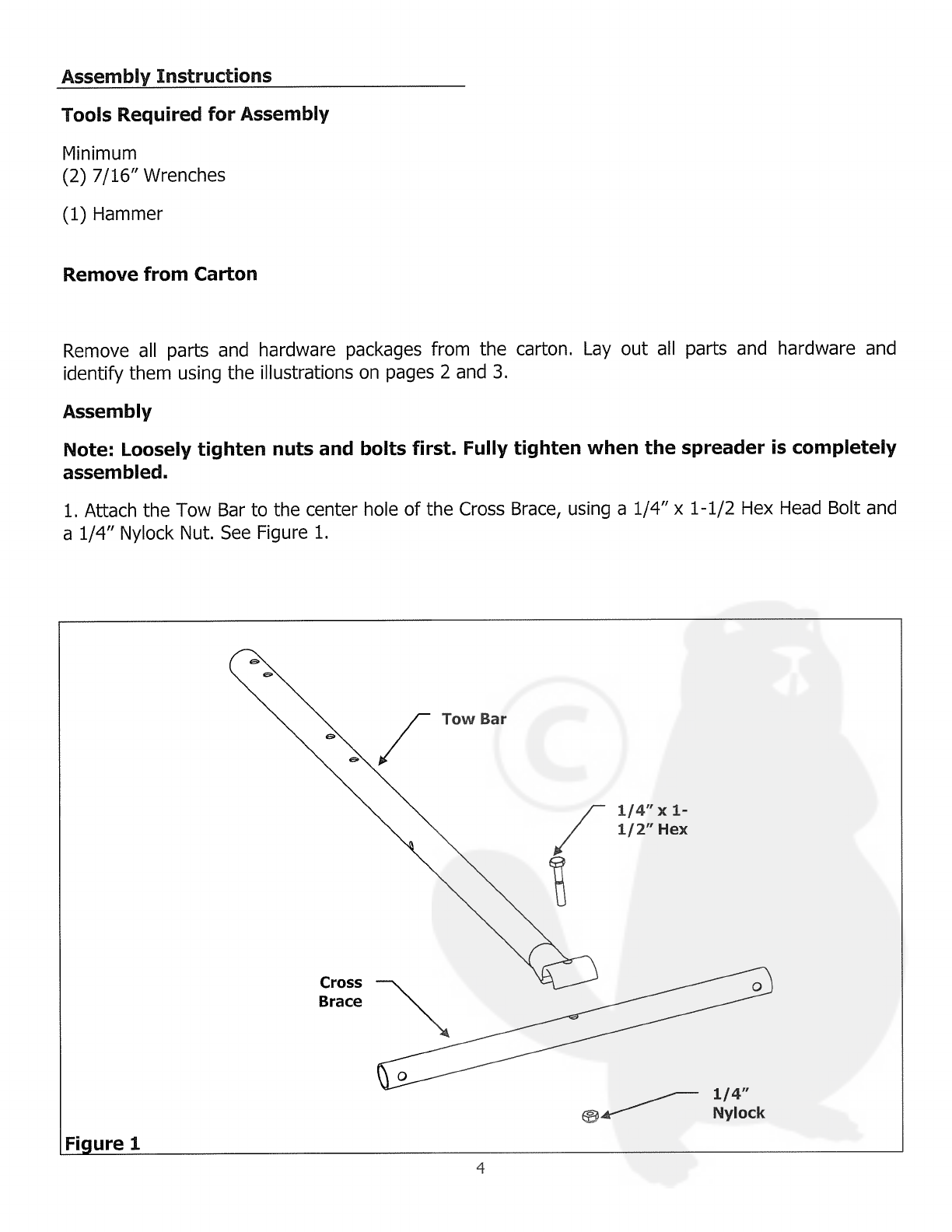

Assembly Insbuctlons
Tools Requlred lôr Assembly
Minimum
(2) 7/16” Wrenches
(1) Hammer
Remove from Carton
Rernove all pfl and hardware packages from the carton. Lay out all pfl and hardware and
identify them using the illustrations on pages 2 and 3.
Assembly
Note: Loosely tlghten nuts and bolts first. Fully tlghten when die sireader Is completely
assembied.
1. AttachtheTow BartothecenterholeoftheCross Brace, using a 1/4”x 1-1/2 Hex Head Boltand
a 1/4”NylockNutSeeFlgurel.
Tow Bar
114’ xl
112’ Hex
cme
Bmca
Flaure 1
~~_— 114”
er Nylodc
4

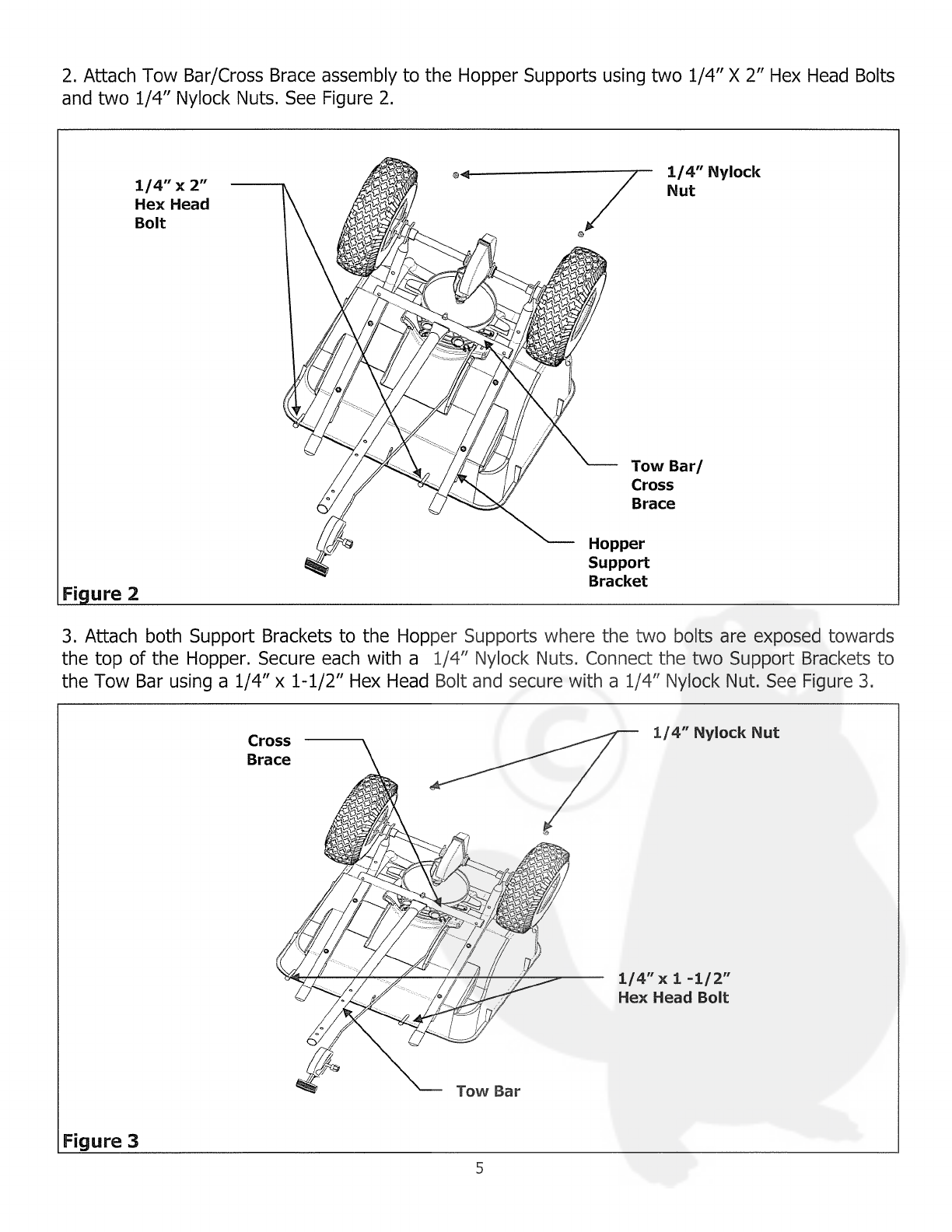

2. Attach Tow Bar/Cross Brace assembly to the Hopper Supports using
and two 1/4” Nylock Nuts. See Figure 2.
two 1/4” X 2” Hex Head Bolts
3. Attach both Support Brackets to the Hopper Supports where the two boits are exposed towards
the top of the Hopper. Secure each with a 1/4” Nylock Nuts. Connect the two Support Brackets to
the Tow Bar using a 1/4” x 1-1/2” Hex Head Bolt and secure with a 1/4” Nylock Nut. See Figure 3.
1/4” x 2”
Hex Head
Bolt
1/4” Nylock
Nut
Tow Bar!
Cross
Brace
Figure 2
Cross
Brace
1/4” Nylock Nut
1/4” x 1 -1/2”
Hex Head Bolt
Hgure 3
Tow Bar
5

4. Fasten the Control Cable Holder to the top of the Tow Bar, using two 1/4” x 2-1/2” Hex Head
Boits and two 1/4” Nylock Nuts. Attach the Control Cable to the top of the Control Cable Holder
using a 1/4” x 2-1/4” Carriage Bolt and secure with a 1/4” Wing Nut. Using a hammer, gently tap
the two 1” Tube Plugs into the open ends of the Control Cable Holder Tube. See Figure 4.
5. Attach the two Clevis Plates to both sides of the end of the Tow Bar using two 1/4” x 1-1/2” Hex
Head Bolts and securing with two 1/4” Nylock Nuts. Place the Clevis Pin through the open hole of
the Clevis Plates and secure with a #14 Hitch Pin Clip. Now tighten all nuts and bolts on the unit.
See Figure 5.
1/4” x 2-1/2”
Carriage Bolt
1/4”
Wing
Nut
l”Tube Plug
1/4” x 2-1/2” Hex
Head Bolt
1” Tube Plug
1/4” Nylock Nut
Figure 4
Tow Bar
Clevis Pin
Control Cable
Holder
1/4” x 1-
1/2” Hex
Head Bolt
Clevis Plate
#14 Hitch Pin
Clip
Figure 5
Clevis Plate
1/4” Nylock Nut
6

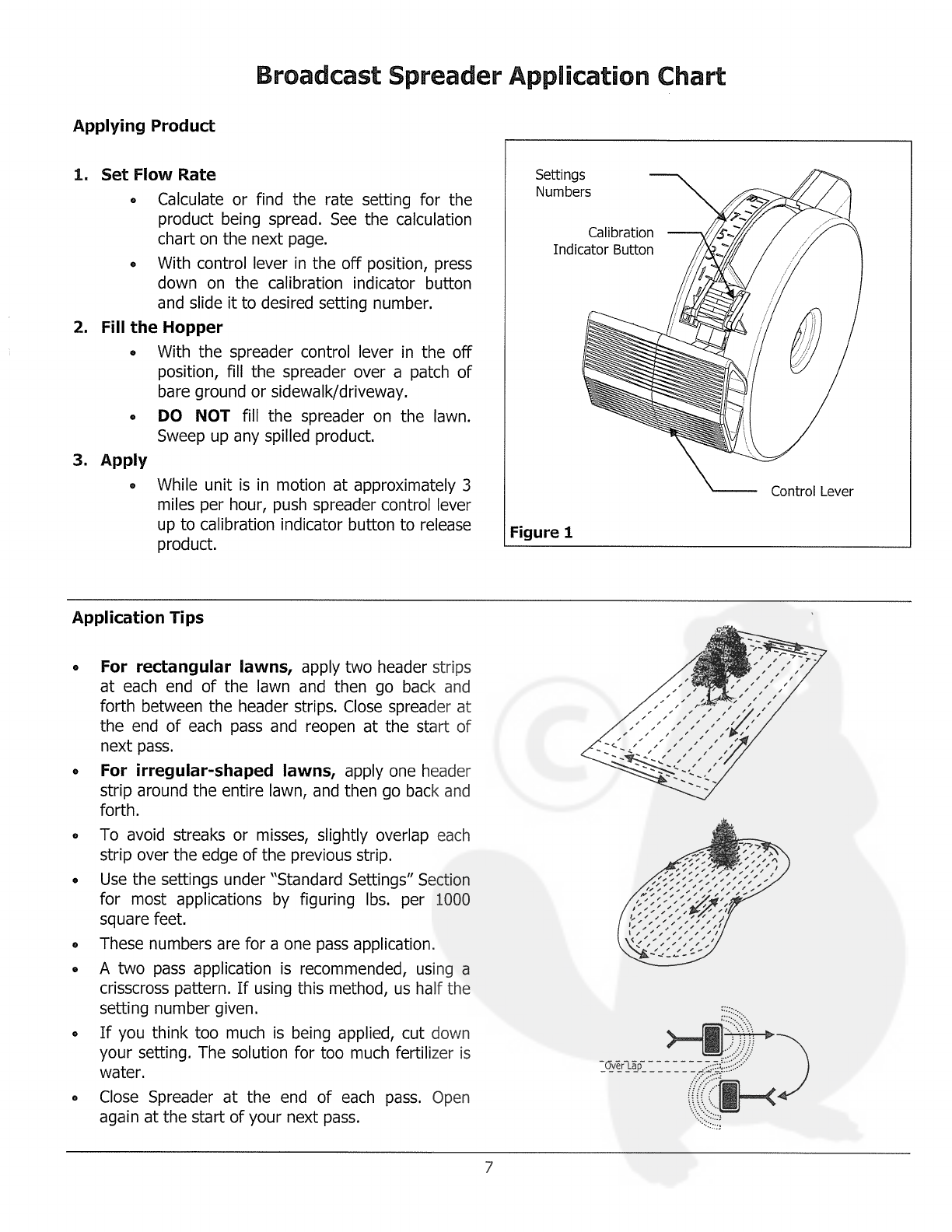

Broadcast Spreader AppHcation Chart
o Calculate or find the rate setting for the
product being spread. See the calculation
chart on the next page.
• With control lever in the off position, press
down on the calibration ndicator button
and slide it to desired setting number.
2. Fili the Hopper
o With the spreader control lever in the off
position, fill the spreader over a patch of
bare ground or sidewalk/driveway.
• DO NOT fl11 the spreader on the lawn.
Sweep up any spilled product.
3. Apply
o While unit is in motion at approximately 3
miles per hour, push spreader control lever
up to calibration indicator button to release
product.
Application Tips
o For rectangular ~awns, apply two header strips
at each end of the lawn and then go back and
forth between the header strips. Close spreader at
the end of each pass and reopen at the start of
next pass.
o For irregular-shaped Iawns, apply one header
strip around the entire lawn, and then go back and
forth.
o To avoid streaks or misses, slightly overlap each
strip over the edge of the previous strip.
• Use the settings under “Standard Settings” Section
for most applications by figuring lbs. per 1000
square feet.
o These numbers are for a one pass application.
• A two pass application is recommended, using a
crisscross pattern. 1f using this method, us half the
setting number given.
o 1f you think too much is being applied, cut down
your setting. The solution for too much fertilizer is
water.
o Close Spreader at the end of each pass. Open
again at the start of your next pass.
>~-i~
Applying Product
1. Set Flow Rate
Settings
Numbers
calibration
Indicator Button
Figure 1
7

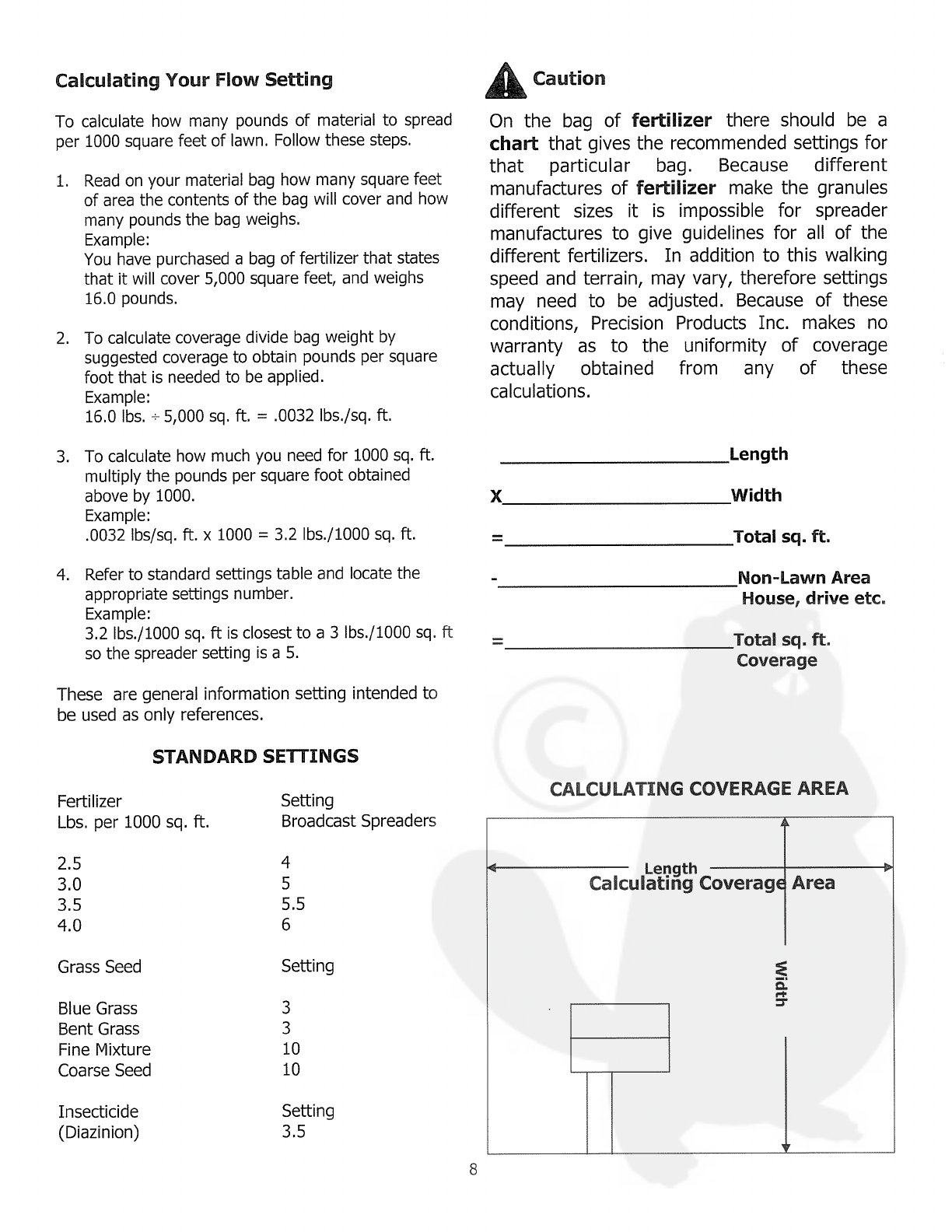

Caku~ating Your Mow Setting
To calculate how many pounds of material to spread
per 1000 square feet of lawn. Follow these steps.
1. Read on your material bag how many square feet
of area the contents of the bag will cover and how
many pounds the bag weighs.
Exa mple:
You have purchased a bag of fertilizer that states
that it will cover 5,000 square feet, and weighs
16.0 pounds.
2. To calculate coverage divide bag weight by
suggested coverage to obtain pounds per square
foot that is needed to be applied.
Exa mple:
16.0 lbs. ÷ 5,000 sq. ft. = .0032 lbs./sq. ft.
3. To calculate how much you need for 1000 sq. ft.
multiply the pounds per square foot obtained
above by 1000.
Example:
.0032 lbs/sq. ft. x 1000 = 3.2 lbs./1000 sq. ft.
4. Refer to standard settings table and locate the
appropriate settings number.
Example:
3.2 lbs./1000 sq. ft is closest to a 3 lbs./1000 sq. ft
so the spreader setting is a 5.
These are general information setting intended to
be used as only references.
STANDARD SE1TINGS
Â
0fl the bag of fertiNzer there should be a
chart that gives the recommended settings for
that particular bag. Because different
manufactures of fertiNzer make the granules
different sizes it is impossible for spreader
manufactures to give guidelines for all of the
different fertilizers. In addition to this walking
speed and terrain, may vary, therefore settings
may need to be adjusted. Because of these
conditions, Precision Products mc. makes no
warranty as to the uniformity of coverage
actually obtained from any of these
calculations.
x
.Length
Width
•~Total sq. ft.
_Non-Lawn Area
House, drive etc.
Tota! sq. ft.
Coverage
Fertilizer
Lbs. per 1000 sq. ft.
2.5
3.0
3.5
4.0
Grass Seed
Blue Grass
Bent Grass
Fine Mixture
Coarse Seed
Insecticide
(Diazinion)
Setting
Broadcast Spreaders
4
5
5.5
6
Setting
3
3
10
10
Setting
3.5
CALCULATING COVERAGE AREA
8

Using your Spreader ControNer
Settings are made by pushing down on the Calibration Indicator button and setting to the desired
number on the Control Cable Assembly.
See Application Chart for Setting Information.
ON—Push the Control Lever forward until it stops against Calibration Button.
OFF—PulI the Control Lever back until it stops.
Broadcast Spreader Operation
1. Always have the control lever in the 0FF position before filling the hopper.
2. Always pull the spreader forward to operate; do not operate in reverse.
3. Start moving forward before pushing the control lever to the ON position. PulI the control lever
to the 0FF position before stopping or turning.
4. To avoid misses or striping, space each pass across the lawn so approximately 2O% of the
spread width overlaps the previous pass. This provides a feathered overlap to even out
distribution over the width of the spread.
5. Maximum Capacity 100 Lbs.
DO NOT allow spreader to sit stationary with material in the hopper and contro~ ‘ever in
the ON position.
Maintenance
1. Before each use, check all nuts and bolts for tightness.
2. Empty hopper after each use. Do not store spreader with material left in hopper.
3. Wash spreader thoroughly and wipe dry. The key to years of trouble-free service is to keep your
unit clean and dry.
4. 1f rust should develop, sand lig htly and then paint area with enamel.
5. Lubricate all moving parts. Apply oil to spinner shaft (including where the shaft extends into the
hopper), slide plate, and where the spinner shaft and axle where it extend through the gearbox.
Storage
1. Rinse inside of hopper and exterior of spreader.
2. Store in a clean, dry area.
9

17
,~7713
30
/29
20
1
22
11
4
3
J
25
27
1
21
14
21
16
16 8
274w
5
~19
21
21 18
24
10

TBS4500PRCGY
Ref Part No. Qty. Description
No.
1 2877 1 Hopper
2 2908B 1 Wrap Around Support
3 7183TB 1 Control Cable Holder
4 2614 1 Spinner Disc
5 2297 1 Gear Case Assembly
6 5906B 2 Hopper Support
7 2284B 2 Support Bracket
8 2029 2 Wheel
9 2286B 1 Cross Brace
10 7185TB 1 Tow Bar
11 2445C 1 Control Cable
12 1868 1 1/4” x 2-1/4” Carriage Bolt
13 2385 4 1/4” x 2-1/2” Hex Head Bolt
14 2385 2 1/4” x 2-1/2” Hex Head Bolt
15 1086 2 1/4” x 2” Hex Head Bolt
Ref Part No. Qty. Description
No.
16 6129 4 1/4” x 1-1/2” Hex Head Bolt
17 1840 1 Clevis Pin
18 2576 1 Cotter Pin 3/16” x 2”
19 1042 1 Hitch Pin Clip
20 1817 4 1/4” Flat Washer
21 1558 12 1/4” Nylock Nut
22 2582 4 Tube Cap
23 3060 2 7/8” Tube Plug
24 1646 3 5/8” Flat Washer
25 2828 1 1/4” Wing Nut
26 6214 2 5/8” Wheel Bushing
27 1062B 2 Clevis Plate
28 3333 1 5/8” Retaining Ring
29 2906 1 Ram Cover
30 2148PU 1 Agitator Pin
Warning: Tires must not be infiated to more than 3OPSI. Use hand pump only. Infiating
the tire to more than 30 PSI of pressure may cause tire/wheel to explode causing serious
bodily harm.
Not all parts shown.
Parts and Support
~ Please do not return this product to the
___ store prior to contacting Precision.
Not all parts shown.
At Precision Products mc. our goal is to deliver quality, value and outstanding service. 1f for any reason our
product does not meet your expectations, please Contact us and we will take care of any problem you may
have with this unit.
When ordering replacement parts please have the model number, part description, part number, inspector
number and date on box, available so that we can best serve you.
1 [phone]
www.precisionprodinc.com
Precision Products mc.
316 Limit St.
Lincoln IL 62656
11

The limited warranty set forth below is given by Precision
Products mc. with respect to new merchandise
purchased and used in the United States, its possessions
and territories.
Precision Products mc. warranties the product(s) listed
against defects in material and workmanship, and will at
our option, repair or replace, free of charge, any part
found to be defective in materials or
workmanship. This limited warranty shail only apply if
this product has been assembled, operated, and
maintained in accordance with the owner’s manual
furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage
because of other peril or natural disaster.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a
period of one year. Parts found to be defective within the
warranty period will be replaced at our expense. Our
obligation under this warranty is expressly limited to the
replacement or repair, at our option, of parts found to be
defective in material and workmanship.
Contacting Service
Warranty parts replacements are available, ONLY WITH
PROOF OF PURCHASE, through our Customer Service
Department.
CalI 1 [phone]
This limited warranty does not provide coverage in the
following cases:
1. Routine maintenance items such as lubricants and
filters.
2. Normal deterioration of the exterior finish due to use
or exposure.
3. Transportation and/or labor charges.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other
expressed warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to ~ny product,
shall bind Precision Products mc. during the period of the
warranty, the exclusive remedy is repair or replacement
of the product as set forth above. The provisions as set
forth in this warranty provide the sole and exclusive
remedy arising from the purchase.
Precision Products, mc. will not be liable for incidental or
consequential loss or damage inciuding, without
limitation, expenses incurred for substitute or
replacement lawn care services, or for rental expenses to
temporarily replace a warranted product.
Some states do not allow the exclusion of limitation of
incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
During the warranty period, the exclusive remedy is
replacement of the part. In no event shall recovery of
any kind be greater that the amount of the purchase
price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk
and liability for loss, damage, or injury to you and your
property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other
than the original purchaser or to the person for whom it
was purchased as a gift.
Local Law to this Warranty
This limited warranty gives you specific legal rights, and
you may also have other rights which vary from state to
state.
Warranty Period
The warranty period stated below begins with the Proof
of Purchase. Without the proof of purchase, the
warranty period begins from ~he date of manufacture,
determined by the serial number’s manufacturing date.
Product Warranty Period
The warranty period for this product is as follows: All
parts are covered for 1 year.
12
