Premier SCR-4328DUSD User manual

USER MANUAL
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this
instruction manual carefully before using, and keep it for future reference.
If you need extra support, please write to [email protected]
SCR-4328DUSD
CAR SYSTEMMULTI-MEDIA
RPT
+
-
VOL

PREMIER CUSTOMER SERVICE
Venezuela: 0800 – ELECTRIC (353-2874)
Colombia: 01-900-331-PEJC (7352)
Panama: 300-5185
Website www.premiermundo.com
E-mail: [email protected]
NOTE
This unit may be submitted to changes in specifications,
characteristics and/or operation without prior notice to the
user, in order to continue improving and developing its
technology.
P-1

Content
1. Installation steps..........................................................................
2. General knowledge about remote control .....................................
2.1 Removing insulating sheet.........................................................
2.2 Replace lithium cell....................................................................
2.3 Note about using remote control................................................
2.4 Warning for lithium cells of remote control.................................
3. Locations and Names of controls..................................................
3.1 Locations and Names of controls on main unit............................
3.2 Locations and Names of controls on remote control...................
4. Conjunct operation............................................... ......................
5. Radio operation.................................................... ......................
6. Disc/USB/card operation............ ................................................
6.1 Loading or unloading a disc, USB or card..................................
6.1.1 Loading a disc, USB or card....................................................
6.1.2 Unloading a disc, USB or card.................................................
6.2 Function of controls on main unit or remote control..................
* Region Code.............................................................................
* Parental Control........................................................................
7. AUX IN operation......................................... ...............................
8. Trouble shooting.........................................................
9. Specification...............................................................................
10. Schematic diagram....................................................................
................
3
7
7
7
7
7
8
8
9
10
11
12
12
12
12
13
22
23
24
25
26
27
P-2

PLASTIC TRIM OUT
KEY PLATE
KEY PLATE
If you want to remove chassis from Slide Bracket Housing , first remove Plastic
trim out at both sides, then insert 2 Key Plates into left and right side of chassis as
above illustration.
DECK SCREWS
1. Remove the 2 deck screws ;
2. Remove the chassis from Slide Bracket Housing
Mount the liding ousing in the position of car multi-media system and
bend some tabs of liding ousing to fix .
. Connecting all wires

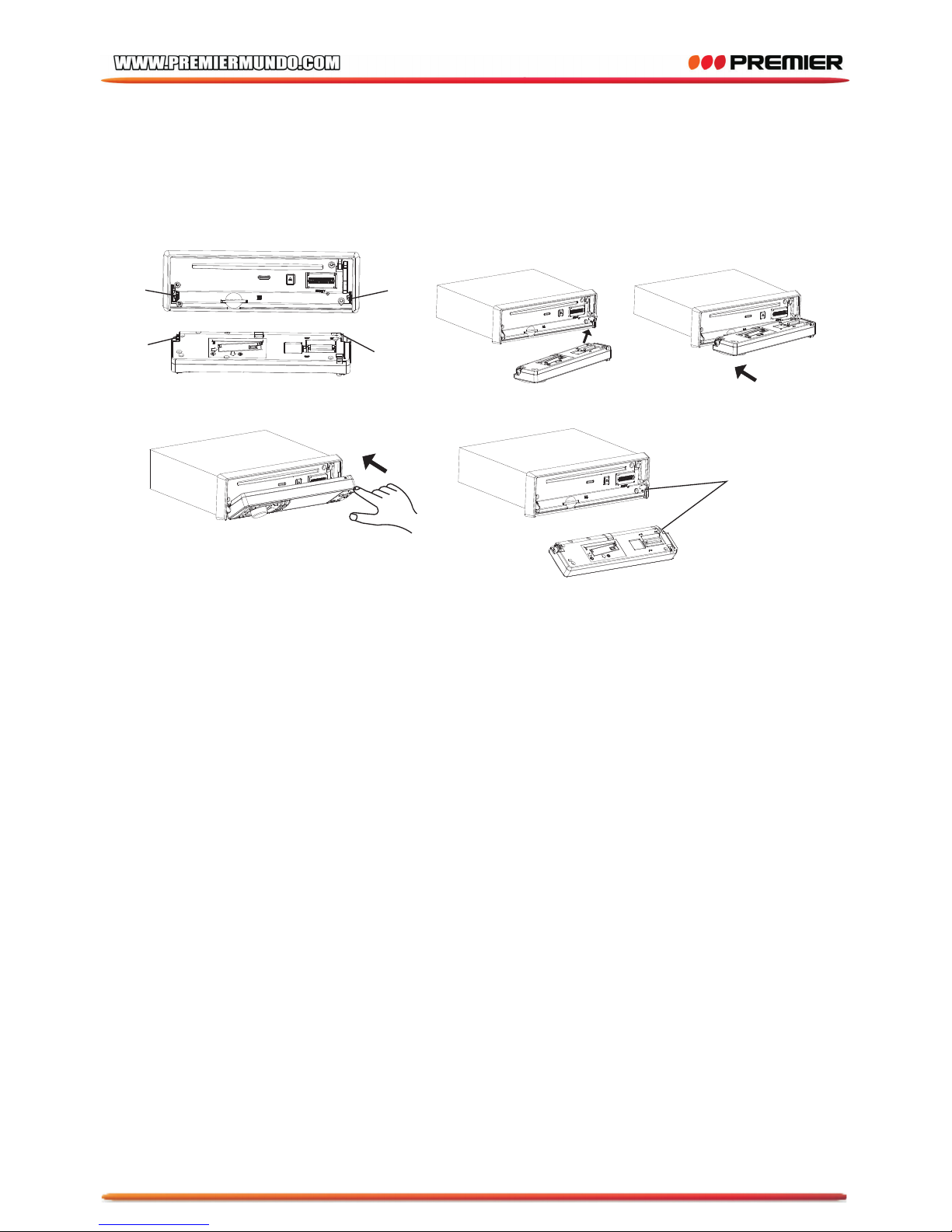

1) Remove control panel from chassis as follows:
A. Press button to flip down control panel .
B. Slide control panel rightwards a little, and pull it towards you .
;
as the following figure
as the above figure
3. S Bracket H
S Bracket H it
4:
OPEN
1. INSTALLATION STEPS
OPEN button
P-3

2) Connecting all wires as bellows:
IGNITION SWITCH
RED
WHITE
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
YELLOW
CONSTANT 12 VOLTS
BLACK
GROUND(B-)
BLUE
AUTO ANTENNA
FRONT
Lch SPK.
REAR
Lch SPK.
FRONT
Rch SPK.
REAR
Rch SPK.
RADIO ANTENNA JACK
AUDIO OUTPUT RCA JACK R (red)
AUDIO OUTPUT RCA JACK L (white)
FUSE
VIDEO OUTPUT RCA JACK (yellow)
NOTE:
1. Must use 4 ohms impedance of speakers.
2. Before finishing wiring, do not attach control panel onto chassis.
3. Maximum current of auto antenna is 200mA.
SUBWOOFER OUTPUT RCA JACK (brown)
P-4

3
4
5 chassis the on next page
S Bracket H
2
the chassis
the the chassis
Remove the control panel from the chassis;
3) the the chassis
4 2 s the s the chassis the chassis
the bracket
) Attach control panel onto chassis.
A. Make the right hollow of control panel aim at the right bulge of chassis, then push
and hold control panel rightwards; at one time, move the left end of control panel
towards chassis to make the left hollow of control panel aim at the left bulge of
chassis and then release holding .
B. Flip control panel up till hearing a click sound to attach onto chassis.
*
Frequent detachment will deteriorate panel connectors. To minimize deterioration,
periodically wipe the panel connectors with a clean/soft/dry cloth .
) Testing it for making sure that it can work properly .
. Installing according to installation diagram :
1) Insert the chassis of the car multi-media system into the liding ousing.
) Use the metal strap to fix the rear part of chassis.
* Uninstalling :
1) Remove metal strap from ;
2)
Remove plastic from ;
) Insert key plate into left and right side of and draw
out of sliding housing.
How to clean panel connector
trim
Bulge
Hollow
Bulge
Hollow
Panel Connector
P-5

DASH BOARD
METAL STRAP
HEX NUT
SPRING WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
Installation diagram
P-6

2. General knowledge about remote control
2.1 Removing insulating sheet
2.2 Replace lithium cell
2.3 Note about using remote control
2.4 Warning for lithium cells of remote control
If using remote control for the first time, you
can see an insulating sheet at the bottom
side of remote control as right.
you must remove the insulating sheet as right.
Otherwise, the remote control is disabled.
If the electric energy of lithium cell is weak,
replace it.
1. Press and hold the movable block as direction
indicated by arrow 1 as right, at one time pull
cell holder out of remote control as direction
indicated by arrow 2 as right.
2. Replace the old cell by a new one with (+)
polarity side upward as right.
3. Insert the cell holder into remote control again
as right.
1. You should face the emitting window of remote control towards the sensor
window of the unit.
2. Operation angle for front panel: About 30 degree
3. The distance between the emitting window of remote control and the sensor
window of the unit : < 5M .
1.Cell leakage may cause damage to remote control.
2.Do not throw cells into fire, it may cause explosion.
3.To avoid risk of accident, keep cells out of reach of children.
P-7

3. Locations and Names of Controls
3.1 Locations and Names of Controls on Main Unit
1. POWER button
2. PLAY/PAUSE(>||) button
3. MODE button
4. VOL knob
5. EQ button
6. LCD screen
7. OPEN button
8. USB port cover
9. IR sensor
10. >>| button
11. APS or TITLE/PBC button
12. SEL button
13. |<< button
Front Side of Chassis after Removing Control Panel
Control Panel
17
42
3
6
10 12
18
11
16
8
5
14
17
13
9
15
19 20
21
22 23 24 25 26
14. BAND or OSD button
15. MUTE button
16. AUX IN jack
17. SD/MMC card slot
18. Disc slot
19. EJECT button
20. RESET button
21. CLK button
22. LOUD button
23. INT button
24. REPEAT button
25. RDM button
26. 1-6 buttons
P-8
RPT
+
-
VOL

3.2 Locations and Names of Controls on Remote Control
16. 0~9 BUTTONS
17. 10+ BUTTON
18. GOTO BUTTON
19. SETUP BUTTON
20. SEL BUTTON
21. RDM BUTTON
22. VOL- BUTTON
23. VOL+ BUTTON
24. A/PS or TITLE/PBC BUTTON
25. << BUTTON
26. BAND or OSD BUTTON
27. < BUTTON
28. SUBTITLE or LO/DX BUTTON
29. >> BUTTON
30. MENU BUTTON
31. MODE BUTTON
32. REPEAT BUTTON
33. ZOOM BUTTON
1. POWER BUTTON
2. MUTE BUTTON
3. >|| BUTTON
4. STOP BUTTON
5. ANGLE BUTTON
6. AUDIO or MO/ST BUTTON
7. EQ BUTTON
8. CLK BUTTON
9. ^ BUTTON
12. > BUTTON
13. |<< BUTTON
14. v BUTTON
15. INT BUTTON
10. >>| BUTTON
11. ENTER BUTTON
MENU
SETUP
ENTER
123
45 6
789
0
VOL
SEL
A/PS
MUTE STOP
MO/ST
REPEAT
POWER
CLK
PLAY/PAUSE
EQ
ANGLE
MODE
BAND
VOL
OSD
TITLE/PBC
LO/DX
GOTO 10+10+
TOP INT
RDM
ZOOM
4
1
6
8
10
5
7
9
17
23
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
P-9
