INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Refer to enclosed warranty and operating parameters to ensure proper use with your water supply.
Watts Premier, Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381
Phone: [phone] www.premierH2o.com Fax: [phone]
Save manual for future reference
MODEL
WP-4V
Warning
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the product’s failure.
System Tested and certied by NSF International against ANSI/NSF
Standard 53 & 58 for the reduction of the claims specied on the
performance data sheet.
Manual Edition: 02/18/10
P/N: 199393

Page 2
Thank you for your purchase of a state of the art Watts Premier Reverse Osmosis (RO) water treatment system. Water
quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water,
such as Arsenic, Chromium, Cryptosporidium or Giardia. There may also be some local water issues such as high levels of
Lead and Copper. This Watts Premier water treatment system has been designed and tested to provide you with high quality
water for years to come. The following is a brief overview of the system.
Your Reverse Osmosis System:
Osmosis is the process of water passing through a semi permeable membrane in order to balance the concentration of
contaminants on each side of the membrane. A semi permeable membrane is a barrier that will pass some particles like clean
water, but not other particles like arsenic and lead.
Reverse osmosis uses a semi permeable membrane; however, by applying pressure across the membrane, it concentrates
contaminants (like a strainer) on one side of the membrane, producing clean water on the other. This is why RO systems produce
both clean drinking water and waste water that is ushed from the system. This reverse osmosis system also utilizes carbon
block ltration technology, and can therefore provide much higher quality drinking water than carbon ltration systems.
Your system is a Four Stage RO which is based upon four separate treatment segments within one complete water ltration
system. These stages are as follows:
Stage 1 – Sediment lter, recommended change 6 months.
The rst stage of your RO system is a ve micron sediment lter that traps sediment and other particulate matter
like dirt, silt and rust which affect the taste and appearance of your water.
Stage 2 – Carbon lter, recommended change 6 months.
The second stage contains a 5 micron carbon block lter. This helps ensure that chlorine and other materials that
cause bad taste and odor are greatly reduced.
Stage 3- Membrane, recommended change 2-5 years.
Stage three is the heart of the reverse osmosis system, the RO membrane. This semi-permeable membrane will
take out TDS & Sodium and a wide range of contaminants such as Perchlorate, Chromium, Arsenic, Copper, Lead,
as well as Cysts, such as Giardia and Cryptosporidium and much more. Because the process of extracting this high
quality drinking water takes time, your RO water treatment system is equipped with a storage tank.
Stage 4- VOC Block, recommend change 12 months.
Watts Premier WP-4V reverse osmosis system conforms to NSF/ANSI 58 for VOC reduction. Through the specialty
formulated VOC post lter your system is capable of reducing harmful Volatile Organic Chemicals (VOC) like
MTBE’s, Atrazine, Benzene, 2,4-D,Lindane and others from your drinking water. It is estimated that VOC’s are
present in one-fth of the nation’s water supplies. These water contaminants can enter ground water from a variety
of sources including localized use of herbicides and pesticides, gasoline or oil spills, leaking underground fuel tanks,
septic system cleaners, and chemicals used in the dry-cleaning industry. See performance data sheet for individual
contaminants and reduction performance.
Note: Filter life may vary based upon local water conditions and/or use patterns.
System Maintenance
Just because you can not taste it, does not mean that it is not there. Contaminants such as lead, chromium, VOC’s and arsenic
are undetectable to the taste. Additionally, over time if you do not replace the lter elements, other bad tastes and odors will
be apparent in your drinking water.
This is why it is important to change out your lter at the recommended intervals as indicated in this system manual. When
replacing the lter elements, pay special attention to any cleaning instructions. Should you have any further questions please
refer to our website at www.premierH2o.com or call our customer service dept. at 1-800-752-5582.

Page 3
With proper installation and maintenance, this system will provide you with high quality water for years
to come. All of Watts Premier’s water enhancement products are rigorously tested by independent
laboratories for safety and reliability. If you have any questions or concerns, please contact our
customer service department at 1-800-752-5582 (outside USA 480-675-7995) or refer to our on-line
trouble shooting section at www.premierH2o.com.
Table of Contents
Operational Parameters ........................................................................................................................ 4
Contents of Reverse Osmosis System .................................................................................................. 4
Tools Recommended For Installation .................................................................................................... 4
Drill a Hole for the Faucet in a Porcelain Sink ....................................................................................... 5
Punch a Hole for the Faucet in a Stainless Steel Sink .......................................................................... 5
Watts Faucet Installation ....................................................................................................................... 6

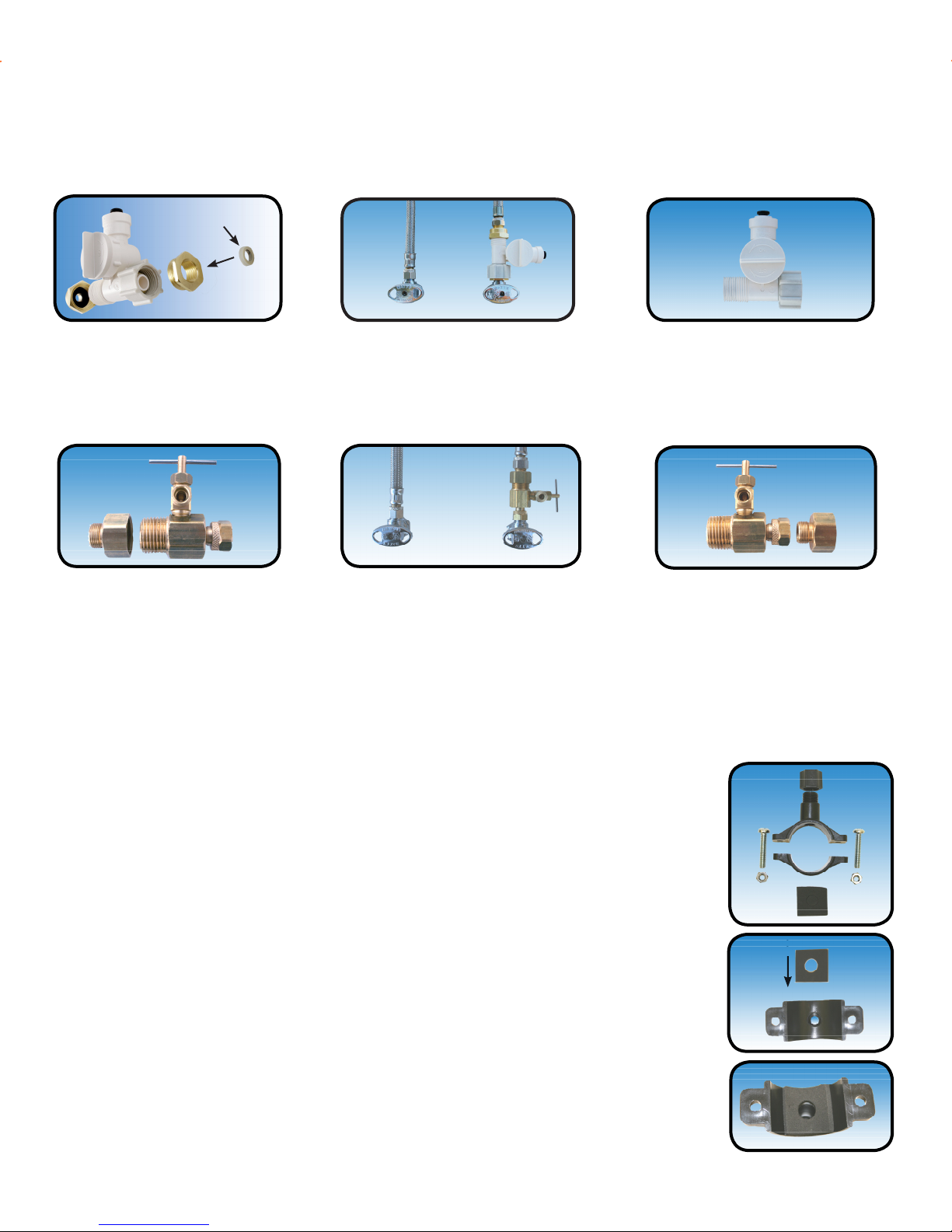

Adapt-a-Valve Installation (Plastic / Brass) ........................................................................................... 7
Drain Saddle Installation ....................................................................................................................... 7
Drain Saddle Installation Continued ...................................................................................................... 8
3/8” Black Drain Tube Connection ........................................................................................................ 8
Green Tube Connection ........................................................................................................................ 8
Reverse Osmosis Module Mounting ..................................................................................................... 9
Tank Elbow Installation ......................................................................................................................... 9
Blue Tube Connection (From unit to tank) ............................................................................................ 9

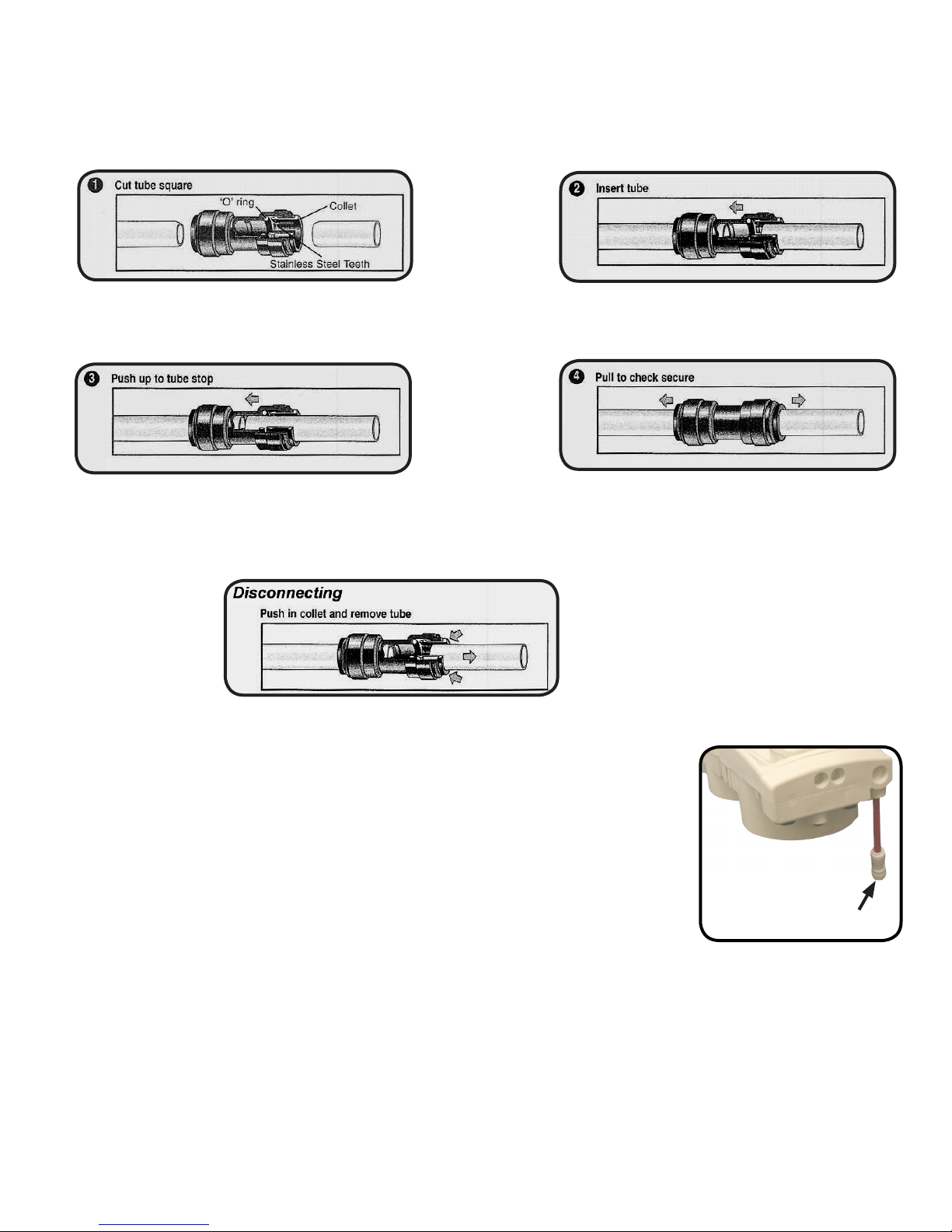

How to use Quick Connect Fittings............................................................................................. ........ 10
Red Tube Connection (From Faucet) .................................................................................................. 10
Blue Tube Connection (From Faucet) ................................................................................................. 10
Start up Instructions..............................................................................................................................11

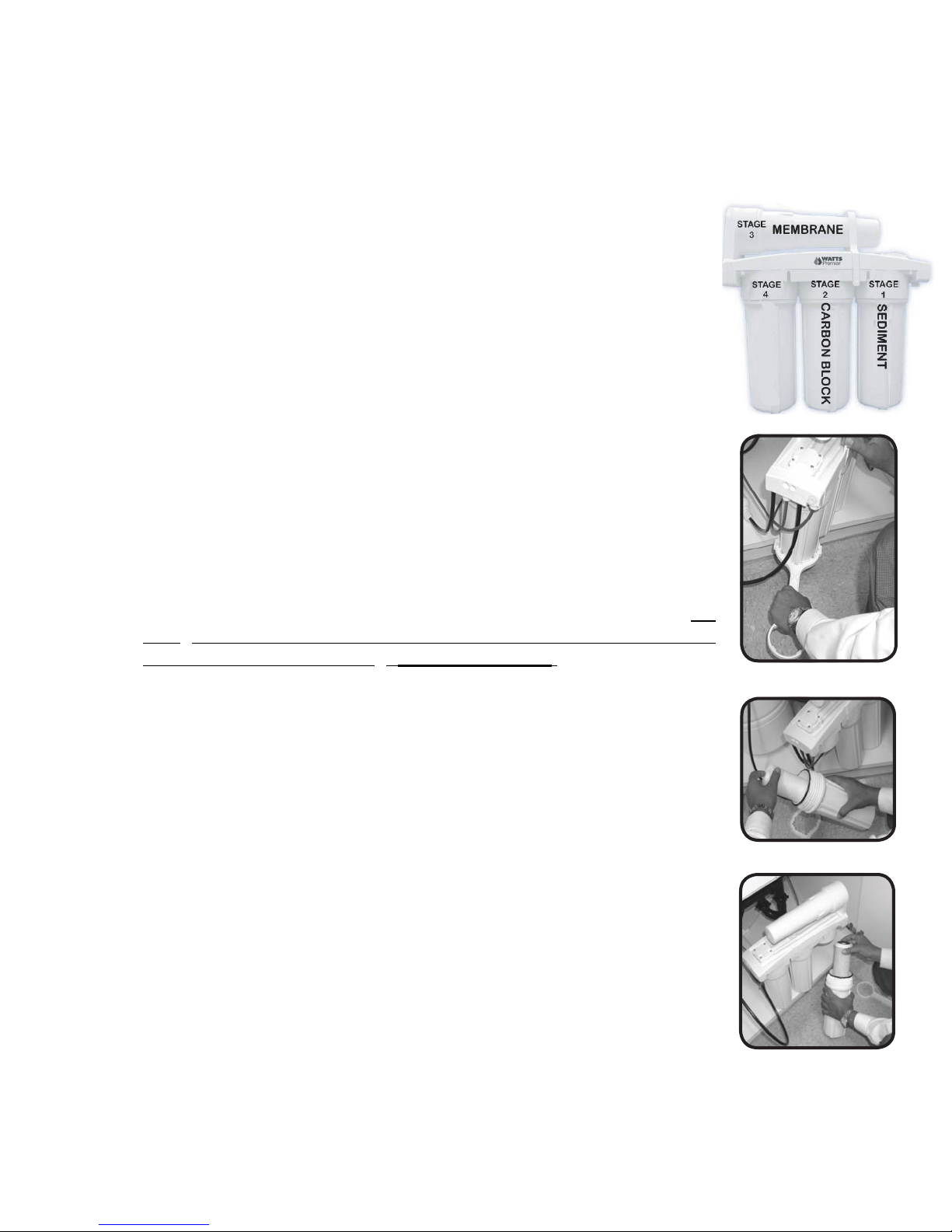

6 Month Maintenance .......................................................................................................................... 12
Annual Maintenance ............................................................................................................................ 13
Membrane Replacement .................................................................................................................... 14
Checking Air Pressure in the Tank ...................................................................................................... 15
Procedure for Extended Non-Use ...................................................................................................... 15
Trouble Shooting ................................................................................................................................. 16
Arsenic Fact Sheet. ............................................................................................................................. 17
California Certication ......................................................................................................................... 18
Performance Data Sheets ................................................................................................................... 19
VOC Performance Data Sheet ............................................................................................................ 20
Unit Drawing ........................................................................................................................................ 21
Parts List ............................................................................................................................................. 21
Other Products ........................................................................................................................... 22 - 24
Warranty Registration .................................................................................................................. 25 & 26
Service Record ................................................................................................................................... 27
Limited Warranty ................................................................................................................................ 28
** Before installation, please take a moment to ll out the warranty card on page 25.

Page 4
1 Tank – White
1 Module – White
1 Parts Bag
1 Faucet Bag
1 Filter Wrench
If any of the items are missing please contact
Watts Premier prior to installing.
Tools Recommended For Installation
√ 1 1/4" Hole Saw Bit for Faucet opening and/or
√ Round Knock out Punch for Stainless Sinks 1 ¼”
√ Adjustable Wrench
√ Sharp Knife
√ 1 / 2" - 13/16” Open End Wrenches
√ Phillips Screw Driver
√ Needle Nose Pliers – Adjustable Pliers
√ Electric Drill
√ 1/8", 1/4" & 3/8" Drill Bits
Contents of Reverse Osmosis (RO) System
1 Manual
* All Filters Are Pre-Installed
Hardness: Recommended hardness not to exceed 10 grains per gallon, or 170ppm. System will
operate with hardness over 10 grains but the membrane life may be shortened. Addition of a water
softener may lengthen the membrane life.
Installation must comply with state and local plumbing regulations. This system is intended to
be installed on the cold water line only.
Copper Tubing: Reverse Osmosis water should not be run through copper tubing as the purity of
the water will leach copper causing an objectional taste in water and pin holes may form in the tubing.
Watts Premier supplies speciality lters (part number 107008) that can be used if copper tubing
follows the Reverse Osmosis unit. Be sure to follow any state or local regulations during installation.
Operational Parameters
Water Pressure: The operating water pressure in your home should be tested over a 24 hour
period to attain the maximum pressure. If the incoming water pressure is above 85 psi a pressure
regulator is recommended and if over 100 psi then a pressure regulator is required. Should you
need a gauge to check your water pressure, see page 19 (item no. 261003).
Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C)
Operating Pressure: Maximum 85 psi (6.0 kg/cm
2
) Minimum 40 psi (2.80 kg/cm
2
)
pH Parameters: Maximum 11 Minimum 2
Iron: Maximum 0.2 ppm
TDS (Total Dissolved Solids) < 1800 ppm
Turbidity < 5 NTU

Page 5
Make sure the surroundings of the sink are cooled before mounting the
faucet to the sink after drilling and remove all sharp edges.
Step 3
Step 4
Determine desired location for the RO faucet on your sink and place
a piece of masking tape on over where the hole is to be drilled. Mark
the center of the hole on the tape.
Step 1
Using a variable speed drill set on the slowest speed, drill a
1
/ 8 “ pilot
hole through both porcelain and metal casing of sink at the marked
center of the desired location. Use lubricating oil or liquid soap to keep
the drill bit cool (If drill bit gets hot it may cause the porcelain to crack
or chip).
Using a 1 ¼” hole saw, proceed to drill the large hole. Keep drill speed
on the slowest speed and use lubricating oil or liquid soap to keep the
hole saw cool during cutting.
Step 2
Drill a Hole for the Faucet in a Porcelain Sink
Punch a Hole for the Faucet in a Stainless Steel Sink
Drill a ¼” pilot hole. Use a
1
/ 2 ” Hole Punch and an adjustable wrench to
punch the hole in the sink. Change to the 1 ¼” Hole Punch to enlarge
the hole.
Step 5
The faucet can now be installed.
If mounting faucet to a Stainless Steel Sink you will need a 1 ¼”
Hole Punch. The faucet opening should be centered between the
back splash and the edge of the sink, ideally on the same side as
the vertical drain pipe.
Note:
Note: Most sinks are pre drilled with 1 ½” or 1 ¼” diameter hole that you can use for your
RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1)
Porcelain sinks are extremely hard and can crack or chip easily.
Use extreme caution when drilling. Watts Premier accepts no responsibility for
damage resulting from the installation of faucet.

Page 6
WATTS Premier Monitored (Top Mount) Faucet Installation
1
2
3
b
a
4
4. Feed the toggle bolt and tubes through the mounting hole in The
sink. Test t faucet placement.
6. Using a at head screwdriver torque the toggle bolt through the
spout hole to approximately 5lbs/in.
5
A 1.0” - 1.25” Mounting hole is required for faucet installation.
8. Pull the Battery Safety Tab out to activate faucet monitor.
Make sure that the clear drawer is rmly seated in the
faucet base. The monitor will ash briey once activated.
7. Insert spout into the faucet base until fully seated.
8
7
6
A) Connect tubes to the RO faucet (Figure A)
B) Mount the RO faucet (Figure B)
C) Pull Battery Tab and Install Spout (Figure C)
This RO faucet is equipped with quick connect ttings for easy tube
installation. To connect tubes, simply push them rmly into their
corresponding tting on the RO faucet until fully seated.
1. Connect 3/8” BLUE tube. (3/8” Fitting on Toggle Bolt)
To disconnect a tube, push in collet (Fig. b) squarely against face
of tting (Fig. a). With collet held in this position the tube can be
removed.
2. Connect 3/8” BLACK tube . (3/8” Fitting on base of faucet)
3. Connect 1/4” RED tube. (1/4” Fitting on base of faucet)
Approximately 3/4” of the tube should go into the tting.
A
B
C
5. Peel the white backing paper off the seal on the bottom of the
faucet base and press rmly over the mounting location.
“This product contains a button cell battery. If swallowed, it
could cause severe injury or death in just 2 hours.
Seek medical attention immediately.”
CAUTION!

Page 7
Adapt-a-Valve Installation
Turn off the cold water supply to the faucet by turning the angle stop valve completely off.
Step 6
Step 7 Attach the adapt-a-valve as illustrated in the three photos above, choosing the conguration
that ts your plumbing.
Drain Saddle ts standard 1 ¼” – 1 ½” drain pipes
Drain Saddle Installation - Part# 164016
Step 8
Step 9 The small square black foam gasket with a circle cut out of the middle
must be applied to the inside of the drain saddle. Remove sticky tape
backing and stick to the drain saddle as shown.
1 Black compression nut 1 Semicircle bracket with opening
2 Screws 1 Foam gasket
2 Nuts for screws 1 Semicircle bracket
Gather the pieces of the drain saddle:
If you have a garbage disposal, do not install the drain saddle near it.
Installation of the drain saddle must be either above the garbage disposal, or
if a second sink drain is available, install it above the cross bar on the second
drain. Installation of the drain saddle near a garbage disposal may cause
the drain line to plug. If no other installation of drain line is available, Watts
Premier offers drain line installation kit (part number 164020) that can be used
with garbage disposals.
Caution:
Conguration for 3/8”
(With Brass Fittings)
* Insert White Washer
Hot
Supply
Cold
Supply
Conguration for 1/2”
(Without Brass Fittings)
Plastic Valve Conguration:
Conguration for 3/8”
compression ttings Conguration for 1/2”
compression ttings
Hot
Supply
Cold
Supply
Brass Valve Conguration:
Caution: Water supply line to the system must be from the cold water supply line only.
Hot water will severely damage your system.
* Washer

Page 8
Drill Hole and Connect 3/8” Black Tube from Faucet to the Drain
Measure the 3/8” black tube from faucet to the drain saddle on the
drain pipe and make a straight cut to the correct length.
Slip black tube through black compression nut. Insert black tube
into the opening in the drain saddle and hand tighten the black nut,
and add 1/4 turn with a wrench.
The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain
saddle, making a downward slope from faucet to drain saddle to allow for proper
drainage. This is a gravity fed line and if there is any bend or dip in the tube, the rinse
water will not ow into the drain properly. Water may back up and come out the air
gap hole in the back of the faucet.
Step 13
IMPORTANT:
Step 12
Step 15
Green Tube Connection
Step 14 Locate green tube attached to the RO Module. Remove a brass nut,
plastic sleeve and brass insert from the parts bag. To assemble,
place the brass nut on the green tube rst, then the sleeve (small
tapered end of sleeve must point to the end of tube) and then push
the brass insert all the way into the end of the tube. (See Picture)
Insert the green tube into the ¼” opening on the adapt-a-valve until
it stops. Slide the brass nut and sleeve down and thread onto the
male pipe threads. Use a ½” wrench to securely tighten the nut.
With the drain saddle secured onto the drain pipe, using a 1/4”
drill bit installed in your electric drill, insert the drill bit through the
opening in the drain saddle and drill through the drain pipe.
Step 11
Caution: It is very important to keep the drill centered to prevent
damage of the drain saddle while drilling.
Step 10 The drain saddle must be mounted at least 1 ½” above the nut of the
P-trap or cross bar from the garbage disposal to insure proper drainage.
Assemble the drain saddle around the drain pipe at the best available
location. Using Phillips screw driver tighten screws evenly and securely
on both sides of the drain saddle. Keep the plastic compression nut off
at this time.
Caution: Do not over tighten the screws. It may crack the drain saddle.
Drain Saddle Installation Continued...
Brass Valve:
Plastic Valve Valve:
Step 16 Locate green tube attached to the RO Module. Insert the open end of the green 1/4” tube
into the open 1/4” quick connect tting on the plastic water feed valve making sure the tube
is pushed in all the way to the tube stop.

Page 9
Thread the plastic elbow (supplied in the parts bag) onto the stainless
steel connection on the top of tank. Tighten using an adjustable wrench.
Do not over tighten as plastic could crack.
Step 18
Step 19
Wrap (7 to 12 turns) of teon tape clockwise around the male pipe
threads (MPT) on the Stainless Steel tting on top of the tank.
Tank Elbow Installation
Do not let the tape cover the opening.
Note:
Connect Blue Tube from “TANK” Port on RO Module to the Tank
Position tank in desired location. Stand it upright or lay it on its
side (using the black plastic stand). Measure the blue tube from
the RO module port marked “TANK” over to the tank and cut it
to desired length.
Insert the blue 3/8” tube into the compression side of the elbow
previously installed on top of the storage tank and push in as far as
it will go. Tighten the compression nut securely with a wrench.
Step 20
Step 21
Reverse Osmosis Module Mounting
Step 17 Determine best location for the RO module to be mounted to allow
for future system maintenance. The parts bag has 2 self tapping
screws. Using an electric drill with a Phillips bit, screw them into
the cabinet wall 6” apart and 16” from the bottom of the cabinet.

Page 10
How To Use the Quick Connect Fittings on the RO Module
To make a connection, the tube is simply pushed into the tting. The unique patented John Guest®
locking system holds the tube rmly in place without deforming it or restricting ow.
It is essential that the outside diameter be free of score
marks and that burrs and sharp edges be removed before
inserting into tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
rmly in position while the O-ring provides a permanent
leak proof seal.
Pull on the tube to check that it is secure. It is a good practice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is depressurized before
removing the tube. Push in collect squarely against face
of tting. With the collet held in this position, the tube can
be removed. The tting can then be reused.
Connect the Blue Tube from the Faucet to RO Module
Step 23
Step 22
Connect the Red Tube from Faucet to RO Module
Insert the open end of the red 1/4” tube attached to the RO faucet
into the 1/4” X 1/4” quick connect tting on the RO Manifold. Make
sure the tube is pushed in all the way to the tube stop. (See Picture)
Insert the blue 3/8” tube from the faucet into the port on the module
marked “FAUCET”. Make sure the tube is pushed in all the way
to the tube stop.
A connection to a refrigerator / ice maker may be tee’d into this blue tube.
Watts Premier offers an ice maker install kit part # 500102 (See Page 22).
Note:
Connect red faucet tube.

Page 11
Start up Instructions
Register by mail, phone, fax or internet. Watts Premier uses this information only to provide
a lter change reminder notice. Pre-lters should be changed every 6 months and VOC
lter annually. You may register your system via our website at www.premierH2o.com or call
1-800-752-5582 (within USA only) / FAX#: [phone].
For Warranty card Please see page 25-26.
If you have connected your RO system to a refrigerator / ice maker, make sure the ice maker
is off (do not allow water to ow to the ice maker) until ushing (Step 5) is complete and the
tank has been allowed to completely ll. Connection from the RO to the ice maker system
should have an in-line valve installed before the ice maker so it can easily be closed to prevent
water owing to the ice maker during start up and periodic maintenance. Your RO tank must
be allowed to ll up fully in order for the ice maker system to work properly.
After the Tank has lled, open the RO Faucet to ush the tank completely. You will know that
the tank is empty when the ow rate from the RO faucet is down to a trickle. Repeat this step
two more times. The fourth tank can be used for drinking.
Don’t Forget To Register!
Open the RO faucet and leave it open until water begins to trickle out (it will come out
slowly).
Step 5
Turn on the incoming cold water at the angle stop valve. Open the needle valve on the brass
Adapt-a-Valve by turning counter clockwise. Check the system for leaks and tighten any tting
as necessary. (Check frequently over the next 24 hours to ensure no leaks are present).
Step 4
Step 3
Step 2
Step 1
Close the RO faucet allowing the storage tank to ll with water. It may take 4 to 6 hours to
ll the tank completely depending on the production capability of the membrane, local water
temperature and water pressure.
Congratulations!
You have completed the installation of new your Reverse Osmosis system.
Please Follow the Startup Instructions.
Flushing of the tank 3 times is only necessary during the initial startup and after
replacing the membrane.
During the ll period you may hear water trickling due to the Reverse Osmosis
Process.
Note:
Note:
The ushing process should take about a day to complete.

Page 12
VOC BLOCK
√ Stage 1 - Sediment Filter (part #: 104017)
√ Stage 2 - Carbon Block Filter (part #: 101009-White End Caps)
Clean lter housings (bowls) with a mild soap solution and rinse with
water. Check O-rings and lubricate with water soluble lubricant. KY
Jelly® or other water based lubricants may be used. Petroleum based
lubricants (such as Vaseline®) must not be used.
For more leverage you may leave the RO module attached to wall of
cabinet. If you are unable to access the module while it hangs, remove
it prior to changing lters. Starting with the closest housing
(Stage 1), remove it by turning it clockwise, empty water, then discard
lter. Continue on to the 2nd housing (Stage 2).
Insert the new sediment lter (cloth like appearance) into the 1st lter
housing which is the one closest to the side with tubing connections
and re-install housing.
6 Month System Maintenance
Turn off the incoming water supply to the RO by turning the needle
valve on the adapt-a-valve clockwise until it stops. (Follow the green
tube away from the RO system to nd the adapt-a-valve.)
Step 1
Step 3
Step 4
Step 5
Step 6
Let system sit for a few minutes after tank is empty to depressurize
before attempting to remove lter housings.
Open the RO Faucet and allow water to drain from the tank until it is
completely empty.
Insert the new Carbon Block lter (White End Caps) into the middle
housing and re-install housing.
Step 7
Step 2
Step 8
*Order lters by calling 1-800-752-5582 or buy online at www.premierH2o.com.
Turn water on to the unit by turning the needle valve on the adapt-a-
valve counter clock wise.
Note: Water Can be saved in a container for drinking or to rinse system
parts.
Before re-installing the lter bowls back on to the system ,
check O-rings to make sure they are still in place.
Caution:
Open the RO faucet and leave it open until water begins to trickle out
(it will come out slowly).
Step 10
Step 9
Close the RO faucet allowing the storage tank to ll with water. It
may take 4 to 6 hours to ll the tank completely depending on the
production capability of the membrane, local water temperature and
water pressure.
** To reset the electronic monitor during replacement of lters, simply slide out the battery
from the base of the faucet and reinsert.
Note:

Page 13
Annual Maintenance
√ Stage 1 - Sediment Filter (part #: 104017)
√ Stage 2 - Carbon Block Filter (part #: 101009-White end caps)
√ Stage 4 - VOC Carbon Block (part #: 101013-Blue end caps)
√ 1/2 Cup of hydrogen peroxide or 2 tablespoons of common household bleach.
*Order lters by calling 1-800-752-5582 or buy online at www.premierH2o.com.
Insert the new VOC Carbon Block lter (Blue End Caps) into the 3rd lter housing which is the
one farthest from the side with tubing connections and re-install housing.
Step 11
Before re-installing the lter bowls back on to the system , check O-rings to make
sure they are still in place and lubricate with water soluble lubricant.
Caution:
Step 4
Step 5
Step 6
Step 7
Note: Sanitizing of unit is recommended.
Perform steps 1 through 3 in the Six Month System Maintenance (Page 12).
Step 1
For more leverage you may leave the RO module attached to wall of cabinet. If you are
unable to access the module while it hangs, remove it prior to changing lters. Starting with
the closest housing (Stage 1), remove it by turning it clockwise, empty water, then discard
lter. Continue on to the 2nd (Stage 2) and 3rd (Stage 4) housings.
Step 2
Note: If not sanitizing the system skip to step 9.
Open the horizontal membrane housing and remove the RO membrane. Rest the membrane
in a clean, sanitary place. Replace the empty membrane housing onto the unit.
Step 3
Leaving the lters out, replace stage 2 and 4 empty lter housings (hand tight) onto unit.
Measure & pour either 1/2 cup of hydrogen peroxide or 2 tablespoons of common household
bleach into the 1st lter housing (Stage 1) and hand tighten onto unit.
Turn on incoming water supply to the system by turning the adapt-a-valve counter clockwise.
Wait 1 minute for the unit to pressurize. Turn on the RO faucet and let the water run for 30
seconds. Turn off the RO faucet and let the unit rest for 2 minutes. Finally, open the RO faucet
and let the water run for 5 more minutes.
Turn off the incoming water supply to the system by turning the adapt-a-valve clockwise
until it stops. Keep the RO faucet open until the storage tank is completely drained.
Open the membrane vessel and insert the RO membrane back into the manifold while
making sure not to kink the O-rings. Tighten the membrane housing back on the RO unit
(Refer to “Membrane Replacement” below for details).
Step 8 Remove lter housings Stage 1, 2 and 4 and empty of water.
Insert the new sediment lter (cloth like appearance) into the 1st lter housing which is the
one closest to the side with tubing connections and re-install housing.
Step 9
Insert the new Carbon Block lter (White End Caps) into the middle housing and re-install
housing.
Step 10
Step 12 Follow Steps 8 through 10 in the Six Month System Maintenance (Page 12) for startup
directions.
Tip: This is a good time to check the air pressure in your storage tank. For instructions
please see page 15.

Page 14
Membrane Replacement
Membranes have a life expectancy between 2 and 5 years, depending on the incoming water conditions and
the amount the RO system is used. This reverse osmosis membrane is critical for effective reduction of total
dissolved solids (TDS). The product water should be tested periodically to verify that the system is performing
satisfactorily.
Normally, a membrane would be replaced during a semiannual or annual lter change. However, if at any time
you notice a reduction in water production or an unpleasant taste in the reverse osmosis water, it could be time
to replace the membrane. Watts Premier recommends replacing the membrane when TDS reduction falls below
75%.
Step 1
Step 3 Remove the horizontal membrane housing on top of the unit by
turning it counter clockwise to loosen.
Turn off the incoming water supply to the RO by turning the needle
valve on the adapt-a-valve clockwise until it stops. (Follow the green
tube away from the RO system to nd the adapt-a-valve.)
Pull rmly on the yellow RO membrane to remove it from the housing
and discard.
Lubricate the O-rings on the new membrane with a water soluble
lubricant such as KY Jelly ®. Insert the end with the two black
O-rings into the cap. Twist the membrane as you push it rmly into
the manifold.
Step 4
Step 5
Step 6 Replace the membrane housing onto the cap by turning clockwise.
Tighten securely.
A water sample may be sent to Watts Premier for a free diagnosis of your membranes
performace. To send a water sample, use two (2) clean containers and ll ½ cup of tap water
in one container and ½ cup of reverse osmosis water in 2nd container. Clearly label each
sample. Send the samples to the address listed on the cover of this manual attention “Water
Samples”. Watts Premier will test the water and mail or call you with the results.
Note:
Open the RO Faucet and allow water to drain from the tank until it
is completely empty.
Step 2
Before re-installing the membrane housing back on to the
system, check O-ring on the housing to make it is still in
place and lubricate with water soluble lubricant.
Caution:
This reverse osmosis system contains a replaceable component (the RO membrane) which is critical to the efciency of
the system. Replacement of this reverse osmosis membrane should be with one of identical specications as dened by
Watts Premier to assure the same efciency and contaminant reduction performance.
Step 7 Follow Start up instructions on page 11.

Page 15
Procedure for Extended Non-Use (More than 2 months)
Turn off the water supply by turning the “T” on the adapt-a-valve clockwise until it stops and
open the RO faucet to empty the storage tank (Save a few ounces of RO water). Once the
storage tank is empty, remove the membrane and place it in a sealed plastic bag with the RO
water saved earlier and store in your refrigerator.
For restart, reinstall membrane and follow startup procedure on page 11.

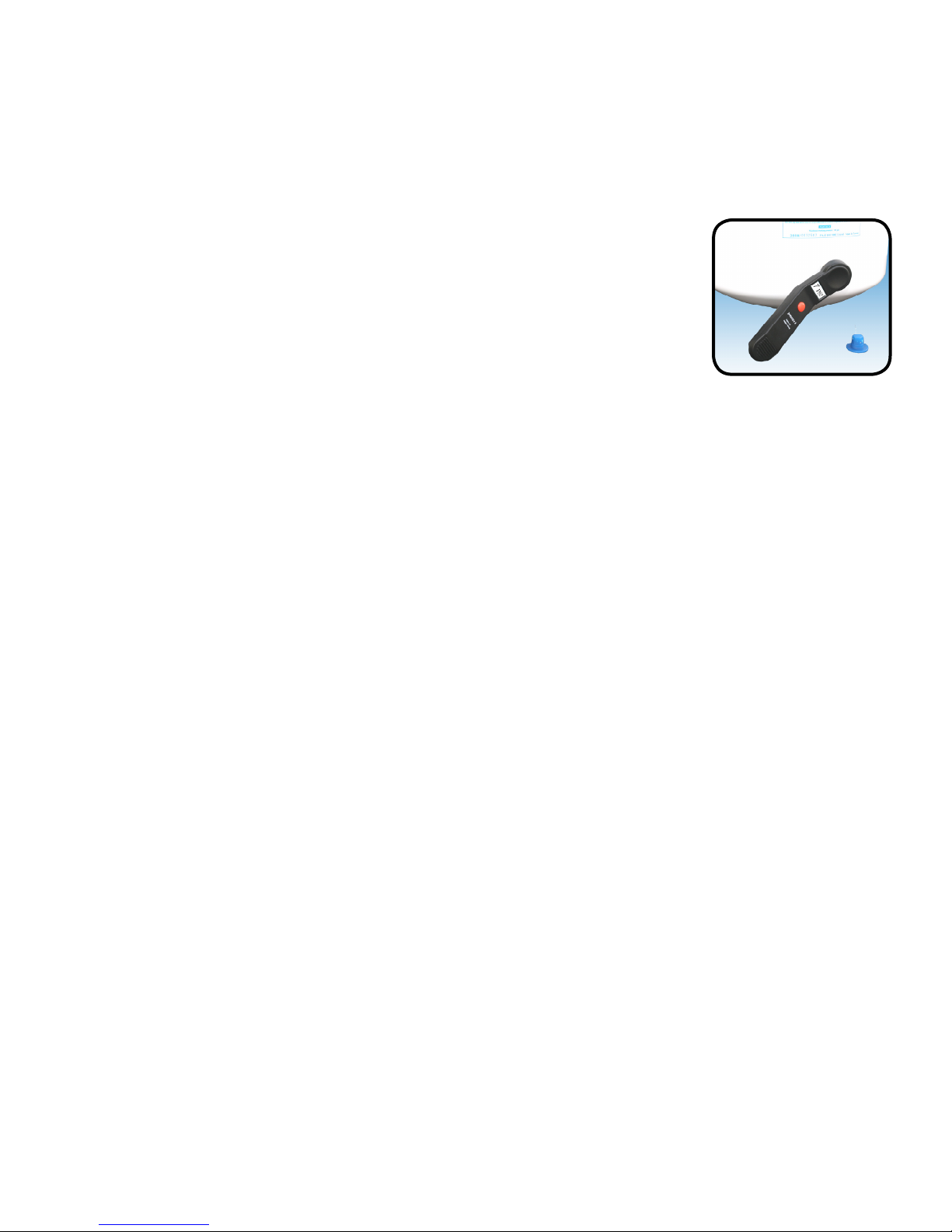

Once all water in the tank is purged, check air pressure using an air pressure gauge, it
should read between 5 - 7 PSI. (Digital air pressure gauge is recommended)
Check Air Pressure in the Tank
Important:
Step 3
Check air pressure only when tank is empty of water!
Step 1 Turn off the incoming water supply to the RO by turning the needle
valve on the adapt-a-valve clockwise until it stops. (Follow the green
tube away from the RO system to nd the adapt-a-valve.)
Open the RO Faucet and allow water to drain from the tank until it is
completely empty.
Step 2
Check air pressure in the storage tank when you notice a decrease in available water from
the RO system. Air can be added with a bicycle pump using the schrader valve that is
located on the lower side of the tank behind a blue plastic cap.
Tip: When water from the RO faucet slows to a trickle, with the faucet still in the open
position, you may add air to the tank to purge any left over water, this will ensure that
the tank is completely empty.

Page 16
TROUBLE SHOOTING
Problem Cause Solution
1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure.
Premier sells a booster pump if home water pressure is
low. Maker sure water supply is turned on and Adapta
Valve is all the way open
Crimps in tubing Check tubing and straighten or replace as necessary.
Clogged pre-lters Replace pre-lters.
Fouled membrane Replace membrane and clean ow restrictor.
2. Milky colored Water Air in system Air in the system is a normal occurrence with initial start
up of the RO system. This milky look will disappear
during normal use within 1-2 weeks. If condition reoccurs
after lter change, drain tank 1 to 2 times.
3. Water constantly Low water pressure See #1 Above
running/unit will not
shut off Fouled membrane Replace membrane
High water pressure Check incoming water pressure to make sure it does not
exceed 100psi. A pressure relief valve may be necessary.
High air pressure in tank Empty storage tank of water. Set tank air pressure to 5
psi. See Page 15.
4. Noise from faucet or drain Air gap faucet Inherent sound with air-gap faucets.
Location of drain saddle See diagram for proper location of drain saddle.
Higher capacity membrane Normal with high capacity membrane
High water pressure Check incoming water pressure to make sure it does not
exceed 100 psi. A presser relief valve may be necessary.
5. Faucet leaks from Crimp or loop in drain line Straighten black 3/8 drain tube. Cut off any excess tubing
the air gap feature Drain tube clogged/restricted Caused from dishwasher or garbage disposal.
Disconnect the 3/8” black tube at the drain, clean the 3/8”
black tube out with a wire, then reconnect.
6. Small amount of water in System just starting up Normally it takes 4-6 hours to ll tank. Note: Low water
storage tank pressure and/or temperature can drastically reduce
production rate.
Low water pressure See #1 Above
Too much air in tank Add air if below 5 psi and bleed if above 5 psi. Check
only when tank is empty of water. See Page 15.
7. Water leaks from the Not properly tightened. Tighten the bowl
lter housing Missing or kinked O-ring Turn off the water supply. Release the pressure, remove
bowl and replace the O-ring. (p/n 113043). Make sure
the O-ring is seated in the lter bowl properly before
reinstalling the lter bowl.

Page 17
Arsenic (As) is a naturally occurring contaminant found in many ground waters. Arsenic
in water has no color, taste or odor. It must be measured by an arsenic test kit or lab test.
Public water utilities must have their water tested for arsenic. You can obtain the results
from your water utility contained with in your consumer condence report. If you have
your own well, you will need to have the water evaluated. The local health department
or the state environmental health agency can provide a list of test kits or certied labs.
There are two forms of arsenic: pentavalent arsenic (also called As (V), As (+5)) and
trivalent arsenic (also called As (III), As (+3)). In well water, arsenic may be pentavalent,
trivalent, or a combination of both. Although both forms of arsenic are potentially hazardous
to your health, trivalent arsenic is considered more harmful than pentavalent arsenic.
RO systems are very effective at removing pentavalent arsenic. A free chlorine residual
will rapidly convert trivalent arsenic to pentavalent arsenic. Other water treatment
chemicals such as ozone and potassium permanganate will also change trivalent arsenic
to pentavalent arsenic. A combined chlorine residual (also called chloramine) where it
does convert trivalent arsenic to pentavalent arsenic, may not convert all the trivalent
arsenic in to pentavalent arsenic. If you get your water from a public water utility, contact
the utility to nd out if free chlorine or combined chlorine is used in the water system.
This Watts Premier reverse osmosis system is designed to remove up to 98% of
pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under
laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent
arsenic to under 0.010 mg/L (ppm) (the USEPA standard for drinking water). Actual
performance of the system may vary depending on specic water quality conditions at
the consumer’s installation. In addition to the independent laboratory standard testing
conditions Watts Premier has conducted additional eld testing on our reverse osmosis
units to determine trivalent arsenic reduction capabilities. Based upon Watts Premier eld
testing, it has been determined that the RO units are capable of reducing up to 67% of
trivalent arsenic from the drinking water.
The RO membrane component of this Watts Premier reverse osmosis system must
be maintained according to its recommended maintenance cycle. Specic component
identication and ordering information can be found in the installation/operation manual
maintenance section, by phone at 1-800-752-5582 or online www.premierH2o.com
Arsenic Fact Sheet

Page 18
California Certication

Page 19
Description Replace Cost
Sediment Filter
 Part# 104017 6 Months $ 3.50
Carbon Filter
 Part# 101009 6 Months $10.50
Depending upon incoming feed water conditions replacement time
frame may vary.
This system has been tested according to NSF/ANSI 58 for reduction of the substances listed below. The concentration of the indicated substances in water
entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specied in NSF/ANSI 58. This
system has been tested for the treatment of water containing pentavalent arsenic (also known as As (V), As (+5), or arsenate) at concentrations of 0.30 mg/L or
less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used on water supplies containing a detectable free
chlorine residual at the system inlet or on water supplies that have been demonstrated to contain only pentavalent arsenic. Treatment with chloramine (combined
chlorine) is not sufcient to ensure complete conversion of trivalent arsenic to pentavalent arsenic, Please see the Arsenic Facts section of the Performance Data
Sheet for further information.
Avg. In. Avg. Eff. % Reduction pH Pressure Max Eff. Inf. challenge Max Allowable
(mg/L) (mg/L) mg/L concentration concentration
mg/L mg/L
Arsenic (Pentavalent) 334.62 ug/L 5.039 ug/L 98.4% 50psi 19 ug/L 0.30±10% 0.010 mg/L
Barium Reduction 10.2 0.13 98.7% 7.24 50psi 0.27 10.0±10% 2.0
Cadmium Reduction 0.031 0.0001 99.7% 7.49 50psi 0.0009 0.03±10% 0005
Chromium (Hexavalent) 0.30 0.006 98.0% 7.24 50psi 0.013 0.03±10% 0.1
Chromium (Trivalent) 0.30 0.003 99.0% 7.24 50psi 0.008 0.03±10% 0.1
Copper Reduction 3.0 0.04 98.7% 7.64 50psi 0.06 3.0±10% 1.3
Cysts 222,077#/ml 10 #/ml 99.99% 50psi 58 minimum 50,000/mL N/A
Fluoride Reduction 8.0 0.33 95.9% 7.49 50psi 0.47 8.0±10% 1.5
Lead Reduction 0.15 0.004 97.3% 7.49 50psi 0.008 0.15±10% 0.0107
Perchlorate 0.10 0.003 96.5% 7.39 50 psi 0.005 mg/L 0.10±10% 0.006
Radium 226/228 25pCi/L 5pCi/L 80.0% 7.24 50psi 5pCi/L 25pCiL±10% 5pCiL
Selenium 0.10 <0.001 99.0% 50psi <0.001 0.10±10% 0.05
TDS 765 24 96% 7.84 50psi 39.0 750±40mg/L 187
Turbidity 81 NTU 0.15 NTU 99.8% 50psi 0.28 NTU 11±1 NTU 0.5 NTU
*Refer to the VOC Performance Data Sheet for the complete list of VOC’s.
Recovery - 16.0% Daily Production Rate - 9.56 GPD Efciency - 9.58%
Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary.
Efciency rating means the percentage of the inuent water to the system that is available to the user as reverse osmosis treated water under
operating conditions that approximate typical daily usage. Recovery rating means the percentage of the inuent water to the membrane portion of
the system that is available to the user as reverse osmosis treated water when the system is operated without a storage tank or when the storage
tank is bypassed. There is an average of 4 gallons of reject water for every 1 gallon of product water produced.
REFER TO OWNER’S INSTALLATION/SERVICE MANUAL FOR FURTHER MAINTENANCE REQUIREMENTS AND WARRANTY
INFORMATION.
Phone: [phone] Fax: [phone] Email: [email protected]
GENERAL USE CONDITIONS:
1. System to be used with municipal or well water sources treated and tested on regular basis to insure bacteriological safe quality. DO NOT use with water that
is microbiologically unsafe or unknown quality without adequate disinfection before and after the system. Systems certied for cyst reduction may be used on
disinfected water that may contain lterable cysts.
2. Operating Temperature: Maximum: 100°F (40.5°C) Minimum: 40° (4.4°)
3. Operating Water Pressure: Maximum: 100 psi (7.0kg/cm2) Minimum: 40 psi (2.8kg/cm2)
4. pH 2 to 11
5. Maximum iron present in incoming feed water supply must be less than 0.2 ppm.
6. Hardness of more than 10 grains per gallon (170 ppm) may reduce RO membrane life expectancy.
7. Recommend TDS (Total Dissolved Solids) not to exceed 1800 ppm.
Performance Data Sheet
WP-4v
Watts Premier Inc.
8716 W Ludlow Drive Sutie #1
Peoria, AZ 85381 85027 USA
Description Replace Cost
Stage 4 - VOC Block Filter
 Part# 101013 12 Months $24.95
(600 Gallons)
RO Membrane
 35 GPD Part# 110016 2 to 5 Years $74.95
* All Prices Subject to change without notice * All Prices Subject to change without notice

Page 20
Substance Percent Reduction
Inuent Challenge
Concentration
(mg/L unless noted)
Maximum
Permissible Product
Water Concentration
ALACHLOR >98% 0.05 0.001
ATRAZINE >97% 0.1 0.003
BENZENE >99% 0.081 0.001
BROMODICHLOROMETHANE (TTHM) >99.8% 0.300 +/- 0.30 0.015
BROMOFORM (TTHM) >99.8% 0.300 +/- 0.30 0.015
CARBOFURAN (Furadan) >99% 0.19 0.001
CARBON TETRACHLORIDE 98% 0.078 0.0018
CHLOROBENZENE (Monochlorobenzene) >99% 0.077 0.001
CHLOROPICRIN 99% 0.015 0.0002
CHLOROFORM (TTHM) >99.8% 0.300 +/- 0.30 0.015
2, 4-D 98% 0.110 0.0017
DBCP (see Dibromochloropropane) >99% 0.052 0.00002
1,2-DCA (see 1,2-DICHLOROETHANE) 95% 0.088 0.0048
1,1-DCE (see 1,1-DICHLOROETHYLENE) >99% 0.083 0.001
DIBROMOCHLOROMETHANE (TTHM;
Chlorodibromomethane) >99.8% 0.300 +/- 0.30 0.015
DIBROMOCHLOROPROPANE (DBCP) >99% 0.052 0.00002
o-DICHLOROBENZENE (1,2 Dichlorobenzene) >99% 0.08 0.001
p-DICHLOROBENZENE (para-Dichlorobenzene) >98% 0.04 0.001
1,2-DICHLOROETHANE (1,2-DCA) 95% 0.088 0.0048
1,1-DICHLOROETHYLENE (1,1-DCE) >99% 0.083 0.001
CIS-1,2-DICHLOROETHYLENE >99% 0.17 0.0005
TRANS-1,2- DICHLOROETHYLENE >99% 0.086 0.001
1,2-DICHLOROPROPANE (Propylene Dichloride) >99% 0.08 0.001
CIS-1,3- DICHLOROPROPYLENE >99% 0.079 0.001
DINOSEB 99% 0.17 0.0002
EDB (see ETHYLENE DIBROMIDE) >99% 0.044 0.00002
ENDRIN 99% 0.053 0.00059
ETHYLBENZENE >99% 0.088 0.001
ETHYLENE DIBROMIDE (EDB) >99% 0.044 0.00002
Furadan (see CARBOFURAN) >99% 0.19 0.001
HALOACETONITRILES (HAN)
BROMOCHLOROACETONITRILE 98% 0.022 0.0005
DIBROMOACETONITRILE 98% 0.024 0.0006
DICHLOROACETONITRILE 98% 0.0096 0.0002
TRICHLOROACETONITRILE 98% 0.015 0.0003
HALOKETONES (HK):
1,1-DICHLORO-2-PROPANONE 99% 0.0072 0.0001
1,1,1-TRICHLORO-2-PROPANONE 96% 0.0082 0.0003
HEPTACHLOR >99% 0.25 0.00001
HEPTACHLOR EPOXIDE 98% 0.0107 0.0002
HEXACHLOROBUTADIENE (Perchlorobutadiene) >98% 0.044 0.001
HEXACHLOROCYCLOPENTADIENE >99% 0.060 0.000002
LINDANE >99% 0.055 0.00001
METHOXYCHLOR >99% 0.050 0.0001
Methylbenzene (see TOLUENE) >99% 0.078 0.001
Monochlorobenzene (see CHLOROBENZENE) >99% 0.077 0.001
PCE (see TETRACHLOROETHYLENE) >99% 0.081 0.001
PENTACHLOROPHENOL >99% 0.096 0.001
Perchlorobutadiene (see HEXACHLOROBUTADIENE) >98% 0.044 0.001
Propylene Dichloride (see 1,2 -DICHLOROPROPANE) >99% 0.080 0.001
SIMAZINE >97% 0.120 0.004
Silvex (see 2,4,5-TP) 99% 0.270 0.0016
STYRENE (Vinylbenzene) >99% 0.15 0.0005
1,1,1-TCA (see 1,1,1 - TRICHLOROETHANE) 95% 0.084 0.0046
TCE (see TRICHLOROETHYLENE) >99% 0.180 0.0010
1,1,2,2- TETRACHLOROETHANE >99% 0.081 0.001
TETRACHLOROETHYLENE >99% 0.081 0.001
TOLUENE (Methylbenzene) >99% 0.078 0.001
2,4,5-TP (Silvex) 99% 0.270 0.0016
TRIBROMOACETIC ACID 0.042 0.001
1,2,4 TRICHLOROBENZENE (Unsymtrichlorobenzene) >99% 0.160 0.0005
1,1,1-TRICHLOROETHANE (1,1,1-TCA) 95% 0.084 0.0046
1,1,2-TRICHLOROETHANE >99% 0.150 0.0005
TRICHLOROETHYLENE (TCE) >99% 0.180 0.0010
TRIHALOMETHANES (TTHM) (Chloroform; Bromoform;
Bromodichloromethane; Dibromochloromethane) >99.8% 0.300 +/- 0.30 0.015
Unsym-Trichlorobenzene (see 1,2,4-
TRICHLOROBENZENE)
>99% 0.160 0.0005
Vinylbenzene (see STYRENE) >99% 0.150 0.0005
XYLENES (TOTAL) >99% 0.070 0.001
VOC Performance Data Sheet
Watts Premier Inc.
8716 W Ludlow Drive Sutie #1
Peoria, AZ 85381 USA
