Premium 0503ABWVAG70P User manual

Проверил: Р.Ч./07.2015г
Electric Pressure Washers
PREMIUM
0503ABWVAG70P
Operating Instructions
Original instructions

Проверил: Р.Ч./07.2015г
1
T h i s i n s t r u c t i o n m a n u a l i s i s s u e d b y t h e
m a n u f a c t u r e r F R I E N D L Y W A T E R L T D . , N I N G B O ,
R m 1 0 0 1 - 1 , 1 0 t h f l o o r , Y a o j i a n g X i n d u , C H I N A
Importer for Bulgaria: "VALERII S & M GROUP" AD, Sofia, №44 “Botevgradsko shose"
blvd Tel. :[phone], Fax: [phone], www.valerii.com
WARNING: Do not use the machine without reading the instruction sheet.
APPLICATION
THE PORTABLE PRESSURE WASHING MACHINE is a highly specialized multifunctional
machine with exceptionally reliable safety assurance, which must be inspected before it may be
used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses
etc.
Safety and Warning Information
Automatic ON/OFF:
The motor on this pressure washer does
not run continuously. It only runs when the
trigger of the spray gun is squeezed. After
following the start up procedures in this
manual, turn the pressure washer ON and
squeeze the trigger for activation. See
“Operating Instruction” section in this
manual for further details.
WARNING! The electrical supply
connection shall be made by a qualified
person and comply with IEC 60364-1. The
electric supply to this machine should
include either a residual current device that
will interrupt the supply if the leakage
current to earth exceeds 30 mAfor 30 ms or
a device that will prove the earth circuit.
WARNING! The operating method to be
followed in the event of accident (e.g.
contact with detergents: rinse with an
abundance of clean water) or breakdown to
prevent unsafe situations.
WARNING!The motor of this pressure
washer will NOT run unless the trigger is
squeezed.
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY

Проверил: Р.Ч./07.2015г
1
and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following symbols.
DANGER!Danger indicates an
imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
WARNING!Warning indicates a
potentially hazardous situation
which, if not avoided, COULD result
in death or serious injury.
CAUTION: Caution indicates a
potentially hazardous situation
which, if not avoided, MAY result in
minor or moderate injury.
NOTE: Information that requires special
attention.
Important Safety Instructions
SAVE THESE INSTRUCTIONS
WARNING! When the machine is used,
following precautions should always be
considered:
1. Read all instructions before using the
machine.
2. To reduce the risk of injury, close
supervision is necessary when a machine is
used near children.
3. ALWAYS disconnect power before
disassembling or repairing the unit of the
machine.
4. Follow all safety codes as well as the
Occupational Safety and Health Act
(OSHA).
5. Ensure safety devices are operating
properly before using the machine. DO
NOT remove or modify any part of the gun
or unit of the machine.
6. Knowhowto stop this machine and bleed
pressure quickly. Be thoroughly familiar with
the controls.
7. Stay alert –watch what you are doing.
8. Do not operate the machine when
fatigued or under the influence of alcohol or
drugs.
9. Keep operation area clear of all persons.
10. Do not overreach or stand on unstable
support. Keep good footing and balance at
all times.
11. Follow the maintenance instructions
specified in the manual.
12. Use cleaning agent supplied or
recommend by the manufacturer.
13. Only put the machine on stable place
when using, transportation, assembly,
dismantling. Do not rough handling the
machine when transportation.
14. In any event of accident (e.g. contact
with detergents, rinse with an abundance of
clean water), please always switch off the

Проверил: Р.Ч./07.2015г
2
machine and pull out the plug from socket
outlet, and Disconnect the connection with
water.
15. The machine is not intended to be
connected to the potable water mains. If
necessary, please use only inlet hose-set
approved by IEC 61770.
Risk of injection or severe injury.
Keep clear of nozzle. Do not
discharge streams at persons. This
machine is to be used only by
trained operators. Always remove
lance from gun before cleaning
debris from tip.
• Keep clear of nozzle. NEVER direct high
pressure spray at any person, animal or
self.
• Always wear safety glasses or goggles
and protective clothing when operating or
performing maintenance.
• Never put hand or fingers over the spray
tip while operating the unit.
• Never try to stop or deflect leaks with any
body part.
• Always engage the trigger safety latch in
the safe position even when spraying is
stopped for a moment.
• Always follow detergent manufacturer’s
label recommendations for proper use of
detergents. Always protect eyes, skin, and
respiratory system from detergent use.
WARNING!
SERVICING OF A DOUBLE-
INSULATED MACHINE
In a double-insulated machine, two systems
of insulation are provided instead of
grounding. No grounding means are
provided for a double-insulated machine,
nor should grounding means be added to
the machine. Servicing a double-insulated
machine requires extreme care and
knowledge of the system, and should be
done only by qualified service personnel.
Replacement pars for a double-insulated
machine must be identical to the original
parts. A double-insulated machine is
marked with the words “Double Insulation
"or “Double Insulated.” Machine may also
be marked with symbol shown in Figure 1.
WARNING!Do not use pressure
that exceeds the operating
pressure of any of the parts (hoses,
fittings, etc.) in the pressurized
system. Ensure all equipments and
accessories are rated to withstand

Проверил: Р.Ч./07.2015г
3
the maximum working pressure of
the unit.
WARNING!Explosion hazard.
Never spray flammable liquids or use
pressure washer in areas containing
combustible dust, liquids or vapors.
Never operate the machine in a closed
building or in or near an explosive
environment.
WARNING!Do not spray electrical
apparatus and wiring.
•Never disconnect the high pressure
discharge hose from the machine while the
system is pressurized. To depressurize
machine, turn power and water supply off,
then press gun trigger 2~3 times.
•Never permanently engage the trigger
mechanism on the gun.
•Never operate the machine without all
components properly connected to the
machine (handle, gun/wand assembly,
nozzle, etc.).
WARNING! Equipment damage.
• ALWAYS turn water supply “ON” before
turning pressure washer “ON.” Running
pump dry causes serious damage.
• Do not operate the pressure washer with
the inlet water screen removed. Keep
screen clear of debris and sediment.
• NEVER operate pressure washer with
broken or missing parts. Check equipment
regularly and repair or replace worn or
damaged parts immediately.
• Use only the nozzle supplied with this
machine.
•Never leave the wand unattended while
the machine is running.
•Never attempt to alter factory settings.
Altering factory settings could damage the
unit and will void the warranty.
• Always hold gun and wand firmly when
starting and operating the machine.
• NEVER allow the unit to run with the
trigger released (off) for more than one (1)
minute. Resulting heat buildup will damage
pump.
• Pressure washer is not supposed to pump
hot water. NEVER connect it to a hot water
supply as it will significantly reduce the life
of the pump.
• NEVER store the pressure washer
outdoors or where it could freeze. The
pump will be seriously damaged.
• Release trigger when changing from high
to low pressure modes. Failure to do so
could result in damage.
• Be aware of the recoil caused by the
water jet when the machine is switched on.
CAUTION: Keep hose away from
sharp objects. Bursting hoses may

Проверил: Р.Ч./07.2015г
4
cause injury. Examine hose
regularly and replace it if damaged.
Do not attempt to mend a damaged
hose.
EXTENSION CORDS
The use of an extension cord is not
recommended. Use only extension cords
intended for outdoor use. These are
identified by the mark “Acceptable for
use with outdoor machines; store indoors
while not in use.” Use only extension cords
having an electrical rating equal to or more
than the rating of the machine. Do not use
damaged extension cords. Examine
extension cord before using and replace it if
damaged. Do not abuse extension cord. Do
not pull on the cord to disconnect. Keep
cord away from heat and sharp edges.
Always disconnect cord from receptacle
before disconnecting machine from
extension cord.
DANGER!Failure to follow these
instructions can result in serious injury,
including death.
WARNING!To reduce the risk of
electrocution, keep all connections dry and
off the ground. Do not touch plug with wet
hands.
This machine is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the machine
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the machine.
WARNING! This machine has been
designed for use with the cleaning agent
supplied or recommended by the
manufacturer. The use of other cleaning
agents or chemicals may adversely affect
the safety of the machine.
WARNING! High pressure jets can be
dangerous if subject to misuse. The jet
must not be directed at persons, live
electrical equipment or the machine itself.
WARNING! Recommend the operator to
wear ear protectors.
WARNING! Do not use the machine
within range of persons unless they wear
protective clothing.
WARNING! Do not direct the jet against
yourself or others in order to clean clothes
or foot-wear.
WARNING! Risk of explosion-Do not
spray flammable liquids.

Проверил: Р.Ч./07.2015г
5
WARNING! High pressure cleaners shall
not be used by children or untrained
personnel.
WARNING! High pressure hoses, fittings
and couplings are important for the safety of
the machine. Use only hosed, fittings and
couplings recommended by the
manufacturer.
WARNING! To ensure machine safety,
use only original spare parts from the
manufacturer or approved by the
manufacturer.
WARNING! Water that has flown through
backflow preventers is considered to the
non-potable.
WARNING! The machine shall be
disconnected from its power source by
removing the plug from the socket-outlet
during cleaning or maintenance and when
replacing the machine to another function.
WARNING! Do not use the machine if a
supply cord or important parts of the
machine are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
WARNING! If an extension cord is used,
the plug and socket must be of watertight
construction.
WARNING! Inadequate extension cords
can be dangerous. If an extension cord is
used, it shall be suitable for outdoor use,
and the connection has to be kept dry and
off the ground. It is recommended that this
is accomplished by means of a cord reel
which keeps the socket at least 60mm
above the ground.
WARNING! In order to avoid a hazard
due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied
through an external switching device, such
as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
Warning symbol: Machine not suitable for
connection to the potable water mains.
WARNING! The machine is intended to
be used at a temperature above o degree.
(Only for machine with power cord of
H05VV-F).
WARNING! To ensure the machine
safety, please only use original spare parts
(including nozzle) from the manufacturer or
approved by the manufacturer. Do not use
the machine before you changed them if
they are damaged.
WARNING! Be care of the danger of the
kickback force on the spray assembly when

Проверил: Р.Ч./07.2015г
6
opening the trigger gun and grasp the gun
with hands firmly.
WARNING! When the machine is moving
and installing, the machine must be in flat.
When moving the machine, pulling the
handle to move it.
WARNING! Connect to the water supply.
The machines are not suitable for
connection to potable water mains.
Connect the machine to the water supply. (It
can be a water container).
Make sure the inlet water pressure keeps
between 0.01MPa and 0.4MPa.
The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged.
If you want connect this machineto portable
water mains, you must install a backflow
preventer in the water pipe to prevent dirty
water flow back to the drinking water
system. The backflow preventer shall
comply with EN 60335-2-79ANNEXAA.
WARNING! Disconnect from the
electrical power supply before carrying out
user maintenance.
If the mains cable is damaged it must be
replaced by the manufacturer, or its service
agent or similarly qualified person to avoid a
hazard.
Connection
1. Attach the high pressure hose to the
pressure water outlet of the machine.
2. Attach the spray handle to the high
pressure hose. Prior to operating the
machine please ensure that the high
pressure hose has been completely
uncoiled. Whilst the machine is in
operation the hose MUST not loop.
3. Mount the nozzle or any other equipment
you want to use.
4. Connect the machine to the water and
power supplies.

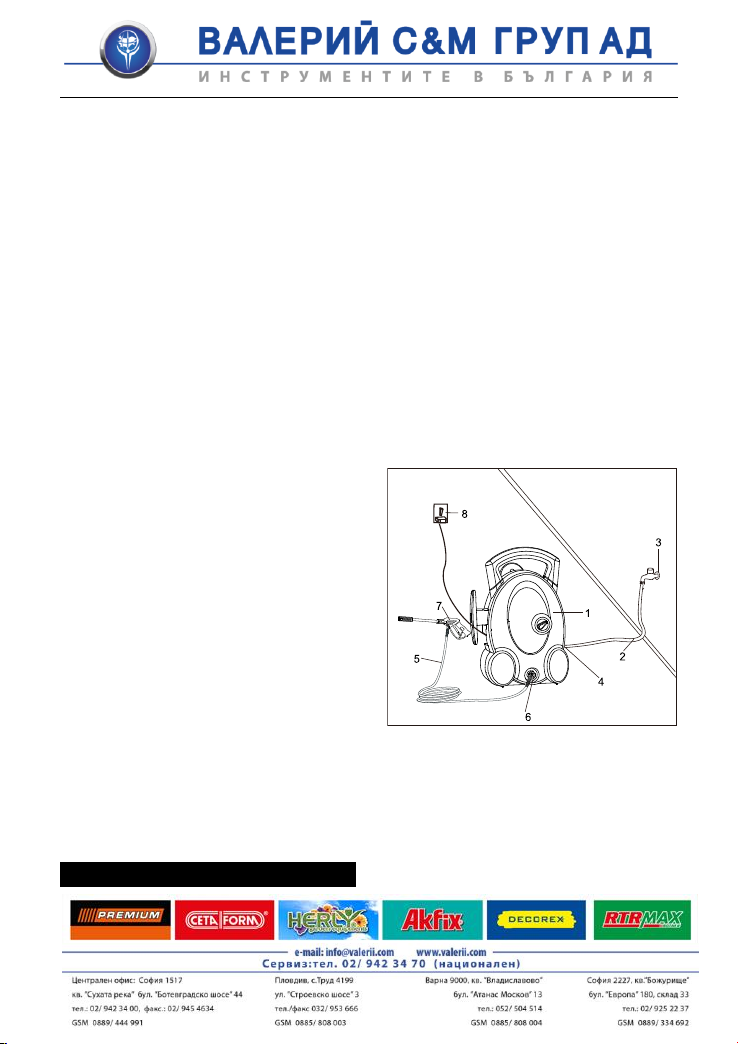

INSTALLATION, ELECTRICAL
AND WATER CONNECTIONS
1. pressure cleaner 2. water supply hose
3. water connection 4. water inlet
5. high pressure tube
6. water outlet(backside)
7. spray gun 8. power supply
* No. 2, 3, 8 are not included

Проверил: Р.Ч./07.2015г
7
Pre-operation
ADJUSTING FAN PATTERN
The angle of spray coming out of the lance
may be adjusted on some lances by rotating
the nozzle. This will vary the spray pattern
from approximately a 0° narrow high impact
stream to a 60° wide fan spray.
( See Figure2)
A narrow stream has high impact force on
the cleaning surface and results in
maximum deep cleaning in a concentrated
area. However, this narrow high impact
spray must be used cautiously, as it may
damage some surfaces.
A wide fan pattern will distribute the impact
of the water over a larger area, resulting in
excellent cleaning action with a reduced risk
of surface damage, Large surface areas
can be cleaned more quickly using a wide
fan pattern.
NOZZLE CLEANING INSTRUCTI-
ONS
A clogged or partially clogged nozzle can
cause a significant reduction of water
coming out of the nozzle and cause the unit
to pulsate while spraying. To clean out the
nozzle:
• Turn off and unplug unit.
• Turn off water supply. Relieve any
pressure trapped in the hose by squeezing
trigger 2-3 times.
• Separate lance from gun.
• Rotate nozzle to the narrow stream setting.
This opens up the fan blades.

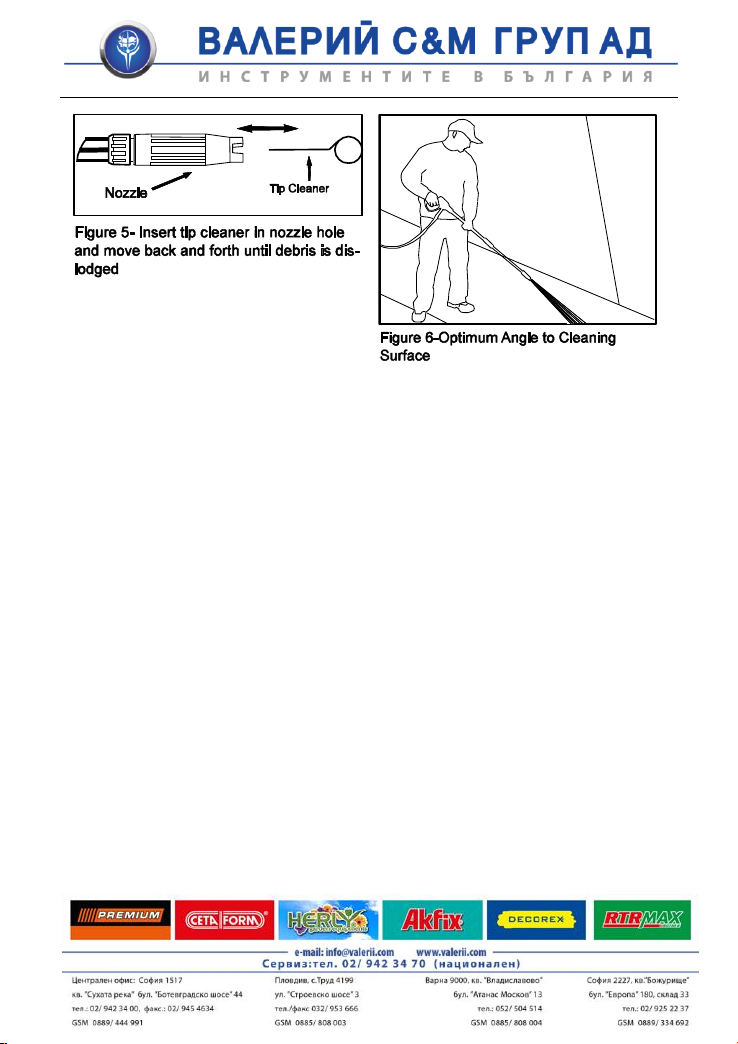

• Using included tip cleaner, or an unfolded
paper clip, insert wire into the nozzle hole
and move back and forth until debris is
dislodged. (See Figure 5.)

Проверил: Р.Ч./07.2015г
8
• Remove additional debris by
back-flushing water through the nozzle. To
do this, place end of a garden hose ( with
water running ) to end of nozzle for 30-60
seconds.
ANGLE TO THE CLEANING
SURFACE
When spraying water against a surface,
maximum impact is generated when the
water strikes the surface “head on.”
However, this type of impact tends to cause
dirt particles to imbed in the surface,
thereby preventing the desired cleaning
action.
The optimum angle for spraying water
against a cleaning surface if 45 degrees.
Spraying water against a surface at this
angle provides for the most beneficial
impact force combined with efficient
removal of debris from the surface.
DISTANCE FROM CLEANLING
SURFACE
Another factor that determines the impact
force of the water is the distance from the
spray nozzle to the cleaning surface. The
impact force ofthe water is increased as the
nozzle is moved closer to the surface.
HOW TO AVOID DAMAGING
SURFACES
Damage to cleaning surfaces occurs
because the impact force of the water
exceeds the durability of the surface. The
