PreSens OXY-1 ST Trace User manual

OXY-1 ST (Trace)
TRANSMITTERS
Instruction Manual

© 2017 PreSens Precision Sensing GmbH
www.PreSens
.de
OXY-1 ST (Trace)
Specification:
Fiber optic (trace) oxygen meter for use
with oxygen sensor spots, flow-through cells, dipping
probes & microsensors
Software:
PreSens Measurement Studio (PMS2)
Document filename: IM_OXY-1 ST_dv1
All rights reserved. No parts of this work may be reproduced in any form or by any means -
graphic, electronic, or mechanical, including photocopying, recording, taping, or information
storage and retrieval systems - without the written permission of the publisher.
Products that are referred to in this document may be either trademarks and/or registered
trademarks of the respective owners. The publisher and the author make no claim to these
trademarks.
While every precaution has been taken in the preparation of this document, the publisher and
the author assume no responsibility for errors or omissions, or for damages resulting from the
use of information contained in this document or from the use of programs and source code
that may accompany it. In no event shall the publisher and the author be liable for any loss of
profit or any other commercial damage caused or alleged to have been caused directly or
indirectly by this document.
Specifications may change without prior notice.
Manufacturer
PreSens
Precision Sensing GmbH
Am BioPark 11
93053 Regensburg, Germany
Phone [phone]
Fax [phone]
[email protected]
www.PreSens.de

© 2017 PreSens Precision Sensing GmbH
www.PreSens
.de
Table of Contents
1Preface...........................................................................................................................7
2Safety Notes..................................................................................................................8
3Set-Up............................................................................................................................ 9
4Technical Data............................................................................................................11
5Operational Notes ......................................................................................................12
5.1 Optical Output ............................................................................................................12
5.2 Maintenance................................................................................................................ 12
5.3 Service.........................................................................................................................12
6Concluding Remarks .................................................................................................13

7
OXY-1 ST (Trace)
© 2017 PreSens Precision Sensing GmbH
ww.PreSens.
de
Preface
1 Preface
You have chosen a new, innovative technology for measuring oxygen.
The OXY-1 ST (Trace) is a compact fiber optic oxygen meter. It is based on a novel
technology, which creates very stable, internally referenced measured values. This allows a
more flexible use of oxygen sensors in various fields of interest.
Optical oxygen sensors (also called optrodes) have several important features:
They are small.
Their signal does not depend on the flow rate of the sample.
They can be physically divided from the measuring system which allows a non-
invasive measurement.
They can be used in disposables.
Microsensors allow measurements with high spatial resolution whenever this is
required.
Therefore, they are ideally suited for the examination of small sample volumes, for highly
parallelized measurements in disposables, and for biotechnological applications. A set of
different oxygen mini- and microsensors, flow-through cells and non-invasive sensors is
available to make sure you have the sensor which matches your application.
Please feel free to contact our service team to find the best solution for your application.
Your PreSens Team
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE WORKING
WITH THIS DEVICE. WHEN DISREGARDING THESE INSTRUCTIONS THE SAFETY OF
THE DEVICE CAN BE IMPAIRED.

8
© 2017 PreSens Precision Sensing GmbH
ww.PreSens.
de
OXY-1 ST (Trace)
Safety Notes
2 Safety Notes
!It is the customer’s responsibility to validate the sensor and transmitter under end-user
conditions according to safety precautions of the application to ensure that the use of
the sensor is safe and suitable for the intended purpose.
PreSens is explicitly not liable for direct or indirect losses caused by the application of these
measurement systems. In particular it has to be considered that malfunctions can occur due
to the naturally limited lifetime of the sensor depending on the respective application. The set-
up of backup measurement stations is recommended when using the sensors in critical
applications to avoid consequential losses. It is the customer’s responsibility to install a
suitable safety system in the event of sensor failure.

9
© 2017 PreSens Precision Sensing GmbH
OXY-1 ST (Trace)
Set-Up
3 Set-Up
1. Remove the protective cap from the male plug on the optical fiber and insert it in the ST
connector of the OXY-1 ST. The ST plug has to be inserted and slightly turned clockwise
to fasten it. Be careful not to snap off the optical fiber; best hold the fiber between
forefinger and thumb at the bayonet lock of the male plug.
For further information on sensor handling and calibration please refer to the respective
sensor instruction manual (www.presens.de/manuals).
2. Connect the USB cable to the connector on the OXY-1 ST and to an USB port of your PC
/ notebook.
3. If required, you can now connect a Pt100 temperature sensor to the device. There is a red
mark on the temperature sensor connector of the OXY-1 ST as well as on the
temperature sensor plug. Match those two marks before inserting the temperature sensor
plug into the connector on the device, else the plug might get damaged.

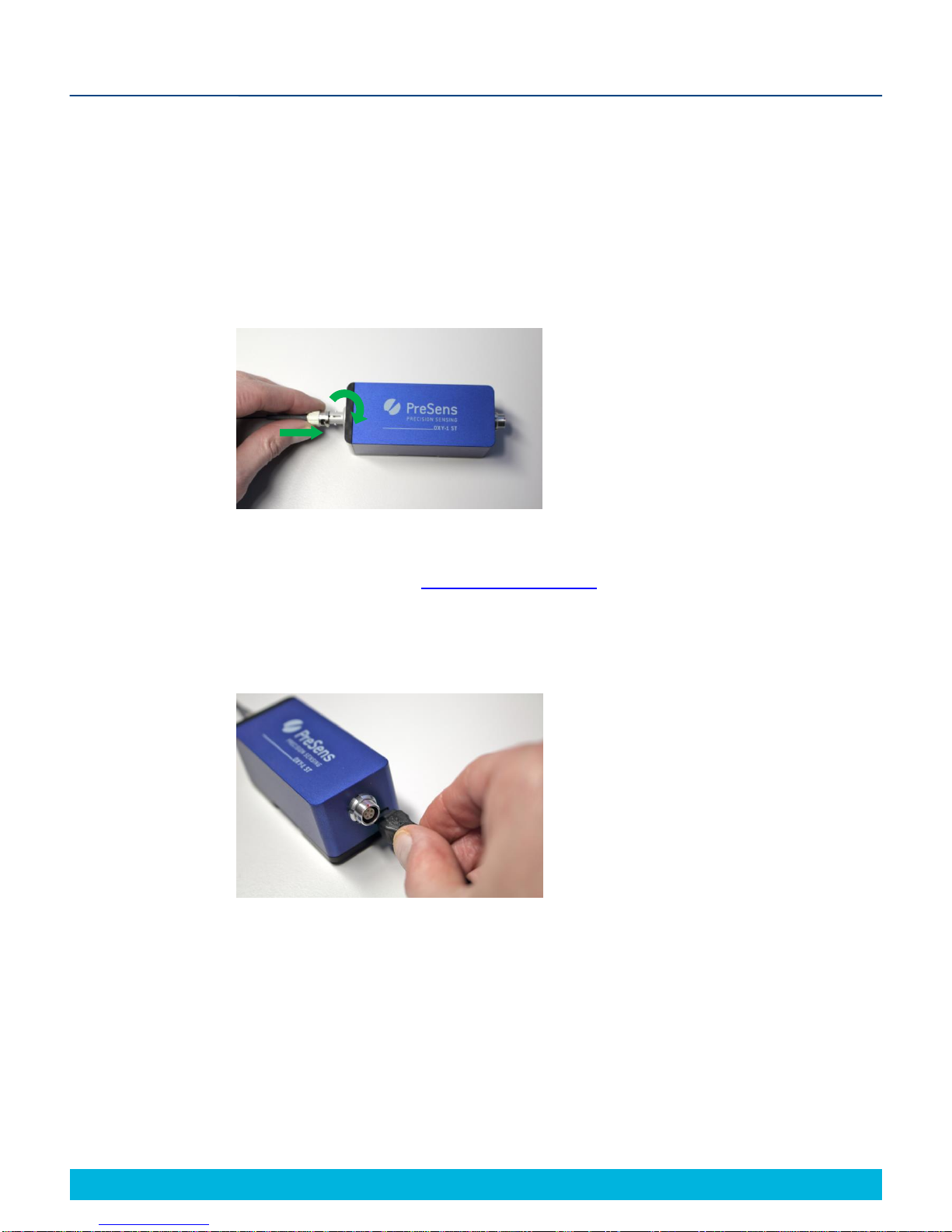

Fig. 1 Connecting the ST plug to the OXY-1 ST
Fig. 2 Connecting the USB cable

10
© 2017 PreSens Precision Sensing GmbH
OXY-1 ST (Trace)
Set-Up
4. Now start the PreSens Measurement Studio (PMS2) software on your PC / notebook.
(The OXY-1 ST always has to be connected via USB before the software is started.) After
successful initialization the software main screen is displayed and the OXY-1 ST will show
in the Device section.
For further details on how to use the PreSens Measurement Studio please refer to the
software instruction manual.
Important Considerations for USB Handling
!PreSens recommends the use of a dedicated USB 2.0 PCI Card to connect and
handle USB PreSens Devices with a Desktop PC.
!In order to enhance the system stability avoid the use of USB hubs and connect
PreSens Devices directly to your PC / notebook USB Ports.
!If possible, disconnect all other USB devices that are not in use, as they may reduce
or disturb the USB resources of your PC / notebook.
!Docking stations may also reduce or disturb the USB resources of your PC / notebook
and therefore affect the correct function of the software.
!It is also recommended to disable the Power Saving Settings of your USB Root
controller.

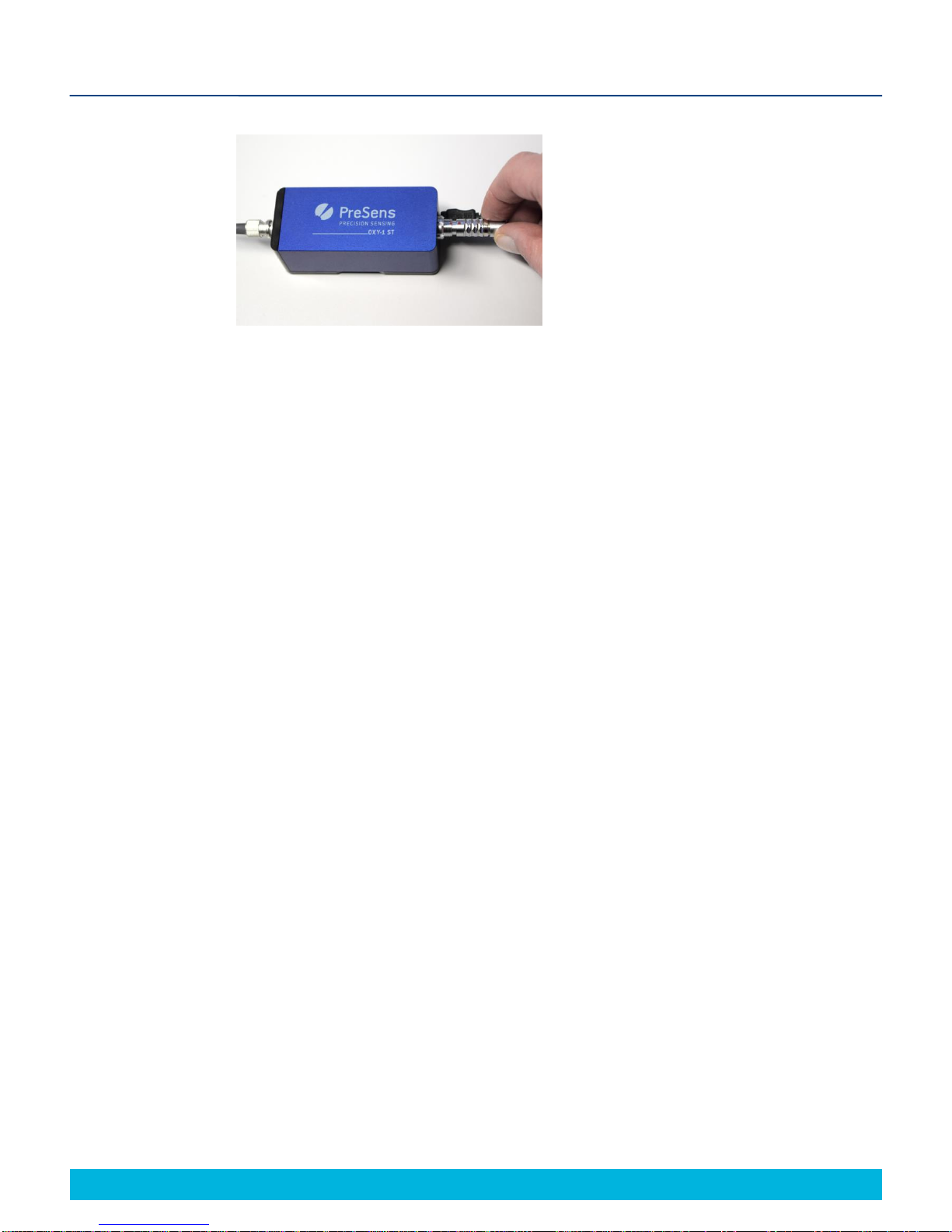

Fig. 3 Connecting the temperature sensor

11
OXY-1 ST (Trace)
Technical Data
© 2017 PreSens Precision Sensing GmbH
4 Technical Data
OPTICAL SENSOR
Oxygen sensor
OXY-1 ST: PSt7
OXY-1 ST Trace: PSt7, PSt8
Optical connector
ST
Channels
1; up to 10 OXY-1 ST (Trace) can be controlled
simultaneously via PMS2 software
LED peak wavelength
633 nm
TEMPERATURE SENSOR
Potentiometric temperature sensor
(Pt100)
Range 0 –50 °C
Resolution 0.1 °C
POWER SUPPLY
Supply voltage
5 VDC (USB-2.0-Mini-B)
Current / Power
400 mA
DIGITAL INTERFACE
USB interface cable to PC
Cable included
ENVIRONMENTAL CONDITIONS
Operating temperature
0 °C to 50 °C
Storage temperature
- 20 °C to 70 °C
Relative humidity
0 % to 80 % (non-condensing)
DIMENSIONS / WEIGHT
H x L x W
ca. 30 x 95 (with connectors) x 34 mm
Weight
128 g

12
OXY-1 ST (Trace)
Operational Notes
© 2017 PreSens Precision Sensing GmbH
5 Operational Notes
5.1 Optical Output
The ST connector is a high precision optical component. Please keep it clean and dry. Always
use the rubber cap to close the output when not in use.
5.2 Maintenance
The transmitter is maintenance-free.
The housing should be cleaned with a cloth only. Avoid any moisture entering the housing.
Never use benzine, acetone, alcohol or any other organic solvents.
The ST fiber connector of the sensor can be cleaned with lint-free cloth or a cleaning
implement for ST connectors only.
5.3 Service
Alignment, rework or repair work may only be carried out by the manufacturer:
PreSens
Precision Sensing GmbH
Am BioPark 11
93053 Regensburg
Germany
Phone [phone]
Fax [phone]
[e-mail]
www.PreSens.de
Please contact our service team in case of any question. We look forward to helping you and
are open for any proposition or criticism.

13
OXY-1 ST (Trace)
Concluding Remarks
© 2017 PreSens Precision Sensing GmbH
6 Concluding Remarks
Dear Customer,
With this manual, we hope to provide you with an introduction to work with the OXY-1 ST fiber
optic oxygen meter.
This manual does not claim to be complete. We are endeavored to improve and supplement
this version.
We are looking forward to your critical review and to any suggestions you may have.
You can find the latest version at www.PreSens.de.
With best regards,
Your PreSens Team
