Presenza QL037 Assembly instructions

UTILITY CABINET WITH FAUCET AND
STAINLESS STEEL SINK
GABINETE CON GRIFO Y FREGADERO
EN ACERO INOXIDABLE
INSTALLATION GUIDE
AND USER MANUAL
GUÍA DE INSTALACIÓN
Y MANUAL OPERATIVO
Model No. QL037

2
ENGLISH
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................3
Lifetime Limited Warranty ...........................3
Warranty Claim Procedure...........................3
Pre-Installation.....................................4
Tools/Materials Required ............................4
Package Contents .................................5
Installation ........................................6

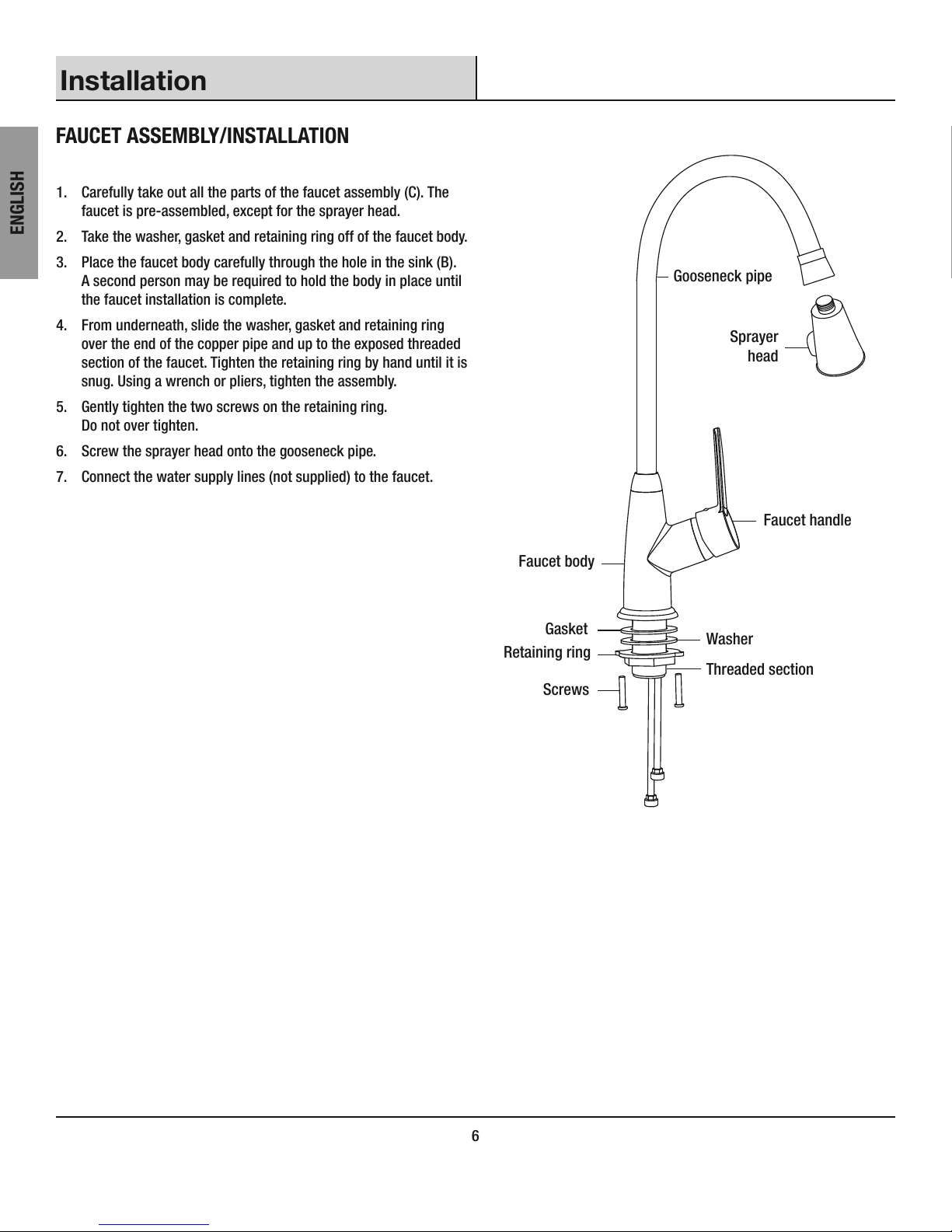

Faucet Assembly/Installation.........................6

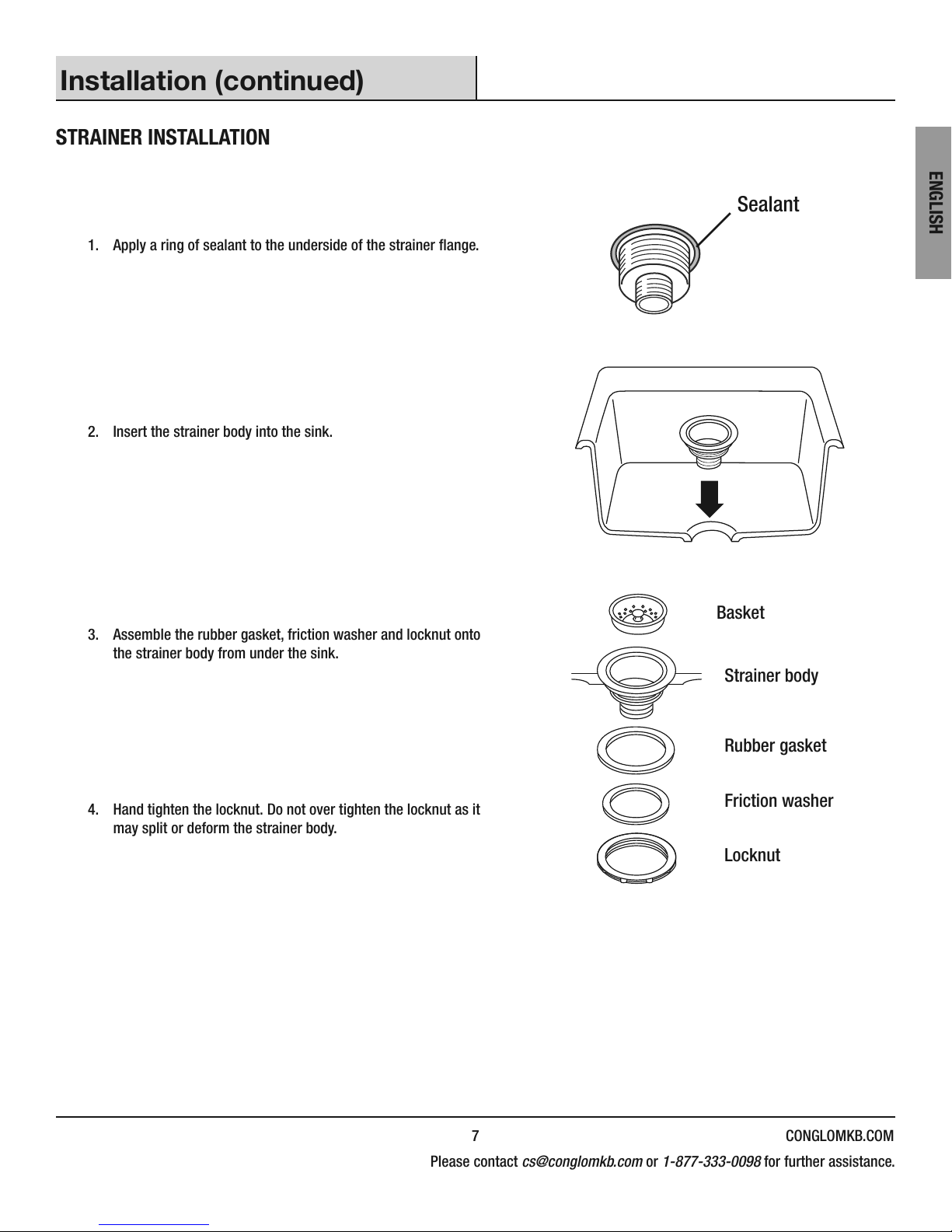

Strainer Installation ................................7
Base Installation ..................................8
Door Handle Installation.............................8

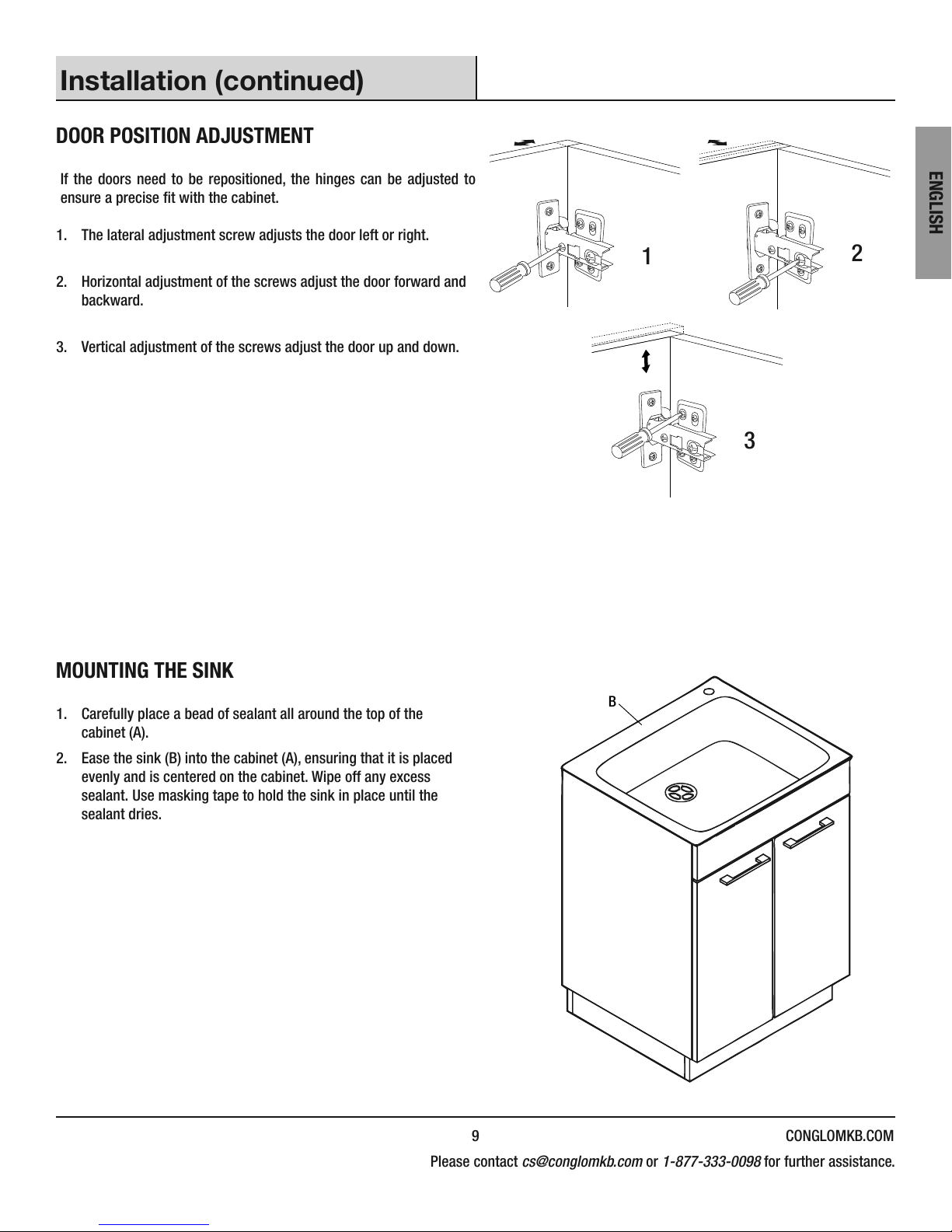

Door Position Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting the Sink .................................9
Placement ......................................10
Supply Line Assembly .............................10
Maintenance ......................................10
Cartridge Replacement ............................10

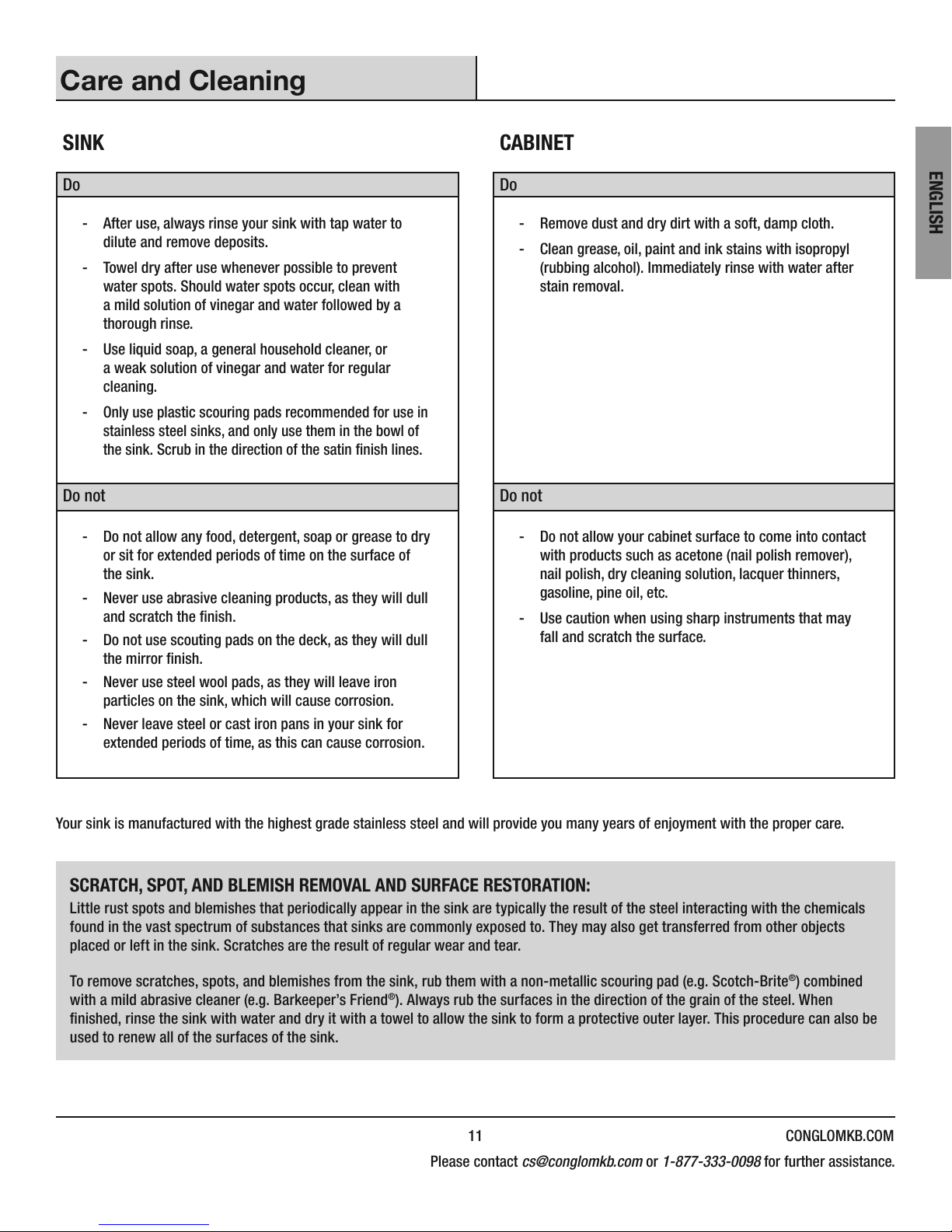

Care and Cleaning .................................11
Sink ...........................................11
Cabinet.........................................11

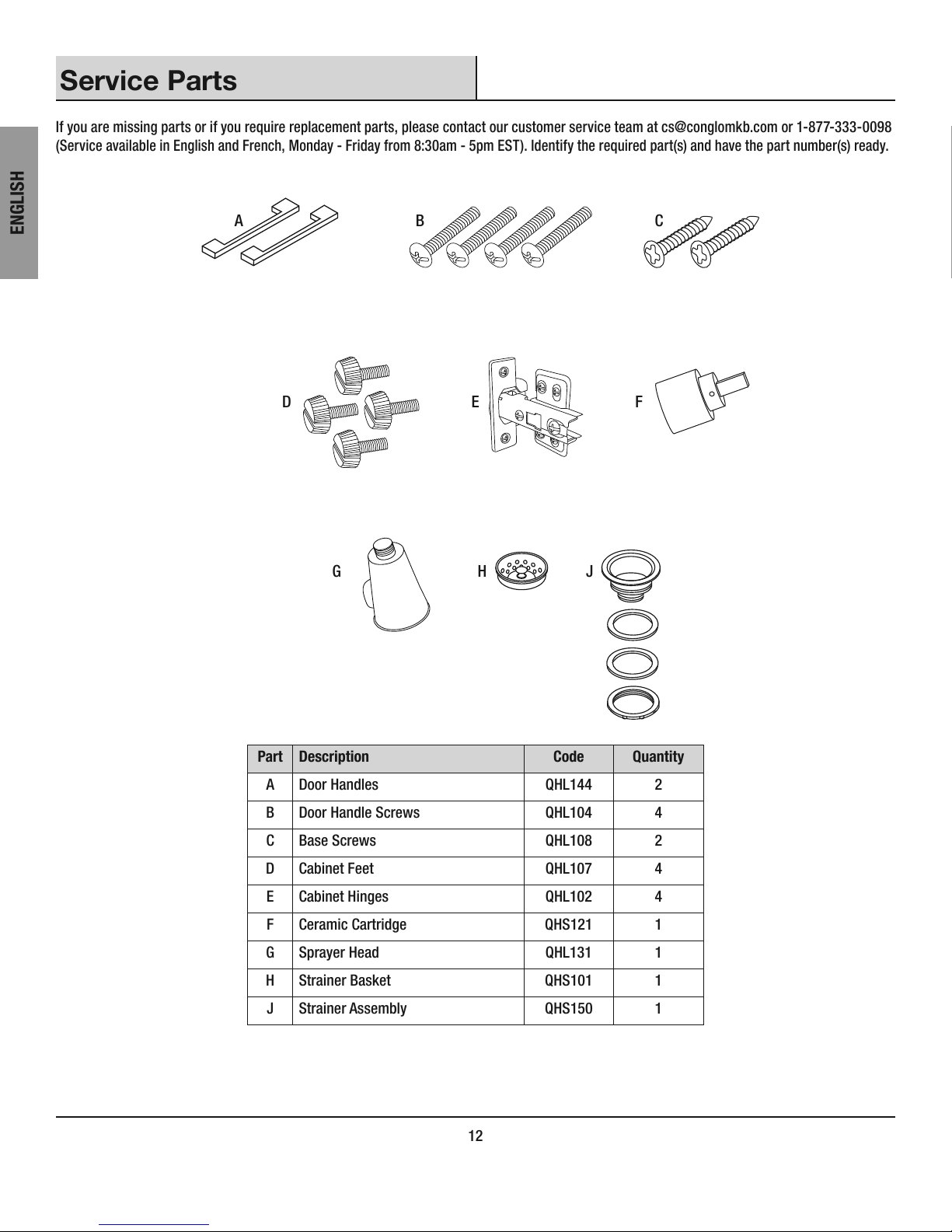

Service Parts......................................12

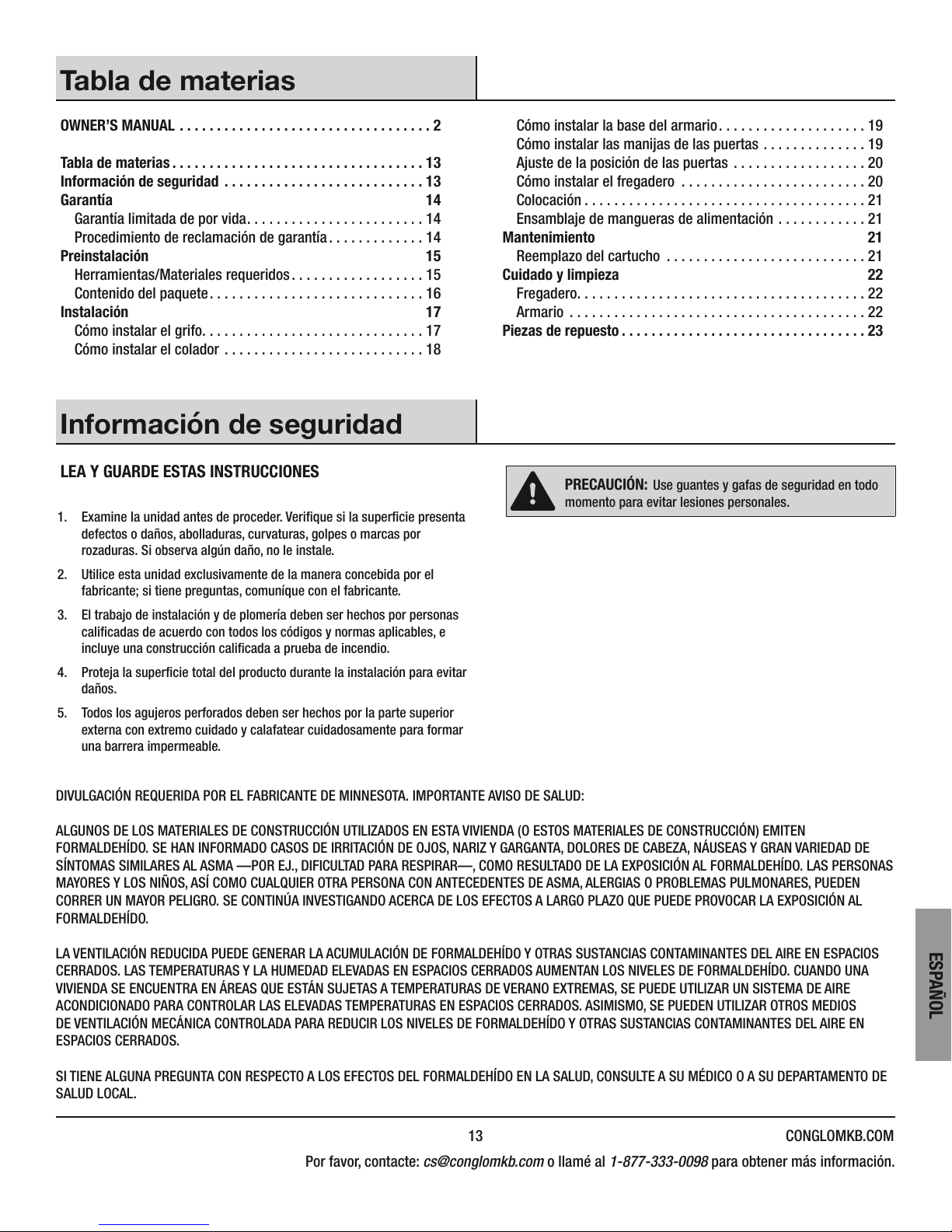

MANUAL DEL USARIO ...............................13
Safety Information
READ AND SAVE THESE INSTRUCTIONS
1. Inspect your unit before proceeding. Once you unpack your unit,
check for chips, scratches, cracks, dents or scuff marks. If any
damage is noticed, do not install.
2. Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the manufacturer.
3. Installation work and plumbing must be done by qualied
person(s) in accordance with all applicable codes and standards.
4. Protect the entire surface during installation.
5. All holes drilled into the unit must be done from the nished
surface side with extreme care and caulked very carefully to
form a watertight barrier.
DANGER: Always wear safety goggles and gloves in order
to avoid personal injury.
MANUFACTURER’S REQUIRED MINNESOTA DISCLOSURE. IMPORTANT HEALTH NOTICE:
SOME OF THE BUILDING MATERIALS USED IN THIS HOME (OR THESE BUILDING MATERIALS) EMIT FORMALDEHYDE. EYE, NOSE, AND
THROAT IRRITATION, HEADACHE, NAUSEA AND A VARIETY OF ASTHMA-LIKE SYMPTOMS, INCLUDING SHORTNESS OF BREATH, HAVE
BEEN REPORTED AS A RESULT OF FORMALDEHYDE EXPOSURE. ELDERLY PERSONS AND YOUNG CHILDREN, AS WELL AS ANYONE WITH
A HISTORY OF ASTHMA, ALLERGIES, OR LUNG PROBLEMS, MAY BE AT GREATER RISK. RESEARCH IS CONTINUING ON THE POSSIBLE
LONG-TERM EFFECTS OF EXPOSURE TO FORMALDEHYDE.
REDUCED VENTILATION MAY ALLOW FORMALDEHYDE AND OTHER CONTAMINANTS TO ACCUMULATE IN THE INDOOR AIR. HIGH
INDOOR TEMPERATURES AND HUMIDITY RAISE FORMALDEHYDE LEVELS. WHEN A HOME IS TO BE LOCATED IN AREAS SUBJECT TO
EXTREME SUMMER TEMPERATURES, AN AIR-CONDITIONING SYSTEM CAN BE USED TO CONTROL INDOOR TEMPERATURE LEVELS.
OTHER MEANS OF CONTROLLED MECHANICAL VENTILATION CAN BE USED TO REDUCE LEVELS OF FORMALDEHYDE AND OTHER
INDOOR AIR CONTAMINANTS.
IF YOU HAVE ANY QUESTIONS REGARDING THE HEALTH EFFECTS OF FORMALDEHYDE, CONSULT YOUR DOCTOR OR LOCAL
HEALTH DEPARTMENT.

3 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Warranty
ONE YEAR LIMITED WARRANTY
A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.
Conglom Kitchen & Bath warrants this product to be free from defects in materials or workmanship for one (1) year from the date of purchase.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to Conglom Kitchen & Bath for all
warranty claims.
This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than genuine Conglom Kitchen & Bath
replacement parts, (Replacement parts may be obtained by e-mail at [e-mail] or by calling 1-877-333-0098 between 8:30 am
- 5:00 pm EST) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor, service
provider or member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh or abrasive
cleaners and/or materials.
Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.
Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:
- Improper installation not in accordance with manufacturer’s instructions.
- Dents and/or scratches incurred during shipping, handling, or installation.
- Change in colour or nish due to chemical usage.
- Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.
- Alterations made to the unit by the purchaser or installer.
- Damage caused by accidental impact, re, ood, freezing, and normal wear.
- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.
- This warranty does not extend to commercial and institutional installation or use.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs or replacement parts are needed, please contact our customer service team at [e-mail] or 1-877-333-
0098 (Service available in English and French, Monday - Friday from 8:30am - 5pm EST).
Before you make your call, please ensure that you have:
- Model number or description.
- Proof of sale.
- Details regarding the defect and/or part number.
- Name(s) and address(es) of the owner and/or installer.

4
ENGLISH
Pre-Installation

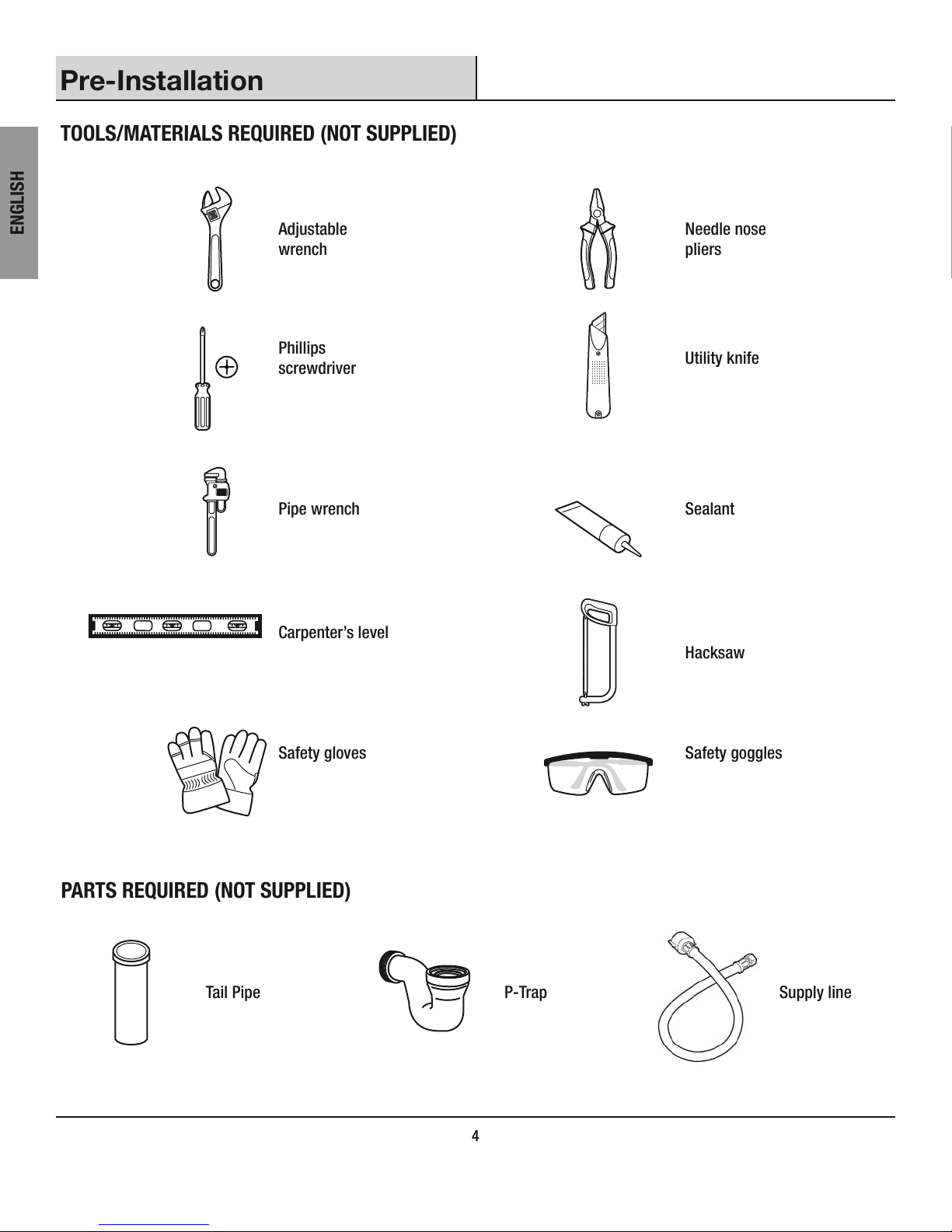

TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)
Adjustable
wrench
Needle nose
pliers
Phillips
screwdriver Utility knife
Pipe wrench Sealant
Carpenter’s level
Hacksaw
Safety gloves Safety goggles
PARTS REQUIRED (NOT SUPPLIED)
Tail Pipe P-Trap Supply line

5 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Pre-Installation (continued)

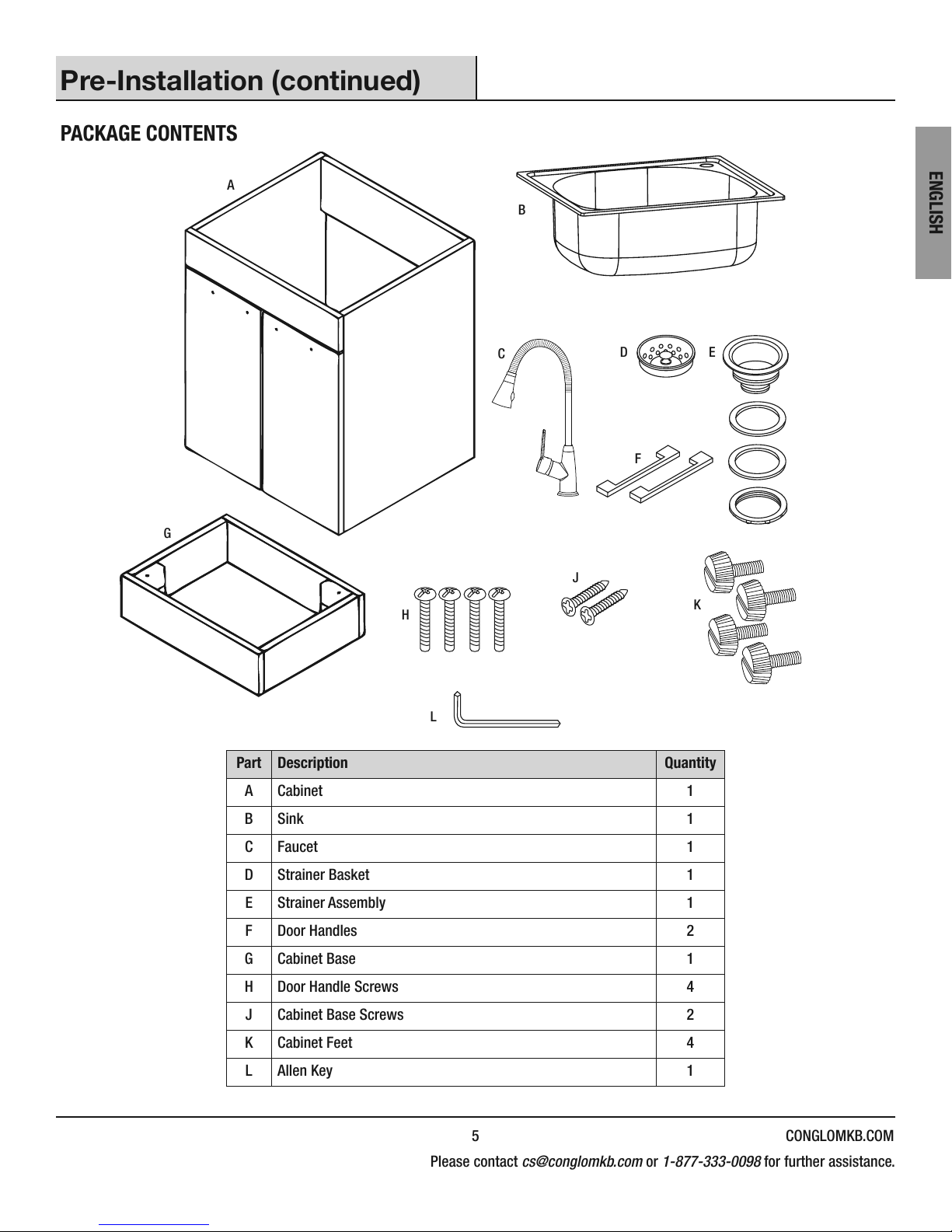

PACKAGE CONTENTS
A
B
C
F
G
H
J
L
K
D E
Part Description Quantity
A Cabinet 1
B Sink 1
C Faucet 1
D Strainer Basket 1
EStrainer Assembly 1
F Door Handles 2
G Cabinet Base 1
H Door Handle Screws 4
J Cabinet Base Screws 2
K Cabinet Feet 4
L Allen Key 1
