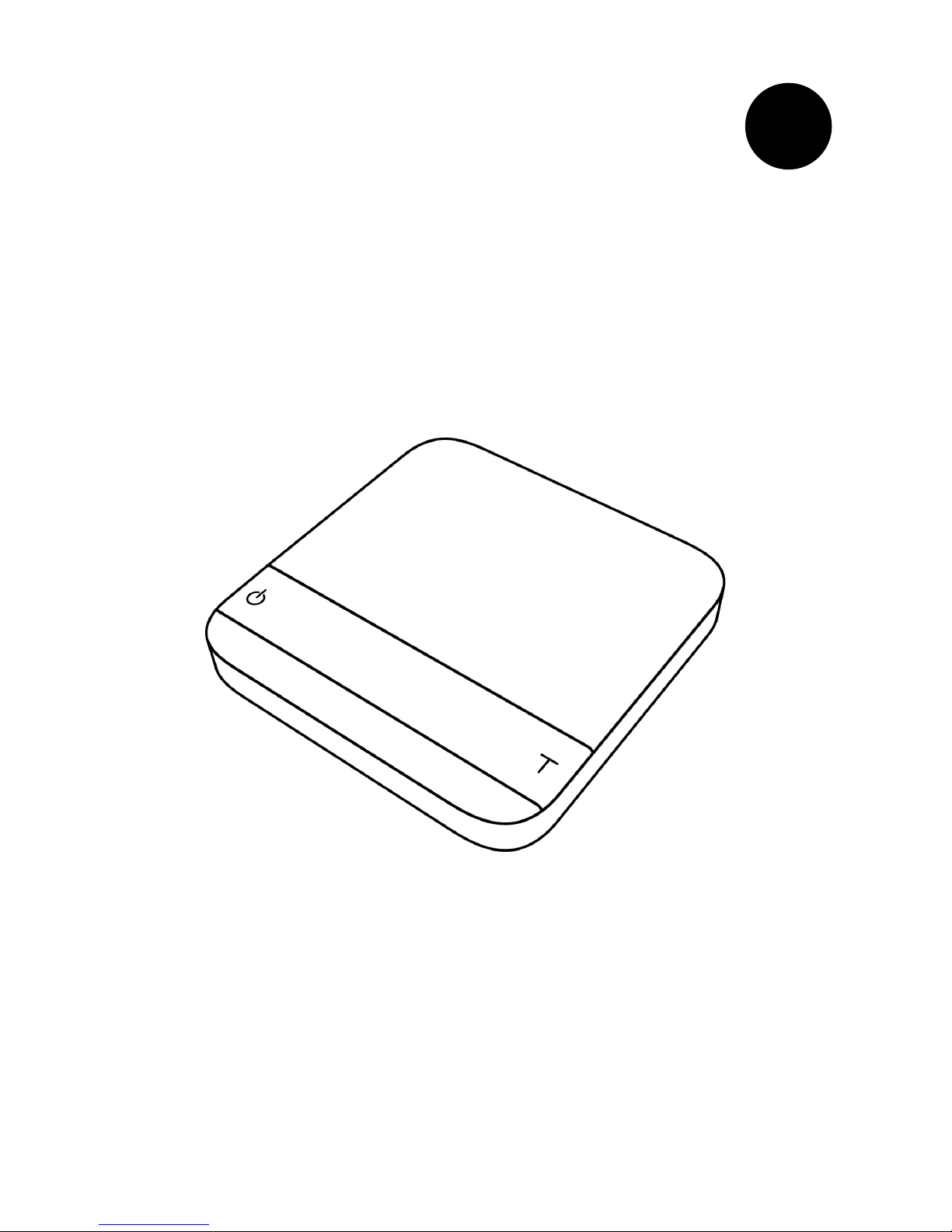

acaia lunar User manual

Using Your acaia Coffee Scale
Identification
The instructions in this operation manual apply to the acaia | lunar. You have purchased a quality
precision weighing scale that requires handling with care. Make sure to read through this operation
manual prior to using the scale.!
acaia | lunar Operation Manual
a c a i a

CAUTION:
1. Any modification made without the consent of the manufacturer will result in the
warranty being voided.
2. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.!

Contents
4 Chapter 1: Scale at a Glance
4 Introduction
4 Specification
5 Scale Overview
6 Accessories
6 Buttons
7 LED Indicators
7 Battery Charge
8 Chapter 2: Getting Started
8 Preparation
9 Charging and Setup
10 Chapter 3: Basics
10 An Overview of Operation Structure
11 Basic Operations
12 Weighing Mode
12 Dual Display Mode

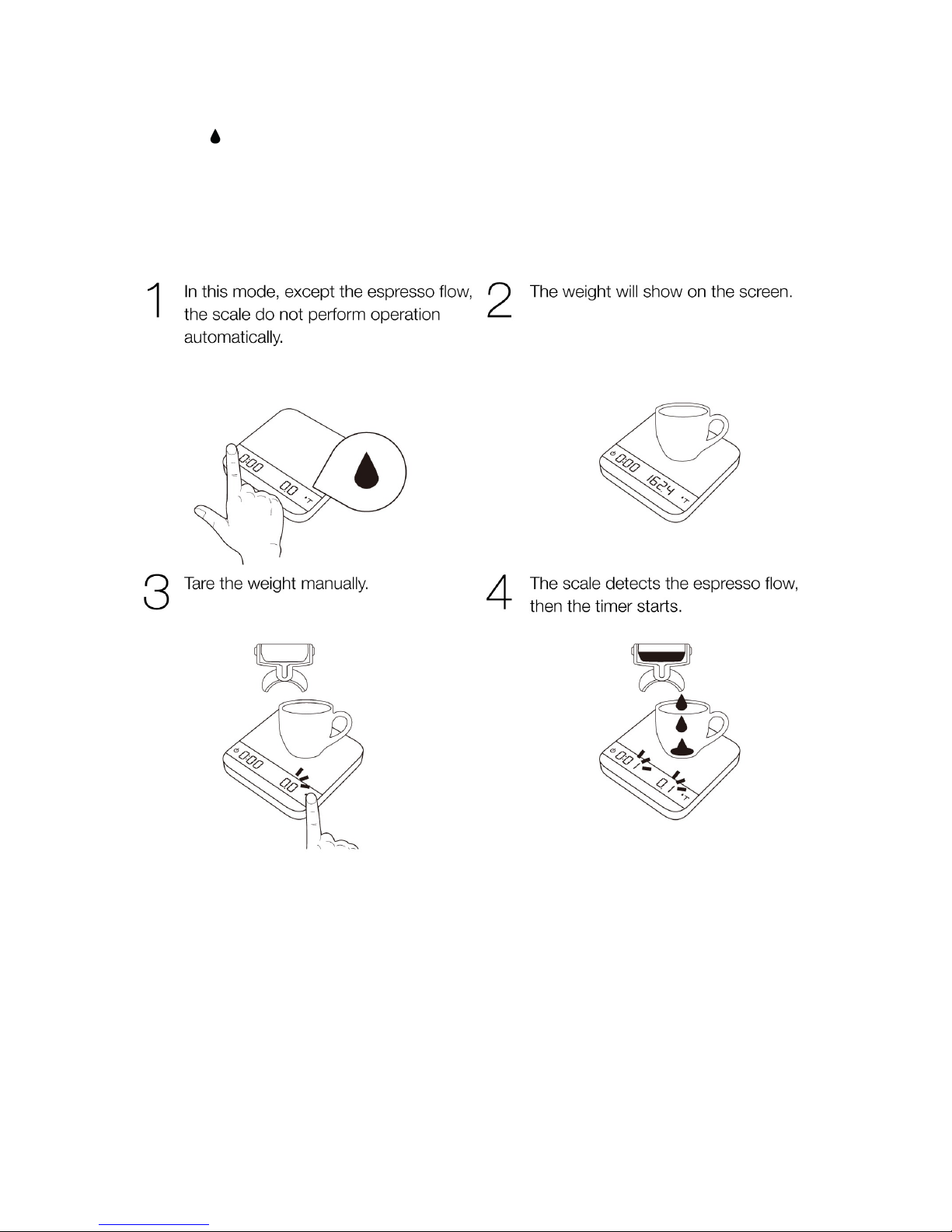

13 Auto Start Modes
19 Chapter 4: Configuration
19 Operations for Setup Mode
20 Diagram of Setup Mode Settings
21 Auto Switch Off Setting
21 Zero Tracking Setting
21 Key Sound Setting
22 Zero Range Setting
22 Weighing Filter Setting
22 Default Unit Setting
23 Weighing Resolution Setting
23 Weighting Mode Setting
23 Dual Display Mode Setting
23 Auto Start Mode Setting
24 Auto Start Mode Setting
24 Auto Start Mode Setting
24 Reset Password Setting
24 Bluetooth Setup Setting
25 Appendix A. Smart-Calibration
25 Calibration Mode
26 Appendix B. Display Codes
26 Error Code List
26 Others

Chapter 1: Scale at a Glance
Introduction
3. Thank you for choosing one of our scales. The acaia | lunar is designed and manufactured to
the most rigorous standard to give you the best coffee brewing experience. Start by checking
that your acaia | lunar box contains all the parts listed below:
"acaia | lunar "Micro USB cable
"acaia Scale Weight 100g "Heat Resistant Pad
4. Next, follow the instructions in the Preparation and Installation sections in the manual to get
started.
5. To take an advantage of its many features, carefully read through the operation manual
containing step-by-step procedures, examples, and other information.
6. Warning: Incorrect handling of this product could possibly result in personal injury or
physical damage.
Specifications
Aprox. weight
270g
Capacity
2000g / 70.54oz
Measuring Units
g , oz
Weighing range
Maximum capacity
2000.0g
70.540oz
Division
0.1g
0.002 oz
Reference division
0.01g
0.0005 oz
Indication limit
2060.00g / 72.6600oz
Unit dimensions
105mm(W) x 105mm (L) x 15.5mm (H)#
Electrical Requirements
5V/500mA
Power and Battery
Lithium-ion rechargeable 3.7V 1100mA
Display
8 digit LED
Top
Aluminum construction with acrylic
window,#touch sensitive buttons#
Bottom
Aluminum construction
Connectivity
Bluetooth 4.0
Linearity
+/- 0.2g
Chapter 1: Scale at a Glance 4

Scale Overview
"
Chapter 1: Scale at a Glance 5
Tare Key
Scale Front
Power Key
LED Display
Scale Back
Micro-B USB port
Weighing Pan

Accessories
"
Buttons
* Please see Chapter 3: Basics for more details.!
Function
Example
Power
Button
Turn on
Press and hold for 0.5 seconds to turn on the scale.
Turn off
Double click to turn the scale off.
Switch mode
While the scale is turned on, press and hold for 1 second to switch
modes: Weighing Mode / Dual Display Mode / Auto Start Modes.
Start / pause / reset
timer
While in Dual Display Mode, press to start/pause/reset timer.
While in Auto Start Modes, press to reset timer while the timer is
paused.
Back
While in Setup Mode, press to go back to Weighing Mode(Default
Setting).
Tare
Button
Tare
While in Weighing Mode/ Dual Display Mode/ Auto Start Modes,
press to perform tare operation.
Tare and reset timer
While in Auto Start Modes, double click Tare Button to zero weight
and reset timer.
Switch option
While in Setup Mode, press to switch options.
Confirm
While in Setup Mode, press and hold for 1 second to confirm the
option selected.
Enter calibration mode
While in Weighing Mode, continuously press multiple times to enter
Calibration Mode.
Chapter 1: Scale at a Glance 6
Micro USB
Charging Cable
Micro-B
Type A
acaia Scale Weight
100G

LED Indicators
Battery Charge
You can charge the battery by plugging the USB cable to any power supply listed below:
A computer USB port
A cell phone charger with a micro USB connector
An automotive cell phone charger with a USB port or a Micro USB cable
It takes 1-2 hours to fully charge the battery. You can charge the battery more frequently so
that it will never run out of charge.
Battery percentage can be viewed in acaia Apps.
It is not recommended to let the battery run out completely before charge.!
Chapter 1: Scale at a Glance 7

Chapter 2: Getting Started
Preparation
This scale is intended for indoor use.
Select a work place that is stable, vibration-free and, if possible, a horizontal location for the
weighing platform.
Do not locate the scale near any equipment/instrument which contains magnets.
Avoid places where room temperatures are unstable. Room temperature above 40℃or below
15℃may result in weighing inaccuracy.
Chapter 1: Scale at a Glance 8

Charging and Setup
To use AC adapter instead of the built-in battery, plug the USB cable into the Micro-B USB port
located on the back panel of the scale.
Press button for 0.5 seconds to turn on the scale.
Chapter 1: Scale at a Glance 9

Chapter 3: Basics

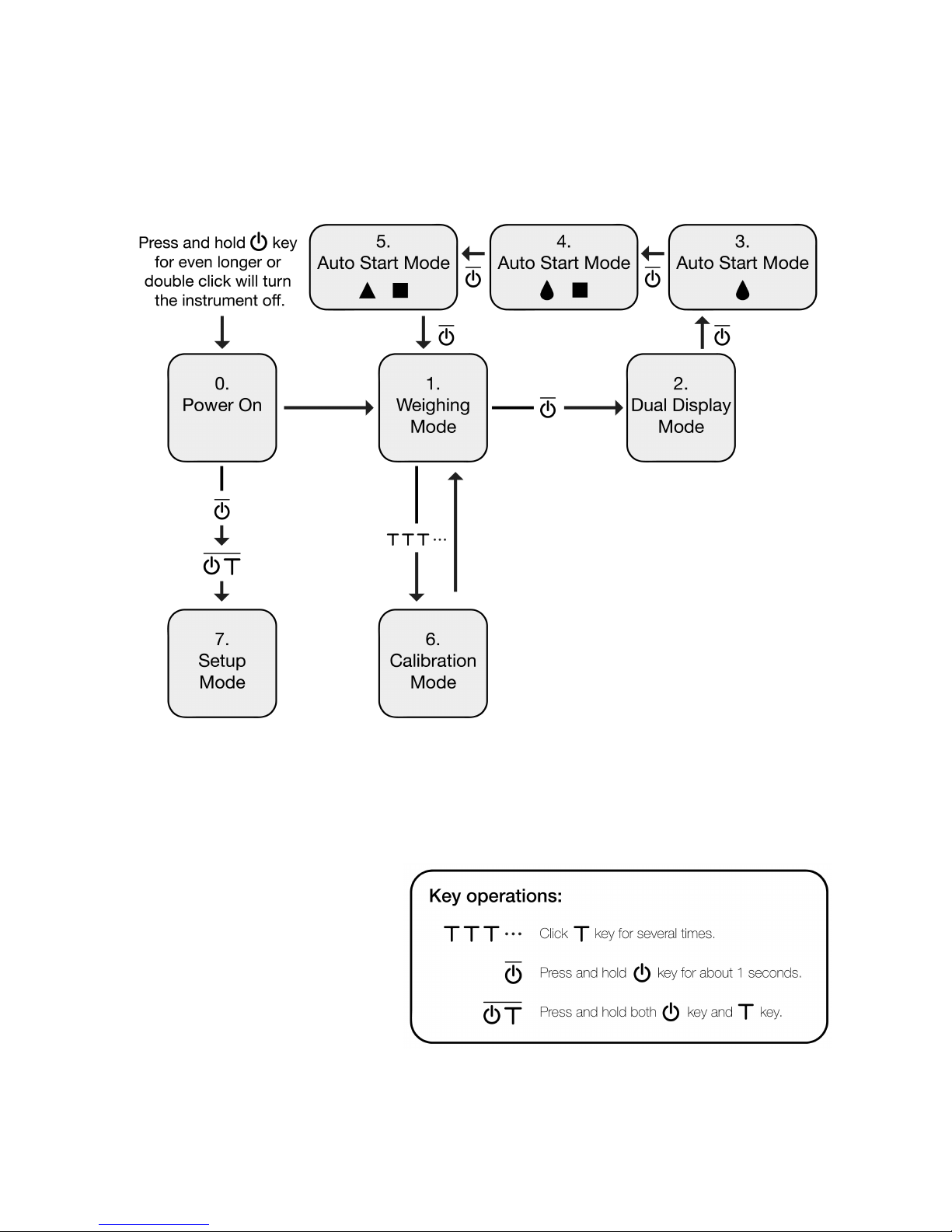

An Overview of Operation Structure
Chapter 3: Basics 10
