Pressalit PLUS R7634 User manual

R7634 - R7635
R7664 - R7665
R7834 - R7835
R7864 - R7865
PLUS shower seat 450 – Operation and maintenance manual en
PLUS brusesæde 450 – Brugs- og vedligeholdelsesvejledning dk
PLUS Duschsitz 450 – Gebrauchs- und Pegeanleitung de
PLUS siège de douche 450 – Manuel d’utilisation et d’entretien fr
PLUS douchezitting 450 – Gebruiks- en onderhoudshandleiding nl
PLUS duschsits 450 – Bruks- och underhållsanvisning sv
PLUS dusjsete 450 – Bruks- og vedlikeholdsveiledning no
PLUS asiento de ducha 450 - Instrucciones de uso y mantenimiento es
PLUS siedzisko prysznicowe 450 – Instrukcja obsługi ikonserwacji pl
PLUS 浴椅 450 - 操作和维护手册 中文
 PLUS 450 


English ................................................................. 7
Dansk ................................................................. 22
Deutsch ............................................................... 37
Français ............................................................... 52
Nederlands ............................................................ 67
Svenska................................................................ 82
Norsk.................................................................. 97
Español............................................................... 112
Polski................................................................. 127
中文 ............................................................142
  158
en The guarantee covers faults or defects in material or manufacture within a period of 5 years.
Products are subject to minor technical modifi cations and design deviations. E. & O.E.
dk Garantien dækker i 5 år fra fakturadato for materiale- og fabrikationsfejl. Der tages forbe-
hold for trykfejl, tekniske ændringer og modelafvigelser.
de Die Garantie gilt für drei Jahre ab Rechnungsdatum für Material- und Herstellungsfehler.
Druckfehler, technische Änderungen und Modellabweichungen vorbehalten.
fr La garantie couvre les vices de fabrication et de matériaux pour une durée de 5 ans à partir
de la date de facturation. Sous réserve de modifi cations techniques et d’erreurs d’impression.
nl De garantie is tot 5 jaar na factuurdatum geldig voor materiaal- en fabricagefouten. Onder
voorbehoud van drukfouten, technische wijzigingen en modelafwijkingen.
sv Garantin gäller i 5 år från fakturadatum för material- och fabrikationsfel. Med reservation
för tryckfel, tekniska ändringar och modellavvikelser.
no Garantien gjelder i 5 år fra fakturadato for material- og fabrikasjonsfeil. Med forbehold for
trykkfeil, tekniske endringer og modellforskjeller.
es La garantía cubre fallos de material o fabricación durante los tres años posteriores a partir
de la fecha de factura. Mantenemos reservas en caso de problemas de presión, modifi caci-
ones técnicas y variaciones de modelo.
pl Pięcoletnia gwarancja obejmuje usterki oraz wady produkcyjne i materiałowe. Produkty
mogą ulec nieznacznym zmianom technicznym i projektowym. Zastrzegamy sobie prawo
do błędów i pominięć.
中文 保修涵盖 5 年内出现的材料或制造故障或缺陷。产品的技术和设计可能稍微发生变
化，恕不另行通知。
 5


3
R7634 R7635
R7664 R7665
REF
YYYY-MM-DD
YY-MM-DD
U:XXXV
XX-XX Hz IPXX
P:X W I:XXA
RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs ++xxx kg xxx lbs
xxx kg
xxx lbs
++
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF
230V

4
R7834 R7835
R7864 R7865
120V
YYYY-MM-DD
YY-MM-DD
U:XXXV
XX-XX Hz IPXX
P:X W I:XXA
RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs ++xxx kg xxx lbs
xxx kg
xxx lbs
++
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF

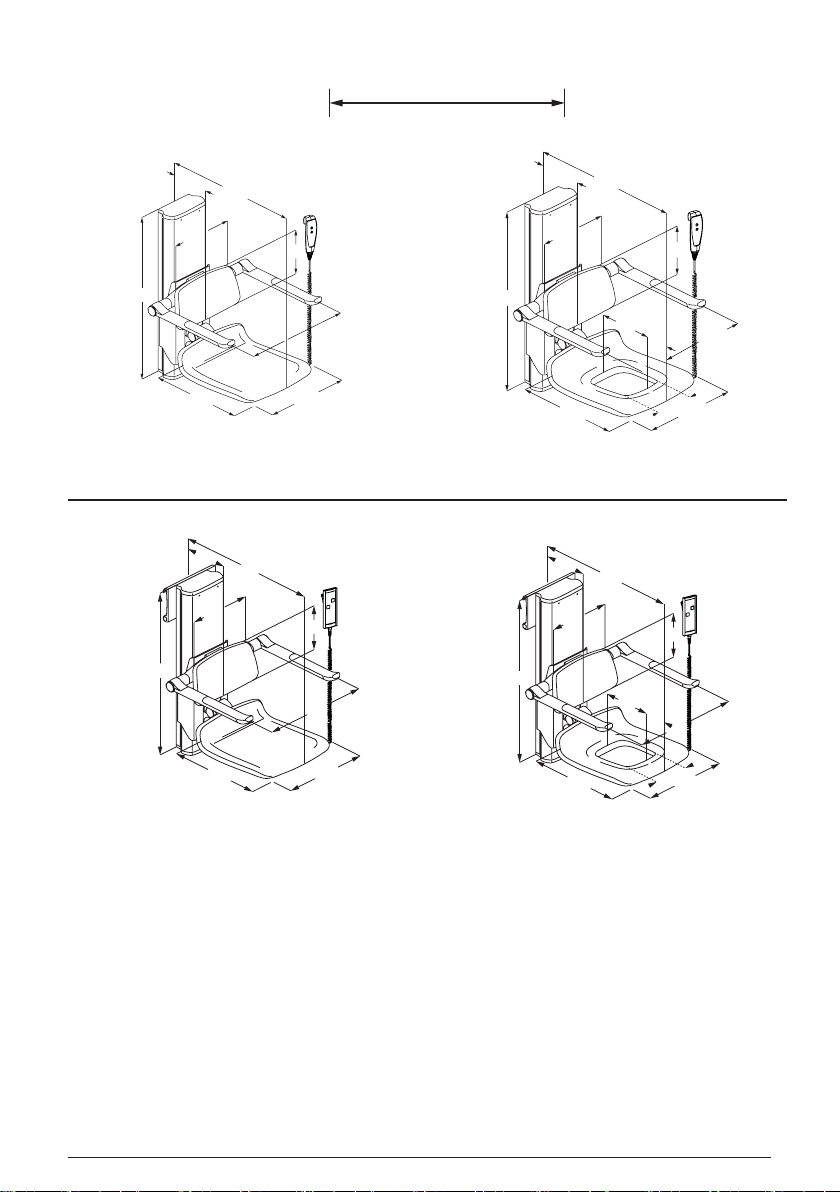

5
858
208
550
240
450
700
437
385
R7634, R7834
450
437
240
95
200
385
858
550
208
240
700
R7635, R7835
858
208
550
280
450
740
437
385
R7664, R7864
858
208
550
450
437
385
240
95
200
280
740
R7665, R7865
mm

6
33.75
8.25
21.63
17.75
17.25
15.13
9.5
27.5
R7634, R7834
33.75
8.25
21.63
17.75
17.25
15.13
9.5
3.75
7.88
9.5
27.5
R7635, R7835
33.75
8.25
21.63
17.75
17.25
15.13
11
29.13
R7664, R7864
33.75
8.25
21.63
17.75
17.25
15.13
9.5
3.75
7.88
11
29.13
R7665, R7865
inch

7
en
Content
Mounting instruction ..................................................7
Operational signage ...................................................7
Symbols used in this manual............................................8
General safety .........................................................9
Intended use .........................................................10
Intended user profile ...............................................10
Operating environment.............................................10
Operating instructions ................................................11
Folding the seats and armrests .......................................11
Adjusting the shower seat ...........................................12
Adjusting the armrests..............................................13
Adjusting sideways (R766X, R786X) ...................................13
Cleaning.............................................................14
To remove limescale................................................14
Maintenance.........................................................15
Service inspection .................................................15
Technical data........................................................17
Product label.........................................................18
Trouble-shooting .....................................................20
Lubrication.......................................................20
Disposal and recycling ................................................21
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalit.com.
Operational signage
An operational signage can be downloaded from www.
pressalitcare.com.

8
en
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury
warning.
Electricity or potentially
dangerous voltage.
Head injury
warning.

9
en
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

10
en
Intended use
The shower seat is used to sit on during showering.
Intended user profile
The 450 seat can accomodate persons whose weight does not exceed
150 kg / 330 lbs. Maximum load for armrests is 45 kg / 99 lbs.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room, in
private homes, nursing homes and hospitals.
NOTICE
If the product is installed in an atmosphere heavy in salt or chloride, the
warranty will be reduced from the normal 3 years to 1 year.
Salt and chloride have a corrosive effect on the products components and
will cause a decrease in the life expectancy of the product. The damaging
effects can, however, be reduced if the product is showered with tap water
on a daily basis.
NOTICE
Any serious incident that has occurred in relation to the product should be
reported to the manufacturer and the health authorities.

11
en
Operating instructions

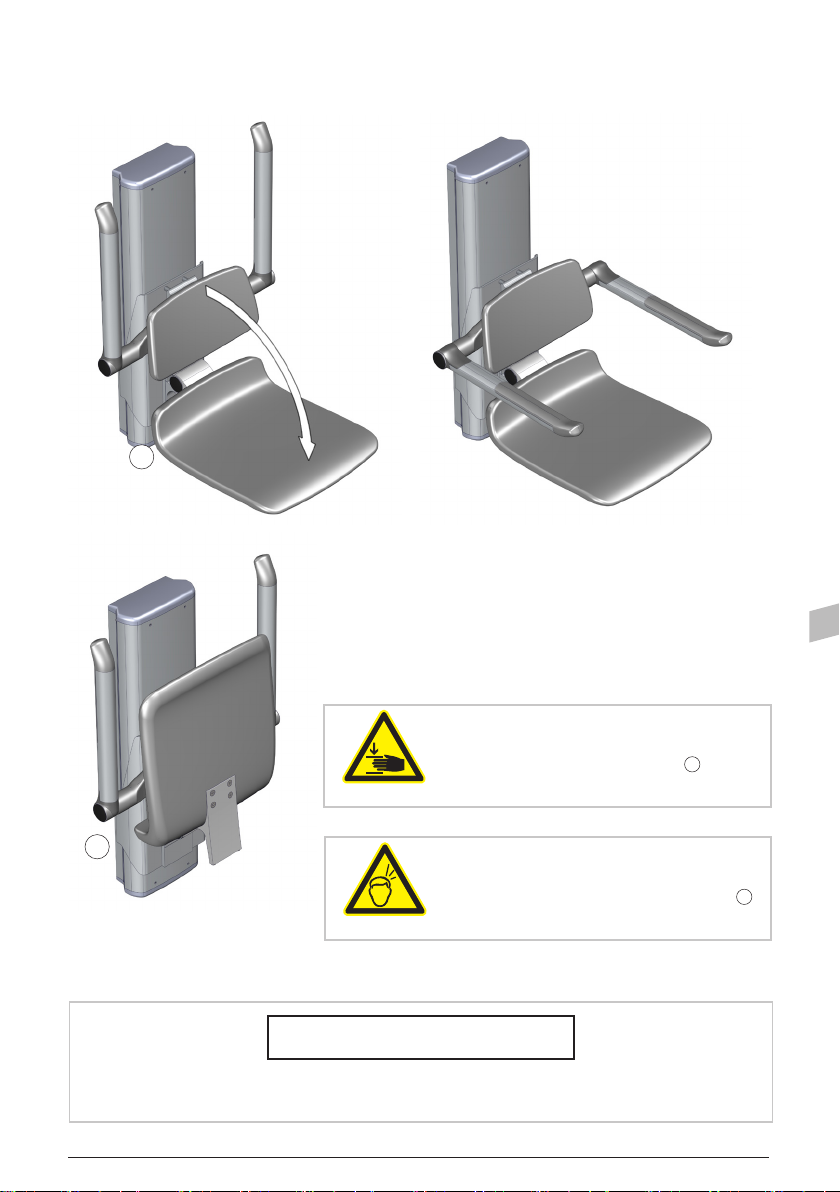

Folding the seats and armrests
Fold the shower seat and the armrests fully down.
Fold it back up when not in use. You can hear a
click when the shower seat and the armrests are
correctly folded up.
1
2
Take care to avoid injury to
hands when in the vicinity of
closing moveable parts 1.
Take care to avoid injury to
your head when in the vicinity
of moving mechanical parts 2.
IMPORTANT
Make sure that seat is dried off whenever it has been exposed to water.

12
en

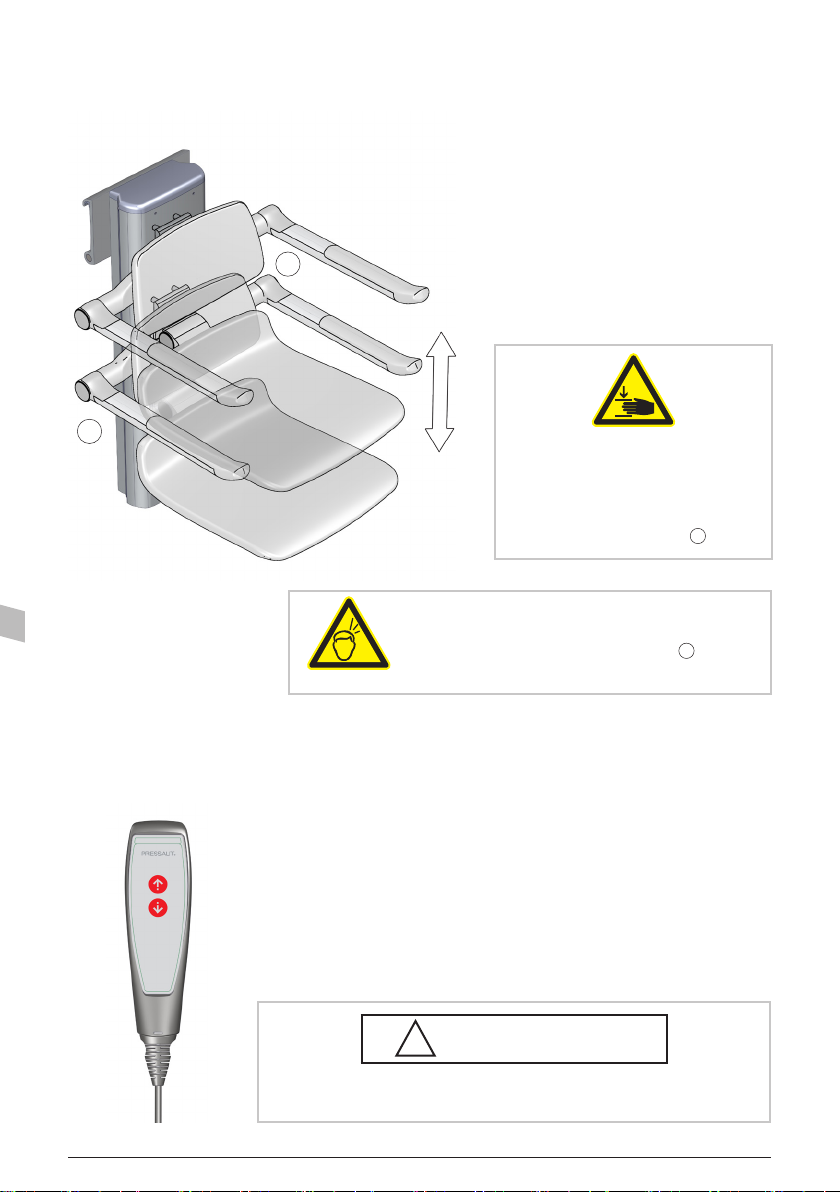

The height adjustment is controlled by the wired hand
control unit.
Press and hold the Up button to raise the shower seat,
and press and hold the Down button to lower the shower
seat. When the button is released, the motion stops.
1
2
Adjusting the shower seat
!CAUTION
Never place objects underneath the shower seat.
Take care to avoid injury to your
head when in the vicinity of
moving mechanical parts 2.
Take care to avoid
injury to hands when in
the vicinity of moving
mechanical parts 1.
The shower seat can be adjusted
500 mm up and down.
Seat, backrest and armrests will
adjust together

13
en
1
Adjusting the armrests
Armrests can also be adjusted independently from seat and backrest.
To adjust the armrests upwards,
pull upwards at the shoulders 1
until desired height is reached and
a click is heard.
To adjust the armrests downwards,
pull the armrests all the way to the
top, then support them all the way
to the lowest position, and then
pull upwards again to the desired
position until a click is heard.
Adjusting sideways (R766X, R786X)
Release the locking handle 1and move the shower seat sideways. Tighten the
locking handle again to secure it in place.
1
1

14
en
Cleaning
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids
• Never spray the product directly with a high pressure cleaner.
• Avoid use of abrasive, corrosive or chlorine-based cleaning or
disinfecting products.
The product is to be cleaned with hot water or a mild soapy cleaning agent.
A list of suitable cleaning agents tested by Pressalit can be found on
www.pressalit.com.
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
To remove limescale
To remove limescale marks on the aluminium parts, use 3 parts 30%
household vinegar to 7 parts water and afterwards wipe the parts with a cloth
wrung out in clean water.
In countries with relatively high levels of lime in the water supply, it may be
necessary to remove limescale deposits from the aluminium parts using a
de-scaling agent such as acetic acid. Test this first on a area that is not visible
when the product is in use.

15
en
Maintenance
Expected service life of the shower seat is 10 years, provided that maintenance
is carried out as described below:
It is recommended on a weekly basis to run the motors on the product to their
maximum positions by raising the product to its full height, and then lowering
it to its lowest position, so that the internal parts are lubricated.
It is also recommended to fold the seat and armrests up and down once a week.
Service inspection
It is recommended that service inspection is done once a year.

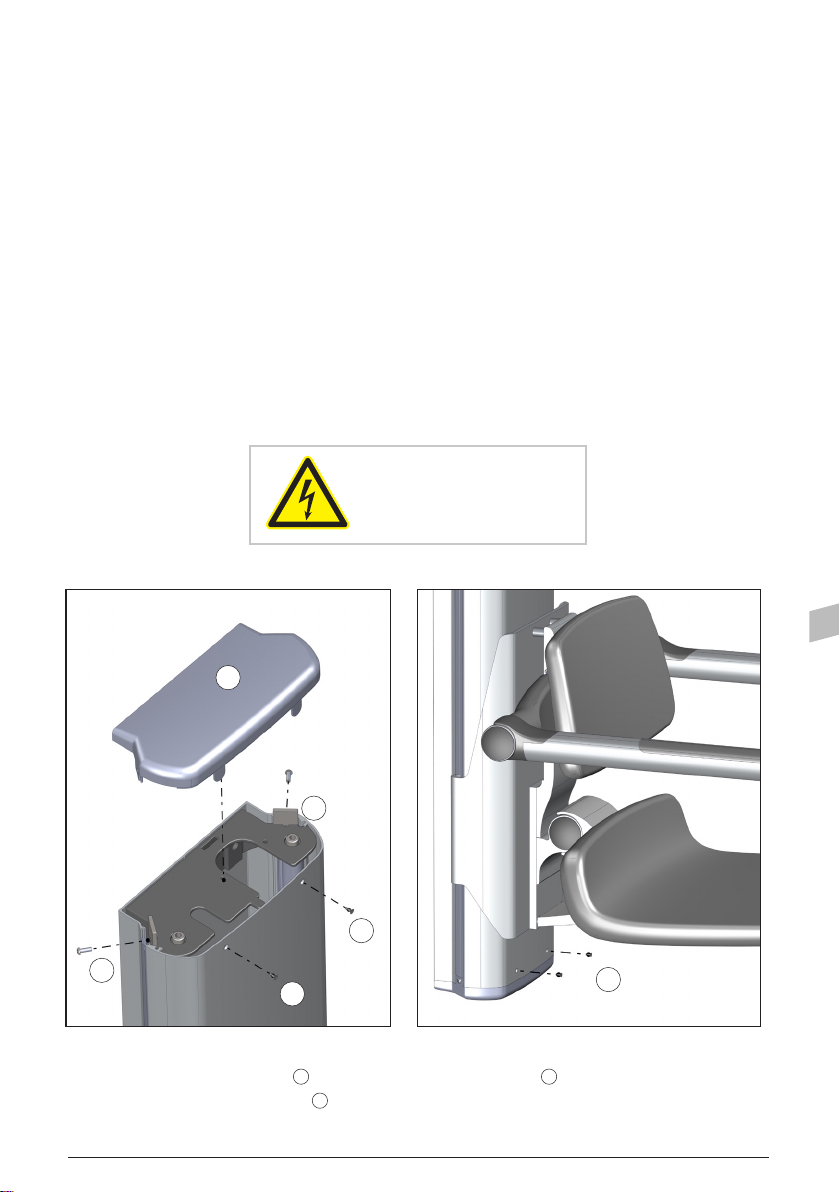

Take the shower seat to its lowest position.
Disconnect mains
before removing
the covers.
1
1
1
1
2
3
Unscrew the 4 top screws 1and remove the top cover 2.
Unscrew the 2 lower screws 3.

16
en
Ensure that all screws
and bolts are properly
tightened.
Reattach the front cover and
the top cover.
Reconnect mains.
Run the shower seat to its
full height, and then lower
it to its lowest position to
distribute the lubricant.
Check the functionality of
the product.
2
2
1
3
Pull the front cover 1upwards to remove it.
Remove any dirt from the inner rods 2using a
cloth.
Lubricate the rods 2and the chain 3.

17
en
Technical data
Max load 150 kg / 330 lbs
Materials Anodized aluminium
Stainless steel
Polyurethane foam
ABS
SEBS
Weight R7634, R7834: 31,24 kg / 68.87 lb
R7635, R7835: 30,26 kg / 66.71 lbs
R7664, R7864: 33 kg / 72.75 lbs
R7665, R7865: 32,02 kg / 72.75 lbs
IP class IPX6
Power specifications
Max consumption 75 W
Voltage Mains connection: 230V/120V
Frequency 50/60 Hz
Current 3.7 A

18
en
YYYY-MM-DD
YY-MM-DD
U:XXXV
XX-XX Hz IPXX
P:X W I:XXA
RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs ++xxx kg xxx lbs
xxx kg
xxx lbs
++
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF
⑫ ⑬ ⑭ ⑮ ⑯ ⑰
①
②
③
④
⑤
⑥ ⑦ ⑧ ⑨ ⑩ ⑪
⑱
⑲
⑳
21
22
Article number
Production date
Maximum user weight
Medical device
Consult manual for use
Max load
Mains voltage
Frequency
Maximum power consumption
Product label

19
en
IP class
GS1-128 barcode
Name and address of manufacturer
Consult manual for use
Consult the manual for important cautionary information such as
warnings and precautions
Duty cycle
Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock
Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
Product weight
Batch code
This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
These products are CE-marked in accordance with relevant
requirements in:
- Regulation (EU) 2017/745 (5 April 2017) on medical devices.
- Council Directive 2006/42/EC (of 17 May 2006) on machinery.
- Council Directive 2011/65/EC (of 8 June 2011) on RoHS.
A declaration of conformity can be found at www.pressalit.com.
Electric Current

20
en
Trouble-shooting
Symptom Cause Action
The product will not
work, even though
the controls is used
correctly.
Fault in power supply. Check that all wires and
plugs are intact and
correctly connected.
Contact Pressalit A/S or
your local dealer.
The product runs up
and down unevenly.
The inner rods are not
properly lubricated.
Oil the rods as described
under ”Maintenance”.
The armrests and/or
the seat is difficult to
fold up and down.
The joints for the seat
and the armrests needs
lubrication.
Lubricate the joints for the
seat and the armrests as
described below.
Use a screwdriver to remove
the cover ① for the joints.
Lubricate the joint ② and the
two joint holes ③.
1
2
2
3
3
Lubrication
