Prestel FHD-T412D User manual

FHD-T412D
User manual

Preface：
Thank you for using the company's integrated high-definition intelligent teaching tracking camera.
This manual details the general principles and methods of the functions of the camera, the
installation and operation of the camera. Before installing and using the user, please read in detail.
important：
In order to prevent this product or any other product connected to it from being
damaged, this product can only be used within the specified range:
WARNING: To prevent fire or electric shock, do not subject the unit to rain or
moisture
Note
This is a Class A product. In the home environment, this product may cause radio interference, in
this case, the user needs to take appropriate measures.

Precautions
Electrical safety
The installation and use of this product must strictly comply with local electrical safety standards.
Carefully transport
Transport, storage and installation process to prevent heavy pressure, severe vibration, soak
damage to the product.
Power polarity
This product uses DC +12 V power supply, the maximum current of 2.5A, power plug polarity as
shown below.
Careful installation
Do not catch the camera head to move the camera. Do not use the hand to rotate the camera's head,
otherwise it may cause the machine
Mechanical failure.
This product should be placed on a smooth desktop or other level, the product can not be tilted to
install;
The product is made of organic material, is strictly prohibited and may cause corrosion of the shell
of a variety of liquid, gas or solid material contact;
The installation should ensure that there is no obstacle in the scope of rotation.
Do not power on until you have completed all installation.
Do not disassemble
This product does not have the user to repair the parts, due to user damage caused by demolition
does not belong to the scope of warranty.
Attention
Electromagnetic fields at specific frequencies may affect the image of the unit!

Product Feature
Integrated design
Integrated design, can also output 5 high-definition 1080P (close-up machine 3, panoramic machine
2) video. Students track with
Lens can be replaced
Panorama lens can be replaced, compatible with C / CS interface lens, easy to cope with different sizes
of classroom needs.
Lens angle adjustable
Panorama machine lens angle can be adjusted up and down (-25 ° ~ +15 °), greatly facilitate the
installation and commissioning.
Efficient tracking
Built-in leading image recognition and tracking algorithm, without any auxiliary positioning camera
or tracking the host can be achieved with a smooth natural Track effect.
Video style consistent
Panorama machine and close-up machine using the same image processing program to ensure that the
two image output brightness, color, style, etc. consistent.
Configuration is simple
Simple tracking configuration, directly through the network port configuration, only need to configure
the general parameters to complete, substantial savings in engineering debugging time with cost.
72.5 ° wide-angle lens + 32x digital zoom
The close-up camera features a 72.5 ° high-quality ultra-wide focus lens with an optical zoom of 12x
and supports 32x digital zoom (optional).
H.265 encoding
Support H.265 encoding video conferencing camera, can achieve full HD 1080p ultra-low bandwidth
transmission.
1080P Full HD
Using a new generation of Panasonic 1 / 2.7 inch, 2.07 million effective pixels of high-quality HD
CMOS sensor, can achieve the largest
1920x1080 high-resolution high-quality images.
Ultra frame rate
1080P output frame rate up to 60fps

Ultra frame rate
1080P output frame rate up to 60fps
AAC audio coding
Features AAC audio encoding, better sound quality, less bandwidth.
Local storage
Close-up machine to support the local storage function, no NVR can be realized U disk local direct
recording tracking video.
Low illumination
Ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case
of image noise, while the application of 2D
And 3D noise reduction algorithm, significantly reducing the image noise, even ultra-low light
conditions, still keep the screen clean and clear, the image signal to noise ratio up to 55dB or more.

Product Spec
Product Model
FHD-T412D
Product Name
Integration of high - definition intelligent teaching tracking camera
Auto Tracking Camera
Video System
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60,
720p/50, 720p/30, 720p/25
Senser
1/2.7 inch, CMOS, Effective Pixels：2.07 Million
Scanning
Progressive
Lens
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom
32x (Optional)
Low Light
0.5Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Automatic, indoor, outdoor, one-button, manual
Backlight
Support
Digital noise
reduction
2D&3DDigital noise reduction
Video S/N
≥55dB
Horizontal Angle
View
72.5° ~ 6.9°
Vertical Angle View
44.8° ~ 3.9°
Horizontal Rotation
Range
±170°
Vertical Rotation
Range
-30° ~ +90°
Pan Speed Range
1.7° ~ 100°/s
Tilt Speed Range
1.7° ~ 69.9°/s
H&V Flip
Support
Image Freeze
Support
Local Storage
Support
Preset Number
255

Preset Accuray
0.1°
Panorama camera
Video System
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60,
720p/50
Senser
1/2.7 inch, CMOS, Effective Pixels：2.07 Million
Scanning
Scanning
Lens
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Automatic iris
DC
Low Light
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto,3000K/Indoor,4000K,5000K/Outdoor,6500K-1,6500K-2,6500K-3,One
Push, Manual
Day&Night Mode
ICR
Digital noise
reduction
2D, 3D Digital noise reduction
BLC
Support
Image Freeze
Support
Ceiling Installation
Support
Newwork Feature
Video Compression
H.265 / H.264 / MJEPG
Video Stream
Main Stream, Sub Stream
Main Stream
Resolution
1920x1080,1280x720,1024x576,960x540,640x480,640x360
Sub Stream
Resolution
1280x720,1024x576,720x576(50Hz support), 720x480（60Hz
support),720x408,
640x360,480x270,320x240,320x180
Video Bit Rate
32Kbps ~20480Kbps
Bit Rate Control
Variable bit rate, fixed bit rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression
AAC

Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Support Protocols
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP
Input/Output Interface
HD Output
1xHDMI: Version 1.3
2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M
standard
Network Interface
2xRJ45: 10M/100M Ethernet Interface
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
USB
1xUSB2.0: Type A female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol:
VISCA/Pelco-D/Pelco-P (for close-up camera)
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, VISCA
network use only(for close-up camera)
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, use for control
close-up camera(for panorama camera)
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol:
VISCA/Pelco-D/Pelco-P(for close-up camera)
Power Jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.5A (Max)
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
18W (Max)
MTBF
>30000h
Size
240mm x 144mm x 200mm
Net Weight
2.0Kg

Standard accessories
When opening the package, check and confirm all attachments that should be provided
integrated HD intelligent
teaching tracking camera x1
Power adapter, camera power
supply x1
Remote control, control
camera x1
AC power extension cord, camera
power supply x1
RS232 serial cable, connecting the
camera and computer x1
Wall mount, fixed tracking
machine x1
1/4 inch screw, fixed tracking
machine x1
Allen wrench, adjust the
panoramic lens x1
User Manual, Quick
Installation Guide x1
Cable description
1, this product does not contain cable, 3.5mm audio cable, RS-485 cable, HD-SDI cable, HDMI cable,
USB cable, please buy it, please refer to the description of the type of cable.
2, the power cord can only extend the 220V end, can not extend 12v DC side.

Remote Control
1. Standby button
Press the camera to enter standby mode and
press the camera again to turn it on again.。
2、Number button
Set Preset or Call Preset
3、* button
Use with other buttons
4, set the preset position
Set Preset: Save a preset bit
Set Preset + Numeric Keys (0-9): Set a
preset corresponding to the number keys
5、PTZ control keys 【HOME】
Press the head back to the middle
Position
6、return button
Press the OSD menu to return to the
previous menu.
7、 zoom key
Zoom slow: slow the lens wide angle [+] or
pull the narrow angle [-]
8、 set the left and right keys PTZ left and right steering
set to use, with the number 1 key and the number 2 key
with the set PTZ
direction according to the requirements of
the PTZ system to the left or right.
Left and right keys +1 (standard): set the PTZ steering and PTZ control in the same direction
Left and right set key +2 (reverse): Set the pan / tilt and pan / tilt control keys in the opposite direction
9, focus button
Focusing on the use
【Auto】 button to switch the camera focus mode to auto focus
【Manual】 key to switch the camera focus mode to manual focus

In manual focus mode, you can focus on close
objects by pressing [far] to focus on distant objects
or [proximal].
10, the camera selection key
Select the camera you want to control
11、# button
Use with other button
12. infrared remote control address selection key
【*】+【＃】+【F1】：Address 1
【*】+【＃】+【F2】：Address 2
【*】+【＃】+【F3】：Address 3
【*】+【＃】+【F4】：Address 4
13, clear the preset button
Preset Cancel: Clears a preset bit
Clear Preset + Numeric Key (0-9): Cancel the
corresponding Preset or: [*] + [#] + [Clear Preset]
key: Cancel all presets
14, PTZ control keys
Press the PTZ to move in the direction indicated by
the arrow. Press the [HOME] key to return to the
middle position.
15, The menu button
Press to enter or exit the OSD menu.
16, Backlight compensation key
Backlight ON / OFF: On / Off backlight
compensation (cyclic)
(Note: only in the exposure mode is automatically
under the effective)
Note: If the subject has a light source behind it, the
subject will become dark. In this case, press the
backlight ON / OFF button. To cancel this function,
press the backlight ON / OFF key again.
17, PTZ reset button
Press the head after the start of self-test
18, image freeze function
Manual freeze:Press the remote control [F4]
button after the image freeze function is turned on,
the upper left corner of the image shows "image
freeze" characters, characters appear automatically
disappear after 5 seconds. If you want to release the
freeze again press the 【F4】 key to return to
normal, the upper left corner of the image shows
"release image freeze" characters, characters
appear automatically disappear after 5 seconds.
Image is frozen when the preset bit is called:
When the Preset bit is set by the OSD menu, when
the function is turned on and the preset bit is called,
the screen will stay before the preset position until
the camera points to the preset After the preset
position, the screen can be switched to the preset
screen
19, shortcut keys set
[*] + [#] + [1]: Display OSD menu in English
[*] + [#] + [3]: Display OSD menu in Chinese
[*] + [#] + [4]: Show IP address
[*] + [#] + [6]: Quickly restore the default settings
[*] + [#] + [8]: Show the camera version
[*] + [#] + [9]: Quickly set mount mode (flip /
normal)

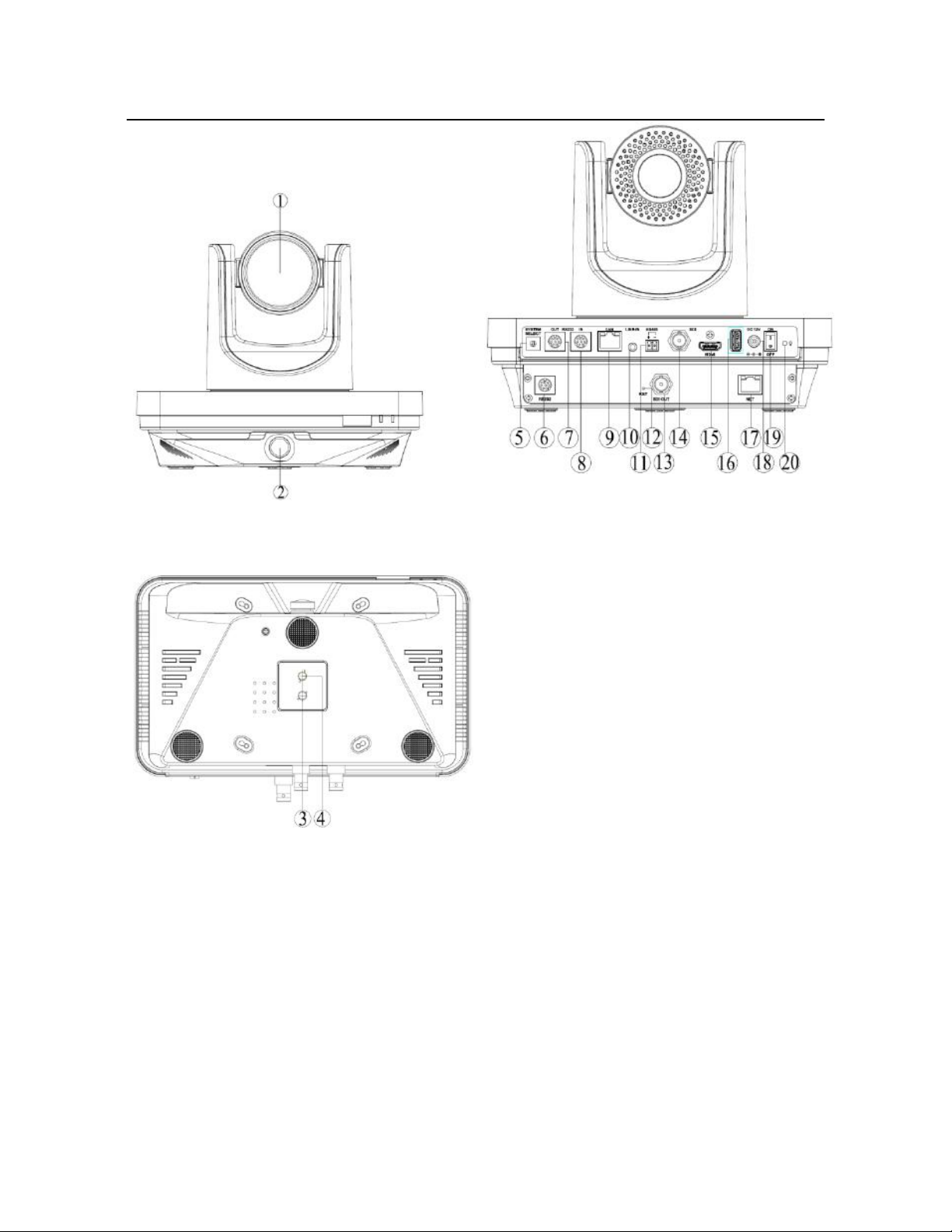

HOST

Introduction to Host
Interface
1、Close-up machine
2、Panorama machine
3、Install the positioning hole
4、Install screw holes
5、The video system selects the rotary switch
6、RS232 OUT interface
7、RS232 OUT interface
8、RS232 IN interface
9、LAN Network interface
10、LINE-IN interface
11、RS485 interface
12、Reset
13、SDI OUT interface
14、SDI interface
15、HDMI interface
16、USB2.0 interface
17、NET network interface
18、power interface
19、power switch
20、power indicator
Introduction to host interface function

Interface
NO.
Interface
name
Function
5
SYSTEM
SELECT
Camera video output system selection
6
RS232 OUT
Use RS232 cable for communication between the camera and the
recording and broadcasting host, the camera can output the director
command, but also can receive the control command from the
recording and broadcasting host
7
RS232 OUT
Use an RS232 cable to connect your camcorder to a camcorder or
computer for cascading
8
RS232 IN
Use an RS232 cable to connect your camcorder to a camcorder or
computer for cascading
9
LAN
Connect the camera to the network using the network cable to
connect the camera to the network
10
LINE-IN
3.5mm audio input interface, used to connect the computer, mobile
phones and other voice input source, to receive sound
11
RS485
Not supported (customize)
12
RST
Reset button for resetting the panorama
13
SDI OUT
Use the SDI cable to connect the HD TV to the camera SDI output
connector
14
SDI
Use the SDI cable to connect the HD TV to the camera SDI output
connector
15
HDMI
Use an HDMI cable to connect the HD TV to the HDMI output
connector of your camcorder
16
USB2.0
For external USB devices

17
NET
Network interface, providing a network connection for the camera
18
DC 12V
Connect the power adapter to provide a 12V power supply for the
camera

The setting of video system
The sixteen rotary switches are used to set the format of the output
video for the video port (video format).VIDEO SYSTEM
Switch
position
Video format
Switch
position
Video format
0
1080p60
8
720p30
1
1080p50
9
720p25
2
1080i60
A
-
3
1080i50
B
-
4
720p60
C
-
5
720p50
D
-
6
1080p30
E
-
7
1080p25
F
-
Note：
a. After switching the standard dialing, need to restart the camera to take effect.
b.720 p30 and 720 p25 only valid when HDMI output.

Quick installation
Wall installation
Step 1: Four holes on the wall that correspond to the size and position of the wall mounts, and the
wall mounts are fixed to the walls
Step 2: Place the alignment holes of the camera at the mounting brackets on the wall mounts
Step 3: Rotate the camera at the appropriate angle and fasten the camera's fastening screws to secure
the camera
Note！
Be sure to install it firmly to ensure that the wall mount and the camera will not fall off;
wall support and wall bearing capacity to reach more than 5Kg

Live camera installation location
Description：
Teacher installed close to the classroom axis, height of 2.2 meters;
student machine installed in the classroom before any position, height of 2.2 meters, installed in the
recommended location.
Camera system connection

Network mode system connection diagram
Serial port system connection diagram
Description：
Teacher mode, student machine, board computer, video recorder between the network mode and serial
mode support, network mode support protocol: UDP, TCP; serial mode baud rate: 9600
Teacher machine panorama / teacher tracking, student machine panorama / student machine tracking,
blackboard tracking, a total of 5 SDI video signal and video recording host connection

Teacher machine / student machine / board computer can be sent to track the process of the state code
or switch code to the recording and broadcasting host, recording and broadcasting host according to
the instructions received video switching action
teacher machine / student machine / board computer, guide parameters are tracked through the
configuration tool configuration
camera software tracking tool
The tracking tool interface is as follows：
Description:：
Teacher mode, student machine, board computer, video recorder between the network mode and serial
mode support, network mode support protocol: UDP, TCP; serial mode baud rate: 9600
Teacher machine panorama / teacher tracking, student machine panorama / student machine tracking,
blackboard tracking, a total of 5 SDI video signal and video recording host connection
Teacher machine / student machine / board computer can be sent to track the process of the state code
or switch code to the recording and broadcasting host, recording and broadcasting host according to
the instructions received video switching action
Teacher machine / student machine / board computer, guide parameters are tracked through the
configuration tool configuration
Camera software tracking tool
The tracking tool interface is as follows:
