Prestige APS-687E User manual

128-9301
1 of 12
Page 1
Model APS-687E
Owners Guide
Deluxe 7 Channel
Remote Start System
With Keyless Entry
PATENTED: www.voxxintlcorp.com/company/patents
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that may
cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
NOTE:The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the
user’s authority to operate the equipment
Table Of Contents:
Features and Options Page 2
Your "Spread Spectrum" Transmitters Page 3
Keyless Entry Page 3 - 4
Optional Remote Function Channels Page 4
Optional Additional Remote Channel 4 Page 4
Optional Additional Remote Channel 5, 6, 7 Page 5
Valet Override, Programming & Safety Control Switch Page 6
Vehicle Service / Remote Start Override Mode Page 6
Turbo Timer Operation Page 6 - 7
Remote Starting The Vehicle Page 7 - 8
Automatic Start Timer Operation Page 9 - 10
Telematic Upgrade Page 10
Programmed Transmitter Notication (PTN) Page 10
Programming New or Replacement Transmitters Page 11
Features And Function Setting Chart Page 12

128-9301
2 of 12
Page 2
Deluxe 7 Channel Remote Start System With Keyless Entry
FEATURES :
2 Five Button Programmable RF Transmitters
 Seven Channel Receiver (capable of accepting 4 transmitters)
Code Hopping Technology
 External Superheterodyne Antenna w/Push Button Switch and LED
 Safe Start RF Control (Double Push Of RF Transmitter)
Selectable Automatic Timed Start Mode
 ( + ) and ( - ) Keyless Entry Outputs
On-Board Start Relay
On-Board Accessory Relay
3 On-Board Ignition Relays
On-Board Parking Light Relay
 Ignition 2 and 3 Relay Selectable On or Off During Cranking
Ground Output While Running / Shock By-Pass / GM VAT Output
Tach Signal Learning Circuit
 Two ( + ) and Two ( - ) Safety Shutdown Circuits
Alarm By-Pass Output
 Channel 3 Output for Remote Trunk Release (relay required)
Channel 4, 5, 6, and 7 Output to Control Optional Accessories
Selectable Steady or Flashing Parking Lights for Run Indication
Selectable Run Times
 Selectable Door Lock Output Pulse Timing
 Optional Illuminated Entry Output (Relay Required)
Vehicle Horn Activation Output For R/S Annunciation
 External Activation Control Input
Turbo Timer Mode
OPTIONS:
Telematic Upgrade Ready
Plug In Flash Logic By-Pass Capable
Remote Power Window Control
Multiple Vehicle Capable
WARNING! Be certain that the vehicle is outdoors before using this or any re-
mote vehicle starting device. A running engine produces dangerous
carbon monoxide fumes which can be harmful or fatal if prolonged
exposure occurs.
DO NOT remote start the vehicle if the car is garaged.

128-9301
3 of 12

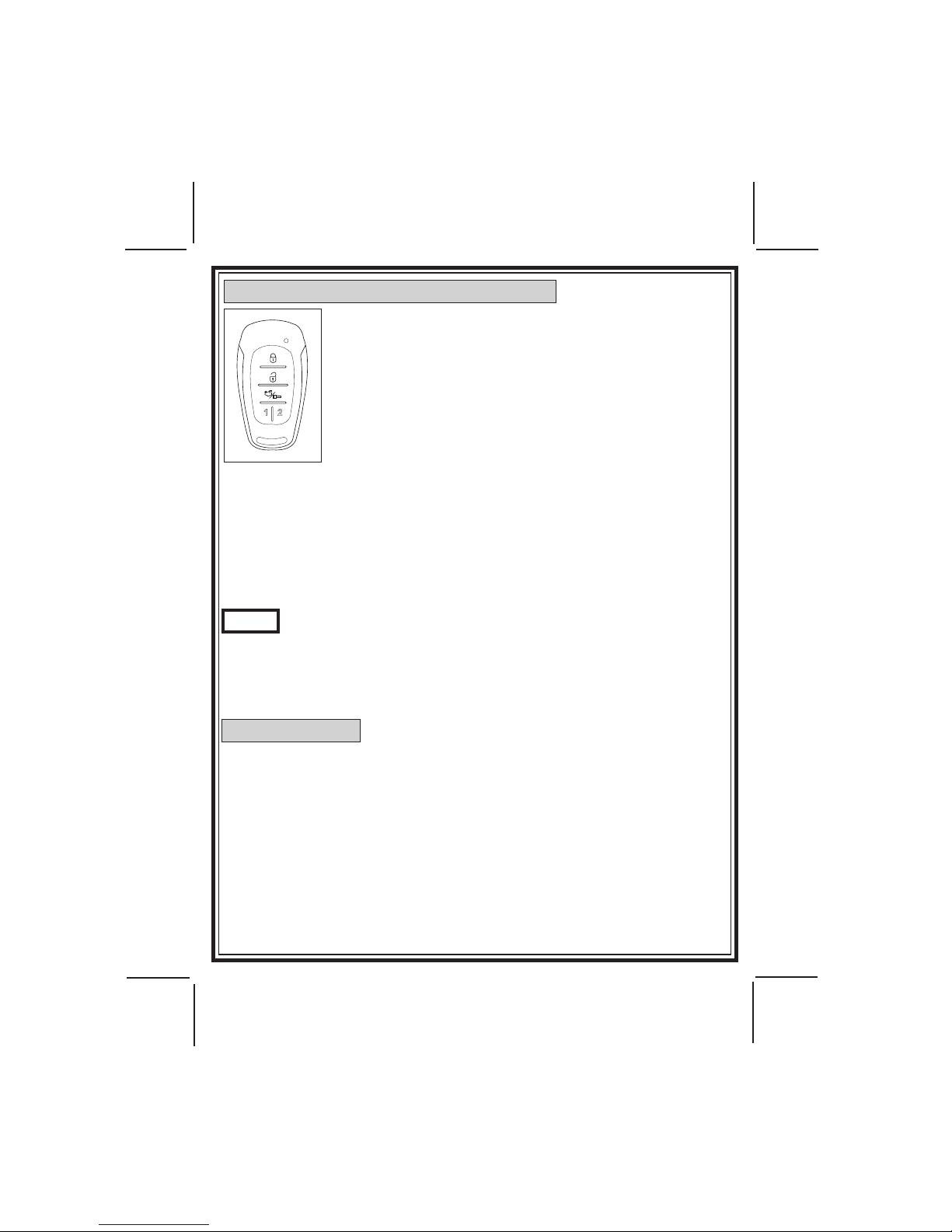

Page 3
PRESTIGE
1 2
YOUR “SPREAD SPECTRUM" TRANSMITTERS
The transmitters included with your new security system
use the most advanced and secure form of radio frequency
transmission available on any current automotive security
system. Some of today’s sophisticated auto thieves use a
device known as a code grabber, which will receive and store
the signal from your keychain transmitter and re-transmit at
a later time to disarm your system.
Your Spread Spectrum transmitters will shift frequencies
making it impossible for a thief to grab and rebroadcast
your code.
If your transmitter button is pressed more than fty times while it is out of
range of the vehicle (children playing with your keys), the transmitter will
not operate when you return to the vehicle, and will need to be re-aligned
to the receiver. To do this, simply press the lock/unlock button two times
within a one second time period. The system will now respond to that
transmitter each time a button is pressed.
For reference the transmitter packaged with your system may not appear
exactly as shown This depiction is for reference only.
NOTE: As an option, this system has the ability to operate the vehicles
horn which may require some additional parts. If this feature is
installed, the vehicle's horn will beep once when you lock the doors,
twice when you unlock the doors, twice when the Remote Start
feature is activated, and will beep during the car nder mode to
allow you to nd the vehicle more easily in a crowded parking lot.
KEYLESS ENTRY
1. To lock your vehicle, exit the vehicle, close all doors, hood and trunk,
then simply press the lock button of your keychain transmitter. To unlock
your vehicle, simply press the unlock button of your keychain transmitter.
As a keyless entry unit, for your convenience, the parking lights will ash
once when the doors are locked and twice when the door are unlocked.
If the optional illuminated entry feature has been added, the interior light
will turn on when the doors are unlocked and remain on for 30 seconds or
until the ignition is turned on.
Holding the lock/unlock transmitter button for 3 seconds will activate the
car nder mode causing the parking lights to ash and the optional horn
to beep for 30 seconds or until the button is activated again for 3 seconds
or any other button is operated.

128-9301
4 of 12
Page 4
NOTE: This system has the ability to unlock the driver's door with the rst
press of the unlock transmitter button and then unlock all other
doors when the unlock button is pressed a second time. This op-
tional feature may require additional components. Consult your
installation center to determine if this feature has been added
to your vehicle. Additionally this system can be programmed to
automatically lock and unlock the doors with the turning on and
off of the ignition key.
ADDITIONAL REMOTE FUNCTION (CHANNEL 3)
This system has an additional feature that can be connected to a number
of different optional accessories. Some of the more common uses for this
channel are:
Remote Trunk Release
Remote Window Closure
Remote Garage Door Interface
To activate the optional accessory, press and hold the trunk/key button on
the keychain transmitter for four seconds.
NOTE: The feature that has been added to channel 3 will always be
activated using the same transmitter button that remotely starts
the vehicle. There is no way to move the channel 3 function to a
different transmitter button.
ADDITIONAL REMOTE FUNCTION (CHANNEL 4)
This system has an additional feature that can be connected to a number
of different optional accessories. Some of the more common uses for this
channel are:
 Can Be Set Up To Activate Rear Window Defogger
During Remote Start If Vehicle Is So Equipped
Remote Window Closure
Rear Hatch Release
 Right Or Left Slider Doors in An Equipped Van
To activate the optional accessory, press the option button on the key-
chain transmitter. The optional accessory will immediately engage.

128-9301
5 of 12
Page 5
ADDITIONAL REMOTE FUNCTION (CHANNEL 5)
This system has an additional feature that can be connected to a number
of different optional accessories. Some of the more common uses for this
channel are:
Remote Trunk Release
Remote Window Closure
Rear Hatch Release
 Right Or Left Slider Doors in An Equipped Van
To activate the optional accessory, press the option button on the key-
chain transmitter. The optional accessory will immediately engage.
ADDITIONAL REMOTE FUNCTION (CHANNEL 6)
This system has an additional feature that can be connected to a number
of different optional accessories. Some of the more common uses for this
channel are:
Rear Hatch Release
 Right Or Left Slider Doors in An Equipped Van
 Driver Priority Settings In Vehicles So Equipped
To activate the optional accessory, press the option button on the key-
chain transmitter. The optional accessory will immediately engage.
ADDITIONAL REMOTE FUNCTION (CHANNEL 7)
This system has an additional feature that can be connected to a number
of different optional accessories. Some of the more common uses for this
channel are:
Rear Hatch Release
 Right Or Left Slider Doors in An Equipped Van
 Driver Priority Settings In Vehicles So Equipped
 Second Driver Priority Settings In Vehicles So Equipped
To activate the optional accessory, press the option button on the key-
chain transmitter. The optional accessory will immediately engage.
NOTE: If your system utilizes the transmitter shown, the second option
button may be congured to operate additional accessories.
Please consult your installing retailer for more information concerning the
options available.

128-9301
6 of 12
Page 6
PUSH-BUTTON LED RECEIVER
VALET/OVERRIDE/SAFETY CONTROL SWITCH
The PushButton LED switch located in the receiver allows you to
temporarily disable the remote starting function of the system. This IS
recommended whenever the vehicle is being serviced.
To place the system in the service mode:
1) With the system disarmed/unlocked, and the ignition switch off, Press
and Hold the Push-Button, found on the windshield receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED begins to ash two short ashes followed by one long
ashes and continues this pattern until returned to normal mode of
operation.
This puts the unit into the R/S Override mode indicating that the remote
start is in the service mode and will not start from RF or any other input
Posse or otherwise.
To exit the service mode:
1) With the system disarmed, Press and hold the Push Button, found on
the windshield receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED turns off indicating that the R/S unit is fully functional one
again.
TURBO TIMER MODE
This system provides a means to cool down the vehicles turbo charger,
if so equipped, by allowing the vehicle to continue to run for a prescribed
period of time every time the vehicle's engine is turned off. This feature
requires the system to be set up for turbo timer during installation. Consult
with your installation center to be certain this feature was activated and how
long the vehicle will continue to run, 3, 5, or 10 minutes after the ignition
switch is turned off.

128-9301
7 of 12
Page 7
TO ACTIVATE THE TURBO TIMER
Anytime the ignition key is in the on position for more than 15 seconds:
1) Place the gear selector in park.
2) Set the parking, (hand), brake.
3) Be certain your foot is off the brake pedal.
4) Press the receiver's program/Push-Button switch 2 times within 5
seconds. The parking lights will ash two times indicating the mode was
successfully entered.
If your parking lights ashed four times, this indicates the turbo mode was
on and is now turned off.
With the turbo timer mode selected on, after you've arrived at your
destination, while the engine is still running, set the parking brake, pause
2 seconds, then turn the ignition switch to the off position. The engine will
continue to run the allotted time according to the selection during
installation.
If you do not want the vehicle to continue to run for one cycle, simply step on
the vehicle's brake, release the parking brake, or activate the transmitter's
start button two times in succession.
Any of these will cause the engine to turn off.
REMOTE STARTING THE VEHICLE
The system WILL NOT start the vehicle if any one of the following condi-
tions exists:
1. The Vehicle Hood Is Opened.
2. The Gear Selector Is In Any Gear Other Then Park.
3. The Brake Is Depressed.
4. The System is in the remote start override mode.

128-9301
8 of 12
Page 8
WARNING! Be certain that the vehicle is outdoors before using this or
any remote vehicle starting device. A running engine produces
dangerous carbon monoxide fumes which can be harmful or
fatal if prolonged exposure occurs.
DO NOT remote start the vehicle if the car is garaged.
TO REMOTE START THE VEHICLE
Press and release the trunk/key button of your keychain transmitter two
times within 2 seconds.
The vehicle will start and remain running for the pre-programmed time
selected.
As a visual indication, the parking lights will ash or turn on dependent on
the programming set up by your installation center.
When you arrive at your vehicle, unlock it with the key or by pressing and
releasing the unlock button of your keychain transmitter.
Enter the vehicle and turn the ignition key to the on position.
CAUTION! Do not turn the key to the start position. This will cause the
starter motor to engage with the already running engine which
could result in damage. Step on the brake pedal to disengage
the remote start unit. The vehicle will continue to run but now
on it's own power.
NOTE: The engine will stop running before the expiration of the
pre-programmed run timer or if you complete any of the
following:
1. Press and release the trunk/key button of your keychain transmitter
two times within 2 seconds.
2. Depress the brake pedal.
3. Open the hood.
4. Place the system in Remote Start Override Mode
5. Race the engine to above 4000 RPM.

128-9301
9 of 12
Page 9
OPERATING ON AUTOMATIC START UP TIMER MODE
The system has the ability to automatically start the vehicle every 2 or
4 hours over a 48 hour period. This feature is especially useful in cold
climates where the only means to keep the engine and engine uids warm
is to periodically start the engine.
WARNING! Be certain that the vehicle is outdoors before using this or any
remote vehicle starting device. A running engine produces
dangerous carbon monoxide gases which can be harmful or
fatal if prolonged exposure occurs.
DO NOT remote start the vehicle if the car is garaged.
TO BEGIN THE AUTOMATIC START UP TIMER
1. Turn the ignition key on then off.
2. Within 10 seconds, activate the RF start command two times. (Push the
second channel button of your keychain transmitter 4 times).
The parking lights will ash 4 times indicating the timed start mode is
activated.
The vehicle, on a 2 or 4 hour interval basis, will automatically start, run for
the pre-programmed run time, then shut off.
This will continue for 48 hours.
NOTE: The automatic start up timer can also be initiated from the
keychain transmitter.
To do this:
1. Start the vehicle using the keychain transmitter by pressing and releasing
the trunk/key button transmitter button 2 times.
2. Shut off the vehicle using the keychain transmitter by pressing and
releasing the trunk/key transmitter button 2 times.
3. Within 10 seconds of step 2, activate the RF start command two
times.
(Push the trunk/key button of your keychain transmitter 4 times).

128-9301
10 of 12
Page 10
The parking lights will ash and the siren will chirp 4 times indicating the
timed start mode is activated.
CANCELING THE AUTOMATIC START UP TIMER
To cancel the automatic start up timer do one of the following;
1. Start the vehicle manually with the use of the ignition key and depress
the brake pedal.
2. Remote start the vehicle using your keychain RF transmitter.
3. Shut off the vehicle using the keychain transmitter by pressing and
releasing the trunk/key transmitter button 2 times.
TELEMATIC UPGRADE:
This system has the ability to have a telematic upgrade module connected
to it. This is an upgrade that can give you control of certain functions of your
vehicle from a Telephone, or in some cases a computer interface. Please
check with your installation center for most recent Telematic Upgrades.
If you had a Telematic Upgrade installed, the manual supplied with the
upgrade unit will provide a operators manual advising of the features of
the system and means available to control these features of your vehicle.
PROGRAMMED TRANSMITTER NOTIFICATION (PTN)
Every time after Disarm when the ignition key is turned on, the unit's
LED will report the number of transmitters programmed into the system.
This safety feature will alert you if an unauthorized transmitter has been
programmed into your vehicle's security system without your knowledge.
Typical from the factory, there will be a 2 ash, pause, repeated 3 times
indicating that two transmitters are programmed into the system. If you
note additional ashes, there may have been an additional transmitter
added without your knowledge or authorization. If you notice a change
in the transmitter LED report pattern, you can correct this by looking up
how to erase and reprogram your transmitters found in the transmitter
programming guide. This reprogram operation will erase all unauthorized
or unwanted transmitters.

128-9301
11 of 12
Page 11
Programming New Or Replacement Transmitters (BANK 1)
Transmitter Model Name 145SP Is Also Found On Back Of
Transmitter Case. Use Battery CR2032
1) Turn the ignition key to the on position.
2) Press and release the valet/programming switch 3 times (Siren Chirps).
3) Press the Lock Button of each transmitter you want programmed until
you hear a chirp from the horn or siren.
4) Turn the ignition switch off.
The above action programs the Lock, Unlock, Start/Trunk, and Option 1
buttons which are typical for most systems.
For additional channel programming beyond the option 1 button, you can
use any unused button or combination of buttons not in use.
In other words, to access option channel 5, 6, 7, you would do the
following:
From step 3 above:
a) Press and release the valet/programming button 4 additional times to
get to channel 5, then Press any unused transmitter button or button
combination to program.
b) From a, press and release the valet/programming button 1 time to
get to channel 6, then press any unused transmitter button or button
combination to program.
c) From b, press and release the valet/programming button 1 time to
get to channel 7, then press any unused transmitter button or button
combination to program.
NOTE: Not all systems have channels above 3, check with your instal-
lation center for options your system may or may not have.
NOTE: Certain systems have the ability to utilize channels 6 & 7 for
driver priority programming. For driver priority, the vehicle must
be equipped with this feature, and the optional feature must be
set up and installed by your installation center. Once this feature
is added when the unlock button of transmitter 1 is used, it will
set driver 1 priority, and when the unlock button of transmitter
2 is used it will set driver 2 priority. In this situation, the unlock
button can be programmed into two receiver channels, unlock,
channel 2 and driver priority 6 or 7. In no other circumstance

128-9301
12 of 12
Page 12
will the system allow a transmitter button to be programmed into
2 receiver channels at the same time.
This remote has the ability to operate 2 Audiovox Alarms From A Single
Transmitter. To toggle on and off vehicle one or two:
Press the Trunk/Key button + the Lock button for 5 seconds.
The LED ashes 2 times. Release the buttons, to select 2nd vehicle mode.
Program this transmitter into the second vehicle's system. Any time you
are in 2nd vehicle when the transmitter is operated, the LED will ash twice
for each function. When in in the prime vehicle mode, the LED will ash
once for each function.
Transmitter Battery Replacement
1) Remove the 00 philips head screw from the rear case.
2) Seaprate the case halves by inserting a small plastic tool in the top right slot.
3) Carefully slide the CR2032 battery outfrom under the battery clip and dispose
of properly.
4) Insert a fresh CR2032 battery with the (+) side up away from the PCB.
5) Close the case in reverse of disassembly.
FUNCTION SETTING CHART
To be completed by installer:
Door Lock Timer 1 Sec. 3.5 Sec.  1 Sec/Dbl 1 Sec.
Parking Lights Steady Pulsed
Run Time ___________Minutes
Accy Lock On Off
Accy Unlock  Dr. Door  All Doors Off
NOTE: Two step unlock is an option and may not have been installed.
©2014 Voxx Electronics Corp., 150 Marcus Blvd. Hauppauge, N.Y. 11788 128-9301
To purchase replacement transmitters
or to get additional product information go to:
www.prestigecarsecurity.com
