Prestigio P171 User manual

Prestigio P171

Eng
3www.prestigio.biz
U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modication not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
P171_eng.indd 16.10.2003, 0:362

Eng
3www.prestigio.biz
1. Introduction
This manual contains instructions for installing and operating 17” LCD Monitor.
17” LCD Monitor is a highly ergonomic color display unit.
• 17" viewable XGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
2. Safety Information
This Monitor has been engineered and manufactured to assure your safety. You can prevent
serious electrical shock and other hazards by keeping in mind the following:
Do not place anything wet on the monitor or the power cord. Never
cover the ventilation openings with any material and never touch them
with metallic or inflammable materials.
Avoid operating the monitor in extreme heat, humidity or areas af-
fected by dust.
• Temperature : 5~35°C • Humidity : 30~80RH
Be sure to turn the monitor off before plugging the power cord into
the socket. Make sure that the power cord and the other cords are
securely and rightly connected.
Overloaded AC outlets and extension cords are dangerous, as are
frayed power cords and broken plugs, which may cause electric shock
or fire. Call your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near the monitor, as
they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the monitor, as it will
damage the LCD surface.
P171_eng.indd 16.10.2003, 0:363

Eng
4 www.prestigio.biz
Eng
5www.prestigio.biz
Cleaning and Maintenance
• To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit
is not user-serviceable. Remember to unplug the display unit from the power outlet
before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use
thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen cleaning
tissue used in optical lens cleaning, or lightly dampen a soft, clean cloth with water or
a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized service
agent.
3. Installing the monitor
3-1. Packing List
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please contact your
dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m may affect
EMC of the product in operating condition.
Signal Cable
Main Unit Body Stand Base
Audio Cable User’s Guide
Power Cord
P171_eng.indd 16.10.2003, 0:364

Eng
4 www.prestigio.biz
Eng
5www.prestigio.biz
90
O

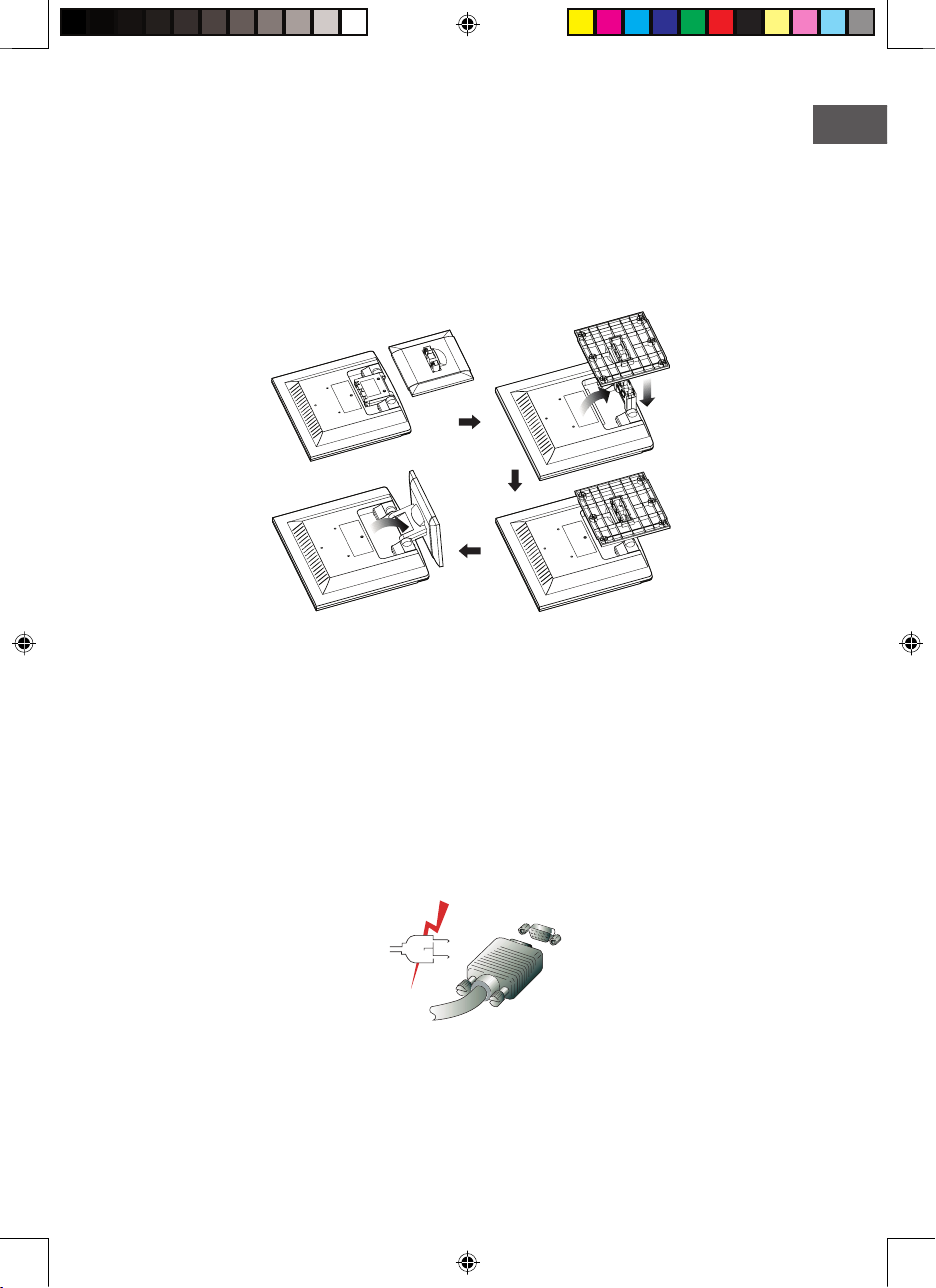

3-2. Instructions to Install the Stand
Install the stand according to the following instructions on a flat surface.
1. Place the main unit body with screen face down and flip open the folded Stand Post
at 90 degree angle.
2. Engage the Base to the Stand Post by pressing down gently in right position (If installed
correctly you will hear a click sound).
3. Pull the installed base open to bring the main body unit to stand.
3-3. Selecting a suitable location
• Place the monitor at least 30cm from other electrical or heat-emitting equipment and
allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is reflected on
the screen.
• To reduce eye strain, avoid installing the display unit against a bright background
such as a window.
• Position the monitor so that the top of the screen is no higher than eye level.
• Position the monitor directly in front of you at a comfortable reading distance (around
45 to 90cm).
Before you start cabling your monitor, check that the power is off on all units.
To avoid any possibility of electric shock, always connect your equipment to properly
earthed outlets.
P171_eng.indd 16.10.2003, 0:365

Eng
6 www.prestigio.biz
Eng
7www.prestigio.biz

3-4. Connecting the monitor
1. Insert the 15-pin signal cable connector into the 15-pin VGA connection on your
computer and screw it down.
2. Plug the power cord connection to connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a 100V-
240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is on. If not,
repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of this guide.
5. Turn on the power to the computer. The picture will appear within about 10 seconds.
Adjust the picture to obtain optimum picture quality. See section Adjusting the picture
in this guide for more information.
Audio system
This monitor has an audio system including two micro loudspeakers. Each of two micro
loudspeakers has an 2Wrms (max.) output power. This system also supports a headphone
output jack.
When this monitor is turned on, audio is always set up as off mode.
Please use AUDIO direct access button on the front cover or On Screen Display to put
audio on.
Speaker
P171_eng.indd 16.10.2003, 0:366

Eng
6 www.prestigio.biz
Eng
7www.prestigio.biz
3-5. Setting the refresh rate
Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window (Start-Settings-Configuration window).
2. Double click on the ‘Display’ icon.
3. Click on the ‘Settings’ tab.
4. Click on the ‘Advanced’ button.
5. Click on ‘Adapter’ and select 60Hz from the list.
6. Click on ’Apply’ to accept the selected value.
Preset Timing Table
If the signal from the system isn't equal to the preset timing mode, adjust the mode with
reference to the user guide of videocard because the screen may not be displayed.
The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz.
Horizontal
Frequency
31.5 KHz
31.5 KHz
37.5 KHz
37.9 KHz
46.9 KHz
48.4 KHz
56.5 KHz
60.0 KHz
63.9 KHz
80.0 KHz
Refresh Rate
70 Hz
60 Hz
75 Hz
60 Hz
75 Hz
60 Hz
70 Hz
75 Hz
60 Hz
75 Hz
No.
1
2
3
4
5
6
7
8
9
10
Resolution
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
P171_eng.indd 16.10.2003, 0:367

Eng
8 www.prestigio.biz
Eng
9www.prestigio.biz

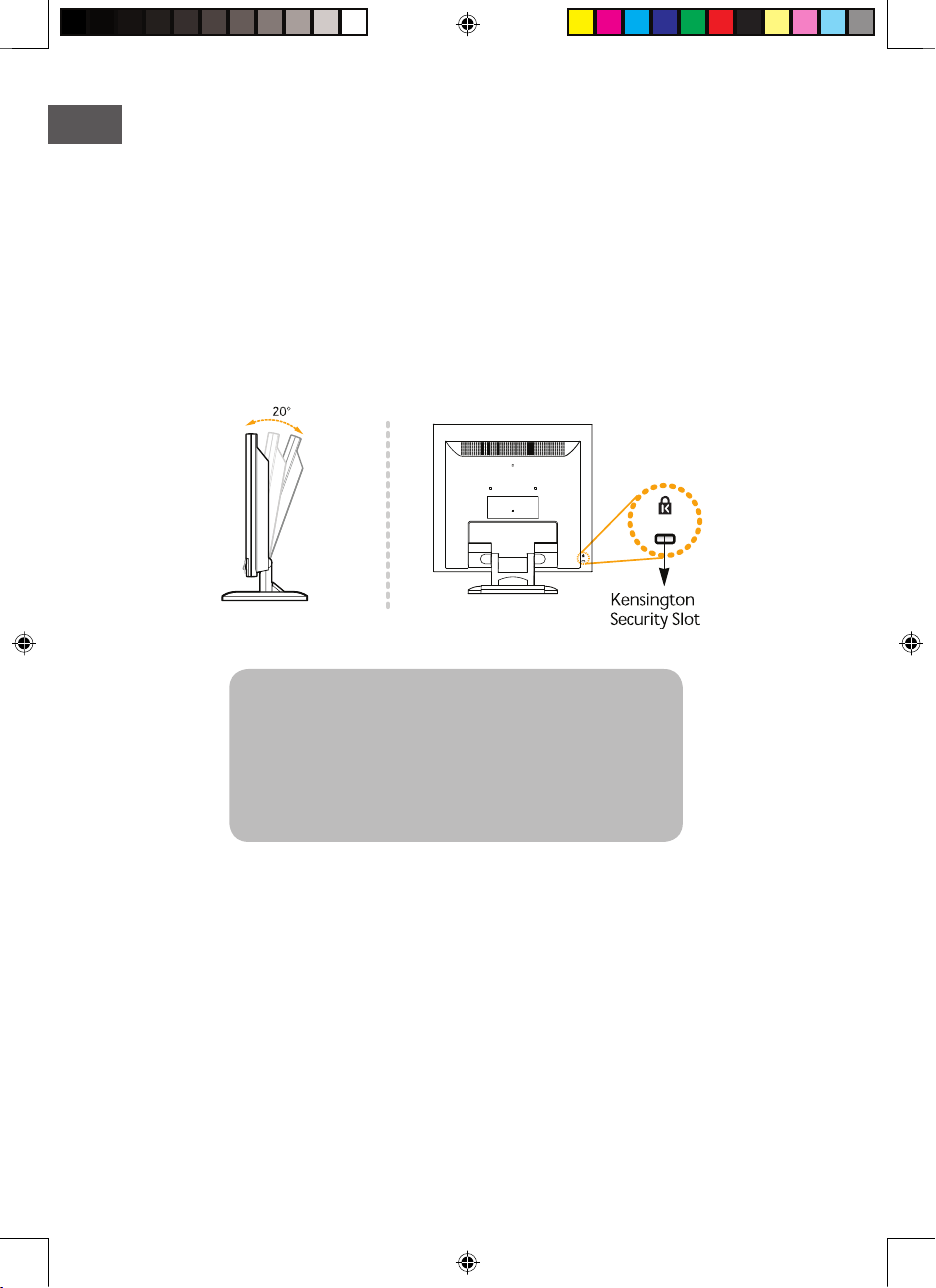

3-6. User’s Environment
Recommended Ergonomic User’s Environment
• Viewing angle of the monitor should be between 0~20 degree.
Kensington Security (Locking) Slot
• This display unit supports a Kensington-type security device to secure your monitor.
Kensington lock is not included.
• To purchase and install the Kensington locking device, please refer to the following
contact information.
* Kensington Technology Group
· Address :
2000 Alameda de las Pulgas 2F san mateo,
California 94403-1289
· Tel : [phone]
· Fax : [phone]
· Web-site : www.kensington.com
P171_eng.indd 16.10.2003, 0:368

Eng
8 www.prestigio.biz
Eng
9www.prestigio.biz
Ergotron, Inc.
- Address : Ergotron Europe
Kuiperbergweg 50 1101 AG
Amsterdam The Netherlands
- Tel : [phone]
· Fax : [phone]
· E-mail : [e-mail]

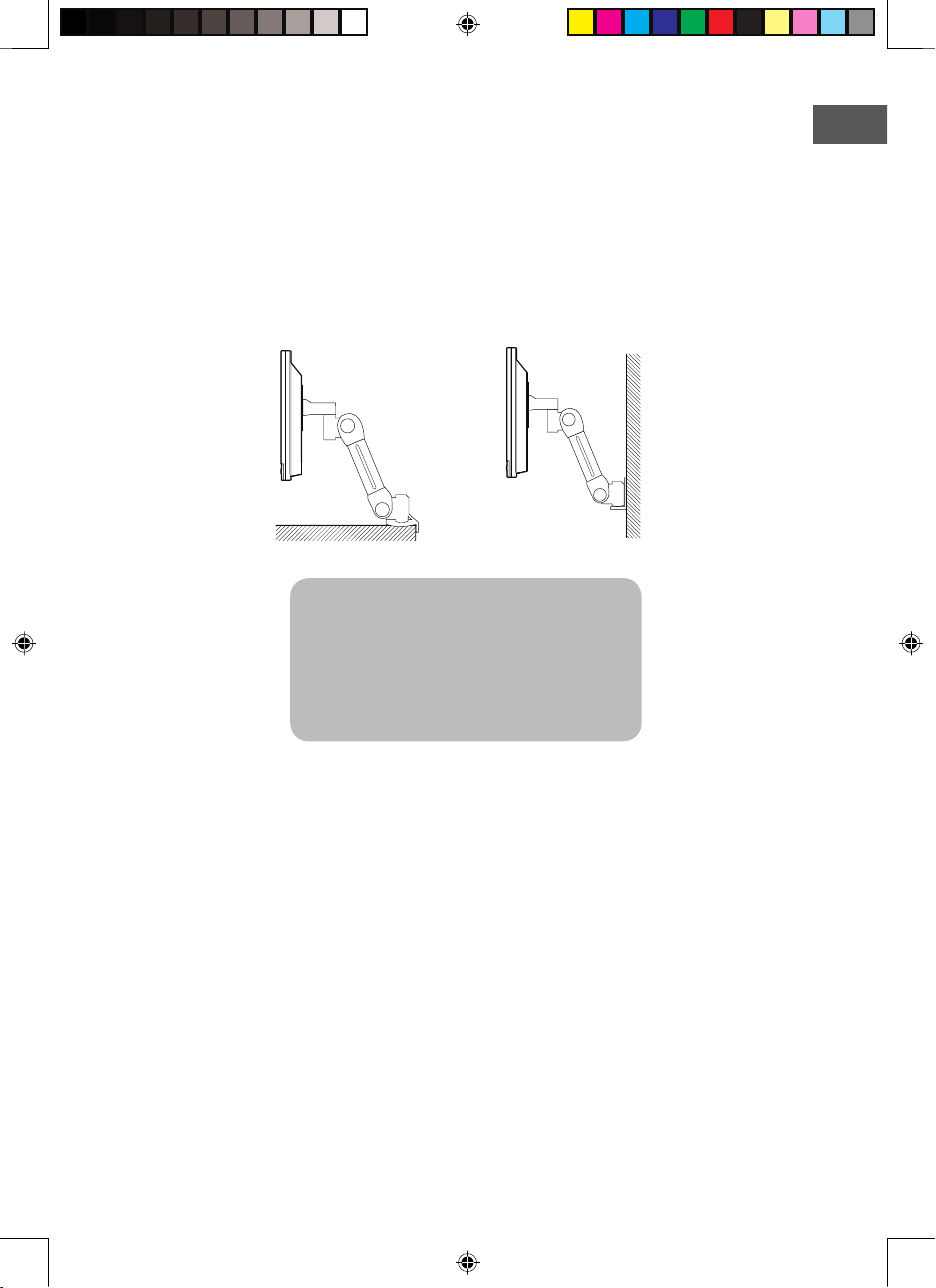

VESA MOUNTING
• This display unit supports VESA FPMPMI standard for 100mmx100mm screw mounting
by giving 4 screw holes inside the base stand of the unit.
• To buy VESA Flat Panel Monitor Mounting Devices, please contact following infor-
mation.
Only M4 x12 size screw should be used for proper mounting.
(Using wrong size screw may cause damages to the device)
Desk Mount
Wall Mount
P171_eng.indd 16.10.2003, 0:369

Eng
10 www.prestigio.biz
Eng
11www.prestigio.biz
4. Adjusting the picture
You can adjust the screen display by using the buttons located below the screen.

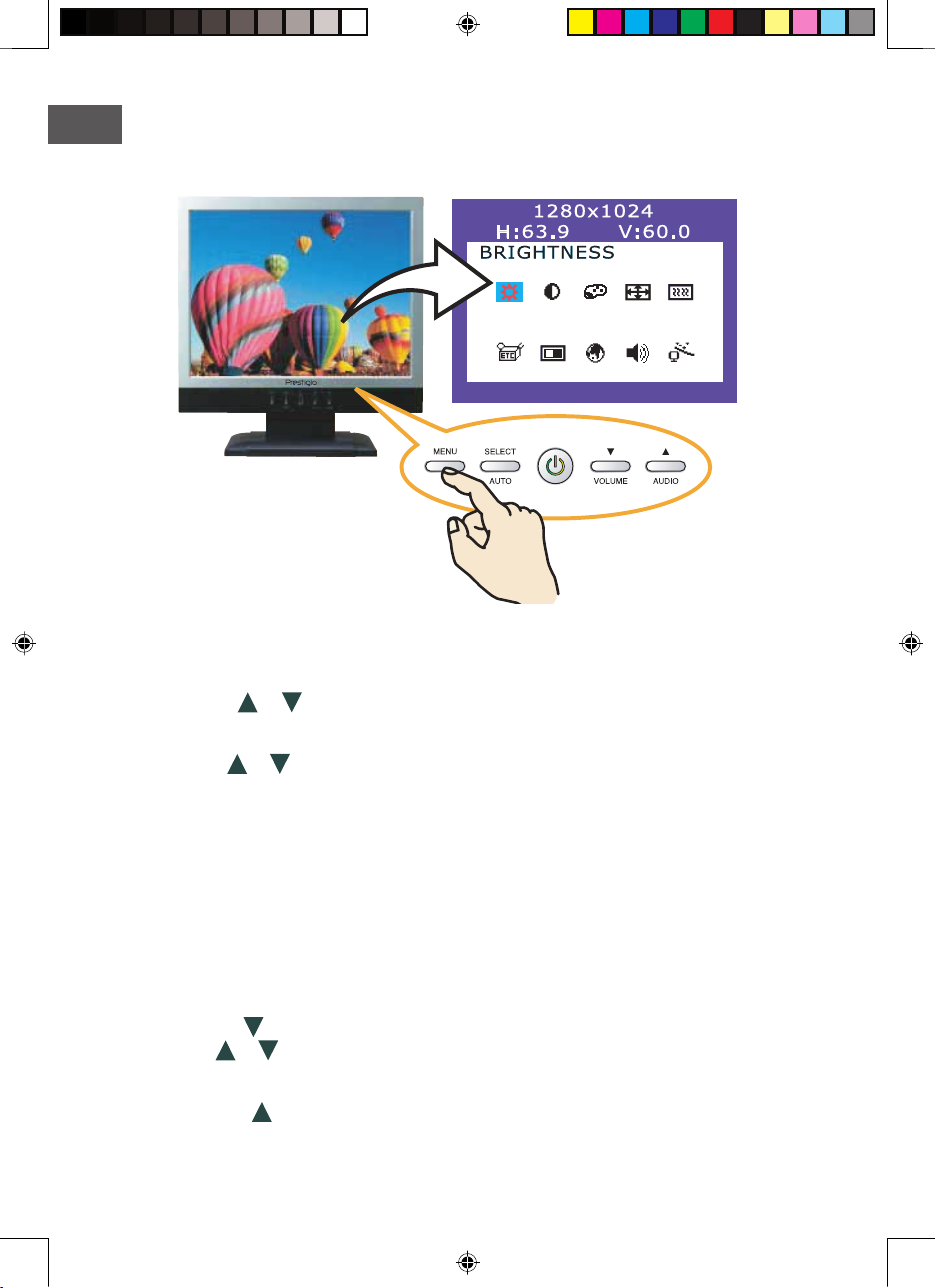

4-1. Using the On Screen Display
1. Push the MENU button to call the OSD to the screen. The resolution and frequency
are displayed at the top of the menu box for your information.
2. Push the or button to choose the item you want to adjust. The selected item
is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your last ad-
justments and the menu disappears. You can also push the MENU button to make the
menu disappear.
4-2. Direct access buttons
AUTO ADJUST
At first display a full screen such as Window's back ground. Push the button SELECT (AUTO)
to adjust the shape of screen automatically.
VOLUME
Use the button to select the volume adjustment.
Adjust with or button.
AUDIO
Push the button to choose audio on or off.
P171_eng.indd 16.10.2003, 0:3610

Eng
10 www.prestigio.biz
Eng
11www.prestigio.biz
4-3. OSD Adjustments
The OSD adjustments available to you are listed below.
BRIGHTNESS
Adjust the brightness of the screen.
CONTRAST
Adjust the contrast of the screen.
COLOR CONTROL
Color temperature affects the tint of the image. With lower color temperatures the image
turns reddish and with higher temperatures bluish.
There are three color settings available: Mode 1(9300K), Mode 2(6500K) or USER. With
the USER setting you can set individual values for red, green and blue.
H/V POSITION
H-POSITION
Adjusts the horizontal position of the entire screen image.
V-POSITION
Adjusts the vertical position of the entire screen image.
CLOCK PHASE
PHASE
Adjust the noise of the screen image.
CLOCK
Adjust the horizontal size of the entire screen image.
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the displayed time of OSD Menu window on the screen by using this ad-
justment.
OSD POSITION
Adjust the OSD menu's horizontal or vertical position on the screen.
AUTO COLOR
Optimum color setting is auto programmed for user’s convenience.
P171_eng.indd 16.10.2003, 0:3611

Eng
12 www.prestigio.biz
Eng
13www.prestigio.biz
LANGUAGE
You can select the language in which adjustment menus are displayed. The following lan-
guages are available : English, French, German, Italian, Spanish, Swedish, Finnish, Danish,
Portuguese, Dutch and Japanese or Chinese.
AUDIO
VOLUME
Adjust the audio volume level.
AUDIO
This menu is used to choose audio on or off.
AUTO ADJUCT
You can adjust the shape of screen automatically at the full screen pattern.
P171_eng.indd 16.10.2003, 0:3612

Eng
12 www.prestigio.biz
Eng
13www.prestigio.biz
5. Display power management
Reducing power consumption
If the power management function of your computer is enabled, your monitor turns on and
off automatically. You can control power management features from your computer.
Your computer may have power management features which enable the computer or moni-
tor to enter a power saving mode when the system is idle. You can reactivate the system
by pressing any key or moving the mouse.
The power button does not disconnect the monitor from the mains.
The only way to isolate the monitor completely from the mains supply is
to unplug the mains cable.
Power
consumption
35 W (Typ)
< 1 W (Typ)
0 W
Mode
Normal
Off
Unplugged
LED
Green
Orange
Not illuminated
P171_eng.indd 16.10.2003, 0:3613

Eng
14 www.prestigio.biz
Eng
15www.prestigio.biz
6. Troubleshooting
If your monitor is not functioning properly, you may be able to solve the problem by fol-
lowing the suggestions below :
Blank screen
Error message: Video
mode not supported
The display does not en-
ter power management
mode
Color defects
Size, position, shape or
quality unsatisfactory
Duplicated images
Image is not stable
If the power LED is not lit, push the Soft power switch or
check the AC cord to turn the monitor on. If the display unit
is powered through the computer, check that the computer
is switched on.
The display unit might be in standby mode. Push one of the
keyboard keys. Check that the keyboard is properly con-
nected to the computer.
Check that the signal cable connector is properly connected
and that the connection pins are not bent or damaged. If the
connector is loose, tighten the connector's screws.
Check that the power cable is correctly connected to the
display unit and to the power outlet.
Check the resolution and the frequency on the video port
of your computer.
Compare these values with the data in the Preset Timing
Table.
The video signal from the computer does not comply with
VESA DPMS standard. Either the computer or the graphics
adapter is not using the VESA DPMS power management
function.
Check that the signal cable connector is properly connected
and that the connection pins are not bent or damaged. Try
another color temperature.
Adjust the picture characteristics as described in the section
OSD Adjustment(4-3).
A problem with your graphics adapter or display unit. Contact
your service representative.
Check that the display resolution and frequency from your
PC or graphic adapter is an available mode for your monitor.
In your PC, you can check through Control panel, Display,
Settings.
Problem Possible solution
P171_eng.indd 16.10.2003, 0:3614

Eng
14 www.prestigio.biz
Eng
15www.prestigio.biz
Contacting service
If the above troubleshooting hints do not help you find a solution to the problem, contact
an authorized service agent. If the monitor is sent for service, use the original package if
possible.
Unplug the display unit from the power outlet and contact a service agent when:
• The monitor does not operate normally according to the operating instructions.
• The monitor exhibits a distinct change in performance.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor has been exposed to rain, or water or liquid has been spilled onto the
monitor.
Image is not stable
Message : No signal
The power LED is a or-
ange color
If the setting is not correct, use your computer utility program
to change the display settings.
Check that the signal cabel connector is properly connected
and that the connection pins are not bent or damaged.
If the connector is loose, tighten the connector’s screws.
Check that the computer is switched on.
To enter a power saving mode. You can reactivate the system
by pressing any key or moving the mouse.
LED Indicator can be orange color on changeing of video mode
or Input Signal(D-sub/DVI).
Check the Resolution and the frequency on the video part
of your computer. Compare these values with the data in the
Preset Timing Table.
Problem Possible solution
P171_eng.indd 16.10.2003, 0:3615

Eng
16 www.prestigio.biz
7. Specifications
• Specification is subject to change without notice for performance improvement.
LCD
Brightness
Response Time
Display area
Input signals
Frequency rate
Maximum bandwidth
Maximum resolution
Recommended resolution
Input voltage
Power consumption
Power management
Plug & Play
OSD menu
Audio system
VESA FPMPMI
Ergonomics,
Safety and EMC
Operating Temperature
Weight
Dimensions (W X H X D mm)
17"viewable, Diagonal, Pixel pitch 0.264 mm, A-Si TFT
260cd/m2
16msec (Typ.)
337.92 x 270.336 mm
R.G.B Analog, 15 pin D-sub
Horizontal: 31.0 to 80.0KHz, Vertical: 56 to 75Hz
135 MHz
1280 x 1024@75Hz,
1280 x 1024@60Hz
100-240 VAC, 1.0A
35W(Typ.)
VESA DPMS
VESA DDC 1/2B
BRIGHTNESS, CONTRAST, COLOR CONTROL, POSI-
TION, CLOCK PHASE, MISCELLANEOUS, AUTO COLOR,
LANGUAGE, AUDIO, AUTO ADJUST
2ch x 2 watts / Ear Phone Jack
75 mm x 75 mm screw mounting
TCO, FCC Class B, CE,
cULus, TUV-GS, SEMKO
5 ~ 35O C
3.7Kg unpacked, 4.6Kg packed
396 X 414 X 200 mm
P171_eng.indd 16.10.2003, 0:3616

U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modication not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
P171_hu.indd 16.10.2003, 0:3617

Hu
18 www.prestigio.biz
Hu
19www.prestigio.biz
1. Bevezetés
A jelen kézikönyv tartalmazza a Prestigio P171 monitor beállítási és használati utasításait.
A Prestigio P171 a következő adatokkal rendelkező ergonomikus színes monitor.
• Látható terület 17”
• Jóminőségű ábrázolás a becsillanásvédő bevonatnak köszönhetően
• Jóminőségű képernyő-nagyítás
• A paraméterek képernyőmenüről történő vezérlése
• 100-240 V váltóáramú bemenő feszültség
• VESA DPMS (Monitor energiaellátás vezérlés)
• VESA DDC1/2B szabvánnyal való kompatibilitás
• Gyors és pontos automatikus beállítás
• VESA készülék felszerelési lehetősége
2. Biztonsági információ
A monitor fejlesztése és gyártása a nemzetközi biztonsági szabványoknak megfelelően történt.
Az elektromos áramütések elkerülése végett kérjük, tartsák be az alábbi szabályokat:
Semmilyen nedves tárgyat ne helyezzen a monitorra és a kábelre.
Szigorúan tilos a monitor házán található szellőzőnyílásokat elzárni
és a monitor alkatrészeihez fém vagy könnyen gyulladó tárgyakkal
hozzáérni.
A monitor használata során kerülje a magas környezeti hőmérsékletet,
pára- és portartalmat.
• Működtetési hőmérséklet: 5~35°C, Viszonylagos páratartalom:
30~80%
Mielőtt a tápkábelt a hálózati csatlakozóaljzatba köti, győződjön meg
arról, hogy a monitor ki van kapcsolva. Ellenőrizze, hogy a tápkábel
és a jelkábelek helyesen vannak csatlakoztatva.
Ne kössön túl sok hosszabbítót vagy villásdugót egy
csatlakozóaljzatba, ne használjon sérült vagy rosszul rögzített
csatlakozóaljzatot, mert ez áramütéshez vagy tűzesethez vezethet. A
meghibásodott alkatrészek cseréjét szakszervizzel végeztesse el.
Ne használjon a képernyő felületének közelében olyan hegyes
tárgyakat, pl. tűt vagy tollat, amelyek a folyákonykristályos felületet
felsérthetik.
Ne használjon a monitor tisztítására oldószereket, pl. benzint - ez
megrongálhatja a folyékonykristályos felületet.
P171_hu.indd 16.10.2003, 0:3618

Hu
18 www.prestigio.biz
Hu
19www.prestigio.biz
Tisztítás és karbantartás
• Elektromos áramütés elkerülése végett ne szerelje le a monitor fedelét vagy hátlapját.
A monitorban belül található alkatrészek nem igényelnek felhasználó altali karbantartást.
Tisztítás előtt győződjék meg arról, hogy a monitor nincsen a hálózatra csatlakoztatva.
• Ne használjon alkoholtartalmú anyagokat (metil- vagy etilalkohol), vagy erős oldószereket.
Ne használjon oldószert vagy benzin, csiszolóanyagokat és sűrített levegőt.
• Ne törötlje le a képernyőt olyan textilanyaggal vagy szivaccsal, amelyek felsérhetik a
felületet.
• Az antisztatikus képernyő tisztításához használjon vizet és egy speciális mikroszálas
képernyőtisztító rongyot, vagy javasolt tisztítószerrel vagy lágy vízzel benedvesített puha
anyagot.
• Amennyiben a fent leírt utasítások segítségével nem lehet a felületről a foltokat eltávolítani,
forduljon a megbízott szakszervizbe.
3. A monitor beállítása
3-1. Összetétel
Kérjük, legyen szíves ellenőrizni, hogy minden alább felsorolt kellék a monitorral együtt található.
A fent bemutatott tápkábelek különbözhetnek a régió és a hálózati feszültségek
függvényében. Kérjük, forduljon a viszonteladójához, ha valamely kellék hiányzik vagy
sérült.
Más, nem a csomagolásban található tápkábelek, valamint 3 méternél hosszabb
tápkábelek használata negatív kihatással lehet a monitor működésére.
Csatlakozó kábel
Monitor Állvány
Audio kábel Használati utasítás
Tápkábel
P171_hu.indd 16.10.2003, 0:3619

Hu
20 www.prestigio.biz
Hu
21www.prestigio.biz
90
O
3-2. Az állvány felszerelése
Helyezze el az állványt az utasításnak megfelelően sík felületen.
1. Helyezze el a monitort képernyővel lefelé és nyissa ki 90°-os helyzetbe az összecsukott
lábat.
2. Csatlakoztassa noman megnyomva az állványt a monitor lábához (ha a műveletet
helyesen végezte el, akkor egy kattanást fog hallani).
3. Húzza ki az állványt teljes egészében, hogy a monitort az asztalra tudja helyezni.
3-3. A monitor helyének megválasztása
• A monitor helyének megválasztásakor vegye gyelembe, hogy a monitornak más elek-
tromos készülékektől fűtőtestektől legalább 30 cm-re kell lennie. Ezen kívül a megfelelő
levegőcsere érdekében minden oldalról legalább 10 cm-es teret kell biztosítani.
• Kerülje direkt fénysugaraknak a képernyőre való beesését.
• Azért, hogy a szeme kevésbé fáradjon el, ne helyezze a monitort világos háttér elé, pl.
az ablakkal szemben.
• Úgy állítsa be a monitort, hogy a képernyő felső széle a szemvonalnál magasabban
legyen.
• Vegye gyelembe, hogy a monitornak a felhasználó szemétől 45 - 90 cm-re kell lennie
A monitor csatlakoztatása előtt győződjék meg arról, hogy a PC és a készülékek
áramtalanítva vannak. Az áramütések elkerülése végett csak ép kábeleket és földelt
dugaszolóaljzatokat használjon.
P171_hu.indd 16.10.2003, 0:3620
