Presto Lifts XP24-3 Series Setup guide

XP24-3 &
XP24-6 Series
Scissor Lifts
Installation, Operation
and Service Manual
Model Number ___________________
Serial # _________________________
Date placed in service _____________
IMPORTANT: READ CAREFULLY
BEFORE INSTALLING OR OPERATING LIFT
Part orders are subject to a $50 minimum charge.
JUNE 2016

Page 2 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
This manual was current at the time of printing. To obtain
the latest, most updated version, please contact Presto Lifts
Customer Service Department or go to our website: www.
PrestoLifts.com -- you will nd a complete list of current
owner’s manuals to print.

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 3
C O N T E N T S
SECTION 1: Introduction .................................................................................................. 4
Responsibility of Owners and Users............................................................................ 5
Safety Alert Symbols and Signal Words ...................................................................... 6
SECTION 2: Safety ............................................................................................................ 7
SECTION 3: Unpacking and Assembly ............................................................................. 8
A. Inspection............................................................................................................... 8
SECTION 4: Operation ...................................................................................................... 8
A. Method Of Operation............................................................................................. 8
SECTION 5: Maintenance .................................................................................................. 8
A. Routine Inspection and Maintenance ..................................................................... 8
Table 1: Hydraulic Oil Specications .......................................................................... 9
SECTION 6: Parts Breakdown ....................................................................................10-11
ORDERING REPLACEMENT PARTS .......................................................................... 13
RESTOCKING POLICY & RMA POLICY.................................................................... 14
RETURN GOODS AUTHORIZATION (RMA) PROCEDURES.................................. 15
WARRANTY................................................................................................................... 16
LIST OF FIGURES:
Fig. 1 Foot pedal ..................................................................................................... 8
Fig. 2 XP24 Assembly ........................................................................................... 10
Fig. 3 Labels and Locations.................................................................................... 12

Page 4 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
S E C T I O N 1
INTRODUCTION
This manual provides all the information for the safe and proper assembly, operation and mainte-
nance of the Presto Lift Inc. Model XP24-3 and XP24-6 lifts. It is important that this manual be read
by all personnel involved with the installation, maintenance or operation of the scissor lift. These
models are designed for in-plant and non-hazardous locations.

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 5
Responsibility of Owners and Users
Inspection and Maintenance
The device shall be inspected and maintained in proper working order in accordance with Presto’s
owner’s manual.
Removal from Service
Any device not in safe operating condition such as, but not limited to, excessive leakage, missing
rollers, pins, or fasteners, any bent or cracked structural members, cut or frayed electric, hydraulic,
or pneumatic lines, damaged or malfunctioning controls or safety devices, etc. shall be removed from
service until it is repaired to the original manufacturer’s standards.
Repairs
All repairs shall be made by qualied personnel in conformance with Presto’s instructions.
Operators
Only trained personnel and authorized personnel shall be permitted to operate PowerStak.
Before Operation
Before using the device, the operator shall have:
• Read and/or had explained, and understood, the manufacturer’s operating instructions and safety
rules.
• Inspected the device for proper operation and condition. Any suspect item shall be carefully ex-
amined and a determination made by a qualied person as to whether it constitutes a hazard. All
items not in conformance with Presto’s specication shall be corrected before further use of the
PowerStak.
During Operation
The device shall only be used in accordance with this owner’s manual.
• Do not overload.
• Ensure that all safety devices are operational and in place.
Modications or Alterations
Modications or alterations to any Presto industrial positioning equipment shall be made only with
written permission from Presto.

Page 6 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
SAFETY ALERT SYMBOLS AND SIGNAL WORDS
The safety of all persons operating, maintaining, repairing, or in the vicinity of this equipment is of paramount
concern. This is a powerful machine with moving parts, and is capable of causing personal injury if proper precautions
are not taken. Therefore, throughout this manual, certain hazards have been identied which may occur in the use
of the machine, and there are appropriate instructions or precautions which should be taken to avoid these hazards.
In some cases, there are consequences which may occur if instructions or precautions are not followed. Below are
the symbols and signal words along with their denitions referenced from ANSI Z535.4 - Product Safety Signs
and Labels.

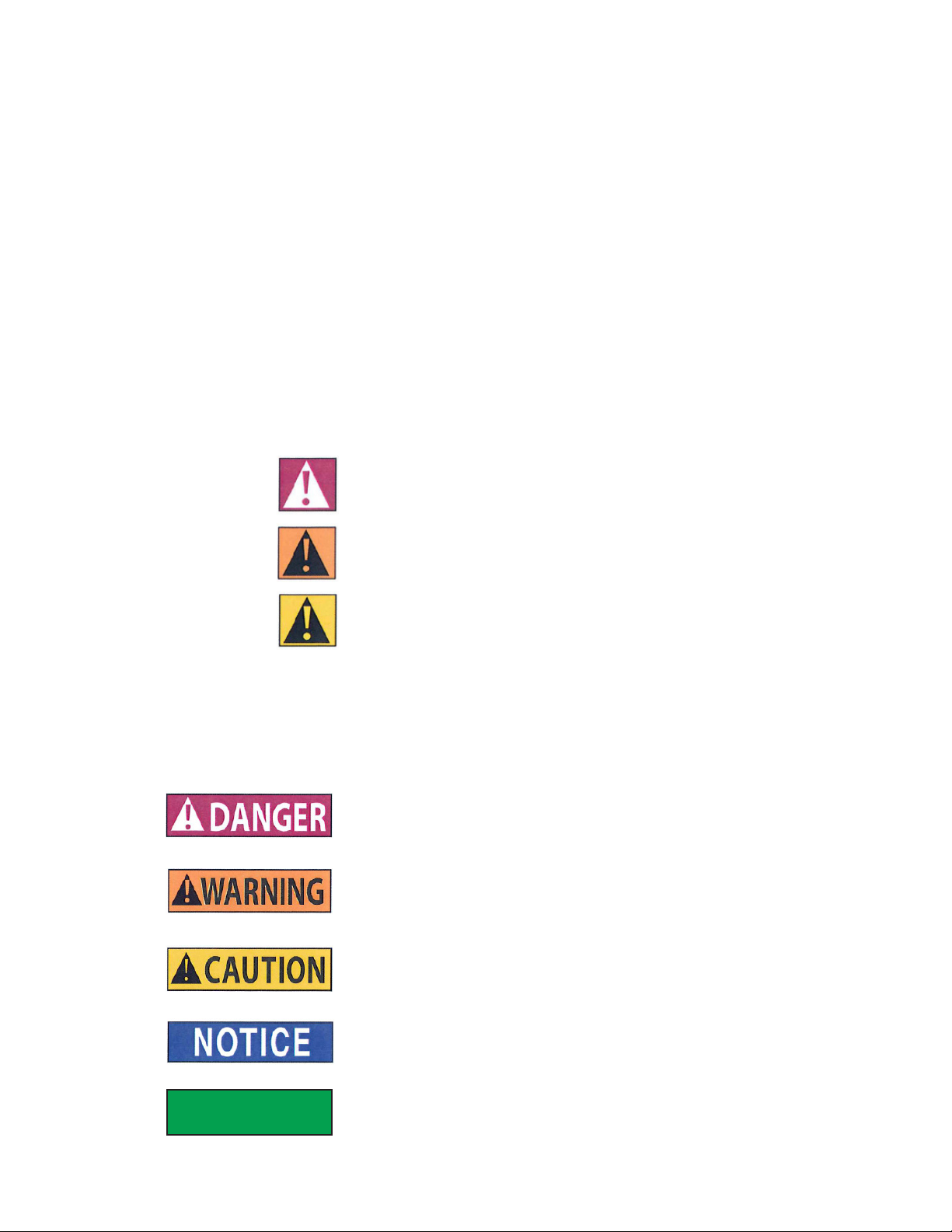

Safety Alert Symbols
These are the safety alert symbols.. They are used to alert you to potential physical injury haz-
ards. Obey all safety messages that follow this symbol to avoid possible injury or death.
For use with DANGER signal word
(Red Background)
For use with WARNING signal word
(Orange Background)
For use with CAUTION signal word
(Yellow Background)
Signal Words
The meaning of different signal words as dened by ANSI Standard Z535.4 indicates the relative
seriousness of the hazardous situation.
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a haz-
ardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE is used to address practices not related to personal
injury.
(Red Background)
(Orange Background)
(Yellow Background)
(Blue Background)
SAFETY
INSTRUCTIONS
SAFETY INSTRUCTIONS (or equivalent) signs indicate safety-
related instructions or procedures.
(Green Background)

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 7
S E C T I O N 2
SAFETY
The safety of all persons installing, using, servicing, or working near the unit is of paramount concern
to Presto Lifts. The lift is a powerful machine with moving parts, and is capable of causing personal
injury if proper precautions are not taken. Therefore, throughout this manual, Presto Lifts has identi-
ed certain hazards, which may occur in the use of the unit, and provided appropriate instructions or
precautions that should be taken to avoid these hazards. In some cases, Presto Lifts’ has also pointed
out the consequences that may occur if Presto Lifts’ instructions or precautions are not followed. Presto
Lifts uses the following nationally recognized system for identifying the severity of the hazards associ-
ated with its products:
DANGER – Immediate hazard that will result in severe personal injury or death.
WARNING – Hazard or unsafe practice that could result in severe personal injury or death.
CAUTION – Hazard or unsafe practice that could result in minor personal injury or property damage.
In the interest of safety, please read the entire manual carefully. You must understand the material
in this manual before you install, use, or service the unit. If you have any question about any of the
instructions in this manual, please contact Presto Lifts Inc. at 1-800-343-9322.

Page 8 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
CAUTION!
Hazardous or unsafe practice will possibly result
in personal injury or property damage.
CAUTION!
• Do not repair or work on unit without chocking
lift in an upright position.
• Do not overload the lift (see nameplate for capac-
ity).
• Do not put feet or hands under lift when operat-
ing.
• Do not stand, sit or climb on the lift while sta-
tionary or moving.
• Do not move lift when load is in an elevated posi-
tion.
• Place load in the center and evenly distributed on
the table.
S E C T I O N 3
UNPACKING
AND ASSEMBLY
A. INSPECTION:
Upon receipt of the XP24-3 and XP24-6 Scissor lift,
inspect the equipment completely to determine if there
is any shipment damage and that the lift is complete.
Do not use the lift if there appears to be any damage.
S E C T I O N 4
OPERATION
A. METHOD OF OPERATION:
• To raise turn release knob clockwise till fully closed.
Press on foot pedal to raise.
• To lower slowly turn release knob counter clockwise
till the desired rate of decent is achieved.
• To lock lift in position press down on the wheel
breaks located on the swivel casters at the push
handle end.
S E C T I O N 5
MAINTENANCE
Generally, the XP Series of scissor lifts require little
maintenance. However, routine inspection and main-
tenance will minimize costly repairs or hazardous
conditions.
WARNING!
Never go under or service lift with a load on the table
or with the scissor mechanism loaded. If possible,
service the lift in a down position.
A. ROUTINE INSPECTION
AND LOAD MAINTENANCE:
All routine inspection maintenance should be performed
on a monthly basis.
• Lubricate wheels and all pivot points of the unit
with a medium weight oil or light grease.
• Check wheels for wear and replace if necessary.
• Check for leaks by looking for tell tale oil spots on
the oor under the lift.
• Check oil level and ll if needed.
Recommended hydraulic oil: Super Hydraulic 32
Conoco

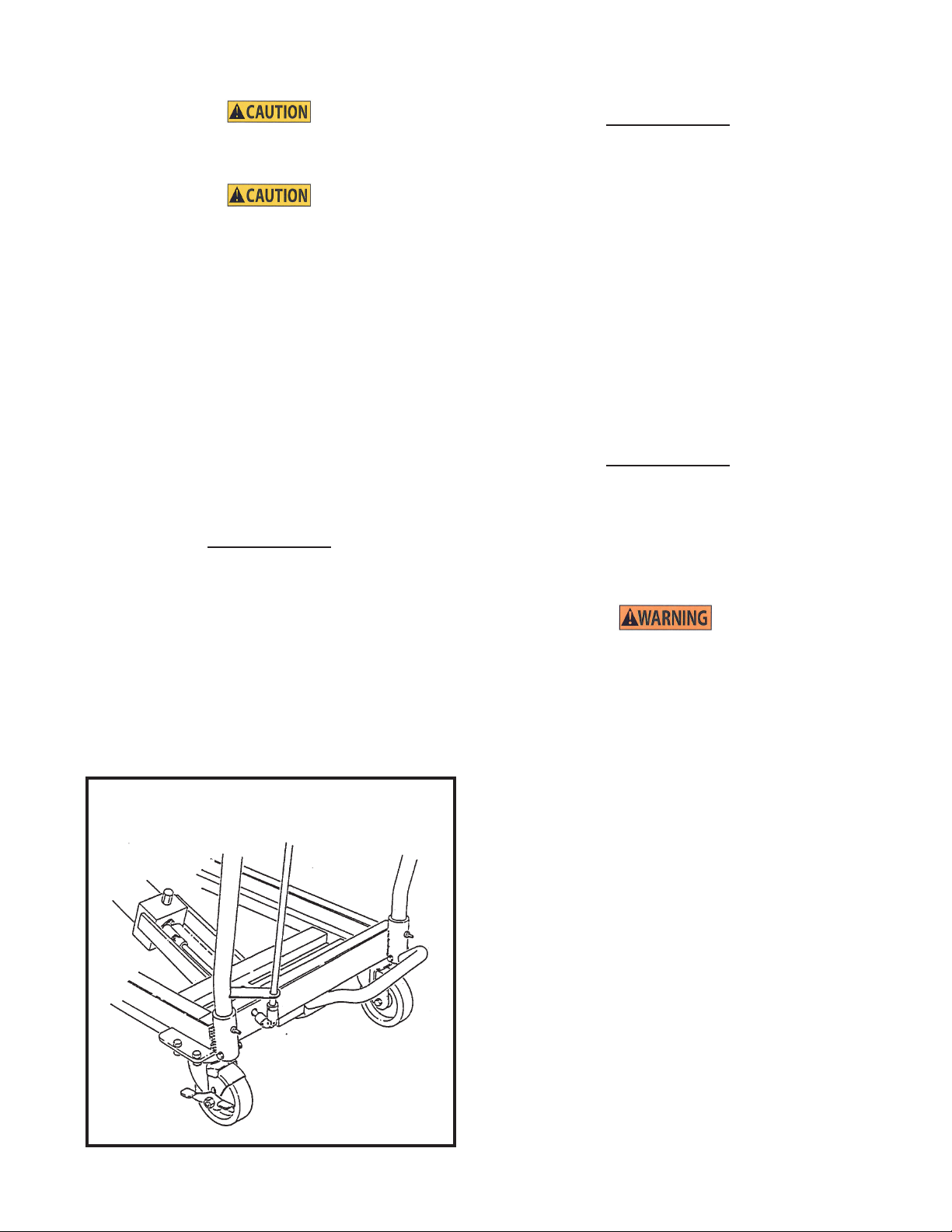

Figure 1: Foot Pedal

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 9
Hydraulic Oil Specications
If the lift will be used at normal ambient temperatures, Presto Lifts supplies the unit with
Super Hydraulic 32 Conoco oil. This may be replaced by any other good quality oil with 150
SSU at 100° F and rust and oxidation inhibitors and anti-wear properties.
If the lift will be used at ambient temperatures below 0°F, use aircraft hydraulic oil. Use Type
15 aircraft hydraulic oil.
The following are equivalent to CONOCO SUPER HYDRAULIC 32:
TYPE MANUFACTURER
AW32 ................................. CITGO
DTE 24 ............................. EXXON/MOBIL
NUTO H32 ........................ EXXON/MOBIL
AMOCO AW32 .................. CHEVRON (AMOCO CO.)
CAUTION!
It is very important to keep the hydraulic oil free of dirt, dust, metal chips,
water, and other contamination. Most of the problems with hydraulic systems
are caused by contamination in the oil.

Page 10 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
Item No. Part No. Description Qty
1 1011-017 Top Assembly 1
2 1011-053 Pin Retainer Assembly 4
“ N0240 Lock Washer 4
“ N0765 20x 5/8 cap screw 4
3 1011-007 Handle Lift 1
Figure 2:
XP24 ASSEMBLY
300 and 600 LB
Part numbers are accurate for machines shipped prior to 2005. For machines shipped in 2005 or later,
contact Presto Parts with the model and serial number.

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 11
Item No. Part No. Description Qty
4 1011-097 Release Knob 1
5 1011-090-02 Release Rod 1
6 1011-010 Roller 2
“ PSL28F Retaining Ring 2
“ C108 Spacer 2
“ N0381 Washer 2
“ 1000-32-08 Bushing 10DU08 2
7 1011-021 Legs Assembly 1
8 1011-010 Roller 2
“ PSl28F Retaining Ring 2
“ N0381 Washer 2
“ 1000-32-08 Bushing 10DU08 2
9 1011-044 Pin Pivot Ram 1
“ PSL28F Retaining Ring 2
10 1011-102-300 XP24-300 Pump Assembly 1
“ 1011-102-600 XP24-600 Pump Assembly 1
11 PSL28A Retaining Ring 2
“ PSL28 Lever Pin 3/8 x 1 _ 1
“ 1011-031-02 Lever Pin 3/8 x 2 3/8 600lb 1
“ 1011-028-01 Link/Plunger 1
“ 1010-009-01 Spring 1
“ N0384 Washer 1
12 PSL28A Retaining Ring 2
“ PSL28 Lever Pin 3/8 x 1 _ 1
“ 1011-031-02 Lever Pin 3/8 by 2 3/8 300 lb 1
“ 1011-028-02 Link/Plunger 1
“ 1010-009-05 Spring 1
“ N0380 Washer 1
13 PSl28G Retaining Ring 2
14 1011-108 Foot Lever Assembly 1
“ 1011-026 Plate Link 2
“ 1011-107 Holder Foot Peddle w/lever 1
“ 1011-027 Holder Foot Peddle 1
“ 1011-052 Foot lever 1
16 1011-030 Pivot Pin _ x 5 3/16 1
17 1011-098 Double Universal joint 1
18 1011-090-01 Release Rod 1
19 1011-099 Single Universal Joint 1
20 1011-016 Base Assembly 1
21 1011-058-05 Caster/Swivel 2
22 1011-058-03 Caster/Swivel 4
23 1011-058-04 Brake Assembly 1
24 1011-058-01 Swivel Caster Without Brake 1
25 1011-058-02 Swivel Caster With Brake 1
26 N0817 5/16 – 18 x _ Lg Bolt 8
27 N0060 5/16 – 18 Nut 8
28 N00250 5/16 Lock Washer 8
29 1000-32-08 Bushing 10DU08 4
Part numbers are accurate for machines shipped prior to 2005. For machines shipped in 2005 or later,
contact Presto Parts with the model and serial number.

Page 12 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
LOCATE ITEM NO. 2998353 IN TWO PLACES ON SIDE
OF PLATFORM ENDS AS SHOWN
1
5
LOCATE APPROPRIATE CAPACITY LABEL IN TWO PLACES ON SIDE OF PLATFORM ENDS AS SHOWN
LOCATE ITEM NO. 30000414
CENTERED ON BASE AS SHOWN
2
LOCATE ITEM NO. 2981615 ON SIDE OF BASE AS SHOWN
3
LOCATE ITEM NO. 10006267 ON SIDE OF BASE AS SHOWN
4
LOCATE ITEM NO 2986737 CENTERED ON
LOWER STRONGBACK AS SHOWN
6
NOTE:
SERIAL LABELS ARE PRINTED TO EACH JOB ORDER. LOCATE IN
TWO PLACES (ONE ON BASE AND ONE ON UNDERSIDE OF PLATFORM)
CAPACITY LABELS: CAP PART NO
300 LB C165ST-02 600 LB C165ST-06 1000 LB C165ST-10 1500 LB C165ST-15 2000 LB C165ST-20
1. THE AREA WHERE THE NEW REPLACEMENT LABELING WILL BE APPLIED SHOULD BE FREE OF ALL DIRT, GREASE AND GRIME. 2. THE PAINTED SURFACE SHOULD BE SMOOTH AND FREE OF ANY RUST. IF RUSTED, SAND SMOOTH, CLEAN AND REPAINT BEFORE ATTEMPTING TO AFFIX NEW LABELS. 3. PEEL OFF BACKING AND APPLY LABEL USING CARE TO REMOVE AIR BUBBLES AS YOU APPLY THE LABEL. 4. PRESS LABEL DOWN FIRMLY WITH A SQUEEGEE OR ROLLER. THIS
LABEL
LOCATION
DRAWING
APPLIES TO ALL OF THE MACHINES LISTED BELOW:
XP24 SERIES XP36 SERIES WXP24 SERIES WXP36 SERIES THIS EQUIPMENT IS BUILT IN ACCORDANCE WITH ANSI MH29. THAT STANDARD, AMONG OTHER THINGS, DEFINES THE END USER'S RESPONSIBILITY TO MAINTAIN THE EQUIPMENT WHICH INCLUDES SEEING THAT ALL NAME PLATES, PRECAUTIONARY AND INSTRUCTAL MARKINGS, AND/OR LABELING IS IN PLACE AND LEGIBLE. PLEASE FOLLOW THE INSTRUCTIONS BELOW TO AFFIX NEW LABELING TO THE EQUIPMENT.
IMPORTANT:
IF YOU HAVE ANY QUESTIONS PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AT 1-800-343-9322
ITEM
NO.
QTY.
U/M
DESCRIPTION
PART NO.
6 1
EA
BK-LD DCL 4.00X2.75 TO AVOID BODILY INJU
2986737
5 2
EA
BK-LD DCL 1.50X9.00 1,000 LB. CAPACITY
C165ST-10
4 1
EA
BK-LD DCL 2.75X5.50 TO AVOID PERSONAL IN
10006267
3 1
EA
LD DCL 3.50X5.00 LOWER LIFT BEFORE TRANS
2981615
2 1
EA
BK-LD DCL 3.00 HELP LINE
30000414
1 2
EA
BK-LD DCL 1.12X6.37 TO AVOID BODILY INJU
2998353
REVISIONS
REV.
DESCRIPTION
DATE
REVISED BY
ECO #
1
2
A
B
C
D
A
B
D
C
2
SHEET 1 OF 1
XP DIAG
DWG NO
3 3
4
4
5 5
6
6
7
7
8
8
50 Commerce Way Norton MA 02766
STATUS:
CAD Area WIP
3RD ANGLE PROJECTION
-
16
-
LB
XP DIAG
REV
DWG. NO.
D
SIZE
TITLE:
FRACTIONS
1/
.XXX
.005
.XX
.01
ANGLES:
.5
USE OF PROPRIETARY INFORMATION
LIMITED TO WRITTEN AGREEMENT
SCALE
WT
REFERENCE
CAGE CODE
063Z8
UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE IN INCHES
SHEET 1 OF 1
DR
CK
2:14
PRESTO LIFTS
07/13/15
DATE DATE
CFM
MODEL
-
PROJECT:
v.14
Figure 3: Labels and Locations

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 13
Ordering Replacement Parts
Presto Lifts has carefully chosen the components in your unit to be the best available for the purpose. Replacement
parts should be identical to the original equipment. Presto Lifts will not be responsible for equipment failures
resulting from the use of incorrect replacement parts or from unauthorized modications to the unit.
Presto Lifts can supply all replacement parts for your lift. With your order, please include the model number
and the serial number of the unit. You can nd these numbers on the name plate. This plate is located within
the scissors mechanism.
To order replacement parts, please call the Presto Parts Department. Parts are shipped subject to the following
terms:
• FOB factory
• Returns only with the approval of our parts department.
• Credit cards preferred (except parts covered by warranty).
• Freight collect for truck (except parts covered by warranty).
• Freight – prepaid and invoice for small parcel shipments (except parts covered by warranty).
• The warranty for repair parts is 30 days from date of shipment.
Parts replaced under warranty are on a “charge-credit” basis. We will invoice you when we ship the replacement
part, then credit you when you return the worn or damaged part, and we verify that it is covered by our warranty.
Labor is not covered under warranty for Parts orders.
Presto Parts Department
50 Commerce Way
Norton, MA 02766
Telephone: [phone]
FAX: [phone]
Email: [email protected]
www.PrestoLifts.com

Page 14 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
PARTS
Standard parts may be returned with a 20% restocking fee. Modied or custom-
engineered parts are not returnable. Unfortunately, due to potentially concealed
damage, all sales of electrical assemblies are nal.
QUALITY ISSUES
Should you feel there is a quality problem, please contact the seller to ask ques-
tions and gather information on how to rectify the issue. Presto Lift Inc. reserves
the right to determine potential credits, as a result of factory defects, based on its
inspection of the merchandise.
GENERAL
All products shipped from our factory have passed Quality Assurance inspection
and testing. The carrier of choice has signed for, and accepted the product in new
working condition. The customer should inspect to ensure it is not received damaged,
has no concealed damage or is not incomplete. Parts orders are determined to be
complete based upon Presto Lift, Inc. inspection sheets and carrier shipping weights.

PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES — Page 15
RETURN GOODS AUTHORIZATION POLICY
Presto Lifts provides the Return Goods Authorization (RGA) Policy, for specic models, as a
courtesy to our distributors in the event they do not receive what they ordered. If a customer
wishes to return a Presto Lifts product, please contact the Customer Service Department and
request an RGA number. This request must be made on or before the fteenth calendar day
following the date of Presto Lifts’ invoice for the merchandise. Not all units are returnable.
Quantity orders and special designs cannot be returned under any circumstances. Presto Cus-
tomer Service reserves the right for nal judgment on all product returns.
The RGA number must appear on the outside of any packaging material for a return to be ac-
cepted and processed by Presto Lifts. Customers shipping returns from the Continental US,
Canada, or Mexico have thirty (30) days from date of RGA issue to have the product arrive at
Presto Lifts’ facility. All merchandise must arrive Free on Board at Presto Lifts’ facility or the
shipment will be refused and returned to the sender. All credits are issued less restocking and
refurbishing charges, regardless if the merchandise was damaged in transit.
Return addresses: please refer to your RMA for the address to which your product should be
returned.
Presto Lift Inc.
715 Highway 77
Manila, Arkansas 72442
Telephone: [phone]
Fax: [phone]

Page 16 — PRESTO OWNER’S MANUAL: XP24-3 & XP24-6 SERIES
Presto Lifts Limited Warranty Policy
Presto Lifts warrants all of its products against defects in the welded structural frame and, if ap-
plicable, scissor legs from faulty material and workmanship for a period of ve (5) years from
the date of invoice.
All other components have a limited warranty against defects in faulty material and workmanship
for a two (2) year period from the date of invoice date of invoice and 30 day limited warranty
on labor. Please note that prior authorization from Presto Lifts is required on all warranty work.
There are no implied warranties of any kind, more specically, there are no warranties of mer-
chantability or tness for any particular purpose. Presto Lifts' sole warranty shall be as set forth
in this limited warranty.
Presto Lifts will elect to repair or replace a defective component without charge, if any compo-
nents should become defective within the limited warranty period. Proof of purchase is required
for warranty. The charge for shipping the defective component is the responsibility of the buyer
and must be accompanied with an RMA number. The shipping charge to return the component to
the buyer is the responsibility of Presto Lifts, Inc.
This limited warranty does not cover labor expense for removal or reinstallation of components
after thirty days. This limited warranty shall not cover, among other things: damages resulting
from foreign matter or water, failure to provide reasonable and necessary maintenance, and if ap-
plicable, use of product while charger is plugged into an AC outlet, or failure to follow operating
instructions. The limited warranty is not valid for damage resulting from negligence, accident,
unreasonable use, abuse or misuse, exceeding data plate capacities or altering the product without
Presto Lifts authorization.
Presto Lifts expressly disclaims and excludes any liability for consequential, incidental, indirect
or punitive damages or nancial loss to people or property resulting from any breach of warranty
or the operation or failure of this product.
Presto Lifts makes no representation that this product complies with local, state, or federal safety/
product standards codes. Should this product fail to comply in any way with those codes, it shall
not be considered a defect of materials or workmanship. Presto Lifts shall not be held liable for
any damages resulting from noncompliance. It is the dealer's responsibility to exercise this limited
warranty. This limited warranty is provided to the original purchaser (dened as the original end
user) and is nontransferable. This constitutes the complete and nal agreement involving Presto
Lifts and limited warranty obligations for products.
