Terex Genie GS-3384 User manual

Operator's Manual
Serial Number Range
GS™-3384
from GS84F-46000
from GS90F-56000
ANSI/CSA
North America
South America
Asia
GS™-3390
GS™-4390
GS™-5390
with
Maintenance
Information
Original Instructions
Fifth Edition
First Printing
Part No. 1298223GT

Operator's Manual Fifth Edition • First Printing
GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Front Matter
Contents
Introduction........................................................... 1
Symbol and Hazard Pictorials Definitions............. 6
General Safety...................................................... 9
Personal Safety................................................... 13
Work Area Safety................................................ 14
Legend................................................................ 23
Controls............................................................... 24
Inspections.......................................................... 29
Operating Instructions......................................... 44
Transport and Lifting Instructions ....................... 53
Maintenance ....................................................... 56
Specifications...................................................... 60
Copyright © 2002 by Terex Corporation
Fifth Edition: First Printing, June 2020
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
These machines comply with
ANSI/SAIA A92.20
CAN/CSA B354.6

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 1
Introduction
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.

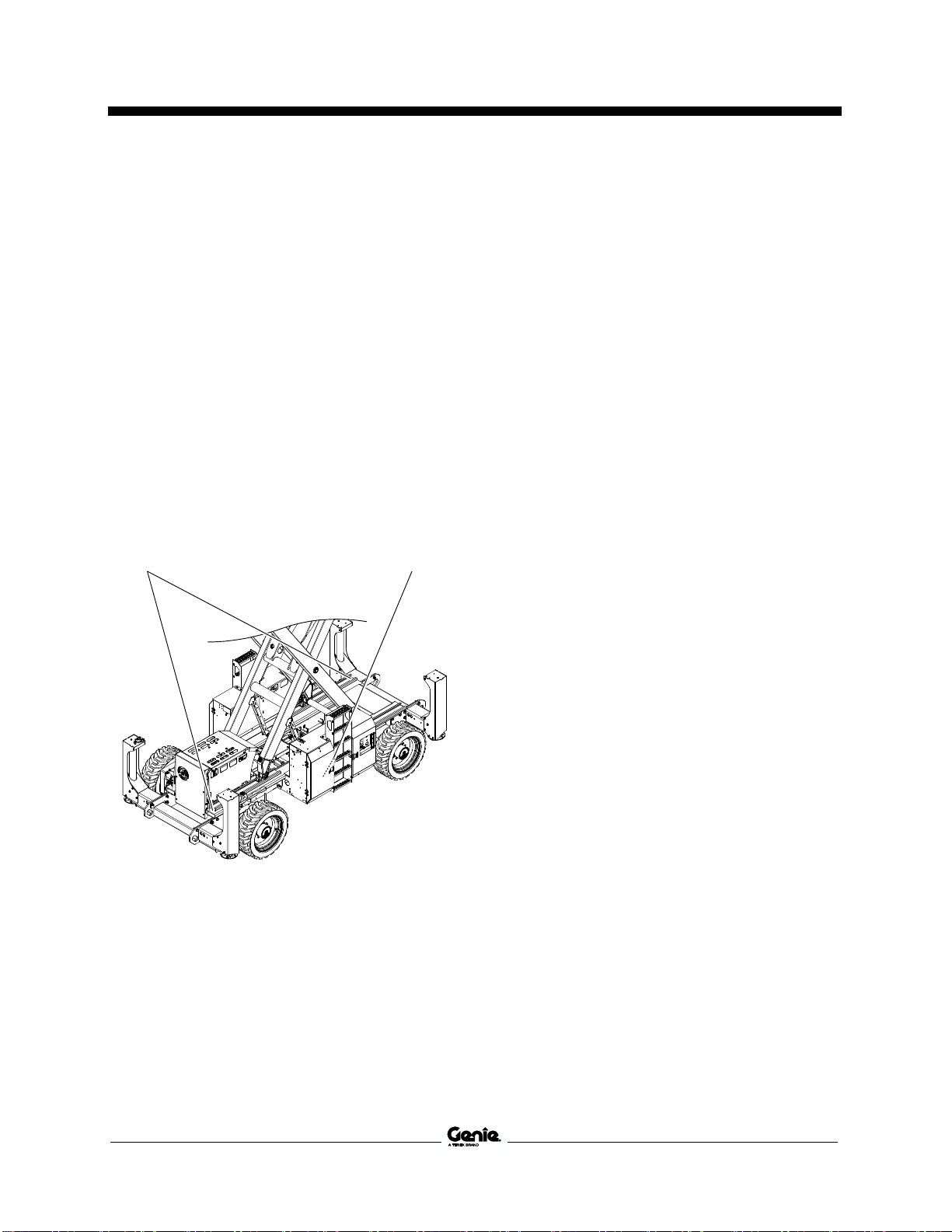

Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Fifth Edition • First Printing
Introduction
2 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Platform controls symbology and related machine
movement:
Lift function enable button
(when thumb rocker switch is
moved up or down)
Steer right/left
Outrigger function buttons
(when thumb rocker switch is
moved up or down)
Outrigger auto level button
(when thumb rocker switch
moved up or down)
Ground controls symbology and related machine
movement:
Lift function enable button
Platform up button
Platform down button
Sequential functions and movement:
Drive and steer.
Interlocked functions:
Lift and drive.
Elevated drive speed.
Elevated drive in an off-level condition.
All platform and ground controls.
Limitations of use:
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
Do not elevate the platform unless the machine
is on firm level ground.

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 3
Bulletin Distribution and Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Fifth Edition • First Printing
Introduction
4 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.

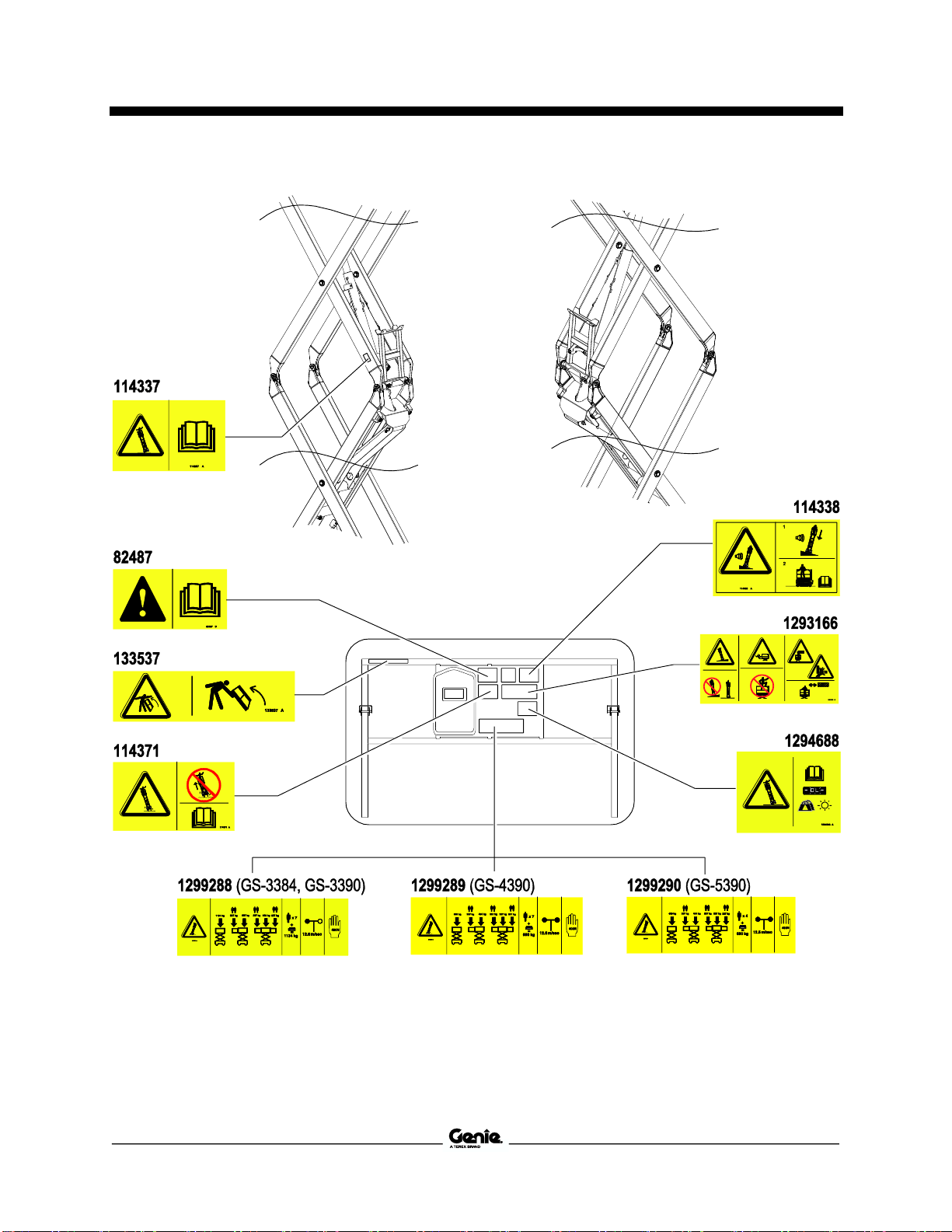

Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 5
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.

Operator's Manual Fifth Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Symboland Hazard Pictorials Definitions
Read the operator’s
manual
Read the service
manual
Crush hazard
Crush hazard
Collision hazard
Tip-over hazard
Tip-over hazard
Tip-over hazard
Tip-over hazard
Electrocution hazard
Electrocution
hazard
Explosion hazard
Fire hazard
Burn hazard
Skin injection hazard
Engage safety arm
Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to level
ground
Close chassis tray

Fifth Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 7

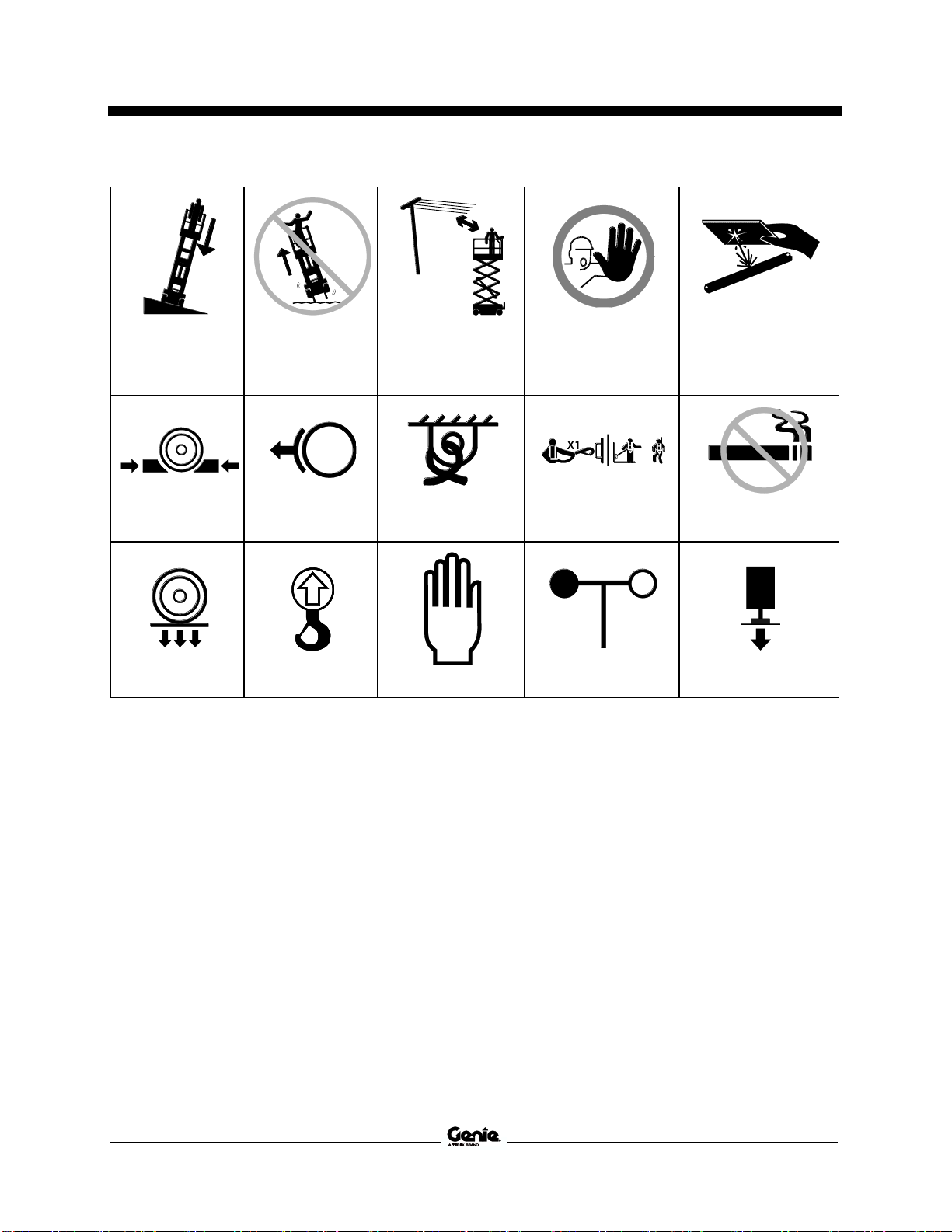

Lower the platform.
Do not set up
where it cannot be
leveled with
outriggers
Maintain required
clearance
Only trained
maintenance
personnel should
access compartments
Use a piece of
cardboard or paper to
search for leaks
Chock the wheels
Release brakes
Tie-down point
Lanyard anchorage
points
No smoking
Wheel load
Lifting point
Side force
Wind speed
Outrigger load

Operator's Manual Fifth Edition • First Printing
Symbol and Hazard Pictorials Definitions
8 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Voltage rating for
power to platform
Pressure rating for
air line to platform
Maximum capacity
Crushing hazard
Hold rail while lowering
Collision hazard
Chock the wheels
Platform overloaded
Indoor Use Only
Transport diagram

Fifth Edition • First Printing Operator's Manual

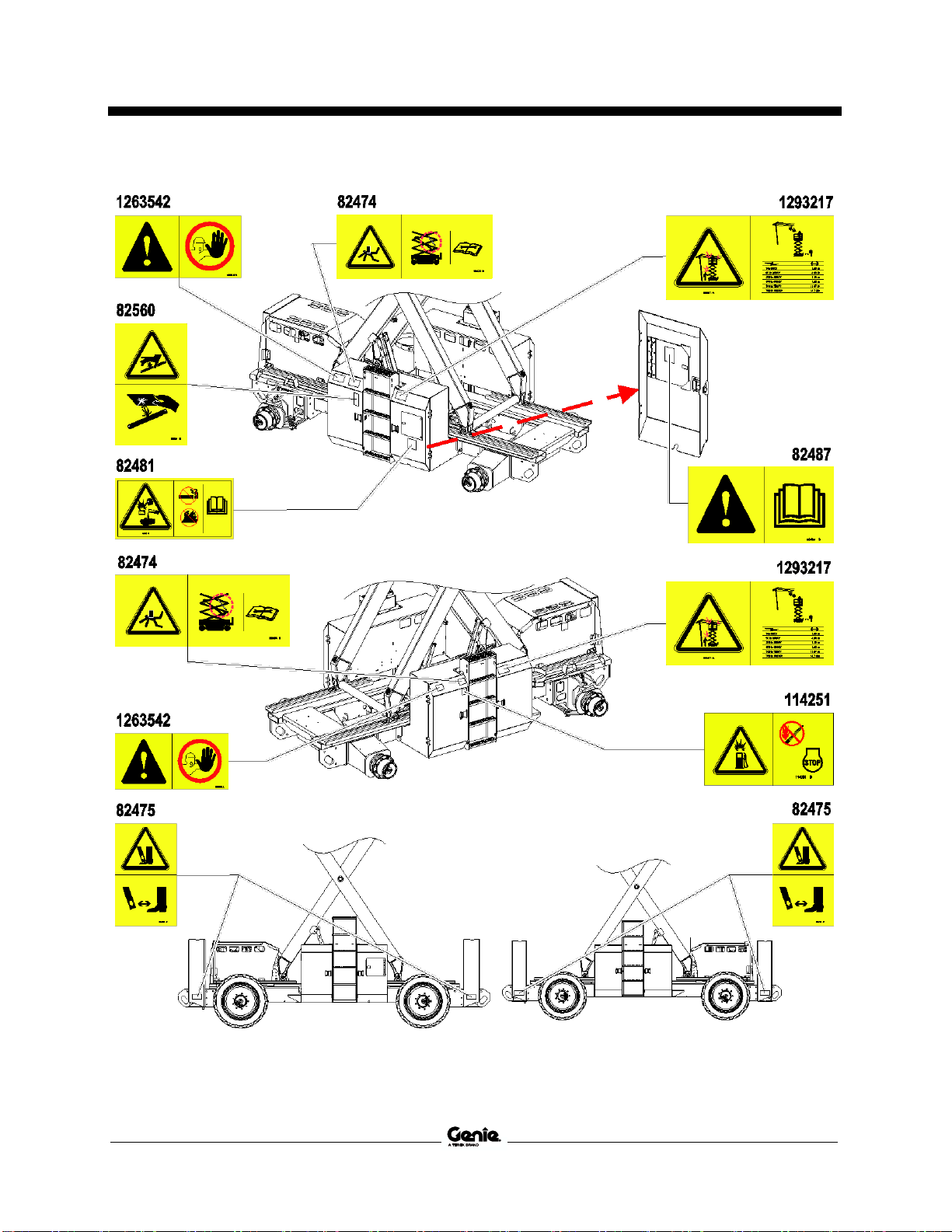

General Safety
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 9
GeneralSafety

Operator's Manual Fifth Edition • First Printing
General Safety
10 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT

Fifth Edition • First Printing Operator's Manual
General Safety
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 11

Operator's Manual Fifth Edition • First Printing
General Safety
12 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT

Fifth Edition • First Printing Operator's Manual
Personal Safety
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 13
PersonalSafety

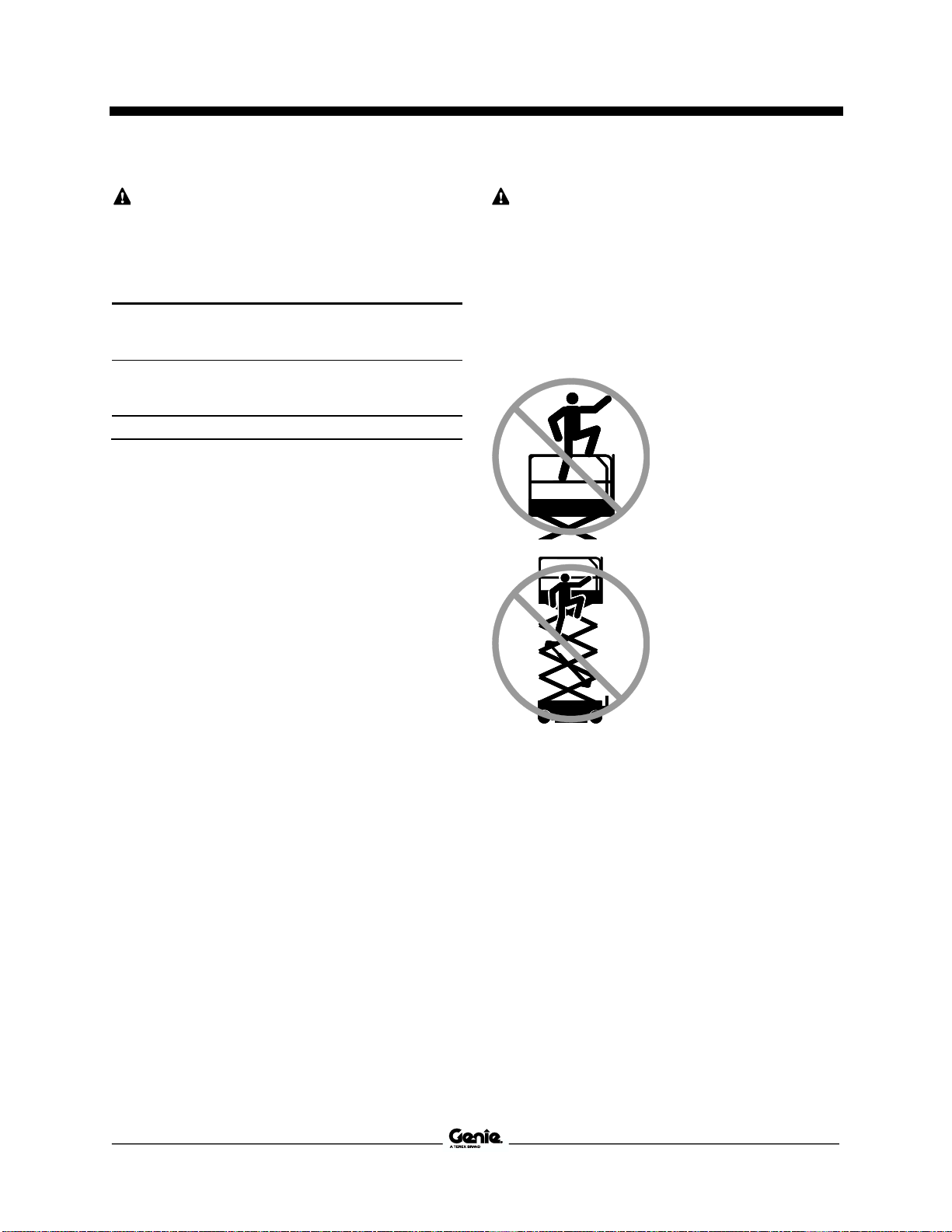

Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the
following shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
14 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Work AreaSafety Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental
regulations regarding
required clearance from
electrical power lines. At
a minimum, the required
clearance contained in
the chart below must be
followed.
Line Voltage
Required Clearance
0 to 50KV
10 ft
3.05 m
50 to 200KV
15 ft
4.60 m
200 to 350KV
20 ft
6.10 m
350 to 500KV
25 ft
7.62 m
500 to 750KV
35 ft
10.67 m
750 to 1000KV
45 ft
13.72 m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must
not touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum extension deck capacity
Maximum occupants
2 persons
(each extension deck)
Extension deck only
500 lbs / 227 kg
(each extension deck)
Maximum capacity –GS-3384 and GS-3390
Maximum occupants
7
Models with one platform extension
Platform retracted
2500 lbs
1134 kg
Platform only
2000 lbs
907 kg
Extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
2000 lbs / 907 kg
Models with two platform extensions
Platform retracted
2500 lbs
1134 kg
Platform with one extension out
2000 lbs
907 kg
Platform with two extensions out
1500 lbs
680 kg
Each extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
1500 lbs / 680 kg
Extension only
500 lbs / 227 kg

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 15
Maximum capacity - GS-4390
Maximum occupants
7
Models with one platform extension
Platform retracted
1500 lbs
680 kg
Platform only
1000 lbs
454 kg
Extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
1000 lbs / 454 kg
Models with two platform extensions
Platform retracted
1500 lbs
680 kg
Platform with one extension out
1000 lbs
454 kg
Platform with two extensions out
500 lbs
227 kg
Extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
500 lbs / 227 kg
Extension only
500 lbs / 227 kg
Maximum capacity –GS-5390
Maximum occupants
4
Models with one platform extension
Platform retracted
1500 lbs
680 kg
Platform only
1000 lbs
454 kg
Extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
1000 lbs / 454 kg
Models with two platform extensions
Platform retracted
1500 lbs
680 kg
Platform with one extension out
1000 lbs
454 kg
Platform with two extensions out
500 lbs
227 kg
Each extension only
500 lbs
227 kg
Extension only
500 lbs / 227 kg
Platform only
500 lbs / 227 kg
Extension only
500 lbs / 227 kg

Operator's Manual Fifth Edition • First Printing
Work Area Safety
16 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Do not raise the platform
unless the machine is on a
firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower
the platform.
Do not alter or disable the limit switches or angle
sensor.
Do not drive over 0.7 mph / 1.1 km/h with the
platform raised.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable side force
GS-3384
GS-3390
GS-4390
GS-5390
90 lbs / 400 N
90 lbs / 400 N
90 lbs / 400 N
90 lbs / 400 N
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1298223GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 17
Do not raise the platform when wind speeds may
exceed 28 mph / 12.5 m/s. If wind speeds exceed
28 mph / 12.5 m/s when the platform is raised,
lower the platform and do not continue to operate
the machine.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Do not drive the machine
on or near uneven terrain,
unstable surfaces or other
hazardous conditions with
the platform raised.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces and
near holes and drop-offs.
Do not alter or disable machine components that
in any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter a mobile elevating work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled
tires are properly inflated and lug nuts are properly
tightened.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
18 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1298223GT
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Model
Maximum slope
rating, stowed
position
Maximum side
slope rating,
stowed position
GS-3384
GS-3390
GS-4390
50% (26°)
50% (26°)
GS-5390
40% (22°)
40% (22°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Use approved lanyard attachment
point provided.
Do not sit, stand, or
climb on the platform
guard rails. Maintain a
firm footing on the
platform floor at all
times.
Do not climb down from
the platform when
raised.
Keep the platform floor clear of debris.
Do not enter or exit the platform unless the
machine is in the stowed position.
Attach the platform entry chain or close the entry
gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
