Bend-Pak LR-60 User manual

BendPak, Inc. Corporate Oce
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Customer Service Desk / Warranty
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
customerservic[email protected]
Parts Orders
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Domestic Sales & Service
USA Sales Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
International Sales & Service
Oce Tel: [phone]
Exports Dept: 1-805-933-9970 EXT. 192
Ext. Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
bpkex[email protected]om
Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
LR-60
PRODUCT SKU
5175729
DRAWING Nº
5260167
CATEGORY
Low-Rise Scissor Li
REV
Version AG
DATE
09.27.2022

DIMENSIONS ARE IN MM
☺
1
3
2
4
5
4
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AE REPLACED 5600001 WITH 5601768 01/17/2022 TM 01379
AF UPDATED BOM REVISION 01/21/2022 CA 01383
AG UPDATED BOM REVISION 07/29/2022 TM 01433
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245233 LR-60/60P LIFT SUPERSTRUCTURE 1 N
2 5250021 LR-60 PARTS BOX 1 L
3 5601768 POWER UNIT STAND WELDMENT 1 B
4 5701656 HYDRAULIC HOSE COVER 1372mm 1 A
5 REF POWER UNIT 1 -
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AG
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260167
LR-60 PRODUCTION LIFT
VER A
10/04/2010
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.
POWER UNIT REFERENCE ON PURCHASE ORDER 4.

DIMENSIONS ARE IN MM
☺
2
4
5
3
1
7
6
8
9
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
L UPDATED BOM REVISION 11/14/2018 TS 01025
M
REAPLCED 5505350 WITH 5505400, ADDED
5715035 AND 5530366, ADDED LOCK
HEIGHTS (pg2), UPDATED BOM REVISIONS
09/20/2019 CA 01128
N
REPLACED 5715035 WITH 5715048, 5530366
WITH 5530364, ADDED 5535357, MOVED
DIMENSION PAGE TO TOP LEVEL DRAWING,
UPDATED BOM REVISION
07/29/2022 TM 01433
NEXT ASSEMBLY
5260167
5260168

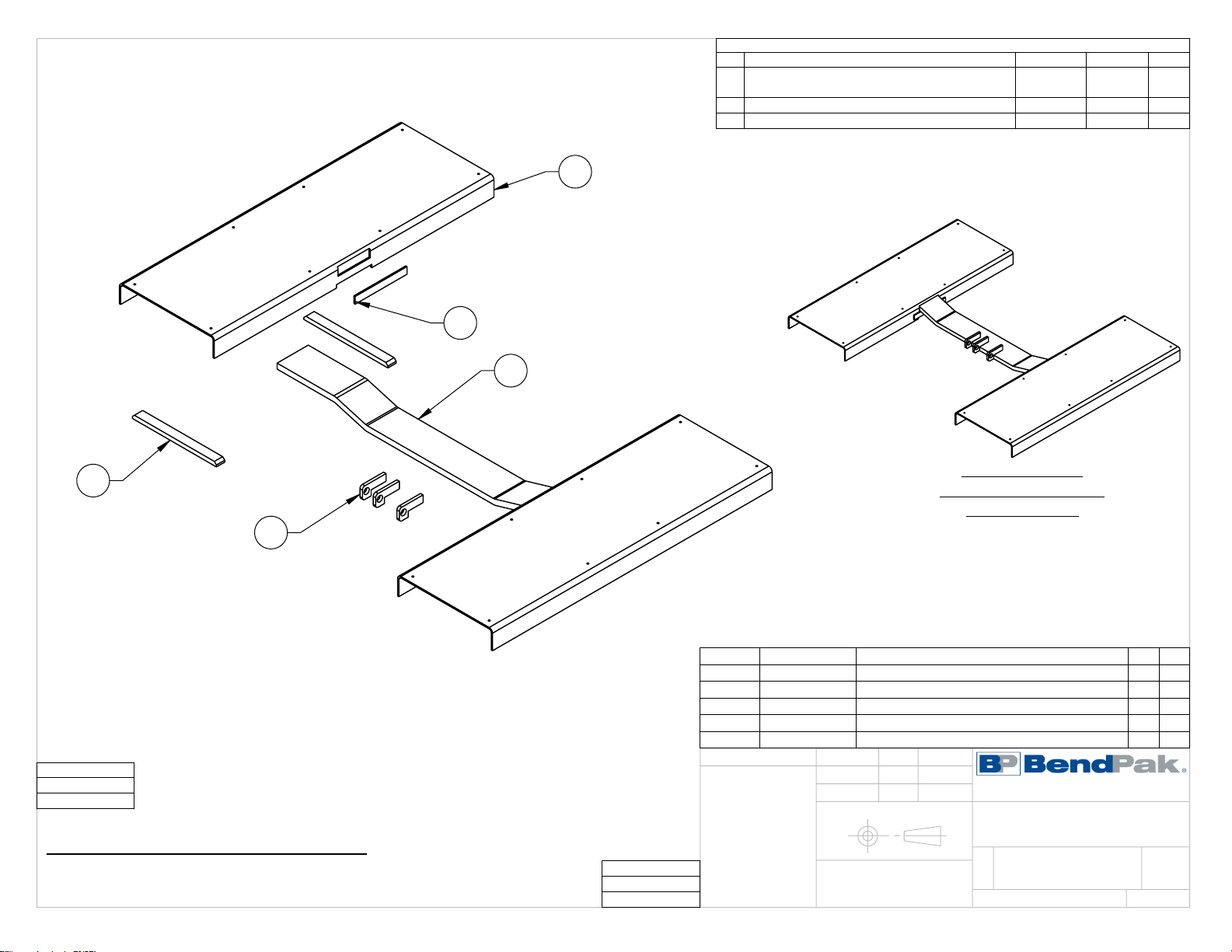

WHERE USED
LR-60 SERIES
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5210373 LR-60/60P SAFETY BAR ASSEMBLY 1 D
2 5502135 CYLINDER ASSEMBLY Ø3.0 X 18 1 E
3 5746587 UPPER HINGE PIN 1 B
4 5746586 DLR-6/LR-60 LOWER CYLINDER PIN 1 B
5 5505400 COTTER PIN Ø6 x 50mm 4 -
6 5600526 LR-60 LIFT WELDMENT 1 K
7 5715048 DLR-6, LR-60 RAMP BOLT-ON RUBBER PAD 4 A
8 5530364 ELEVATOR BOLT M6 x 1.0 x 25 16 A
9 5535357 NUT M6 x 1.0 NL 16 B
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
N
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245233
LR-60/60P LIFT
SUPERSTRUCTURE
10/04/2010
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.

DIMENSIONS ARE IN MM
☺
2
6
4
5
7
1
3
8
9
10
11
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J REPLACED 5545021 WITH 5545341 03/27/2019 CA 01067
K
REPLACED 5300002 WITH 5210232, 5530201
AND 5535119 WITH 5530312
09/23/2019 CA 01128
L ADDED 5580012 03/31/2020 TM 01152
WHERE USED
LR-60
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5210232 LOW RISE SCISSOR LIFT RUBBER PAD KIT, SET OF 8 1 A
2 5550103 FTG ELB -04 JIC -06 ORB 1 -
3 5570082 HOSE ASSY Ø6.4 x 2873mm SB 1 A
4 5530304 HHB M8 x 1.25 x 20 4 -
5 5535001 NUT M8 x 1.25 NL 4 -
6 5545341 WASHER M10 x Ø20 FLAT 4 -
7 5550147 FTG NPL -04 JIC x -04 NPT 1 -
8 5530456 AB 3/4" x 4 - 3/4" 5 -
9 5900337 LR-60/60P INSTALLATION MANUAL 1 -
10 5530365 AB 1/4" x 2 1/2" DRIVE 4 -
11 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
NEXT ASSEMBLY
5260167
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250021
LR-60 PARTS BOX
10/04/2010
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
OR 04/03/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
2
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5210944 09/18/2019 TM 01128
NEXT ASSEMBLY
ACCESSORY
5250020
5250021
5250034
5250054
5250062
5250063
5250064
5250110
5250174
5250317
5250318

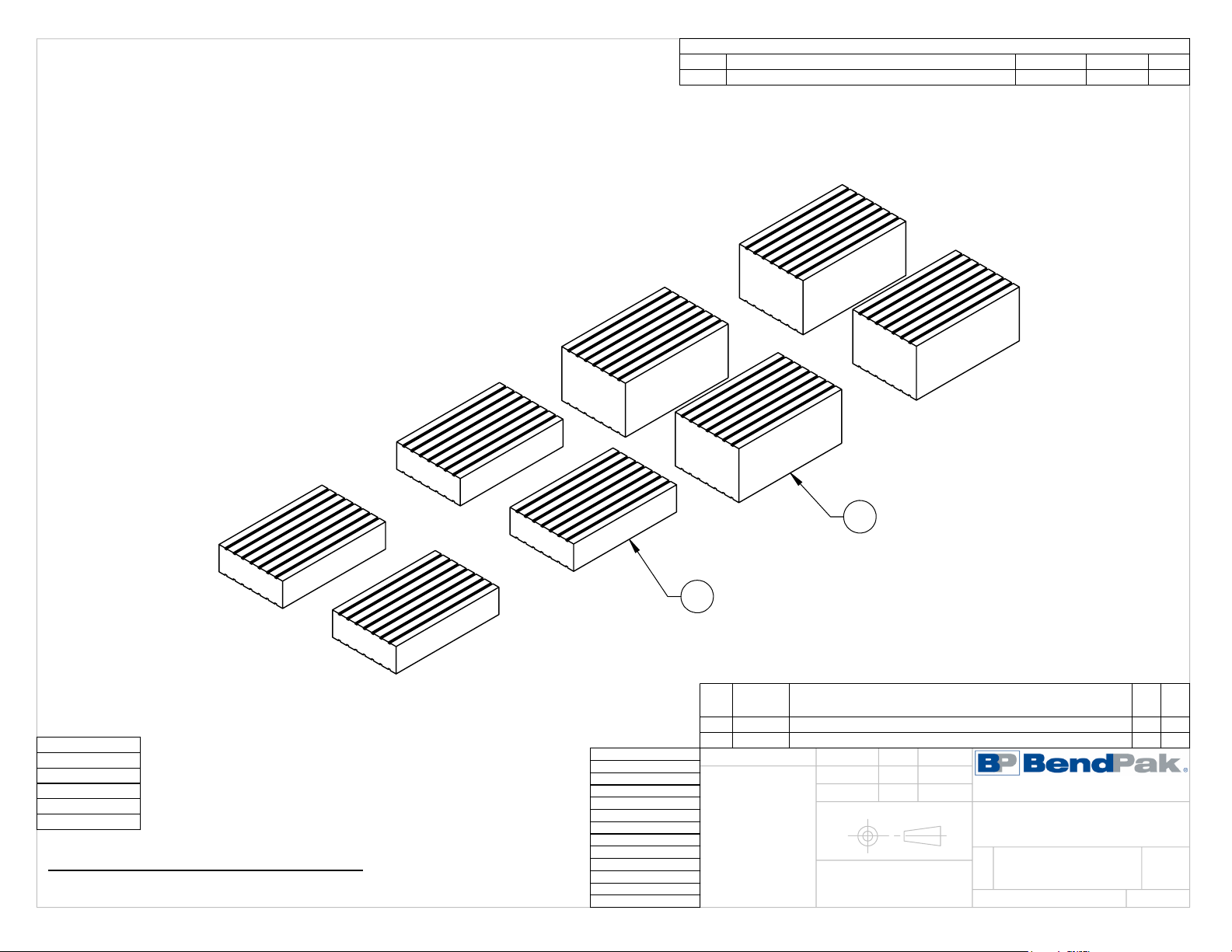

ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5300862 LOW RISE SCISSOR LIFT 75mm RUBBER PAD KIT, SET OF 4 1 A
2 5300861 LOW RISE SCISSOR LIFT 38mm RUBBER PAD KIT, SET OF 4 1 A
WHERE USED
LR-60 SERIES
DLR-6 SERIES
MDS-6 SERIES
P9000LT SERIES
SP-7XE SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5210232
LOW RISE SCISSOR LIFT
RUBBER PAD KIT, SET OF 8
09/18/2019
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
CA 11/01/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
3
2
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245233
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B UPDATED BOM REVISION 09/18/2015 JM 00726
C UPDATED BOM REVISION 09/18/2018 TM 00996
D UPDATED BOM REVISION 11/14/2018 TS 01025
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5210372 LR-60/60P SAFETY BAR WELDMENT 1 C
2 5736676 DLR-6/LR-60 SAFETY LATCH 1 E
3 5505141 SPRING PIN M6 x 36 2 --
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TS
5210373
LR-60/60P SAFETY BAR
ASSEMBLY
04/14/2014
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
CA 11/26/2018
ASSEMBLE ITEMS AS SHOWN 1.

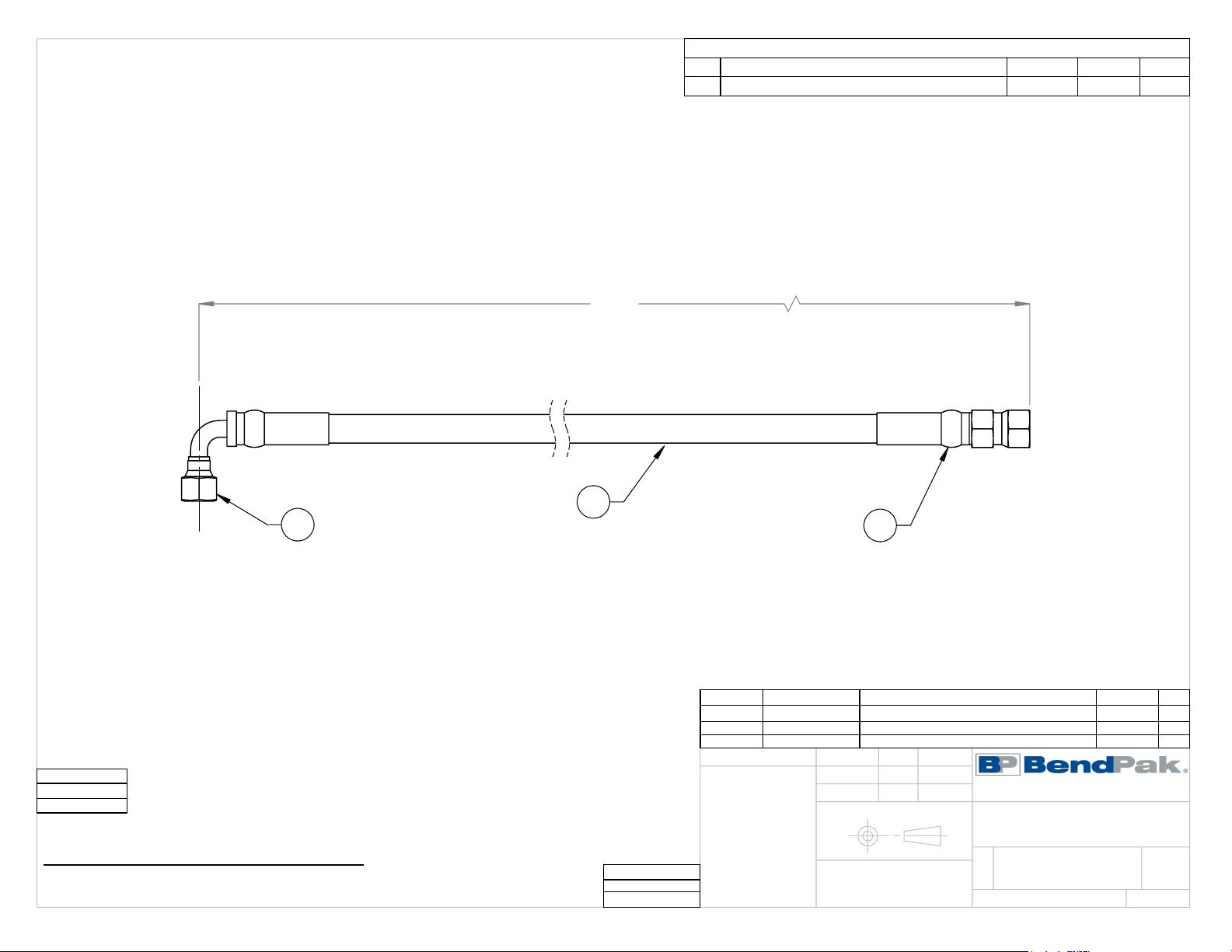

2873
3
1
2
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 2819mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
NEXT ASSEMBLY
5250021
5250317
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE DERIVED FROM 5570013 10/05/2016 TS 00781
WHERE USED
DLR-6
LR-60
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TS
5570082
HOSE ASSY Ø6.4 x 2873mm SB
10/05/2016
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DB 12/05/2016
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

2
1
3
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J
J-001
UPDATED BOM REVISIONS
UPDATED PAINT WAS BLUE NOW GREY
10/06/2016
06/12/2018
TS
TS
00781
00956
K
K-001
REMOVED 5715290, ADDED 5737142, REMOVED
GLUE NOTE, UPDATED BOM REVISIONS
ADDED 20% GLOSS PAINT NOTE
09/20/2019
08/11/2020
CA
TM
01128
01188
L REMOVED 5737142, UPDATED BOM REVISION 07/28/2022 TM 01433
WHERE USED
LR-60 SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5620455 DLR-6/LR-60 BASE WELDMENT 1 H
2 5620872 DLR-6/6P/LR-60/60P COVER WELDMENT 1 D
3 5720175 DL-6/6P/LR-60/P HINGE HOLDER 8 C
NEXT ASSEMBLY
5245233
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5600526
LR-60 LIFT WELDMENT
10/01/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
OR 08/25/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
DIMENSIONS SHOWN ARE AFTER PAINTING 4.
PAINT GRAY (RAL-7024) 20% GLOSS 5.
NOTE: UNLESS OTHERWISE SPECIFIED.

7
23
6
5
4
1
8
9
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F UPDATED BOM REVISION 03/21/2016 TM 00753
G UPDATED BOM REVISION 10/06/2016 TS 00781
H UPDATED BOM REVISION 09/26/2019 CA 01128
NEXT ASSEMBLY
5600526
5601562
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5620456 LR-60/60P CYLINDER CLEVIS AND SAFETY WELDMENT 1 C
2 5721001 BASE ANGLE 4 A
3 5620457 LR-60/60P REAR HINGE ARM WELDMENT 2 D
4 5701331 LR-60 DRIVE ON RAMP 2 B
5 5736343 LR-60P WHEEL SUPPORT ANGLE RH 1 A
6 5736344 LR-60P WHEEL SUPPORT ANGLE LH 1 A
7 5620137 LR-60/60P HINGE ARM WELDMENT 2 D
8 5735422 LR-60/P,P-6/F HINGED ARM STOP BAR 4 B
9 5720175 LR-60/P HINGE HOLDER 8 C
WHERE USED
DLR-6 SERIES
LR-60 SERIES
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5620455
DLR-6/LR-60
BASE WELDMENT
09/29/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 11/1/2019
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
NOTE: UNLESS OTHERWISE SPECIFIED.

2
3
4
1
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
REPLACED 5620003 WITH 5735422, UPDATED
BOM REVISION
04/15/2014 TS 00654
C ADDED 5735619, UPDATED NEXT ASSEMBLY 10/07/2016 TS 00781
D UPDATED BOM REVISION 07/28/2022 TM 01433
NEXT ASSEMBLY
5600526
5601562
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5736342 LR-60/60P PUSH BAR 1 A
2 5701333 DLR/LR-60/60P RAMP COVER 2 B
3 5736338 LR-60/60P TOP CLEVIS 3 A
4 5735422 LR-60/P,P-6/F HINGED ARM STOP BAR 4 B
5 5735619 LR-60/60P COVER REINFORCEMENT STRIP 2 A
WHERE USED
DLR-6 SERIES
LR-60 SERIES
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5620872
DLR-6/6P/LR-60/60P
COVER WELDMENT
10/01/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
OR 08/25/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
NOTE: UNLESS OTHERWISE SPECIFIED.

PART SPECIFICATION FORM STANDARD
BENDPAK Number:
5900337
MRP Description:
LR-60/60P INSTALLATION MANUAL
Date:
12/09/2020
ECO :
---
1. Engineering Specification
Application:
INSTALLATION MANUAL
Detailed Description:
Print Settings for BendPak Manuals
Unless otherwise specified, use these settings for
printing BendPak manuals:
Color: Black and white.
Size: A4 (210 to 297 mm), 8.5 by 11 inches
(216 to 279 mm), or between
Binding: Saddle stitched
Paper: 100 to 120 gsm (27 to 32 pound),
uncoated
2. Vendor Information (Or for Reference)
Approved Vendor
Vendor Part #
Contact #
PreferredVendor
1)
OR BENDPAK ENGINEERING APPROVEDEQUIVALENT
