Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
P-6FB
PRODUCT SKU
5175026
DRAWING Nº
5260281
CATEGORY
Open Center Pit Li
REV
Version AF
DATE
12.09.2022

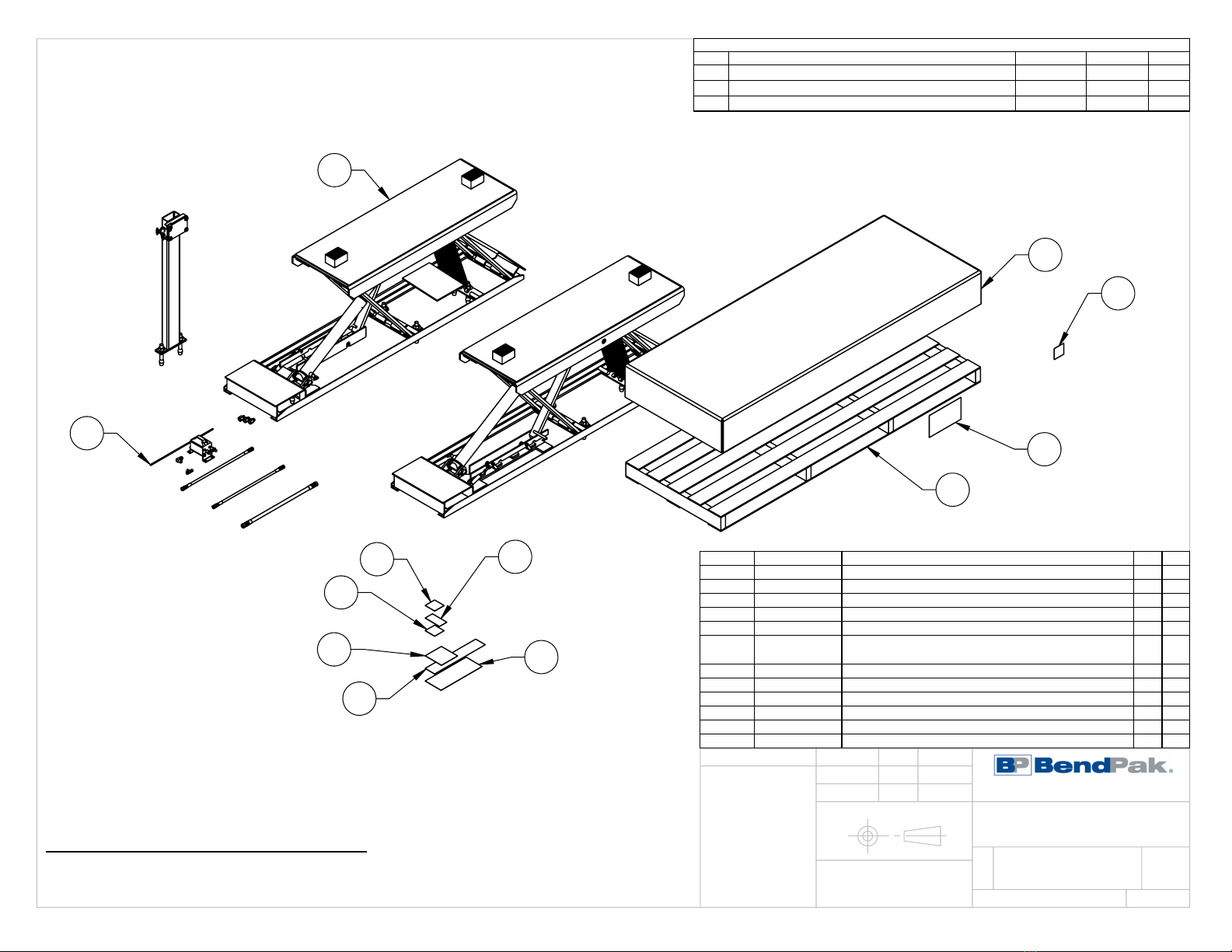

1
2
75
6
4
3
8
10
9
12
11
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AD REMOVED 5905135, UPDATED BOM REVISION 12/07/2017 TM 00913
AE UPDATED BOM REVISION 09/18/2018 TM 00996
AF UPDATED BOM REVISION 03/29/2019 CA 01067
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245152 P-6FB LIFT SUPERSTRUCTURE 1 X
2 5250118 PARTS BOX P-6B/P-6FB 1 Q
3 5905204 BENDPAK LABEL 1 --
4 5905465 MANUFACTURER LABEL 1 --
5 5905940 PRODUCT DATA LABEL 1 --
65905951
2017_SERIAL_TAG-B-5905951-VERTICAL-NO
BLEED
1 --

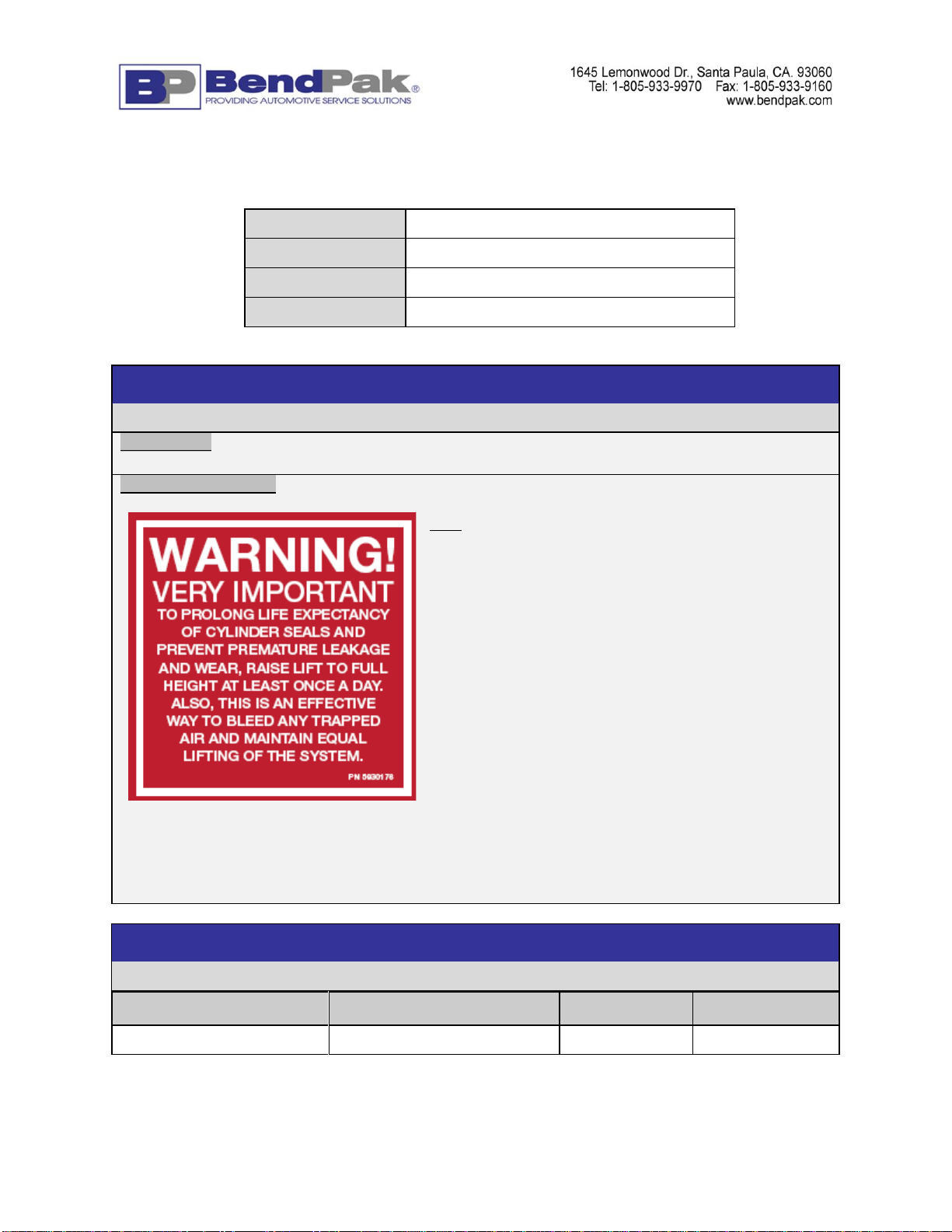

7 5905176 WARNING TO PROLONG LIFE 1 --
8 5905813 OPERATION INSTRUCTION, WARNING LABEL 1 --
9 5940006 P-6B/FB PALLET ASSEMBLY 1 A
10 5781007 P-6B/FB CARRIER BOX 1 A
11 5905285 SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL 1 --
12 5905963 P-6FB_PACKAGING_LABEL 1 --
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AF
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
AC
DIMENSIONS ARE IN MM
TOLERANCES: MACHINE TO
0 = ±1.5
0.0 = ±0.5
0.00 = ±0.13
ANGULAR: MACHINE TO
0. = ±½
°
SURFACE FINISH 1.6 Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
5260281
P-6FB PRODUCTION LIFT
VER C
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
-- --
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ALL LABELS TO BE APPLIED AFTER PAINTING 2.
SEE ATTACHED LABEL PLACEMENT SHEET 3.
09/01/2009

1800
457
2007
660
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
AF
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260281
P-6FB PRODUCTION
LIFT VER C
1:20
SCALE:

DIMENSIONS ARE IN MM
☺
8
3
14
7
5
6
2
9
NEXT ASSEMBLY
5250118
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5550395 FTG TEE -04 COMP x -04 COMP x -04 COMP 1 -
2 5550183 FTG ELB -06 JIC -06L ORB 1 -
3 5550550 FTG ELB -06 JIC -06 NPT 1 -
4 5550100 FTG NPL -04 JIC x -06 NPT 2 -
5 5545340 WASHER M8 x24 FLAT 4 -
6 5530050 HHB M8 x 1.25 x 30 4 -
7 5535001 NUT M8 x 1.25 NL 4 -
8 5550113 FTG ELB -04 NPT L x -04 JIC 2 -
9 5550142 FTG NPL -06 ORB x -06 F NPT 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D REPLACED 5550489 WITH 5550395 10/30/2013 TM 00593
E ADDED 5550201, UPDATED NEXT ASSEMBLY 07/14/2017 TM 00852
F REPLACED 5550201 WITH 5550142 12/07/2017 TM 00913
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5174113
P-6B/6FB PARTS BAG
09/01/2009
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
AW
12/18/2017
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

3
1
6
2
5
4
7
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E REPLACED 5550481 WITH 5550087 10/29/2013 TM 00593
F
REPLACED 5590240 WITH 5590175, UPDATED
NEXT ASSEMBLIES
05/05/2015 MR 00683
G
SWITCHED POSITIONS OF 5550087 AND
5550486, UPDATED NEXT ASSEMBLY
06/16/2016 TS 00765
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5700031 ZERO ANGLE MTG BRACKET 1 C
2 5590175 PUSH BUTTON AIR VALVE 1 B
3 5530043 SHCS M3 x 0.5 x 30 2 -
4 5545024 WASHER M3 x 9mm 2 -
5 5535020 NUT M3 x 0.5 NL 2 -
6 5550087 FTG ELB -04 COMP x -02 NPT 1 -
7 5550486 FTG NPL -02 NPT x -04 F NPT 1 -
NEXT ASSEMBLY
HD/HDS/HDSO
SERIES
5250118
5250249
5250364
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
ASSEMBLE ITEMS AS SHOWN 1.
AC
DIMENSIONS ARE IN MM
☺
5215096
PUSH BUTTON AIR ASSEMBLY
3/14/2008
DO NOT SCALE DRAWING
2:3
SCALE:
THIRD ANGLE PROJECTION
CA 09/02/2015

DIMENSIONS ARE IN MM
☺

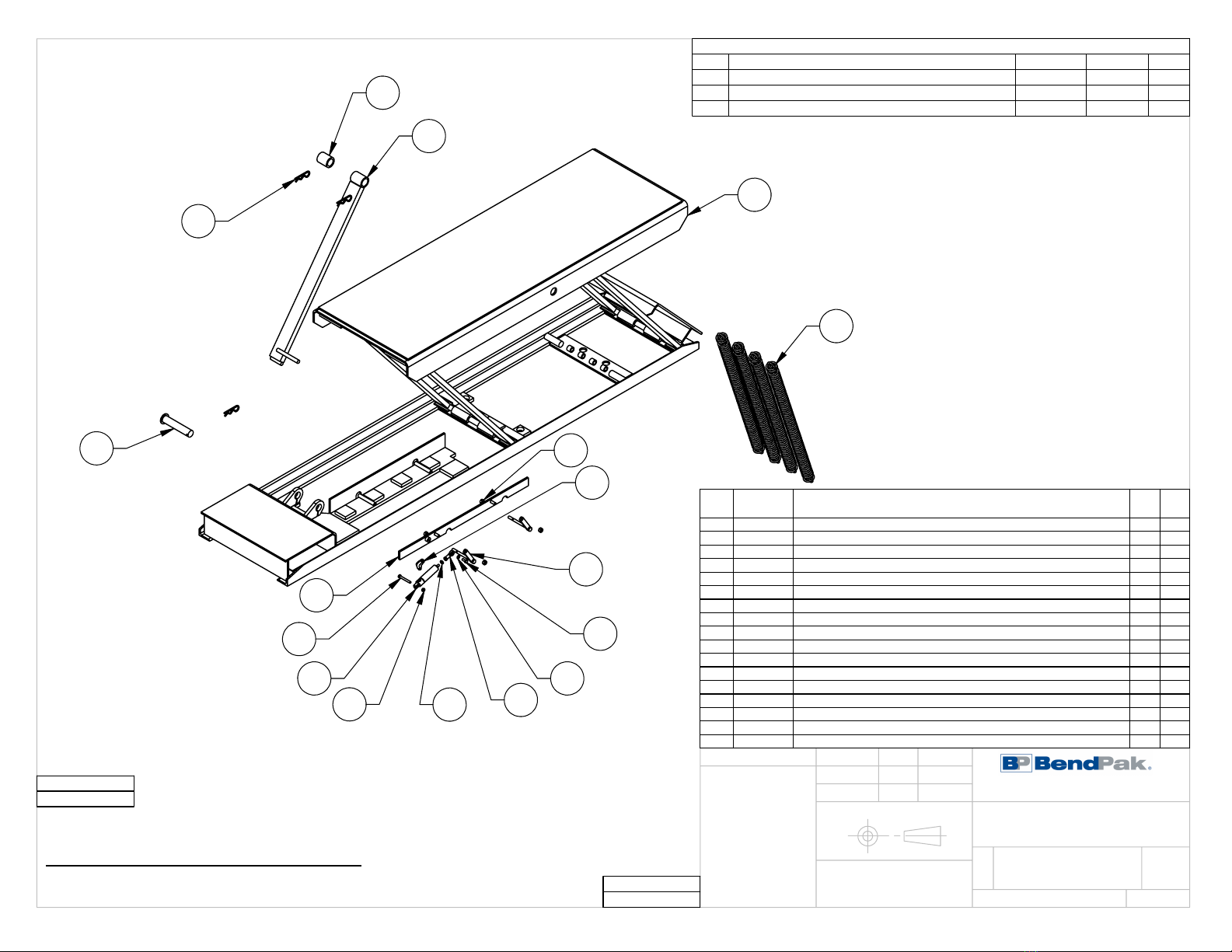

2
13
4
9
13
12
108
5
6
11
7
14
16
15
17
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5600012 P-6FB LEFT RAMP WELDMENT 1 R
2 5600004 P-6B/6FB LEFT SAFETY BAR WELDMENT 1 G
3 5505350 MODEL#211 HAIR PIN/ LARGE 3 -
4 5600177 P-6B/6FB LOWER HINGE PIN WELDMENT 1 A
5 5601195 P-6B SERIES FORWARD PIVOT ARM WELDMENT 2 A
6 5535001 NUT M8 x 1.25 NL 4 -
7 5600297 P-6B SERIES LEFT SAFETY LOCKOUT BAR WELDMENT 1 D
8 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 1 -
9 5530097 HHB M6 x 1.0 x 50 1 -
10 5535357 NUT M6 x 1.0 NL 1 -
11 5540282 SPRING P-6B / 6FB 4 A
12 5505625 FEMALE ROD END M6 x 33mm 1 -
13 5550087 FTG ELB -04 COMP x -02 NPT 1 -
14 5755231 P-6B/6FB SAFETY BAR SPACER 1 A
15 5545026 WASHER M6 x Ø12 SL 1 -
16 5530019 HHB M6 x 1 x 16 1 -
17 5535230 NUT 1/4-28 JN 1 -
WHERE USED
P-6FB
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
R UPDATED BOM REVISION 10/18/2017 TM 00898
T UPDATED BOM REVISION 09/18/2018 TM 00996
U REPLACED 5530064 WITH 5530097 03/27/2019 CA 01067
NEXT ASSEMBLY
5245152
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
U
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JR
5215304
P-6FB LEFT RAMP
ASSEMBLY
07/17/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
-- --
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
3
2
13
7
12
1
4
11
5
6
8
9
10
14
15
16
17
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5600013 P-6FB RIGHT RAMP WELDMENT 1 R
2 5505350 MODEL#211 HAIR PIN/ LARGE 3 -
3 5600177 P-6B/6FB LOWER HINGE PIN WELDMENT 1 A
4 5600005 P-6B/6FB RIGHT SAFETY BAR WELDMENT 1 G
5 5535001 NUT M8 x 1.25 NL 4 -
6 5600298 P-6B SERIES RIGHT SAFETY LOCKOUT BAR WELDMENT 1 D
7 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 1 -
8 5601195 P-6B SERIES FORWARD PIVOT ARM WELDMENT 2 A
9 5530097 HHB M6 x 1.0 x 50 1 -
10 5535357 NUT M6 x 1.0 NL 1 -
11 5540282 SPRING P-6B / 6FB 4 A
12 5505625 FEMALE ROD END M6 x 33mm 1 -
13 5550087 FTG ELB -04 COMP x -02 NPT 1 -
14 5755231 P-6B/6FB SAFETY BAR SPACER 1 A
15 5545026 WASHER M6 x Ø12 SL 1 -
16 5530019 HHB M6 x 1 x 16 1 -
17 5535230 NUT 1/4-28 JN 1 -
WHERE USED
P-6FB
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
R UPDATED BOM REVISION 10/18/2017 TM 00898
T UPDATED BOM REVISION 09/18/2018 TM 00996
U REPLACED 5530064 WITH 5530097 03/27/2019 CA 01067
NEXT ASSEMBLY
5245152
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
U
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215305
P-6FB RIGHT RAMP
ASSEMBLY
09/01/2009
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
-- --
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
4
1
2
3
5
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5215304 P-6FB LEFT RAMP ASSEMBLY 1 U
2 5215305 P-6FB RIGHT RAMP ASSEMBLY 1 U
3 5502340 CYLINDER ASSEMBLY Ø2.25 x 18 2 E
4 5600001 POWER UNIT STAND WELDMENT 1 A
5 5746621 P-6B SERIES CYLINDER SPACER 4 A
WHERE USED
P-6FB
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
V UPDATED BOM REVISIONS 10/18/2017 TM 00898
W UPDATED BOM REVISION 09/18/2018 TM 00996
X UPDATED BOM REVISIONS 03/27/2019 CA 01067
NEXT ASSEMBLY
5260281
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
X
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5245152
P-6FB LIFT
SUPERSTRUCTURE
09/01/2009
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
-- --
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.
VERIFY CYLINDER HYDRAULIC PORTS ARE CAPPED OFF 3.

DIMENSIONS ARE IN MM
☺
4
7
1
3
5
6
2
9
8
10
NEXT ASSEMBLY
5260280
5260281
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5174113 P-6B/6FB PARTS BAG 1 F
2 5530456 AB 3/4" x 4 - 3/4" 12 -
3 5570795 1/4" POLY-FLO TUBING 17145mm -
4 5215096 PUSH BUTTON AIR ASSEMBLY 1 G
5 5570153 P-6B SERIES HOSE ASSY Ø10 x 3130mm DS 1 A
6 5570154 P-6B SERIES HOSE ASSY Ø6 x 3640mm DS 2 B
7 5715003 POWER UNIT VIBRATION DAMPENER 1 B
8 5300002 55mm RUBBER PAD 4 C
9 5900119 P-6B/6FB INSTALLATION MANUAL 1 -
10 5590104
HYDRAULIC FLOW DIVIDER; SHANGHAI
TANG
1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N REPLACED 5300845 WITH 5300002 02/02/2017 TS 00808
P REMOVED 5550142, UPDATED BOM REVISION 07/14/2017 TM 00852
Q
REPLACED 5590135 WITH 5590104, UPDATED
BOM REVISION AND NEXT ASSEMBLY
12/07/2017 TM 00913
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5250118
PARTS BOX P-6B/P-6FB
09/01/2009
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
AW
12/18/2017
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

3130
2
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
A-001
PRODUCTION RELEASE, DERIVED FROM
5570002
UPDATED NEXT ASSEMBLY
08/28/2009
07/24/2013
AC
TM
00294
00611
NEXT ASSEMBLY
5250118
5250249
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5570116 Ø10 ID HYDRAULIC HOSE 3092mm* --
2 5550336 FTG NPL -06 CRIMP x -06 JIC 2 --
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
AC
5570153
P-6B SERIES HOSE ASSY
Ø10 x 3130mm DS
--
--
08/28/2009
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
MM 08/06/2013
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
ANGULAR: MACH 2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.
--

3640
2 1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
A-001
PRODUCTION RELEASE, DERIVED FROM 5570001
UPDATED NEXT ASSEMBLY
08/28/2009
07/24/2013
AC
TM
00294
00611
B REPLACED 5570110 WITH 5570126 09/21/2015 JM 00726
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 3602mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 2 -
NEXT ASSEMBLY
5250118
5250249
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
AC
5570154
P-6B SERIES HOSE ASSY
Ø6 x 3640mm DS
08/28/2009
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
CA 09/29/2015
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
ANGULAR: MACH 2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

4
2
3
1
6
5
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
P REMOVED 5550011, UPDATED BOM REVISION 03/21/2016 TM 00753
Q
ADDED 5700321 & 5735553, UPDATED BOM
REVISIONS
07/13/2017 TM 00852
R UPDATED BOM REVISIONS 09/18/2018 TM 00996

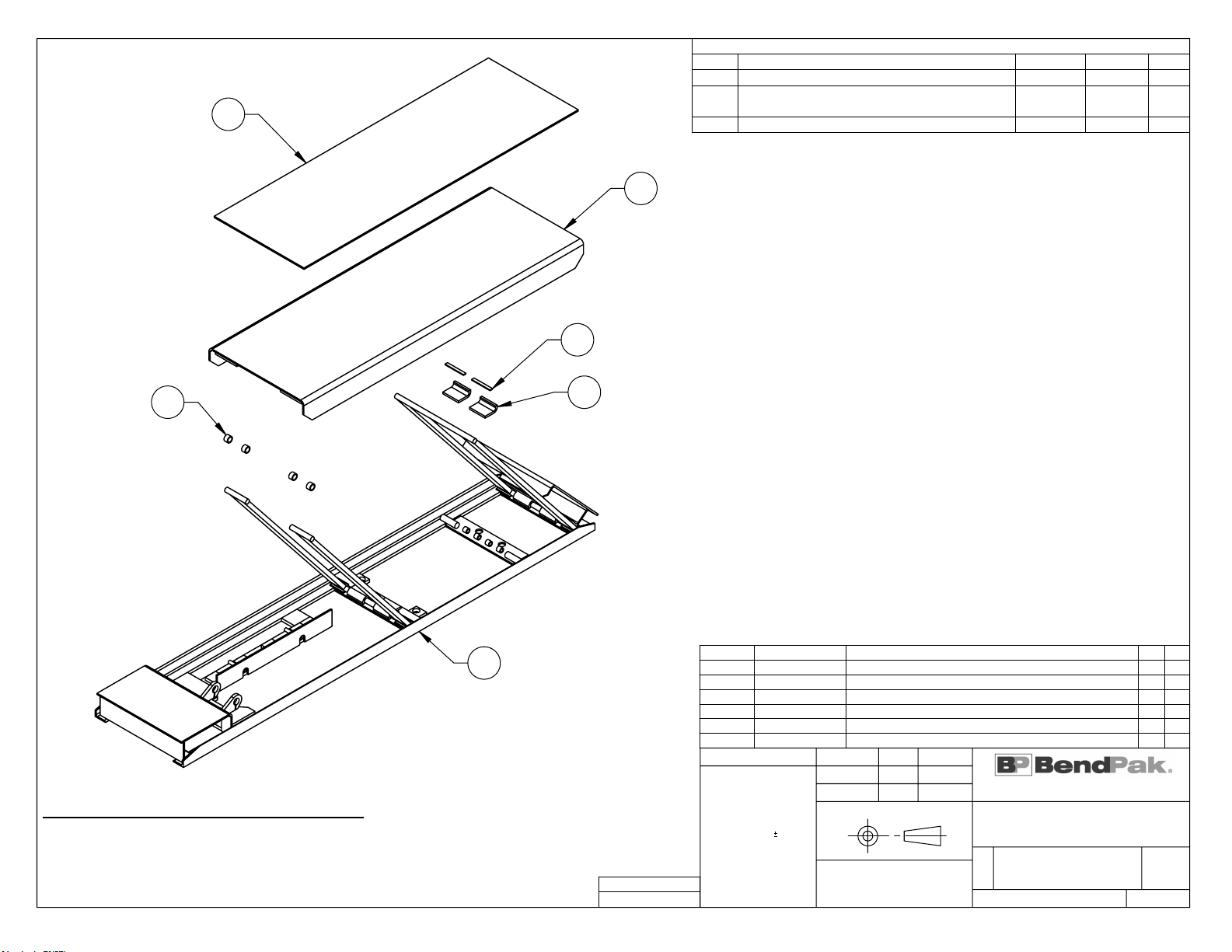

NEXT ASSEMBLY
5215304
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5620016 P-6FB LEFT BASE WELDMENT 1 Q
2 5620011 P-6B/6FB TOP PAD WELDMENT L.H. 1 D
3 5755001 HINGE PIN RETAINER 4 A
4 5715290 RUBBER TOP PAD 1 B
5 5700321 LR-10000/P-6B HINGE HOLDER 2 C
6 5735553 P-6B/6FB HINGE HOLDER SPACER 2 A
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
R
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5600012
P-6FB LEFT RAMP
WELDMENT
07/17/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 10/19/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
DIMENSIONS SHOWN ARE AFTER PAINTING 3.
PAINT BENDPAK GRAY (RAL-7024) 4.
ADHERE RUBBER PAD AFTER PAINTING USING 5580007 ADHESIVE 5.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

4
2
3
1
6
5
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
P REMOVED 5550011, UPDATED BOM REVISION 03/21/2016 TM 00753
Q
ADDED 5700321 & 5735553, UPDATED BOM
REVISION
07/14/2017 TM 00852
R UPDATED BOM REVISIONS 09/18/2018 TM 00996

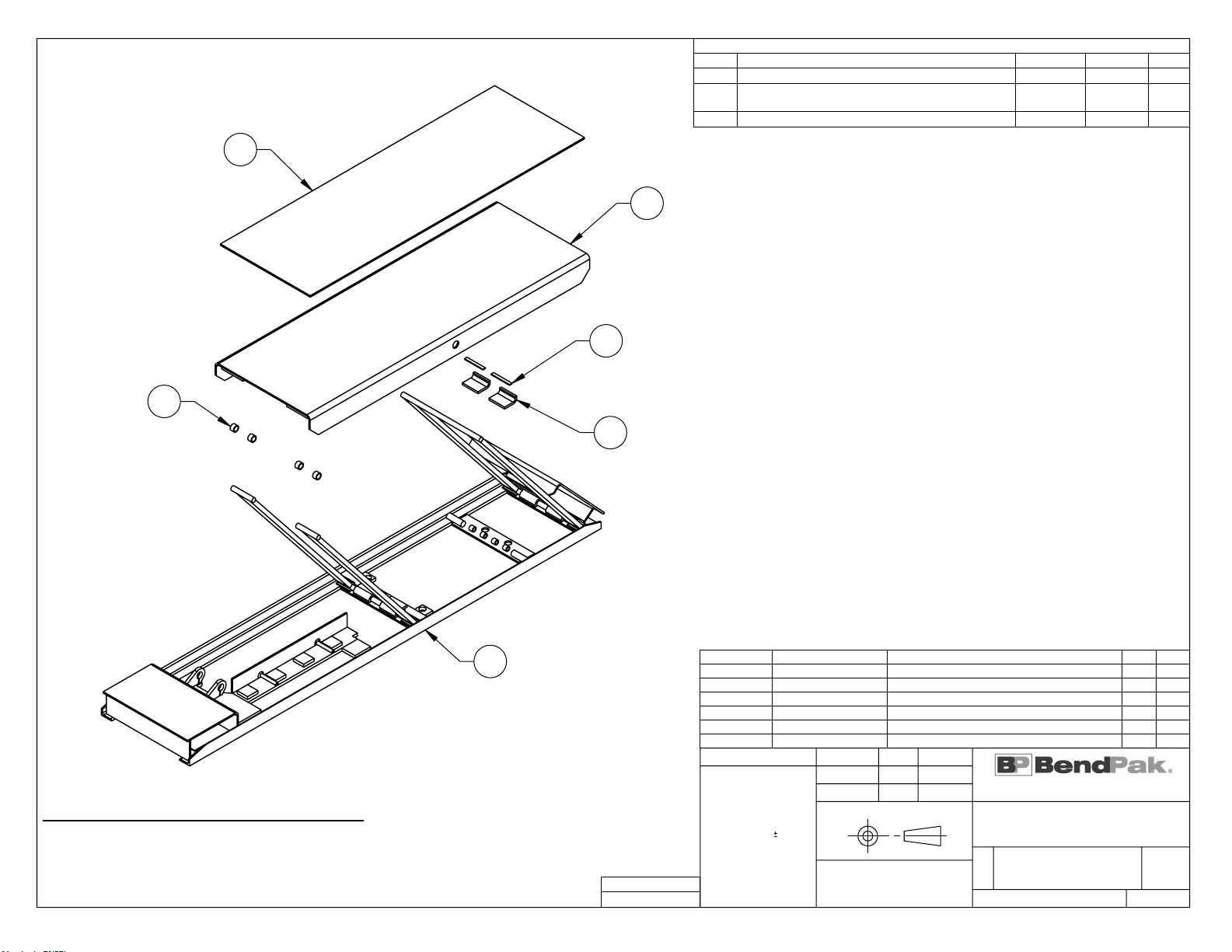

ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5620018 P-6FB RIGHT BASE WELDMENT 1 Q
2 5620014 P-6B/6FB TOP PAD WELDMENT R.H. 1 D
3 5755001 HINGE PIN RETAINER 4 A
4 5715290 RUBBER TOP PAD 1 B
5 5700321 LR-10000/P-6B HINGE HOLDER 2 C
6 5735553 P-6B/6FB HINGE HOLDER SPACER 2 A
NEXT ASSEMBLY
5215305
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
R
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5600013
P-6FB RIGHT RAMP
WELDMENT
07/17/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 10/19/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
DIMENSIONS SHOWN ARE AFTER PAINTING 3.
PAINT BENDPAK GRAY (RAL-7024) 4.
ADHERE RUBBER PAD AFTER PAINTING USING 5580007 ADHESIVE 5.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

1
6
5
7
2
3
8
4

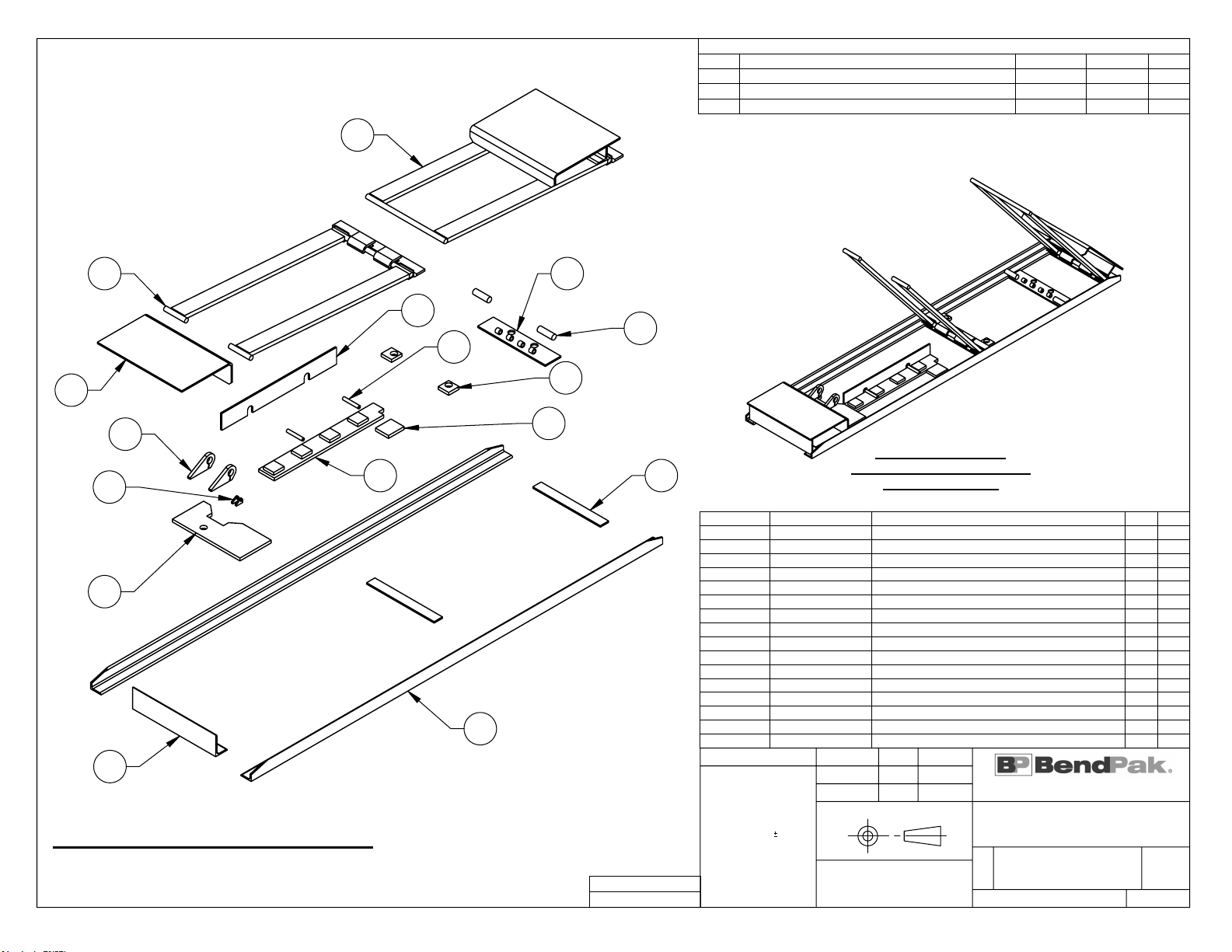

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
ADDED Ø28 HOLE, UPDATED TITLE TO REFLECT
WHERE USED
08/02/2012 TM 00538
C UPDATED BOM REVISION 04/21/2014 TS 00654
D 5755002 DISTANCE WAS 35 NOW 39.5 pg 2 07/13/2017 TM 00852
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5700003 TOP DECK / COVER 1 A
2 5735005 HINGE ARM SMALL STOP 2 A
3 5720205 HINGED ARM SPACER 2 A
4 5755002 SPRING RETAINER 4 A
5 5620003 HINGE ARM STOP 1 B
6 5735006 COVER END SUPPORT 1 A
7 5620010 L.H. CLEVIS MOUNT WELDMENT 1 A
8 5746587 UPPER HINGE PIN 1 A
NEXT ASSEMBLY
5600002
5600012
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5620011
P-6B/6FB TOP PAD
WELDMENT L.H.
10/02/2007
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
AW 8/1/2017
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
DO NOT WELD. MUST BE IN PLACE PRIOR TO WELDING. 1.
MUST ROTATE FREELY.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.

6
5
7
2
3
8
1
4
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
3
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
ADDED Ø28 HOLE, UPDATED TITLE TO REFLECT
WHERE USED
08/02/2012 TM 00538
C UPDATED BOM REVISION 04/21/2014 TS 00654
D 5755002 DISTANCE WAS 35 NOW 39.5 pg 2 07/13/2017 TM 00852
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5700003 TOP DECK / COVER 1 A
2 5735005 HINGE ARM SMALL STOP 2 A
3 5720205 HINGED ARM SPACER 2 A
4 5755002 SPRING RETAINER 4 A
5 5620003 HINGE ARM STOP 1 B
6 5735006 COVER END SUPPORT 1 A
7 5620013 R.H. CLEVIS MOUNT WELDMENT 1 A
8 5746587 UPPER HINGE PIN 1 A
NEXT ASSEMBLY
5600003
5600013
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5620014
P-6B/6FB TOP PAD
WELDMENT R.H.
10/02/2007
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
AW 8/1/2017
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
DO NOT WELD. MUST BE IN PLACE PRIOR TO 3.
WELDING. MUST ROTATE FREELY.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

1
7
4
9
8
15
12
5
13
3
2
10
6
11
14
16
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5721001 BASE ANGLE 2 A
2 5620017 P-6FB FLUSH REAR HINGE WELDMENT 1 H
3 5620006 P-6B/6FB ASYMMETRIC HINGE WELDMENT 1 H
4 5620008 SPRING MOUNT WELDMENT 1 B
5 5620009 L.H. SAFETY STOP WELDMENT 1 B
6 5735003 SAFETY SUPPORT BAR 1 A
7 5730001 CLEVIS SUPPORT PAD 1 B
8 5736002 BOLTING PAD / EYE 2 C
9 5730653 BOTTOM CYLINDER CLEVIS 2 B
10 5745002 LOAD RAMP HARD STOP 2 A
11 5755003 P-6B/6FB SAFETY PIVOT TUBE 2 C
12 5735004 BASE STIFFENING STRIP 2 A
13 5720001 FRONT SUPPORT ANGLE 1 A
14 5700005 P-6FB L.H. DRIVE ON RAMP 1 B
15 5730005 AIR CYLINDER CLEVIS 2 A
16 5736234 P-6B/6FB SAFETY GUIDE BAR 1 C
NEXT ASSEMBLY
5600012
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISIONS 10/06/2016 TS 00781
P UPDATED BOM REVISION 07/13/2017 TM 00852
Q UPDATED BOM REVISIONS 09/18/2018 TM 00996
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5620016
P-6FB LEFT BASE
WELDMENT
07/12/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 10/19/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
ARMS MUST SWING FREELY 3.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

1
7
4
9
8
15 125
13
3
2
10
6
11
14
16
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5721001 BASE ANGLE 2 A
2 5620017 P-6FB FLUSH REAR HINGE WELDMENT 1 H
3 5620006 P-6B/6FB ASYMMETRIC HINGE WELDMENT 1 H
4 5620008 SPRING MOUNT WELDMENT 1 B
5 5620012 R.H. SAFETY STOP WELDMENT 1 B
6 5735003 SAFETY SUPPORT BAR 1 A
7 5730001 CLEVIS SUPPORT PAD 1 B
8 5736002 BOLTING PAD / EYE 2 C
9 5730653 BOTTOM CYLINDER CLEVIS 2 B
10 5745002 LOAD RAMP HARD STOP 2 A
11 5755003 P-6B/6FB SAFETY PIVOT TUBE 2 C
12 5735004 BASE STIFFENING STRIP 2 A
13 5720001 FRONT SUPPORT ANGLE 1 A
14 5700007 P-6FB R.H. DRIVE ON RAMP 1 B
15 5730005 AIR CYLINDER CLEVIS 2 A
16 5736234 P-6B/6FB SAFETY GUIDE BAR 1 C
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISIONS 10/06/2016 TS 00781
P UPDATED BOM REIVISIONS 07/14/2017 TM 00852
Q UPDATED BOM REVISIONS 09/18/2018 TM 00996
NEXT ASSEMBLY
5600013
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
JR
5620018
P-6FB RIGHT
BASE WELDMENT
07/12/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 10/19/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
ARMS MUST SWING FREELY 3.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

PART SPECIFICATION FORM
BENDPAK Number
:
5900119
MRP Description
:
P-6B / FB INSTALLATION MANUAL
Date: 05/15/2018
ECO :
00903
1. Engineering Specification
Application:
INSTALLATION MANUAL
Detailed Description:
Approved Vendor Vendor Part # Contact # Preferred Vendor
1)
2. Vendor Information

PART SPECIFICATION FORM
BENDPAK Number:
5905176
MRP Description:
WARNING TO PROLONG LIFE
Date:
10/24/2014
ECO :
00654
1. Engineering Specification
Application:
SCISSOR CYLINDER WARNING
Detailed Description:
SIZE: 3” L x 3” W (76mm x 76mm)
Material: White Vinyl Pressure Sensitive Adhesive
Thickness: 4 Mil
Ink: U.V. protected CMYK 2/C Process
Finish: Polished
Print Process: Offset Lithography - 200 line-screen or 300 p.p.i.
for digital
Lamination: Clear-gloss over-laminate for abrasion,
chemical, and ultra violet protection
Approved Vendor
Vendor Part #
Contact #
Preferred Vendor
1)
2. Vendor Information
